Tekonsha Tow Harness, 7 Way Complete Kit TK22126TekonshaOriginal price was $316.25. Current price is $226.33.In Stock
View productAsk a Question About This Product
Our in-house experts typically reply within one business day.
Our in-house experts typically reply within one business day.
Tekonsha
Verify Fitment
Select your vehicle to confirm this part fits.
2016 - 2023 Toyota Tacoma
Confirmed to Fit
Always the correct part
We know our products
Quality Products
Free Shipping!
Always the correct part
We know our products
Quality Products
Free Shipping!
Tekonsha Tow Harnesses are the replacement for your factory electrical connector to the back of your vehicle. These harnesses are used to link the wiring from your vehicle to the trailer when towing. Tekonsha Tow Harnesses feature custom designs to fit each vehicle make and model based on manufacturer specifications. Plus, the Plug & Play connectors on the end of the wires make it easy to install. No cutting or splicing!
Tekonsha offers the largest, most complete line of Replacement Tow Harnesses. Hit the road with the peace of mind only Tekonsha can provide. Life's a Journey. Stop Often.
| BRAND: | TEKONSHA |
| PART NUMBER: | 22117 |
| WARRANTY: | LIMITED 1 YEAR WARRANTY |
| WEIGHT: | 4.8 LBS |
| UNIVERSAL OR SPECIFIC FIT: | SPECIFIC |
| CIRCUIT PROTECTED: | NO |
| HARNESS TYPE: | MALE FEMALE |
| TERMINAL QUANTITY: | 7 |
| WIRE COLORS: | BROWN, GREEN, YELLOW, WHITE |
| WIRE QUANTITY: | 7 |
| WIRE GAUGE: | 18 AWG, .85 AVSS |
| POWER LEAD REQUIRED: | YES |
| ELECTRICAL SYSTEM TYPE: | 3-WIRE SYSTEM |
| HARDWARE INCLUDED: | YES |
| AMPERAGE: | 30 A |
Tekonsha is a leading manufacturer of electronic trailer brake controllers, pioneering the category in the 1970s. The lineup spans proportional units such as the Prodigy P3 and Prodigy iD, time-delayed controllers, the wireless Prodigy RF, plus vehicle-specific wiring harnesses, adapters and trailer brake components engineered for smooth, predictable stopping at any speed.
Tekonsha Engineering Company began in 1964 building RV steps and mirrors. Within a few years it had found its real calling, and by the 1970s Tekonsha was pioneering the manufacture of electronic trailer brake controllers, the product category that still defines the brand. More than half a century later it remains the reference name in trailer braking and is part of the Horizon Global group alongside Reese, Draw-Tite, Fulton, Bulldog and Wesbar.
A brake controller is the component that tells a trailer's electric brakes how hard to work and when, and getting that right is the difference between a controlled stop and a shove from behind. Tekonsha builds both major types. Proportional controllers use an internal accelerometer to sense how quickly the tow vehicle is slowing and apply trailer braking to match, so light braking stays light and hard braking is immediate. Time-delayed controllers ramp to a preset output over a fixed interval, a simpler and more economical approach that suits occasional towing.
The current brake controller range covers most of that ground. The Prodigy iD pairs with a phone through Tekonsha's EDGE technology for setup and monitoring, the P3 offers storable settings for multiple trailers and a trilingual colour LED display, the Prodigy P2 adds a dimmable display and boost mode for heavier loads, and the Voyager keeps operation simple and dependable. The Prodigy RF mounts to the trailer itself and controls wirelessly, which suits rental fleets and drivers who swap tow vehicles.
Installation is supported by vehicle-specific brake control harnesses that plug into a factory connector rather than requiring cut-and-splice wiring, along with mounting brackets and adapters. Matched controller bundles pair a unit with the correct harness. Products are tested to meet and often exceed published industry standards.
Experts available to answer your questions
Call 888-634-94941 Year
1 compatible vehicles
| Year | Make & Model | Notes |
|---|---|---|
| 2016 - 2023 | Toyota Tacoma | Tow Harness Wiring Package Drilling Required Install Time is 90 minutes |
The Tekonsha Tow Harness, 7-Way Complete Kit TK22117 (Part #TK22117) fits 2016-2023 Toyota Tacoma models. The 2023 model year is the last year covered by this part number. For newer models, check for an updated version.
Yes, the Tekonsha Tow Harness, 7-Way Complete Kit TK22117 (Part #TK22117) is designed to fit the 2016-2023 Toyota Tacoma.
The Tekonsha Tow Harness, 7-Way Complete Kit TK22117 (Part #TK22117) fits the following vehicles: 2016-2023 Toyota Tacoma. Always verify your specific year, make, and model before ordering.
The Tekonsha Tow Harness, 7-Way Complete Kit TK22117 (Part #TK22117) Drilling is required for installation. Basic hand tools are typically all you need.

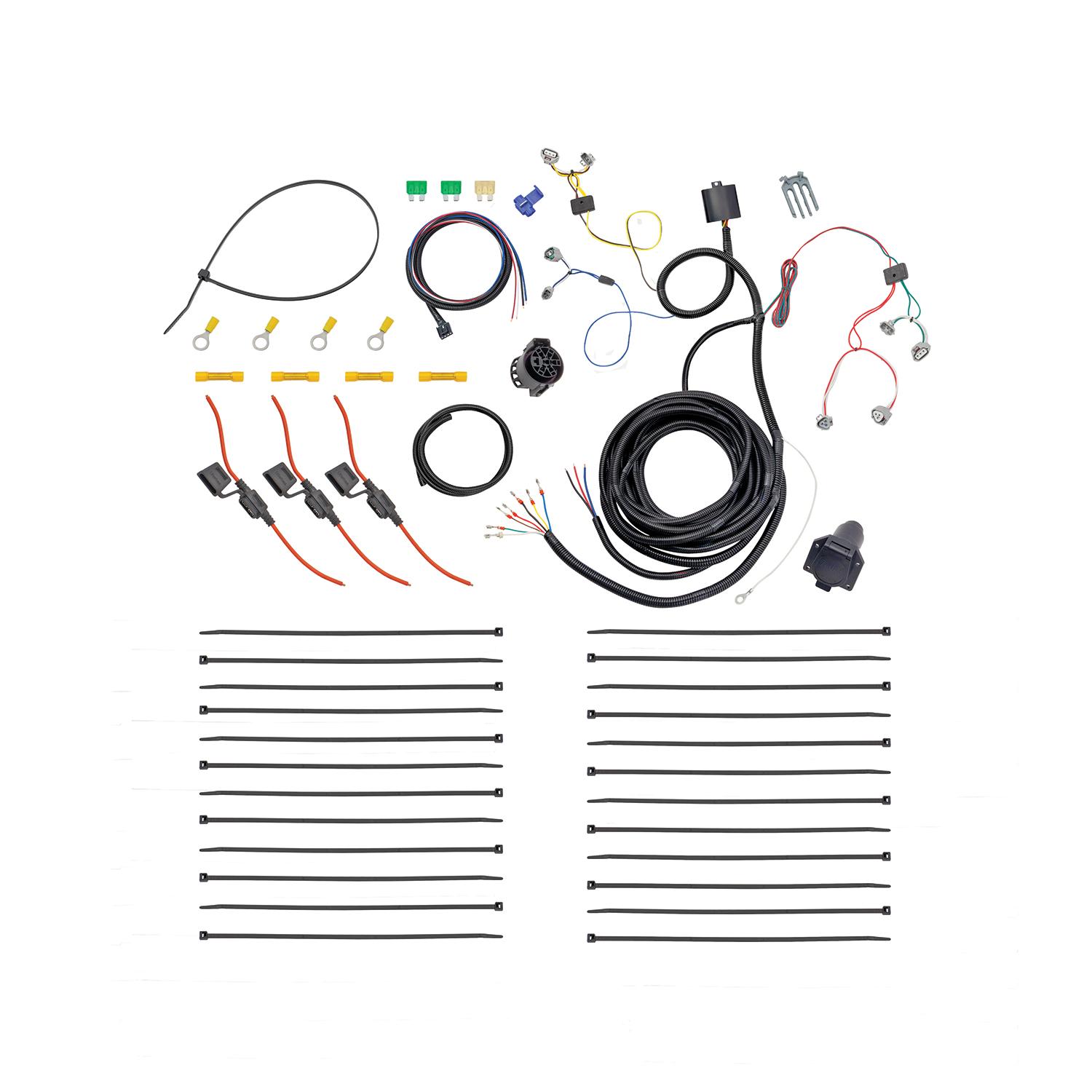

The kit includes: 24 cable ties (8.5"), 1 cable tie (14.5"), convoluted tubing, 1 wire tap, 1 fuse (25 AMP), 2 fuses (30 AMP), 4 ring terminals, 3 fuse holders, 4 yellow butt connectors, 1 double-sided tape, and the T-One T-connector ends with Modulite box. The kit does not include a brake control unit (sold separately) or a 7-way socket bracket.
Required tools: 10mm socket, ratchet, trim panel puller, Phillips head #2 screwdriver, wire cutters, wire strippers/crimpers, tester or volt meter, and a heat gun. The kit includes some consumables (cable ties, fuses, connectors) but you must supply the tools listed above.
The manual does not specify vehicle makes, models, years, bed lengths, cab styles or drivetrain compatibility. The kit is designed for vehicles with rear combination lights and factory wiring suitable for 7-way trailer connector installation. Contact Tekonsha at 800-632-3290 or visit www.tekonsha.com to confirm fitment for your specific vehicle.
Yes. The kit includes a Brake Control Harness designed to work with Tekonsha electric brake controls such as models 90195, 90885, or 90160 (sold separately). The brake control unit itself is not included in this kit. Visit www.tekonsha.com for details on which brake control model suits your trailer.
Yes. You must disconnect and isolate the vehicle's negative battery terminal before beginning installation. Reconnect the negative battery cable only after all wiring is complete, tested, and all coverings and grommets are replaced.
1. Disconnect and isolate the vehicle's negative battery terminal. 2. Locate the positive battery post underneath the hood on the driver's side. 3. Open the tailgate and use a 10mm socket to remove the rear combination lights and set them aside. 4. Ensure all connector surfaces are clean and free of dirt before connecting any wiring.
Beginning at the driver's side tail light pocket, connect the housing containing the T-One T-connector ends with yellow, brown, and blue wires to the vehicle wiring connector. Ensure all connector surfaces are clean and free of dirt. Then route the T-One T-connector end with red and green wires behind the rear bumper fascia to the passenger side access point and up into the tail light pocket. Repeat the connection step from the driver's side. Finally, connect the T-One T-connector ends to the rear combination lights, being careful not to damage the locking tabs and ensuring the connector is fully inserted with locking tabs in place. Replace the rear combination lights.
Locate the ground stud in the driver's side taillight pocket and secure the T-connector's ring terminal with the nut provided. Alternatively, locate a suitable grounding point near the adapter such as the vehicle frame or crossmember. Do not drill into the vehicle floor or bed. Clean dirt and rustproofing from the area. Drill a 3/32" hole and secure the white wire using the eyelet and screw provided.
Mount the Modulite box using the supplied double-sided tape and/or cable tie. Choose a suitable location on the vehicle that is protected from moisture and heat.
Beginning underneath the vehicle on the driver's side, route the body harness with red/black/blue wires down the frame rails following the existing body harness to the engine compartment. Route the wires carefully to avoid any hot pipes, heat shields, fuel tank, or any other points that may pinch or break the wire. The black wire connects to the vehicle's positive post using a 30 amp fuse holder (7-Way), butt connector, and ring terminal. The red wire connects to the vehicle's positive post using a 25 amp fuse holder (Tow Harness), butt connector, and ring terminal.
1. Determine a suitable mounting point on the tow vehicle for the brake control harness. 2. Route the white/blue/black wires through an existing grommet on the firewall into the engine compartment, creating a small hole in the grommet if needed. 3. Route the white wire to an existing vehicle chassis ground point using the provided ring terminal. 4. Route the black wire to the vehicle's positive post using a 30 amp fuse holder (Brake Control), butt connector, and ring terminal. 5. Route the blue wire (Electric Brake Output) to the body harness blue wire using a butt connector. 6. Cover the blue/black wires (and partially the white wire) from the grommet to the fuse holder using supplied convoluted tubing. 7. Route the red wire to the cold side switch of the brake pedal using the supplied wire tap or best suited alternative. 8. Secure the brake harness connector near the desired brake control mounting location.
1. Determine the 7-way mounting location. 2. Route the 7-way harness containing the 7 wires behind the rear bumper fascia and over the bumper support bracket towards the mounting location. 3. Using the wire insertion detail provided, pin the 7-way connector. 4. Connect the 7-way connector and 7-way socket. 5. Mount the 7-way (note: bracket is not included). 6. Secure the harness with the cable ties provided to prevent damage or rattling, being careful to avoid areas that would pinch, cut, or melt the wire.
Drilling is required only if you use an alternative grounding point instead of the existing ground stud in the driver's side taillight pocket. If drilling is necessary, drill a 3/32" hole in the vehicle frame or crossmember (never in the vehicle floor or bed) and secure the white wire using the eyelet and screw provided. Some grommets may need to be altered to allow wires to pass through; seal altered grommets with silicone.
Drill a 3/32" hole for the white ground wire. Secure it using the eyelet and screw provided in the kit.
The kit includes one 25 AMP fuse for the Tow Harness power module and two 30 AMP fuses: one for the 7-way connector and one for the brake control. Do not exceed these ratings. The 25 AMP fuse protects the tow harness power module, and the 30 AMP fuses protect the 7-way connector and brake control circuits respectively.
T-One T-connector (yellow/brown/blue wires): connect to driver's side rear combination light. T-One T-connector (green/red wires): connect to passenger's side rear combination light. Body harness: black wire to positive battery post (30 AMP fuse), red wire to positive battery post (25 AMP fuse), blue wire to trailer brakes. Brake control harness: white wire to chassis ground, black wire to positive battery post (30 AMP fuse), blue wire (electric brake output) to body harness blue wire, red wire to cold side switch of brake pedal. All connections use ring terminals, butt connectors, or wire taps as specified.
The blue wire tap provided is designed for 16-18 gauge wire only. If your vehicle's brake pedal switch wiring is a different gauge, use an appropriate alternative connector.
Apply heat directly to the butt connectors using a heat gun or other heat source, working from the center out to the edges, until the tubing recovers and the adhesive flows. Allow the connectors to cool before inspecting the splice and checking integrity.
Do not exceed the following circuit capacities: maximum 2 stop/turn/backup lights per side (4.2 amps total), maximum tail lights (12 amps), maximum 7-way 12 volt positive (30 amps). Overloading the circuit can cause fires. Consult your vehicle's owner's manual for additional information on your vehicle's electrical capacity.
When using a volt meter or circuit tester, carefully probe one wire at a time. Do not probe across two wires or across the vehicle structure, as this can cause electrical damage or injury. Wear safety glasses during the entire installation process.
After installation is complete: 1. Reconnect the vehicle's negative battery cable. 2. Test and verify the installation with a test light or by connecting an actual trailer. 3. Check that all lights function correctly (tail lights, brake lights, turn signals, backup lights). 4. Verify that the 7-way connector powers up and all pins function as expected. If any function fails, refer to the troubleshooting guide.
After installation: 1. Ensure all coverings, grommets, and components removed during installation are replaced. 2. Verify that altered grommets are sealed with silicone. 3. Check that all cable ties are secure and wires are protected from pinching, cutting, or melting. 4. Confirm that the T-One T-connector ends are fully inserted and locked in place on the rear combination lights. 5. Test all functions (tail lights, brake lights, turn signals, backup lights, trailer brakes if equipped) with a test light or trailer.
The manual does not specify any routine maintenance requirements. However, periodically inspect the installation to ensure: cable ties remain secure, wires are not damaged or pinched, connectors remain fully seated and locked, and all fuses are intact. If you notice any loose connections or damaged wires, reconnect or repair them immediately.
The kit fits vehicles with rear combination lights and factory wiring suitable for 7-way trailer connector installation. The manual does not specify vehicle makes, models, or years. Contact Tekonsha at 800-632-3290 or visit www.tekonsha.com to confirm fitment for your specific vehicle.
Yes. Disconnect and isolate the vehicle's negative battery terminal before starting installation. Reconnect it only after all wiring is complete and tested.
One 25 AMP fuse (Tow Harness) and two 30 AMP fuses (7-way and Brake Control). Do not exceed these ratings or overloading may cause fires.
Wear safety glasses at all times. Route wires carefully to avoid hot pipes, heat shields, fuel tank, and pinch points. Do not probe across two wires with a volt meter. Do not drill into the vehicle floor or bed. Seal altered grommets with silicone.
1. Ensure the T-One T-connector ends are fully inserted and locked in place on the rear combination lights. 2. Remove the Tow Harness power module 25 amp fuse for 10 seconds and repeat the test. 3. Check chassis grounds: ensure ring terminals are in full contact with the vehicle's chassis. Remove the 25 amp fuse for 10 seconds and repeat the test. If the problem persists, contact a Tekonsha approved installer.
1. The installation may have activated circuit protection. Start the vehicle and turn all functions off: tail lights (headlights), brake, and turns. Remove the Tow Harness power module 25 amp fuse for 10 seconds and repeat the test. 2. Ensure the 25 amp fuse is fully inserted into the fuse holder with no breaks. 3. Verify the fuse holder is connected properly to the positive post of the battery. Remove the 25 amp fuse for 10 seconds and repeat the test. 4. Ensure the module is connected to B+ (positive). Using a tester or volt meter, check for voltage on either side of the yellow butt connector near the module. Remove the 25 amp fuse for 10 seconds and repeat the test. If power is still absent, contact a Tekonsha approved installer.
