UWS Bright Aluminum 60" Wedge Utility Chest Box (Heavy Packaging) EC20351UWSOriginal price was $795.95. Current price is $722.95.In Stock
View productAsk a Question About This Product
Our in-house experts typically reply within one business day.
Our in-house experts typically reply within one business day.
UWS
Always the correct part
We know our products
Quality Products
Free Shipping!
Always the correct part
We know our products
Quality Products
Free Shipping!
Free Shipping
Warranty: Limited Lifetime Warranty (One-Year Finish, One-Year Parts)
Finish: BRIGHT ALUMINUM
Material: Aluminum
Part Type: Chest Box

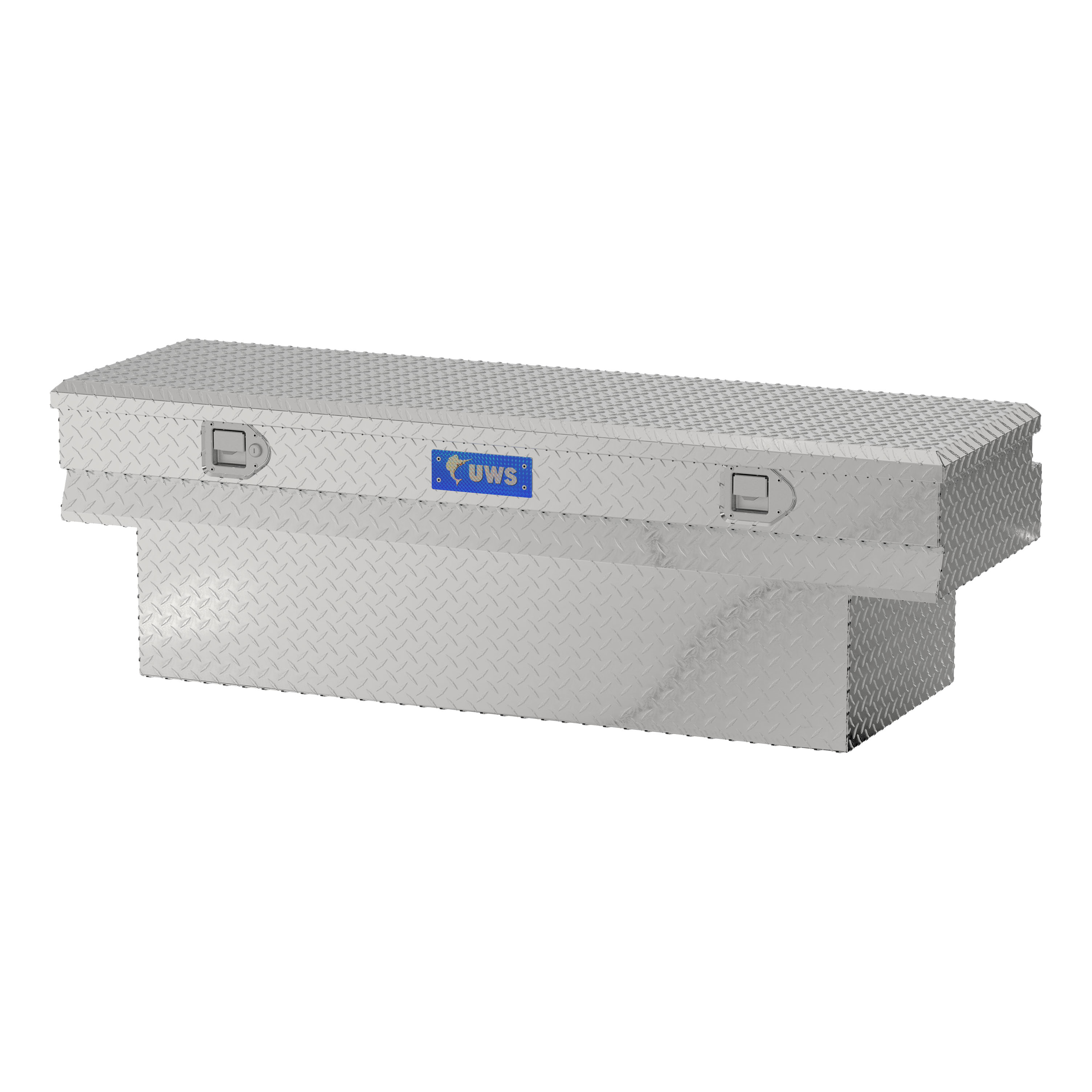

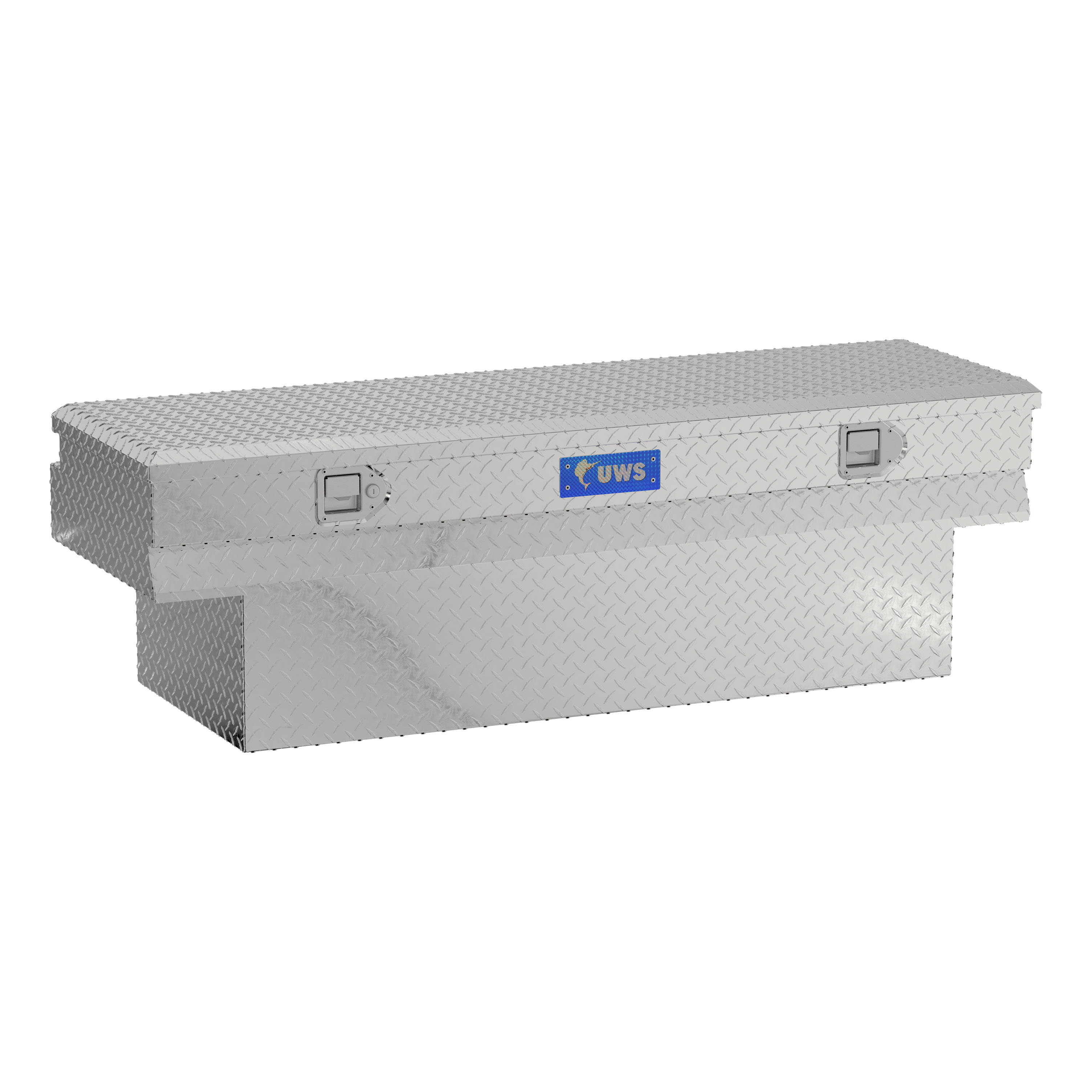

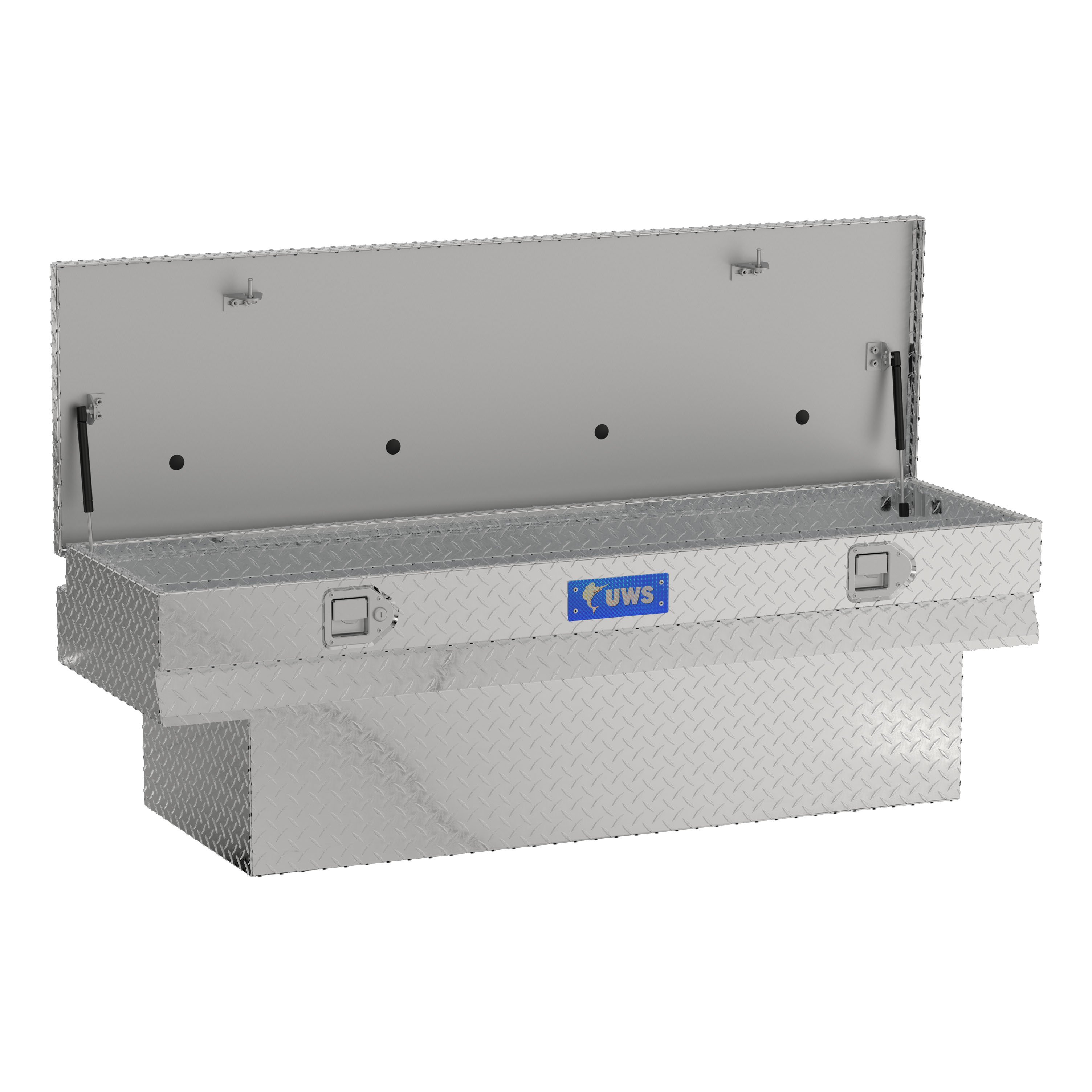

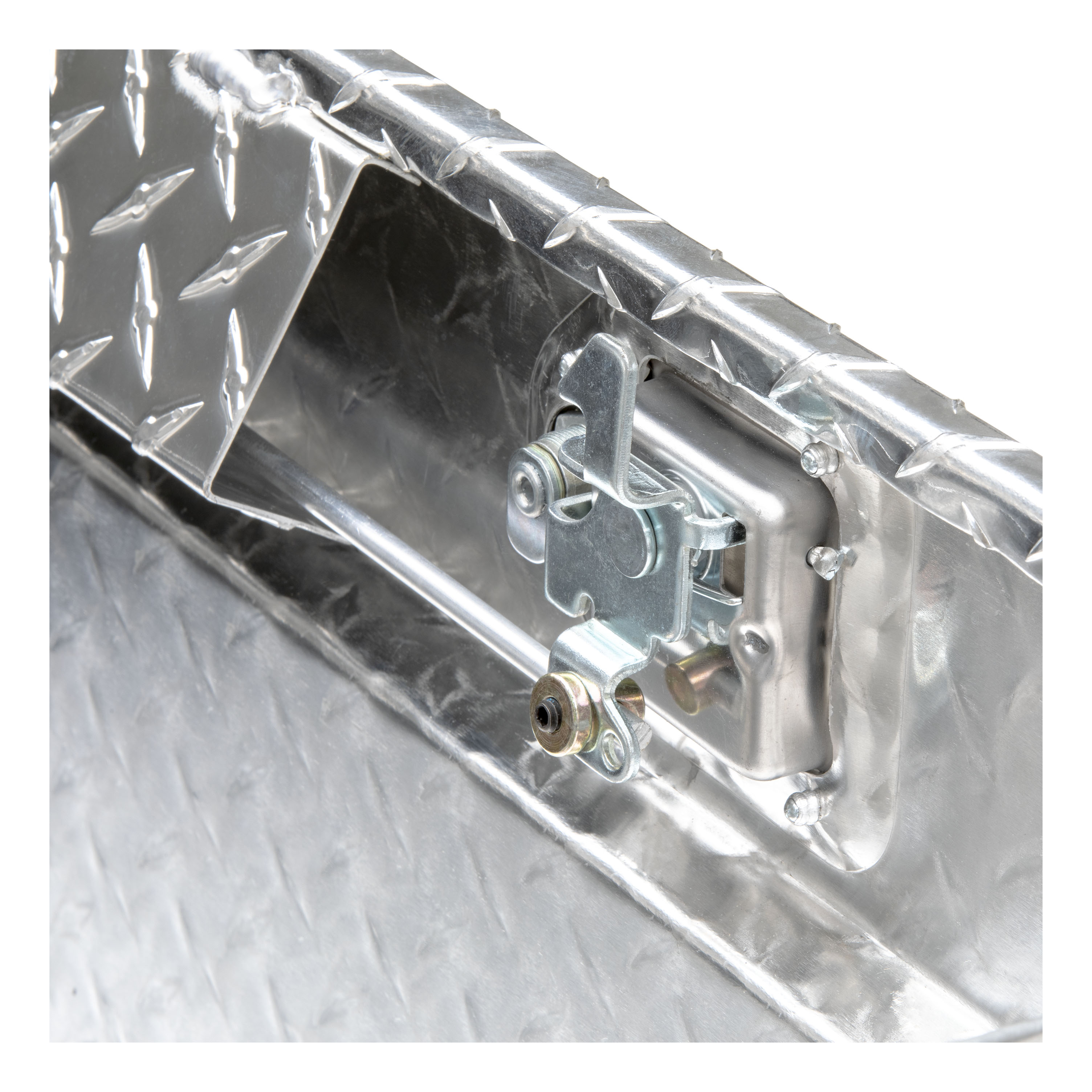

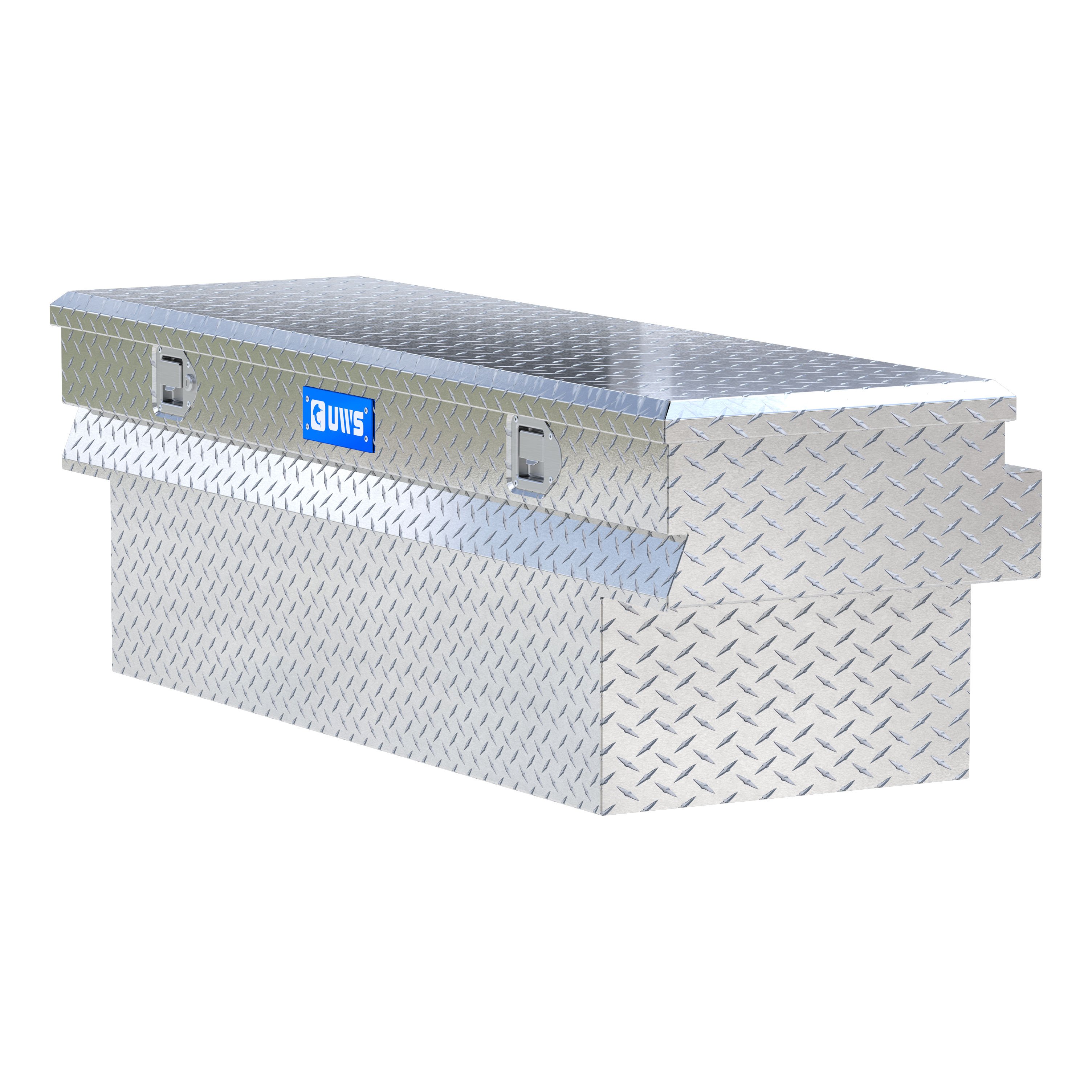

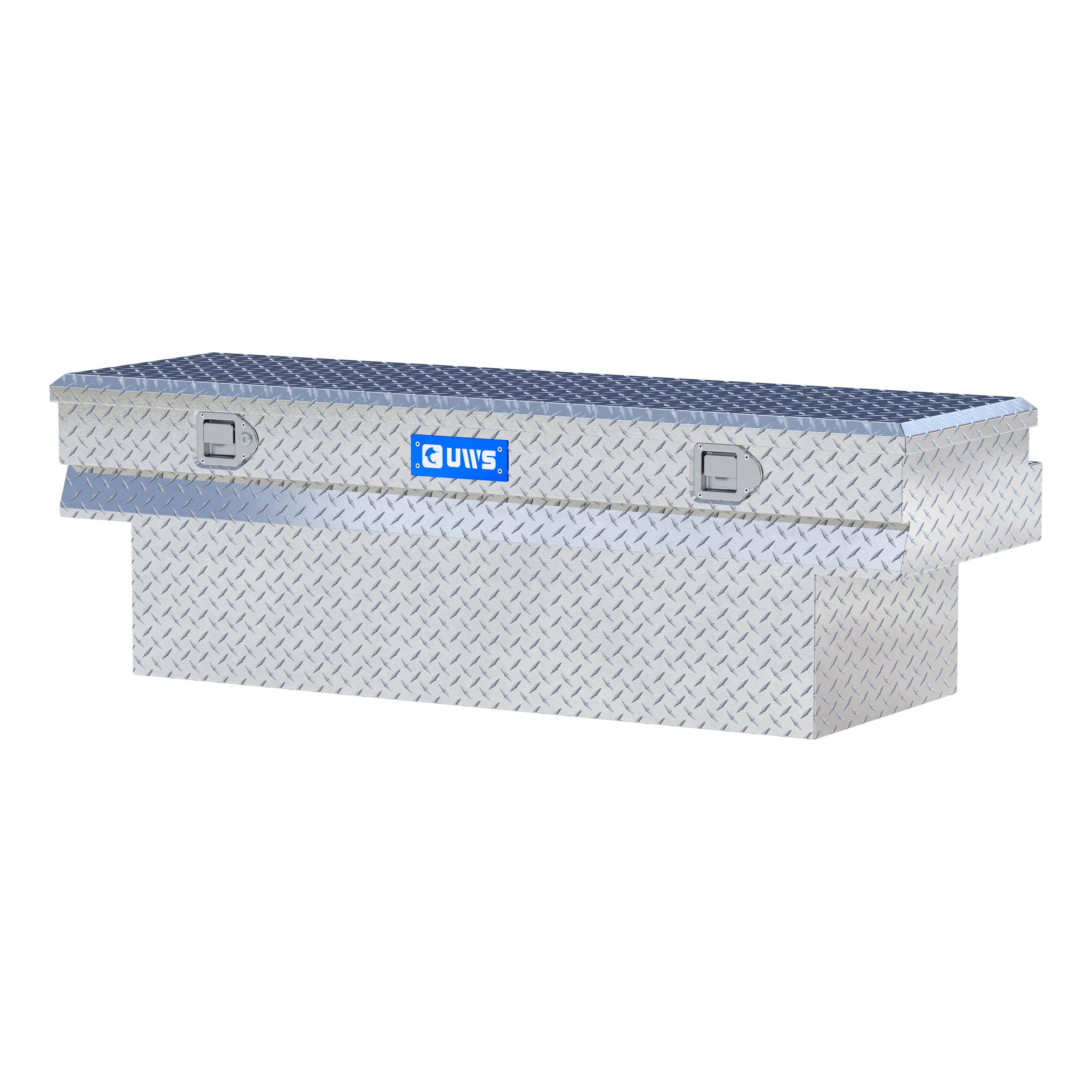

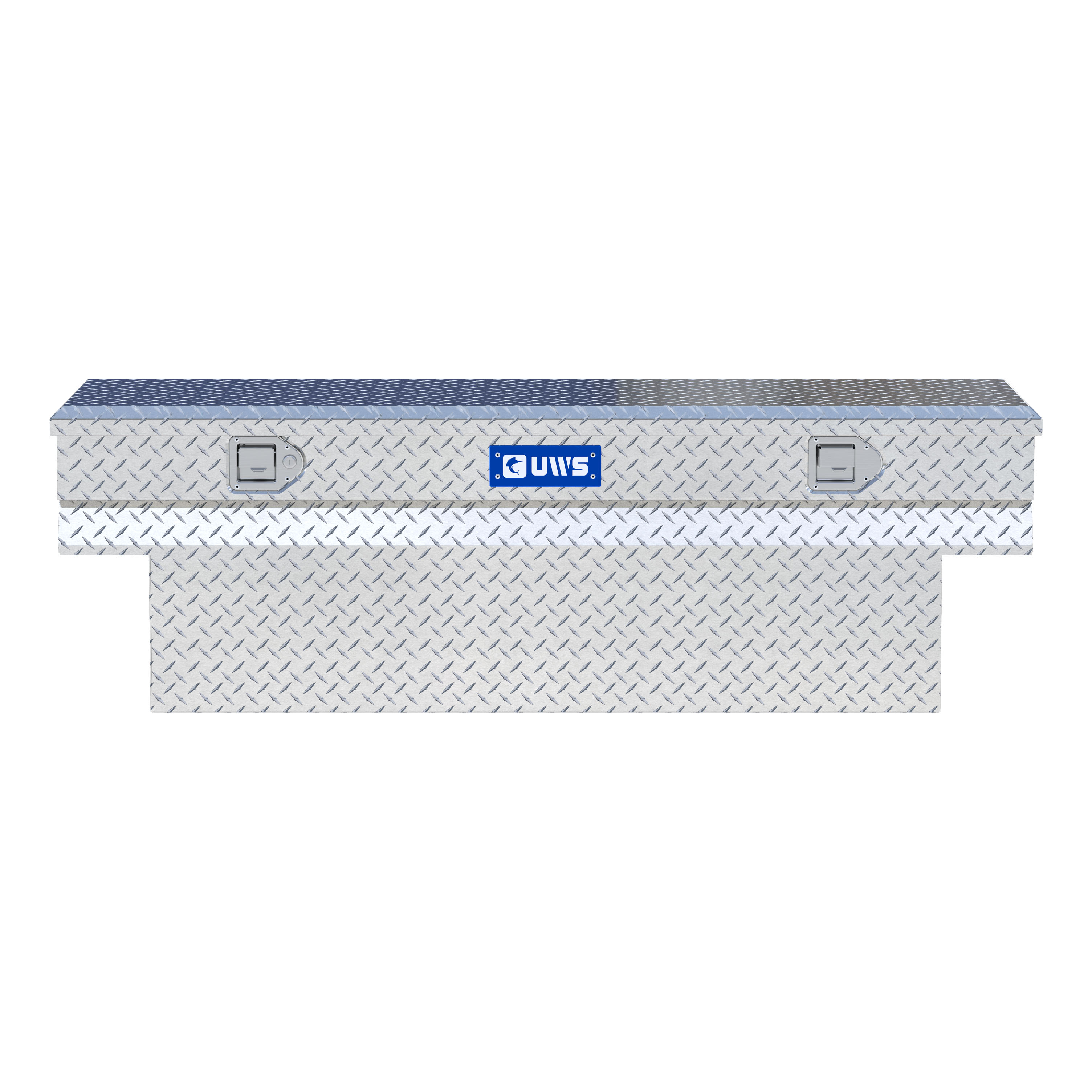

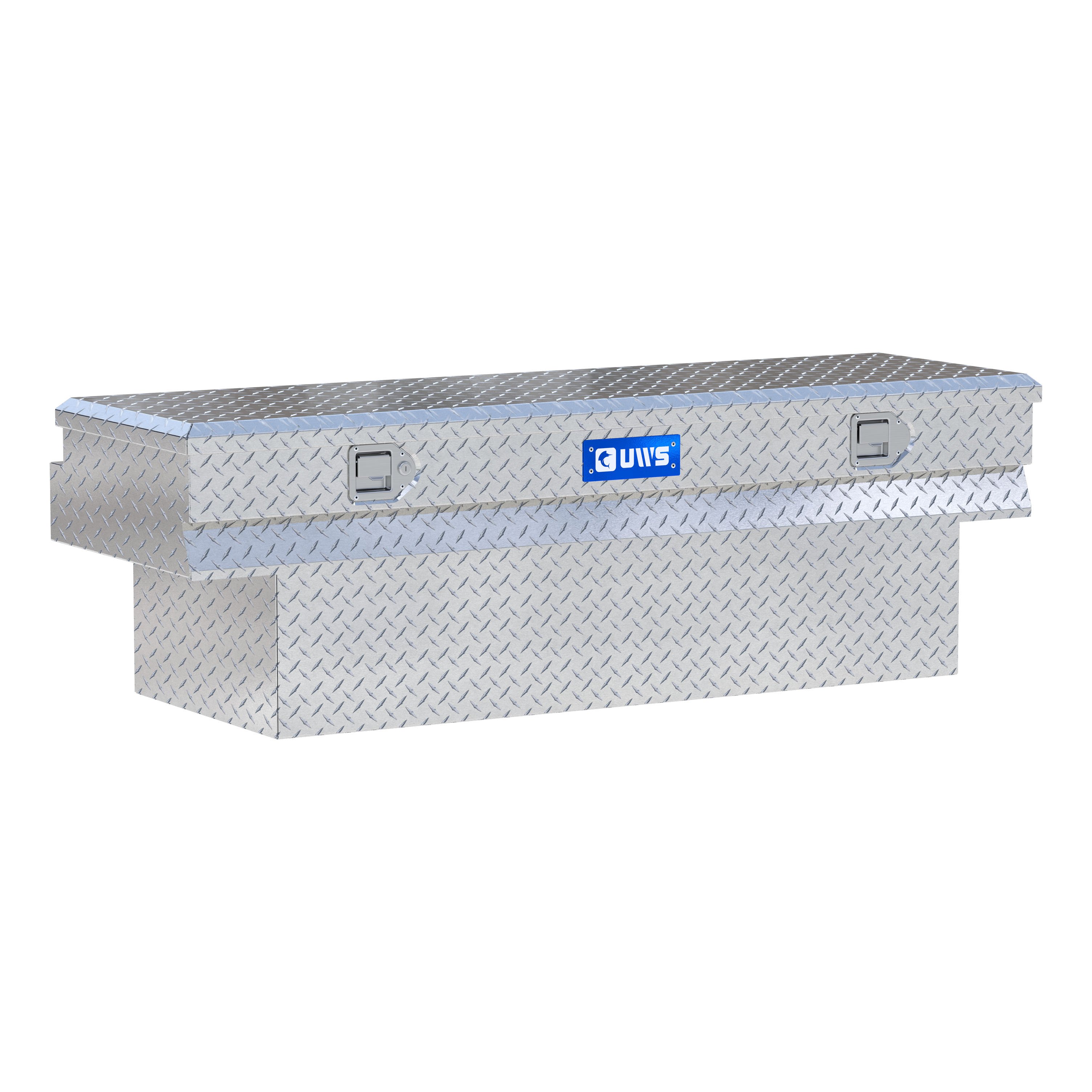

UWS notched utility chest boxes provide unbeatable storage and security for your items in the bed of your truck and on the jobsite. Each box features a corrosion-resistant aluminum construction, a stainless steel locking system and a patented RigidCore foam-filled lid -- all to keep your equipment and valuables safe, well-organized and easily accessible whenever needed. Each UWS truck tool box is constructed from extra-thick aluminum for increased structural strength. The tub is welded together into a single piece for weather resistance and to easily hold heavy tools and other items. The lid features a patented foam core, sandwiched between two aluminum plates. This core greatly increases the rigidity of the lid and helps prevent bending and warping, making operation very smooth. The locking mechanism of the UWS truck tool box provides excellent security for your items, featuring stainless steel, key-operated paddle handles. Stainless steel construction supplies the locks with long-lasting corrosion resistance, and they feature an internal connecting rod that allows the lid to be opened from either side of the truck. For solid protection against the elements, the lid also has a MicroSeal gasket, blocking moisture, dust and insects from getting inside and damaging your valuables. The lid also opens a full 90 degrees for easier access, and it is equipped with self-opening struts for convenient operation when your hands are full. UWS utility chest boxes are available in multiple sizes to accommodate any storage need. Like all UWS products, each one is proudly assembled right here in the USA for style and long-lasting dependability (NOTE: This product is heavily packaged for parcel shipping).
UWS designs and builds heavy-duty truck tool boxes and storage for tradespeople and truck owners. The line covers crossover and side-mount boxes, chest boxes, underbody boxes, transfer tanks and dog boxes. Every aluminum box is designed, fabricated and welded in Perry, Florida, with construction aimed at job-site abuse, road vibration and daily use.
UWS is a leading manufacturer and designer of truck tool boxes and truck accessories, and a Lippert brand. The company's focus is narrow and deliberate: storage that stands up to being opened and slammed shut dozens of times a day, loaded past what looks reasonable, and left outdoors in whatever weather the job brings. Its customers are electricians, plumbers, contractors, farmers, outdoorsmen and truck owners who treat a pickup as a working tool rather than transport.
The catalog covers the full range of bed storage. Crossover boxes sit across the bed behind the cab in single-lid, gull-wing, secure-lock and low-profile styles, so there is a fit whether the priority is capacity, rear visibility or working under a tonneau. Side-mount boxes mount along the bed rails and keep the bed floor free for cargo, while underbody boxes tuck beneath the frame rails of service bodies and flatbeds.
Beyond the bed, UWS makes portable chest boxes that move between vehicles and the shop, transfer tanks and combination tank-and-toolbox units for crews working away from fuel supply, and insulated, ventilated dog boxes for hunters and handlers.
Manufacturing sits at the centre of the brand's identity. Every UWS aluminum tool box is designed, fabricated and welded in Perry, Florida, by tradespeople with decades of experience, and the company's Rooted in Trades initiative is built around that connection to skilled manual work. Boxes use heavy-gauge aluminum, continuous welds at the seams, weather stripping to seal against rain and dust, and locking systems intended to resist tampering. The practical result is storage that keeps tools dry, organized and where they were left.
Experts available to answer your questions
Call 888-634-9494Limited Lifetime Warranty (One-Year Finish, One-Year Parts)
The package includes one utility chest box and two keys. A mounting hardware kit may or may not be included depending on the model. If the mounting hardware kit is not included, you will need to purchase your own hardware to install the chest box. The manual notes that not all models include the mounting hardware kit.
If your truck has a plastic, drop-in bed liner, it may need to be trimmed or cut for proper attachment of the chest box. Check the fit before drilling and trim as necessary to ensure the box sits properly and the lid operates correctly.
Before drilling, check under your vehicle to ensure the drill location does not puncture, cut or obstruct any brake or fuel fluid lines, electrical wires, fuel tanks, or other components. Take precaution that all fasteners near the fuel tank do not create the possibility of fuel tank puncture or other damage during a collision.
Place the chest box into your desired location and check for proper lid operation. In the bottom of the chest box, select two mounting points for securing the box to the truck bed. The chosen points should be aligned with the raised ribs in the truck bed.
Use an 11/32" drill bit to drill through the chest box and truck bed. However, if you are using the mounting hardware kit #003-CBOXMK, you will need to enlarge the holes in the truck bed with a 1/2" drill bit and follow the instructions included with that hardware kit.
You will need a drill, 11/32" drill bit, 1/2" drill bit, ratchet, tape measure, socket set, and a level. The manual rates the installation difficulty as Easy.
If installation hardware was not included with your chest box, install two 5/16" or M8 bolts, four washers and two lock nuts through the bottom of the chest box and truck bed. Drill with an 11/32" drill bit for these fasteners.
The recommended torque specification for 5/16" bolts is 7 ft-lbs. This applies to the mounting fasteners used to secure the chest box to the truck bed. Note that these are general guidelines; if you purchase hardware separately, use the torque specifications provided with that hardware.
The recommended torque specification for M8 bolts is 7 ft-lbs. This is the metric equivalent of the 5/16" bolt specification. These are general guidelines; if you purchase hardware separately, use the torque specifications provided with that hardware.
Yes. Use a silicone-type caulk as needed to fill in any open areas around the bolt flat washer or bonded washer inside the chest box to prevent water from seeping into the chest box.
Chest boxes come with adjustable strikers. If the strikers are ever out of alignment, simply loosen, adjust and re-tighten them. Periodically lubricate the strikers and locks to ensure optimum performance.
Do not use this product for storing or transporting flammables, explosives, hazardous materials or hazardous waste, such as containers of gasoline, solvents, gun powder, dynamite, propane tanks, acetylene tanks and cutting torches. Danger of explosion exists if these items are stored in the chest box.
Never exceed the vehicle manufacturer's recommended capacity. The manual does not specify a weight capacity for the chest box itself; you must consult your vehicle's manufacturer specifications.
Yes. This product can reduce the driver's ability to clearly see roadways, vehicular or pedestrian traffic and other objects through the rear and side windows of the vehicle, which may cause an accident. Extra precaution should be taken when driving a vehicle with this product installed.
Periodic inspections should be performed to ensure all mounting hardware remains tight. Before every trip, ensure all knobs, bolts, screws, straps and locks are firmly secured. Periodically re-tighten and inspect all components for signs of wear, corrosion and fatigue.
For polished, gloss and other smooth finishes, polish may be used to clear small scratches and scuffs on the finish. Mild automotive detergent may be used to clean the product. Do not use dish detergent, abrasive cleaners, abrasive pads, wire brushes or other similar products that may damage the finish.
Yes. Treat or seal all fasteners and exposed metal in any holes drilled in the vehicle to prevent corrosion. This is especially important for fasteners near the fuel tank.
No. Never modify this product. Do not use this product for purposes other than those for which it was designed.
The manual does not specify vehicle compatibility. Consult your dealer to confirm fitment for your specific truck. If you have a plastic drop-in bed liner, it may need to be trimmed or cut for proper attachment.
Not all models include the mounting hardware kit #003-CBOXMK. You may need to purchase your own hardware. If not included, you will need two 5/16" or M8 bolts, four washers and two lock nuts.
Yes. You must drill through the chest box and truck bed. Use an 11/32" drill bit for standard installation, or a 1/2" bit if using the mounting hardware kit #003-CBOXMK. Before drilling, check under your vehicle to ensure you do not puncture brake lines, fuel lines, electrical wires or fuel tanks.
Tighten 5/16" or M8 bolts to 7 ft-lbs. These are general guidelines; if you purchase hardware separately, use the torque specifications provided with that hardware.
Yes. Use silicone-type caulk to fill any open areas around the bolt flat washer or bonded washer inside the chest box to prevent water seepage.
Before every trip, ensure all bolts, screws, straps and locks are firmly secured. Periodically re-tighten and inspect all components for wear, corrosion and fatigue. Lubricate strikers and locks regularly. Treat or seal all fasteners and exposed metal to prevent corrosion.
