Warranty: Limited Lifetime Warranty (One-Year Finish, One-Year Parts)
Finish: MATTE BLACK POWDER COAT
Material: CARBON STEEL/ALUMINUM ASSEMBLY
Part Type: TRANSFER TANK

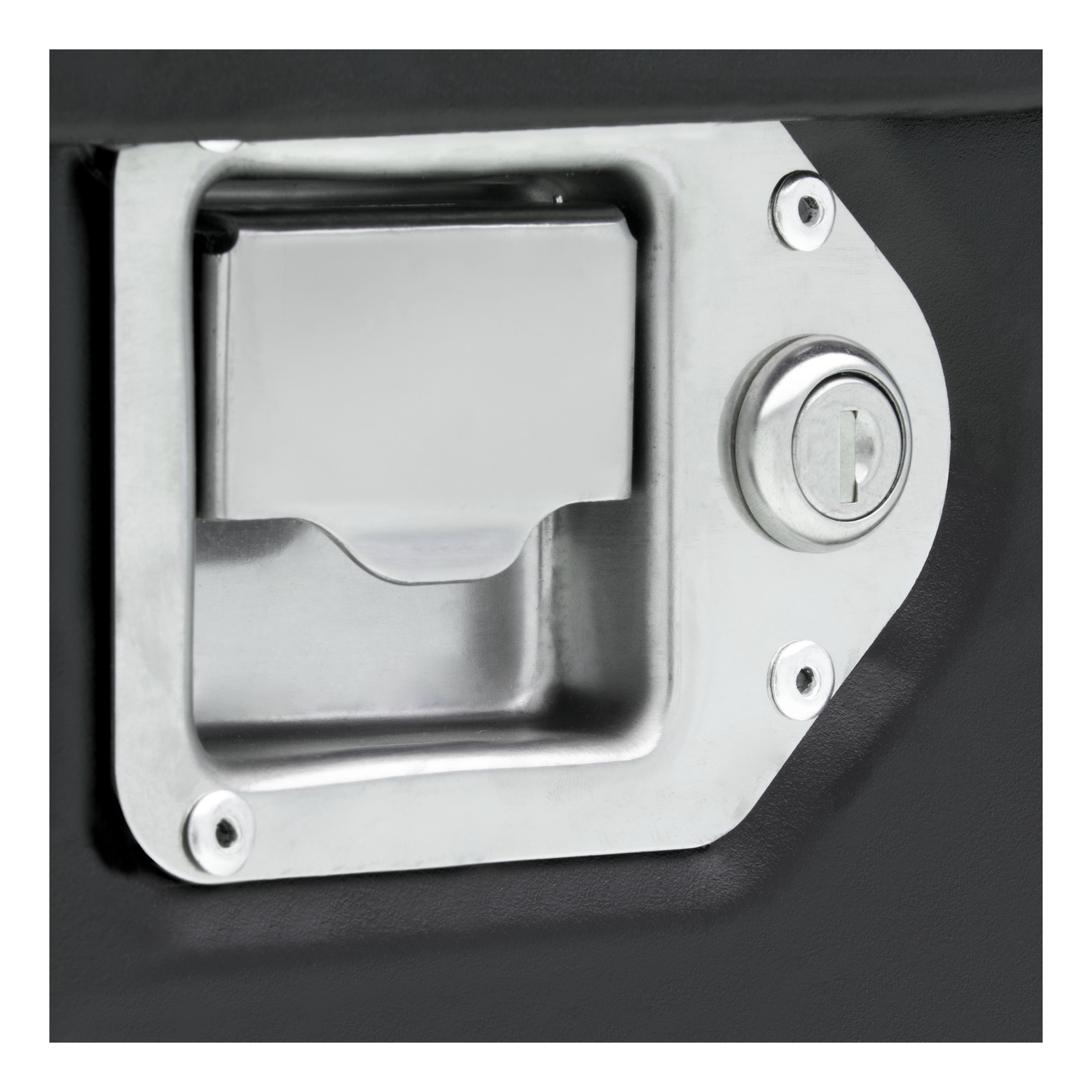

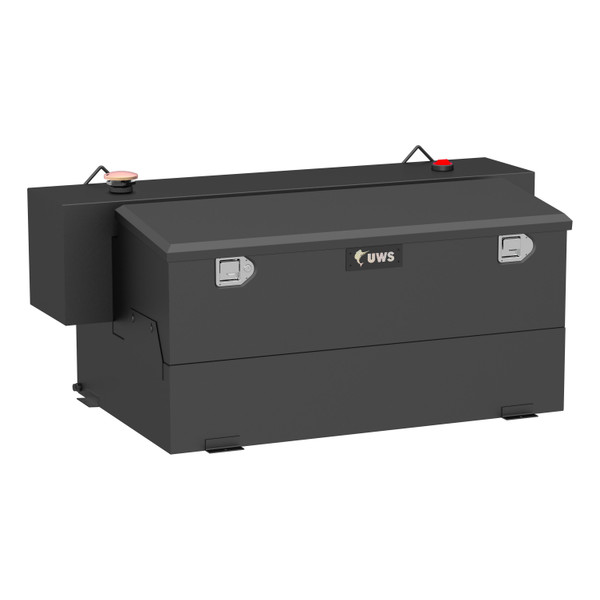

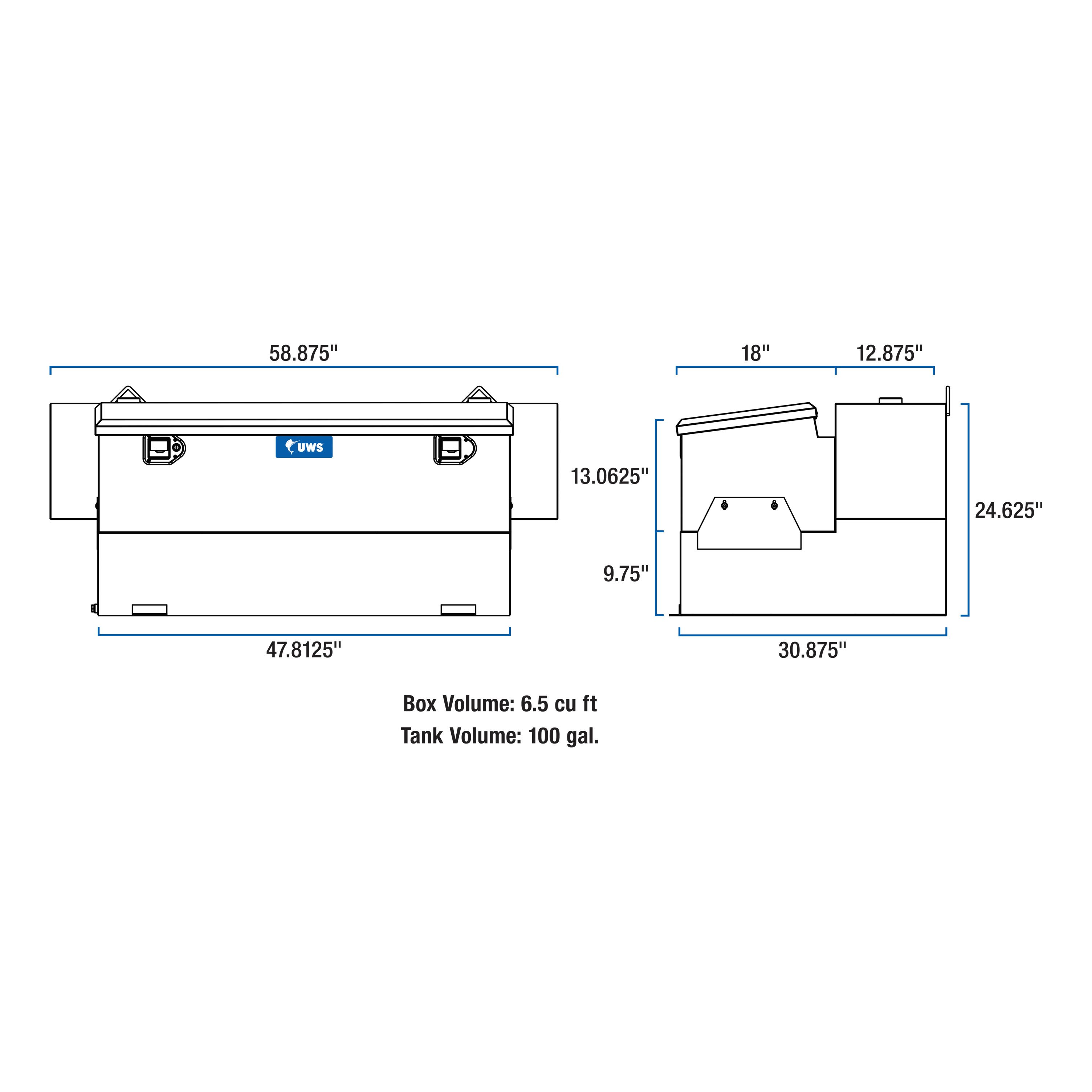

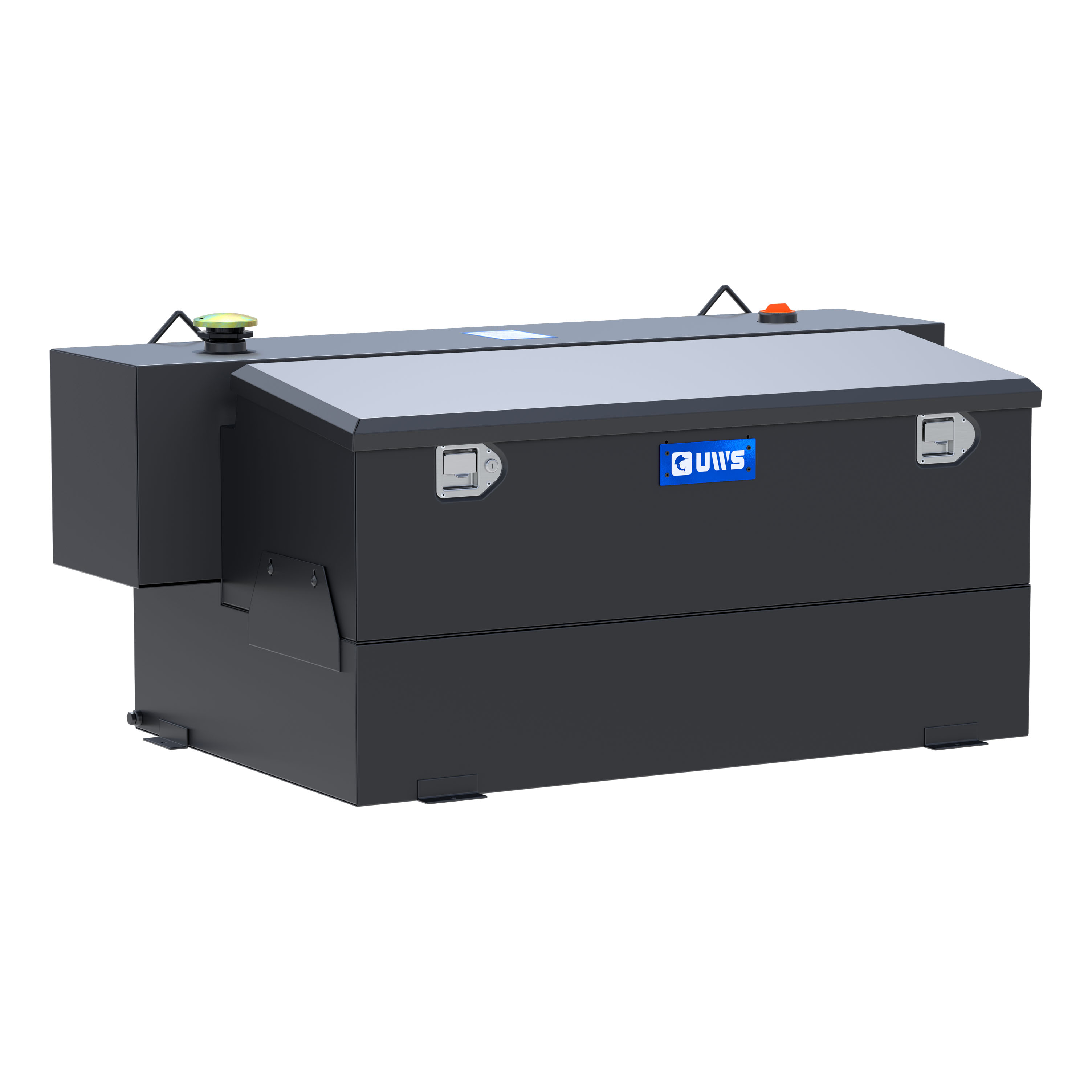

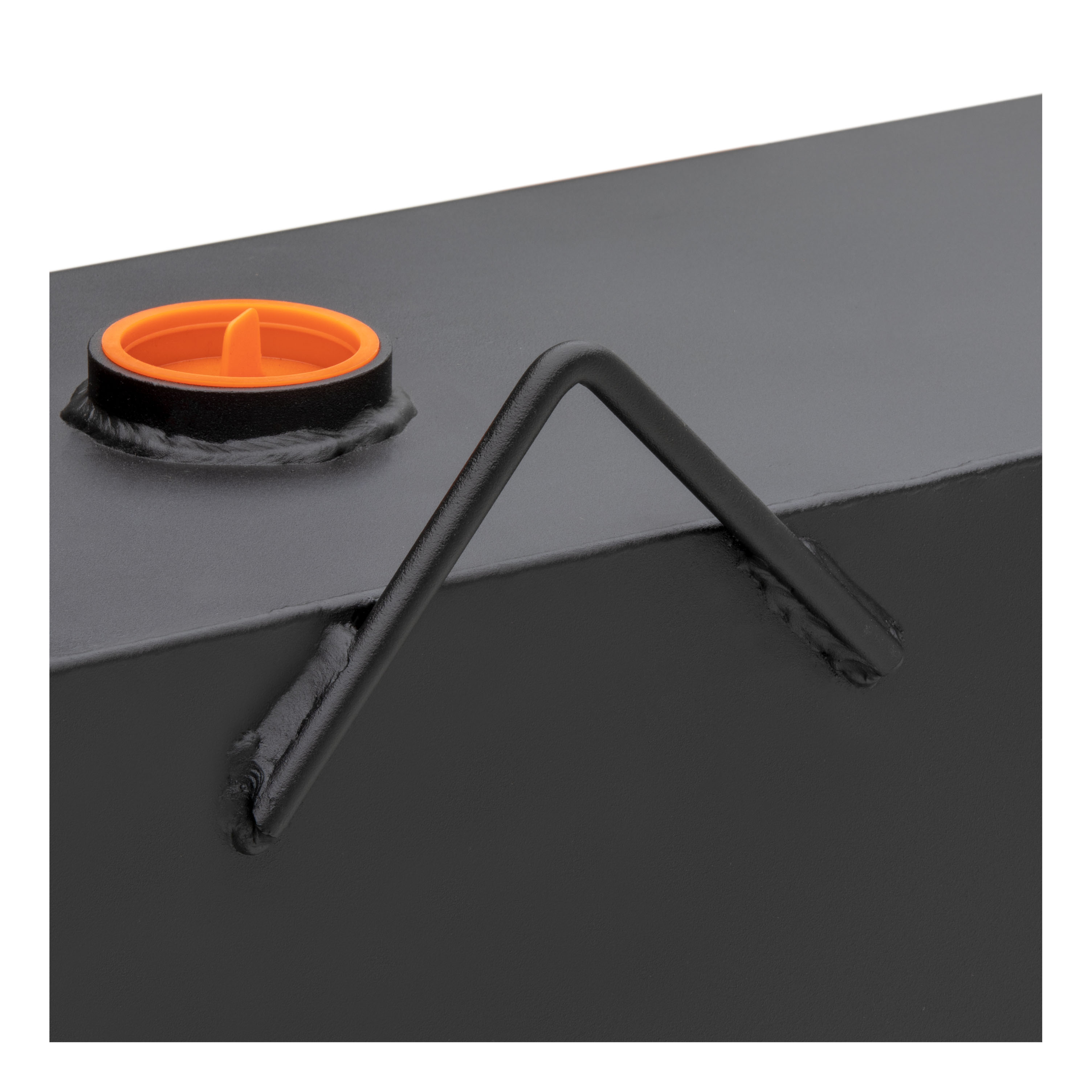

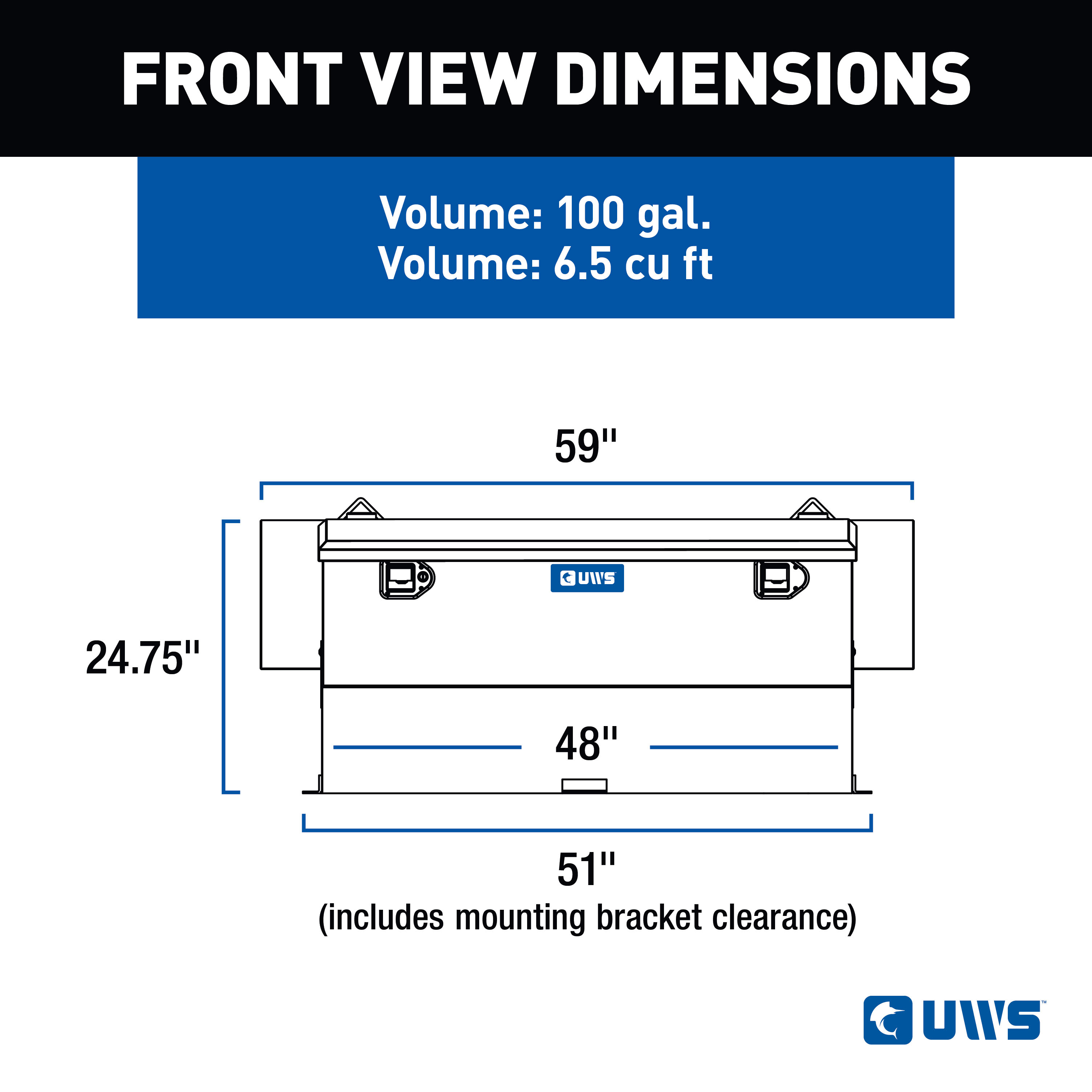

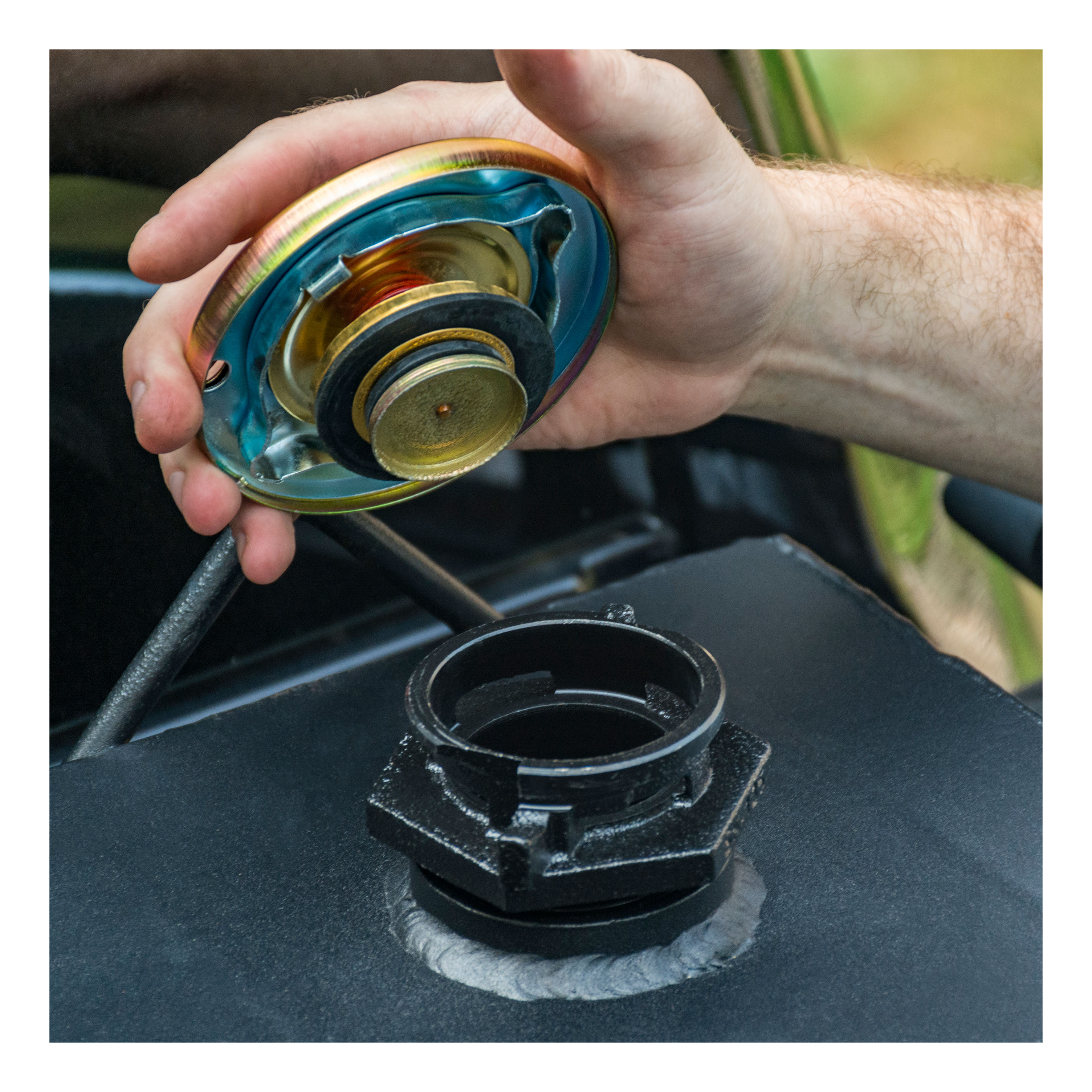

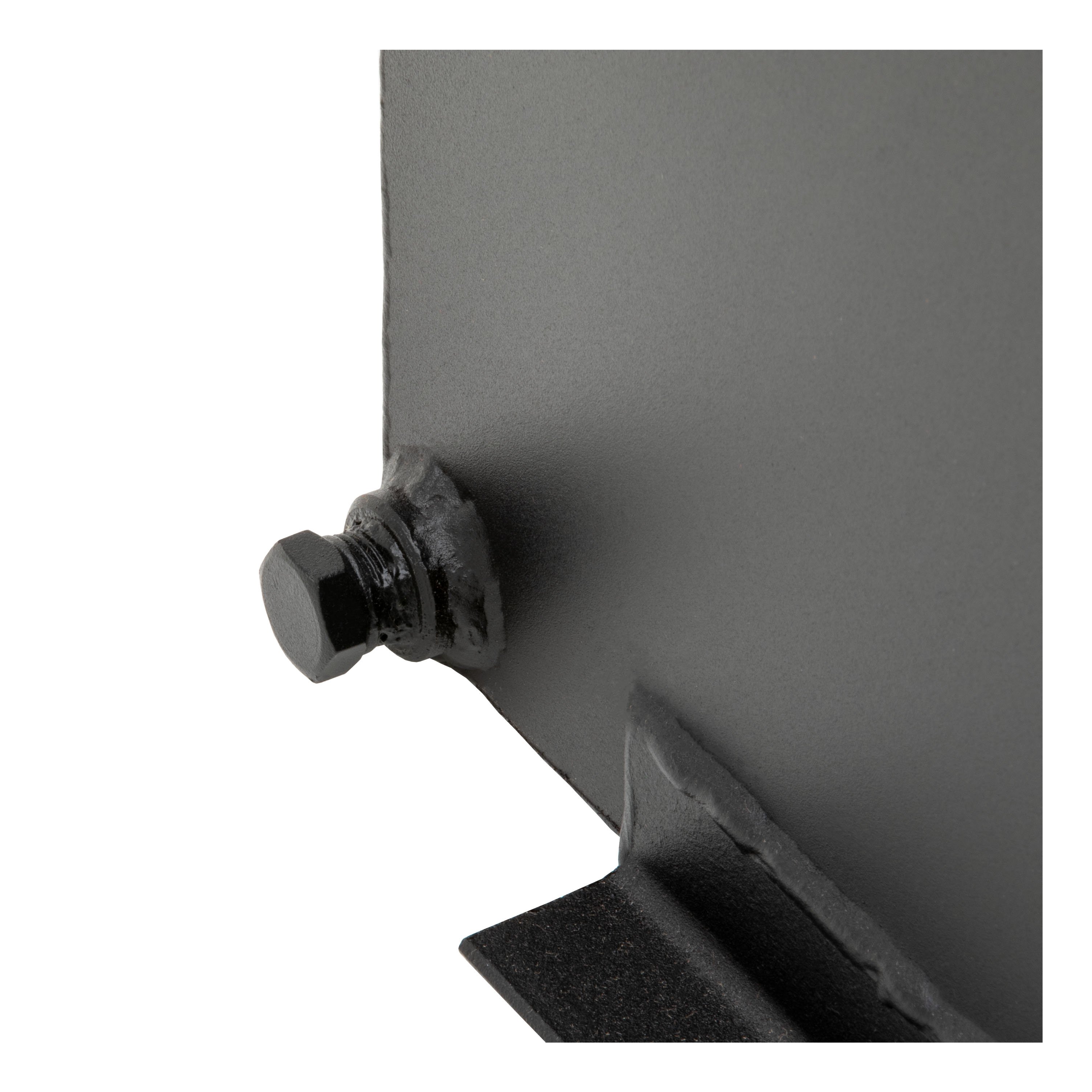

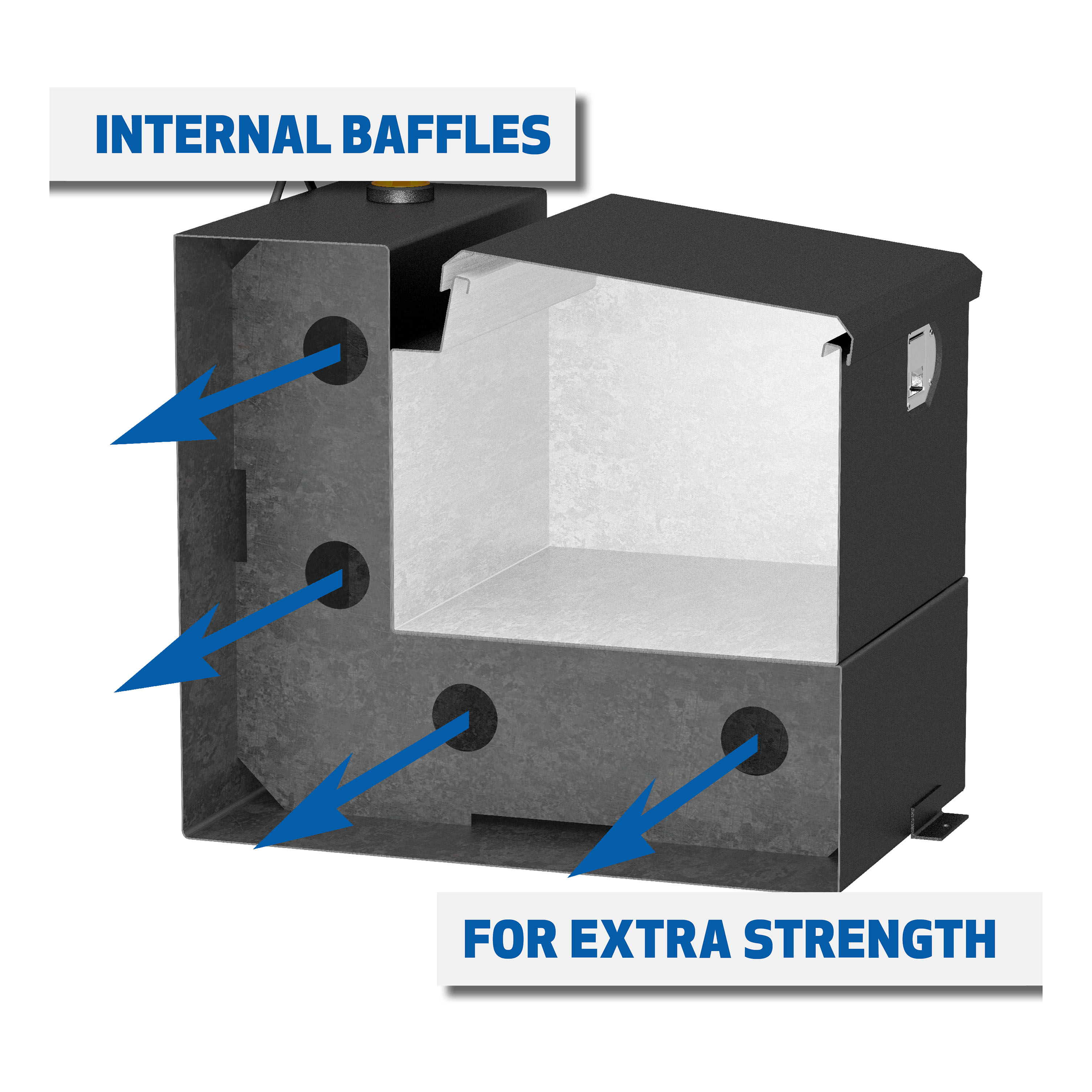

The hammerhead-style transfer tank is engineered to be the universal transfer tank for all full-size trucks. It features a unique narrowed base that fits between the wheel wells in the truck bed, even on short-bed pickup trucks (verify fitment using the product dimensions). This innovative transfer tank is ideal for safely and effectively transporting diesel and other non-flammable liquids. It is constructed with 14-gauge, pressure-tested steel and has a durable matte black powder coat finish. The hammerhead-style transfer tank is also equipped with a lockable, vented cap that allows for easy filling and provides extra security when your truck is left unattended. It comes with internal baffles to promote a smooth flow of liquids and to help prevent sloshing. For easier movement and installation, the tank comes with integrated mounting tabs and lifting hooks. Finally, to easily drain the tank whenever necessary, a drain plug is integrated into the base. This hammerhead-style transfer tank is a tool box transfer tank combo, featuring an integrated truck tool box for secure, convenient storage of your tools and equipment. The combo design is an innovative combination of a steel tank and an aluminum tool box, resulting in a lighter-weight solution compared to full-steel models. The truck tool box is constructed with extra-thick aluminum, a RigidCore foam-filled lid for maximum strength and stainless steel locking handles for dependable security. NOTE: Will not fit short-bed trucks with a gooseneck hitch installed (75-gallon transfer tank recommended).
UWS designs and builds heavy-duty truck tool boxes and storage for tradespeople and truck owners. The line covers crossover and side-mount boxes, chest boxes, underbody boxes, transfer tanks and dog boxes. Every aluminum box is designed, fabricated and welded in Perry, Florida, with construction aimed at job-site abuse, road vibration and daily use.
UWS is a leading manufacturer and designer of truck tool boxes and truck accessories, and a Lippert brand. The company's focus is narrow and deliberate: storage that stands up to being opened and slammed shut dozens of times a day, loaded past what looks reasonable, and left outdoors in whatever weather the job brings. Its customers are electricians, plumbers, contractors, farmers, outdoorsmen and truck owners who treat a pickup as a working tool rather than transport.
The catalog covers the full range of bed storage. Crossover boxes sit across the bed behind the cab in single-lid, gull-wing, secure-lock and low-profile styles, so there is a fit whether the priority is capacity, rear visibility or working under a tonneau. Side-mount boxes mount along the bed rails and keep the bed floor free for cargo, while underbody boxes tuck beneath the frame rails of service bodies and flatbeds.
Beyond the bed, UWS makes portable chest boxes that move between vehicles and the shop, transfer tanks and combination tank-and-toolbox units for crews working away from fuel supply, and insulated, ventilated dog boxes for hunters and handlers.
Manufacturing sits at the centre of the brand's identity. Every UWS aluminum tool box is designed, fabricated and welded in Perry, Florida, by tradespeople with decades of experience, and the company's Rooted in Trades initiative is built around that connection to skilled manual work. Boxes use heavy-gauge aluminum, continuous welds at the seams, weather stripping to seal against rain and dust, and locking systems intended to resist tampering. The practical result is storage that keeps tools dry, organized and where they were left.
Experts available to answer your questions
Call 888-634-9494Limited Lifetime Warranty (One-Year Finish, One-Year Parts)
UWS | Tough. Reliable.
On Sale Today
Original price was $1,696.95. Current price is $1,541.95.You save $155.00 (9%)
Free Shipping
Ships free on all orders
Authorized DealerThe kit includes the transfer tank, filler neck and cap, a 3/8" drain plug, and a key (supplied only with combo models). Hardware such as bolts, washers, nuts and any spacers required for installation must be purchased separately.
The tank is DOT-compliant for transporting Class 3 combustible fuels only, such as diesel. It is not approved for transportation of flammable fuels such as gasoline and should never be connected to a vehicle's fuel system or used as an auxiliary fuel tank.
No. Do not use this product for storing or transporting flammables, explosives, hazardous materials or hazardous waste, such as gasoline, solvents, gun powder, dynamite, propane tanks, acetylene tanks or cutting torches. The tank is DOT-compliant for Class 3 combustible fuels such as diesel only.
The manual does not specify which truck models, bed lengths, cab styles or drivetrains are compatible with this tank. Contact CURT customer support at 877.287.8634 or consult your dealer before purchasing to confirm fitment for your specific vehicle.
You will need a drill, 3/8" drill bit, ratchet, socket set, tape measure and marker. Hardware such as hex bolts, flat washers, lock washers and nuts must be purchased separately.
Yes. Hardware is not included with the tank. You must purchase your own hex bolts, flat washers, lock washers and nuts to secure the mounting brackets to the truck bed. If any mounting holes fall between the ribs on the truck bed floor, spacers will also be required.
The installation is rated as Easy difficulty. However, you must be comfortable drilling into your truck bed and checking underneath the vehicle for brake lines, fuel lines, electrical wires and fuel tanks before drilling. If you are unsure about any step, consult your dealer.
Before drilling, check under your vehicle to ensure the drill location does not puncture, cut or obstruct any brake or fuel fluid lines, electrical wires, fuel tanks, etc. Precaution must be taken that all fasteners near the fuel tank do not create the possibility of fuel tank puncture or other damage during a collision.

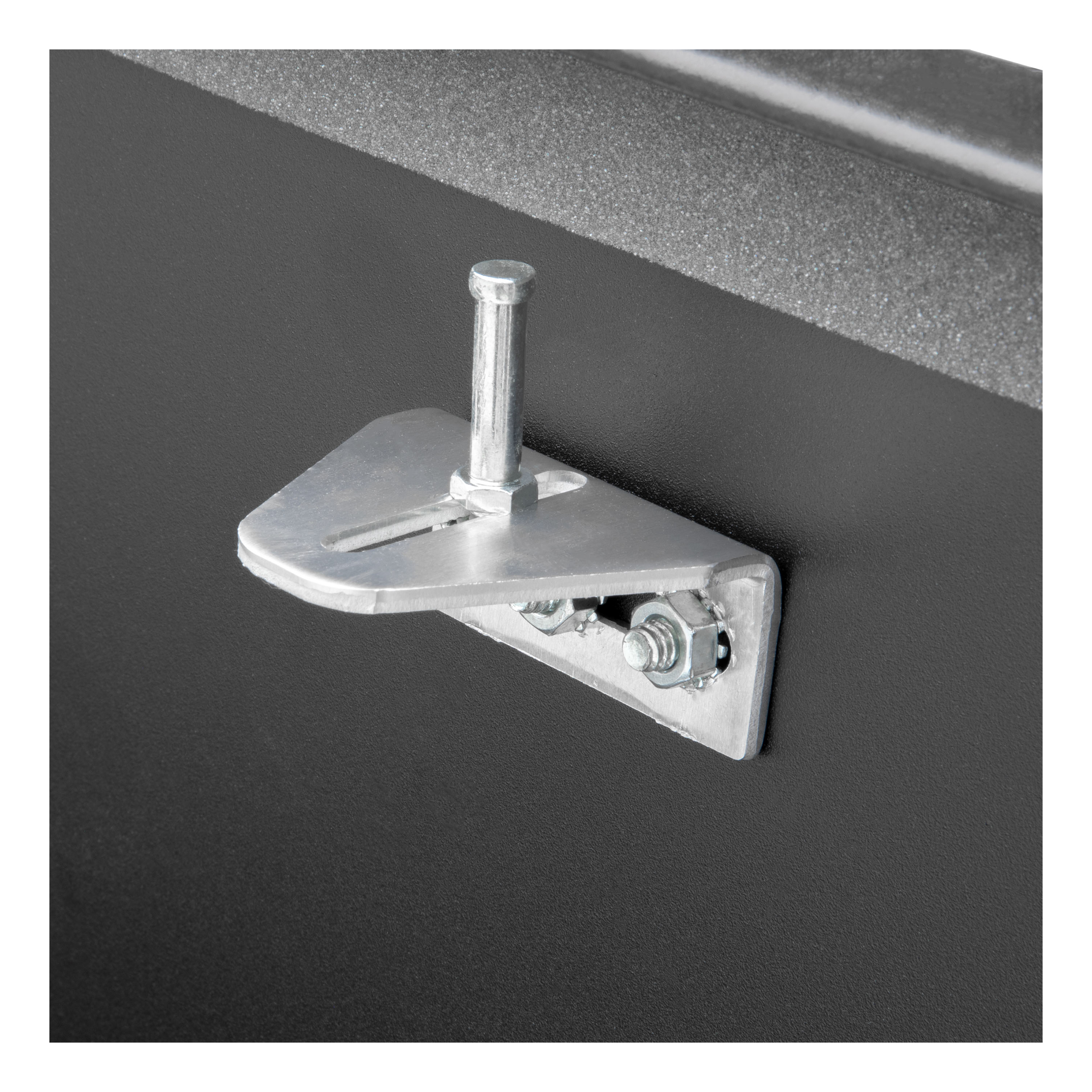

Step 1: Push the tank up to the truck cab and center it side-to-side, ensuring it is fully supported by the truck bed floor. Use the mounting brackets as a guide to mark holes. Remove the tank and drill 3/8" holes in the marked locations. Step 2: Place the tank back in the bed, align the drilled holes with the mounting brackets, ensure the tank is level, then secure the mounting brackets with a hex bolt, two flat washers, one lock washer and one nut in each hole. Do not over tighten. Attach the filler neck and cap. Step 3: Perform periodic inspections to ensure all mounting hardware remains tight.
If any holes fall between the ribs on the truck bed floor, spacers will be required between the floor and mounting bracket for proper installation. These spacers are not included and must be purchased separately.
Drill 3/8" holes in the marked locations where the mounting brackets will attach to the truck bed floor.
No. Do not cut, weld or drill into the tank. Doing so could result in serious injury or death.
Yes. Treat or seal all fasteners and exposed metal in any holes drilled in the vehicle to prevent corrosion.
Use the following torque specifications as general guidelines: M6 bolt: 3 ft-lbs; M8 bolt: 7 ft-lbs; M10 bolt: 16 ft-lbs; M12 bolt: 28 ft-lbs. For SAE fasteners: 1/4" bolt: 3 ft-lbs; 5/16" bolt: 7 ft-lbs; 3/8" bolt: 16 ft-lbs; 7/16" bolt: 20 ft-lbs; 1/2" bolt: 28 ft-lbs. If purchasing hardware, use the torque specifications provided with that hardware.
The manual states that the transfer tank and pump must be grounded to avoid static charge, as static build-up can result in explosion. However, the manual does not provide specific grounding instructions, wire gauge, or connection method. Contact CURT customer support at 877.287.8634 for detailed grounding procedures.
You must use an automatic shut-off nozzle (not provided) and a fuel filter (not provided). The tank must be vented at all times, and the vent cap must be removed with caution. Do not pressurize the tank.
No. The tank is for private use only and is not intended to be used commercially.
Do not use this product for storing or transporting flammables, explosives, hazardous materials or hazardous waste, such as containers of gasoline, solvents, gun powder, dynamite, propane tanks, acetylene tanks and cutting torches. The tank is also not compatible with diesel exhaust fluid (DEF) or other corrosive materials.
Yes. This product can reduce the driver's ability to clearly see roadways, vehicular or pedestrian traffic and other objects through the rear and side windows of the vehicle, which may cause an accident. Extra precaution should be taken when driving a vehicle with this product.
No. Never exceed the vehicle manufacturer's recommended capacity.
Ensure all knobs, bolts, screws, straps and locks are firmly secured before every trip. Periodically re-tighten and inspect all components for signs of wear, corrosion and fatigue. With the transfer tank installed, periodic inspections should be performed to ensure all mounting hardware remains tight.
Mild automotive detergent may be used to clean the product. Do not use dish detergent, abrasive cleaners, abrasive pads, wire brushes or other similar products that may damage the finish. For polished, gloss and other smooth finishes, polish may be used to clear small scratches and scuffs on the finish.
Tank must be lifted only when empty.
No. The tank does not meet the code of federal regulations title 49 (chapter iii [393.65, 363.67]).
No. The tank is not to be used as an auxiliary tank and should never be connected to a vehicle's fuel system.
The manual does not specify vehicle compatibility. Contact CURT at 877.287.8634 or consult your dealer to confirm fitment for your specific truck model and bed length.
No. You must purchase hex bolts, flat washers, lock washers, nuts and any required spacers separately. The tank includes only the transfer tank, filler neck, cap and drain plug.
Yes. You must drill 3/8" holes in your truck bed floor to mount the tank. Before drilling, check underneath your vehicle to ensure you do not puncture brake lines, fuel lines, electrical wires or fuel tanks.
Use the torque specification for your bolt size: 1/4" bolt: 3 ft-lbs; 5/16" bolt: 7 ft-lbs; 3/8" bolt: 16 ft-lbs; 7/16" bolt: 20 ft-lbs; 1/2" bolt: 28 ft-lbs. If your hardware includes its own specifications, use those instead.
No. The tank is DOT-compliant for diesel only. Do not use for gasoline, solvents, explosives or other flammables. Do not connect to your vehicle's fuel system or use as an auxiliary tank.
You must use an automatic shut-off nozzle and a fuel filter (neither included). The tank must be grounded to avoid static charge and vented at all times. Do not pressurize the tank.
Periodically re-tighten and inspect all mounting hardware for signs of wear, corrosion and fatigue before every trip. Clean with mild automotive detergent only; do not use abrasive cleaners or wire brushes.
