Select your vehicle to find the exact plug-and-play parts that fit — no cutting or splicing.

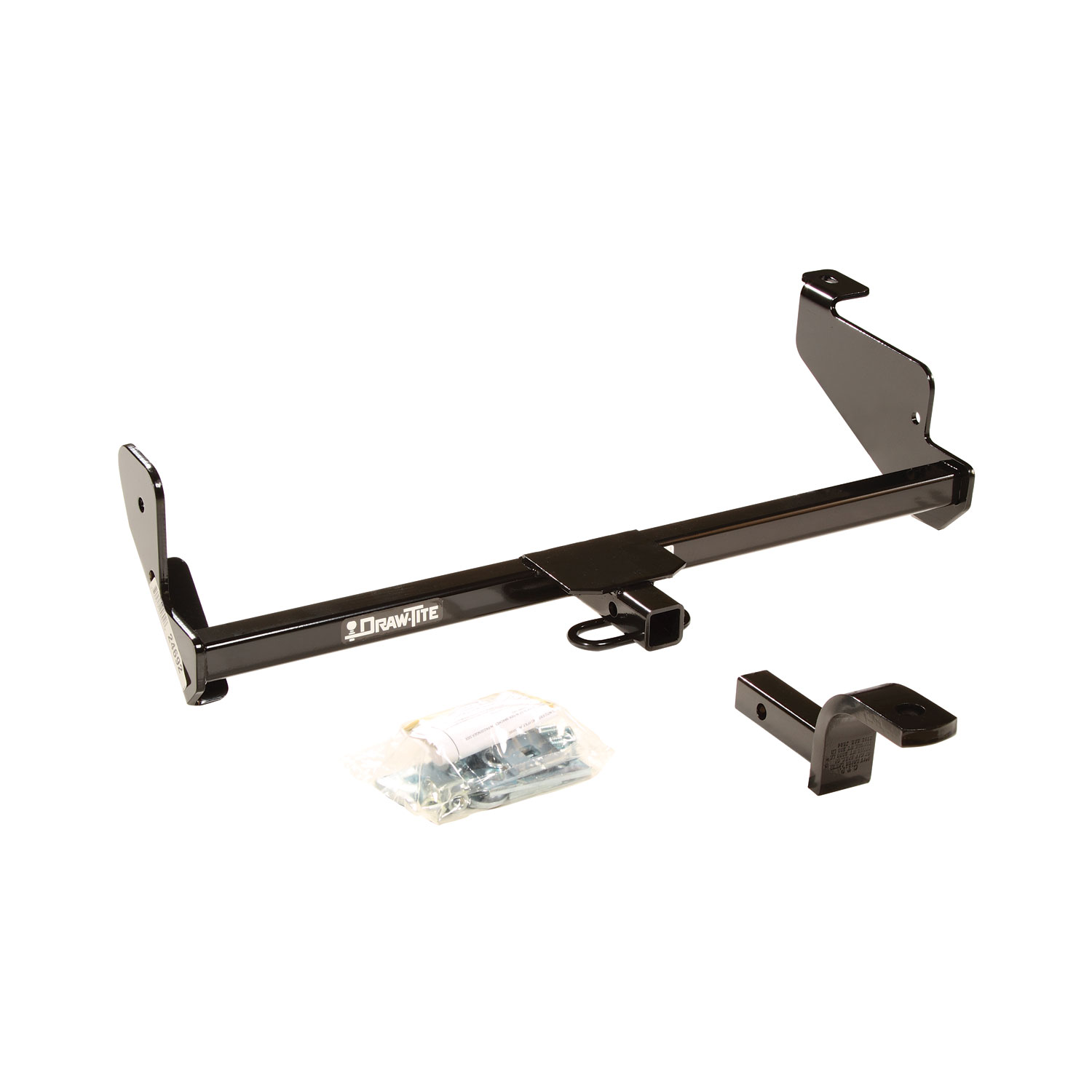

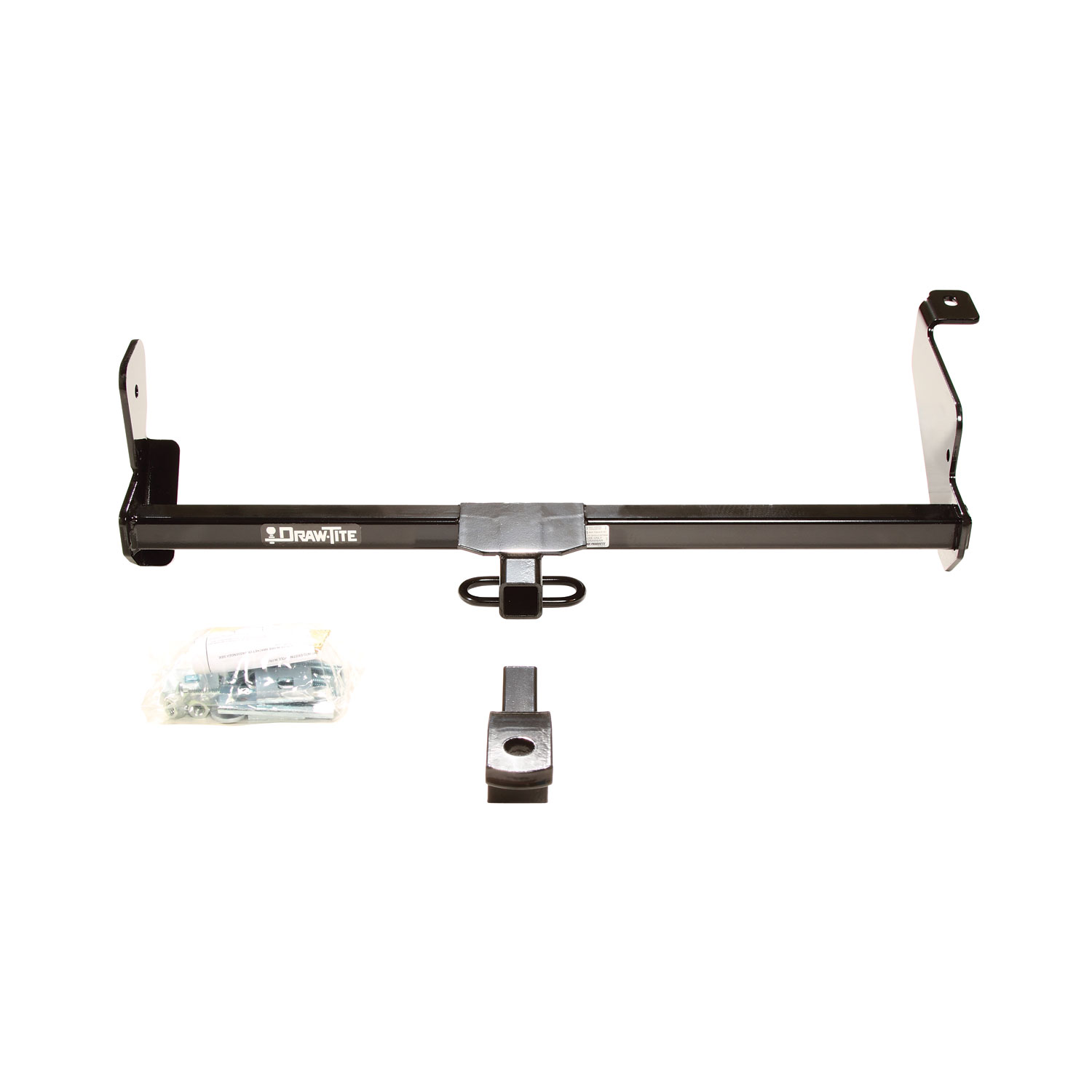

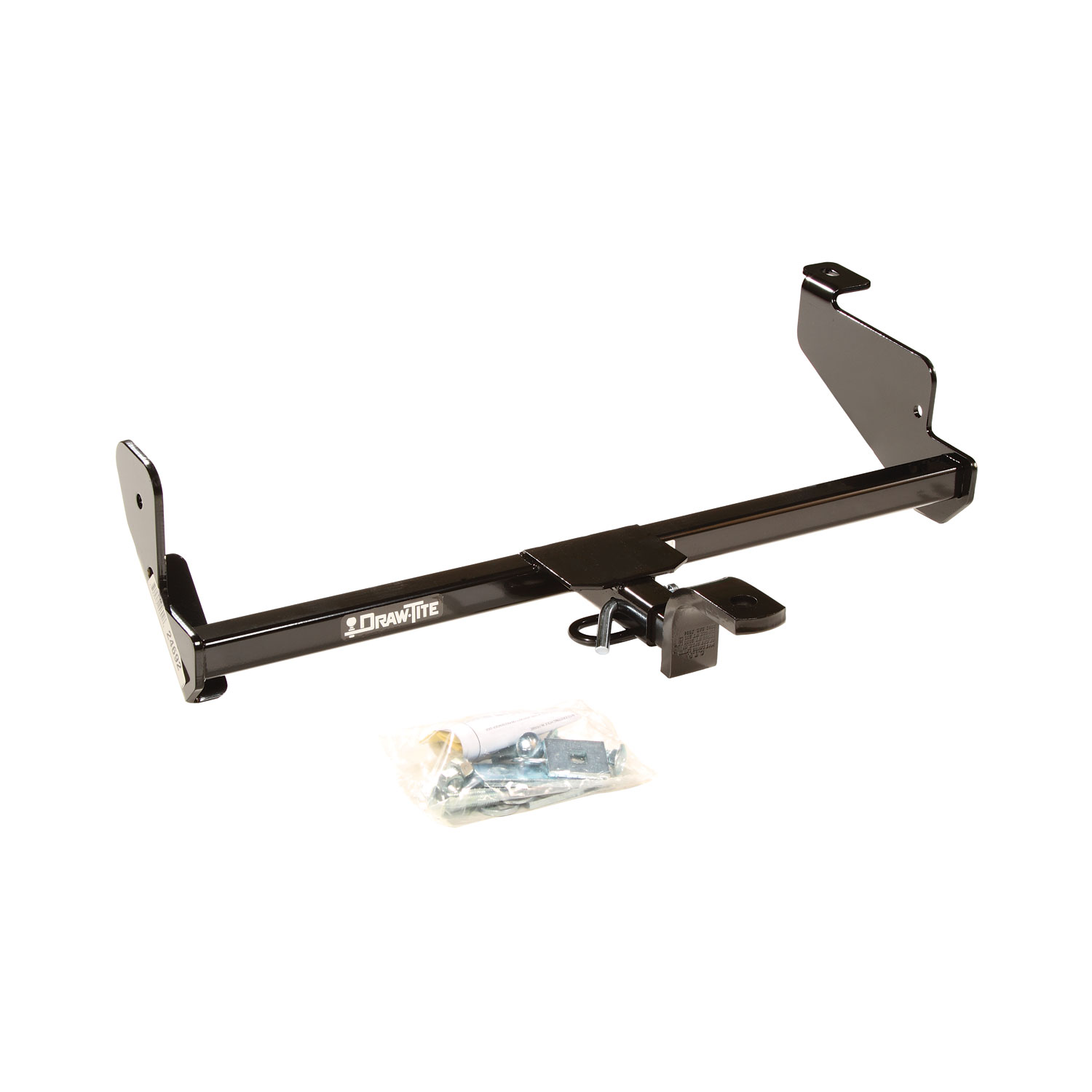

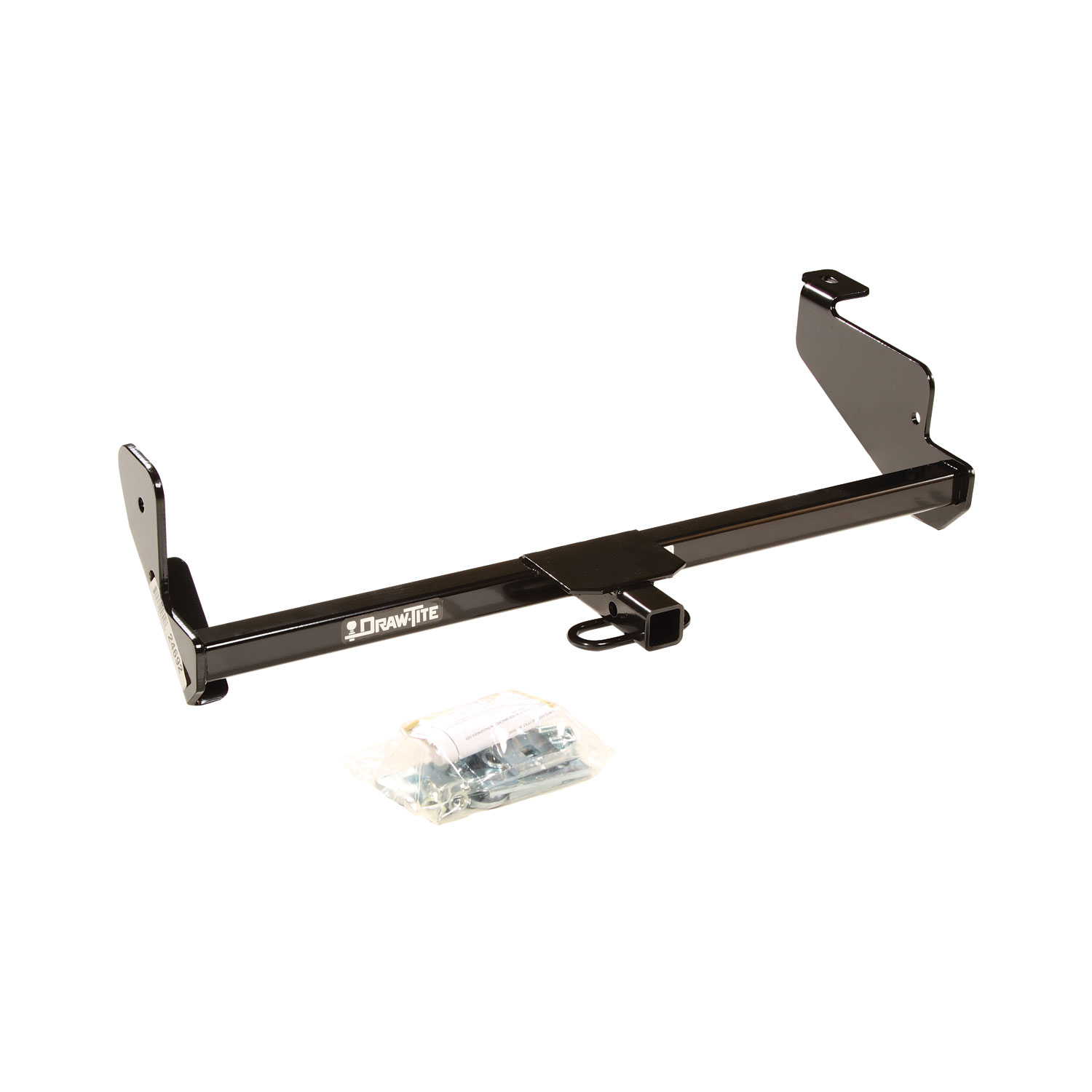

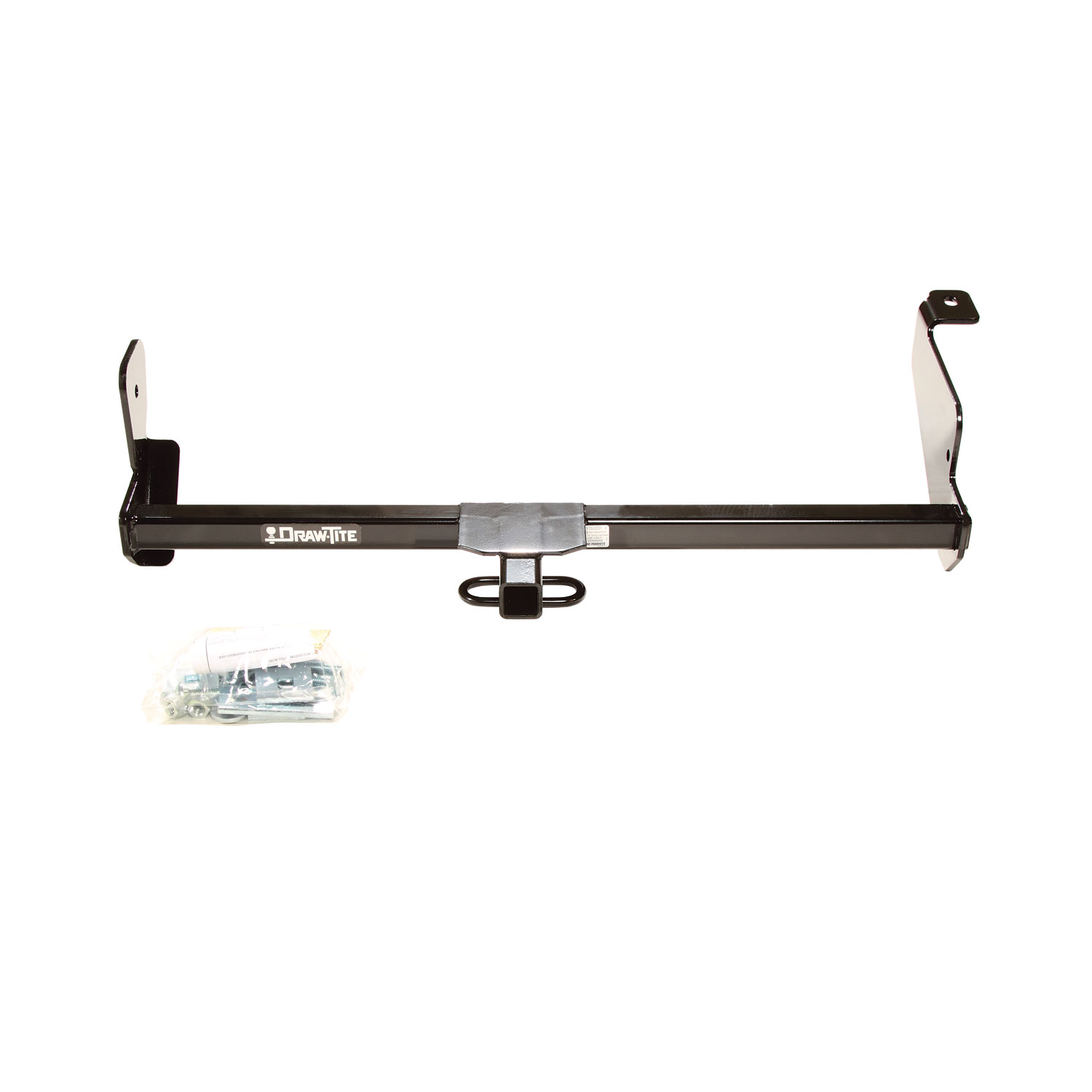

DRAW-TITE Class 1 trailer hitches are the perfect mix of style and stability for those times when youre working on a home project or heading out on an adventure. This DRAW-TITE Class 1 receiver hitch is rated for up to 2,000 lbs. gross trailer weight (GTW) and up to 200 lbs. tongue weight (TW). No weight distribution kits can be used on this specific trailer hitch. DRAW-TITE hitches are designed to provide top towing performance, with solid-all-welded construction and a black powder coat finish to resist rust and corrosion. The Class 1 trailer hitch has a 1-1/4 inch square receiver tube opening so you can easily attach accessories like a bike rack or cargo carrier, or a utility trailer. Includes all the mounting hardware needed for installation and are backed by a nationwide lifetime limited warranty. DRAW-TITE trailer hitches are tested to exceed V-5 and SAE J684 standards. DRAW-TITE: North Americas Favorite Hitch.
| BRAND: | DRAW-TITE |
| PART NUMBER: | 24692 |
| WARRANTY: | LIMITED LIFETIME WARRANTY |
| WEIGHT: | 15.1 LBS |
| GROSS TOWING WEIGHT: | 2,000 LBS. |
| GROSS TONGUE WEIGHT: | 200 LBS. |
| RECEIVER SIZE: | 1.25 IN. |
| HITCH CLASS: | I |
| DRILLING REQUIRED: | NO |
| MOUNTING HARDWARE INCLUDED: | YES |
| ATTACHMENT LOCATION: | REAR |
| HITCH VISIBILITY: | VISIBLE |
| CROSS-TUBE TYPE: | SQUARE TUBE |
| BALL MOUNT INCLUDED: | NO |
| COLOR: | BLACK |
| FINISH: | BLACK POWDER COAT OVER E-COAT |
| MATERIAL: | STEEL |
| MOUNTING LOCATION: | VEHICLE FRAME |
| MOUNTING TYPE: | BOLT-ON |
Draw-Tite has designed custom-fit trailer hitches since 1946 and is one of North America's most widely fitted hitch brands. Receiver hitches use solid all-welded construction and low-profile designs that follow modern vehicle contours, install with minimal bumper cutting or drilling, meet or exceed V5 CSA and SAE J684 standards, and carry a limited lifetime warranty.
Draw-Tite has been leading custom-fit trailer hitch design and engineering since its founding in 1946, and it remains one of the most widely fitted hitch brands in North America. The company's stated approach is straightforward: every hitch is tested rigorously so that it performs well beyond published industry standards, a philosophy it markets as Tested Tough. It sits within the Horizon Global towing group alongside Reese, Fulton, Bulldog, Tekonsha, Bargman and Wesbar.
Custom fit is the defining characteristic. Rather than adapting a universal design, Draw-Tite engineers a trailer hitch for a specific make, model and model year, so it bolts to existing frame locations with minimal bumper cutting or drilling. Low-profile designs follow the rear contours and aerodynamic styling of modern vehicles, which matters more than it once did now that rear fascias are shaped and sensor-equipped. Construction is solid all-welded steel for maximum strength, and every hitch meets or exceeds V5 CSA and SAE J684 standards and is backed by a nationwide limited lifetime warranty.
The range spans receiver sizes and classes to suit different loads, from 1-1/4 inch receivers for bike racks, cargo carriers and light trailers up through 2 inch receivers for heavier towing. Front mount hitches add a receiver at the front of the vehicle for winch mounts, snow plows, spare carriers and precise trailer positioning.
The Hidden Hitch series takes concealment further by mounting behind the vehicle's rear fascia, so the vehicle keeps its factory appearance until a removable receiver is fitted. Each is custom designed per make and model for a no-drill installation that does not compromise ground clearance, rated for up to 3,500 pounds gross trailer weight and 350 pounds tongue weight. Matching plug-and-play wiring completes the towing system.
Experts available to answer your questions
Call 888-634-9494Lifetime
Draw•Tite® Receiver Hitches Commercial
4 compatible vehicles
| Year | Make & Model | Style | Notes |
|---|---|---|---|
| 2001 - 2007 | Ford Focus | — | Class 1 Trailer Hitch: 2000 lbs 200/2,000 lbs. Weight Carrying (tongue weight/gross trailer weight) Uses all existing holes. No Drilling required Install Time is 20 minutes Except with Street Appearance Package |
| 2000 | Ford Focus | Sedan | Class 1 Trailer Hitch: 2000 lbs 200/2,000 lbs. Weight Carrying (tongue weight/gross trailer weight) Uses all existing holes. No Drilling required Install Time is 20 minutes |
| 2000 - 2006 | Ford Focus ZX3 | Hatchback | Class 1 Trailer Hitch: 2000 lbs 200/2,000 lbs. Weight Carrying (tongue weight/gross trailer weight) Drilling Required Install Time is 20 minutes |
| 2002 - 2006 | Ford Focus ZX5 | Hatchback | Class 1 Trailer Hitch: 2000 lbs 200/2,000 lbs. Weight Carrying (tongue weight/gross trailer weight) Drilling Required Install Time is 20 minutes |
The Draw-tite Class 1 Trailer Hitch, 1-1/4" Square Receiver, Black for Select Ford Focus, Ford Focus ZX3, Ford Focus ZX5 24692 (Part #DT24692) fits the following vehicles: 2000-2007 Ford Focus; 2000-2006 Ford Focus ZX3; 2002-2006 Ford Focus ZX5. Always verify your specific year, make, and model before ordering.
The Draw-tite Class 1 Trailer Hitch, 1-1/4" Square Receiver, Black for Select Ford Focus, Ford Focus ZX3, Ford Focus ZX5 24692 (Part #DT24692) fits 2000-2007 Ford Focus models. The 2007 model year is the last year covered by this part number. For newer models, check for an updated version.
Yes, the Draw-tite Class 1 Trailer Hitch, 1-1/4" Square Receiver, Black for Select Ford Focus, Ford Focus ZX3, Ford Focus ZX5 24692 (Part #DT24692) is designed to fit the 2000-2007 Ford Focus.
The Draw-tite Class 1 Trailer Hitch, 1-1/4" Square Receiver, Black for Select Ford Focus, Ford Focus ZX3, Ford Focus ZX5 24692 (Part #DT24692) Drilling is required for installation. Basic hand tools are typically all you need.
No. This hitch does not fit Ford Focus models equipped with the Street Appearance Package. You will need a different hitch assembly.
Yes. This hitch assembly (part numbers 77114, 24692, 60870) is designed for Ford Focus Sedan, Ford Focus 5 DR ZX5 (Hatchback), and Ford Focus 3 DR ZX3 (Hatchback). However, the installation procedure differs between sedan and hatchback models, and the position of certain blocks varies by model. Refer to Figure 1 in the manual to confirm your model type.
The maximum gross trailer weight is 2000 LB (908 kg) and the maximum tongue weight is 200 LB (90.8 kg). Do not exceed the lower of this rating or your vehicle manufacturer's towing rating.
You will need: wrenches in 3/4" and 7/8" sizes, a 1/2" drill bit, and a torque wrench. You will also need a fishwire or similar tool to route fasteners through the frame rail.

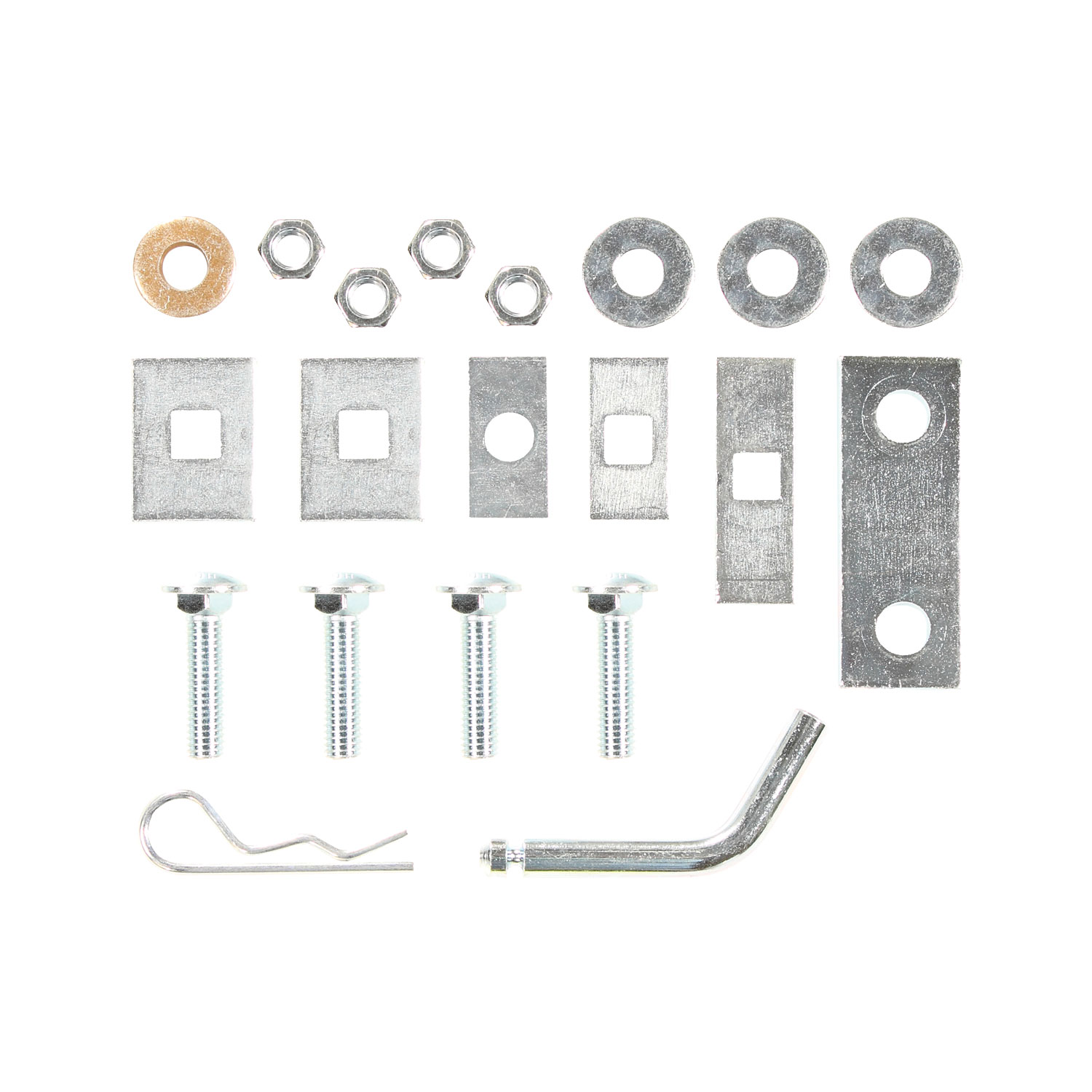

The hitch includes: 4 carriage bolts (1/2-13 x 2.00 GR5), 1 block (.188 x 1.00 x 2.00), 1 block (.25 x 1.50 x 4.00 for sedan or .25 x 1.50 x 2.00 for hatchback), 2 blocks (.25 x 1.50 x 2.00), 1 nut (1/2-13), 1 block (.25 x 1.00 x 3.00), 3 flat washers (1/2"), 1 conical washer (1/2"), 1 block (.25 x 1.00 x 2.00), and 3 lock nuts (1/2-13). A separate fastener kit K24692 is also available.
No. On sedan models, the hitch uses an existing hole in the frame. You do not need to drill.
Yes. On hatchback models, you must drill one 1/2" hole in the forward-most end of the slot in the side bracket on the passenger side, using the hitch as a template. This is a permanent modification.
No. Do not cut access or attachment holes with a torch. Use a drill with the specified 1/2" bit.
The driver's side bracket is positioned inboard of the tie down hook. The passenger's side bracket is positioned outboard of the tie down hook.
No. During initial assembly, install carriage bolts and blocks through the vehicle tie down hooks and loosely install flat washers and hex nuts. Tighten all 1/2" fasteners to final torque only after all fasteners are in place.
Tighten all 1/2" fasteners with a torque wrench to 75 Lb.-Ft. (102 N*M).
A fishwire is a flexible tool used to route fasteners through confined spaces. On hatchback models, you use a fishwire to pass a carriage bolt and block through the access hole on the bottom of the frame rail, where direct access is not possible.
Yes. All models require a spacer between the hitch and the frame.
The drawbar must be used in the RISE position only. Do not use it in any other position.
Check the hitch frequently to ensure all fasteners and the ball are properly tightened. Perform this check regularly during use.
If the hitch is removed, plug all holes in the trunk pan or other body panels to prevent entry of water and exhaust fumes.
A hitch or ball which has been damaged should be removed and replaced. Do not continue to use a damaged hitch.
Observe safety precautions when working beneath a vehicle and wear eye protection.
The drawbar kit is part number 3593 and is sold separately.
The fastener kit is part number K24692 and is sold separately.
Yes, it fits Ford Focus Sedan, ZX5 (5-door hatchback), and ZX3 (3-door hatchback), except models with the Street Appearance Package.
Drilling is required only for hatchback models: one 1/2" hole in the passenger-side bracket slot. Sedan models use an existing frame hole.
3/4" and 7/8" wrenches, 1/2" drill bit, torque wrench, and a fishwire or similar tool to route fasteners through the frame.
All 1/2" fasteners must be tightened to 75 Lb.-Ft. (102 N*M) with a torque wrench.
Maximum gross trailer weight is 2000 LB (908 kg) and maximum tongue weight is 200 LB (90.8 kg). Do not exceed your vehicle manufacturer's rating.
The drawbar must be used in the RISE position only.
Check the hitch frequently to ensure all fasteners and the ball are properly tightened. If removed, plug all holes to prevent water and exhaust fume entry.
