Select your vehicle to find the exact plug-and-play parts that fit — no cutting or splicing.

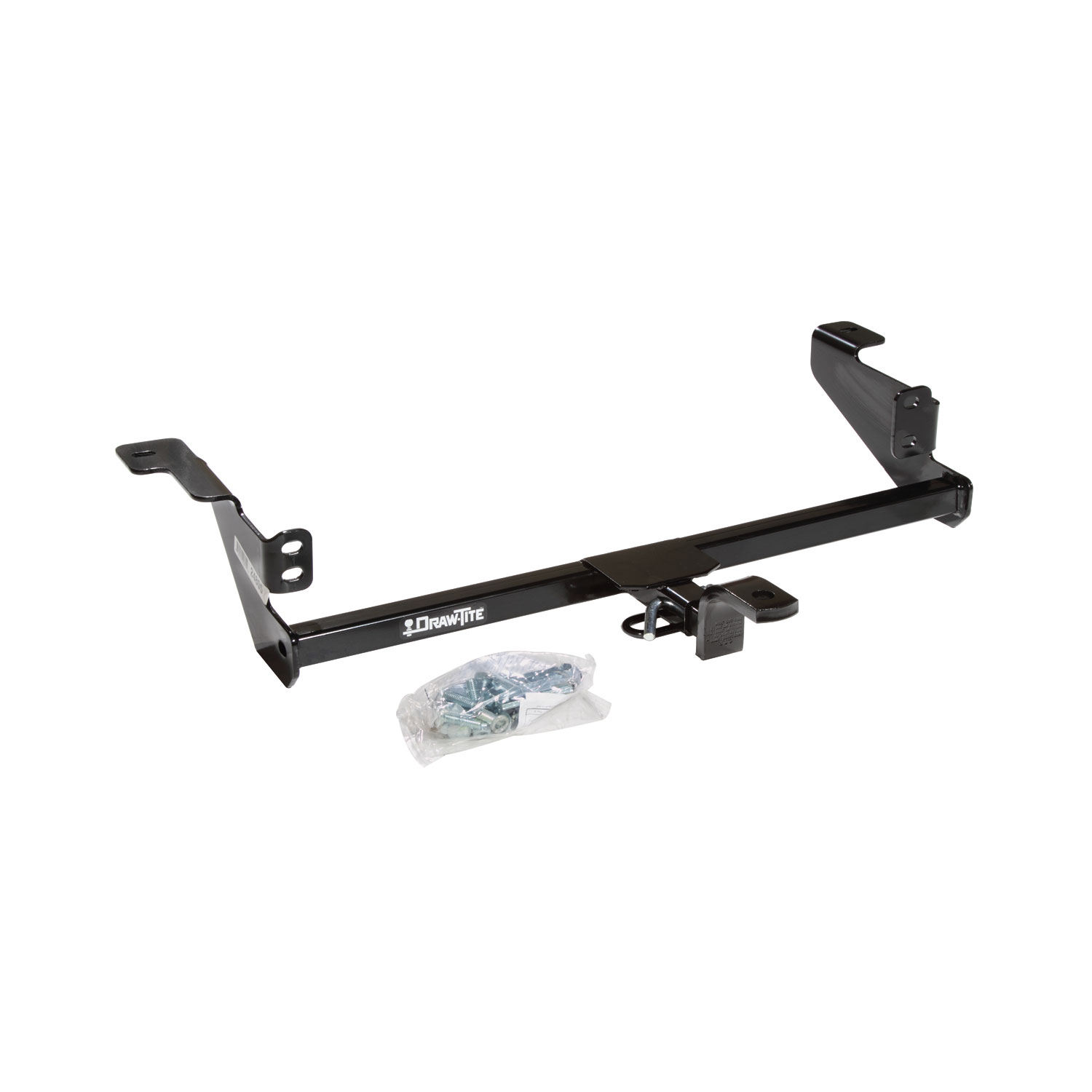

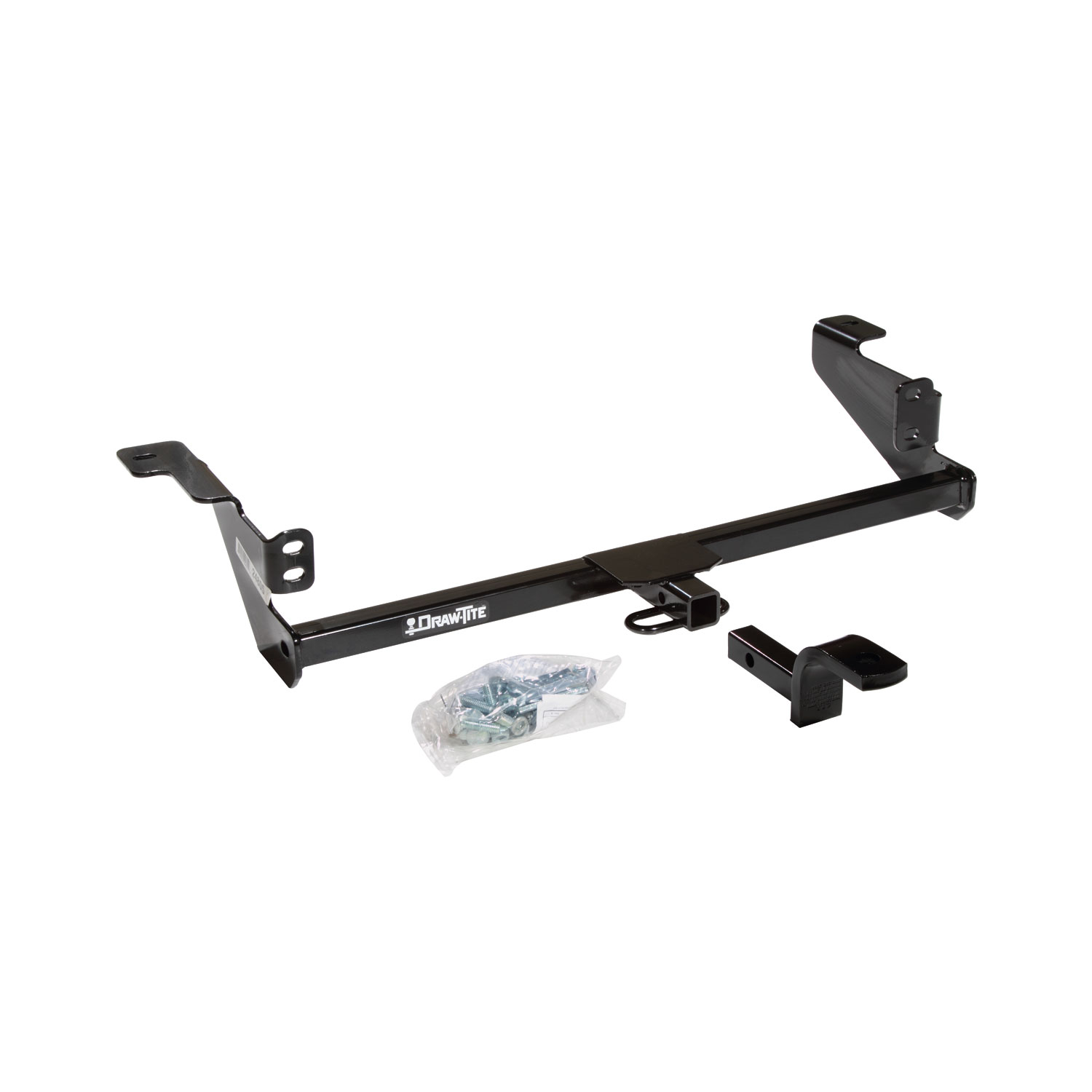

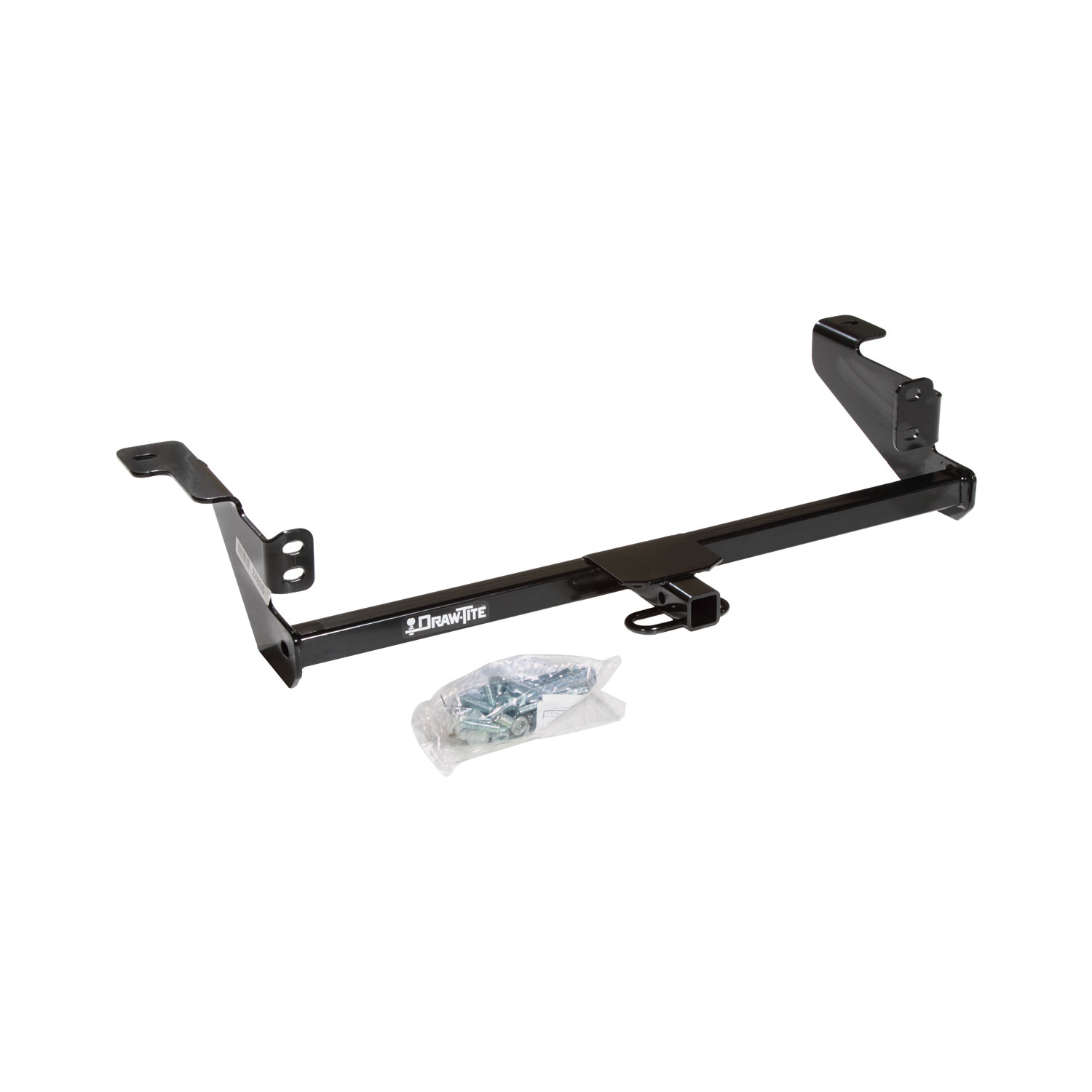

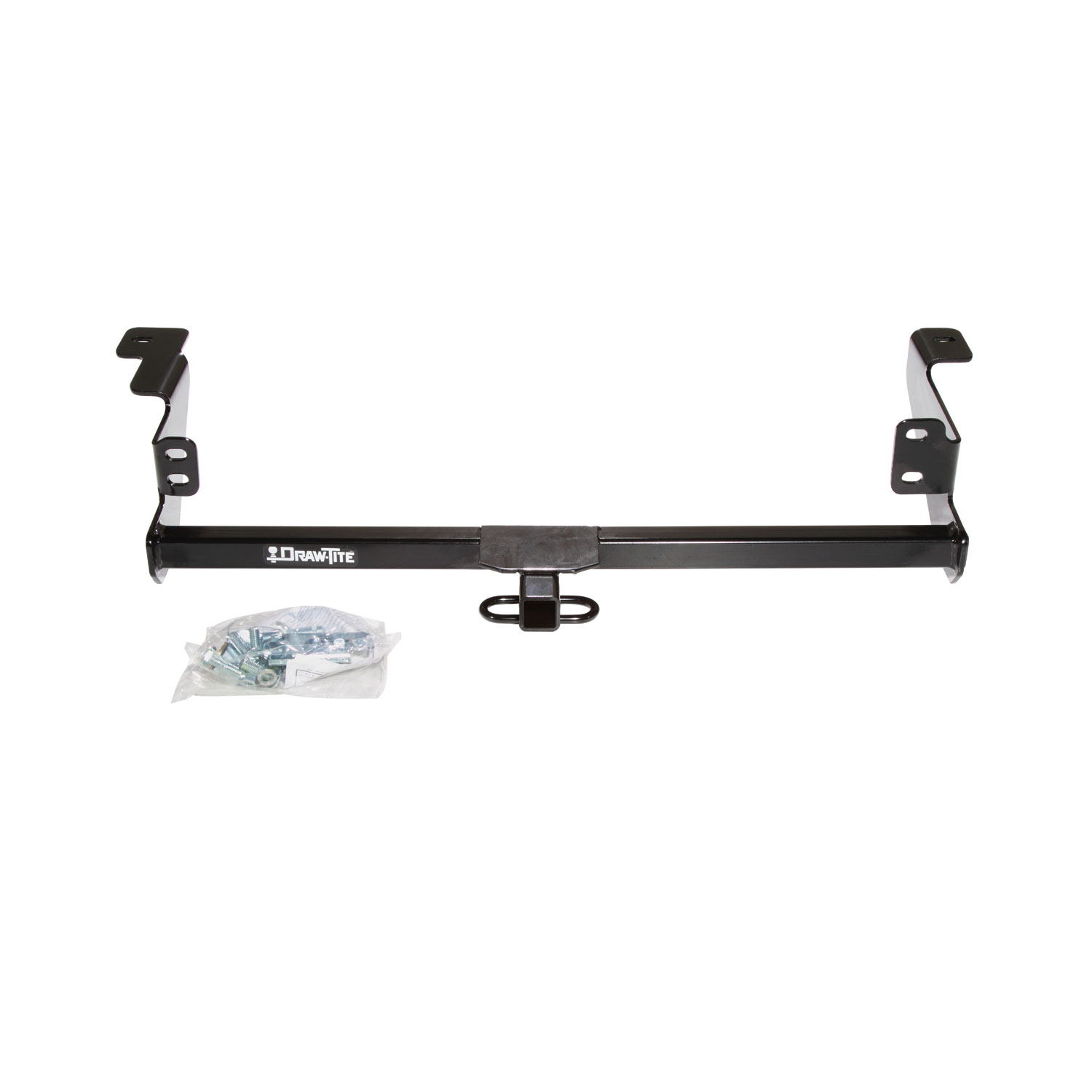

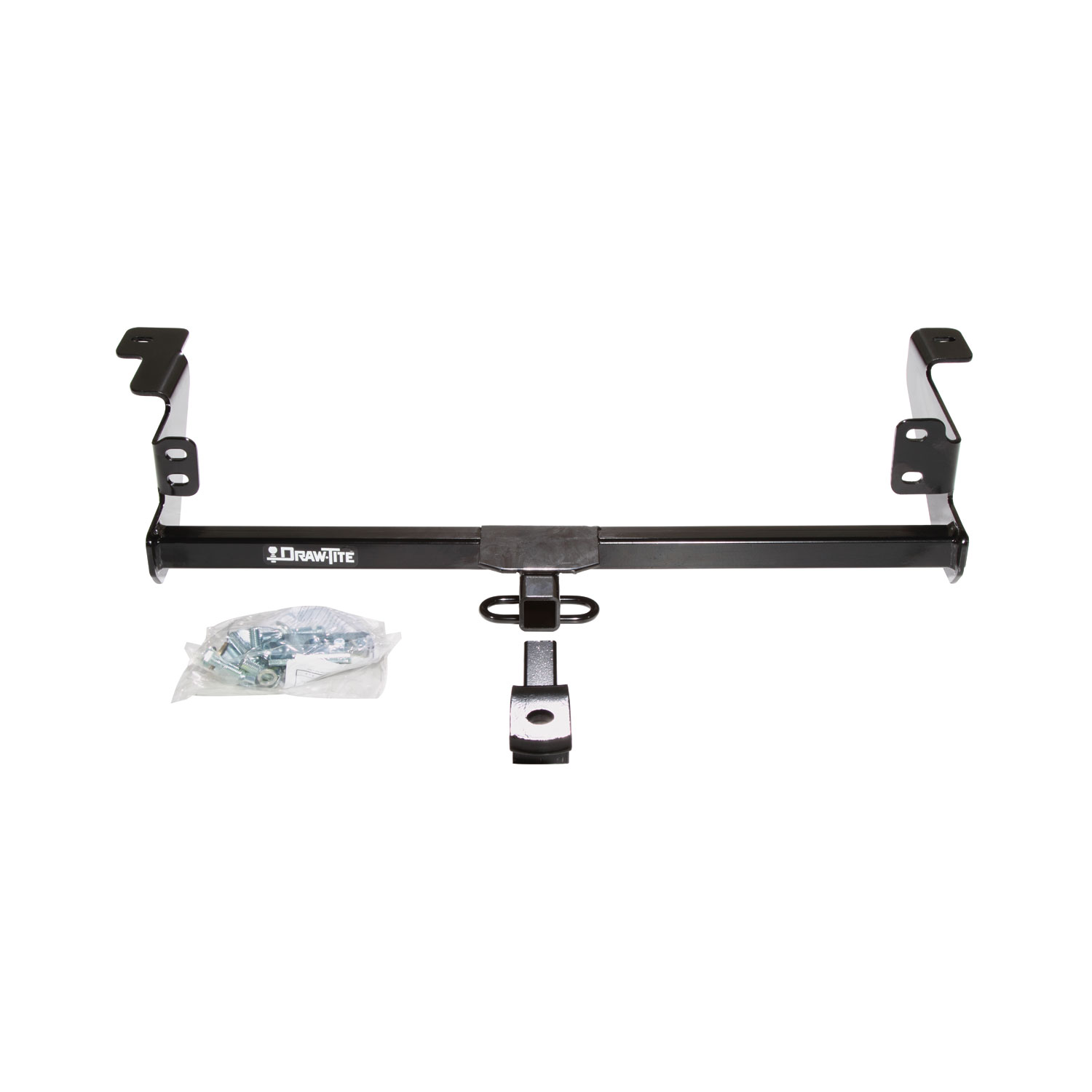

DRAW-TITE Class 1 trailer hitches are the perfect mix of style and stability for those times when youre working on a home project or heading out on an adventure. This DRAW-TITE Class 1 receiver hitch is rated for up to 2,000 lbs. gross trailer weight (GTW) and up to 200 lbs. tongue weight (TW). No weight distribution kits can be used on this specific trailer hitch. DRAW-TITE hitches are designed to provide top towing performance, with solid-all-welded construction and a black powder coat finish to resist rust and corrosion. The Class 1 trailer hitch has a 1-1/4 inch square receiver tube opening so you can easily attach accessories like a bike rack or cargo carrier, or a utility trailer. Includes all the mounting hardware needed for installation and are backed by a nationwide lifetime limited warranty. DRAW-TITE trailer hitches are tested to exceed V-5 and SAE J684 standards. DRAW-TITE: North Americas Favorite Hitch.
| BRAND: | DRAW-TITE |
| PART NUMBER: | 24805 |
| WARRANTY: | LIMITED LIFETIME WARRANTY |
| WEIGHT: | 23.1 LBS |
| GROSS TOWING WEIGHT: | 2,000 LBS. |
| GROSS TONGUE WEIGHT: | 200 LBS. |
| RECEIVER SIZE: | 1.25 IN. |
| HITCH CLASS: | I |
| DRILLING REQUIRED: | NO |
| MOUNTING HARDWARE INCLUDED: | YES |
| ATTACHMENT LOCATION: | REAR |
| HITCH VISIBILITY: | VISIBLE |
| CROSS-TUBE TYPE: | SQUARE TUBE |
| BALL MOUNT INCLUDED: | NO |
| COLOR: | BLACK |
| FINISH: | BLACK POWDER COAT OVER E-COAT |
| MATERIAL: | STEEL |
| MOUNTING LOCATION: | VEHICLE FRAME |
| MOUNTING TYPE: | BOLT-ON |
Draw-Tite has designed custom-fit trailer hitches since 1946 and is one of North America's most widely fitted hitch brands. Receiver hitches use solid all-welded construction and low-profile designs that follow modern vehicle contours, install with minimal bumper cutting or drilling, meet or exceed V5 CSA and SAE J684 standards, and carry a limited lifetime warranty.
Draw-Tite has been leading custom-fit trailer hitch design and engineering since its founding in 1946, and it remains one of the most widely fitted hitch brands in North America. The company's stated approach is straightforward: every hitch is tested rigorously so that it performs well beyond published industry standards, a philosophy it markets as Tested Tough. It sits within the Horizon Global towing group alongside Reese, Fulton, Bulldog, Tekonsha, Bargman and Wesbar.
Custom fit is the defining characteristic. Rather than adapting a universal design, Draw-Tite engineers a trailer hitch for a specific make, model and model year, so it bolts to existing frame locations with minimal bumper cutting or drilling. Low-profile designs follow the rear contours and aerodynamic styling of modern vehicles, which matters more than it once did now that rear fascias are shaped and sensor-equipped. Construction is solid all-welded steel for maximum strength, and every hitch meets or exceeds V5 CSA and SAE J684 standards and is backed by a nationwide limited lifetime warranty.
The range spans receiver sizes and classes to suit different loads, from 1-1/4 inch receivers for bike racks, cargo carriers and light trailers up through 2 inch receivers for heavier towing. Front mount hitches add a receiver at the front of the vehicle for winch mounts, snow plows, spare carriers and precise trailer positioning.
The Hidden Hitch series takes concealment further by mounting behind the vehicle's rear fascia, so the vehicle keeps its factory appearance until a removable receiver is fitted. Each is custom designed per make and model for a no-drill installation that does not compromise ground clearance, rated for up to 3,500 pounds gross trailer weight and 350 pounds tongue weight. Matching plug-and-play wiring completes the towing system.
Experts available to answer your questions
Call 888-634-9494Lifetime
Draw•Tite® and the Checkered Flag Foundation
1 compatible vehicles
| Year | Make & Model | Notes |
|---|---|---|
| 2008 - 2011 | Ford Focus | Class 1 Trailer Hitch: 2000 lbs 200/2,000 lbs. Weight Carrying (tongue weight/gross trailer weight) Uses all existing holes. No Drilling required Install Time is 30 minutes |
The Draw-tite Class 1 Trailer Hitch, 1-1/4" Square Receiver, Black for Select Ford Focus 24805 (Part #DT24805) fits 2008-2011 Ford Focus models. The 2011 model year is the last year covered by this part number. For newer models, check for an updated version.
The Draw-tite Class 1 Trailer Hitch, 1-1/4" Square Receiver, Black for Select Ford Focus 24805 (Part #DT24805) fits the following vehicles: 2008-2011 Ford Focus. Always verify your specific year, make, and model before ordering.
Yes, the Draw-tite Class 1 Trailer Hitch, 1-1/4" Square Receiver, Black for Select Ford Focus 24805 (Part #DT24805) is designed to fit the 2008-2011 Ford Focus.
The Draw-tite Class 1 Trailer Hitch, 1-1/4" Square Receiver, Black for Select Ford Focus 24805 (Part #DT24805) Refer to the included instructions for installation details. Basic hand tools are typically all you need.
The manual specifies this hitch is for Ford Focus but does not identify which model years or generations are compatible. Contact the manufacturer or check the fitment database to confirm compatibility with your specific Focus model year and body style.
The maximum gross trailer weight is 2000 LB (908 kg) and the maximum tongue weight is 200 LB (90.8 kg). Do not exceed the lower of these ratings or your towing vehicle manufacturer's rating.
You will need tin snips and wrenches in 10mm and 11/16 sizes. A torque wrench is also required to tighten fasteners to the specified 50 Lb.-Ft. (68 N·M).
Yes. The exhaust system must be lowered at the rubber isolator before installation. Spraying a lubricant on the metal hanger rod and rubber isolator helps with removal. The exhaust is then raised back into position after the hitch is installed.
No. The heat shield cannot be removed. It must be loosened by removing the nuts, then trimmed around the notch at the attachment hole using tin snips. After trimming, it is bent back into position and the nuts are reinstalled.
Use tin snips to trim the heat shield around the notch at the attachment hole. Do not use a torch to cut access or attachment holes.
Use pull wires to feed the spacers (Item 2) and carriage bolts into position through the access hole located at the end of the frame rail and before the impact bar. Keep the bolt and spacer disengaged while inserting them into the frame—do not engage them until they are in position. Leave the pull wire attached until you are ready to install the conical washers and nuts.
Spacers (Item 2) are installed between the hitch and the frame on both sides. Small spacers (Item n, qty 4) and large spacers (Item k, qty 4) are used. The spacers are fed into the frame rails using pull wires and positioned before the hitch is raised into place.
The heat shield must be sandwiched between the hitch and the rail on the driver's side when the hitch is raised into position over the exhaust.
The blocks (Item 5) must be oriented as shown in Figure 1. The blocks must not overlap.
All 7/16-14 GR5 fasteners must be tightened to 50 Lb.-Ft. (68 N·M) using a torque wrench.
The kit includes: 6 carriage bolts 7/16-14 X 1.50 GR5 (Item j), 4 small spacers (Item n), 4 large spacers (Item k), 4 lock washers (Item o), 2 conical washers (Item l), 4 flat washers (Item p), 6 hex nuts 7/16-14 (Item m), and 2 pull wires 7/16 (Item q). An optional fastener kit 24805F is available separately.
Remove the pull wires after the hitch is raised into position and before you attach the conical washers and nuts. Be careful not to push the fasteners back into the frame rail when removing the pull wires.
No. The drawbar kit (part number 3593) is sold separately. The drawbar must be used in the rise position only.
Check the hitch frequently to ensure all fasteners and the ball are properly tightened. After installation, verify that all 7/16-14 GR5 fasteners are torqued to 50 Lb.-Ft. (68 N·M).
Observe safety precautions when working beneath the vehicle and wear eye protection. Do not cut access or attachment holes with a torch. If the hitch is removed, plug all holes in the trunk pan or other body panels to prevent entry of water and exhaust fumes.
A damaged hitch or ball must be removed and replaced. Do not attempt to repair a damaged hitch.
Wiring access locations are at PC1 and PC2.
This hitch is designed for Ford Focus, but the manual does not specify which model years or generations. Verify compatibility with the manufacturer or fitment database before purchasing.
You need tin snips, 10mm and 11/16 wrenches, and a torque wrench. The exhaust system must be lowered and the heat shield trimmed.
No drilling is required. The hitch uses existing frame rail access holes. The heat shield must be trimmed with tin snips around the attachment notch, but it cannot be fully removed.
All 7/16-14 GR5 fasteners must be torqued to 50 Lb.-Ft. (68 N·M).
Maximum gross trailer weight is 2000 LB (908 kg) and maximum tongue weight is 200 LB (90.8 kg). Do not exceed the lower of these or your vehicle manufacturer's rating.
Yes. The exhaust system must be lowered at the rubber isolator before installation. Use lubricant on the hanger rod and isolator to help with removal. Raise it back into position after the hitch is installed.
No. The drawbar kit (part number 3593) is sold separately and must be used in the rise position only.
