Select your vehicle to find the exact plug-and-play parts that fit — no cutting or splicing.

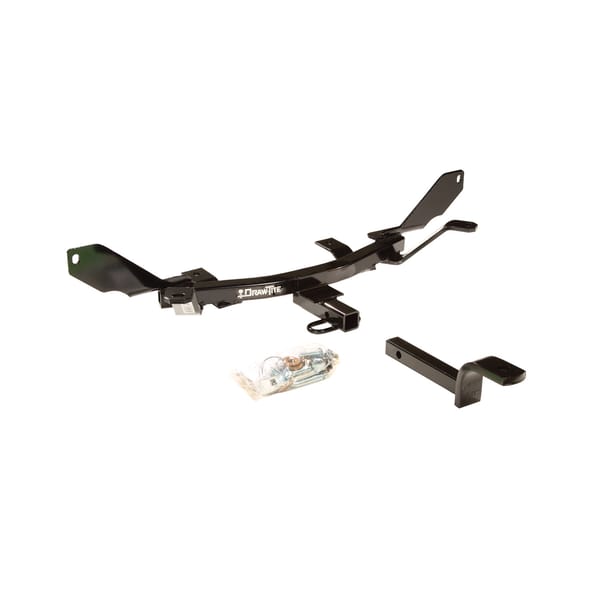

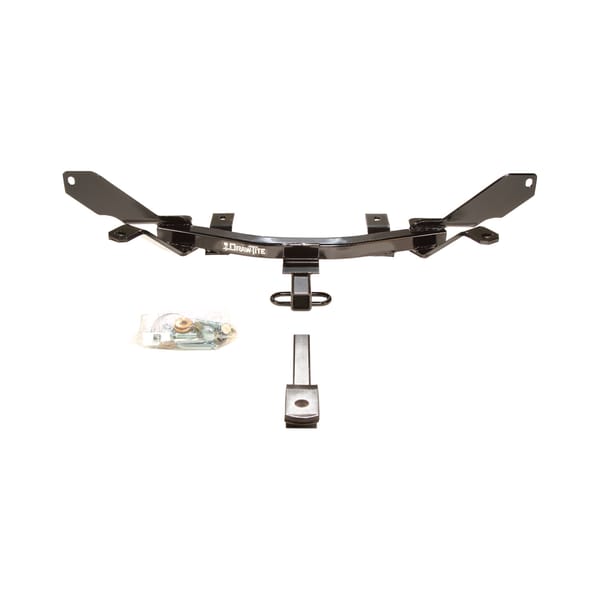

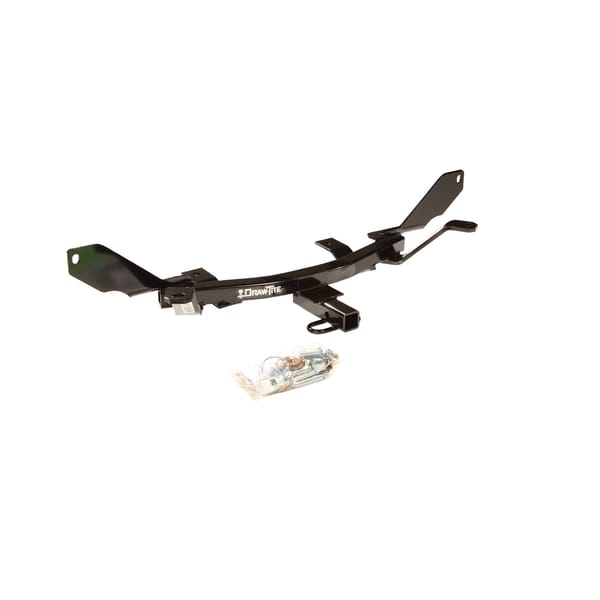

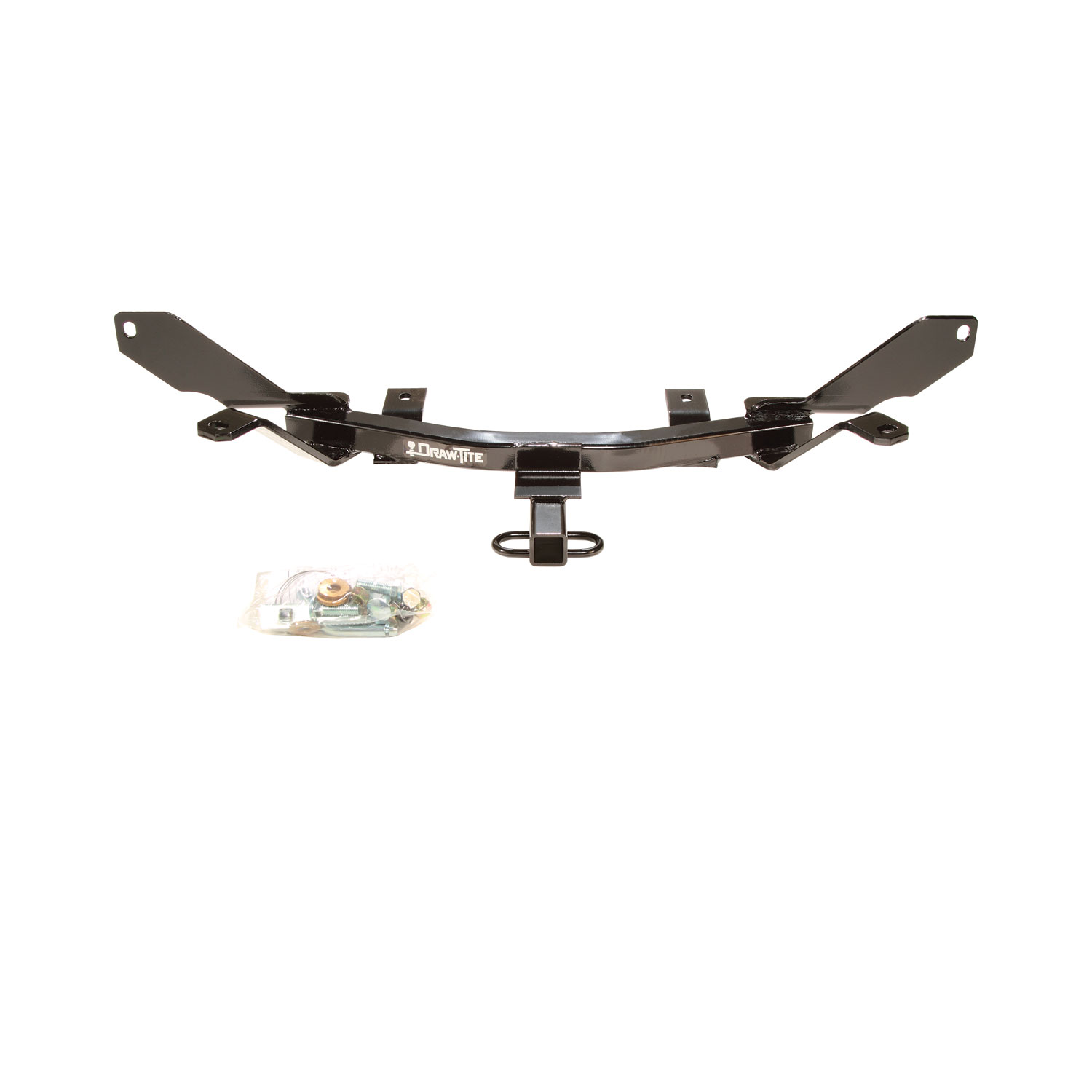

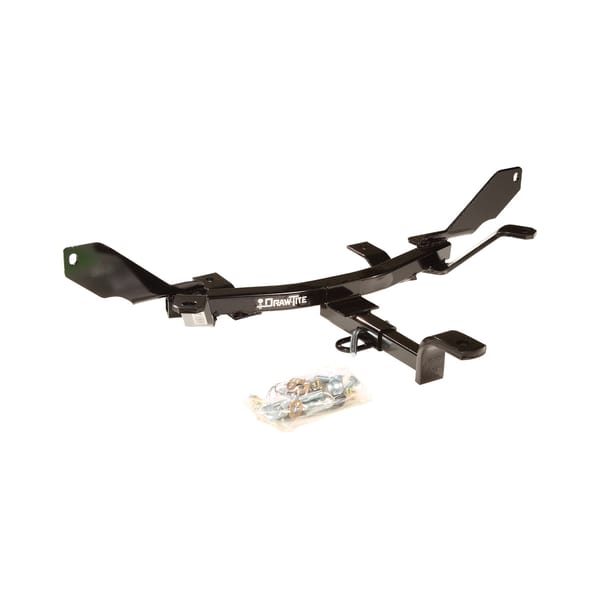

DRAW-TITE Class 1 trailer hitches are the perfect mix of style and stability for those times when youre working on a home project or heading out on an adventure. This DRAW-TITE Class 1 receiver hitch is rated for up to 2,000 lbs. gross trailer weight (GTW) and up to 200 lbs. tongue weight (TW). No weight distribution kits can be used on this specific trailer hitch. DRAW-TITE hitches are designed to provide top towing performance, with solid-all-welded construction and a black powder coat finish to resist rust and corrosion. The Class 1 trailer hitch has a 1-1/4 inch square receiver tube opening so you can easily attach accessories like a bike rack or cargo carrier, or a utility trailer. Includes all the mounting hardware needed for installation and are backed by a nationwide lifetime limited warranty. DRAW-TITE trailer hitches are tested to exceed V-5 and SAE J684 standards. DRAW-TITE: North Americas Favorite Hitch.
| BRAND: | DRAW-TITE |
| PART NUMBER: | 24775 |
| WARRANTY: | LIMITED LIFETIME WARRANTY |
| WEIGHT: | 17.8 LBS |
| GROSS TOWING WEIGHT: | 2,000 LBS. |
| GROSS TONGUE WEIGHT: | 200 LBS. |
| RECEIVER SIZE: | 1.25 IN. |
| HITCH CLASS: | I |
| DRILLING REQUIRED: | YES |
| MOUNTING HARDWARE INCLUDED: | YES |
| ATTACHMENT LOCATION: | REAR |
| HITCH VISIBILITY: | CONCEALED |
| CROSS-TUBE TYPE: | SQUARE TUBE |
| BALL MOUNT INCLUDED: | NO |
| COLOR: | BLACK |
| FINISH: | BLACK POWDER COAT OVER E-COAT |
| MATERIAL: | STEEL |
| MOUNTING LOCATION: | VEHICLE FRAME |
| MOUNTING TYPE: | BOLT-ON |
Draw-Tite has designed custom-fit trailer hitches since 1946 and is one of North America's most widely fitted hitch brands. Receiver hitches use solid all-welded construction and low-profile designs that follow modern vehicle contours, install with minimal bumper cutting or drilling, meet or exceed V5 CSA and SAE J684 standards, and carry a limited lifetime warranty.
Draw-Tite has been leading custom-fit trailer hitch design and engineering since its founding in 1946, and it remains one of the most widely fitted hitch brands in North America. The company's stated approach is straightforward: every hitch is tested rigorously so that it performs well beyond published industry standards, a philosophy it markets as Tested Tough. It sits within the Horizon Global towing group alongside Reese, Fulton, Bulldog, Tekonsha, Bargman and Wesbar.
Custom fit is the defining characteristic. Rather than adapting a universal design, Draw-Tite engineers a trailer hitch for a specific make, model and model year, so it bolts to existing frame locations with minimal bumper cutting or drilling. Low-profile designs follow the rear contours and aerodynamic styling of modern vehicles, which matters more than it once did now that rear fascias are shaped and sensor-equipped. Construction is solid all-welded steel for maximum strength, and every hitch meets or exceeds V5 CSA and SAE J684 standards and is backed by a nationwide limited lifetime warranty.
The range spans receiver sizes and classes to suit different loads, from 1-1/4 inch receivers for bike racks, cargo carriers and light trailers up through 2 inch receivers for heavier towing. Front mount hitches add a receiver at the front of the vehicle for winch mounts, snow plows, spare carriers and precise trailer positioning.
The Hidden Hitch series takes concealment further by mounting behind the vehicle's rear fascia, so the vehicle keeps its factory appearance until a removable receiver is fitted. Each is custom designed per make and model for a no-drill installation that does not compromise ground clearance, rated for up to 3,500 pounds gross trailer weight and 350 pounds tongue weight. Matching plug-and-play wiring completes the towing system.
Experts available to answer your questions
Call 888-634-9494Lifetime
Draw•Tite® Receiver Hitches Commercial
6 compatible vehicles
| Year | Make & Model | Style | Notes |
|---|---|---|---|
| 2006 - 2009 | Ford Fusion | — | Class 1 Trailer Hitch: 2000 lbs 200/2,000 lbs. Weight Carrying (tongue weight/gross trailer weight) Drilling Required Install Time is 45 minutes |
| 2007 - 2009 | Lincoln MKZ | — | Class 1 Trailer Hitch: 2000 lbs 200/2,000 lbs. Weight Carrying (tongue weight/gross trailer weight) Drilling Required Install Time is 45 minutes |
| 2006 | Lincoln Zephyr | — | Class 1 Trailer Hitch: 2000 lbs 200/2,000 lbs. Weight Carrying (tongue weight/gross trailer weight) Drilling Required Install Time is 45 minutes |
| 2003 - 2008 | Mazda Swift | 4-Door | Class 1 Trailer Hitch: 2000 lbs 200/2,000 lbs. Weight Carrying (tongue weight/gross trailer weight) Drilling Required Install Time is 45 minutes |
| 2004 - 2008 | Mazda Swift | 5-Door | Class 1 Trailer Hitch: 2000 lbs 200/2,000 lbs. Weight Carrying (tongue weight/gross trailer weight) Drilling Required Install Time is 45 minutes |
| 2006 - 2009 | Mercury Milan | — | Class 1 Trailer Hitch: 2000 lbs 200/2,000 lbs. Weight Carrying (tongue weight/gross trailer weight) Drilling Required Install Time is 45 minutes |
The Draw-tite Class 1 Trailer Hitch, 1-1/4" Square Receiver, Black for Select Ford Fusion, Lincoln MKZ, Lincoln Zephyr, Mazda 6, Mercury Milan 24775 (Part #DT24775) fits 2006-2009 Ford Fusion models. The 2009 model year is the last year covered by this part number. For newer models, check for an updated version.
Yes, the Draw-tite Class 1 Trailer Hitch, 1-1/4" Square Receiver, Black for Select Ford Fusion, Lincoln MKZ, Lincoln Zephyr, Mazda 6, Mercury Milan 24775 (Part #DT24775) is designed to fit the 2006-2009 Ford Fusion.
The Draw-tite Class 1 Trailer Hitch, 1-1/4" Square Receiver, Black for Select Ford Fusion, Lincoln MKZ, Lincoln Zephyr, Mazda 6, Mercury Milan 24775 (Part #DT24775) fits the following vehicles: 2006-2009 Ford Fusion; 2007-2009 Lincoln MKZ; 2006 Lincoln Zephyr; 2003-2008 Mazda Swift; 2006-2009 Mercury Milan. Always verify your specific year, make, and model before ordering.
The Draw-tite Class 1 Trailer Hitch, 1-1/4" Square Receiver, Black for Select Ford Fusion, Lincoln MKZ, Lincoln Zephyr, Mazda 6, Mercury Milan 24775 (Part #DT24775) Drilling is required for installation. Basic hand tools are typically all you need.
No. This hitch is designed for Mazda 6 Sedan and 5-Door models only and does not fit wagon versions.
Part number 24775 fits Ford Fusion, Mercury Milan, Lincoln Zephyr, and Lincoln MKZ.
The maximum gross trailer weight is 2000 lb (908 kg) and the maximum tongue weight is 200 lb (90.8 kg). Do not exceed the lower of the towing vehicle manufacturer's rating or these limits.
You will need wrenches in 12mm, 13mm, and 3/4 inch sizes, and a 1/2 inch drill bit. A pull wire is provided with the hitch.
Yes. The spare tire must be removed before drilling holes in the trunk pan (step 6). It is reinstalled after the hitch installation is complete (step 9).
Yes. The muffler must be lowered by removing three rubber isolator hangers—two located near the end of the muffler and one forward of the rear axle. The muffler is reinstalled after the hitch is secured.
Only if your vehicle's bumper does not have existing slots that align with the holes in the inner bumper strap. If slots exist, no drilling is required. If no slots exist, you must drill two 1/2 inch holes in the vehicle bumper using the hitch inner bumper straps as a template (step 4).
Only if your vehicle's trunk pan does not have existing holes. If holes are present, fasteners are installed through them. If no holes exist, you must remove the spare tire and use the hitch as a template to drill two 1/2 inch holes in the trunk pan (step 6).
No. Do not cut access or attachment holes with a torch. Use a drill with a 1/2 inch bit instead.
All 1/2-13 GR5 fasteners must be tightened to 75 lb.-ft. (102 N·m).
All 8mm fasteners must be tightened to 25 lb.-ft. (34 N·m).

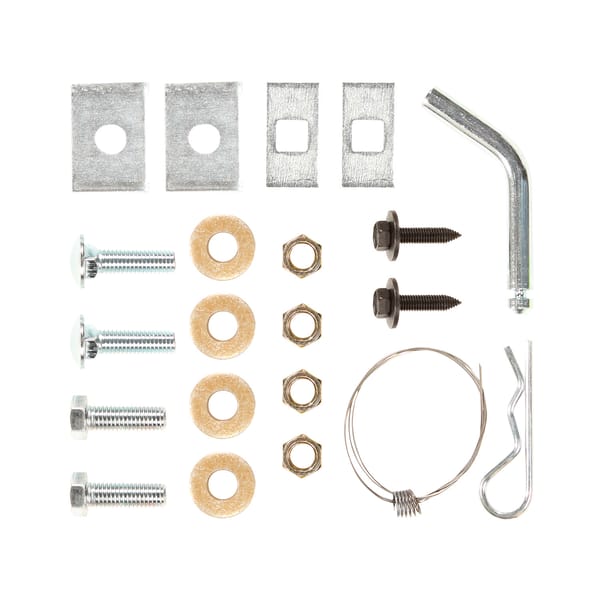

The hitch includes: (2) hex bolts 1/2-13 x 1-1/2 inch Gr. 5 (item j), (2) carriage bolts 1/2-13 Gr. 5 (item k), (2) blocks 1/4 x 1 x 2 inch (item l), (2) blocks 3/16 x 1-1/2 x 2 inch (item m), (4) conical toothed washers 1/2 inch (item n), (4) nuts 1/2-13 (item o), and (2) bolts M8 x 1.25 x 35mm CL9.8 (item p). A pull wire is also provided.
The pull wire is used to carefully pull the carriage bolt and block through the existing slot or drilled hole in the bumper and hitch during step 5 of the installation.
The 8mm bolts through the upright brackets (step 3) are installed loosely initially. All fasteners are tightened to their final torque specifications after the hitch is fully positioned and all attachment points are secured (steps 5 and 6).
Care must be taken when sliding inner bumper straps under the fascia to prevent scratching the vehicle's paint or trim.
After drilling holes in the trunk pan, you must seal the holes to prevent intrusion of exhaust fumes or water (step 7).
Check the hitch frequently to ensure all fasteners and the ball are properly tightened. If the hitch is removed at any time, plug all holes in the trunk pan or other body panels to prevent entry of water and exhaust fumes.
Observe safety precautions when working beneath a vehicle and wear eye protection. Do not cut access or attachment holes with a torch. A damaged hitch or ball must be removed and replaced immediately.
No. The drawbar is sold separately. For Mazda 6, drawbar kit 3594 is available. For other vehicles, drawbar kit 3592 is available. The drawbar must be used in the rise position only.
The wiring access locations are PC3 and PC4.
No. This hitch (part 24775) fits Mazda 6 Sedan and 5-Door models only, not wagons.
You need 12mm, 13mm, and 3/4 inch wrenches, a 1/2 inch drill bit, and a pull wire (provided).
Possibly. Drilling is required only if your bumper lacks existing slots and your trunk pan lacks existing holes. If slots and holes are present, no drilling is needed.
Yes. Both must be removed before installation and reinstalled after the hitch is secured.
Tighten all 1/2-13 GR5 fasteners to 75 lb.-ft. (102 N·m) and all 8mm fasteners to 25 lb.-ft. (34 N·m).
Maximum gross trailer weight is 2000 lb (908 kg) and maximum tongue weight is 200 lb (90.8 kg). Do not exceed your vehicle manufacturer's rating.
Check the hitch frequently to ensure all fasteners and the ball are properly tightened. Seal any drilled holes in the trunk pan to prevent water and exhaust fume intrusion.
