Select your vehicle to find the exact plug-and-play parts that fit — no cutting or splicing.

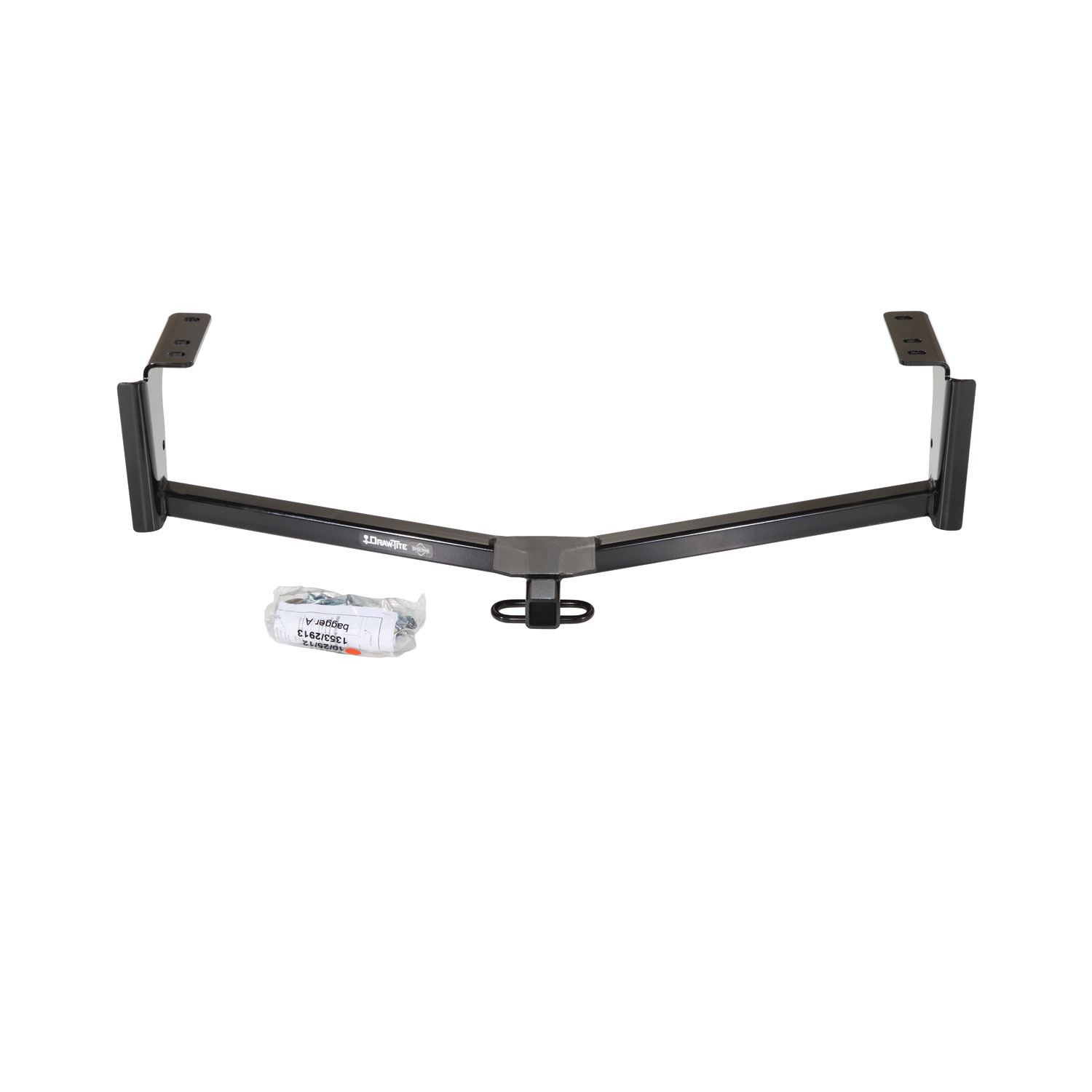

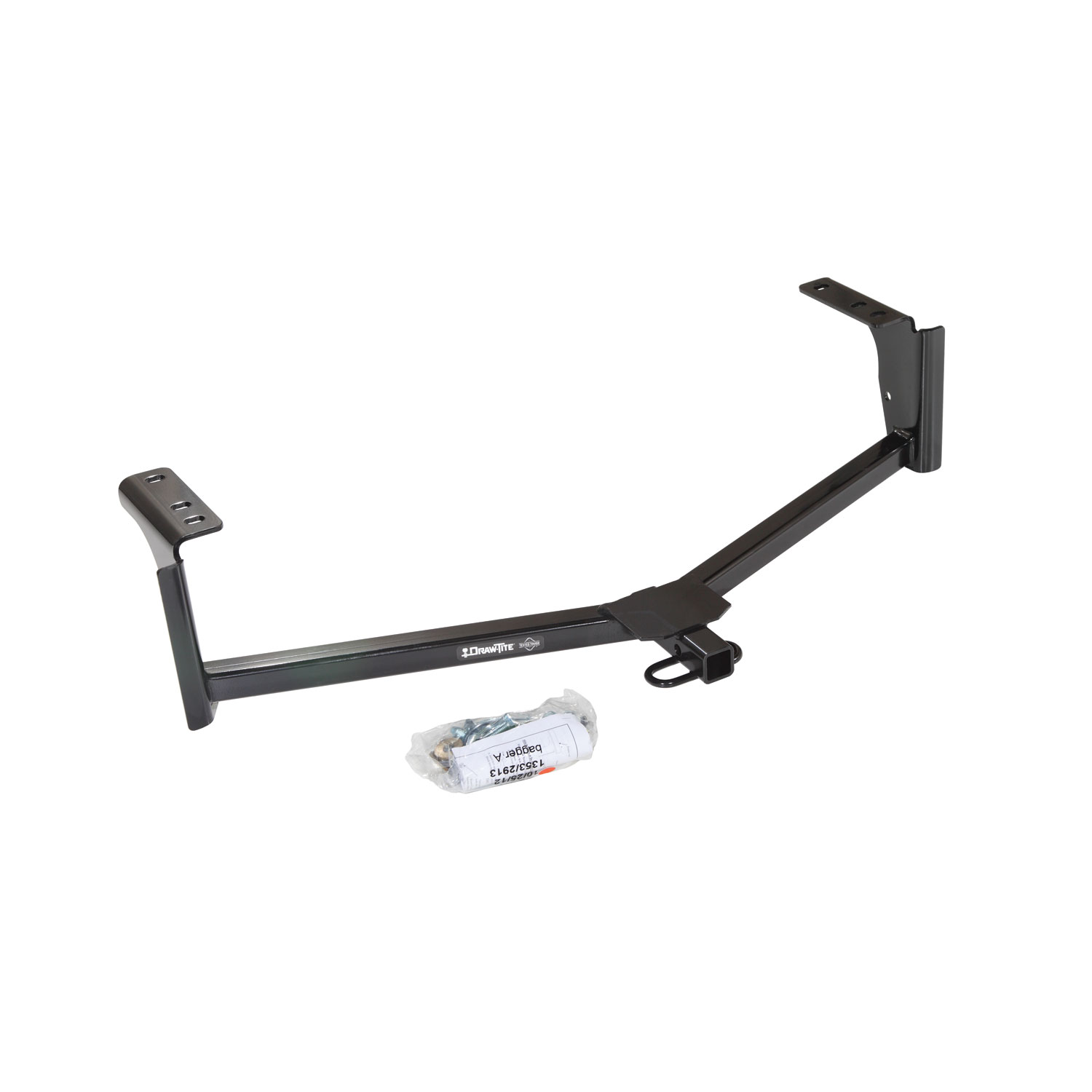

DRAW-TITE Class 1 trailer hitches are the perfect mix of style and stability for those times when youre working on a home project or heading out on an adventure. This DRAW-TITE Class 1 receiver hitch is rated for up to 2,000 lbs. gross trailer weight (GTW) and up to 200 lbs. tongue weight (TW). No weight distribution kits can be used on this specific trailer hitch. DRAW-TITE hitches are designed to provide top towing performance, with solid-all-welded construction and a black powder coat finish to resist rust and corrosion. The Class 1 trailer hitch has a 1-1/4 inch square receiver tube opening so you can easily attach accessories like a bike rack or cargo carrier, or a utility trailer. Includes all the mounting hardware needed for installation and are backed by a nationwide lifetime limited warranty. DRAW-TITE trailer hitches are tested to exceed V-5 and SAE J684 standards. DRAW-TITE: North Americas Favorite Hitch.
| BRAND: | DRAW-TITE |
| PART NUMBER: | 24897 |
| WARRANTY: | LIMITED LIFETIME WARRANTY |
| WEIGHT: | 22.6 LBS |
| GROSS TOWING WEIGHT: | 2,000 LBS. |
| GROSS TONGUE WEIGHT: | 200 LBS. |
| RECEIVER SIZE: | 1.25 IN. |
| HITCH CLASS: | I |
| DRILLING REQUIRED: | NO |
| MOUNTING HARDWARE INCLUDED: | YES |
| ATTACHMENT LOCATION: | REAR |
| HITCH VISIBILITY: | VISIBLE |
| CROSS-TUBE TYPE: | SQUARE TUBE |
| BALL MOUNT INCLUDED: | NO |
| COLOR: | BLACK |
| FINISH: | BLACK POWDER COAT OVER E-COAT |
| MATERIAL: | STEEL |
| MOUNTING LOCATION: | VEHICLE FRAME |
| MOUNTING TYPE: | BOLT-ON |
Draw-Tite has designed custom-fit trailer hitches since 1946 and is one of North America's most widely fitted hitch brands. Receiver hitches use solid all-welded construction and low-profile designs that follow modern vehicle contours, install with minimal bumper cutting or drilling, meet or exceed V5 CSA and SAE J684 standards, and carry a limited lifetime warranty.
Draw-Tite has been leading custom-fit trailer hitch design and engineering since its founding in 1946, and it remains one of the most widely fitted hitch brands in North America. The company's stated approach is straightforward: every hitch is tested rigorously so that it performs well beyond published industry standards, a philosophy it markets as Tested Tough. It sits within the Horizon Global towing group alongside Reese, Fulton, Bulldog, Tekonsha, Bargman and Wesbar.
Custom fit is the defining characteristic. Rather than adapting a universal design, Draw-Tite engineers a trailer hitch for a specific make, model and model year, so it bolts to existing frame locations with minimal bumper cutting or drilling. Low-profile designs follow the rear contours and aerodynamic styling of modern vehicles, which matters more than it once did now that rear fascias are shaped and sensor-equipped. Construction is solid all-welded steel for maximum strength, and every hitch meets or exceeds V5 CSA and SAE J684 standards and is backed by a nationwide limited lifetime warranty.
The range spans receiver sizes and classes to suit different loads, from 1-1/4 inch receivers for bike racks, cargo carriers and light trailers up through 2 inch receivers for heavier towing. Front mount hitches add a receiver at the front of the vehicle for winch mounts, snow plows, spare carriers and precise trailer positioning.
The Hidden Hitch series takes concealment further by mounting behind the vehicle's rear fascia, so the vehicle keeps its factory appearance until a removable receiver is fitted. Each is custom designed per make and model for a no-drill installation that does not compromise ground clearance, rated for up to 3,500 pounds gross trailer weight and 350 pounds tongue weight. Matching plug-and-play wiring completes the towing system.
Experts available to answer your questions
Call 888-634-9494Lifetime
Draw•Tite® and the Checkered Flag Foundation
2 compatible vehicles
| Year | Make & Model | Notes |
|---|---|---|
| 2013 - 2020 | Ford Fusion | Class 1 Trailer Hitch: 2000 lbs 200/2,000 lbs. Weight Carrying (tongue weight/gross trailer weight) Uses all existing holes. No Drilling required Install Time is 20 minutes |
| 2013 - 2020 | Lincoln MKZ | Class 1 Trailer Hitch: 2000 lbs 200/2,000 lbs. Weight Carrying (tongue weight/gross trailer weight) Uses all existing holes. No Drilling required Install Time is 20 minutes |
Yes, the Draw-tite Class 1 Trailer Hitch, 1-1/4" Square Receiver, Black for Select Ford Fusion, Lincoln MKZ 24897 (Part #DT24897) is designed to fit the 2013-2020 Ford Fusion.
The Draw-tite Class 1 Trailer Hitch, 1-1/4" Square Receiver, Black for Select Ford Fusion, Lincoln MKZ 24897 (Part #DT24897) fits 2013-2020 Ford Fusion models. The 2020 model year is the last year covered by this part number. For newer models, check for an updated version.
The Draw-tite Class 1 Trailer Hitch, 1-1/4" Square Receiver, Black for Select Ford Fusion, Lincoln MKZ 24897 (Part #DT24897) fits the following vehicles: 2013-2020 Ford Fusion; 2013-2020 Lincoln MKZ. Always verify your specific year, make, and model before ordering.
The Draw-tite Class 1 Trailer Hitch, 1-1/4" Square Receiver, Black for Select Ford Fusion, Lincoln MKZ 24897 (Part #DT24897) Refer to the included instructions for installation details. Basic hand tools are typically all you need.
Yes, part number 24897 is designed for Ford Fusion and Lincoln MKZ. The manual covers installation for both models. Related part numbers are 60322 and 77285.
The maximum gross trailer weight is 2000 LB (908 kg) and the maximum tongue weight is 200 LB (90.8 kg). Do not exceed the lower of the towing vehicle manufacturer's rating or these limits.
You will need a utility knife, wrenches in 7mm, 10mm, and 11/16" sizes, a Phillips head screwdriver, and a torque wrench. The torque wrench is essential because all 7/16-14 GR5 fasteners must be tightened to 55 Lb.-Ft. (75 N·M).

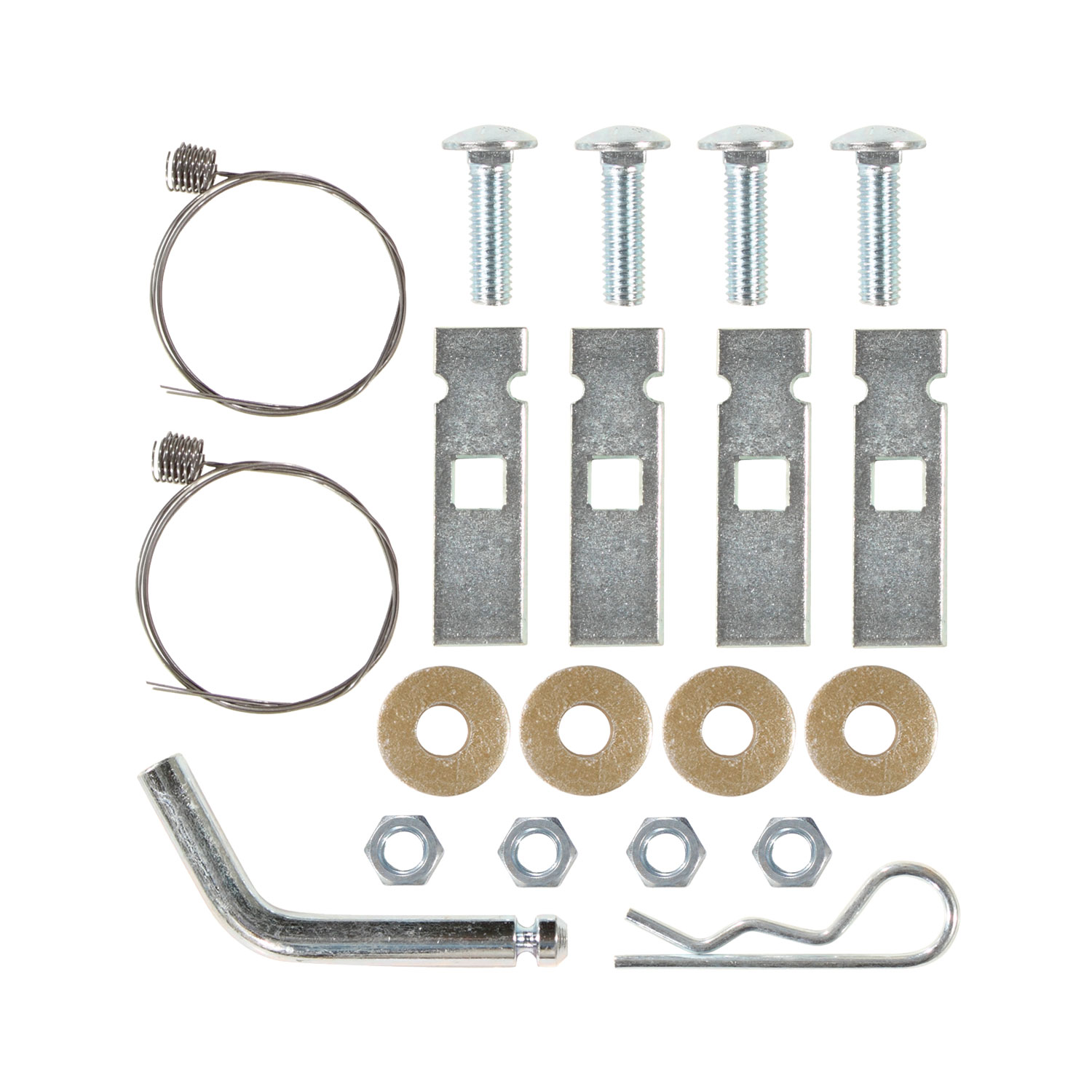

The hitch includes: 4 carriage bolts (7/16-14 × 1.50 Gr5), 4 hex nuts (7/16-14), 4 spacers, 4 pull wires (7/16), and 4 conical washers (7/16"). A separate fastener kit (24897F) is available. The drawbar kit (3594) is sold separately.
Yes, the appearance panel must be trimmed or removed to install the hitch. You must obtain the vehicle owner's permission before trimming. The shaded area shown in Figure 4 should be trimmed, and the panel can then be reinstalled or returned to the owner with fasteners. Two fasteners on the appearance panel are removed during installation and reinstalled afterward if the panel was trimmed.
Pull wires are used to feed the carriage bolts and spacer blocks into the frame rails through the access holes. The pull wire is fed through the forward hole and out the rearward access slot. The spacer and carriage bolt are attached to the pull wire and fed through the access slot using a kink wire process to keep the block independent of the bolt. The pull wires remain attached until the hitch is raised into position and the conical and hex nuts are installed.
Raise the hitch into position by feeding the pull wires through the forward and rearward slots in the brackets. The middle slot will locate the appearance panel stud in the frame. Once positioned, carefully remove the pull wires and attach the conical washer and hex nut. Finger-tighten these fasteners and center the hitch on the vehicle before final torque.
All 7/16-14 GR5 fasteners must be tightened to 55 Lb.-Ft. (75 N·M) using a torque wrench. This includes the carriage bolts, hex nuts, and conical washers. Fasteners should be finger-tightened first while the hitch is centered, then final-torqued to specification.

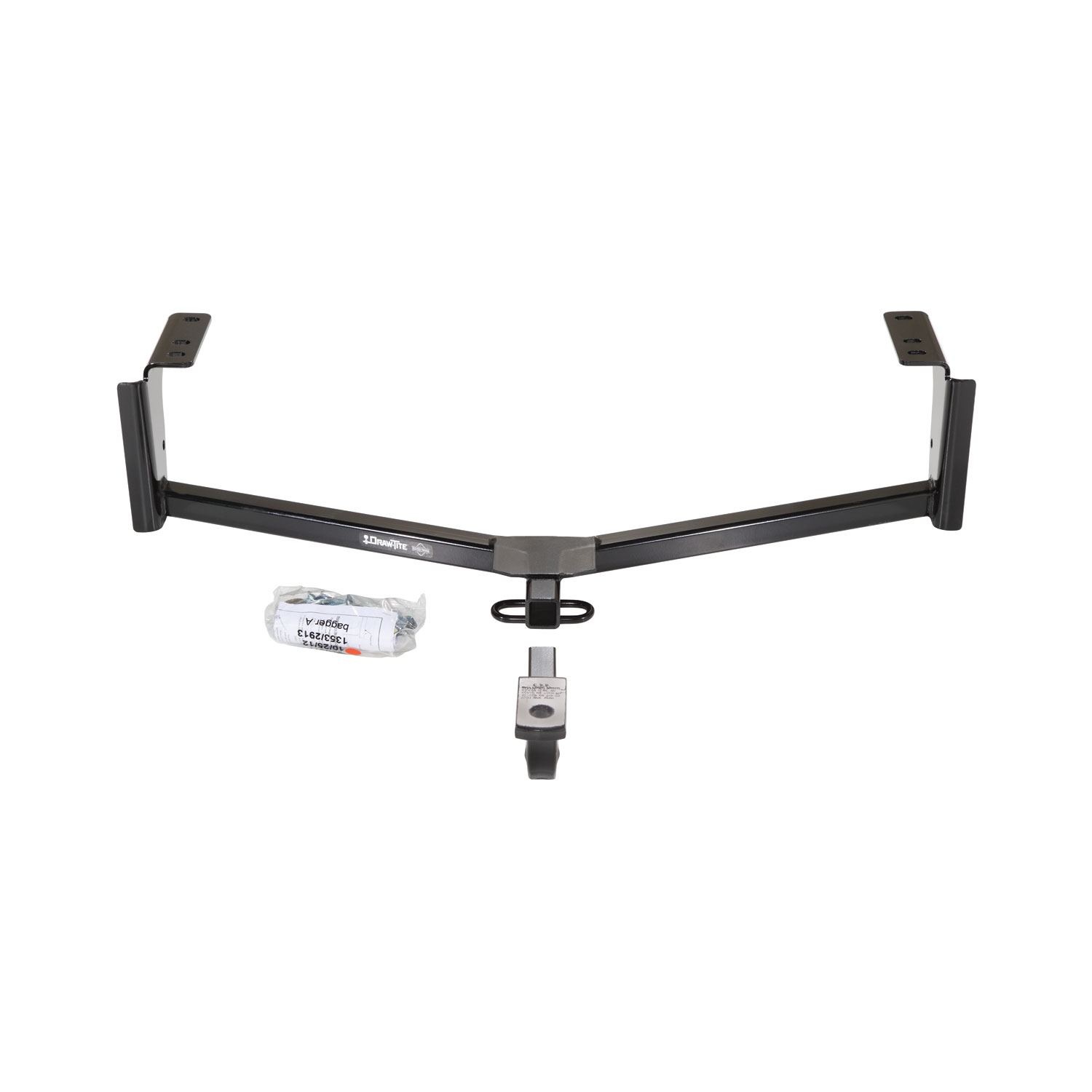

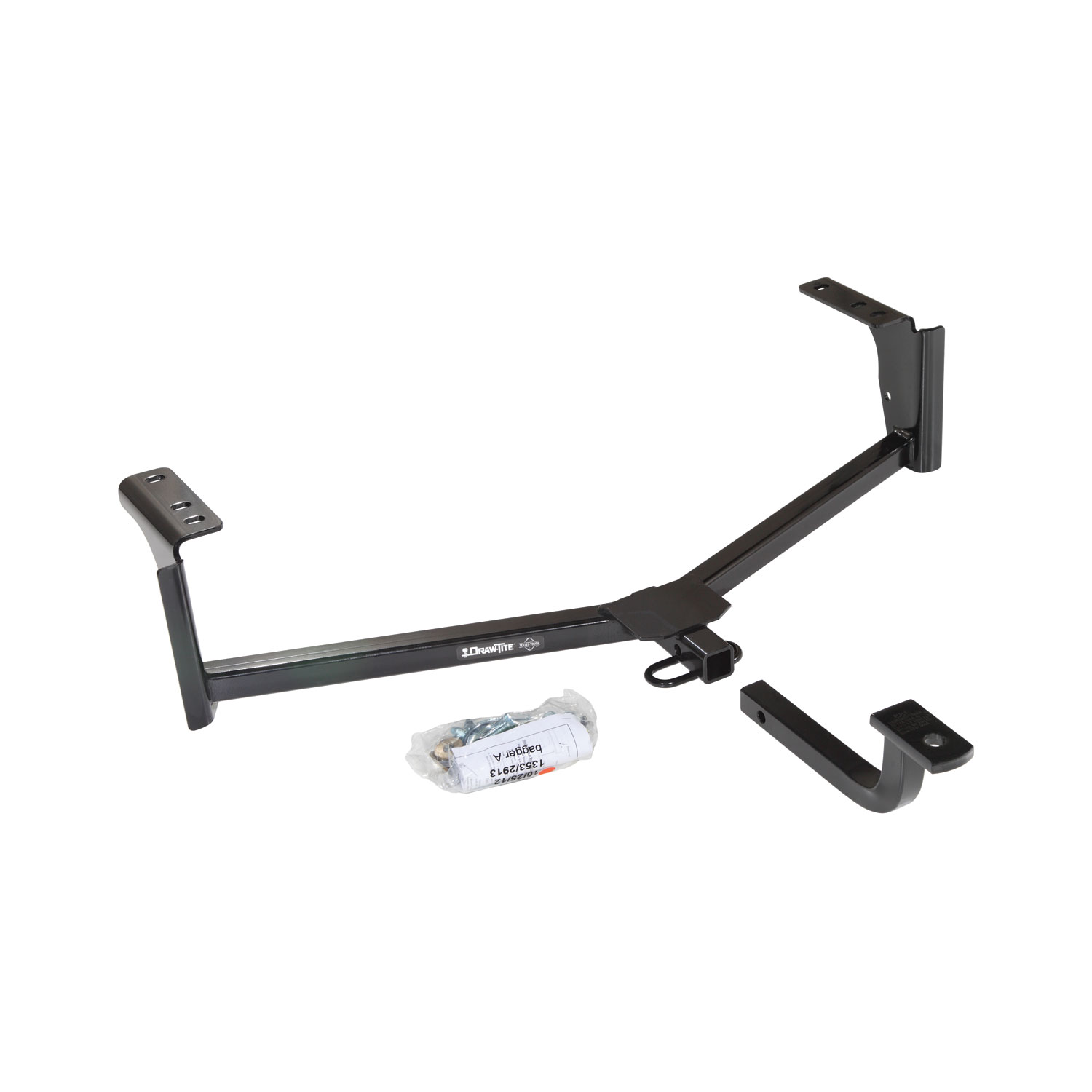

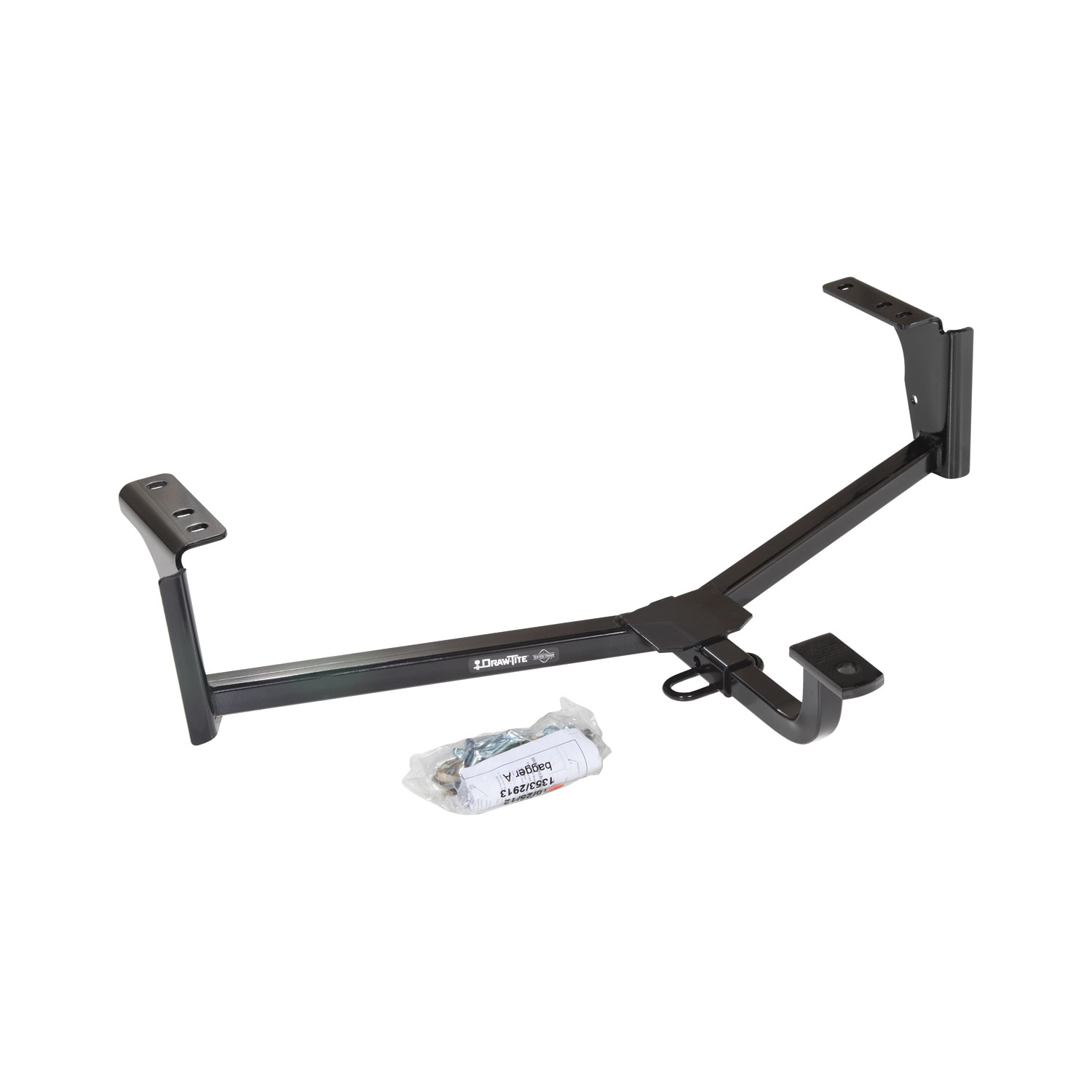

The drawbar must be used in the RISE position only. The drawbar kit (3594) is sold separately and must be installed according to its own instructions.
Observe safety precautions when working beneath the vehicle and wear eye protection. Do not cut access or attachment holes with a torch. If the hitch is removed, plug all holes in the trunk pan or other body panels to prevent entry of water and exhaust fumes. A hitch or ball that has been damaged should be removed and replaced immediately.
Check the hitch frequently to ensure all fasteners and the ball are properly tightened. Verify that the hitch is centered on the vehicle and that all 7/16-14 GR5 fasteners are torqued to 55 Lb.-Ft. (75 N·M). If the appearance panel was trimmed, confirm that the two reinstalled fasteners are secure.
Check the hitch frequently to ensure all fasteners and the ball are properly tightened. If the hitch is removed, plug all holes in the trunk pan or other body panels to prevent water and exhaust fume entry. A damaged hitch or ball must be removed and replaced.
Yes, part number 24897 is designed for Ford Fusion and Lincoln MKZ models.
Yes, the appearance panel must be trimmed or removed. You must obtain the vehicle owner's permission before trimming the shaded area shown in Figure 4.
You will need a utility knife, wrenches (7mm, 10mm, 11/16"), a Phillips head screwdriver, and a torque wrench to tighten fasteners to 55 Lb.-Ft. (75 N·M).
All 7/16-14 GR5 fasteners must be tightened to 55 Lb.-Ft. (75 N·M) using a torque wrench.
Maximum gross trailer weight is 2000 LB (908 kg) and maximum tongue weight is 200 LB (90.8 kg). Do not exceed your vehicle manufacturer's towing rating.
The drawbar must be used in the RISE position only. The drawbar kit (3594) is sold separately.
Verify all fasteners are torqued to 55 Lb.-Ft. (75 N·M), the hitch is centered on the vehicle, and the ball is properly tightened. Check frequently during use.
