Select your vehicle to find the exact plug-and-play parts that fit — no cutting or splicing.

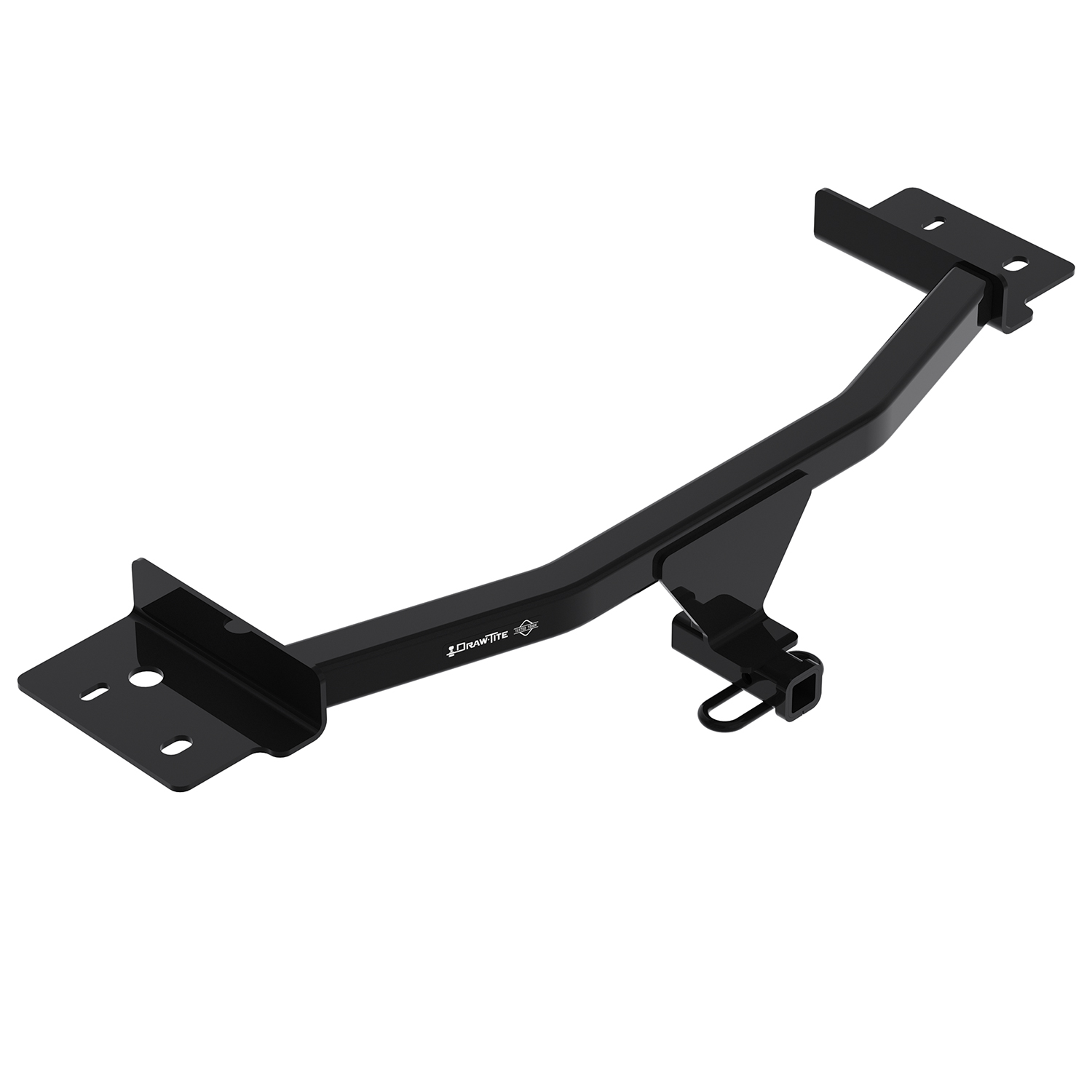

DRAW-TITE Class 2 trailer hitches are the perfect mix of style and stability for those times when youre working on a home project or heading out on an adventure. This DRAW-TITE Class 2 receiver hitch is rated for up to 3,500 lbs. gross trailer weight (GTW) and up to 300 lbs. tongue weight (TW). No weight distribution kits can be used on this specific trailer hitch. DRAW-TITE hitches are designed to provide top towing performance, with solid-all-welded construction and a black powder coat finish to resist rust and corrosion. The Class 2 trailer hitch has a 1-1/4 inch square receiver tube opening so you can easily attach accessories like a bike rack or cargo carrier, or a utility trailer. Includes all the mounting hardware needed for installation and are backed by a nationwide lifetime limited warranty. DRAW-TITE trailer hitches are tested to exceed V-5 and SAE J684 standards. DRAW-TITE: North Americas Favorite Hitch.
| BRAND: | DRAW-TITE |
| PART NUMBER: | 36787 |
| WARRANTY: | LIMITED LIFETIME WARRANTY |
| WEIGHT: | 31.7 LBS |
| GROSS TOWING WEIGHT: | 3,500 LBS. |
| GROSS TONGUE WEIGHT: | 300 LBS. |
| RECEIVER SIZE: | 1.25 IN. |
| HITCH CLASS: | II |
| DRILLING REQUIRED: | NO |
| MOUNTING HARDWARE INCLUDED: | YES |
| ATTACHMENT LOCATION: | REAR |
| HITCH VISIBILITY: | CONCEALED |
| CROSS-TUBE TYPE: | SQUARE TUBE |
| BALL MOUNT INCLUDED: | NO |
| COLOR: | BLACK |
| FINISH: | BLACK POWDER COAT OVER E-COAT |
| MATERIAL: | STEEL |
| MOUNTING LOCATION: | VEHICLE FRAME |
| MOUNTING TYPE: | BOLT-ON |
Draw-Tite has designed custom-fit trailer hitches since 1946 and is one of North America's most widely fitted hitch brands. Receiver hitches use solid all-welded construction and low-profile designs that follow modern vehicle contours, install with minimal bumper cutting or drilling, meet or exceed V5 CSA and SAE J684 standards, and carry a limited lifetime warranty.
Draw-Tite has been leading custom-fit trailer hitch design and engineering since its founding in 1946, and it remains one of the most widely fitted hitch brands in North America. The company's stated approach is straightforward: every hitch is tested rigorously so that it performs well beyond published industry standards, a philosophy it markets as Tested Tough. It sits within the Horizon Global towing group alongside Reese, Fulton, Bulldog, Tekonsha, Bargman and Wesbar.
Custom fit is the defining characteristic. Rather than adapting a universal design, Draw-Tite engineers a trailer hitch for a specific make, model and model year, so it bolts to existing frame locations with minimal bumper cutting or drilling. Low-profile designs follow the rear contours and aerodynamic styling of modern vehicles, which matters more than it once did now that rear fascias are shaped and sensor-equipped. Construction is solid all-welded steel for maximum strength, and every hitch meets or exceeds V5 CSA and SAE J684 standards and is backed by a nationwide limited lifetime warranty.
The range spans receiver sizes and classes to suit different loads, from 1-1/4 inch receivers for bike racks, cargo carriers and light trailers up through 2 inch receivers for heavier towing. Front mount hitches add a receiver at the front of the vehicle for winch mounts, snow plows, spare carriers and precise trailer positioning.
The Hidden Hitch series takes concealment further by mounting behind the vehicle's rear fascia, so the vehicle keeps its factory appearance until a removable receiver is fitted. Each is custom designed per make and model for a no-drill installation that does not compromise ground clearance, rated for up to 3,500 pounds gross trailer weight and 350 pounds tongue weight. Matching plug-and-play wiring completes the towing system.
Experts available to answer your questions
Call 888-634-9494Lifetime
Draw-Tite® Trailer Hitches | Receiver Hitches
2 compatible vehicles
| Year | Make & Model | Notes |
|---|---|---|
| 2020 - 2026 | Ford Explorer | Class 2 Trailer Hitch: 3500 lbs 300/3,500 lbs. Weight Carrying (tongue weight/gross trailer weight) Uses all existing holes. No Drilling required Install Time is 40 minutes |
| 2020 - 2025 | Lincoln Aviator | Class 2 Trailer Hitch: 3500 lbs 300/3,500 lbs. Weight Carrying (tongue weight/gross trailer weight) Uses all existing holes. No Drilling required Install Time is 40 minutes |
The Draw-tite Class 2 Trailer Hitch, 1-1/4" Square Receiver, Black for Select Ford Explorer, Lincoln Aviator 36787 (Part #DT36787) fits 2020-2026 Ford Explorer models. The 2026 model year is the last year covered by this part number. For newer models, check for an updated version.
Yes, the Draw-tite Class 2 Trailer Hitch, 1-1/4" Square Receiver, Black for Select Ford Explorer, Lincoln Aviator 36787 (Part #DT36787) is designed to fit the 2020-2026 Ford Explorer.
The Draw-tite Class 2 Trailer Hitch, 1-1/4" Square Receiver, Black for Select Ford Explorer, Lincoln Aviator 36787 (Part #DT36787) fits the following vehicles: 2020-2026 Ford Explorer; 2020-2025 Lincoln Aviator. Always verify your specific year, make, and model before ordering.
The Draw-tite Class 2 Trailer Hitch, 1-1/4" Square Receiver, Black for Select Ford Explorer, Lincoln Aviator 36787 (Part #DT36787) Refer to the included instructions for installation details. Basic hand tools are typically all you need.
Yes. Part numbers 36787, 06194, and CQT36787 are designed for 2020-Current Ford Explorer models. Visit the manufacturer's website for the most up-to-date information regarding specific application years and trim levels.
The 36787 is a weight-carrying hitch with a maximum gross trailer weight of 3500 lb (1589 kg) and maximum tongue weight of 350 lb (159 kg). Do not exceed the lower of your towing vehicle manufacturer's rating or these limits.
Required tools include: ratchet, torque wrench, safety glasses, sockets (7mm, 10mm, 21mm), 6-inch socket extension, exhaust hanger removal pliers, marker, tape measure, tin snips, flat-head screwdriver, 1/4-inch drill bit, plastic rivet gun, and drill.
Fastener Kit 36787F includes: (2) carriage bolts ½-13x1.25" GR5, (2) spacers .250"x1"x3" (Part #3022), (2) conical washers 1/2" (Part #01292008), (2) hex nuts 1/2" GR5, (2) pullwires 1/2"-13 (Part #5482), and (4) rivets (Part #110269).
Yes. The exhaust must be lowered. Using a 10mm socket, remove the bolt from the exhaust hanger on the outboard side of the frame rail, push the hanger up and outward. Using exhaust hanger removal pliers, remove the rubber exhaust hanger near the rear differential. Be sure to support the exhaust to prevent damage. The exhaust is reinstalled after the hitch is mounted.
Underbody panel removal is conditional. If applicable, remove the underbody panel between the mufflers using an M7 socket and screwdriver to remove screws and plastic push rivets. The panel can be returned to the vehicle owner or trimmed to fit and reinstalled. Extensive trimming would be required.
Yes. If a kick sensor is present, you must use a 1/4-inch drill bit to remove the center (4) rivets holding the kick sensor in place. Additionally, you must cut a 1.5-inch hole forward of the forward attachment in the heat shield to clear the middle fastener for the hitch.
Yes, if applicable. Find the center of the fascia and trim the vehicle fascia per Figure 3. Dimensions are approximate: 5 inches on each side and 3.25 inches in the center. If a kick sensor is present, move it aside to avoid cutting during trimming.
Yes. Remove the heat shield using a 10mm socket to remove the nuts and a 7mm socket to remove the screw holding it to the wheel well liner. Cut a 1.5-inch hole forward of the forward attachment in the heat shield to clear the middle fastener for the hitch. The modified heat shield is then reinstalled over the hitch bracket.
Tighten all M16 fasteners with a torque wrench to 146 Ft.Lb. (198 N·M). Tighten all 1/2-inch fasteners to 75 Ft.Lb. (102 N·M). Proper torque is needed to keep the hitch secure to the vehicle when towing.
Install conical washers with the teeth side toward the hitch. The conical washers are part of the fastening assembly and must be oriented correctly to ensure proper clamping.
Pullwires (Part #5482) are supplied to help guide the carriage bolts and spacers through the vehicle frame during installation. Insert the carriage bolts and spacers into the vehicle frame through the forward attachment with pullwires attached. Guide the pullwire ends through holes in the hitch bracket to align the hitch properly, then remove the pullwires before installing the conical washers and nuts.
No. After aligning the hitch bracket holes to the frame rail weldnuts and guiding the pullwire ends through the hitch bracket holes, loosely reinstall the M16 bumper bolts removed in step 4. Remove the pullwires, install the conical washers and nuts, then tighten all M16 fasteners to 146 Ft.Lb. (198 N·M) with a torque wrench.
Before raising the hitch into position, make sure the weldnuts on the frame rail are free from rust and debris. This ensures proper fastener engagement and secure mounting.
Check the hitch frequently, making sure all fasteners and ball are properly tightened. Periodically verify that all fasteners are tight and the hitch is securely mounted to the vehicle. If the hitch is removed, plug all holes in the trunk pan or other body panels to prevent entry of water and exhaust fumes.
Always wear safety glasses when installing the hitch. Observe safety precautions when working beneath a vehicle. Support the exhaust to prevent damage. Do not cut access or attachment holes with a torch. If the hitch is damaged, it must be removed and replaced.
Load the trailer heavier in front. Do not exceed the lower of your towing vehicle manufacturer's rating or 3500 lb GVWR / 350 lb tongue weight. Always wear your seatbelt. Slow down when towing and never exceed any posted speed limit. If excess sway occurs, take your foot off the gas pedal and hold the steering wheel as steady as possible. Do not apply your brakes and do not speed up.
Check the hitch frequently, making sure all fasteners and ball are properly tightened. Periodically verify that all fasteners are tight and the hitch is securely mounted to the vehicle.
Yes, part numbers 36787, 06194, and CQT36787 fit 2020-Current Ford Explorer models. Check the manufacturer's website for the most current trim level information.
Maximum gross trailer weight is 3500 lb (1589 kg) and maximum tongue weight is 350 lb (159 kg). Do not exceed the lower of your vehicle manufacturer's rating or these limits.
Yes. You must drill out (4) kick sensor rivets with a 1/4-inch bit (if applicable), cut a 1.5-inch hole in the heat shield, and trim the fascia approximately 5 inches on each side and 3.25 inches in the center.
M16 fasteners: 146 Ft.Lb. (198 N·M). 1/2-inch fasteners: 75 Ft.Lb. (102 N·M). Use a torque wrench for all final tightening.
Yes. Remove the exhaust hanger bolt (10mm socket) on the outboard side of the frame rail, push the hanger up and outward, and remove the rubber hanger near the rear differential using exhaust hanger removal pliers. Support the exhaust to prevent damage.
Torque wrench, ratchet, sockets (7mm, 10mm, 21mm), safety glasses, 1/4-inch drill bit, drill, tin snips, exhaust hanger removal pliers, and plastic rivet gun.
Maximum tongue weight is 350 lb (159 kg). Do not exceed this limit or your vehicle manufacturer's rating, whichever is lower.
