Select your vehicle to find the exact plug-and-play parts that fit — no cutting or splicing.

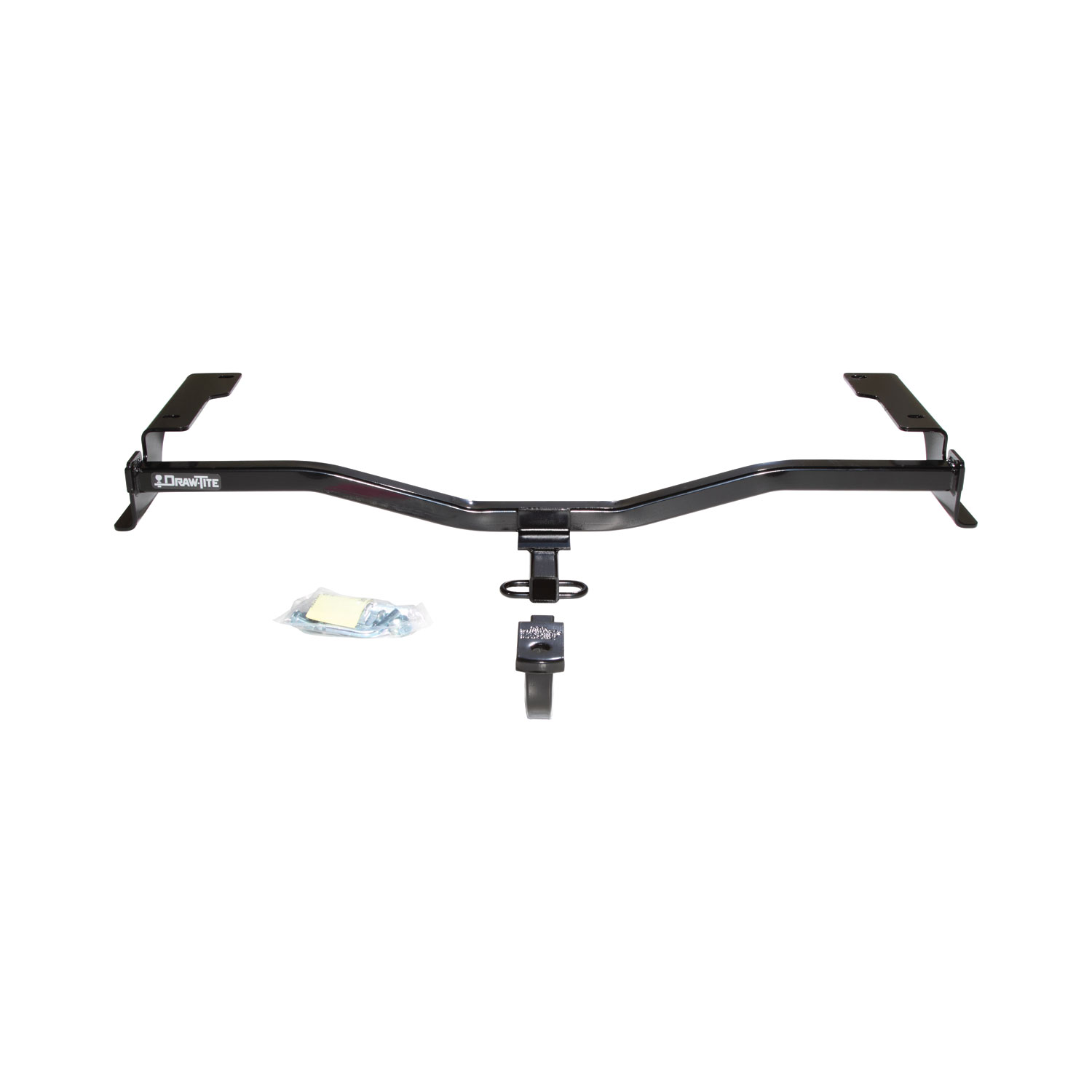

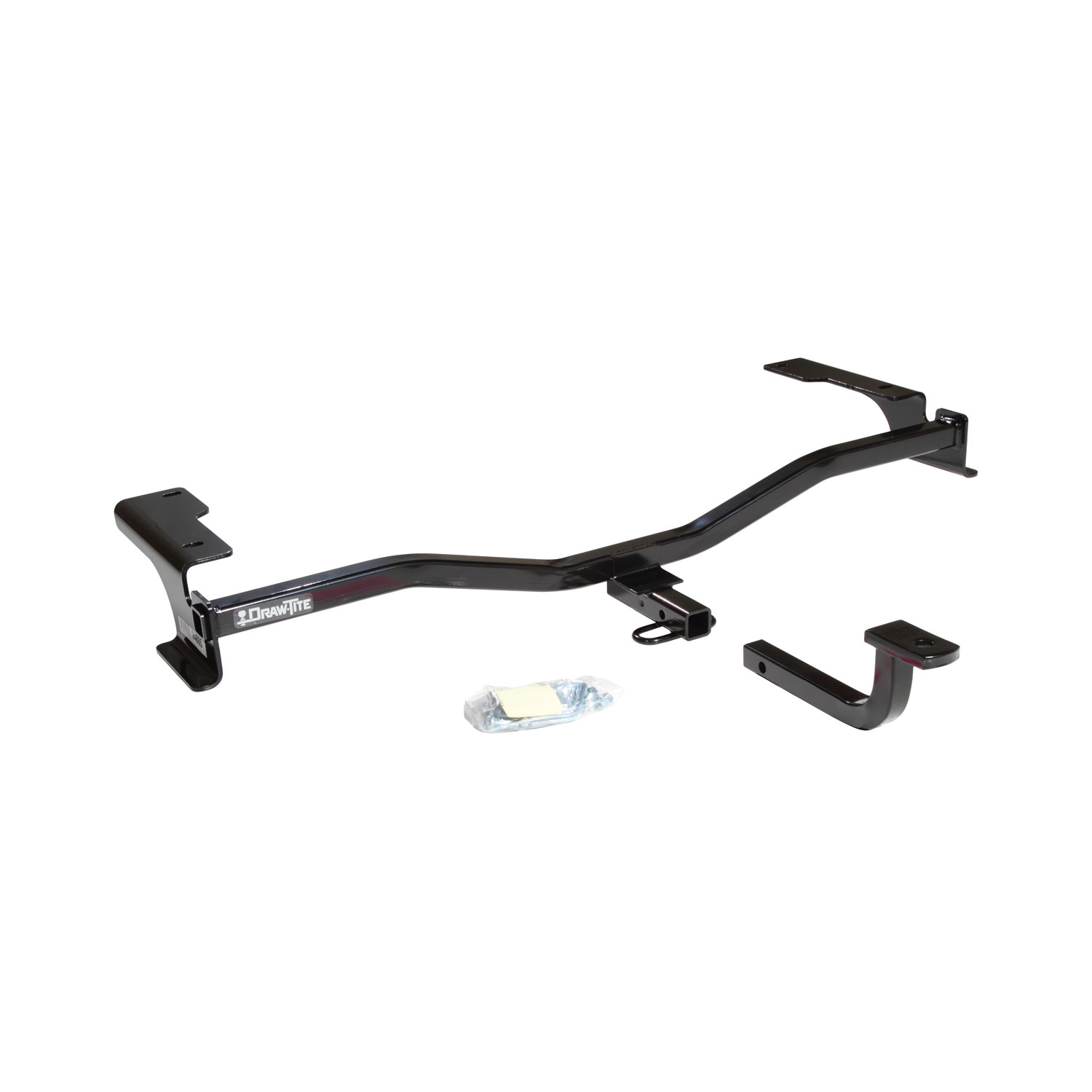

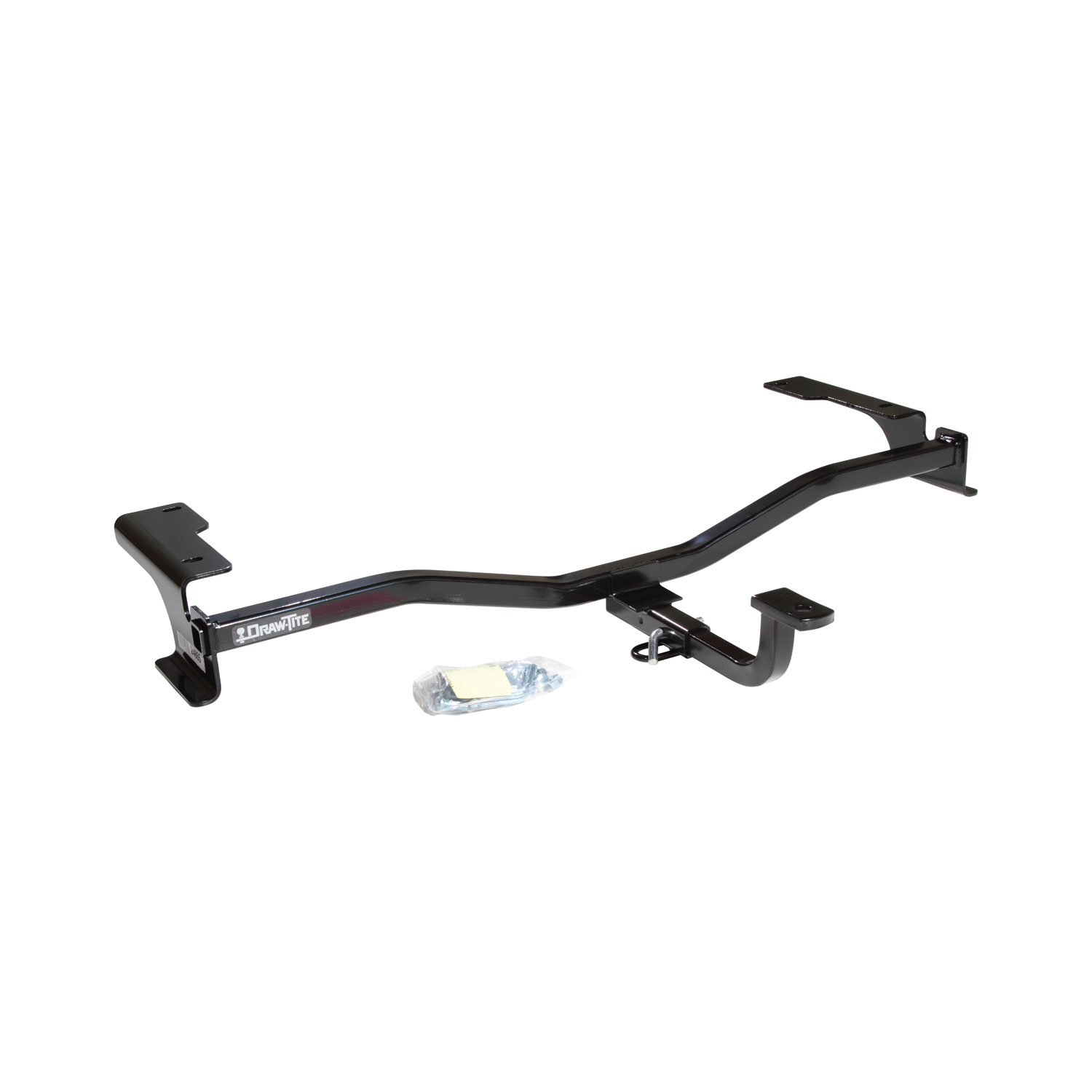

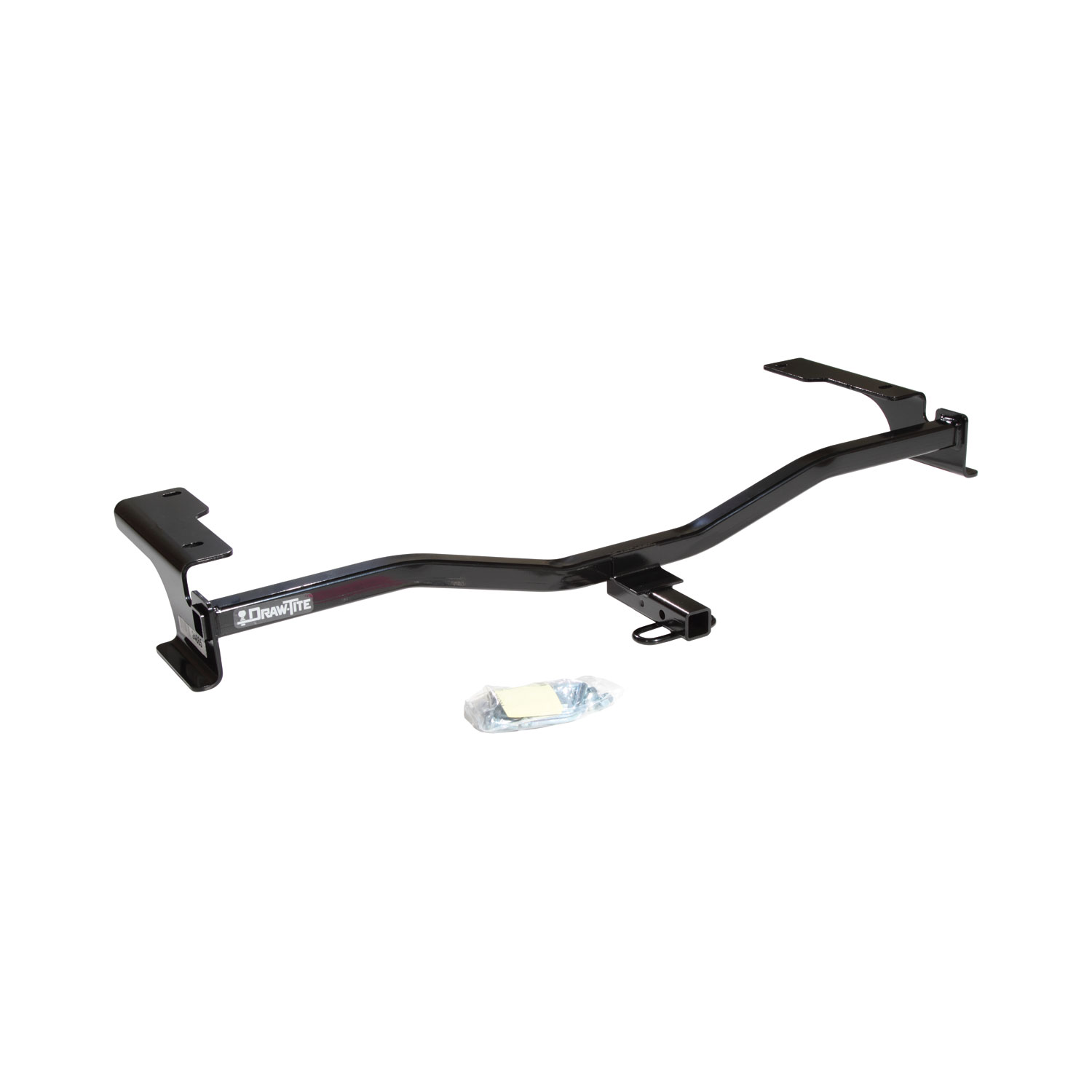

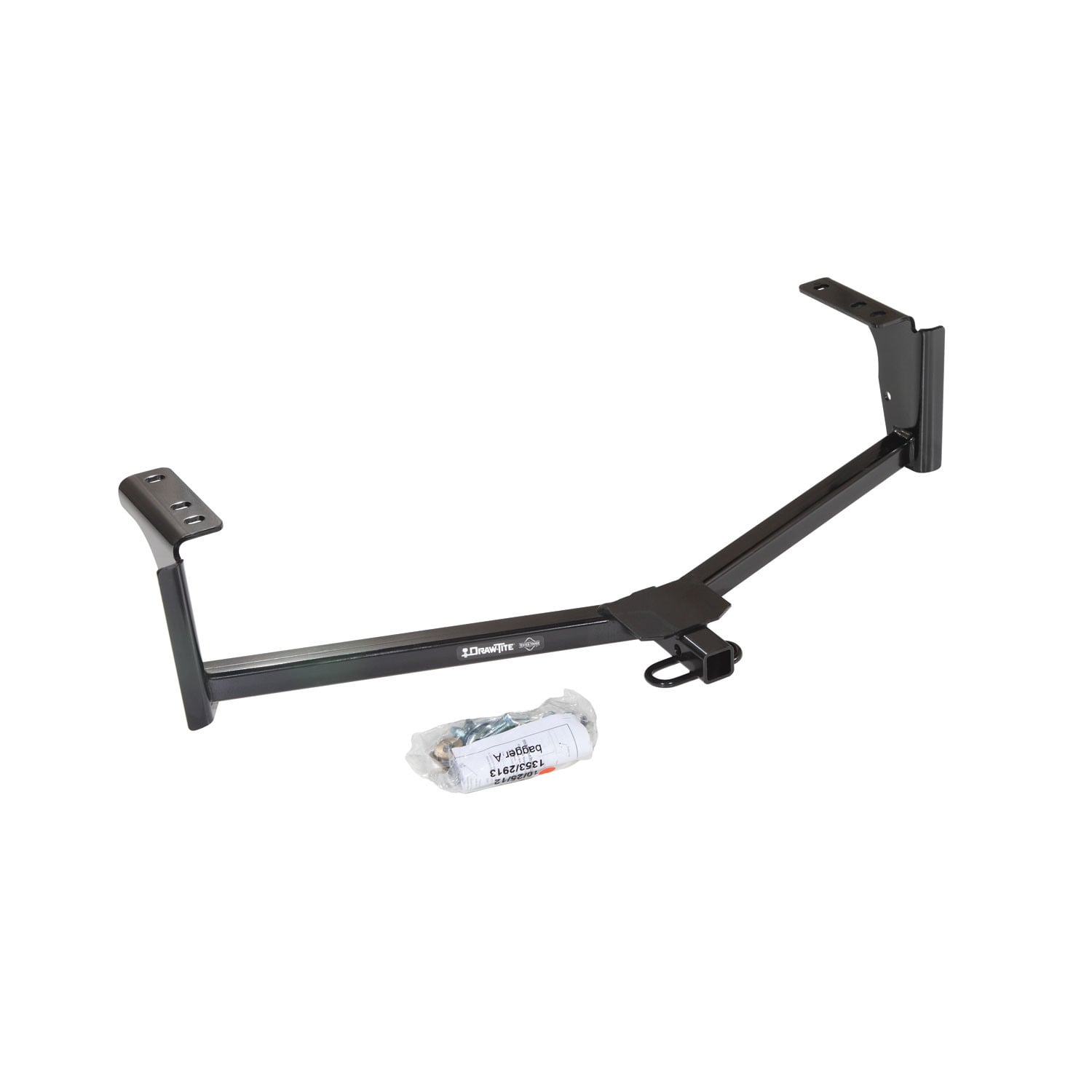

DRAW-TITE Class 1 trailer hitches are the perfect mix of style and stability for those times when youre working on a home project or heading out on an adventure. This DRAW-TITE Class 1 receiver hitch is rated for up to 2,000 lbs. gross trailer weight (GTW) and up to 200 lbs. tongue weight (TW). No weight distribution kits can be used on this specific trailer hitch. DRAW-TITE hitches are designed to provide top towing performance, with solid-all-welded construction and a black powder coat finish to resist rust and corrosion. The Class 1 trailer hitch has a 1-1/4 inch square receiver tube opening so you can easily attach accessories like a bike rack or cargo carrier, or a utility trailer. Includes all the mounting hardware needed for installation and are backed by a nationwide lifetime limited warranty. DRAW-TITE trailer hitches are tested to exceed V-5 and SAE J684 standards. DRAW-TITE: North Americas Favorite Hitch.
| BRAND: | DRAW-TITE |
| PART NUMBER: | 24865 |
| WARRANTY: | LIMITED LIFETIME WARRANTY |
| WEIGHT: | 28.1 LBS |
| GROSS TOWING WEIGHT: | 2,000 LBS. |
| GROSS TONGUE WEIGHT: | 200 LBS. |
| RECEIVER SIZE: | 1.25 IN. |
| HITCH CLASS: | I |
| DRILLING REQUIRED: | NO |
| MOUNTING HARDWARE INCLUDED: | YES |
| ATTACHMENT LOCATION: | REAR |
| HITCH VISIBILITY: | CONCEALED |
| CROSS-TUBE TYPE: | SQUARE TUBE |
| BALL MOUNT INCLUDED: | NO |
| COLOR: | BLACK |
| FINISH: | BLACK POWDER COAT OVER E-COAT |
| MATERIAL: | STEEL |
| MOUNTING LOCATION: | VEHICLE FRAME |
| MOUNTING TYPE: | BOLT-ON |
Draw-Tite has designed custom-fit trailer hitches since 1946 and is one of North America's most widely fitted hitch brands. Receiver hitches use solid all-welded construction and low-profile designs that follow modern vehicle contours, install with minimal bumper cutting or drilling, meet or exceed V5 CSA and SAE J684 standards, and carry a limited lifetime warranty.
Draw-Tite has been leading custom-fit trailer hitch design and engineering since its founding in 1946, and it remains one of the most widely fitted hitch brands in North America. The company's stated approach is straightforward: every hitch is tested rigorously so that it performs well beyond published industry standards, a philosophy it markets as Tested Tough. It sits within the Horizon Global towing group alongside Reese, Fulton, Bulldog, Tekonsha, Bargman and Wesbar.
Custom fit is the defining characteristic. Rather than adapting a universal design, Draw-Tite engineers a trailer hitch for a specific make, model and model year, so it bolts to existing frame locations with minimal bumper cutting or drilling. Low-profile designs follow the rear contours and aerodynamic styling of modern vehicles, which matters more than it once did now that rear fascias are shaped and sensor-equipped. Construction is solid all-welded steel for maximum strength, and every hitch meets or exceeds V5 CSA and SAE J684 standards and is backed by a nationwide limited lifetime warranty.
The range spans receiver sizes and classes to suit different loads, from 1-1/4 inch receivers for bike racks, cargo carriers and light trailers up through 2 inch receivers for heavier towing. Front mount hitches add a receiver at the front of the vehicle for winch mounts, snow plows, spare carriers and precise trailer positioning.
The Hidden Hitch series takes concealment further by mounting behind the vehicle's rear fascia, so the vehicle keeps its factory appearance until a removable receiver is fitted. Each is custom designed per make and model for a no-drill installation that does not compromise ground clearance, rated for up to 3,500 pounds gross trailer weight and 350 pounds tongue weight. Matching plug-and-play wiring completes the towing system.
Experts available to answer your questions
Call 888-634-9494Lifetime
Draw•Tite® and the Checkered Flag Foundation
3 compatible vehicles
| Year | Make & Model | Notes |
|---|---|---|
| 2010 - 2012 | Ford Fusion | Class 1 Trailer Hitch: 2000 lbs 200/2,000 lbs. Weight Carrying (tongue weight/gross trailer weight) Uses all existing holes. No Drilling required Install Time is 20 minutes |
| 2010 - 2012 | Lincoln MKZ | Class 1 Trailer Hitch: 2000 lbs 200/2,000 lbs. Weight Carrying (tongue weight/gross trailer weight) Uses all existing holes. No Drilling required Install Time is 20 minutes |
| 2010 - 2011 | Mercury Milan | Class 1 Trailer Hitch: 2000 lbs 200/2,000 lbs. Weight Carrying (tongue weight/gross trailer weight) Uses all existing holes. No Drilling required Install Time is 20 minutes |
The Draw-tite Class 1 Trailer Hitch, 1-1/4" Square Receiver, Black for Select Ford Fusion, Lincoln MKZ, Mercury Milan 24865 (Part #DT24865) fits the following vehicles: 2010-2012 Ford Fusion; 2010-2012 Lincoln MKZ; 2010-2011 Mercury Milan. Always verify your specific year, make, and model before ordering.
The Draw-tite Class 1 Trailer Hitch, 1-1/4" Square Receiver, Black for Select Ford Fusion, Lincoln MKZ, Mercury Milan 24865 (Part #DT24865) fits 2010-2012 Ford Fusion models. The 2012 model year is the last year covered by this part number. For newer models, check for an updated version.
Yes, the Draw-tite Class 1 Trailer Hitch, 1-1/4" Square Receiver, Black for Select Ford Fusion, Lincoln MKZ, Mercury Milan 24865 (Part #DT24865) is designed to fit the 2010-2012 Ford Fusion.
The Draw-tite Class 1 Trailer Hitch, 1-1/4" Square Receiver, Black for Select Ford Fusion, Lincoln MKZ, Mercury Milan 24865 (Part #DT24865) Refer to the included instructions for installation details. Basic hand tools are typically all you need.
Yes, part number 24865 is designed for Ford Fusion, Mercury Milan, and Lincoln MKZ models from 2010, 2011, and 2015. The manual covers these three vehicles and model years only.
The maximum gross trailer weight is 2000 lb (908 kg) and the maximum tongue weight is 200 lb (90.8 kg). Do not exceed the lower of the towing vehicle manufacturer's rating or these limits.
You need an 11/16" wrench and a torque wrench. The pullwire is provided with the hitch. Lubricant or soapy water is also required to help remove the exhaust isolators.
The hitch includes four carriage bolts (7/16-14 x 1-1/4" Grade 5), four conical washers (7/16"), four spacers (1" x 2" x 3/16"), and four nuts (7/16-14). These are shown in the parts diagram and are the only fasteners needed for installation.
Yes. Step 1 requires you to lower the exhaust pipe by removing the rubber isolator(s) at the muffler(s) and one isolator near the rear suspension. Support the exhaust to prevent damage. Spraying lubricant on the metal hanger rod and rubber isolator helps with removal. The exhaust is raised back into position in Step 7 after the hitch is secured.
Use the provided pullwires to feed the spacers and carriage bolts into the forward hole position on both frame rails. The access hole is located at the end of the frame rail and before the impact bar. It is easier if the bolt and spacer are not engaged (not threaded together) while inserting them into the frame. Keep the pullwire attached after insertion. In Step 3, feed the carriage bolt and spacer through the rearward slots on the bottom of the frame rails using the pullwires. You may need to insert the carriage bolt at an angle. Leave the pullwires in position to help locate the bolt when positioning the hitch.
1. Lower the exhaust system by removing rubber isolators. 2. Feed spacers and carriage bolts into the forward hole position on both frame rails using pullwires. 3. Feed the carriage bolt and spacer through the rearward slots using pullwires. 4. Raise the hitch into position, feeding pullwires through the bracket holes. 5. Remove pullwires and attach conical washers and nuts. 6. Torque all fasteners to specification. 7. Raise the exhaust system back into position.
All 7/16" fasteners must be tightened to 50 lb-ft (68 N·m) using a torque wrench.
The pullwires are used to feed the spacers and carriage bolts into the frame rails. In Step 2, feed them into the forward hole position and leave the pullwire attached. In Step 3, use the pullwires to feed the carriage bolt and spacer through the rearward slots, and leave them in position to help locate the bolt when positioning the hitch. In Step 4, feed the pullwires through the holes on the bracket as you raise the hitch into position. In Step 5, remove the pullwires after the hitch is in place.
When removing pullwires and attaching conical washers and nuts in Step 5, be careful not to push fasteners back into the frame rail. The conical washers help prevent this by providing a wider bearing surface.
Observe safety precautions when working beneath the vehicle and wear eye protection. Do not cut access or attachment holes with a torch. Support the exhaust system to prevent damage when lowering it. If the hitch is removed, plug all holes in the trunk pan or other body panels to prevent entry of water and exhaust fumes.
The drawbar must be used in the RISE position only. The drawbar kit (part number 3594) is sold separately.
Check the hitch frequently to ensure all fasteners and the ball are properly tightened. The manual recommends regular inspection to maintain safe operation.
A hitch or ball which has been damaged should be removed and replaced. Do not attempt to repair a damaged hitch or ball.
This product complies with safety specifications and requirements for connecting devices and towing systems of the state of New York, V.E.S.C. Regulation V-5 and SAE J684.
Yes, if you have a Ford Fusion, Mercury Milan, or Lincoln MKZ from 2010, 2011, or 2015. Other model years and vehicles are not supported.
An 11/16" wrench, a torque wrench, and lubricant or soapy water. The pullwire is provided.
Yes, you must lower the exhaust system by removing rubber isolators at the muffler(s) and near the rear suspension. The exhaust is then raised back into position after the hitch is installed.
Tighten all 7/16" fasteners to 50 lb-ft (68 N·m) using a torque wrench.
Maximum gross trailer weight is 2000 lb (908 kg) and maximum tongue weight is 200 lb (90.8 kg). Do not exceed your vehicle manufacturer's rating.
The drawbar must be used in the RISE position only. The drawbar kit (3594) is sold separately.
