Draw-tite
Verify Fitment
Select your vehicle to confirm this part fits.
2006 - 2010 Hyundai Sonata
Confirmed to Fit
Always the correct part
We know our products
Quality Products
Free Shipping!
Always the correct part
We know our products
Quality Products
Free Shipping!
Select your vehicle to find the exact plug-and-play parts that fit — no cutting or splicing.

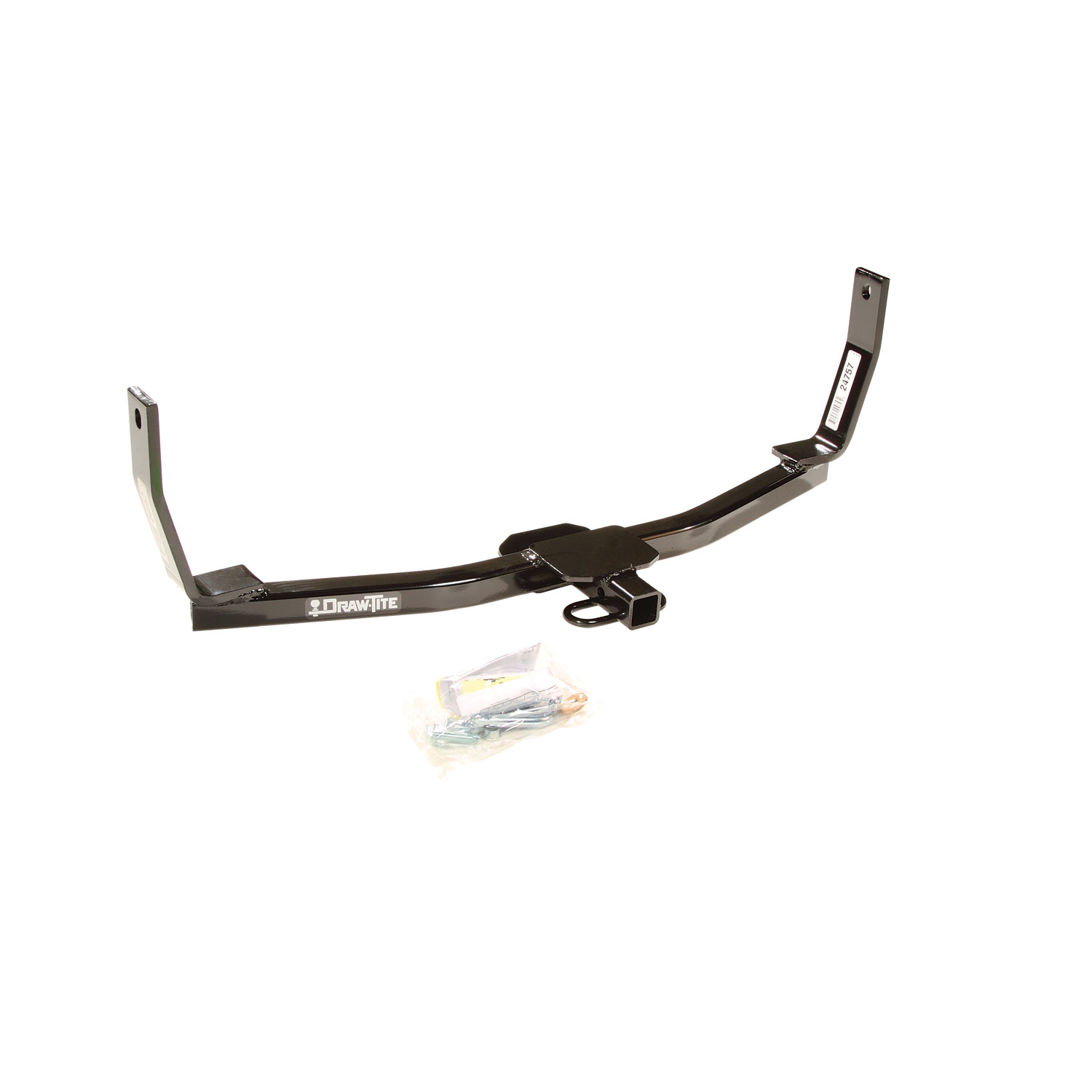

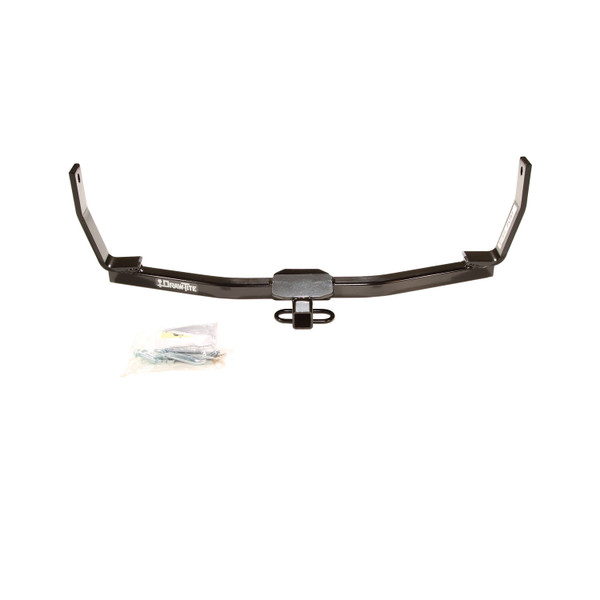

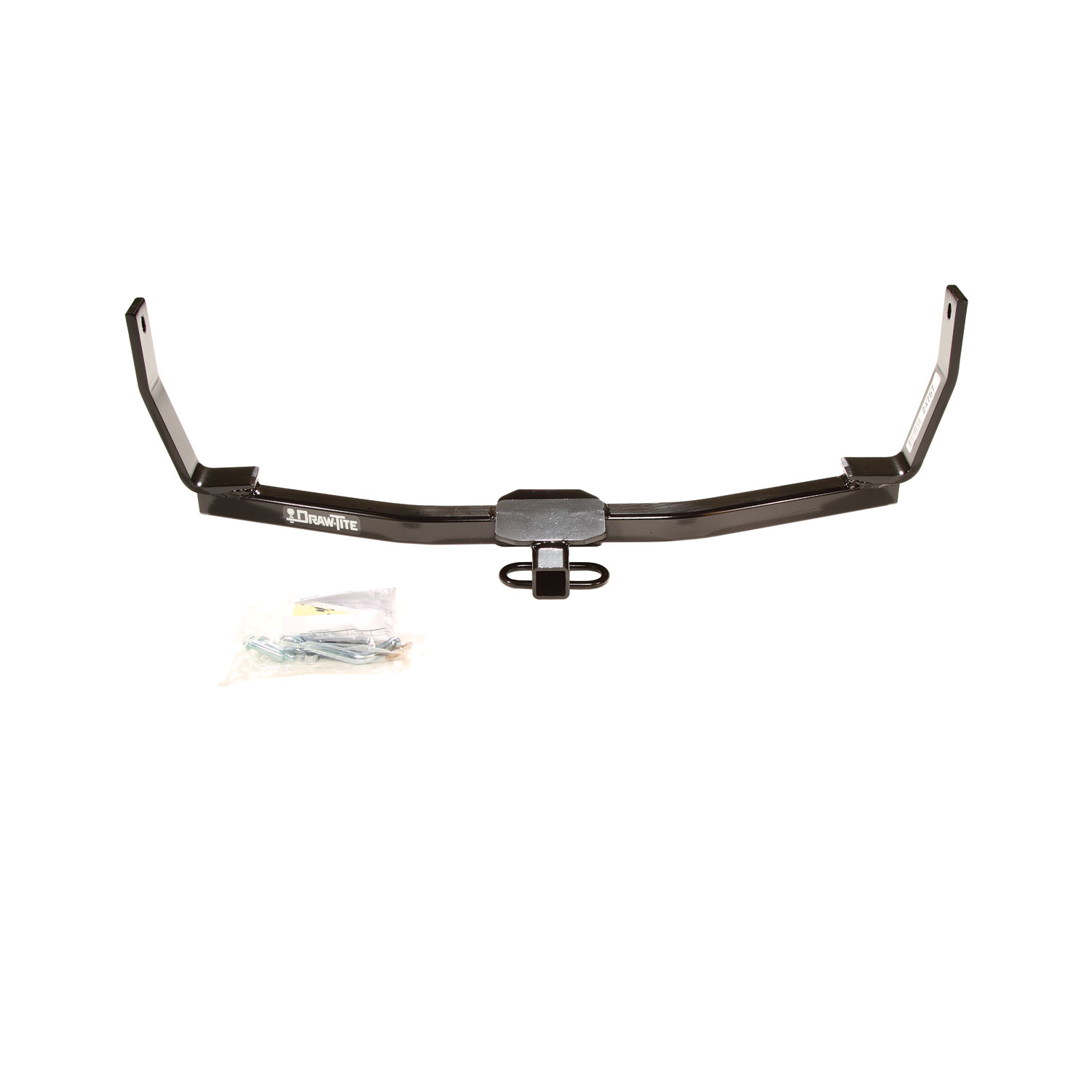

DRAW-TITE Class 1 trailer hitches are the perfect mix of style and stability for those times when youre working on a home project or heading out on an adventure. This DRAW-TITE Class 1 receiver hitch is rated for up to 2,000 lbs. gross trailer weight (GTW) and up to 200 lbs. tongue weight (TW). No weight distribution kits can be used on this specific trailer hitch. DRAW-TITE hitches are designed to provide top towing performance, with solid-all-welded construction and a black powder coat finish to resist rust and corrosion. The Class 1 trailer hitch has a 1-1/4 inch square receiver tube opening so you can easily attach accessories like a bike rack or cargo carrier, or a utility trailer. Includes all the mounting hardware needed for installation and are backed by a nationwide lifetime limited warranty. DRAW-TITE trailer hitches are tested to exceed V-5 and SAE J684 standards. DRAW-TITE: North Americas Favorite Hitch.
| BRAND: | DRAW-TITE |
| PART NUMBER: | 24757 |
| WARRANTY: | LIMITED LIFETIME WARRANTY |
| WEIGHT: | 21.05 LBS |
| GROSS TOWING WEIGHT: | 2,000 LBS. |
| GROSS TONGUE WEIGHT: | 200 LBS. |
| RECEIVER SIZE: | 1.25 IN. |
| HITCH CLASS: | I |
| DRILLING REQUIRED: | NO |
| MOUNTING HARDWARE INCLUDED: | YES |
| ATTACHMENT LOCATION: | REAR |
| HITCH VISIBILITY: | VISIBLE |
| CROSS-TUBE TYPE: | SQUARE TUBE |
| BALL MOUNT INCLUDED: | NO |
| COLOR: | BLACK |
| FINISH: | BLACK POWDER COAT OVER E-COAT |
| MATERIAL: | STEEL |
| MOUNTING LOCATION: | VEHICLE FRAME |
| MOUNTING TYPE: | BOLT-ON |
Draw-Tite has designed custom-fit trailer hitches since 1946 and is one of North America's most widely fitted hitch brands. Receiver hitches use solid all-welded construction and low-profile designs that follow modern vehicle contours, install with minimal bumper cutting or drilling, meet or exceed V5 CSA and SAE J684 standards, and carry a limited lifetime warranty.
Draw-Tite has been leading custom-fit trailer hitch design and engineering since its founding in 1946, and it remains one of the most widely fitted hitch brands in North America. The company's stated approach is straightforward: every hitch is tested rigorously so that it performs well beyond published industry standards, a philosophy it markets as Tested Tough. It sits within the Horizon Global towing group alongside Reese, Fulton, Bulldog, Tekonsha, Bargman and Wesbar.
Custom fit is the defining characteristic. Rather than adapting a universal design, Draw-Tite engineers a trailer hitch for a specific make, model and model year, so it bolts to existing frame locations with minimal bumper cutting or drilling. Low-profile designs follow the rear contours and aerodynamic styling of modern vehicles, which matters more than it once did now that rear fascias are shaped and sensor-equipped. Construction is solid all-welded steel for maximum strength, and every hitch meets or exceeds V5 CSA and SAE J684 standards and is backed by a nationwide limited lifetime warranty.
The range spans receiver sizes and classes to suit different loads, from 1-1/4 inch receivers for bike racks, cargo carriers and light trailers up through 2 inch receivers for heavier towing. Front mount hitches add a receiver at the front of the vehicle for winch mounts, snow plows, spare carriers and precise trailer positioning.
The Hidden Hitch series takes concealment further by mounting behind the vehicle's rear fascia, so the vehicle keeps its factory appearance until a removable receiver is fitted. Each is custom designed per make and model for a no-drill installation that does not compromise ground clearance, rated for up to 3,500 pounds gross trailer weight and 350 pounds tongue weight. Matching plug-and-play wiring completes the towing system.
Experts available to answer your questions
Call 888-634-9494Lifetime
Draw•Tite® Receiver Hitches Commercial
1 compatible vehicles
| Year | Make & Model | Notes |
|---|---|---|
| 2006 - 2010 | Hyundai Sonata | Class 1 Trailer Hitch: 2000 lbs 200/2,000 lbs. Weight Carrying (tongue weight/gross trailer weight) Uses all existing holes. No Drilling required Install Time is 20 minutes |
Yes, the Draw-tite Class 1 Trailer Hitch, 1-1/4" Square Receiver, Black for Select Hyundai Sonata 24757 (Part #DT24757) is designed to fit the 2006-2010 Hyundai Sonata.
The Draw-tite Class 1 Trailer Hitch, 1-1/4" Square Receiver, Black for Select Hyundai Sonata 24757 (Part #DT24757) fits 2006-2010 Hyundai Sonata models. The 2010 model year is the last year covered by this part number. For newer models, check for an updated version.
The Draw-tite Class 1 Trailer Hitch, 1-1/4" Square Receiver, Black for Select Hyundai Sonata 24757 (Part #DT24757) fits the following vehicles: 2006-2010 Hyundai Sonata. Always verify your specific year, make, and model before ordering.
The Draw-tite Class 1 Trailer Hitch, 1-1/4" Square Receiver, Black for Select Hyundai Sonata 24757 (Part #DT24757) Refer to the included instructions for installation details. Basic hand tools are typically all you need.
Yes, part number 24757 is designed for the Hyundai Sonata. The hitch is compatible with the vehicle's factory tow hook and frame rails. However, the manual does not specify which model years are supported, so contact the manufacturer or your retailer to confirm your specific year is compatible.
Yes, the hitch is compatible with single exhaust vehicles. However, you will need to remove the appearance panel that covers the driver's side frame rail by removing seven fasteners before installation. The panel and fasteners must be returned to the vehicle owner after installation.
The maximum gross trailer weight is 2000 LB and the maximum tongue weight is 200 LB. Do not exceed the lower of the towing vehicle manufacturer's rating or these limits.
You will need wrenches in the following sizes: 10mm, 18mm, and 9/16 inch. A torque wrench is also required to tighten fasteners to the specified torque values. No drill bits are needed.
No, drilling is not required. The hitch uses the vehicle's existing tow hook and weld nuts in the frame rails.

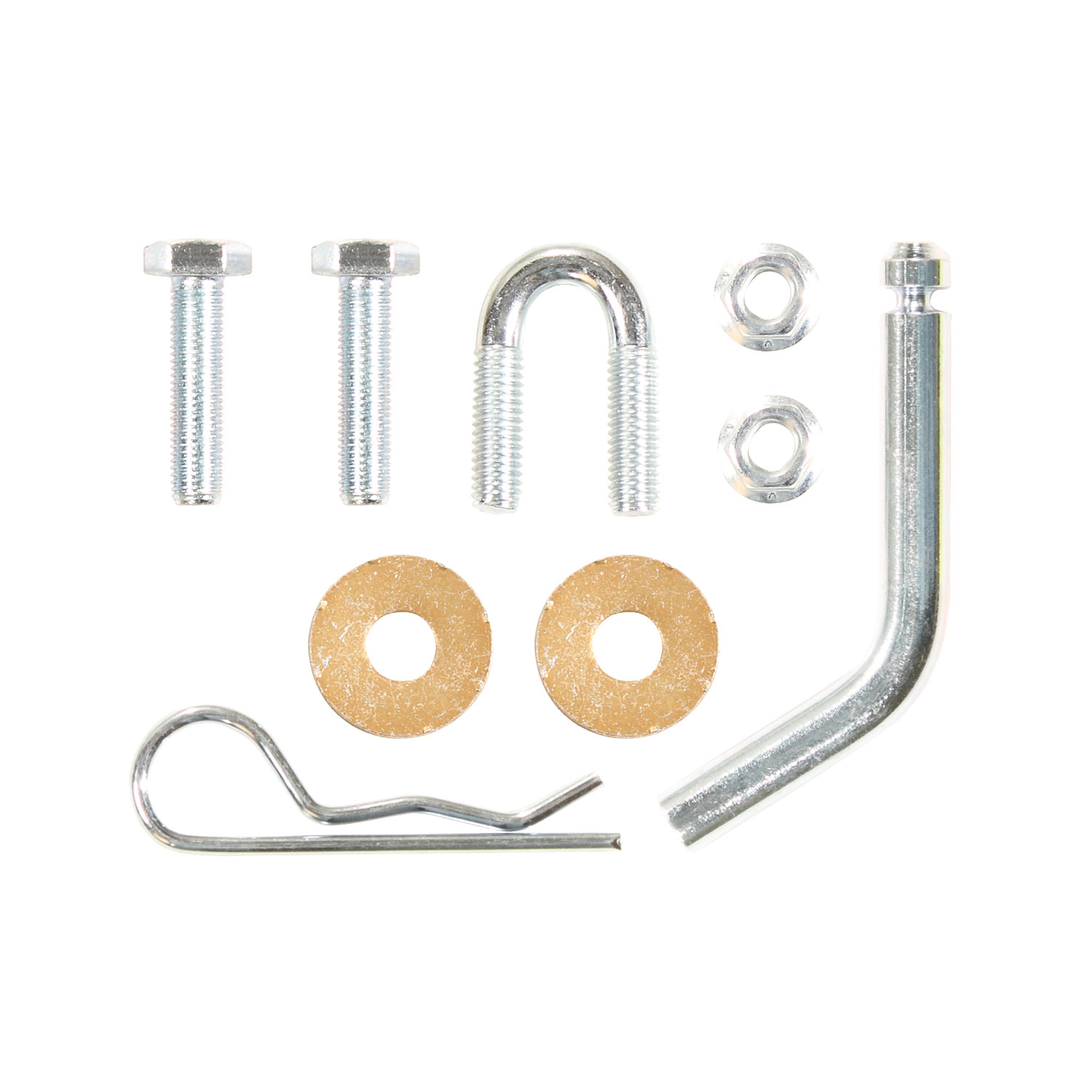

The hitch includes: one 3/8-16 U-bolt, two M10 x 1.25 x 40mm hex bolts, two 3/8-16 flanged locknuts, and two conical toothed washers. Additional fastener kits (24757F or 60816F) are available separately if needed.
Installation involves two main steps: (1) Lift the hitch into position and install the 3/8-16 U-bolt over the vehicle's tow hook and down through the holes in the vehicle's center bracket, then install the 3/8-16 flanged locknuts. (2) Install the M10 bolts and conical toothed washers through the frame straps into the existing weld nuts in the vehicle's frame rails, one per side. Tighten all fasteners to the specified torque values using a torque wrench.
All M10 CL8.8 fasteners must be tightened to 42 Lb.-Ft. using a torque wrench.
All 3/8 GR2 fasteners, including the flanged locknuts, must be tightened to 20 Lb.-Ft. using a torque wrench.
Only if your vehicle has a single exhaust system. On single exhaust vehicles, you must remove the appearance panel that covers the driver's side frame rail by removing seven fasteners. After installation, return the panel and fasteners to the vehicle owner.
Observe safety precautions when working beneath a vehicle and wear eye protection. Do not cut access or attachment holes with a torch. If the hitch is removed, plug all holes in the trunk pan or other body panels to prevent entry of water and exhaust fumes.
The drawbar must be used in the RISE position only. Do not use it in any other position.
Check the hitch frequently to ensure all fasteners and the ball are properly tightened. This is an ongoing maintenance requirement, not just a one-time post-installation check.
Check the hitch frequently to ensure all fasteners and the ball are properly tightened. The manual does not specify an exact interval, but regular inspection is recommended.
A damaged hitch or ball must be removed and replaced. Do not continue to use a damaged hitch.

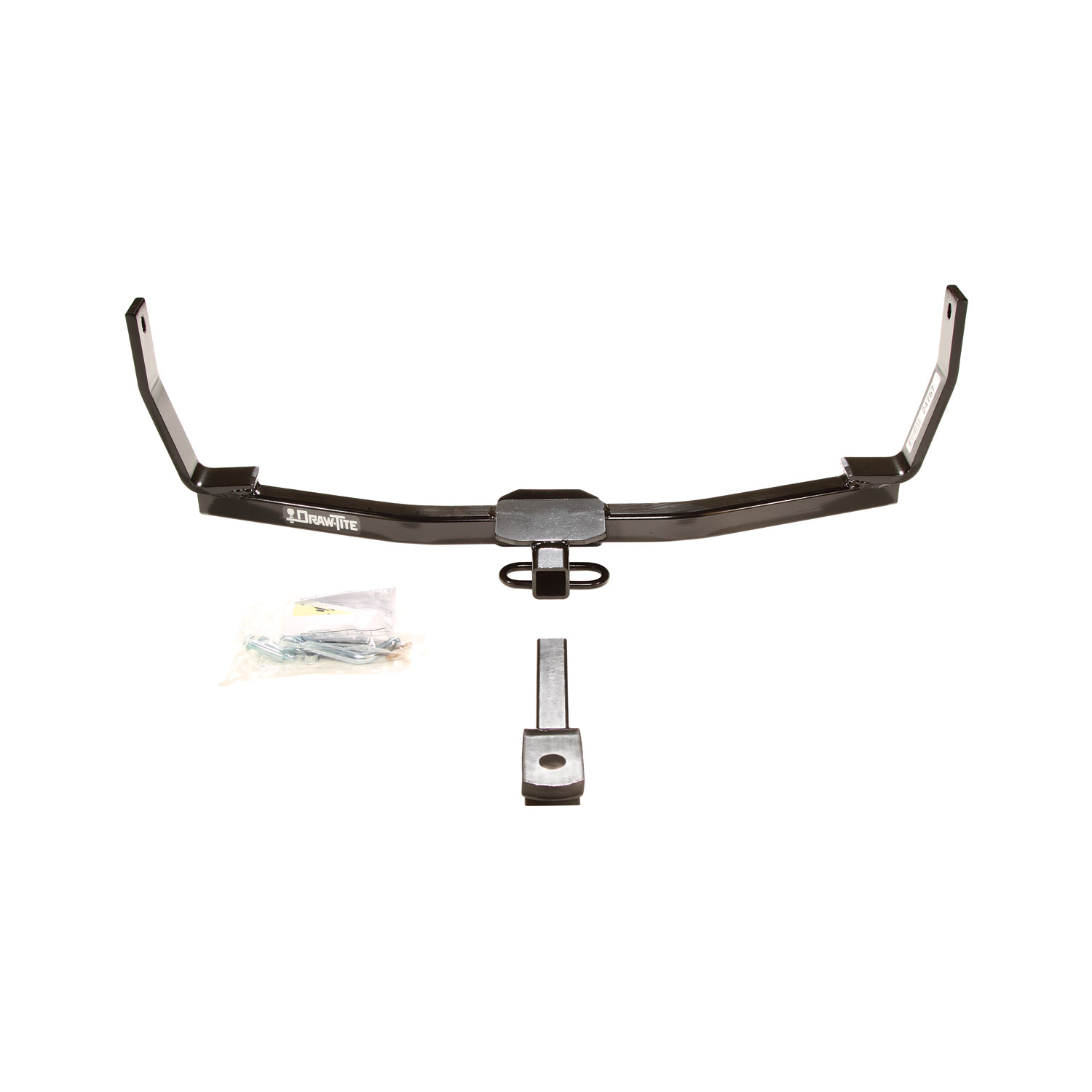

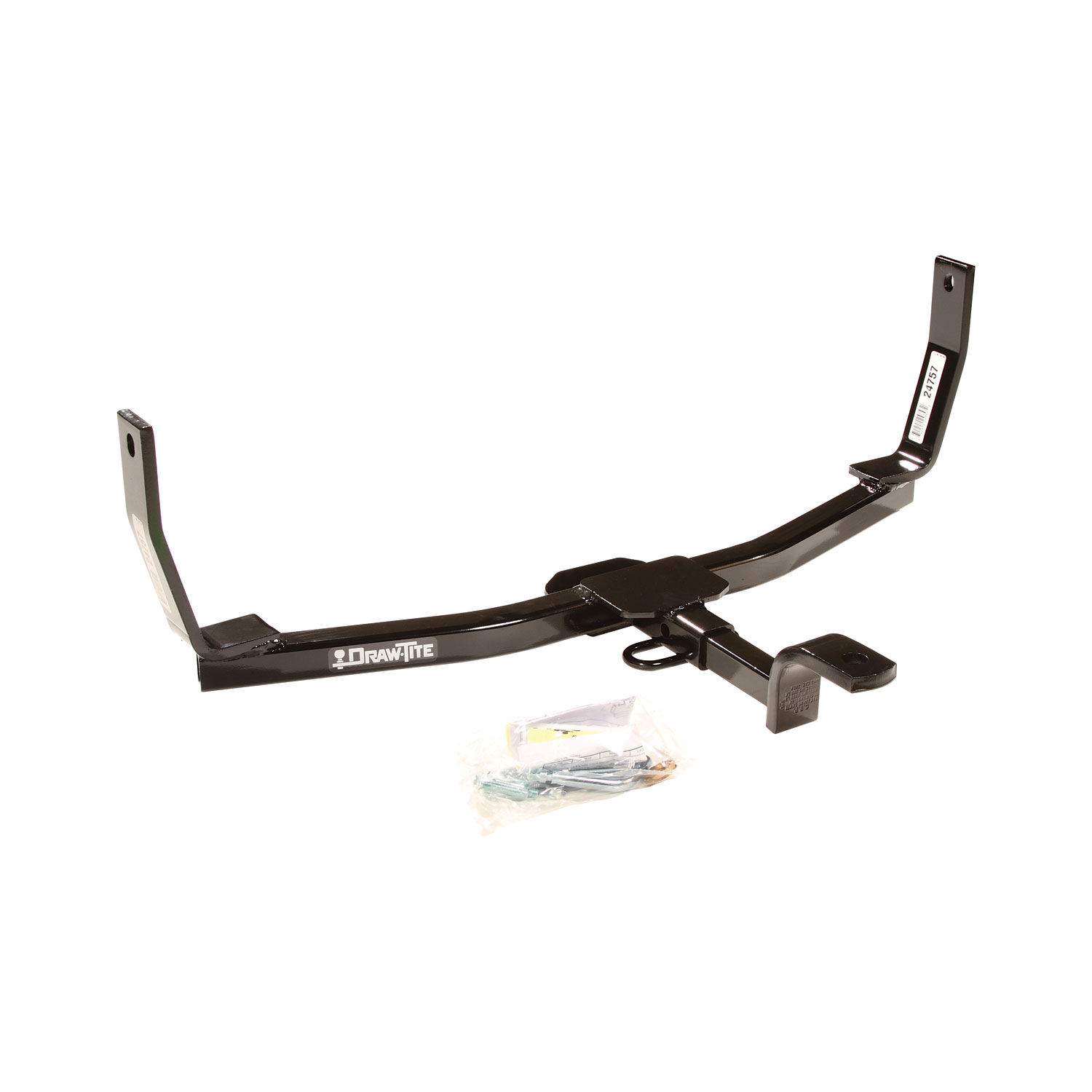

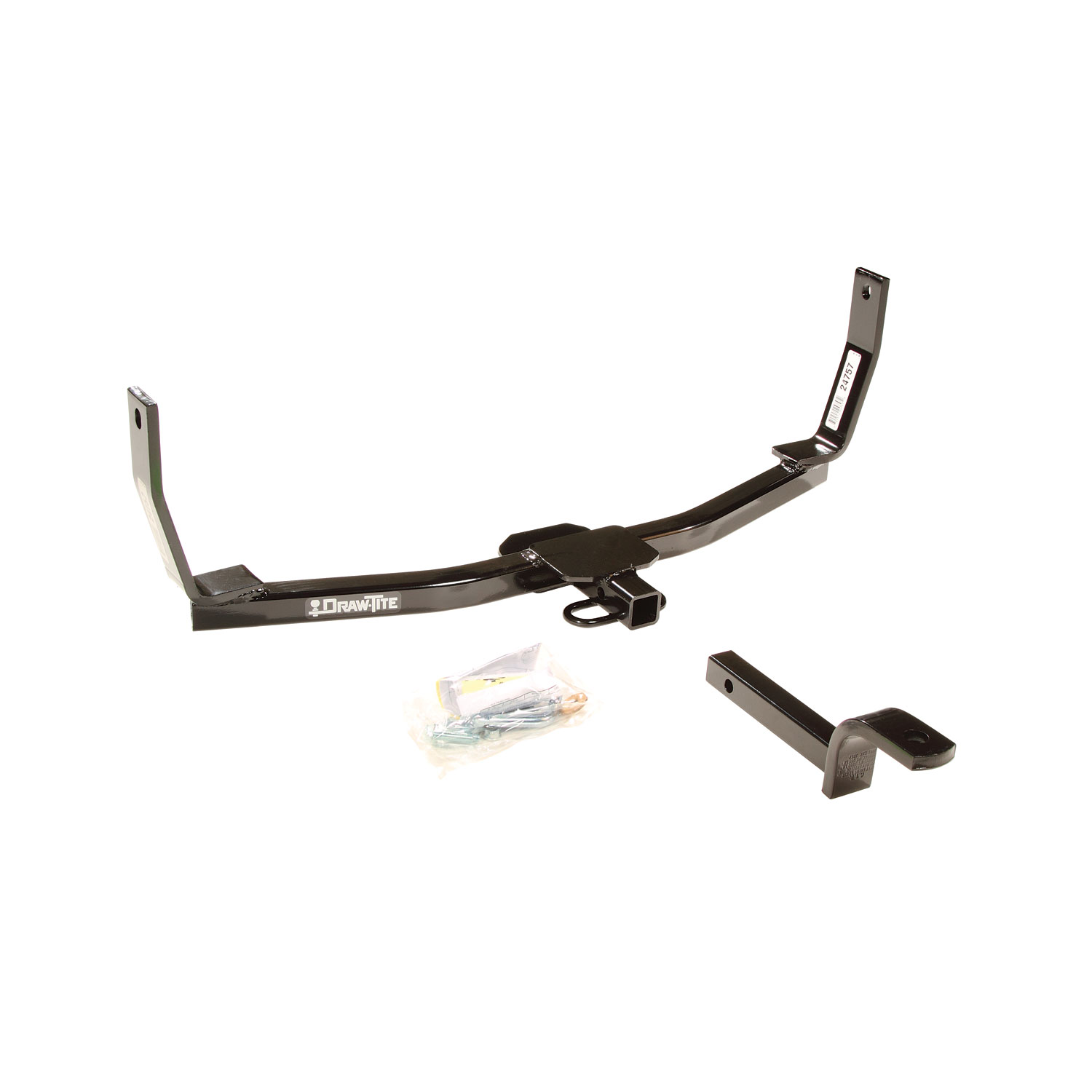

The compatible drawbar kits are part number 3592 or part number 6803. These are sold separately and must be purchased in addition to the hitch.
The wiring access locations are PC3 and PC4.
Yes, the 24757 is designed for the Hyundai Sonata. Confirm your specific model year with the manufacturer.
You need wrenches (10mm, 18mm, 9/16 inch) and a torque wrench. No drilling is required.
M10 CL8.8 bolts: 42 Lb.-Ft. 3/8 GR2 flanged locknuts: 20 Lb.-Ft. Use a torque wrench for both.
Maximum gross trailer weight: 2000 LB. Maximum tongue weight: 200 LB. Do not exceed the lower of these limits or your vehicle manufacturer's rating.
The drawbar must be used in the RISE position only.
