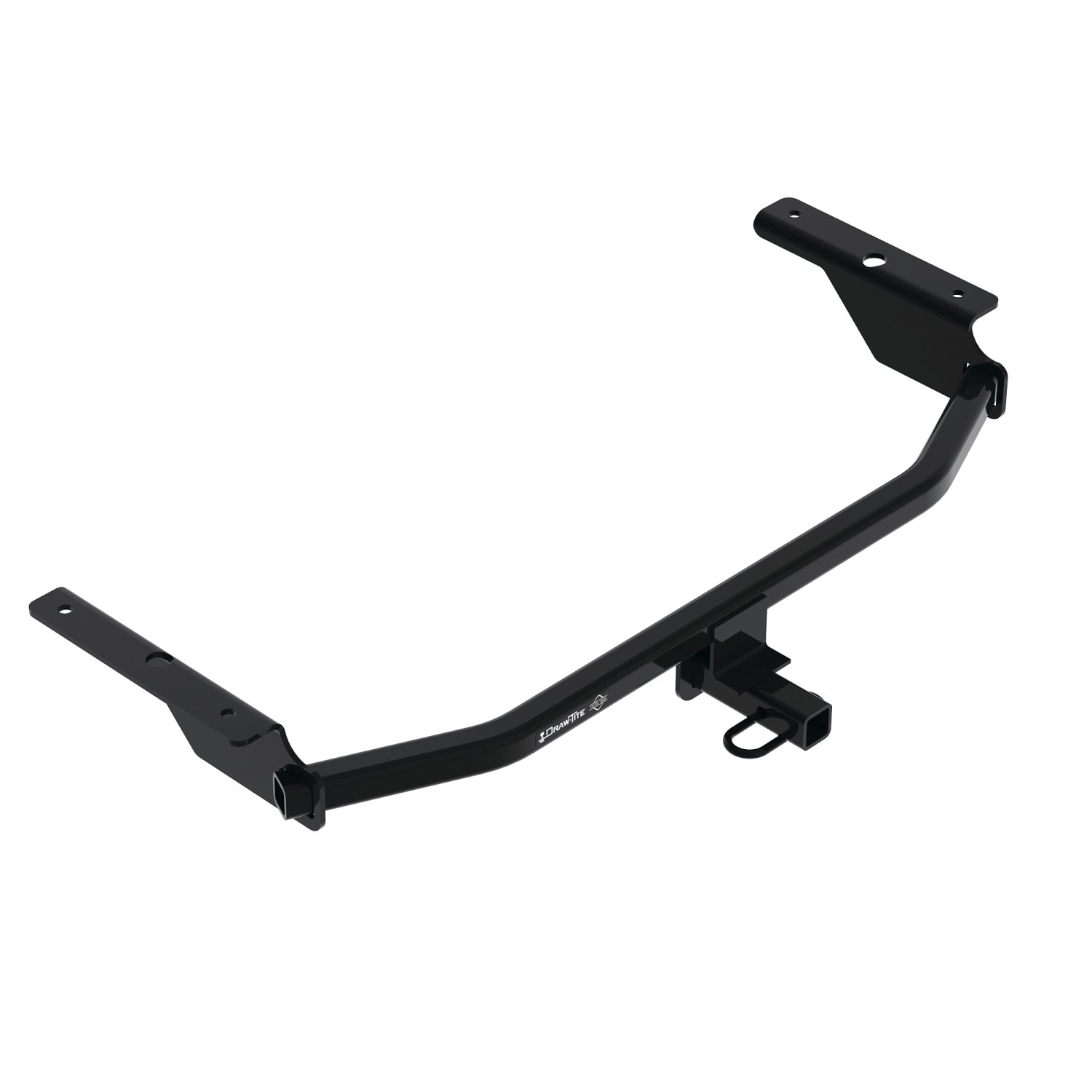

DRAW-TITE Class 1 trailer hitches are the perfect mix of style and stability for those times when youre working on a home project or heading out on an adventure. This DRAW-TITE Class 1 receiver hitch is rated for up to 2,000 lbs. gross trailer weight (GTW) and up to 200 lbs. tongue weight (TW). No weight distribution kits can be used on this specific trailer hitch. DRAW-TITE hitches are designed to provide top towing performance, with solid-all-welded construction and a black powder coat finish to resist rust and corrosion. The Class 1 trailer hitch has a 1-1/4 inch square receiver tube opening so you can easily attach accessories like a bike rack or cargo carrier, or a utility trailer. Includes all the mounting hardware needed for installation and are backed by a nationwide lifetime limited warranty. DRAW-TITE trailer hitches are tested to exceed V-5 and SAE J684 standards. DRAW-TITE: North Americas Favorite Hitch.
| BRAND: | DRAW-TITE |
| PART NUMBER: | 24999 |
| WARRANTY: | LIMITED LIFETIME WARRANTY |
| WEIGHT: | 22.5 LBS |
| GROSS TOWING WEIGHT: | 2,000 LBS. |
| GROSS TONGUE WEIGHT: | 200 LBS. |
| RECEIVER SIZE: | 1.25 IN. |
| HITCH CLASS: | I |
| DRILLING REQUIRED: | YES |
| MOUNTING HARDWARE INCLUDED: | YES |
| ATTACHMENT LOCATION: | REAR |
| HITCH VISIBILITY: | CONCEALED |
| CROSS-TUBE TYPE: | SQUARE TUBE |
| BALL MOUNT INCLUDED: | NO |
| COLOR: | BLACK |
| FINISH: | BLACK POWDER COAT OVER E-COAT |
| MATERIAL: | STEEL |
| MOUNTING LOCATION: | VEHICLE FRAME |
| MOUNTING TYPE: | BOLT-ON |
Draw-Tite has designed custom-fit trailer hitches since 1946 and is one of North America's most widely fitted hitch brands. Receiver hitches use solid all-welded construction and low-profile designs that follow modern vehicle contours, install with minimal bumper cutting or drilling, meet or exceed V5 CSA and SAE J684 standards, and carry a limited lifetime warranty.
Draw-Tite has been leading custom-fit trailer hitch design and engineering since its founding in 1946, and it remains one of the most widely fitted hitch brands in North America. The company's stated approach is straightforward: every hitch is tested rigorously so that it performs well beyond published industry standards, a philosophy it markets as Tested Tough. It sits within the Horizon Global towing group alongside Reese, Fulton, Bulldog, Tekonsha, Bargman and Wesbar.
Custom fit is the defining characteristic. Rather than adapting a universal design, Draw-Tite engineers a trailer hitch for a specific make, model and model year, so it bolts to existing frame locations with minimal bumper cutting or drilling. Low-profile designs follow the rear contours and aerodynamic styling of modern vehicles, which matters more than it once did now that rear fascias are shaped and sensor-equipped. Construction is solid all-welded steel for maximum strength, and every hitch meets or exceeds V5 CSA and SAE J684 standards and is backed by a nationwide limited lifetime warranty.
The range spans receiver sizes and classes to suit different loads, from 1-1/4 inch receivers for bike racks, cargo carriers and light trailers up through 2 inch receivers for heavier towing. Front mount hitches add a receiver at the front of the vehicle for winch mounts, snow plows, spare carriers and precise trailer positioning.
The Hidden Hitch series takes concealment further by mounting behind the vehicle's rear fascia, so the vehicle keeps its factory appearance until a removable receiver is fitted. Each is custom designed per make and model for a no-drill installation that does not compromise ground clearance, rated for up to 3,500 pounds gross trailer weight and 350 pounds tongue weight. Matching plug-and-play wiring completes the towing system.
Experts available to answer your questions
Call 888-634-9494Lifetime
1 compatible vehicles
| Year | Make & Model | Notes |
|---|---|---|
| 2021 - 2025 | Hyundai Elantra | Class 1 Trailer Hitch: 2000 lbs 200/2,000 lbs. Weight Carrying (tongue weight/gross trailer weight) Drilling Required Install Time is 110 minutes |
Yes, the Draw-tite Class 1 Trailer Hitch, 1-1/4" Square Receiver, Black for Select Hyundai Elantra 24999 (Part #DT24999) is designed to fit the 2021-2025 Hyundai Elantra.
The Draw-tite Class 1 Trailer Hitch, 1-1/4" Square Receiver, Black for Select Hyundai Elantra 24999 (Part #DT24999) fits the following vehicles: 2021-2025 Hyundai Elantra. Always verify your specific year, make, and model before ordering.
The Draw-tite Class 1 Trailer Hitch, 1-1/4" Square Receiver, Black for Select Hyundai Elantra 24999 (Part #DT24999) fits 2021-2025 Hyundai Elantra models. The 2025 model year is the last year covered by this part number. For newer models, check for an updated version.
The Draw-tite Class 1 Trailer Hitch, 1-1/4" Square Receiver, Black for Select Hyundai Elantra 24999 (Part #DT24999) Drilling is required for installation. Basic hand tools are typically all you need.
Yes, part numbers 24999, 77999, and CQT24999 are designed for 2021-current Hyundai Elantra models. Visit the Horizon Global website for the most up-to-date information regarding specific application years and trim levels.
The maximum gross trailer weight is 2000 lb (907 kg) and the maximum tongue weight is 200 lb (90.7 kg). Do not exceed the lower of your towing vehicle manufacturer's rating or these limits.
The manual lists weight-distributing hitch specifications as N/A, indicating this product is a weight-carrying hitch only. No weight-distributing version is mentioned.
Fastener Kit 24999F includes: (2) carriage bolts 7/16"-14 x 1.75 GR5, (2) spacers .875 x 2.00 x .109, (2) conical washers 7/16", (2) hex nuts 7/16"-14 GR2, and (2) pull wires 7/16". All fasteners are supplied in pairs for both sides of the vehicle.
Required tools include: ratchet, torque wrench, safety glasses, 10 mm socket, 11/16" socket, 6" socket extension, ½" drill bit, drill, marker, tape, tin snips, tape measure, flat-head screwdriver, Phillips screwdriver, utility knife, and T30 Torx bit socket. A 15mm socket is also needed for bumper bolts.
Yes. The manual states that if you do not feel comfortable performing this installation on your own or are in need of assistance, please contact a professional installer. The average installation time for professional installers is 110 minutes.
Yes, drilling is required. You must drill two holes in the frame rail on each side of the vehicle using a ½" drill bit. The hitch is first positioned using existing access holes, then used as a template to mark the rear holes before drilling. Burrs must be removed after drilling.
Yes, the lower fascia must be trimmed. Find and mark the center of the fascia on the bottom, then trim as shown in Figure 3. The trim dimensions are 2" [50.8] from center, 4" [101.6] total width, and 2.5" [63.5] height. Radius corners are recommended. Support ribs on the inside of the fascia in the trim area must also be trimmed.
Yes, the heat shield must be trimmed. The manual instructs to "trim as shown" in Figure 2, but the specific trim dimensions for the heat shield are not detailed in the text. Refer to Figure 2 in the installation instructions for the exact trim pattern.
All 7/16"-14 GR5 carriage bolts must be tightened to 50 Lb.-Ft. (68 N·M) using a torque wrench. Proper torque is essential to keep the hitch secure to the vehicle when towing.
The conical washer teeth side must be positioned against the hitch. The washer is used to hold the bolt in place during installation.
The pull wire (item 5) is used to guide the carriage bolts and spacers through the frame rail holes during installation. The coiled end of the pull wire is fed through the drilled hole in the frame rail and out the access hole, then used to pull the fasteners into position. The pull wire should be kinked to keep the spacer independent of the bolt.
The removal sequence is: (1) taillights, (2) underbody panel, (3) lower muffler and remove heat shield, (4) remove fascia/bumper fasteners, (5) remove fascia/bumper, (6) trim lower fascia. This order ensures safe access to the frame rails and installation points.
Install the forward fasteners (items 1 and 2) into the existing access holes in the frame, leaving the pull wire attached. Feed the pull wire through the forward holes on the hitch and raise the hitch into place. Install the conical washer and hex nut, then hand-tighten both sides. Check that the hitch is even and centered on the vehicle before using it as a template to mark the rear holes.
The authorized drawbar kit is part number 3593 (sold separately). The drawbar must be used in the RISE position only.
Always wear safety glasses when installing the hitch. Observe safety precautions when working beneath a vehicle and wear eye protection. Do not cut access or attachment holes with a torch. When working with the exhaust system, spray lubricant or soapy water on the metal hanger rod and rubber isolator to aid removal. Be careful when lowering the hitch to avoid knocking forward bolts into the frame rail.
Always wear your seatbelt. Slow down when towing and never exceed any posted speed limit. Load the trailer heavier in front. Do not exceed the lower of your towing vehicle manufacturer's rating or the hitch limits (2000 lb GVWR, 200 lb tongue weight). If excess sway occurs, take your foot off the gas pedal and hold the steering wheel as steady as possible. Do not apply brakes and do not speed up.
Check that the hitch is even and centered on the vehicle after tightening all fasteners. Verify that all fasteners and the ball are properly tightened. Check the hitch frequently to ensure all fasteners remain tight during use.
Check the hitch frequently, making sure all fasteners and ball are properly tightened. The manual does not specify an exact interval, but recommends periodic checks to ensure the hitch remains securely mounted to the vehicle.
If the hitch is removed, plug all holes in the trunk pan or other body panels to prevent entry of water and exhaust fumes. A damaged hitch or ball should be removed and replaced.
Yes, part numbers 24999, 77999, and CQT24999 fit 2021-current Hyundai Elantra models. Check the Horizon Global website for the most current trim-level compatibility.
Maximum gross trailer weight is 2000 lb (907 kg) and maximum tongue weight is 200 lb (90.7 kg). Do not exceed the lower of your vehicle manufacturer's rating or these limits.
Required tools: ratchet, torque wrench, safety glasses, 10mm and 11/16" sockets, 6" socket extension, ½" drill bit, marker, tape, tin snips, tape measure, flat-head and Phillips screwdrivers, utility knife, and T30 Torx bit socket.
All 7/16"-14 GR5 carriage bolts must be tightened to 50 Lb.-Ft. (68 N·M) using a torque wrench. Proper torque is essential for secure mounting.
Always wear your seatbelt. Slow down and never exceed posted speed limits. Load the trailer heavier in front. If excess sway occurs, ease off the gas and hold the steering wheel steady—do not brake or accelerate.
