Select your vehicle to find the exact plug-and-play parts that fit — no cutting or splicing.

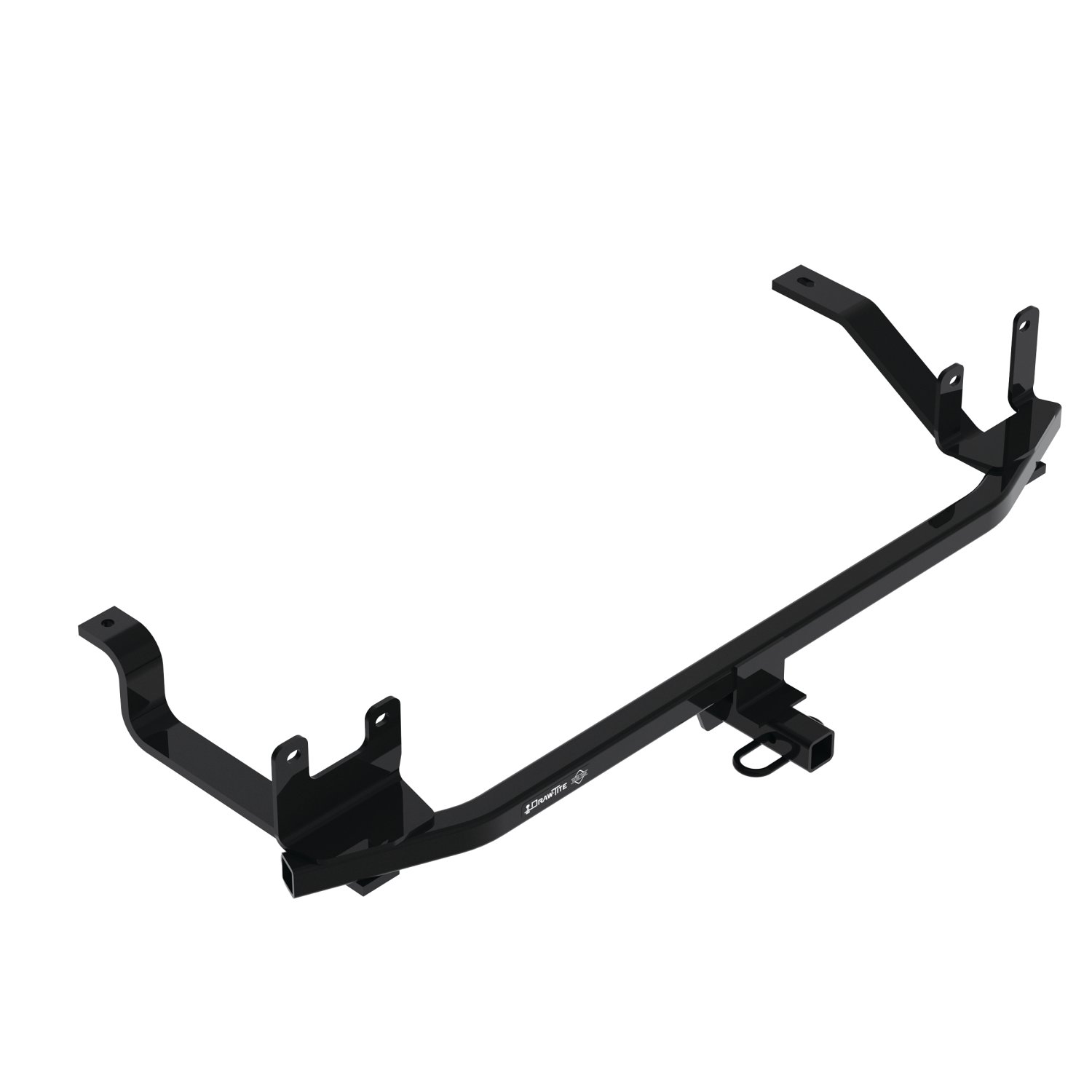

DRAW-TITE Class 1 trailer hitches are the perfect mix of style and stability for those times when youre working on a home project or heading out on an adventure. This DRAW-TITE Class 1 receiver hitch is rated for up to 2,000 lbs. gross trailer weight (GTW) and up to 200 lbs. tongue weight (TW). No weight distribution kits can be used on this specific trailer hitch. DRAW-TITE hitches are designed to provide top towing performance, with solid-all-welded construction and a black powder coat finish to resist rust and corrosion. The Class 1 trailer hitch has a 1-1/4 inch square receiver tube opening so you can easily attach accessories like a bike rack or cargo carrier, or a utility trailer. Includes all the mounting hardware needed for installation and are backed by a nationwide lifetime limited warranty. DRAW-TITE trailer hitches are tested to exceed V-5 and SAE J684 standards. DRAW-TITE: North Americas Favorite Hitch.
| BRAND: | DRAW-TITE |
| PART NUMBER: | 25006 |
| WARRANTY: | LIMITED LIFETIME WARRANTY |
| WEIGHT: | 33 LBS |
| GROSS TOWING WEIGHT: | 2,000 LBS. |
| GROSS TONGUE WEIGHT: | 200 LBS. |
| RECEIVER SIZE: | 1.25 IN. |
| HITCH CLASS: | I |
| DRILLING REQUIRED: | NO |
| MOUNTING HARDWARE INCLUDED: | YES |
| ATTACHMENT LOCATION: | REAR |
| HITCH VISIBILITY: | CONCEALED |
| CROSS-TUBE TYPE: | SQUARE TUBE |
| BALL MOUNT INCLUDED: | NO |
| COLOR: | BLACK |
| FINISH: | BLACK POWDER COAT OVER E-COAT |
| MATERIAL: | STEEL |
| MOUNTING LOCATION: | VEHICLE FRAME |
| MOUNTING TYPE: | BOLT-ON |
Draw-Tite has designed custom-fit trailer hitches since 1946 and is one of North America's most widely fitted hitch brands. Receiver hitches use solid all-welded construction and low-profile designs that follow modern vehicle contours, install with minimal bumper cutting or drilling, meet or exceed V5 CSA and SAE J684 standards, and carry a limited lifetime warranty.
Draw-Tite has been leading custom-fit trailer hitch design and engineering since its founding in 1946, and it remains one of the most widely fitted hitch brands in North America. The company's stated approach is straightforward: every hitch is tested rigorously so that it performs well beyond published industry standards, a philosophy it markets as Tested Tough. It sits within the Horizon Global towing group alongside Reese, Fulton, Bulldog, Tekonsha, Bargman and Wesbar.
Custom fit is the defining characteristic. Rather than adapting a universal design, Draw-Tite engineers a trailer hitch for a specific make, model and model year, so it bolts to existing frame locations with minimal bumper cutting or drilling. Low-profile designs follow the rear contours and aerodynamic styling of modern vehicles, which matters more than it once did now that rear fascias are shaped and sensor-equipped. Construction is solid all-welded steel for maximum strength, and every hitch meets or exceeds V5 CSA and SAE J684 standards and is backed by a nationwide limited lifetime warranty.
The range spans receiver sizes and classes to suit different loads, from 1-1/4 inch receivers for bike racks, cargo carriers and light trailers up through 2 inch receivers for heavier towing. Front mount hitches add a receiver at the front of the vehicle for winch mounts, snow plows, spare carriers and precise trailer positioning.
The Hidden Hitch series takes concealment further by mounting behind the vehicle's rear fascia, so the vehicle keeps its factory appearance until a removable receiver is fitted. Each is custom designed per make and model for a no-drill installation that does not compromise ground clearance, rated for up to 3,500 pounds gross trailer weight and 350 pounds tongue weight. Matching plug-and-play wiring completes the towing system.
Experts available to answer your questions
Call 888-634-9494Lifetime
1 compatible vehicles
| Year | Make & Model | Notes |
|---|---|---|
| 2021 - 2023 | Hyundai Elantra | Class 1 Trailer Hitch: 2000 lbs 200/2,000 lbs. Weight Carrying (tongue weight/gross trailer weight) Drilling Required Install Time is 60 minutes |
The Draw-tite Class 1 Trailer Hitch, 1-1/4" Square Receiver, Black for Select Hyundai Elantra 25006 (Part #DT25006) fits the following vehicles: 2021-2023 Hyundai Elantra. Always verify your specific year, make, and model before ordering.
The Draw-tite Class 1 Trailer Hitch, 1-1/4" Square Receiver, Black for Select Hyundai Elantra 25006 (Part #DT25006) fits 2021-2023 Hyundai Elantra models. The 2023 model year is the last year covered by this part number. For newer models, check for an updated version.
Yes, the Draw-tite Class 1 Trailer Hitch, 1-1/4" Square Receiver, Black for Select Hyundai Elantra 25006 (Part #DT25006) is designed to fit the 2021-2023 Hyundai Elantra.
The Draw-tite Class 1 Trailer Hitch, 1-1/4" Square Receiver, Black for Select Hyundai Elantra 25006 (Part #DT25006) Drilling is required for installation. Basic hand tools are typically all you need.
Part number 25006 is designed for the Hyundai Elantra Hybrid. However, fitment depends on the specific year, sub-model, and trim level of your vehicle. Visit the Horizon Global website (www.horizonglobal.com) for the most up-to-date information regarding application years, sub-models, and trim levels to confirm compatibility with your exact vehicle.
The 25006 is a weight-carrying hitch with a maximum gross trailer weight (GTW) of 2000 lb (907 kg) and a maximum tongue weight of 200 lb (91 kg). However, you must never exceed your vehicle manufacturer's recommended towing capacity. The lowest capacity of any component in your towing system—vehicle, hitch, trailer, or tongue weight—determines the maximum load you can safely tow.
The manual lists weight-distributing hitch specifications as N/A (not applicable) for this vehicle. The 25006 is a weight-carrying hitch only. Contact Horizon Global technical support at 800-632-3290 or TechnicalSupport@horizonglobal.com if you need clarification on alternative hitch types.
Required tools include: drill with 1/2" bit, torque wrench, sockets (8 mm, 10 mm, 12 mm, 13 mm, 15 mm, 11/16"), ratchet, tin snips, utility knife, marker, tape, plastic trim tools, exhaust removal pliers, flat-head screwdriver, tape measure, Phillips-head screwdriver, and safety glasses. Installation difficulty is rated as Expert.
The fastener kit (25006F) includes: 2 carriage bolts 7/16-14 x 1.75 GR5, 2 blocks .250 x .875 x 3, 6 conical washers 7/16", 2 hex nuts 7/16-14 GR2, 2 fish wires 7/16", 4 hex bolts M10-1.25 x 35mm CL10.9 (US-built models), 4 hex bolts M8-1.25 x 40mm CL10.9 (Korean-built models), 4 conical washers 3/8" (Korean-built models), and 4 spacers 1.5" x 1.0" x 0.25".
Yes. The exhaust must be lowered during installation. Ensure the exhaust is supported before lowering it. Use an exhaust hanger removal tool to remove the rubber isolators from the hangers to lower the exhaust. After installation, push the rubber isolator back onto the exhaust hanger.
Two under-body panels must be removed: the driver-side under-body panel (remove 5 push pins with a flat-head screwdriver and 1 plastic nut with a 15 mm socket) and the center under-body panel (remove 4 push pins with a flat-head screwdriver, 1 plastic nut with a 15 mm socket, and 2 nuts with a 12 mm socket). The taillights must also be removed to access the fascia.
Yes. Remove the access panel inside the trunk. Inside the access hole, remove 2 nuts (4 total) using a 10 mm socket. Unclip the wire harness from inside the access hole. Slide the taillight rearward to remove it. This is required on both sides.
Yes. The rear fascia must be removed. Remove 3 Phillips-head screws from each wheel well (6 total), 1 bolt with an 8 mm socket from each wheel well (2 total), 1 screw and 1 push pin by each taillight (2 total each), and 2 bumper bolts (Korean-built M8 or US-built M10, 4 total) from the forward side of the rear bulkhead. Start in the wheel wells and gently pull on the fascia to unclip it from the mounting tabs. Use plastic trim tools and tape to prevent scratching. Place the fascia in a safe location for reinstallation.
Yes. A 1/2" hole must be drilled into the driver-side frame using the hitch as a guide. This is a permanent modification to the vehicle frame.
Three sections must be trimmed: (1) Fascia: from the centerline, measure and mark a section 2.5" in each direction and 3.75" from the bottom forward edge of the fascia, then trim off the marked section. (2) Center under-body panel: from the centerline, measure and mark a section 2.5" in each direction and 1" from the bottom rearward edge of the fascia, then trim off the marked section. (3) Driver-side under-body panel: trim off the forward-most frame attachment as needed. Use tin snips or a utility knife for these cuts.
For US-built models: torque all 10 mm bolts to 42 lb-ft (57 N·m) and all 7/16" fasteners to 50 lb-ft (68 N·m). Proper torque is essential to keep the hitch secure to the vehicle when towing. Thread locker can be used on all fasteners for additional security.
For Korean-built models: torque all 8 mm bolts to 27 lb-ft (37 N·m) and all 7/16" fasteners to 50 lb-ft (68 N·m). Proper torque is essential to keep the hitch secure to the vehicle when towing. Thread locker can be used on all fasteners for additional security.
The teeth side of the conical washer must be oriented against the hitch. This applies to both 7/16" conical washers (item l) used on US-built models and 3/8" conical washers (item q) used on Korean-built models.
Fish wires (items j and k, attached to item n) are used to guide the hitch attachment bolts through the frame during installation. On the passenger side, attach items j and k to item n and follow Figure 2 instructions, leaving item n attached until the hitch is raised into position. On the driver side, attach items j and k to item n and follow Figure 5 instructions. Be sure to feed the fish wire through the hitch attachment point while raising the hitch into position.
The spacers (item r, 1.5" x 1.0" x 0.25") are used to maintain proper spacing during hitch attachment. Kink the pull wire to keep the spacer independent of the bolt during installation.
Always wear safety glasses when installing the hitch. Ensure the exhaust is supported before lowering it. Observe safety precautions when working beneath a vehicle. Do not cut access or attachment holes with a torch. If the hitch is removed, plug all holes in the trunk pan or other body panels to prevent entry of water and exhaust fumes. A hitch or ball that has been damaged should be removed and replaced.
Check that the hitch is securely mounted to the vehicle and that all fasteners are tight. Regularly check that all fasteners remain tight and the hitch is securely mounted. Ensure that all fasteners are torqued to the prescribed torque values (42 lb-ft for 10 mm bolts or 27 lb-ft for 8 mm bolts on Korean-built models, and 50 lb-ft for 7/16" fasteners on both models). Check that the ball is properly tightened.
Check the hitch frequently, making sure all fasteners and ball are properly tightened. The manual emphasizes regular checks to ensure hitch towing capacity and longevity of the product. Proper torque must be maintained to keep the hitch secure to the vehicle when towing.
No. DO NOT cut, weld, or modify this trailer hitch. Doing so will void the warranty and may compromise the structural integrity and safety of the hitch.
The 25006 hitch is covered by a Limited Lifetime Warranty from Horizon Global Corporation. The warranty covers the original consumer purchaser only and warrants that the product will be free from material defects in both material and workmanship, ordinary wear and tear excepted. The warranty is valid only if products are returned for inspection and testing, the inspection discloses material nonconformance not caused by misuse, neglect, wear and tear, improper installation, unsuitable storage, improper repair, alteration, or accident, and the products were installed, maintained, and used in accordance with the instructions. Product replacement is the sole and exclusive remedy. To make a warranty claim, contact Horizon Global at 127 Public Square Suite 5300, Cleveland, OH 44114, 800-632-3290, and identify the product by model number. Retain your purchase receipt to verify the date of purchase and that you are the original consumer purchaser.
Yes. An authorized drawbar kit, part number 3593, is available and sold separately. The drawbar must be used in the RISE position only.
The 25006 is designed for the Hyundai Elantra Hybrid, but fitment depends on year, sub-model, and trim level. Check the Horizon Global website for your specific vehicle.
Maximum gross trailer weight is 2000 lb (907 kg) and maximum tongue weight is 200 lb (91 kg). Never exceed your vehicle manufacturer's recommended towing capacity.
You will need a drill with 1/2" bit, torque wrench, sockets (8 mm, 10 mm, 12 mm, 13 mm, 15 mm, 11/16"), ratchet, tin snips, utility knife, plastic trim tools, exhaust removal pliers, screwdrivers (flat-head and Phillips-head), tape measure, marker, tape, and safety glasses.
US-built models: 10 mm bolts to 42 lb-ft (57 N·m), 7/16" fasteners to 50 lb-ft (68 N·m). Korean-built models: 8 mm bolts to 27 lb-ft (37 N·m), 7/16" fasteners to 50 lb-ft (68 N·m).
Yes. Both the exhaust and rear fascia must be lowered and removed. The exhaust must be supported before lowering. The fascia requires removal of multiple fasteners and clips.
Retorque all fasteners to the prescribed torque values: for US-built models, 10 mm bolts to 42 lb-ft (57 N·m) and 7/16" fasteners to 50 lb-ft (68 N·m); for Korean-built models, 8 mm bolts to 27 lb-ft (37 N·m) and 7/16" fasteners to 50 lb-ft (68 N·m). Check the hitch frequently to ensure all fasteners and the ball remain properly tightened. Thread locker can be used on all fasteners for additional security.
A hitch or ball that has been damaged should be removed and replaced immediately. Do not attempt to repair a damaged hitch. Contact Horizon Global technical support at 800-632-3290 or TechnicalSupport@horizonglobal.com for replacement options.
Use plastic trim tools and tape in the area of tool use to prevent scratching while gently pulling on the fascia to unclip it from the mounting tabs. If alignment is difficult, ensure that all fasteners have been removed (3 Phillips-head screws from each wheel well, 1 bolt with 8 mm socket from each wheel well, 1 screw and 1 push pin by each taillight, 2 bumper bolts from the forward side of the rear bulkhead, and push pins at the bottom of the fascia). Start in the wheel wells and work gradually around the fascia.
| Bulk # | Pkg # | Lift Capacity | Wind | Travel | Hole Size | Handle Type | Style | Retracted Ht. | Extended Ht. |
|---|---|---|---|---|---|---|---|---|---|
| 28320 | -- | 2,000 lbs. | Top | 10" | 10-3/4" | Claw | Pipe-mount | 11" | 21-3/4" |
| 25006 | -- | 5,000 lbs. | Top | 10" | 9/16" | Claw | Pipe-mount | 11-1/4" | 21-1/4" |
| 28356 | -- | 5,000 lbs. | Top | 15" | 5/8" | Claw | Pipe-mount | 15-1/2" | 31-1/2" |
| 28322 | 28323 | 5,000 lbs. | Side | 10" | 9/16" | Claw | Pipe-mount | 16" | 31" |
| 28321 | -- | 2,000 lbs. | Side | 10" | 9/16" | Straight | Pipe-mount | 17-1/2" | 28-1/2" |
| 28324 | -- | 5,000 lbs. | Side | 10" | 5/8" | Straight | Pipe-mount | 10-1/4" | 20-1/4" |
| 25005 | -- | 3,000 lbs. | Side | 15" | 5/8" | Straight | Pipe-mount | 15-1/2" | 30-1/2" |
| 28312 | -- | 5,000 lbs. | Side | 15" | 3/4" | Straight | Pipe-mount | 15-1/2" | 30-1/2" |
| 28300 | 28301 | 2,000 lbs. | Top | 10-1/2" | -- | Claw | Bracket-mount | 11-1/2" | 21-1/2" |
| 28302 | -- | 2,000 lbs. | Side | 10" | -- | Straight | Bracket-mount | 11" | 18-1/2" |
| 28304 | -- | 2,000 lbs. | Top | 15-1/4" | -- | Claw | Bracket-mount | 16" | 31-1/4" |
| 28306 | -- | 2,000 lbs. | Side | 14-1/2" | -- | Straight | Bracket-mount | 15-1/2" | 30" |
