Select your vehicle to find the exact plug-and-play parts that fit — no cutting or splicing.

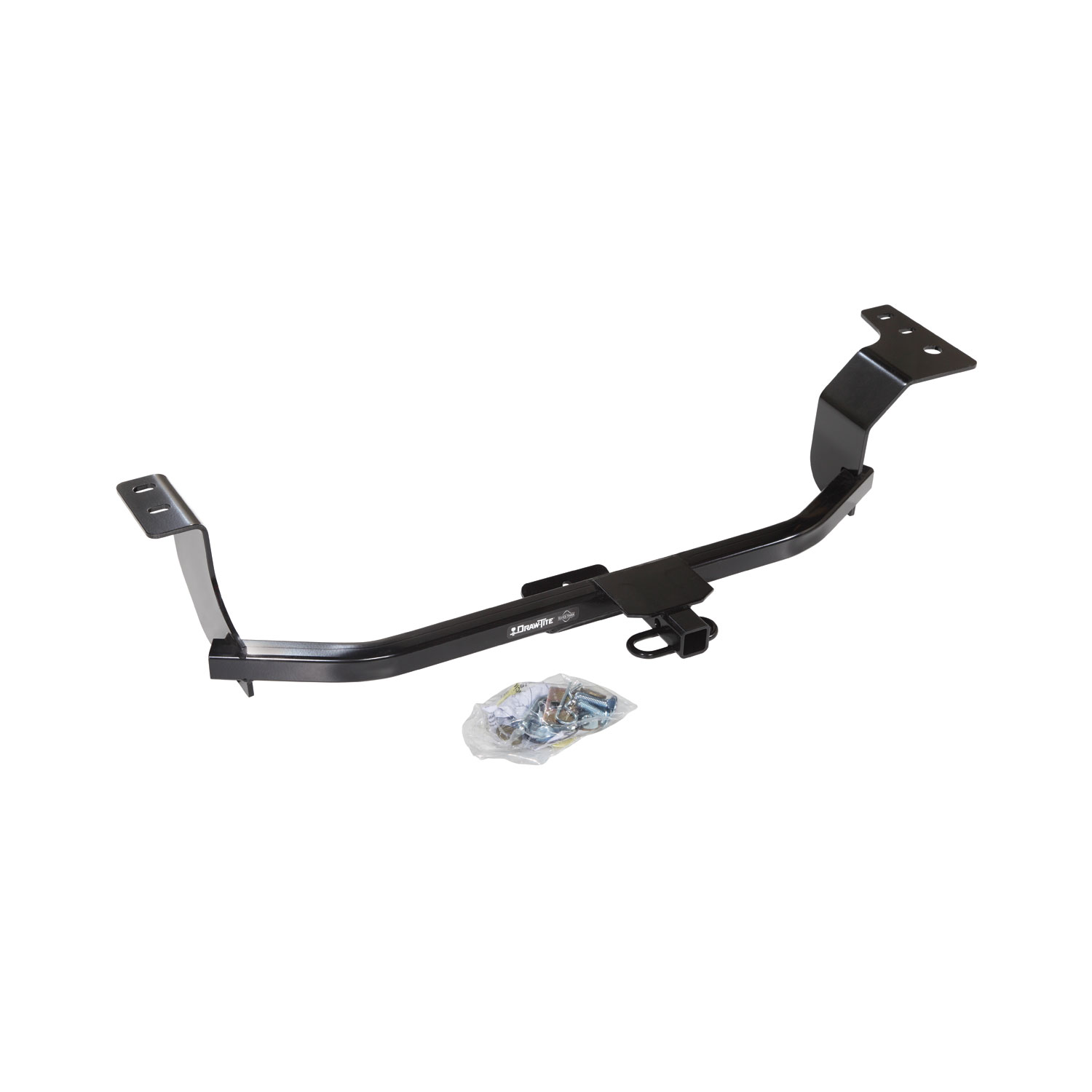

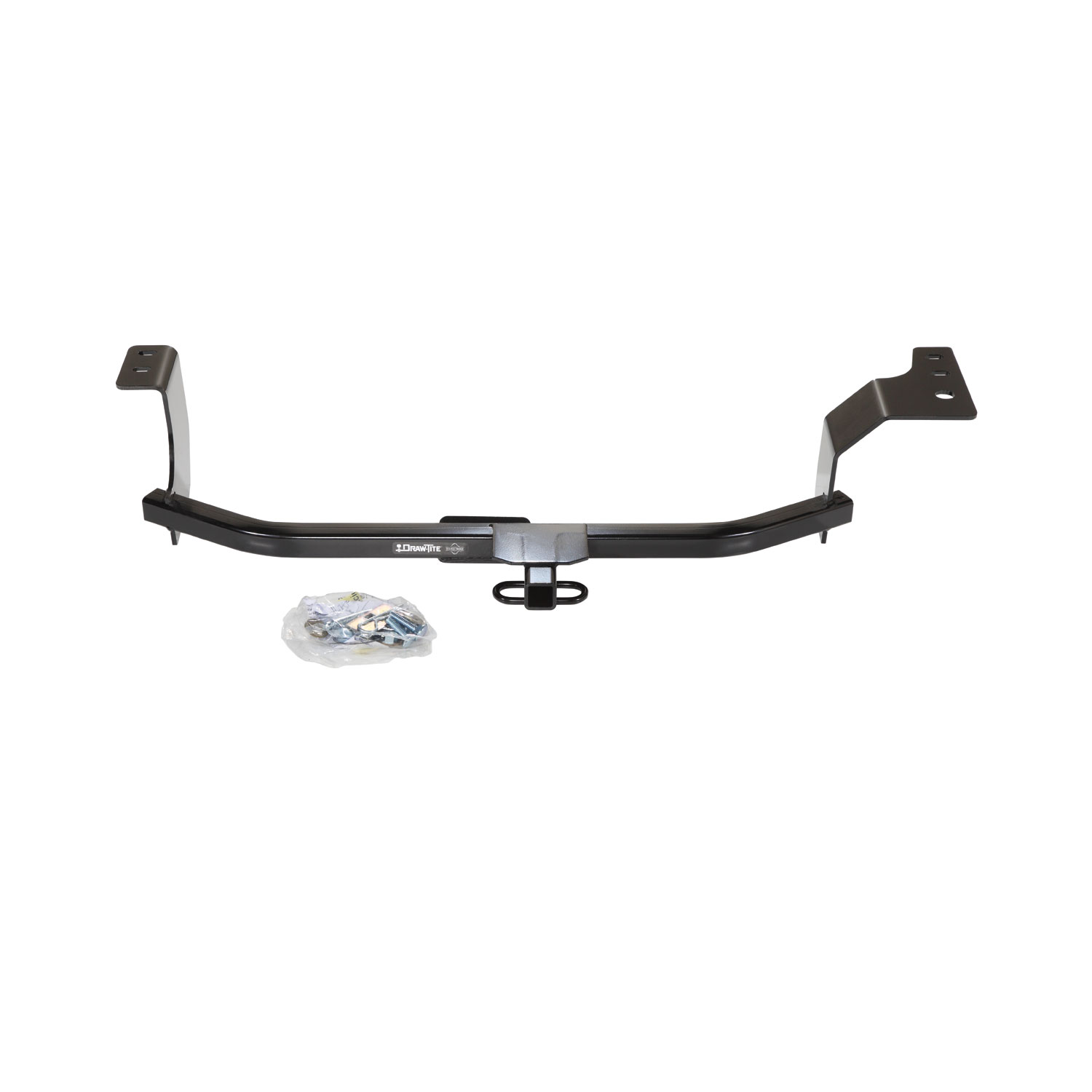

DRAW-TITE Class 1 trailer hitches are the perfect mix of style and stability for those times when youre working on a home project or heading out on an adventure. This DRAW-TITE Class 1 receiver hitch is rated for up to 2,000 lbs. gross trailer weight (GTW) and up to 200 lbs. tongue weight (TW). No weight distribution kits can be used on this specific trailer hitch. DRAW-TITE hitches are designed to provide top towing performance, with solid-all-welded construction and a black powder coat finish to resist rust and corrosion. The Class 1 trailer hitch has a 1-1/4 inch square receiver tube opening so you can easily attach accessories like a bike rack or cargo carrier, or a utility trailer. Includes all the mounting hardware needed for installation and are backed by a nationwide lifetime limited warranty. DRAW-TITE trailer hitches are tested to exceed V-5 and SAE J684 standards. DRAW-TITE: North Americas Favorite Hitch.
| BRAND: | DRAW-TITE |
| PART NUMBER: | 24902 |
| WARRANTY: | LIMITED LIFETIME WARRANTY |
| WEIGHT: | 23.65 LBS |
| GROSS TOWING WEIGHT: | 2,000 LBS. |
| GROSS TONGUE WEIGHT: | 200 LBS. |
| RECEIVER SIZE: | 1.25 IN. |
| HITCH CLASS: | I |
| DRILLING REQUIRED: | YES |
| MOUNTING HARDWARE INCLUDED: | YES |
| ATTACHMENT LOCATION: | REAR |
| HITCH VISIBILITY: | VISIBLE |
| CROSS-TUBE TYPE: | SQUARE TUBE |
| BALL MOUNT INCLUDED: | NO |
| COLOR: | BLACK |
| FINISH: | BLACK POWDER COAT OVER E-COAT |
| MATERIAL: | STEEL |
| MOUNTING LOCATION: | VEHICLE FRAME |
| MOUNTING TYPE: | BOLT-ON |
Draw-Tite has designed custom-fit trailer hitches since 1946 and is one of North America's most widely fitted hitch brands. Receiver hitches use solid all-welded construction and low-profile designs that follow modern vehicle contours, install with minimal bumper cutting or drilling, meet or exceed V5 CSA and SAE J684 standards, and carry a limited lifetime warranty.
Draw-Tite has been leading custom-fit trailer hitch design and engineering since its founding in 1946, and it remains one of the most widely fitted hitch brands in North America. The company's stated approach is straightforward: every hitch is tested rigorously so that it performs well beyond published industry standards, a philosophy it markets as Tested Tough. It sits within the Horizon Global towing group alongside Reese, Fulton, Bulldog, Tekonsha, Bargman and Wesbar.
Custom fit is the defining characteristic. Rather than adapting a universal design, Draw-Tite engineers a trailer hitch for a specific make, model and model year, so it bolts to existing frame locations with minimal bumper cutting or drilling. Low-profile designs follow the rear contours and aerodynamic styling of modern vehicles, which matters more than it once did now that rear fascias are shaped and sensor-equipped. Construction is solid all-welded steel for maximum strength, and every hitch meets or exceeds V5 CSA and SAE J684 standards and is backed by a nationwide limited lifetime warranty.
The range spans receiver sizes and classes to suit different loads, from 1-1/4 inch receivers for bike racks, cargo carriers and light trailers up through 2 inch receivers for heavier towing. Front mount hitches add a receiver at the front of the vehicle for winch mounts, snow plows, spare carriers and precise trailer positioning.
The Hidden Hitch series takes concealment further by mounting behind the vehicle's rear fascia, so the vehicle keeps its factory appearance until a removable receiver is fitted. Each is custom designed per make and model for a no-drill installation that does not compromise ground clearance, rated for up to 3,500 pounds gross trailer weight and 350 pounds tongue weight. Matching plug-and-play wiring completes the towing system.
Experts available to answer your questions
Call 888-634-9494Lifetime
Draw•Tite® and the Checkered Flag Foundation
2 compatible vehicles
| Year | Make & Model | Style | Notes |
|---|---|---|---|
| 2011 - 2016 | Hyundai Elantra | Sedan · 4-Door | Class 1 Trailer Hitch: 2000 lbs 200/2,000 lbs. Weight Carrying (tongue weight/gross trailer weight) Drilling Required Install Time is 25 minutes |
| 2013 - 2014 | Hyundai Elantra Coupe | Coupe · 2-Door | Class 1 Trailer Hitch: 2000 lbs 200/2,000 lbs. Weight Carrying (tongue weight/gross trailer weight) Drilling Required Install Time is 25 minutes |
The Draw-tite Class 1 Trailer Hitch, 1-1/4" Square Receiver, Black for Select Hyundai Elantra, Hyundai Elantra Coupe 24902 (Part #DT24902) fits 2011-2016 Hyundai Elantra models. The 2016 model year is the last year covered by this part number. For newer models, check for an updated version.
The Draw-tite Class 1 Trailer Hitch, 1-1/4" Square Receiver, Black for Select Hyundai Elantra, Hyundai Elantra Coupe 24902 (Part #DT24902) fits the following vehicles: 2011-2016 Hyundai Elantra; 2013-2014 Hyundai Elantra Coupe. Always verify your specific year, make, and model before ordering.
Yes, the Draw-tite Class 1 Trailer Hitch, 1-1/4" Square Receiver, Black for Select Hyundai Elantra, Hyundai Elantra Coupe 24902 (Part #DT24902) is designed to fit the 2011-2016 Hyundai Elantra.
The Draw-tite Class 1 Trailer Hitch, 1-1/4" Square Receiver, Black for Select Hyundai Elantra, Hyundai Elantra Coupe 24902 (Part #DT24902) Drilling is required for installation. Basic hand tools are typically all you need.
Yes, part number 24902 is designed to fit both Hyundai Elantra Sedan and Hyundai Elantra Coupe. However, installation procedures differ slightly between the two body styles. Sedans use a rearward pull-wire slot, while Coupes use a forward pull-wire slot. Additionally, Coupe models require enlargement of frame rail holes with a 1/2" drill bit, whereas North American-built Sedans may use a reverse pull-wire procedure.
The manual states that due to different manufacturing plants, holes in the frame will vary in position, and drilling may be required. North American-built vehicles use a reverse pull-wire procedure, while Asia-built Sedans require enlargement of frame rail holes with a 1/2" drill bit. Coupes also require hole enlargement regardless of manufacturing location. You should inspect your vehicle's frame rails before installation to determine if drilling is necessary.
The maximum gross trailer weight is 2000 LB (908 kg), and the maximum tongue weight is 200 LB (90.8 kg). However, you must not exceed the lower of the towing vehicle manufacturer's rating or these limits. Always consult your Hyundai Elantra owner's manual for the vehicle's specific towing capacity.
Required tools include: pullwires (provided with the hitch), lubricant or soapy water, Philips screwdriver, utility knife, tape measure, marking pencil, wrenches in sizes M10, 11/16", and 3/4", a 1/2" drill bit, and a torque wrench. The torque wrench is essential for tightening fasteners to the correct specifications.

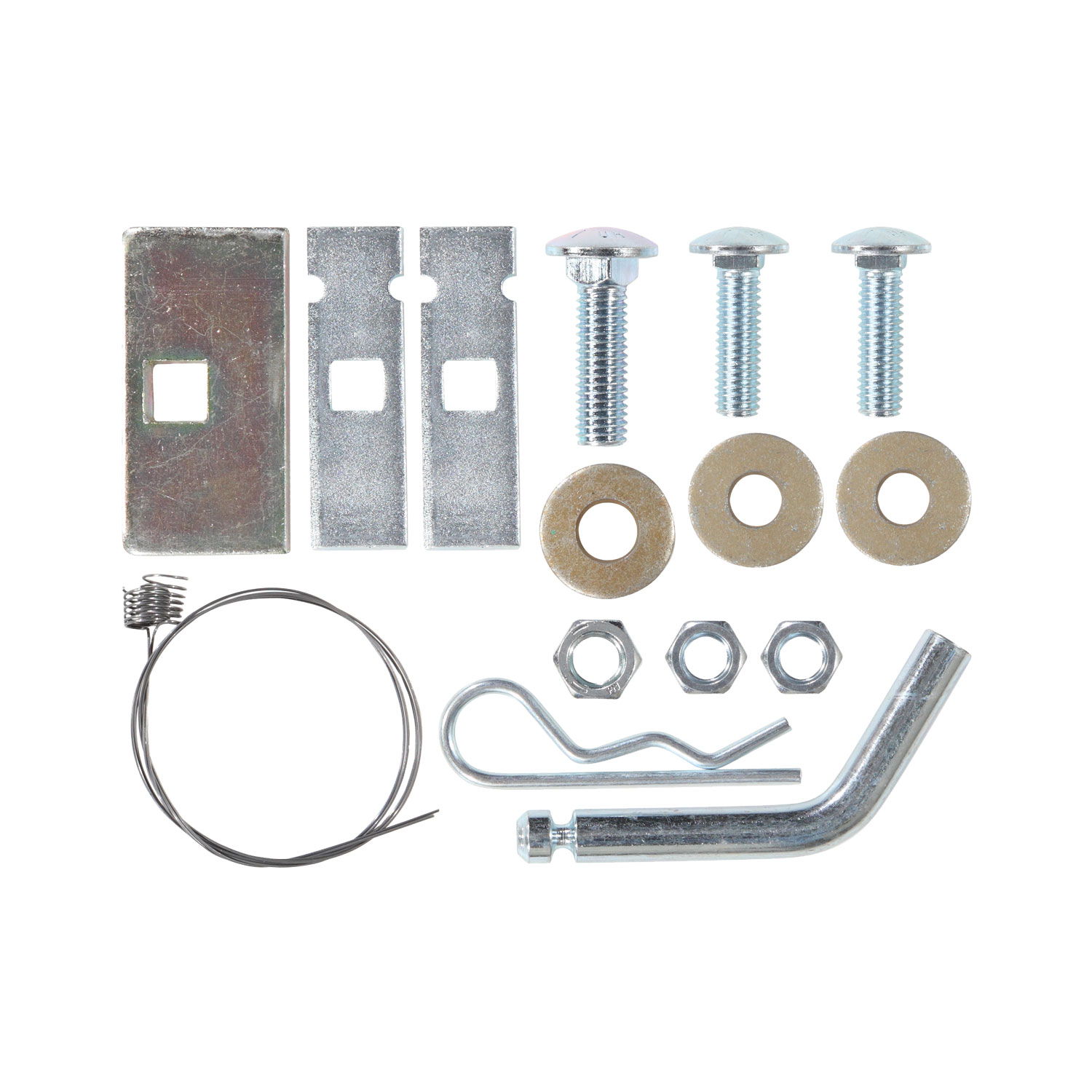

The manual lists the fasteners included with the hitch: one 1/2"-13 x 1.75 carriage bolt, two 7/16"-14 x 1.50 carriage bolts, one 0.25 x 1.50 x 3.0 spacer, two 0.25 x 0.88 x 3.00 spacers, one 1/2" conical washer, two 7/16" conical washers, one 1/2"-13 hex nut, and two 7/16"-14 hex nuts. A separate Fastener Kit 24902F is also available. Confirm with your supplier whether all required fasteners are included in your purchase.
Yes. Step 1 requires lowering the exhaust by removing both rubber isolators from the muffler hangers. Spraying lubricant or soapy water on the metal hanger rod and rubber isolator helps with removal. The hitch is then raised over the exhaust during installation (Step 6), and the exhaust is reinstalled after all fasteners are tightened (Step 8).
The appearance panel on the driver's side should be removed if present. The manual states you must obtain the owner's permission before trimming or returning the panel to the owner. Whether trimming is necessary depends on your vehicle's configuration. See Figure 3 for the area that may require trimming.
Drilling may be required depending on your vehicle's manufacturing location and model. North American-built Sedans may use a reverse pull-wire procedure without drilling. Asia-built Sedans require enlargement of frame rail holes with a 1/2" drill bit. All Coupes require hole enlargement with a 1/2" drill bit. The manual cautions that due to different manufacturing plants, holes in the frame will vary in position, so you should inspect your frame rails before installation.
A 1/2" drill bit is used to enlarge the frame rail holes. This is required for Asia-built Sedans and all Coupe models. The manual lists 1/2" drill bits in the equipment required section.
All 7/16" Grade 5 fasteners must be tightened to 50 Lb.-Ft. (68 N·M) using a torque wrench. This applies to the two 7/16"-14 x 1.50 carriage bolts and their corresponding fasteners.
All 1/2" Grade 5 fasteners must be tightened to 75 Lb.-Ft. (102 N·M) using a torque wrench. This applies to the 1/2"-13 x 1.75 carriage bolt and its corresponding fasteners.
The reverse pull-wire procedure is used on North American-built Sedans. According to Figure 4: (A) Insert the bolt and block into the frame, (B) align the block on the access hole, and (C) pull the bolt through the block. Kink the pull wire to keep the block independent of the bolt. Leave the pull wire attached after installation. This procedure allows installation through existing frame access holes without drilling.
Pull wires must be fed through different slots depending on the vehicle model. On Sedans, feed pull wires through the rearward slot. On Coupes, feed pull wires through the forward slot. This routing occurs during Step 6 when the hitch is raised over the exhaust and the center attachment is loosely installed.
The 1/2" carriage bolt and spacer must be placed on the tie-down hook in the orientation shown in Figure 2. The manual includes a diagram labeled "Tie down hook spacer orientation" to illustrate the correct positioning.
Fasteners should be left loose during the initial installation steps. Step 6 specifies loosely installing the center attachment. All fasteners are tightened to the required torque specification only in Step 7, after the hitch is positioned and all fasteners are installed.

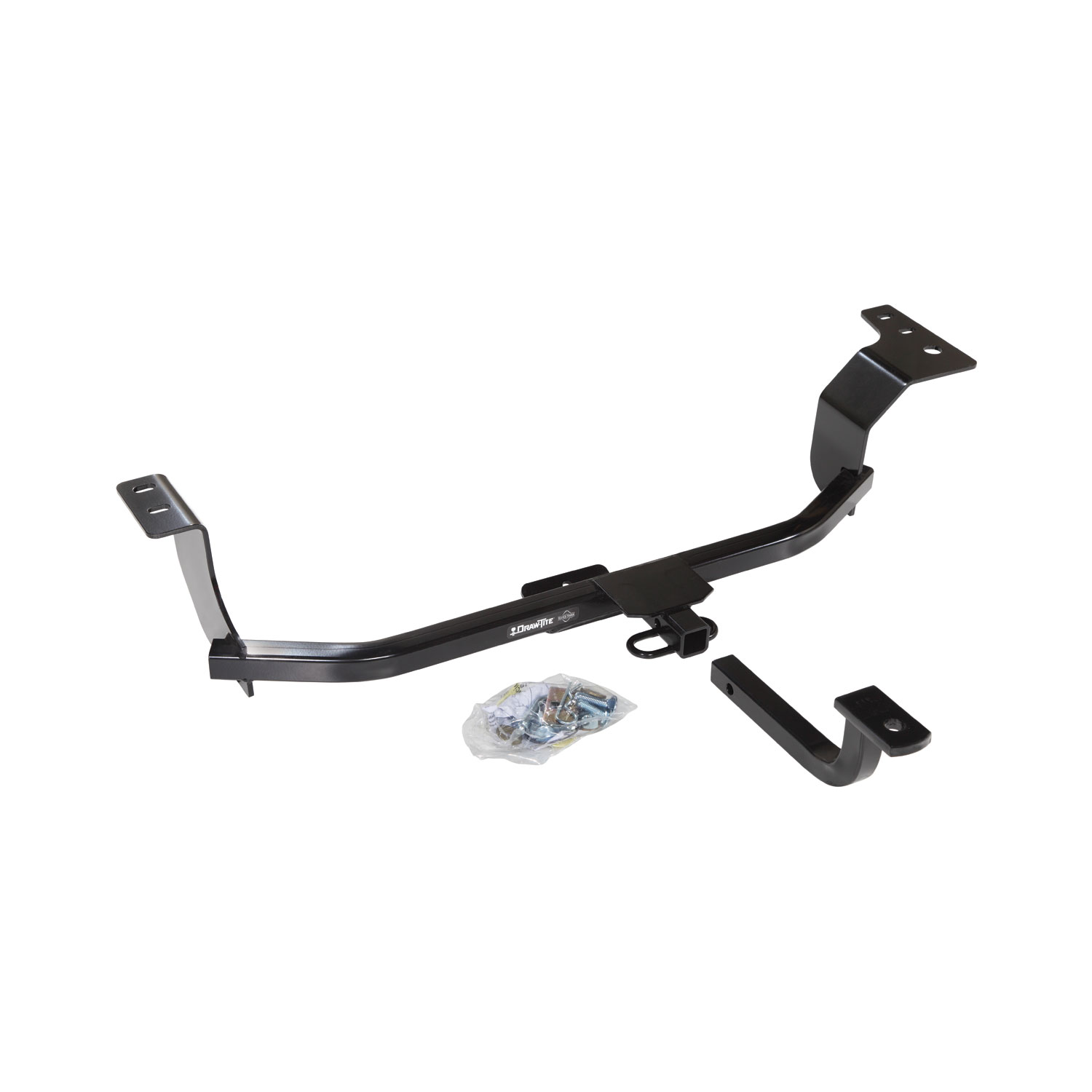

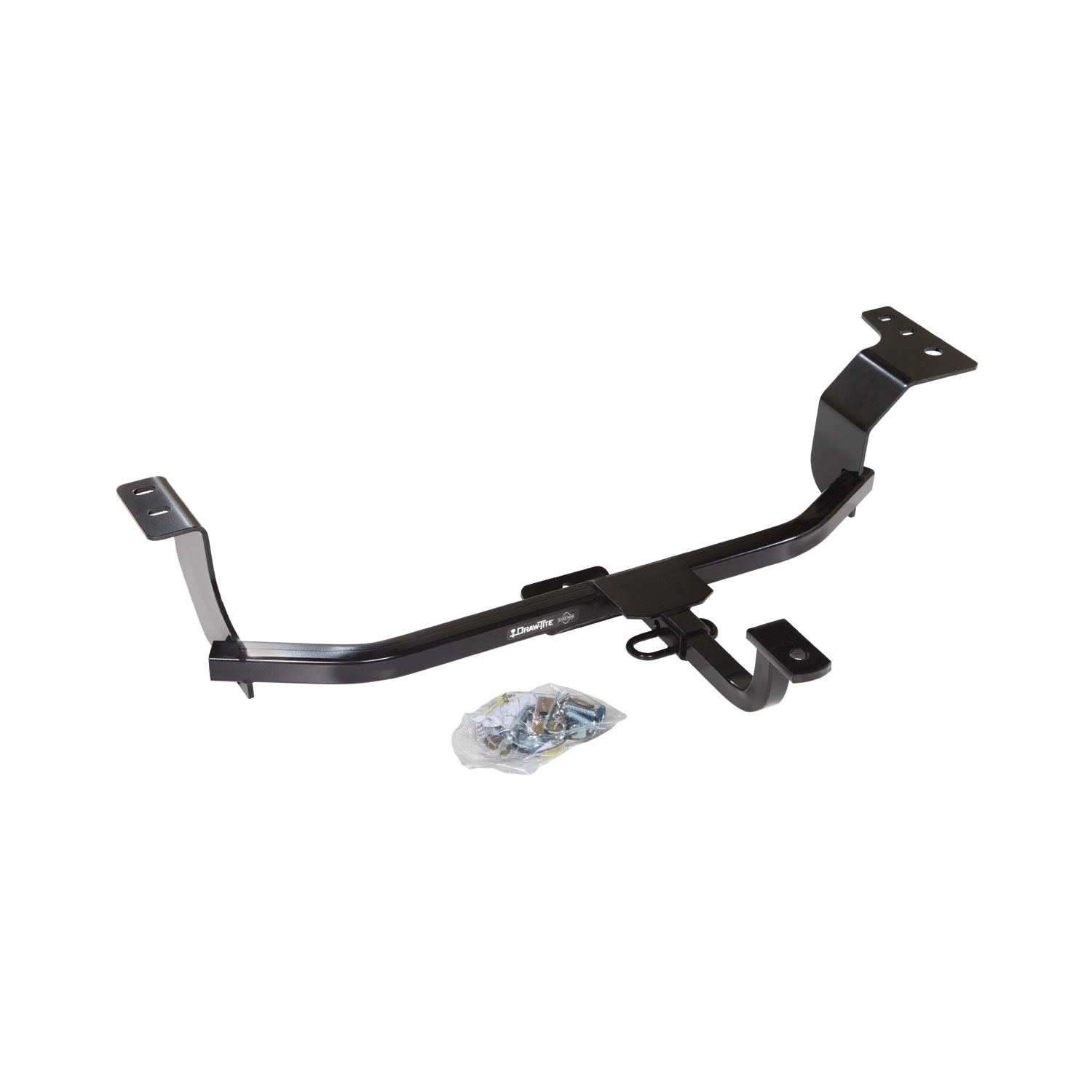

The drawbar must be used in the RISE position only. The drawbar is sold separately as Kit 3594. Do not use the drawbar in any other position.
Observe safety precautions when working beneath the vehicle and wear eye protection. Do not cut access or attachment holes with a torch. If the hitch is removed, plug all holes in the trunk pan or other body panels to prevent entry of water and exhaust fumes. A hitch or ball that has been damaged should be removed and replaced immediately.
Check the hitch frequently to ensure all fasteners and the ball are properly tightened. The manual emphasizes regular inspection but does not specify a particular interval or detailed inspection procedure beyond verifying fastener tightness.
If the hitch is removed, plug all holes in the trunk pan or other body panels to prevent entry of water and exhaust fumes. This prevents corrosion and contamination of the vehicle interior.
A hitch or ball that has been damaged should be removed and replaced. Do not attempt to repair a damaged hitch assembly.
Yes, part 24902 fits both Hyundai Elantra Sedan and Coupe, but installation steps differ by model and manufacturing location. Coupes and Asia-built Sedans require drilling with a 1/2" bit; North American-built Sedans may use a reverse pull-wire procedure.
Maximum gross trailer weight is 2000 LB (908 kg) and maximum tongue weight is 200 LB (90.8 kg). Do not exceed the lower of the towing vehicle manufacturer's rating or these limits.
You need pullwires (provided), lubricant or soapy water, Philips screwdriver, utility knife, tape measure, marking pencil, wrenches (M10, 11/16", 3/4"), a 1/2" drill bit, and a torque wrench.
Tighten all 7/16" Grade 5 fasteners to 50 Lb.-Ft. (68 N·M) and all 1/2" Grade 5 fasteners to 75 Lb.-Ft. (102 N·M) using a torque wrench.
The drawbar must be used in the RISE position only. The drawbar is sold separately as Kit 3594.
The manual cautions that due to different manufacturing plants, holes in the frame will vary in position. If holes do not align, drilling may be required. For North American-built Sedans, use the reverse pull-wire procedure. For Asia-built Sedans and all Coupes, enlarge the existing holes with a 1/2" drill bit. Inspect your frame rails before installation to determine if drilling is necessary.
A hitch or ball that has been damaged should be removed and replaced. Do not attempt to repair or continue using a damaged hitch assembly, as this compromises towing safety.
