Draw-tite
Verify Fitment
Select your vehicle to confirm this part fits.
2009 - 2012 Hyundai Elantra
Confirmed to Fit
Always the correct part
We know our products
Quality Products
Free Shipping!
Always the correct part
We know our products
Quality Products
Free Shipping!
Select your vehicle to find the exact plug-and-play parts that fit — no cutting or splicing.

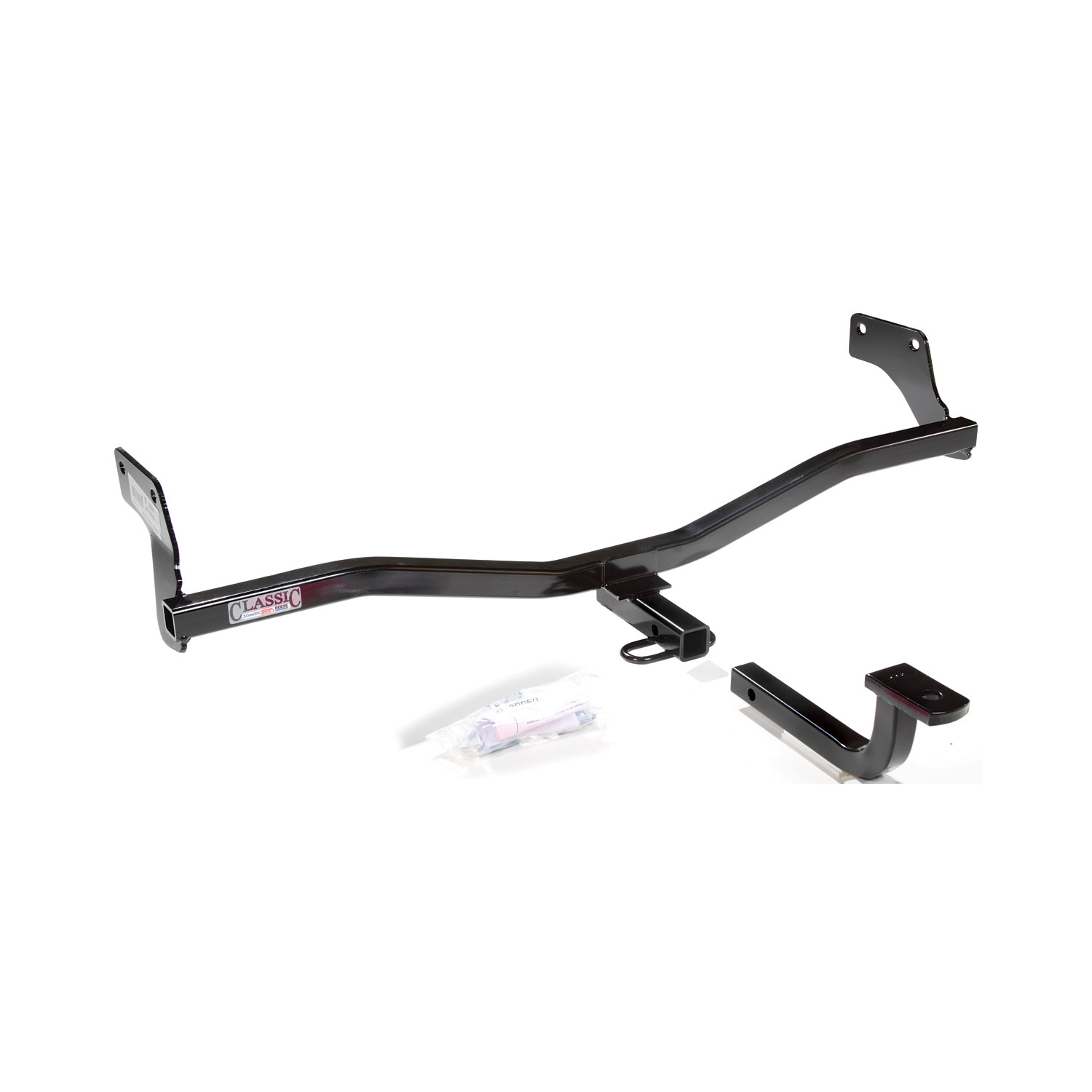

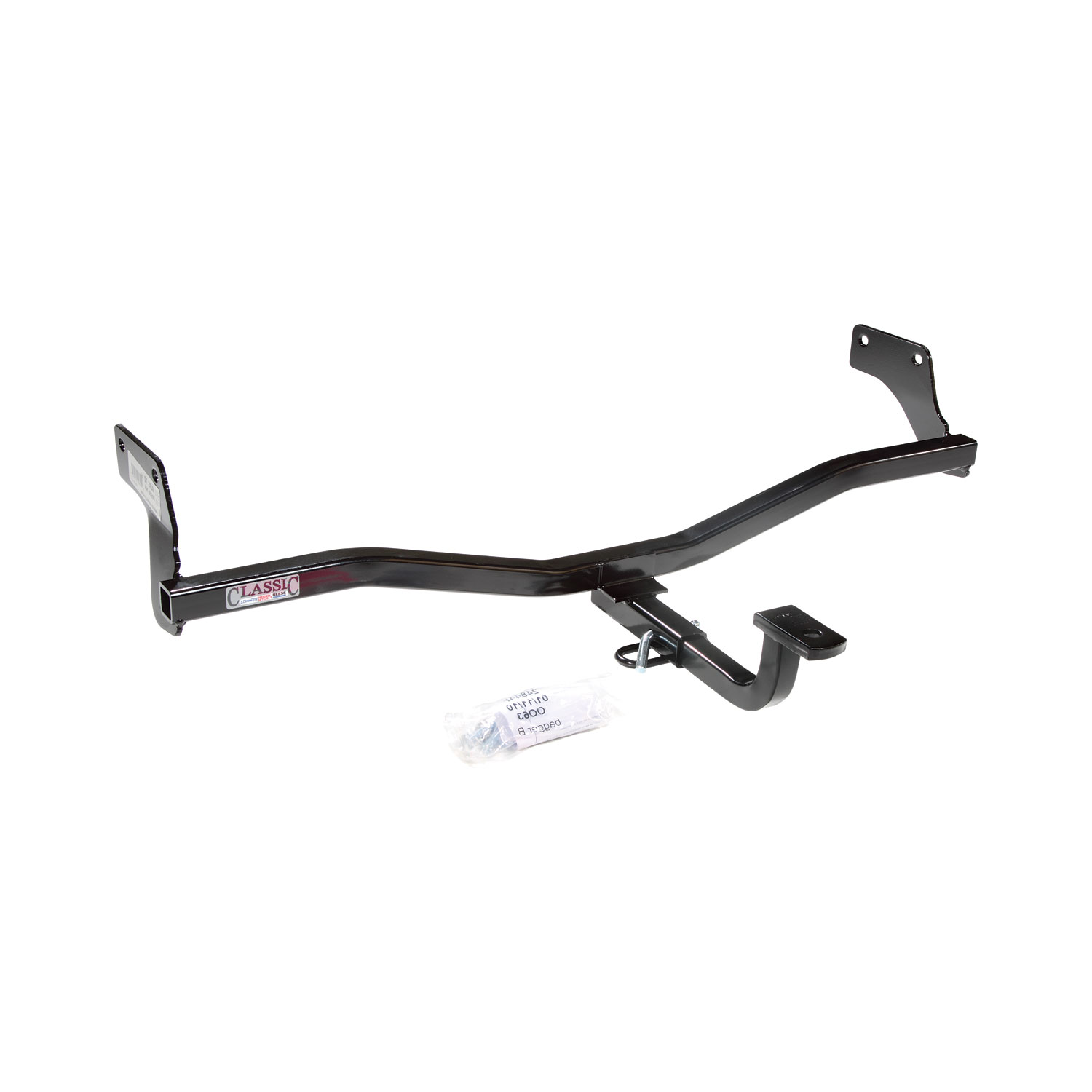

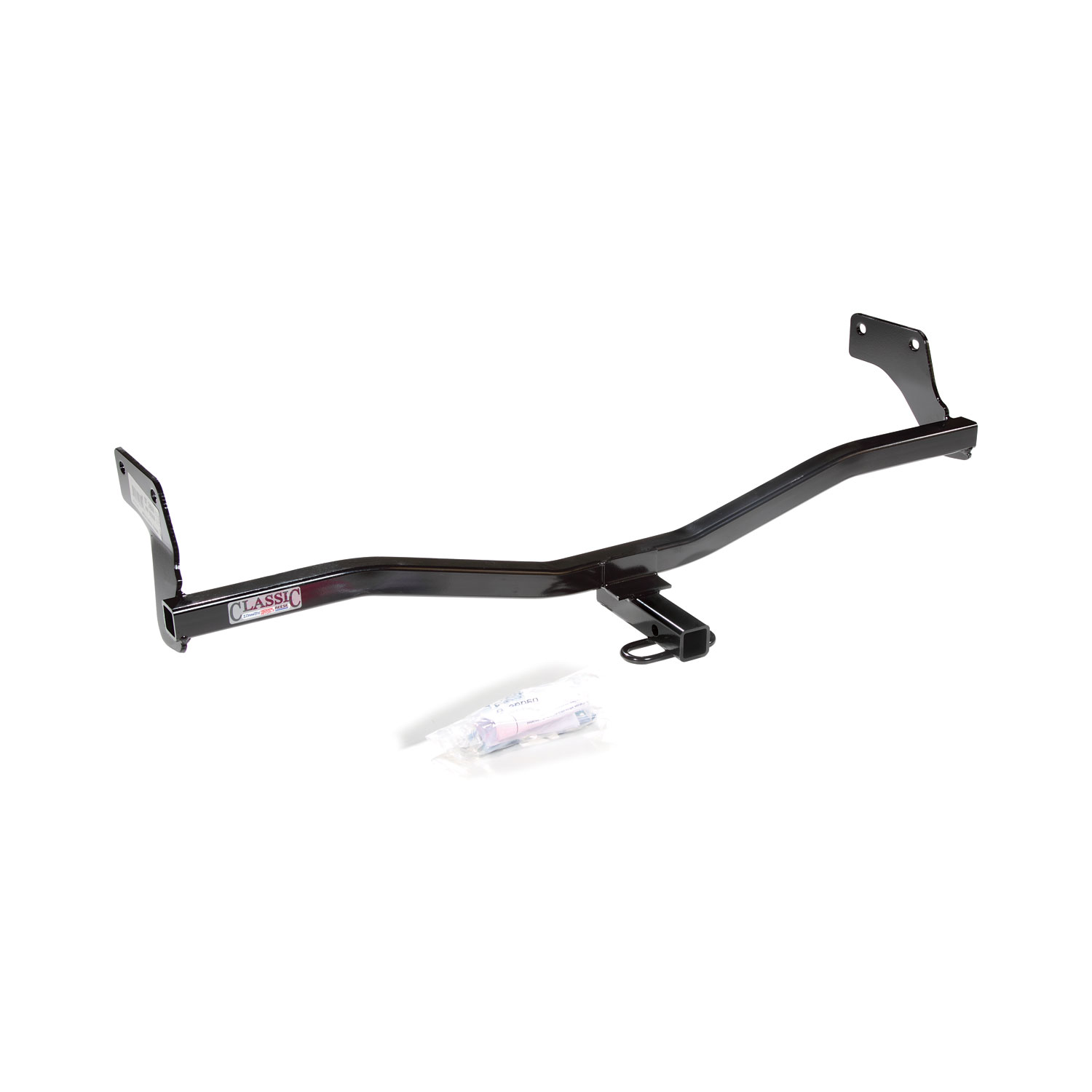

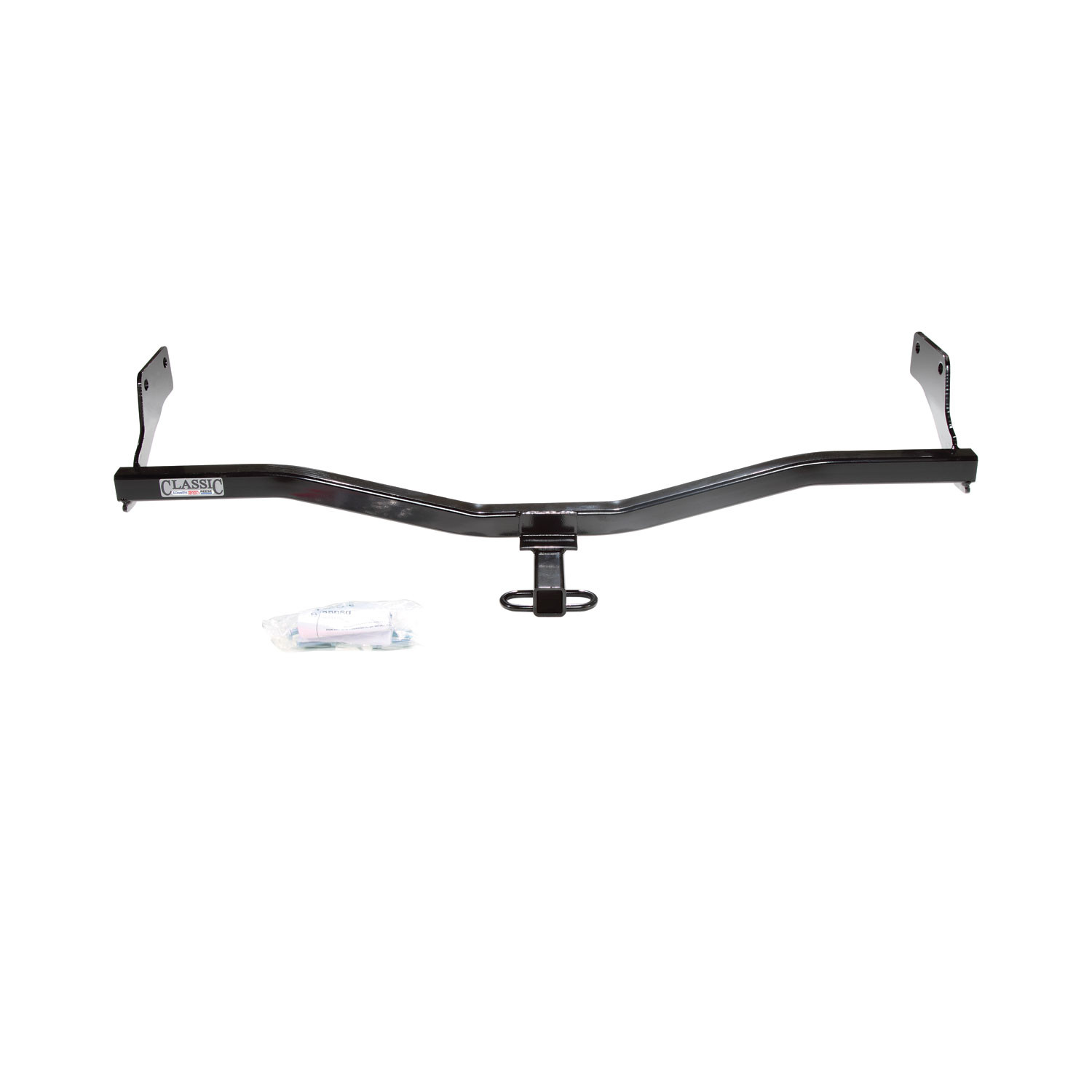

DRAW-TITE Class 1 trailer hitches are the perfect mix of style and stability for those times when youre working on a home project or heading out on an adventure. This DRAW-TITE Class 1 receiver hitch is rated for up to 2,000 lbs. gross trailer weight (GTW) and up to 200 lbs. tongue weight (TW). No weight distribution kits can be used on this specific trailer hitch. DRAW-TITE hitches are designed to provide top towing performance, with solid-all-welded construction and a black powder coat finish to resist rust and corrosion. The Class 1 trailer hitch has a 1-1/4 inch square receiver tube opening so you can easily attach accessories like a bike rack or cargo carrier, or a utility trailer. Includes all the mounting hardware needed for installation and are backed by a nationwide lifetime limited warranty. DRAW-TITE trailer hitches are tested to exceed V-5 and SAE J684 standards. DRAW-TITE: North Americas Favorite Hitch.
| BRAND: | DRAW-TITE |
| PART NUMBER: | 24844 |
| WARRANTY: | LIMITED LIFETIME WARRANTY |
| WEIGHT: | 20.6 LBS |
| GROSS TOWING WEIGHT: | 2,000 LBS. |
| GROSS TONGUE WEIGHT: | 200 LBS. |
| RECEIVER SIZE: | 1.25 IN. |
| HITCH CLASS: | I |
| DRILLING REQUIRED: | NO |
| MOUNTING HARDWARE INCLUDED: | YES |
| ATTACHMENT LOCATION: | REAR |
| HITCH VISIBILITY: | CONCEALED |
| CROSS-TUBE TYPE: | SQUARE TUBE |
| BALL MOUNT INCLUDED: | NO |
| COLOR: | BLACK |
| FINISH: | BLACK POWDER COAT OVER E-COAT |
| MATERIAL: | STEEL |
| MOUNTING LOCATION: | VEHICLE FRAME |
| MOUNTING TYPE: | BOLT-ON |
Draw-Tite has designed custom-fit trailer hitches since 1946 and is one of North America's most widely fitted hitch brands. Receiver hitches use solid all-welded construction and low-profile designs that follow modern vehicle contours, install with minimal bumper cutting or drilling, meet or exceed V5 CSA and SAE J684 standards, and carry a limited lifetime warranty.
Draw-Tite has been leading custom-fit trailer hitch design and engineering since its founding in 1946, and it remains one of the most widely fitted hitch brands in North America. The company's stated approach is straightforward: every hitch is tested rigorously so that it performs well beyond published industry standards, a philosophy it markets as Tested Tough. It sits within the Horizon Global towing group alongside Reese, Fulton, Bulldog, Tekonsha, Bargman and Wesbar.
Custom fit is the defining characteristic. Rather than adapting a universal design, Draw-Tite engineers a trailer hitch for a specific make, model and model year, so it bolts to existing frame locations with minimal bumper cutting or drilling. Low-profile designs follow the rear contours and aerodynamic styling of modern vehicles, which matters more than it once did now that rear fascias are shaped and sensor-equipped. Construction is solid all-welded steel for maximum strength, and every hitch meets or exceeds V5 CSA and SAE J684 standards and is backed by a nationwide limited lifetime warranty.
The range spans receiver sizes and classes to suit different loads, from 1-1/4 inch receivers for bike racks, cargo carriers and light trailers up through 2 inch receivers for heavier towing. Front mount hitches add a receiver at the front of the vehicle for winch mounts, snow plows, spare carriers and precise trailer positioning.
The Hidden Hitch series takes concealment further by mounting behind the vehicle's rear fascia, so the vehicle keeps its factory appearance until a removable receiver is fitted. Each is custom designed per make and model for a no-drill installation that does not compromise ground clearance, rated for up to 3,500 pounds gross trailer weight and 350 pounds tongue weight. Matching plug-and-play wiring completes the towing system.
Experts available to answer your questions
Call 888-634-9494Lifetime
Draw•Tite® and the Checkered Flag Foundation
1 compatible vehicles
| Year | Make & Model | Notes |
|---|---|---|
| 2009 - 2012 | Hyundai Elantra | Class 1 Trailer Hitch: 2000 lbs 200/2,000 lbs. Weight Carrying (tongue weight/gross trailer weight) Uses all existing holes. No Drilling required Install Time is 25 minutes |
Yes, the Draw-tite Class 1 Trailer Hitch, 1-1/4" Square Receiver, Black for Select Hyundai Elantra 24844 (Part #DT24844) is designed to fit the 2009-2012 Hyundai Elantra.
The Draw-tite Class 1 Trailer Hitch, 1-1/4" Square Receiver, Black for Select Hyundai Elantra 24844 (Part #DT24844) fits 2009-2012 Hyundai Elantra models. The 2012 model year is the last year covered by this part number. For newer models, check for an updated version.
The Draw-tite Class 1 Trailer Hitch, 1-1/4" Square Receiver, Black for Select Hyundai Elantra 24844 (Part #DT24844) fits the following vehicles: 2009-2012 Hyundai Elantra. Always verify your specific year, make, and model before ordering.
The Draw-tite Class 1 Trailer Hitch, 1-1/4" Square Receiver, Black for Select Hyundai Elantra 24844 (Part #DT24844) Refer to the included instructions for installation details. Basic hand tools are typically all you need.
Yes, part number 24844 is designed for the Hyundai Elantra Touring. The hitch assembly is installed on the outside of the frame rails at the rear of the vehicle, with the crosstube positioned over the tail pipe.
The maximum gross trailer weight is 2000 LB (908 kg) and the maximum tongue weight is 200 LB (90.8 kg). Do not exceed the lower of the towing vehicle manufacturer's rating or these limits.
You will need two wrenches (17mm and 19mm) and a small Philips tip screwdriver. No drill bits are required as no drilling is needed for this installation.
Conical washers are sold separately. The installation diagram shows that 4 conical washers are required (one for each M10 bolt), but they are not included in the base hitch package.

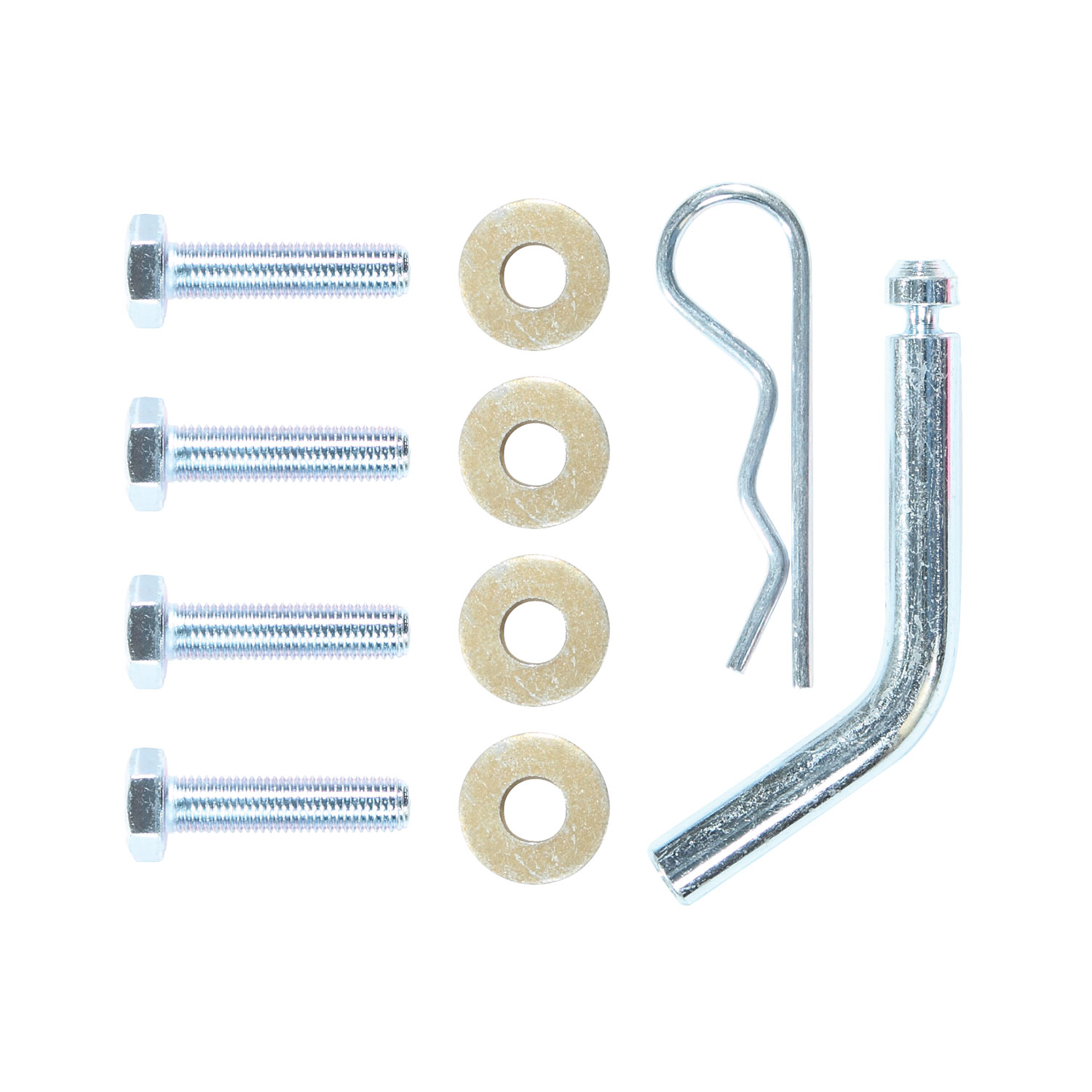

The installation requires 4 bolts (M10 x 1.25 x 40mm CL8.8) and 4 conical washers. The hitch uses existing weldnuts on the vehicle frame rails. A separate Fastener Kit 24844F is available, and a Drawbar Kit 3594 is sold separately.
You must lower the vehicle exhaust by removing the rubber exhaust hanger (step 2), but you do not need to completely remove it. The crosstube is positioned over the top of the tail pipe during installation. After installation, the rubber muffler hanger is reattached (step 7).
1. Remove the appearance panel covering the trunk pan by unscrewing 10 plastic screws and 3 M6 nuts with a small Philips screwdriver. 2. Lower the vehicle exhaust by removing the rubber hanger. 3. Lift the hitch into position, drivers side first, placing the crosstube over the tail pipe and rotating the side bracket into position on the outside of the frame rail. 4. Raise the passenger side into position on the outside of the frame rails and in front of the bulkhead. 5. Install fasteners and hand tighten. 6. Push the hitch toward the rear of the vehicle and tighten all fasteners to specification. 7. Reattach the rubber muffler hanger.
Pushing the hitch toward the rear of the vehicle (step 6) ensures proper alignment and seating of the hitch assembly on the frame rails before all fasteners are tightened to their final torque specification.
All M10 CL 8.8 fasteners must be tightened with a torque wrench to 42 Lb.-Ft. (57 N·M).
No, no drilling is required. The manual lists "Drill Bits: None" under Equipment Required. The hitch uses existing weldnuts on the vehicle frame rails.
Observe safety precautions when working beneath a vehicle and wear eye protection. Do not cut access or attachment holes with a torch. If the hitch is removed, plug all holes in the trunk pan or other body panels to prevent entry of water and exhaust fumes. A hitch or ball that has been damaged should be removed and replaced immediately.
Check the hitch frequently to ensure all fasteners and the ball are properly tightened. The manual emphasizes regular inspection as part of ongoing maintenance.
The drawbar must be used in the RISE position only. The hitch is not designed for use in a lowered position.
A hitch or ball that has been damaged should be removed and replaced. Do not attempt to repair a damaged hitch assembly.
Return the plastic fascia covering (appearance panel) to the vehicle owner after removing the 10 plastic screws and 3 M6 nuts.
Yes, the 24844 is designed for the Hyundai Elantra Touring and installs on the outside of the frame rails at the rear.
You need 17mm and 19mm wrenches, a small Philips tip screwdriver, and a torque wrench. No drilling is required.
No, conical washers are sold separately. You need 4 washers for the installation.
No, you only need to lower it by removing the rubber exhaust hanger. The hitch crosstube goes over the tail pipe, and the hanger is reattached after installation.
Tighten all M10 CL 8.8 bolts to 42 Lb.-Ft. (57 N·M) using a torque wrench.
Maximum gross trailer weight is 2000 LB (908 kg) and maximum tongue weight is 200 LB (90.8 kg). Do not exceed your vehicle manufacturer's rating.
Yes, the drawbar must be used in the RISE position only. It is not designed for use in the lowered position.
Check the hitch frequently to ensure all fasteners and the ball are properly tightened. If the hitch is removed, plug all holes to prevent water and exhaust fume entry.
