Select your vehicle to find the exact plug-and-play parts that fit — no cutting or splicing.

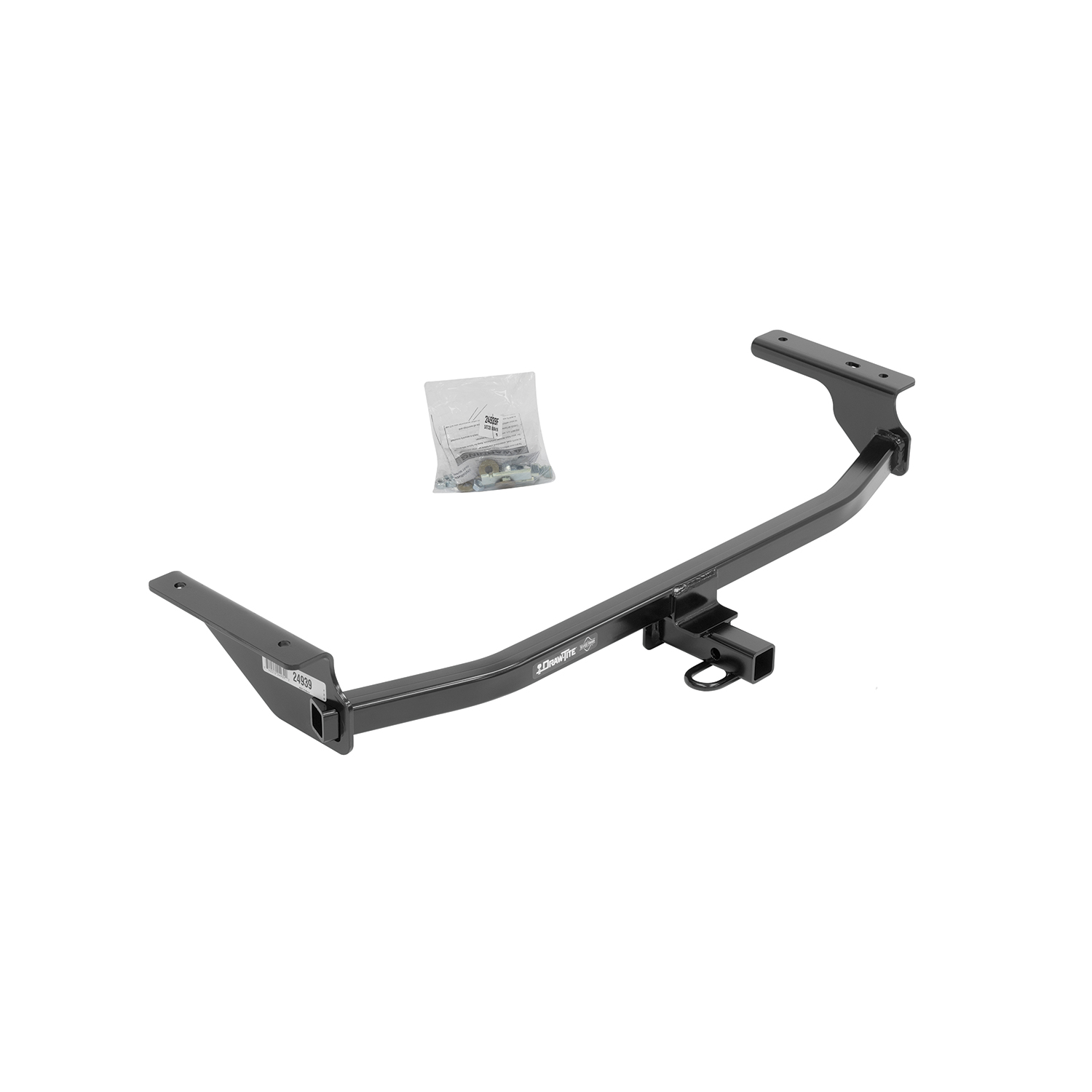

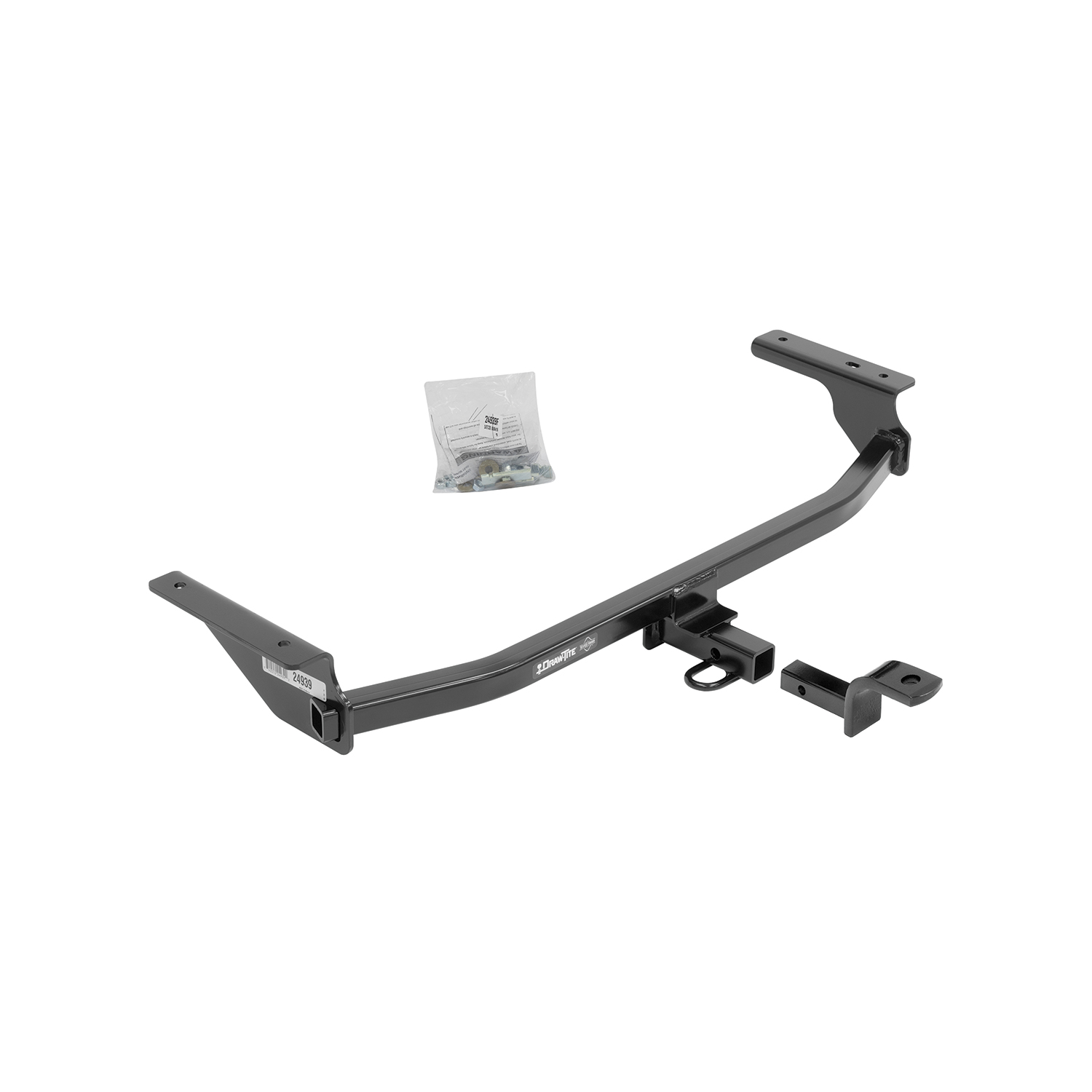

DRAW-TITE Class 1 trailer hitches are the perfect mix of style and stability for those times when youre working on a home project or heading out on an adventure. This DRAW-TITE Class 1 receiver hitch is rated for up to 2,000 lbs. gross trailer weight (GTW) and up to 200 lbs. tongue weight (TW). No weight distribution kits can be used on this specific trailer hitch. DRAW-TITE hitches are designed to provide top towing performance, with solid-all-welded construction and a black powder coat finish to resist rust and corrosion. The Class 1 trailer hitch has a 1-1/4 inch square receiver tube opening so you can easily attach accessories like a bike rack or cargo carrier, or a utility trailer. Includes all the mounting hardware needed for installation and are backed by a nationwide lifetime limited warranty. DRAW-TITE trailer hitches are tested to exceed V-5 and SAE J684 standards. DRAW-TITE: North Americas Favorite Hitch.
| BRAND: | DRAW-TITE |
| PART NUMBER: | 24939 |
| WARRANTY: | LIMITED LIFETIME WARRANTY |
| WEIGHT: | 21.15 LBS |
| GROSS TOWING WEIGHT: | 2,000 LBS. |
| GROSS TONGUE WEIGHT: | 200 LBS. |
| RECEIVER SIZE: | 1.25 IN. |
| HITCH CLASS: | I |
| DRILLING REQUIRED: | YES |
| MOUNTING HARDWARE INCLUDED: | YES |
| ATTACHMENT LOCATION: | REAR |
| HITCH VISIBILITY: | CONCEALED |
| CROSS-TUBE TYPE: | SQUARE TUBE |
| BALL MOUNT INCLUDED: | NO |
| COLOR: | BLACK |
| FINISH: | BLACK POWDER COAT OVER E-COAT |
| MATERIAL: | STEEL |
| MOUNTING LOCATION: | VEHICLE FRAME |
| MOUNTING TYPE: | BOLT-ON |
Draw-Tite has designed custom-fit trailer hitches since 1946 and is one of North America's most widely fitted hitch brands. Receiver hitches use solid all-welded construction and low-profile designs that follow modern vehicle contours, install with minimal bumper cutting or drilling, meet or exceed V5 CSA and SAE J684 standards, and carry a limited lifetime warranty.
Draw-Tite has been leading custom-fit trailer hitch design and engineering since its founding in 1946, and it remains one of the most widely fitted hitch brands in North America. The company's stated approach is straightforward: every hitch is tested rigorously so that it performs well beyond published industry standards, a philosophy it markets as Tested Tough. It sits within the Horizon Global towing group alongside Reese, Fulton, Bulldog, Tekonsha, Bargman and Wesbar.
Custom fit is the defining characteristic. Rather than adapting a universal design, Draw-Tite engineers a trailer hitch for a specific make, model and model year, so it bolts to existing frame locations with minimal bumper cutting or drilling. Low-profile designs follow the rear contours and aerodynamic styling of modern vehicles, which matters more than it once did now that rear fascias are shaped and sensor-equipped. Construction is solid all-welded steel for maximum strength, and every hitch meets or exceeds V5 CSA and SAE J684 standards and is backed by a nationwide limited lifetime warranty.
The range spans receiver sizes and classes to suit different loads, from 1-1/4 inch receivers for bike racks, cargo carriers and light trailers up through 2 inch receivers for heavier towing. Front mount hitches add a receiver at the front of the vehicle for winch mounts, snow plows, spare carriers and precise trailer positioning.
The Hidden Hitch series takes concealment further by mounting behind the vehicle's rear fascia, so the vehicle keeps its factory appearance until a removable receiver is fitted. Each is custom designed per make and model for a no-drill installation that does not compromise ground clearance, rated for up to 3,500 pounds gross trailer weight and 350 pounds tongue weight. Matching plug-and-play wiring completes the towing system.
Experts available to answer your questions
Call 888-634-9494Lifetime
Draw•Tite® Receiver Hitches Commercial
1 compatible vehicles
| Year | Make & Model | Style | Notes |
|---|---|---|---|
| 2017 - 2020 | Hyundai Elantra | 4-Door | Class 1 Trailer Hitch: 2000 lbs 200/2,000 lbs. Weight Carrying (tongue weight/gross trailer weight) Drilling Required Install Time is 50 minutes |
Yes, the Draw-tite Class 1 Trailer Hitch, 1-1/4" Square Receiver, Black for Select Hyundai Elantra 24939 (Part #DT24939) is designed to fit the 2017-2020 Hyundai Elantra.
The Draw-tite Class 1 Trailer Hitch, 1-1/4" Square Receiver, Black for Select Hyundai Elantra 24939 (Part #DT24939) fits the following vehicles: 2017-2020 Hyundai Elantra. Always verify your specific year, make, and model before ordering.
The Draw-tite Class 1 Trailer Hitch, 1-1/4" Square Receiver, Black for Select Hyundai Elantra 24939 (Part #DT24939) fits 2017-2020 Hyundai Elantra models. The 2020 model year is the last year covered by this part number. For newer models, check for an updated version.
The Draw-tite Class 1 Trailer Hitch, 1-1/4" Square Receiver, Black for Select Hyundai Elantra 24939 (Part #DT24939) Drilling is required for installation. Basic hand tools are typically all you need.
Yes, part numbers 24939, 77939, and CQT24939 are designed for 2017-current Hyundai Elantra models. For the most up-to-date information regarding specific application years and trim levels, visit the Cequent website.
This is a weight-carrying hitch with a maximum gross trailer weight of 2000 lb. (908 kg) and maximum tongue weight of 200 lb. (90 kg). Do not exceed the lower of your vehicle manufacturer's towing rating or these limits. Weight-distributing mode is not supported by this hitch.
Required tools: ratchet, torque wrench, 10 mm and 11/16" sockets, flat-head screwdriver, Phillips screwdriver, utility knife, tape measure, marker, drill with ½" drill bit, tin snips, and safety glasses. Lubricant or soapy water is also recommended to help remove exhaust isolator hangers.
Fastener kit 24939F includes: (4) carriage bolts 7/16-14 x 1.75 GR5, (4) spacers .250 x .875 x 3, (4) conical washers 7/16", (4) hex nuts 7/16-14 GR2, and (4) fish wires 7/16".
No, you do not need to remove the muffler. However, you must lower the exhaust by disconnecting the two rubber isolator hangers (one on the side and one at the rear of the muffler). Spraying lubricant or soapy water on the metal hanger rod and rubber isolator helps with removal. The exhaust is raised back into position in the final steps.
Yes, drilling is required. You must drill two holes on each side of the frame rail (four holes total) using a ½" drill bit. The hitch is first positioned as a template to mark the rear hole locations. After marking, the hitch is lowered, holes are drilled, and any burrs are removed before fasteners are installed.
Required modifications include: (1) removal of the appearance panel covering the driver's side frame rail, (2) removal of 10 mm hex nuts and plastic rivets from the panel, (3) removal of rubber plugs from the frame rail (if present), (4) lowering the exhaust by disconnecting rubber isolator hangers, (5) removal of the heat shield using a 10 mm socket and trimming it as shown in Figure 2, (6) removal of the lower fascia trim by removing plastic rivets and screws, (7) drilling four ½" holes in the frame rails, and (8) trimming the lower fascia as shown in Figure 3 with recommended radius in corners. All removed rubber plugs and the center plastic fascia tab must be returned to the vehicle owner.
All 7/16-14 GR5 fasteners must be tightened with a torque wrench to 50 Lb.-Ft. (68 N·M). Proper torque is essential to keep the hitch secure to the vehicle when towing.
The pull wire (fish wire) procedure is used to install fasteners through the frame rail access hole without removing the frame rail. Carriage bolts and spacers are inserted into the existing access hole with the pull wire attached. The pull wire is fed through the forward holes on the hitch to raise it into position. After marking and drilling the rear holes, the coiled end of the pull wire is fed through the drilled hole in the frame rail and out the access hole. The pull wire is then pulled to draw the fasteners into location. Pull wires remain attached until the final hitch installation step.
The conical washer must be installed with the teeth side against the hitch. The washer is used to hold the bolt in place while the pull wire is removed and the hex nut is attached.
After raising the hitch into position using the pull wire procedure and hand-tightening both forward fasteners, check that the hitch is even and centered on the vehicle before using it as a template to mark the rear holes. The hitch must be level and centered before drilling the rear mounting holes.
Always wear safety glasses when installing the hitch. Observe safety precautions when working beneath a vehicle. Do not cut access or attachment holes with a torch. If the hitch is removed, plug all holes in the trunk pan or other body panels to prevent entry of water and exhaust fumes. A hitch or ball that has been damaged should be removed and replaced immediately.
Always wear your seatbelt. Slow down when towing and never exceed any posted speed limit. Load the trailer heavier in front. Do not exceed the lower of your vehicle manufacturer's towing rating or the hitch limits (2000 lb. GVWR / 200 lb. tongue weight). If excessive sway occurs, take your foot off the gas pedal and hold the steering wheel as steady as possible. Do not apply your brakes and do not speed up.
Check frequently that all fasteners and the ball are properly tightened. Ensure the hitch is securely mounted to your vehicle. The manual recommends periodic checking but does not specify a retorque interval.
No. This hitch is a weight-carrying hitch only. Weight-distributing mode is not supported, as indicated by the 'X' in the weight-distributing row of the hitch specifications table.
No, the drawbar kit (part number 3593) is sold separately. If you purchase a drawbar, it must be used in the RISE position only.
The average installation time for professional installers is 50 minutes. If you do not feel comfortable performing this installation on your own or are in need of assistance, contact a professional installer.
Yes, part numbers 24939, 77939, and CQT24939 fit 2017-current Hyundai Elantra. Check the Cequent website for the most current trim level information.
Maximum 2000 lb. gross trailer weight and 200 lb. tongue weight. Do not exceed the lower of your vehicle manufacturer's rating or these limits.
Yes, you must drill four ½" holes in the frame rails (two on each side) using the hitch as a template. Burrs must be removed after drilling.
Remove appearance panel, lower exhaust isolator hangers, remove and trim heat shield, remove and trim lower fascia trim. All modifications are required for proper fitment.
All 7/16-14 GR5 fasteners must be torqued to 50 Lb.-Ft. (68 N·M) using a torque wrench.
Ratchet, torque wrench, 10 mm and 11/16" sockets, flat-head and Phillips screwdrivers, utility knife, tape measure, marker, ½" drill bit, tin snips, safety glasses, and lubricant or soapy water.
Always wear safety glasses during installation. Wear seatbelt while towing. Slow down when towing and never exceed posted speed limits. Do not cut holes with a torch. If hitch is removed, plug all holes to prevent water and exhaust fume entry.
