Ask a Question About This Product
Our in-house experts typically reply within one business day.
Our in-house experts typically reply within one business day.
CURT
Verify Fitment
Select your vehicle to confirm this part fits.
2006 - 2012 Toyota RAV4
Confirmed to Fit
Always the correct part
We know our products
Quality Products
Free Shipping!
Always the correct part
We know our products
Quality Products
Free Shipping!
| Side Application Type Description | Blank |
| T-Connector Location | S3,S4 |
| Tail Light Circuits | 7.5 Amps |
| Turn and Brake Circuits | 7.5 Amps |
| Warranty | One-Year Limited Warranty |
| Battery-Powered | Yes |
| Converter Type | Circuit Protected and Powered with Relay |
| Electrical System Type | 3W |
| Finish | N/A |
| Material | Blank |
| Mount Type Description | Blank |

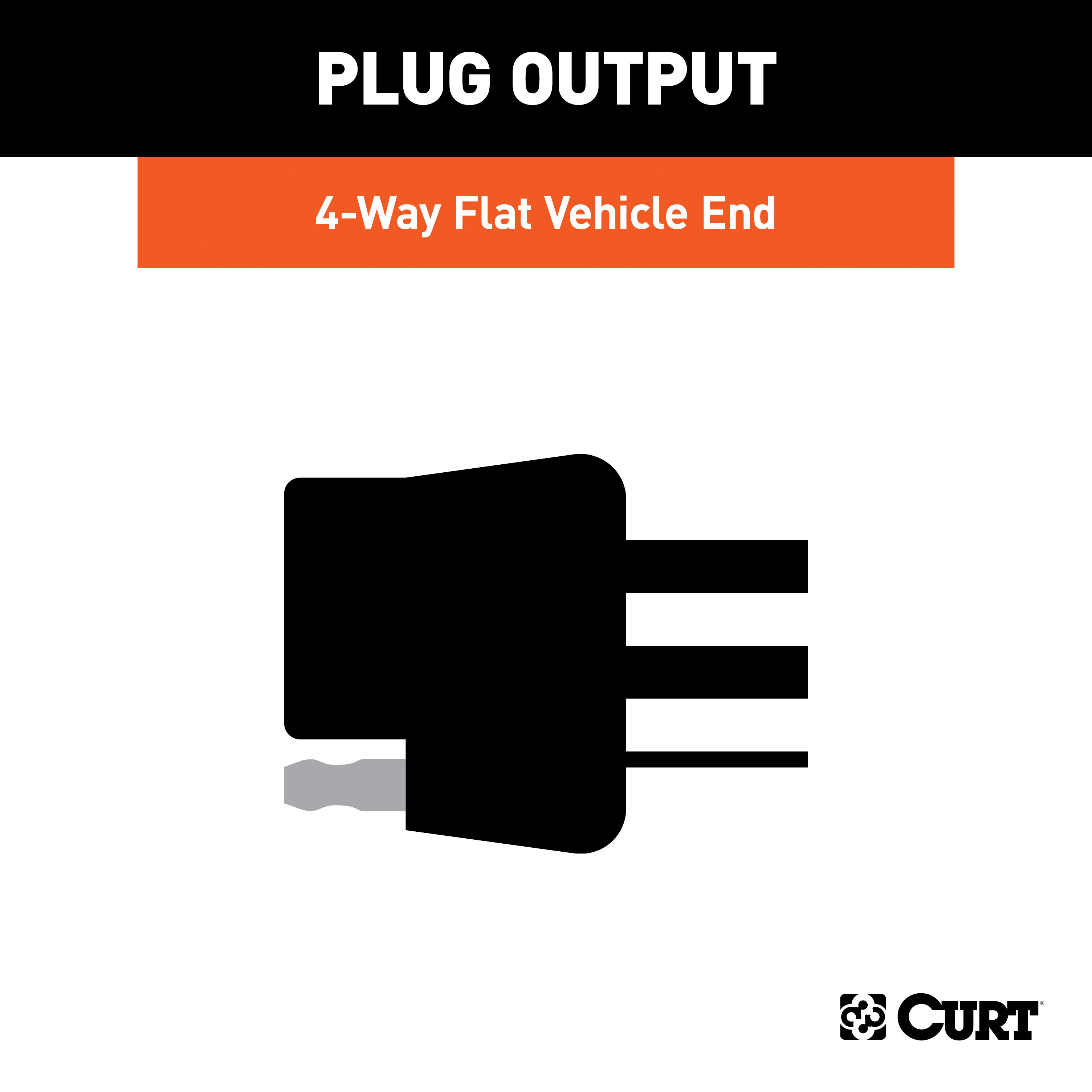

| Output Type | 4-Way Flat |
CURT offers a variety of high-quality trailer hitches and accessories for select vehicle models. Find the perfect fit for your towing needs at TowUniverse.
CURT, a Lippert brand, offers a complete line of towing products and is the leading manufacturer of custom-fit trailer hitches. We offer the broadest selection of custom-fit hitches, and each one is designed, welded, and coated in Wisconsin.
CURT is also a leader in flat towing products, as well as 5th wheel, gooseneck, and weight distribution hitches, ball mounts, electrical components, cargo solutions, and other towing accessories.
For everything from passenger cars and vans to full-size pickups and SUVs, CURT is 'The First Name in Towing Products®.'
Experts available to answer your questions
Call 888-634-94941 compatible vehicles
| Year | Make & Model | Notes |
|---|---|---|
| 2006 - 2012 | Toyota RAV4 | — |

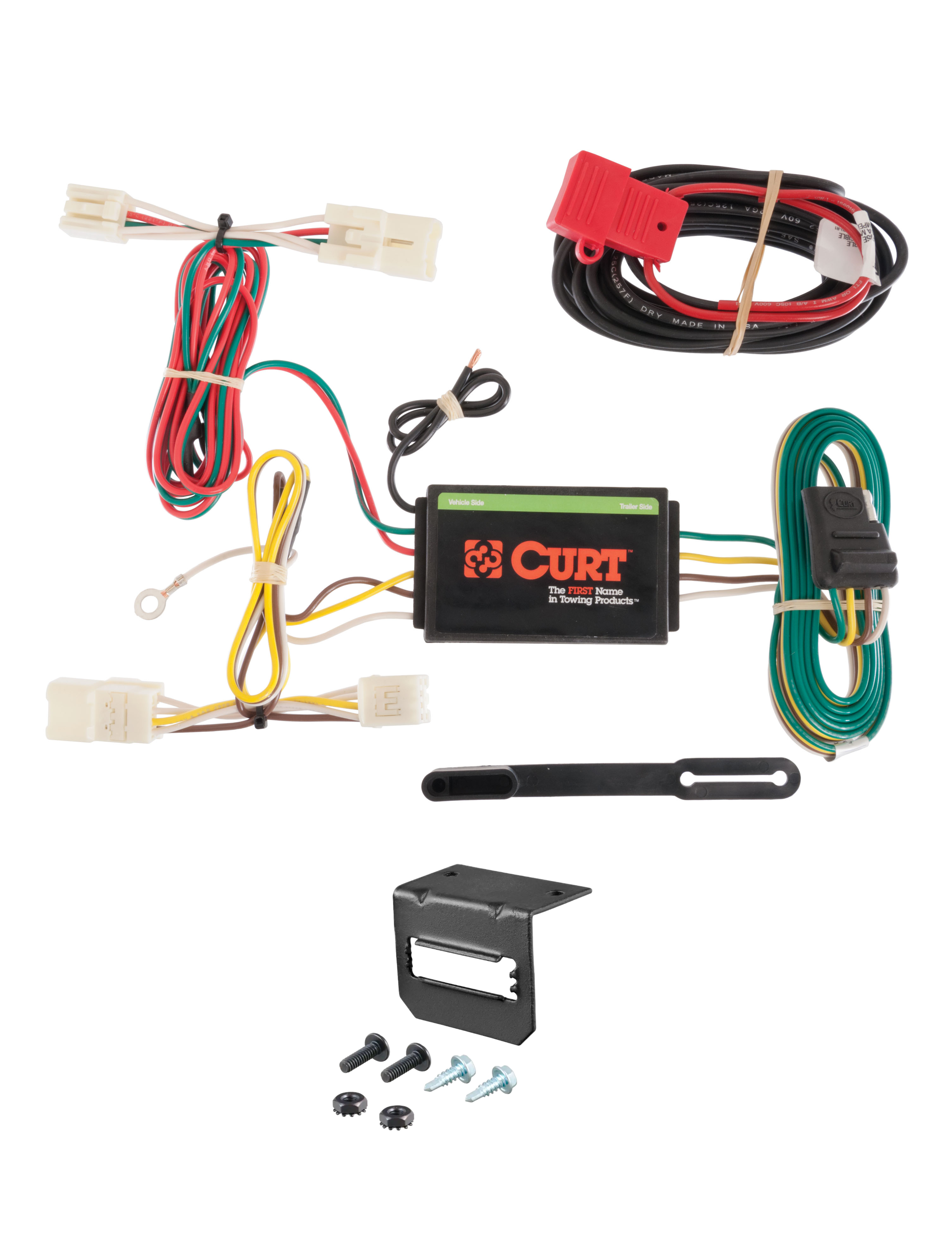

The 06-12 Toyota RAV4 CURT 4-flat Plug and Play Trailer Wiring (Part #CTW2424) fits the following vehicles: 2006-2012 Toyota RAV4. Always verify your specific year, make, and model before ordering.
The 06-12 Toyota RAV4 CURT 4-flat Plug and Play Trailer Wiring (Part #CTW2424) fits 2006-2012 Toyota RAV4 models. The 2012 model year is the last year covered by this part number. For newer models, check for an updated version.
Yes, the 06-12 Toyota RAV4 CURT 4-flat Plug and Play Trailer Wiring (Part #CTW2424) is designed to fit the 2006-2012 Toyota RAV4.
The 06-12 Toyota RAV4 CURT 4-flat Plug and Play Trailer Wiring (Part #CTW2424) Refer to the included instructions for installation details. Basic hand tools are typically all you need.
The Curt 56165 is a custom wiring harness that integrates with your vehicle's taillight system to provide trailer lighting connections. It includes a converter box and a 4-flat connector for trailer use.
Yes, the Curt 56165 is designed for Toyota Rav4 SUVs, Mini & Full-Sized Vans (S). Confirm your vehicle matches this application before purchasing.
No. The Curt 56165 is specifically designed for Toyota Rav4 SUVs, Mini & Full-Sized Vans (S). It is not compatible with other makes or models. Check the vehicle applications table to confirm your vehicle is listed.
You will need: a ratchet, 10mm socket, Phillips screwdriver, and a panel trim removal tool. The manual also recommends having a test light or properly wired trailer available to test the harness after installation.

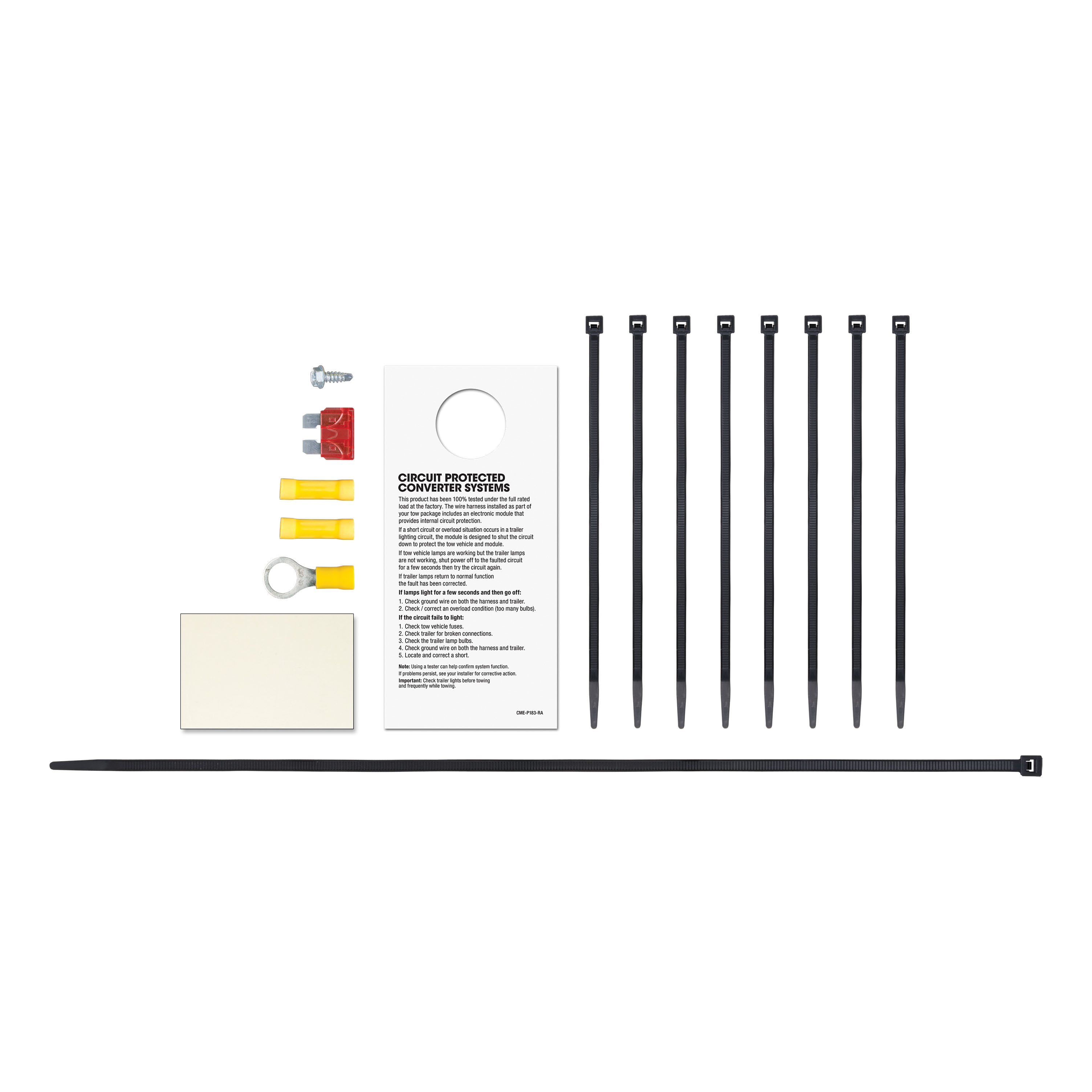

The harness includes: a custom wiring harness with yellow and green wire ends, a white ground wire with ring terminal, a black converter box, a provided screw for grounding, double-sided tape for the converter box, a 4-flat dust cover, and cable ties for securing loose wires.
Open the tailgate and remove: the rear scuff panel, trunk floor coverings, storage covers, and the privacy screen. Then remove all trim fasteners and slightly pull out the rear trim panels on both sides to access the taillight wiring harness connectors.
Separate the vehicle taillight connectors from the housing, taking care not to damage the locking tabs. Insert the custom wiring harness end (yellow wire for driver side, green wire for passenger side) between the separated connectors. Ensure the connectors are fully inserted with locking tabs in place.
Locate a flat spot inside the vehicle near the taillight. Adhere the black converter box using the provided double-sided tape. The converter box should be positioned where it will not interfere with vehicle operation.
When in use, route the 4-flat to the center of the vehicle. When not in use, roll it up and store in a convenient, out-of-the-way location. Secure any loose wires with the provided cable ties.
Drilling may be required. If a suitable existing grounding point (such as a screw with nut in the vehicle frame) is not available near the taillight connector, you will need to drill a 3/32" pilot hole for the provided ground screw. Before drilling, check for miscellaneous items hidden behind or under surfaces to avoid damage and personal injury.
Drill a 3/32" pilot hole for the provided ground screw. The area should be free of rust, dirt and paint before drilling.
The battery connection must be fuse-protected with a maximum 10-amp fuse. Exceeding this rating can cause loss of warranty, overheating and potential fire. Do not exceed the product rating or tow vehicle lamp load rating, whichever is lower.
Signal circuits are rated at 3.0 amps per side. Tail/Running circuits are rated at 6.0 amps total. Do not exceed these product ratings or the tow vehicle lamp load rating, whichever is lower.
The harness has a yellow wire end for the driver side connection, a green wire end for the passenger side connection, and a white ground wire with ring terminal. The black power wire connects to the vehicle battery (routing details are provided on the included CME-PCL-INS sheet).
Locate a suitable grounding point near the connector, such as an existing screw with nut in the vehicle frame. If one is not available, drill a 3/32" pilot hole for the provided screw. The area should be free of rust, dirt and paint. Secure the white ground wire using the ring terminal and provided screw.
Before drilling, check for miscellaneous items that may be hidden behind or under any surface to avoid damage and personal injury. Ensure the grounding area is free of rust, dirt and paint.
Do not exceed the product rating (Signal circuits 3.0 amps per side, Tail/Running circuits 6.0 amps total) or the tow vehicle lamp load rating, whichever is lower. Exceeding the product rating can cause loss of warranty, overheating and potential fire. The battery connection must be fuse-protected with a 10-amp maximum fuse.
Test for proper function by using a test light or connecting a properly wired trailer. All steps must be followed to ensure the wiring harness will function properly.
Reinstall all items removed during installation, including the rear scuff panel, trunk floor coverings, storage covers, privacy screen and rear trim panels. Install the provided 4-flat dust cover to help prevent corrosion.
The Curt 56165 is designed for Toyota Rav4 SUVs, Mini & Full-Sized Vans (S). Confirm your vehicle matches this application.
You need a ratchet, 10mm socket, Phillips screwdriver, and panel trim removal tool. A test light or properly wired trailer is recommended for testing after installation.
The battery connection must use a 10-amp maximum fuse. Do not exceed this rating or the product rating (3.0 amps per signal circuit, 6.0 amps total for tail/running circuits), whichever is lower.
Total for 2 items:
$443.37$541.18
Free Shipping
Ships free on all orders
Authorized Dealer
Quick Ship
In stock and ready to ship — order now!
FREE ShippingFREE SHIPPING
Estimated delivery Thu, Sep 17 - Sun, Sep 20
Order before 2 PM EST Monday–Friday for same-day processing
Guaranteed safe & secure checkout
No reviews have been added for this product.
