CURT
Verify Fitment
Select your vehicle to confirm this part fits.
2013 - 2018 Toyota RAV4
Confirmed to Fit
Always the correct part
We know our products
Quality Products
Free Shipping!
Always the correct part
We know our products
Quality Products
Free Shipping!
Select your vehicle to find the exact plug-and-play parts that fit — no cutting or splicing.
On Sale Today
Original price was $436.80. Current price is $338.99.You save $97.81 (22%)
Free Shipping
Ships free on all orders
Authorized Dealer
Quick Ship
In stock and ready to ship — order now!
FREE ShippingFREE SHIPPING
Estimated delivery Fri, Sep 11 - Mon, Sep 14
Order before 2 PM EST Monday–Friday for same-day processing
Guaranteed safe & secure checkout
| Finish | GLOSS BLACK POWDER COAT |
| Main Body Shape | Square |
| Material | Carbon Steel |
| Mount Type Description | Not Applicable |
| Receiver Tube Size | 2 IN |
| Side Application Type Description | Not Applicable |
| Tongue Weight (TW) | 350 LB |
| Warranty | Limited Lifetime Warranty (One-Year Finish, One-Year Parts) |
| Weight Carrying Capacity (WC) | 3,500 LB |
| Side Application Type Description | Blank |
| Tongue Weight (TW) | 350 LB |
| Warranty | Limited Lifetime Warranty (One-Year Finish, One-Year Parts) |
| Drop | 3-1/4 IN |
| Finish | GLOSS BLACK POWDER COAT |
| Gross Trailer Weight (GTW) | 3,500 LB |
| Material | Blank |
| Mount Type Description | Blank |
CURT offers a variety of high-quality trailer hitches and accessories for select vehicle models. Find the perfect fit for your towing needs at TowUniverse.
CURT, a Lippert brand, offers a complete line of towing products and is the leading manufacturer of custom-fit trailer hitches. We offer the broadest selection of custom-fit hitches, and each one is designed, welded, and coated in Wisconsin.
CURT is also a leader in flat towing products, as well as 5th wheel, gooseneck, and weight distribution hitches, ball mounts, electrical components, cargo solutions, and other towing accessories.
For everything from passenger cars and vans to full-size pickups and SUVs, CURT is 'The First Name in Towing Products®.'
Experts available to answer your questions
Call 888-634-94941 compatible vehicles
| Year | Make & Model | Notes |
|---|---|---|
| 2013 - 2018 | Toyota RAV4 | — |

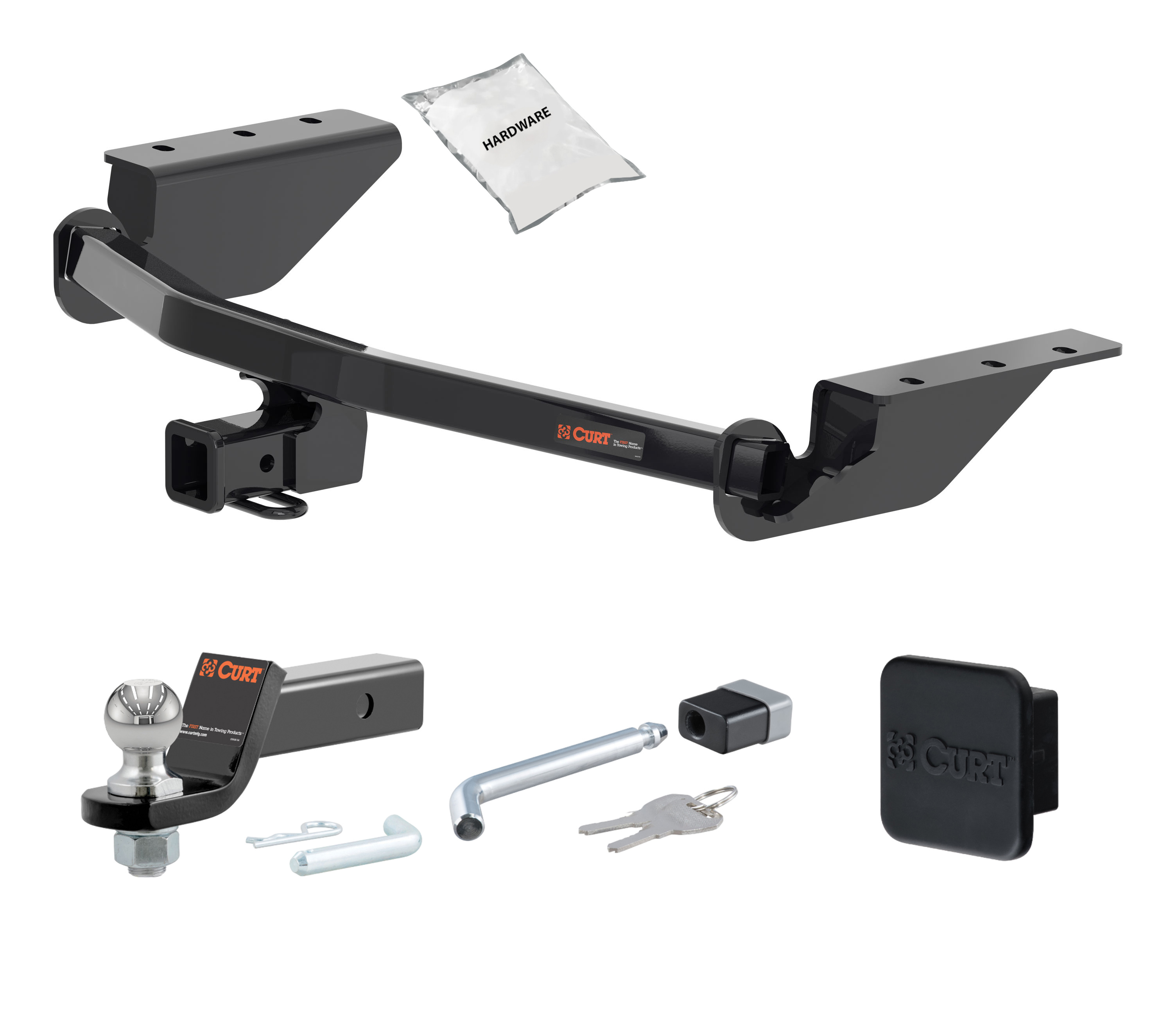

The 13 - 18 Toyota RAV4 2in. CURT Trailer Hitch + Ball Mount + Cover + Lock Kit HWA2424 (Part #HWA2424) fits 2013-2018 Toyota RAV4 models. The 2018 model year is the last year covered by this part number. For newer models, check for an updated version.
Yes, the 13 - 18 Toyota RAV4 2in. CURT Trailer Hitch + Ball Mount + Cover + Lock Kit HWA2424 (Part #HWA2424) is designed to fit the 2013-2018 Toyota RAV4.
The 13 - 18 Toyota RAV4 2in. CURT Trailer Hitch + Ball Mount + Cover + Lock Kit HWA2424 (Part #HWA2424) fits the following vehicles: 2013-2018 Toyota RAV4. Always verify your specific year, make, and model before ordering.
The 13 - 18 Toyota RAV4 2in. CURT Trailer Hitch + Ball Mount + Cover + Lock Kit HWA2424 (Part #HWA2424) Refer to the included instructions for installation details. Basic hand tools are typically all you need.
Yes, CURT part number 13406 is designed for 2013–2018 Toyota RAV4 SUVs. However, installation steps differ between 2013–2015 and 2016–2018 models. The 2016–2018 installation requires removal of underbody panels, recovery loop bracket, and lowering of the exhaust, while 2013–2015 models require bending of frame tabs. Confirm your model year before beginning installation.
The CURT 13406 is rated for a maximum trailer weight of 3,500 lbs and a tongue weight of 350 lbs when used as a weight-carrying hitch. You must never exceed your vehicle manufacturer's recommended towing capacity. Always verify that your vehicle and trailer combination does not exceed these limits.
Required tools are: torque wrench, ratchet, 10mm socket, 17mm socket, 19mm socket, 6-inch socket extension, flat screwdriver, utility knife, aviator shears, tape measure, marker, and safety glasses. Proper tools will greatly improve the quality of the installation and reduce installation time.
The kit includes: 5 washers (S-CON, 1/2, YZ, part number 30-00149), 5 hex head cap screws M12×1.25×40 CL10.9 YZ (part number 10-10277), and 2 cable ties 11/64×15" 50# UV black (part number CM-116415-CT). The bolts and washers attach the hitch to the vehicle frame using existing weldnuts. Cable ties are used to secure the kick sensor to the hitch cross tube on 2016–2018 models.
No, drilling is not required. The hitch uses existing weldnuts on the vehicle frame rails for attachment. However, trimming of the lower fascia and underbody panels is required.
Two people may be required to ease installation. If you are hesitant to undertake this task on your own, contact an authorized CURT installer for additional assistance. Technical support is available at 1-877-287-8634.
Yes, trimming of the lower fascia is required on all 2013–2018 RAV4 models. For 2013–2015 models, locate the center of the fascia and mark a 4-inch-wide area centered horizontally and 1 inch up from the lower edge, then trim as needed. For 2016–2018 models, mark a 4-inch-wide area centered horizontally and 1¾ inches up from the lower edge. Before trimming, ensure no wires are in the way. Use a utility knife or aviator shears to trim.
Yes. If present, remove the driver side underbody panel and any panels between the fascia and end panels using a flat screwdriver and 10mm socket. These panels should be returned to the vehicle owner if not being trimmed. After installation, trim and reinstall the underbody panel(s) if reinstalling on the vehicle.
Yes. On 2013–2015 models, bend the frame tab at the end of the frame rearward on both sides to make room for the hitch. This is a permanent modification required for proper fitment.
Yes. On 2016–2018 models, lower the exhaust by lowering the rearmost exhaust isolator while supporting the exhaust. After the hitch is installed and torqued, raise the exhaust back into position and reinstall the exhaust isolator.
1. Remove driver side underbody panel and panels between fascia and end panels (step 6). 2. Remove recovery loop bracket using 17mm socket (step 7). 3. Lower exhaust by lowering rearmost exhaust isolator while supporting it (step 8). 4. Remove kick sensor from lower bumper cover if present (step 9). 5. Trim fascia 4 inches wide centered and 1¾ inches up from lower edge, ensuring no wires are in the way (step 10). 6. Raise hitch into position over exhaust and into bumper cavity; loosely install bolts and washers (step 11). 7. Torque all 12mm bolts to 86 lb-ft (step 12). 8. Reattach kick sensor to hitch cross tube using cable ties (step 13). 9. Raise exhaust and reinstall isolator (step 14). 10. Trim and reinstall underbody panels (step 15).
1. Follow steps 6–9 (which apply to both model years). 2. Trim fascia 4 inches wide centered and 1 inch up from lower edge, ensuring no wires are in the way (step 2). 3. Bend frame tab at the end of the frame rearward on both sides (step 3). 4. Pull fascia tabs away and raise hitch over passenger side exhaust, then slide under fascia into position; gently pull out fascia if needed (step 4). 5. Skip to steps 11–13 and 14–15 as needed.
All 12mm bolts (hex head cap screws M12×1.25×40 CL10.9 YZ) must be torqued to 86 lb-ft. Bolts should be loosely installed first to hold the hitch in place, then torqued to the final specification once the hitch is positioned correctly.
Remove the recovery loop bracket using a 17mm socket and return it to the vehicle owner. This is required to make room for the hitch installation.
If the kick sensor was removed from the lower bumper cover before trimming (to prevent damage), reattach it to the bumper area and secure it to the main cross tube of the hitch using the supplied cable ties (11/64×15" 50# UV black). This applies to 2016–2018 models.
Safety glasses must be worn at all times while installing this product. Before trimming the fascia, ensure no wires are in the way to prevent damage. When lowering the exhaust on 2016–2018 models, support it properly to prevent injury. If you are hesitant to undertake this installation on your own, contact an authorized CURT installer.
Periodically check the receiver hitch to ensure all fasteners are tight and all structural components are sound. This maintenance is important for safe towing operation.
The hands-free, foot-activated power liftgate may only work in limited areas when the hitch is installed. This is a known limitation of the installation and does not indicate a problem with the hitch.
CURT Manufacturing warrants this product to be free of defects in material and/or workmanship at the time of retail purchase by the original purchaser. If the product is found to be defective, CURT may repair or replace it at their option when returned prepaid with proof of purchase. Alteration to, misuse of, or improper installation voids the warranty. CURT's liability is limited to repair or replacement of defective products and excludes liability for incidental or consequential loss or damage.
The CURT 13406 complies with safety specifications and requirements for connecting devices and towing systems of the state of New York, V.E.S.C. Regulation V-5 and SAE J684.
Yes, the CURT 13406 is designed for 2013–2018 Toyota RAV4 SUVs. Installation steps differ between 2013–2015 and 2016–2018 models.
Maximum trailer weight is 3,500 lbs and tongue weight is 350 lbs. Never exceed your vehicle manufacturer's recommended towing capacity.
No drilling is required. The hitch uses existing weldnuts on the vehicle frame rails.
Yes, trimming of the lower fascia is required. For 2013–2015 models, trim 4 inches wide centered and 1 inch up from the lower edge. For 2016–2018 models, trim 4 inches wide centered and 1¾ inches up from the lower edge. Before trimming, ensure no wires are in the way.
All 12mm bolts must be torqued to 86 lb-ft.
Professional installation time is approximately 40 minutes. Novice (DIY) installation time is approximately 20 minutes.
Required tools: torque wrench, ratchet, 10mm/17mm/19mm sockets, 6-inch socket extension, flat screwdriver, utility knife, aviator shears, tape measure, marker, and safety glasses.
