| Side Application Type Description | Blank |
| T-Connector Location | S3 |
| Tail Light Circuits | 6.0 Amps |
| Turn and Brake Circuits | 3.0 Amps |
| Warranty | One-Year Limited Warranty |
| Battery-Powered | Yes |
| Converter Type | Circuit Protected and Powered |
| Electrical System Type | 3W |
| Finish | N/A |
| Material | Blank |
| Mount Type Description | Blank |
| Output Type | 4-Way Flat |
CURT offers a variety of high-quality trailer hitches and accessories for select vehicle models. Find the perfect fit for your towing needs at TowUniverse.
CURT, a Lippert brand, offers a complete line of towing products and is the leading manufacturer of custom-fit trailer hitches. We offer the broadest selection of custom-fit hitches, and each one is designed, welded, and coated in Wisconsin.
CURT is also a leader in flat towing products, as well as 5th wheel, gooseneck, and weight distribution hitches, ball mounts, electrical components, cargo solutions, and other towing accessories.
For everything from passenger cars and vans to full-size pickups and SUVs, CURT is 'The First Name in Towing Products®.'
Experts available to answer your questions
Call 888-634-94941 compatible vehicles
| Year | Make & Model | Notes |
|---|---|---|
| 2007 - 2013 | Acura MDX | — |

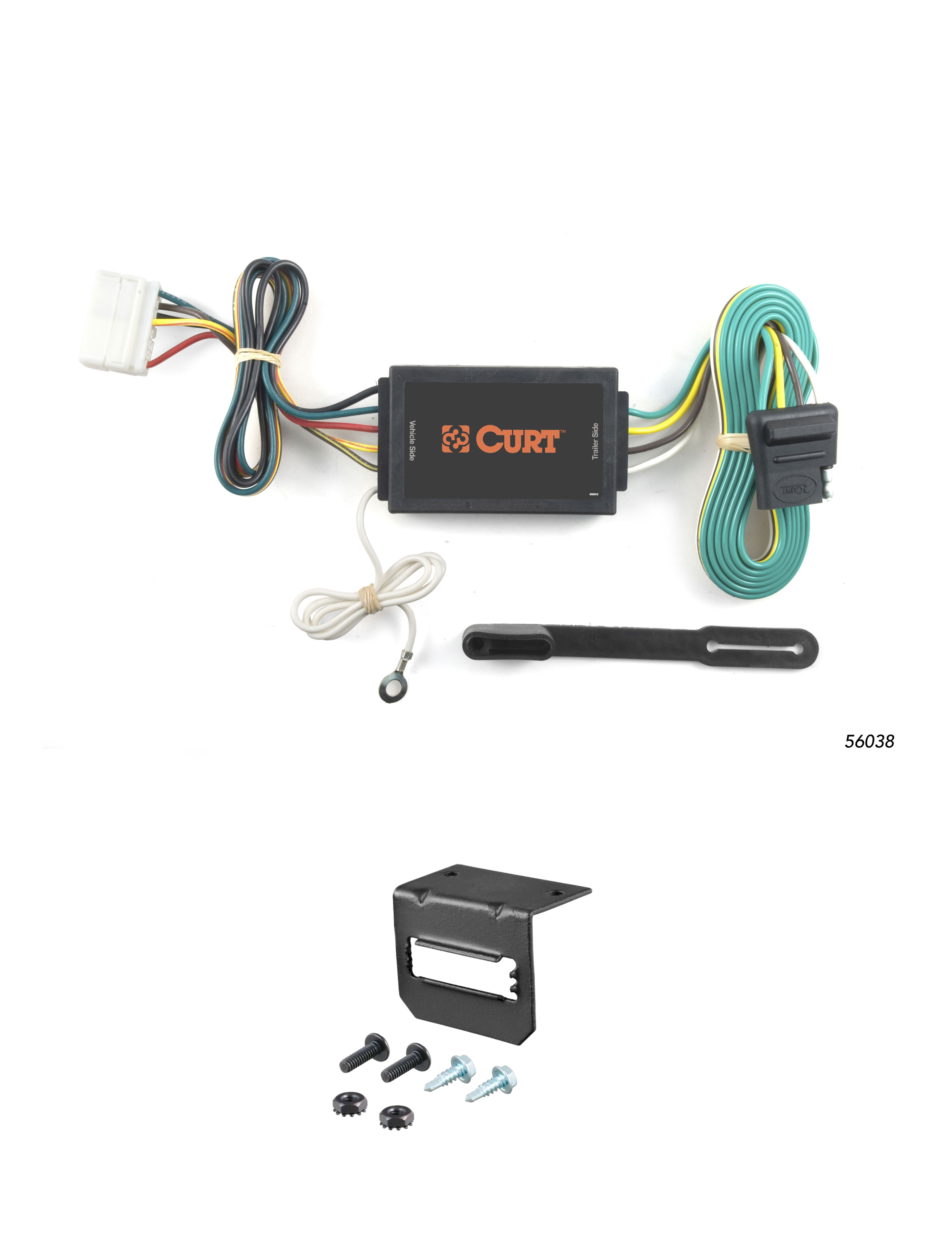

The 07-13 Acura MDX CURT 4-flat Plug and Play Trailer Wiring (Part #CTW8) fits the following vehicles: 2007-2013 Acura MDX. Always verify your specific year, make, and model before ordering.
The 07-13 Acura MDX CURT 4-flat Plug and Play Trailer Wiring (Part #CTW8) fits 2007-2013 Acura MDX models. The 2013 model year is the last year covered by this part number. For newer models, check for an updated version.
Yes, the 07-13 Acura MDX CURT 4-flat Plug and Play Trailer Wiring (Part #CTW8) is designed to fit the 2007-2013 Acura MDX.
The 07-13 Acura MDX CURT 4-flat Plug and Play Trailer Wiring (Part #CTW8) Refer to the included instructions for installation details. Basic hand tools are typically all you need.
Yes, the Curt 56038 Custom Wiring Connector is designed for the Acura MDX. It is classified as a SUV, Mini & Full-Sized Van (S) application. Verify your vehicle matches the application before purchase.
The Curt 56038 has two circuit ratings: Signal Circuits are rated at 3.0 amps per side, and Tail/Running Circuits are rated at 6.0 amps total. Do not exceed these ratings or the tow vehicle lamp load rating, whichever is lower, as exceeding the product rating can cause loss of warranty, overheating and potential fire.
You will need a panel trim removal tool. The installation also requires drilling a 3/32" pilot hole for the provided ground screw, so a drill with a 3/32" bit is necessary. A test light or properly wired trailer is recommended to test the connector after installation.
Open the vehicle tailgate and remove the access door on the driver side rear scuff panel. Open the rear storage door and remove the storage tray and jack storage door. Pull back on the cargo liner to access the junction box where the connector will be installed.
The driver side vehicle wiring connector routes under the trim panel up to the junction box inside the removed driver side rear access door. The custom wiring connector inserts into the receptacle in the junction box.
Locate a suitable grounding point near the connector, such as an existing screw with nut in the vehicle frame. If no suitable point exists, drill a 3/32" pilot hole for the provided screw. The area must be free of rust, dirt and paint. Secure the white ground wire using the ring terminal and provided screw.
Drilling may be required. You must locate a suitable grounding point near the connector, such as an existing screw with nut in the vehicle frame. If no suitable existing point is available, you will need to drill a 3/32" pilot hole for the provided ground screw. Before drilling, check for hidden items behind or under any surface to avoid damage and personal injury.
Locate a flat spot inside the vehicle near the taillight and adhere the black converter box using the provided double-sided tape.
When in use, route the 4-flat to the center of the vehicle and out of the trunk. When not in use, roll up and store in a convenient, out of the way location inside the trunk. Secure any loose wires with the provided cable ties.
Reinstall all items removed during installation. Install the provided 4-flat dust cover to help prevent corrosion. Test the connector for proper function using a test light or by connecting a properly wired trailer.
Do not exceed the product rating (Signal Circuits 3.0 amps per side, Tail/Running Circuits 6.0 amps total) or the tow vehicle lamp load rating, whichever is lower. Exceeding the product rating can cause loss of warranty, overheating and potential fire. Check your vehicle owner's manual or contact the vehicle manufacturer for your specific tow vehicle lamp load rating.
Test the connector for proper function by using a test light or connecting a properly wired trailer. All steps must be followed to ensure the wiring connector will function properly.
The Curt 56038 is designed for the Acura MDX (SUVs, Mini & Full-Sized Vans category).
Signal Circuits: 3.0 amps per side. Tail/Running Circuits: 6.0 amps total. Do not exceed these ratings or the tow vehicle lamp load rating, whichever is lower.
Panel trim removal tool and a drill with 3/32" bit for the ground screw pilot hole.
Drilling may be required if no existing screw with nut is available for grounding. You will drill a 3/32" pilot hole for the provided ground screw.
The connector inserts into the receptacle in the junction box inside the driver side rear access door.
Exceeding the product rating can cause loss of warranty, overheating and potential fire. Do not exceed the product rating or tow vehicle lamp load rating, whichever is lower.
