| Battery-Powered | Yes |
| Converter Type | Circuit Protected and Powered |
| Electrical System Type | 3W |
| Finish | N/A |
| Material | Blank |
| Mount Type Description | Blank |
| Output Type | 4-Way Flat |
| Side Application Type Description | Blank |
| T-Connector Location | S3 |
| Tail Light Circuits | 6.0 Amps |
| Turn and Brake Circuits | 3.0 Amps |
| Warranty | One-Year Limited Warranty |
CURT offers a variety of high-quality trailer hitches and accessories for select vehicle models. Find the perfect fit for your towing needs at TowUniverse.
CURT, a Lippert brand, offers a complete line of towing products and is the leading manufacturer of custom-fit trailer hitches. We offer the broadest selection of custom-fit hitches, and each one is designed, welded, and coated in Wisconsin.
CURT is also a leader in flat towing products, as well as 5th wheel, gooseneck, and weight distribution hitches, ball mounts, electrical components, cargo solutions, and other towing accessories.
For everything from passenger cars and vans to full-size pickups and SUVs, CURT is 'The First Name in Towing Products®.'
Experts available to answer your questions
Call 888-634-94941 compatible vehicles
| Year | Make & Model | Notes |
|---|---|---|
| 2014 - 2020 | Acura MDX | — |
Yes, the 14-20 Acura MDX CURT 4-flat Plug and Play Trailer Wiring (Part #CTW7) is designed to fit the 2014-2020 Acura MDX.
The 14-20 Acura MDX CURT 4-flat Plug and Play Trailer Wiring (Part #CTW7) fits 2014-2020 Acura MDX models. The 2020 model year is the last year covered by this part number. For newer models, check for an updated version.
The 14-20 Acura MDX CURT 4-flat Plug and Play Trailer Wiring (Part #CTW7) fits the following vehicles: 2014-2020 Acura MDX. Always verify your specific year, make, and model before ordering.
The 14-20 Acura MDX CURT 4-flat Plug and Play Trailer Wiring (Part #CTW7) Refer to the included instructions for installation details. Basic hand tools are typically all you need.
Yes, the Curt 56192 is designed for the Acura MDX. It is categorized for SUVs, Mini & Full-Sized Vans and connects via the vehicle's electrical junction box located behind the driver-side rear access panel.
The harness has two circuit ratings: Signal Circuits are rated at 3.0 amps per side, and Tail/Running Circuits are rated at 6.0 amps total. The battery connection must be fuse-protected with a 10-amp maximum fuse. Do not exceed the product rating or the tow vehicle lamp load rating, whichever is lower.
You need a flat blade screwdriver. The manual also mentions drilling a 3/32" pilot hole may be required if a suitable existing screw with nut is not available for the grounding point.
The harness includes a 10-amp low profile fuse and a 7.5-amp low profile fuse for the electrical junction box. Install the 10-amp fuse in position 2 and the 7.5-amp fuse in position 11 of the junction box. Additionally, a 10-amp fuse is provided separately for the red fuse holder on the product wiring harness itself.
The electrical junction box is located behind the driver-side rear access panel. To access it, open the hatch, lift up the storage lid, and remove the access panel on the driver-side rear trim panel.
Route the white housing end of the harness from the cargo area on the driver's side under the trim panel up to the junction box. Insert the white housing connector into the receptacle in the electrical junction box. Then install the 10-amp fuse in position 2 and the 7.5-amp fuse in position 11 of the junction box.
Locate a flat spot inside the vehicle and adhere the black converter box using the provided double-sided tape. The location should be convenient and out of the way.
When in use, route the 4-flat connector to the center of the vehicle. When not in use, roll it up and store in a convenient, out-of-the-way location. Secure any loose wires with the provided cable ties.
Drilling may be required for the grounding point. The manual instructs you to locate a suitable grounding point near the connector, such as an existing screw with nut in the vehicle frame. If no existing screw is available, drill a 3/32" pilot hole for the provided screw. Before drilling, check for miscellaneous items hidden behind or under any surface to avoid damage and personal injury.
Locate a suitable grounding point near the connector, such as an existing screw with nut in the vehicle frame. The area should be free of rust, dirt and paint. Secure the white ground wire using the ring terminal and the provided screw. If no existing screw is available, drill a 3/32" pilot hole for the provided screw.
The battery connection must be fuse-protected with a 10-amp maximum fuse. Exceeding this rating can cause loss of warranty, overheating and potential fire. Do not exceed the product rating or the tow vehicle lamp load rating, whichever is lower.
Test for proper function by using a test light or by connecting a properly wired trailer. All installation steps must be followed to ensure the wiring harness functions properly.
Reinstall all items removed during installation. Install the provided 4-flat dust cover to help prevent corrosion. Test for proper function using a test light or by connecting a properly wired trailer.

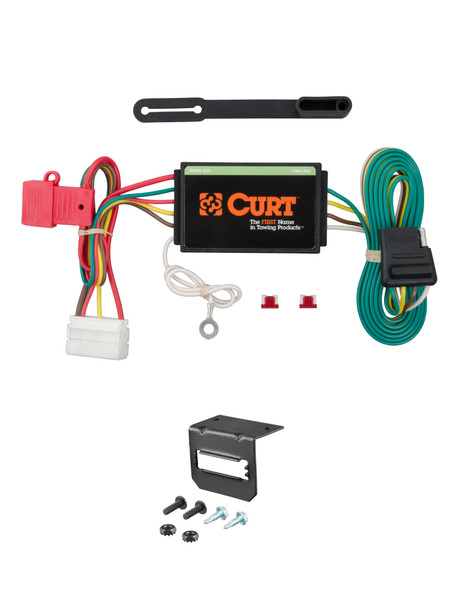

The harness includes: a 10-amp low profile fuse and 7.5-amp low profile fuse for the junction box, a 10-amp fuse for the red fuse holder on the harness, a white ground wire with ring terminal and provided screw, double-sided tape for the converter box, cable ties for securing loose wires, and a 4-flat dust cover.
Yes, the Curt 56192 is designed for the Acura MDX and connects via the electrical junction box behind the driver-side rear access panel.
A flat blade screwdriver is required. A drill may be needed if an existing grounding screw is not available (3/32" pilot hole).
Drilling may be required for the grounding point if no existing screw with nut is available in the vehicle frame. A 3/32" pilot hole is drilled for the provided screw.
The battery connection must use a 10-amp maximum fuse. Exceeding this rating can cause loss of warranty, overheating and potential fire.
Signal Circuits: 3.0 amps per side. Tail/Running Circuits: 6.0 amps total. Do not exceed the product rating or tow vehicle lamp load rating, whichever is lower.
