09-11 HONDA Pilot CURT 7-way Plug and Play Trailer WiringCURTOriginal price was $144.90. Current price is $122.09.In Stock
View productAsk a Question About This Product
Our in-house experts typically reply within one business day.
Our in-house experts typically reply within one business day.
CURT
Verify Fitment
Select your vehicle to confirm this part fits.
2009 - 2011 Honda Pilot
Confirmed to Fit
Always the correct part
We know our products
Quality Products
Free Shipping!
Always the correct part
We know our products
Quality Products
Free Shipping!
| Battery-Powered | Yes |
| Converter Type | Circuit Protected and Powered |
| Electrical System Type | 3W |
| Finish | N/A |
| Material | Blank |
| Mount Type Description | Blank |
| Output Type | 4-Way Flat |
| Side Application Type Description | Blank |
| T-Connector Location | S5 |
| Tail Light Circuits | 6.0 Amps |
| Turn and Brake Circuits | 3.0 Amps |
| Warranty | One-Year Limited Warranty |
CURT offers a variety of high-quality trailer hitches and accessories for select vehicle models. Find the perfect fit for your towing needs at TowUniverse.
CURT, a Lippert brand, offers a complete line of towing products and is the leading manufacturer of custom-fit trailer hitches. We offer the broadest selection of custom-fit hitches, and each one is designed, welded, and coated in Wisconsin.
CURT is also a leader in flat towing products, as well as 5th wheel, gooseneck, and weight distribution hitches, ball mounts, electrical components, cargo solutions, and other towing accessories.
For everything from passenger cars and vans to full-size pickups and SUVs, CURT is 'The First Name in Towing Products®.'
Experts available to answer your questions
Call 888-634-94941 compatible vehicles
| Year | Make & Model | Notes |
|---|---|---|
| 2009 - 2011 | Honda Pilot | — |
The 09-11 HONDA Pilot CURT 4-flat Plug and Play Trailer Wiring (Part #CTW1386) fits 2009-2011 Honda Pilot models. The 2011 model year is the last year covered by this part number. For newer models, check for an updated version.
The 09-11 HONDA Pilot CURT 4-flat Plug and Play Trailer Wiring (Part #CTW1386) fits the following vehicles: 2009-2011 Honda Pilot. Always verify your specific year, make, and model before ordering.
Yes, the 09-11 HONDA Pilot CURT 4-flat Plug and Play Trailer Wiring (Part #CTW1386) is designed to fit the 2009-2011 Honda Pilot.
The 09-11 HONDA Pilot CURT 4-flat Plug and Play Trailer Wiring (Part #CTW1386) Refer to the included instructions for installation details. Basic hand tools are typically all you need.
The Curt 56365 is a custom wiring connector that integrates with your vehicle's taillight wiring system to provide trailer lighting control. It includes a converter box, fuses, relay, and a 4-flat connector for towing applications.
Yes, the Curt 56365 is designed for Honda Pilot vehicles in the SUVs, Mini & Full-sized Vans category. Installation involves accessing the driver side rear bumper and interior taillight connectors.
Yes, the Curt 56365 is designed for Honda Ridgeline vehicles. Installation involves accessing the driver side rear passenger door area and rear bumper taillight connectors.
You will need a flat blade screwdriver and side cutter. A pry tool is also needed to remove the connector from the cross-member behind the rear bumper. A drill may be required if you need to create a grounding point.

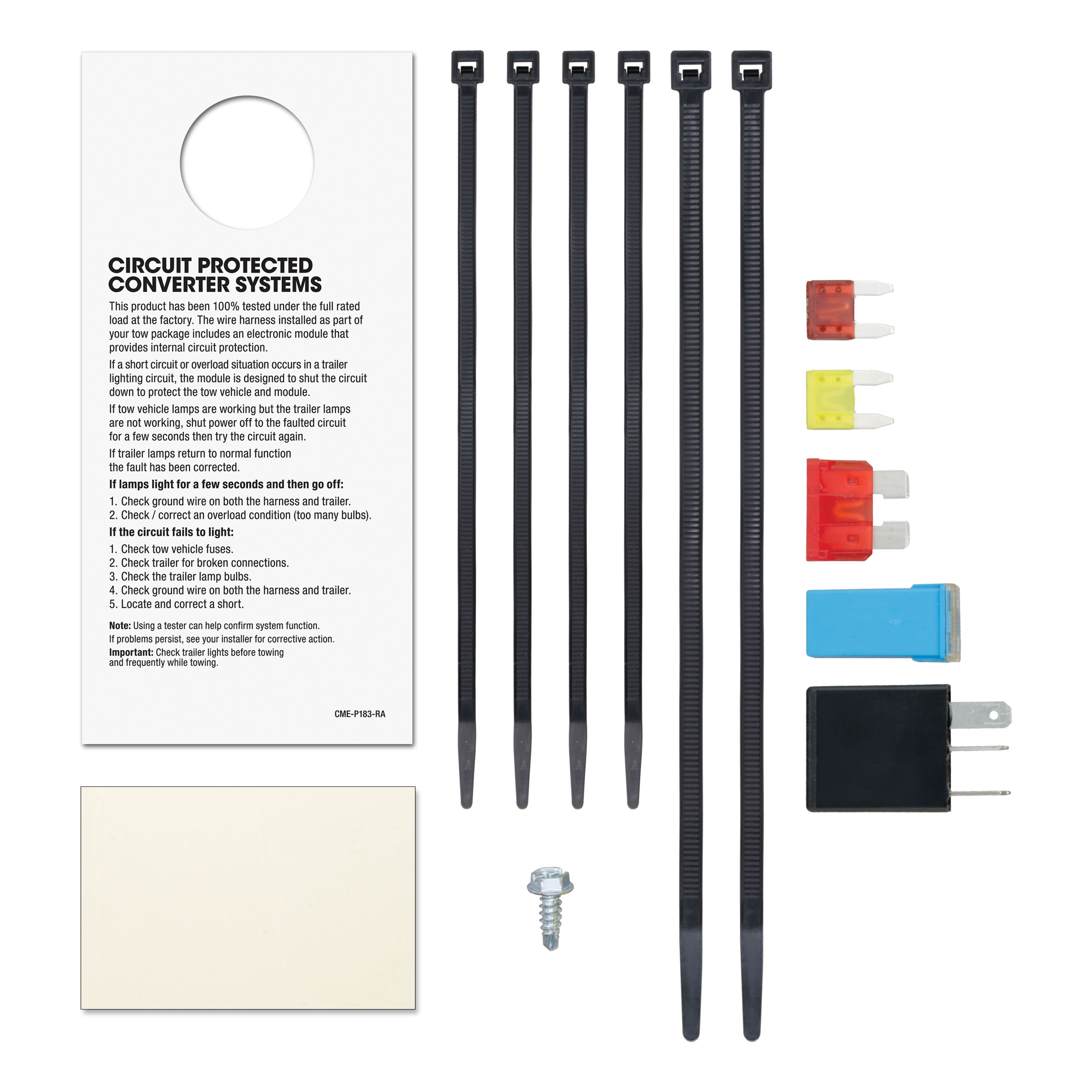

The kit includes a converter box, a 10 amp fuse for the red in-line fuse holder, a 7.5 amp fuse, a 20 amp fuse, a relay, a white ground wire with ring terminal and screw, double-sided tape, a 4-flat dust cover, and cable ties. For Honda Pilot, a 20 amp SLO-BLO fuse is also included. Specific fuse positions vary by vehicle model.
On the Honda Pilot, there are two taillight wiring connectors: one inside the vehicle behind the driver side rear storage compartment access panel, and one behind the driver side rear bumper on the cross-member.
On the Honda Ridgeline, there are two taillight wiring connectors: one inside the vehicle accessed by opening the rear passenger door and folding the bottom rear seat up, located to the left of the green relays; and one behind the driver side rear bumper on the cross-member.
Insert the custom wiring connector into the vehicle connector. Make sure the connectors are fully inserted with locking tabs in place. This connection must be made at both the interior taillight connector and the rear bumper connector.
Drilling may be required to create a grounding point. You can use an existing screw with nut in the vehicle frame, or drill a 3/32" pilot hole for the provided screw. Before drilling, check for miscellaneous items hidden behind or under surfaces to avoid damage and personal injury. The area should be free of rust, dirt and paint.
The battery connection must be fuse protected with a maximum of 20 amps. Exceeding this rating can cause loss of warranty, overheating and potential fire.
Signal Circuits are rated at 3.0 amps per side. Tail/Running Circuits are rated at 6.0 amps total. Do not exceed these product ratings or the tow vehicle lamp load rating, whichever is lower.
For Honda Pilot: 10 amp fuse in the red in-line fuse holder, 7.5 amp fuse in fuse panel position 1, 20 amp fuse in fuse panel position 4, and 20 amp SLO-BLO fuse under the hood. For Honda Ridgeline: 10 amp fuse in the red in-line fuse holder, 7.5 amp fuse in fuse panel position 6, and 20 amp fuse in fuse panel position 3.
Drill a 3/32" pilot hole for the provided grounding screw. Alternatively, you can use an existing screw with nut in the vehicle frame. The area should be free of rust, dirt and paint.
When in use, route the 4-flat to the center of the vehicle and out of the trunk. When not in use, roll it up and store in a convenient, out of the way location inside the trunk. Secure any loose wires with the provided cable ties. Install the provided 4-flat dust cover to help prevent corrosion.
The black converter box attaches to a flat spot on the vehicle frame using the provided double-sided tape. It should be located near the interior taillight connector.
The black converter box attaches to a flat spot inside the vehicle near the interior taillight connector using the provided double-sided tape.
Use a pry tool to remove the connector from the cross-member. Remove the dark blue fastener from the housing by sliding it rearward. Remove the protective cover taking care not to damage the locking tabs.
Honda Pilot: Insert 7.5 amp fuse into position 1, 20 amp fuse into position 4, relay into position 6, and 20 amp SLO-BLO fuse under the hood. Honda Ridgeline: Insert 7.5 amp fuse into position 6 ('+B TRL BACKUP') and 20 amp fuse into position 3 ('TRL E-BRAKE') under the hood.
Test for proper function by using a test light or connecting a properly wired trailer. All installation steps must be followed to ensure the wiring connector will function properly.
Do not exceed the product rating (Signal Circuits 3.0 amps per side, Tail/Running Circuits 6.0 amps total) or the tow vehicle lamp load rating, whichever is lower. Exceeding the product rating can cause loss of warranty, overheating and potential fire.
The Curt 56365 fits Honda Pilot and Honda Ridgeline vehicles.
You need a flat blade screwdriver, side cutter, and pry tool. A drill may be required if creating a grounding point.
Drilling may be required to create a 3/32" pilot hole for the grounding screw, unless an existing frame screw with nut is available.
The battery connection must be fuse protected with a maximum of 20 amps. Exceeding this can cause loss of warranty, overheating and potential fire.
Signal Circuits: 3.0 amps per side. Tail/Running Circuits: 6.0 amps total. Do not exceed these ratings or the vehicle's lamp load rating, whichever is lower.
