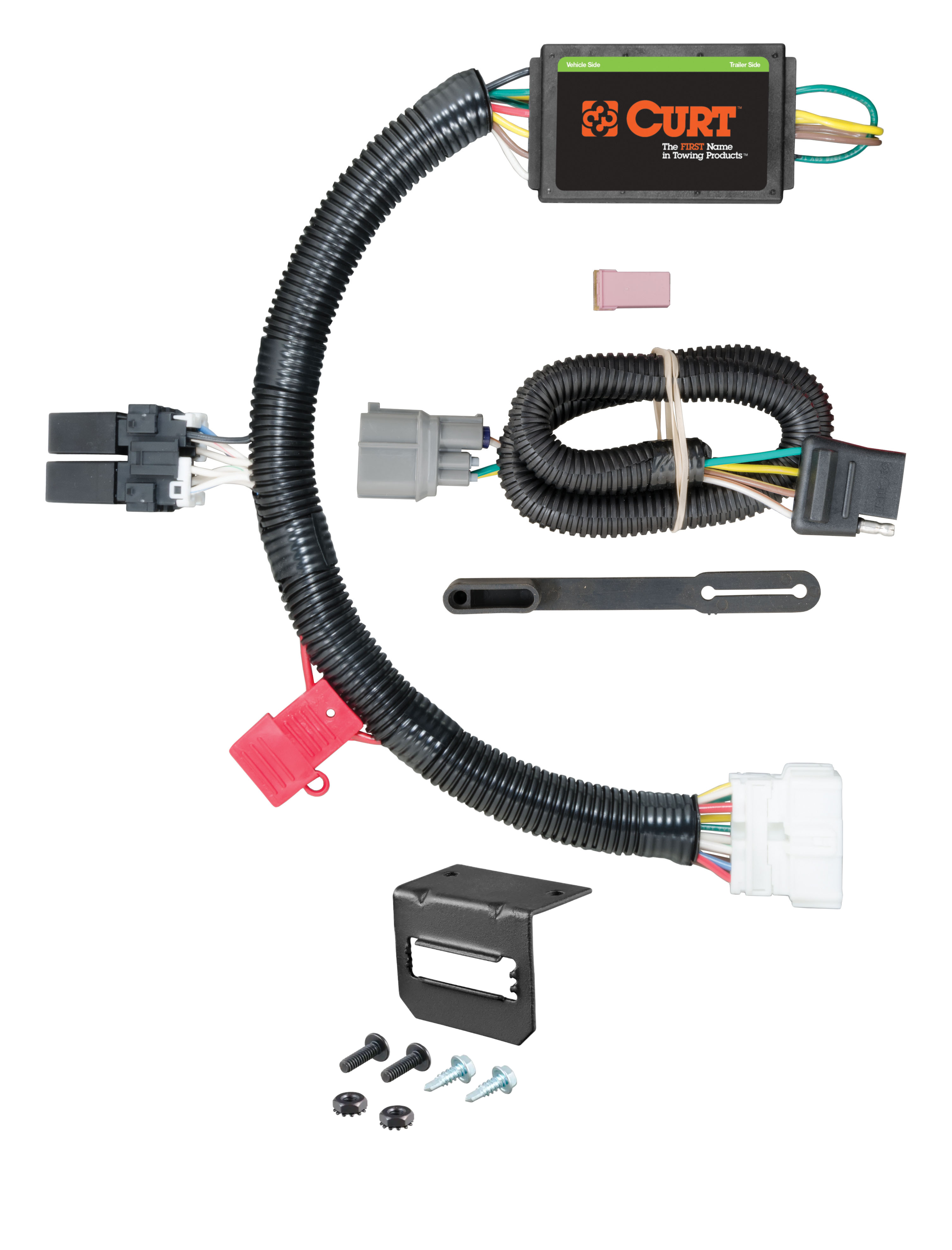

09-11 HONDA Pilot CURT 4-flat Plug and Play Trailer WiringCURTOriginal price was $103.90. Current price is $95.76.In Stock
View productAsk a Question About This Product
Our in-house experts typically reply within one business day.
Our in-house experts typically reply within one business day.
CURT
Verify Fitment
Select your vehicle to confirm this part fits.
2012 - 2015 Honda Pilot
Confirmed to Fit
Always the correct part
We know our products
Quality Products
Free Shipping!
Always the correct part
We know our products
Quality Products
Free Shipping!
| Battery-Powered | Yes |
| Converter Type | Circuit Protected and Powered |
| Electrical System Type | 3W |
| Finish | N/A |
| Material | Blank |
| Mount Type Description | Blank |
| Output Type | 4-Way Flat |
| Side Application Type Description | Blank |
| T-Connector Location | S5 |
| Tail Light Circuits | 6.0 Amps |
| Turn and Brake Circuits | 3.0 Amps |
| Warranty | One-Year Limited Warranty |
CURT offers a variety of high-quality trailer hitches and accessories for select vehicle models. Find the perfect fit for your towing needs at TowUniverse.
CURT, a Lippert brand, offers a complete line of towing products and is the leading manufacturer of custom-fit trailer hitches. We offer the broadest selection of custom-fit hitches, and each one is designed, welded, and coated in Wisconsin.
CURT is also a leader in flat towing products, as well as 5th wheel, gooseneck, and weight distribution hitches, ball mounts, electrical components, cargo solutions, and other towing accessories.
For everything from passenger cars and vans to full-size pickups and SUVs, CURT is 'The First Name in Towing Products®.'
Experts available to answer your questions
Call 888-634-94941 compatible vehicles
| Year | Make & Model | Notes |
|---|---|---|
| 2012 - 2015 | Honda Pilot | — |
The 12-15 HONDA Pilot CURT 4-flat Plug and Play Trailer Wiring (Part #CTW1384) fits the following vehicles: 2012-2015 Honda Pilot. Always verify your specific year, make, and model before ordering.
The 12-15 HONDA Pilot CURT 4-flat Plug and Play Trailer Wiring (Part #CTW1384) fits 2012-2015 Honda Pilot models. The 2015 model year is the last year covered by this part number. For newer models, check for an updated version.
Yes, the 12-15 HONDA Pilot CURT 4-flat Plug and Play Trailer Wiring (Part #CTW1384) is designed to fit the 2012-2015 Honda Pilot.
The 12-15 HONDA Pilot CURT 4-flat Plug and Play Trailer Wiring (Part #CTW1384) Refer to the included instructions for installation details. Basic hand tools are typically all you need.
Yes, the Curt 56170 is designed for Honda Pilot SUVs. The connector is available in two configurations: S3 (located behind the driver side rear access panel) and S5 (located behind the driver side rear bumper). Confirm which configuration matches your vehicle before installation.
The connector has two circuit ratings: Signal Circuits are rated at 3.0 amps per side, and Tail/Running Circuits are rated at 6.0 amps total. The battery connection must be fuse-protected with a 10-amp maximum fuse. Do not exceed the product rating or your tow vehicle's lamp load rating, whichever is lower, as exceeding the rating can cause loss of warranty, overheating and potential fire.
You will need a ratchet and a 10mm socket. The manual also provides double-sided tape and cable ties for securing the connector components.
The manual does not explicitly state whether the battery must be disconnected before beginning installation. However, Step 8 instructs you to reconnect the negative battery terminal at the end of installation, which implies it should be disconnected first. Consult your vehicle owner's manual or the manufacturer for specific guidance on your Honda Pilot.
The vehicle trailer wiring harness connector is located behind the driver side rear access panel on the interior trim panel. You access it by opening the tailgate and folding down the driver side rear seat. The connector will be similar in appearance to the custom wiring connector provided with the kit.
Insert the vehicle trailer wiring harness connector into the custom wiring connector. Make sure the connectors are fully inserted with locking tabs in place. The connectors should seat completely to ensure proper function.
Locate a flat spot behind the removed access panel (after you have removed the 'AUX FUSE' access cover from the interior trim panel). Adhere the black converter box using the provided double-sided tape. Secure the remainder of the connector with the provided cable ties.
The grey trailer wiring harness connector is located on the driver side, behind the rear bumper fascia, above the tail pipe. Release the connector from its clip and remove the cover from the housing before inserting the 4-flat harness connector.
Insert the 4-flat harness connector into the grey trailer wiring harness connector located behind the rear bumper fascia, above the tail pipe. Make sure the housings are fully inserted with locking tabs in place. If the cover is not present, ensure the connector and contacts are free of dirt and debris before insertion.
When in use, route the 4-flat along the rear bumper to the center of the vehicle. When not in use, roll up and store in a convenient, out-of-the-way location. Secure any loose wires with the provided cable ties to prevent damage and maintain a clean appearance.
The vehicle fuse box is located in the engine compartment on the driver side. Insert the tow/trailer fuse provided with the kit. If you need help locating the exact position, check your vehicle owner's manual or contact the vehicle manufacturer.
The battery connection must be fuse-protected with a 10-amp maximum fuse. Exceeding this rating can cause loss of warranty, overheating and potential fire. Do not exceed the product rating or your tow vehicle's lamp load rating, whichever is lower.
Once installed, test for proper function by using a test light or connecting a properly wired trailer. All steps must be followed to ensure the wiring connector will function properly.
Check for miscellaneous items that may be hidden behind or under any surface before drilling to avoid damage and personal injury. This is especially important when accessing interior trim panels and working behind the rear bumper fascia.
Yes. After reconnecting the negative battery terminal, install the provided 4-flat dust cover to prevent corrosion of the connector and contacts.
Yes, the Curt 56170 is designed for Honda Pilot SUVs in S3 and S5 configurations.
You need a ratchet and 10mm socket. Double-sided tape and cable ties are provided.
Signal Circuits: 3.0 amps per side. Tail/Running Circuits: 6.0 amps total. Battery connection requires a 10-amp maximum fuse.
10-amp maximum. Exceeding this rating can cause loss of warranty, overheating and potential fire.
The manual does not require drilling. The connector uses the factory vehicle trailer wiring harness and mounts with provided double-sided tape and cable ties.
