11-11 Nissan Murano Crosscabriolet CURT 4-flat Plug and Play Trailer WiringCURT$66.76In Stock
View productAsk a Question About This Product
Our in-house experts typically reply within one business day.
Our in-house experts typically reply within one business day.
CURT
Verify Fitment
Select your vehicle to confirm this part fits.
Always the correct part
We know our products
Quality Products
Free Shipping!
Always the correct part
We know our products
Quality Products
Free Shipping!
| Battery-Powered | Yes |
| Converter Type | Circuit Protected and Powered |
| Electrical System Type | 3W |
| Finish | N/A |
| Material | Blank |
| Mount Type Description | Blank |
| Output Type | 4-Way Flat |
| Side Application Type Description | Blank |
| T-Connector Location | S3,S4 |
| Tail Light Circuits | 6.0 Amps |
| Turn and Brake Circuits | 3.0 Amps |
| Warranty | One-Year Limited Warranty |
CURT offers a variety of high-quality trailer hitches and accessories for select vehicle models. Find the perfect fit for your towing needs at TowUniverse.
CURT, a Lippert brand, offers a complete line of towing products and is the leading manufacturer of custom-fit trailer hitches. We offer the broadest selection of custom-fit hitches, and each one is designed, welded, and coated in Wisconsin.
CURT is also a leader in flat towing products, as well as 5th wheel, gooseneck, and weight distribution hitches, ball mounts, electrical components, cargo solutions, and other towing accessories.
For everything from passenger cars and vans to full-size pickups and SUVs, CURT is 'The First Name in Towing Products®.'
Experts available to answer your questions
Call 888-634-94941 compatible vehicles
| Year | Make & Model | Notes |
|---|---|---|
| 2009 - 2014 | Nissan Murano | Excluding Crosscabriolet |
The 09-14 Nissan Murano Excluding Crosscabriolet CURT 4-flat Plug and Play Trailer Wiring (Part #CTW2033) fits 2009-2014 Nissan Murano models. The 2014 model year is the last year covered by this part number. For newer models, check for an updated version.
Yes, the 09-14 Nissan Murano Excluding Crosscabriolet CURT 4-flat Plug and Play Trailer Wiring (Part #CTW2033) is designed to fit the 2009-2014 Nissan Murano.
The 09-14 Nissan Murano Excluding Crosscabriolet CURT 4-flat Plug and Play Trailer Wiring (Part #CTW2033) fits the following vehicles: 2009-2014 Nissan Murano. Always verify your specific year, make, and model before ordering.
The 09-14 Nissan Murano Excluding Crosscabriolet CURT 4-flat Plug and Play Trailer Wiring (Part #CTW2033) Refer to the included instructions for installation details. Basic hand tools are typically all you need.
Yes, the Curt 55571 is designed for Nissan Murano SUVs, Mini & Full-Sized Vans (S-class). The harness connects to the vehicle's existing taillight wiring and includes a converter box mounted in the spare tire compartment.
The Curt 55571 is a custom wiring harness that integrates with your vehicle's taillight system. It includes a converter box and connects to a 4-flat connector for trailer use. Signal circuits are rated at 3.0 amps per side, and tail/running circuits are rated at 6.0 amps total.
You will need a Phillips screwdriver, flat blade screwdriver, and panel trim removal tool. The manual also mentions you may need to drill a 3/32" pilot hole for the ground wire screw if a suitable existing screw is not available.
Open the tailgate and fold down the rear seats. Remove the floor coverings, spare tire compartment cover, and storage trays on each side of the spare tire. Remove the rear scuff panel fasteners and the panel itself. Remove the 10mm bolts securing the cargo loops on each side, and remove the plastic fasteners and rear trim panels. These items must be reinstalled after installation.
Drilling is not always required. You should first locate a suitable grounding point near the taillight connector, such as an existing screw with nut in the vehicle frame. Only if no suitable existing screw is available should you drill a 3/32" pilot hole for the provided ground screw. Before drilling, check for miscellaneous items hidden behind or under surfaces to avoid damage and personal injury.
The battery connection must be fuse-protected with a 10-amp maximum fuse. The manual specifies that you should locate the 'Tow Lamp (30A)' fuse location in the fuse box to the left of the battery and insert the provided 10-amp fuse. If a 30-amp fuse is already in that location, remove it and replace it with the provided 10-amp fuse. Do not exceed 10 amps, as exceeding the product rating can cause loss of warranty, overheating and potential fire.
Locate the vehicle's taillight wiring harness connectors behind the removed trim panels. The custom wiring harness has two ends: one with a yellow wire for the driver side and one with a green wire for the passenger side. Insert each harness end between the separated taillight connectors, ensuring the connectors are fully inserted with locking tabs in place. Take care not to damage the locking tabs during insertion.
The white ground wire should be secured to a suitable grounding point near the taillight connector. This can be an existing screw with nut in the vehicle frame, or you can drill a 3/32" pilot hole for the provided screw. The area should be free of rust, dirt and paint. Secure the white ground wire using the ring terminal and provided screw.
The black converter box should be mounted in the spare tire compartment close to the back of the vehicle on the driver side. It is adhered using the provided double-sided tape. Make sure the location does not interfere with anything removed during installation.
On the driver's side of the vehicle, locate the existing factory wiring harness and find the single pin connector. This connector will mate with the connector on the black power wire. Insert the connector into the vehicle's connector, ensuring it is fully inserted with locking tabs in place.
When in use, route the 4-flat connector to the center of the vehicle and out of the trunk. When not in use, roll it up and store in a convenient, out-of-the-way location inside the trunk. Secure any loose wires with the provided cable ties.
All steps must be followed to ensure the wiring harness functions properly. Once installed, test for proper function by using a test light or by connecting a properly wired trailer. This will verify that the signal and tail/running circuits are working correctly.
Signal circuits are rated at 3.0 amps per side, and tail/running circuits are rated at 6.0 amps total. Do not exceed the product rating or the tow vehicle lamp load rating, whichever is lower. Exceeding the product rating can cause loss of warranty, overheating and potential fire.
Before drilling, check for miscellaneous items that may be hidden behind or under any surface to avoid damage and personal injury. This is especially important when drilling the 3/32" pilot hole for the ground wire screw.

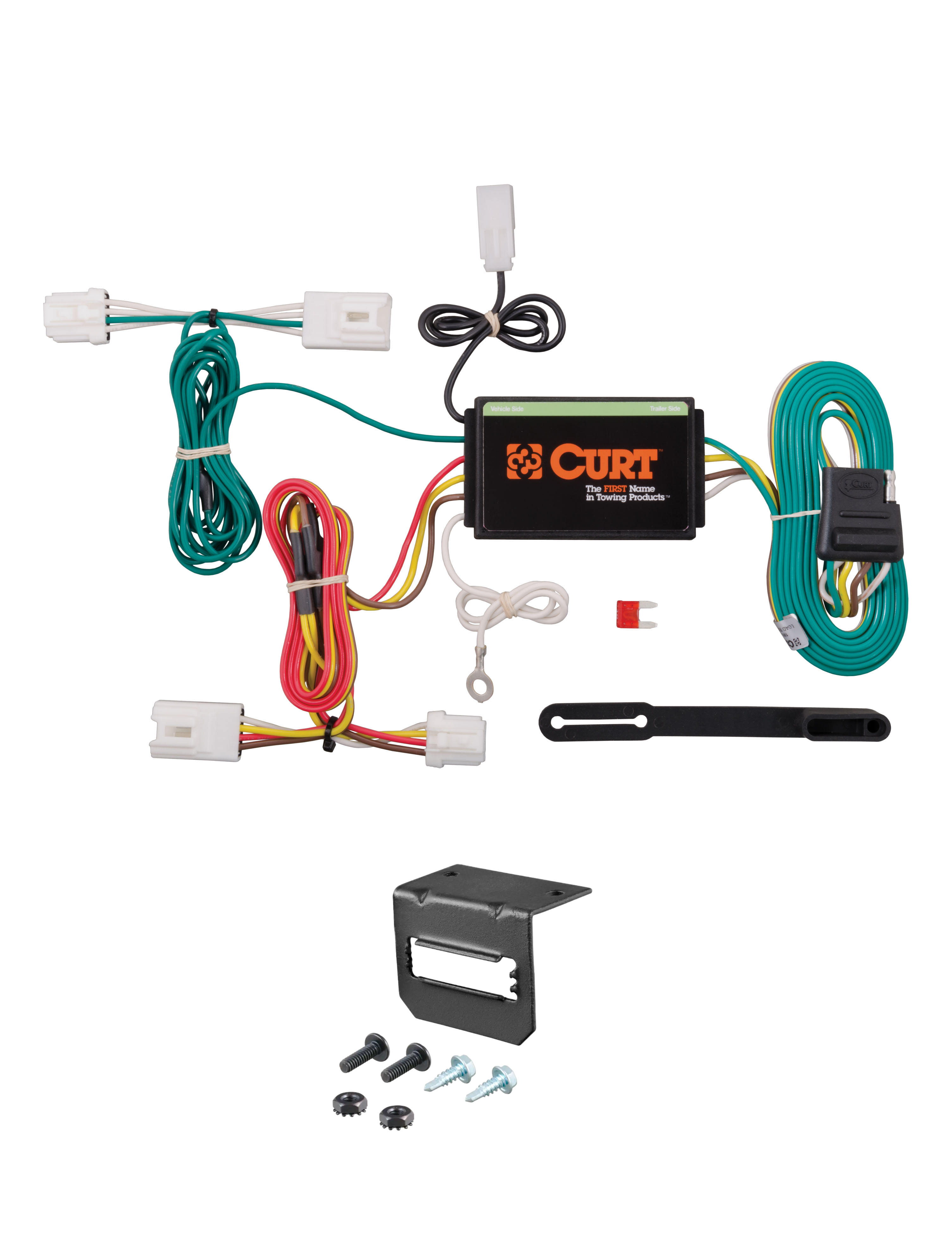

The Curt 55571 includes a custom wiring harness with yellow and green wire ends, a black converter box, a white ground wire with ring terminal and screw, a 10-amp fuse, a 4-flat dust cover, and cable ties for securing loose wires.
Yes. After completing all installation steps, you must reinstall all items removed during installation, including the floor coverings, spare tire compartment cover, storage trays, rear scuff panel, cargo loops, and rear trim panels. Also install the provided 4-flat dust cover to help prevent corrosion.
Yes, the Curt 55571 is designed for Nissan Murano SUVs, Mini & Full-Sized Vans (S-class).
You need a Phillips screwdriver, flat blade screwdriver, and panel trim removal tool. You may also need to drill a 3/32" pilot hole if a suitable existing screw is not available for the ground wire.
Drilling is optional. You should first try to locate an existing screw with nut in the vehicle frame for the ground wire. Only drill a 3/32" pilot hole if no suitable existing screw is available.
The Curt 55571 requires a 10-amp fuse for the battery connection. Insert it in the 'Tow Lamp (30A)' fuse location in the fuse box to the left of the battery. Do not exceed 10 amps.
Signal circuits: 3.0 amps per side. Tail/running circuits: 6.0 amps total. Do not exceed these ratings or the tow vehicle lamp load rating, whichever is lower.
