06-07 Nissan Murano CURT 4-flat Plug and Play Trailer WiringCURTOriginal price was $113.90. Current price is $111.76.In Stock
View productAsk a Question About This Product
Our in-house experts typically reply within one business day.
Our in-house experts typically reply within one business day.
CURT
Verify Fitment
Select your vehicle to confirm this part fits.
2015 - 2024 Nissan Murano
Confirmed to Fit
Always the correct part
We know our products
Quality Products
Free Shipping!
Always the correct part
We know our products
Quality Products
Free Shipping!
| Battery-Powered | Yes |
| Converter Type | Circuit Protected and Powered |
| Electrical System Type | 3W |
| Finish | N/A |
| Material | Blank |
| Mount Type Description | Blank |
| Output Type | 4-Way Flat |
| Side Application Type Description | Blank |
| T-Connector Location | S3,S4 |
| Tail Light Circuits | 6.0 Amps |
| Turn and Brake Circuits | 3.0 Amps |
| Warranty | One-Year Limited Warranty |
CURT offers a variety of high-quality trailer hitches and accessories for select vehicle models. Find the perfect fit for your towing needs at TowUniverse.
CURT, a Lippert brand, offers a complete line of towing products and is the leading manufacturer of custom-fit trailer hitches. We offer the broadest selection of custom-fit hitches, and each one is designed, welded, and coated in Wisconsin.
CURT is also a leader in flat towing products, as well as 5th wheel, gooseneck, and weight distribution hitches, ball mounts, electrical components, cargo solutions, and other towing accessories.
For everything from passenger cars and vans to full-size pickups and SUVs, CURT is 'The First Name in Towing Products®.'
Experts available to answer your questions
Call 888-634-94941 compatible vehicles
| Year | Make & Model | Notes |
|---|---|---|
| 2015 - 2024 | Nissan Murano | — |
The 15-24 Nissan Murano CURT 4-flat Plug and Play Trailer Wiring (Part #CTW2032) fits the following vehicles: 2015-2024 Nissan Murano. Always verify your specific year, make, and model before ordering.
The 15-24 Nissan Murano CURT 4-flat Plug and Play Trailer Wiring (Part #CTW2032) fits 2015-2024 Nissan Murano models. The 2024 model year is the last year covered by this part number. For newer models, check for an updated version.
Yes, the 15-24 Nissan Murano CURT 4-flat Plug and Play Trailer Wiring (Part #CTW2032) is designed to fit the 2015-2024 Nissan Murano.
The 15-24 Nissan Murano CURT 4-flat Plug and Play Trailer Wiring (Part #CTW2032) Refer to the included instructions for installation details. Basic hand tools are typically all you need.
Yes, the Curt 56267 Custom Wiring Harness is designed for Nissan Murano SUVs, Mini & Full-Sized Vans (S-class). Confirm your vehicle matches this application before purchasing.
You need a 10mm socket and ratchet. A drill may be required if you need to create a 3/32" pilot hole for the ground screw, depending on whether a suitable existing screw is available.
Yes. Step 1 requires you to locate the vehicle battery on the driver side under the hood and disconnect the negative battery terminal before beginning installation.
Install a 10-amp fuse. The battery connection must be fuse-protected with a 10-amp maximum. Exceeding this rating can cause loss of warranty, overheating and potential fire.
Signal circuits are rated at 3.0 amps per side. Tail and running circuits are rated at 6.0 amps total. Do not exceed these ratings or the tow vehicle lamp load rating, whichever is lower.
Drilling may be required. Step 7 instructs you to locate an existing screw with nut in the vehicle frame for the ground wire. If no suitable existing screw is available, you must drill a 3/32" pilot hole. The manual warns to check for hidden items before drilling to avoid damage and personal injury.
The manual specifies the Curt 56267 is designed for Nissan Murano SUVs, Mini & Full-Sized Vans (S-class). Compatibility with other Nissan models is not documented. Contact Curt Manufacturing or consult a fitment database to confirm compatibility with other vehicles.
No. Step 2 requires you to open the vehicle tailgate and remove both side floor coverings, then lift the center floor cover up and secure it out of the way. This access is necessary to reach the taillight wiring harness connectors and storage tray fasteners.
The harness has three coloured ends: yellow (driver side taillight connector), green (passenger side taillight connector), and white (ground wire). The black power wire has a single-pin connector that mates with the vehicle's factory wiring harness connector on the driver side. A black converter box is adhered inside the vehicle near the taillight.
Locate a suitable grounding point near the taillight connector, such as an existing screw with nut in the vehicle frame. Clean the area of rust, dirt and paint. Secure the white ground wire using the ring terminal and provided screw. If no suitable existing screw is available, drill a 3/32" pilot hole. Before drilling, check for hidden items to avoid damage and personal injury.
Install the 10-amp fuse into the red fuse holder on the wire harness (Step 11). Additionally, under the hood, locate the vehicle fuse box, remove the fuse panel cover, and locate the trailer tow fuse position. If the position is empty, insert the provided 10-amp fuse into that location (Step 12). Reference the back of the fuse cover for position and location.
Remove the plastic storage tray on the driver side (two 10mm fasteners). Locate the vehicle taillight wiring harness connectors behind the tray. Separate the connectors from the taillight housing, taking care not to damage the locking tabs. Insert the custom harness end with the yellow wire between the separated connectors, ensuring they are fully inserted with locking tabs in place. Repeat on the passenger side using the harness end with the green wire.
Locate a flat spot inside the vehicle near the taillight and adhere the black converter box using the provided double-sided tape (Step 10).
When in use, route the 4-flat to the center of the vehicle and out of the trunk. When not in use, roll it up and store in a convenient, out-of-the-way location inside the trunk. Secure any loose wires with the provided cable ties.
After installation, test for proper function by using a test light or connecting a properly wired trailer. All steps must be followed to ensure the wiring harness functions properly.
Reinstall all items removed during installation (floor coverings, storage tray, fuse panel cover). Reconnect the negative battery terminal. Install the provided 4-flat dust cover to help prevent corrosion.

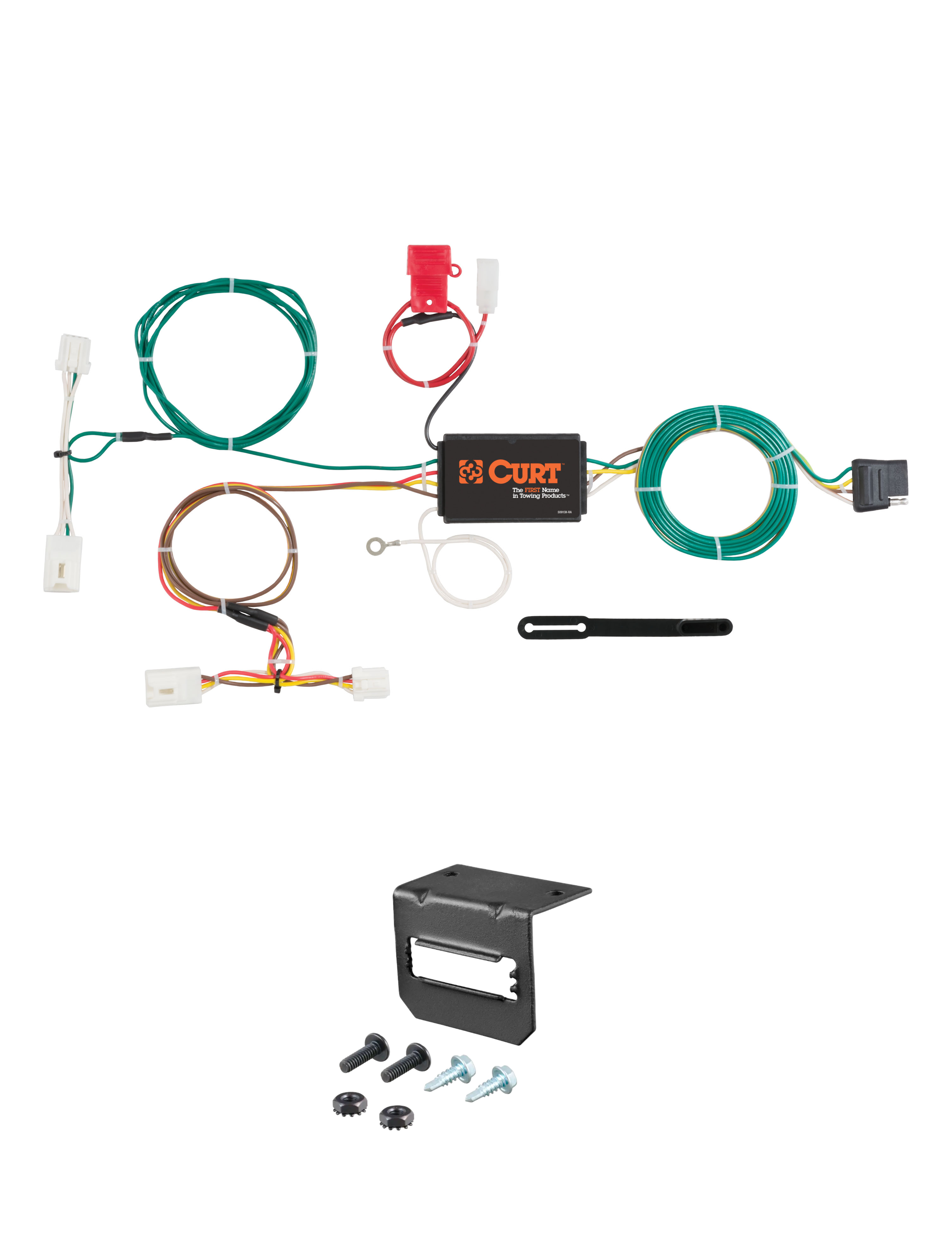

The harness includes: a ground screw, a ring terminal for the ground wire, a 10-amp fuse for the red fuse holder, a provided 10-amp fuse for the vehicle fuse box, double-sided tape for the converter box, cable ties for securing loose wires, and a 4-flat dust cover.
The 3/32" pilot hole is drilled only if no suitable existing screw with nut is available in the vehicle frame near the taillight connector. The provided ground screw is installed in this hole to secure the white ground wire using the ring terminal.
On the driver side of the vehicle, along the existing factory wiring harness, locate the single-pin connector. The connector on the black power wire mates with this vehicle connector. Insert it fully, ensuring the locking tabs are in place.
Verify that all steps have been followed correctly. Test for proper function using a test light or by connecting a properly wired trailer. Ensure all connectors are fully inserted with locking tabs in place, the ground wire is properly secured, both fuses (in the red fuse holder and vehicle fuse box) are installed, and the battery terminal is reconnected. If the harness still does not function, consult the vehicle owner's manual or contact the vehicle manufacturer for more information.
