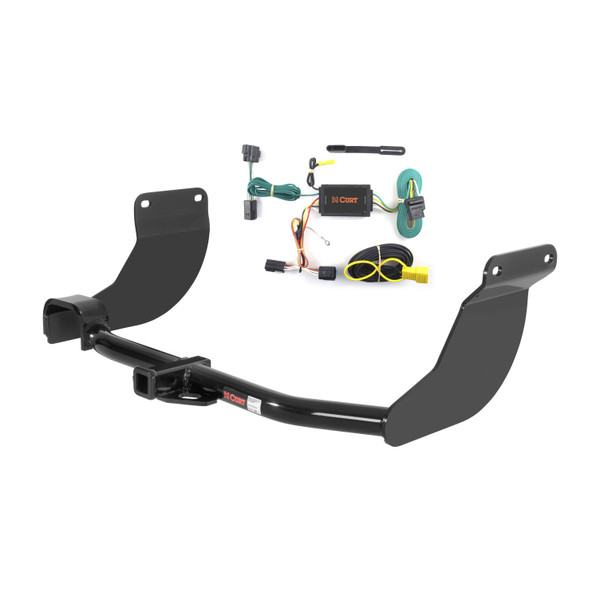

Complete CURT Class 2 1-1/4" trailer hitch and 4-flat custom wiring kit engineered for the 2010 - 2013 Ford Transit Connect Excluding electric models. Vehicle-specific fit, plug-and-play installation, all hardware and instructions included.
This custom kit fits the following vehicles:
All Hardware and Installation Instructions Included!
Whatever the next checkpoint is on your adventure -- whether it's getting your bike on the trail before sunrise or making it to the campground before dark -- CURT class 2 hitches let you Bring It with confidence. These receiver hitches are made to handle most light-duty towing applications and offer a custom fit for your vehicle. Typically used on full-size cars, crossovers, compact SUVs, minivans or even compact pickup trucks, a CURT class 2 trailer hitch complements the design of smaller vehicles. This particular class 2 hitch is made to be a custom hitch for certain years of the Ford Transit Connect (to verify vehicle compatibility, see application info). It offers a weight carrying capacity of 3,500 lbs. GTW and 350 lbs. TW. Class 2 trailer hitches can typically be used to tow a variety of lightweight trailers, such as a small utility trailer, small fishing boat trailer or popup camper (NOTE: Never exceed the lowest weight capacity of any towing component). They are also perfect for adding cargo space to your vehicle with a bike rack or cargo carrier. This class 2 hitch features a 1-1/4" receiver tube to accept a ball mount shank or other hitch-mounted accessory. For safety, it is tested in accordance with SAE J684. A custom trailer hitch design requires extra care, and as such, CURT class 2 hitches are engineered using real vehicles and hands-on research. We use high-strength steel, robotic welding and rigorous testing to produce hitches that are built to fit your lifestyle. To ensure that each hitch will be a reliable extension of your vehicle, we also finish our hitches in a co-curing of liquid A-coat and black powder coat, giving them long-lasting rust and wear resistance.
If your vehicle is not equipped with wiring for towing a trailer, CURT custom wiring is the ideal solution. A custom wiring harness -- also called a T-connector -- is a simple, plug-and-play electrical device that plugs into your automotive electric system and provides a standard, universal trailer wiring connection. This is done using two or more vehicle-specific, OEM-compatible connectors to plug into the taillight assembly, eliminating the need for cutting, splicing and soldering during installation. Custom wiring harnesses are made vehicle-specific, and while they are not available for all vehicles, they do offer one of the fastest, easiest and most secure ways to wire a vehicle for towing. This particular plug-in harness provides a 4-way flat connector socket and is designed to be a custom wiring harness to fit certain years of the Ford Transit Connect (to verify your vehicle compatibility, see application info). It comes with all necessary wiring components to establish a reliable trailer wiring connection, as well as a dust cover to keep the connector clean when not in use. You have a picture in mind of your next destination -- maybe it's the boat landing at your favorite fishing spot, maybe it's a campsite that overlooks one of nature's masterpieces, or maybe it's the next big jobsite. However, turning that picture into a reality takes more than just daydreaming. It takes a solid connection and the right amount of power. CURT custom wiring is made with some of the most sophisticated technology in the industry and is designed to install with ease, giving you a long-lasting electrical connection for your towing hitch setup.
CURT offers a variety of high-quality trailer hitches and accessories for select vehicle models. Find the perfect fit for your towing needs at TowUniverse.
CURT, a Lippert brand, offers a complete line of towing products and is the leading manufacturer of custom-fit trailer hitches. We offer the broadest selection of custom-fit hitches, and each one is designed, welded, and coated in Wisconsin.
CURT is also a leader in flat towing products, as well as 5th wheel, gooseneck, and weight distribution hitches, ball mounts, electrical components, cargo solutions, and other towing accessories.
For everything from passenger cars and vans to full-size pickups and SUVs, CURT is 'The First Name in Towing Products®.'
Experts available to answer your questions
Call 888-634-94941 compatible vehicles
| Year | Make & Model | Notes |
|---|---|---|
| 2010 - 2013 | Ford Transit Connect | Excluding electric models |
The 10 - 13 Ford Transit Connect Excluding electric models Curt 1-1/4", Class 2 Trailer Tow Hitch + 4-flat Wiring Kit 12076 (Part #CHW-1299) fits 2010-2013 Ford Transit Connect models. The 2013 model year is the last year covered by this part number. For newer models, check for an updated version.
Yes, the 10 - 13 Ford Transit Connect Excluding electric models Curt 1-1/4", Class 2 Trailer Tow Hitch + 4-flat Wiring Kit 12076 (Part #CHW-1299) is designed to fit the 2010-2013 Ford Transit Connect.
The 10 - 13 Ford Transit Connect Excluding electric models Curt 1-1/4", Class 2 Trailer Tow Hitch + 4-flat Wiring Kit 12076 (Part #CHW-1299) fits the following vehicles: 2010-2013 Ford Transit Connect. Always verify your specific year, make, and model before ordering.
The 10 - 13 Ford Transit Connect Excluding electric models Curt 1-1/4", Class 2 Trailer Tow Hitch + 4-flat Wiring Kit 12076 (Part #CHW-1299) Refer to the included instructions for installation details. Basic hand tools are typically all you need.
Yes, Curt part number 12076 is designed specifically for the Ford Transit Connect. It is a receiver hitch with a gross load capacity of 3,500 lbs trailer weight and 350 lbs tongue weight. The hitch is designed for use with ballmount D-55001 or 45501.
The Curt 12076 has a gross load capacity of 3,500 lbs trailer weight and 350 lbs tongue weight when used as a weight-carrying hitch. However, you must not exceed your vehicle manufacturer's recommended towing capacity, which may be lower.
The hitch includes 4 M12×1.75 hex cap screws (HHCS), class 10.9, zinc-plated (part 10-10386) and 4 conical toothed washers, 1/2" (part 30-00149). These fasteners attach the hitch to the existing weldnuts in the vehicle frame.
You will need: a socket wrench, a torque wrench, a 19mm socket, and a screwdriver. These tools are used to remove the wire fastener, position the hitch, and torque the fasteners to specification.
No, drilling is not required. The hitch uses existing weldnuts in the vehicle frame for attachment. The installation notes specifically state 'NO DRILLING REQUIRED'.
Yes. The manual instructs you to lower the spare tire to ease installation, and recommends removing it from the vehicle entirely during the installation process. The spare tire is re-installed in step 7 after the hitch is secured. Refer to your vehicle manual for spare tire removal procedures.
Yes. The rearmost exhaust hanger must be lowered by twisting it 90 degrees in the frame and lowering it through the slot in the frame. This is step 1 of the installation process. The exhaust hanger is re-installed after the hitch is secured in step 7.
1. Lower the rearmost exhaust hanger by twisting 90 degrees and lowering through the frame slot. 2. Lower and remove the spare tire. 3. Pry the wire fastener from the passenger side frame rail using a screwdriver. 4. Raise the passenger side mounting plate to the inside of the frame while sliding the hitch over the exhaust, then raise the driver side. 5. Loosely secure with M12-1.75 hex bolts and 1/2" washers through existing weldnuts. Reattach the wire fastener to the passenger side mounting plate. 6. Torque all fasteners to 79 lb-ft. 7. Re-install the exhaust hanger and spare tire.
All M12 fasteners must be torqued to 79 lb-ft. This is done in step 6 after the hitch is positioned and loosely secured.
Leave the fasteners loose initially. In step 5, you loosely secure the hitch with M12-1.75 hex bolts and 1/2" washers through the existing weldnuts. Only after the hitch is fully positioned and the exhaust hanger and spare tire are re-installed do you torque all fasteners to 79 lb-ft in step 6.
All non-trailer loads applied to the hitch must be supported by auxiliary stabilizing straps. Failure to properly support non-trailer loads will void the product warranty.
Before and while raising the hitch into position, ensure you do not pinch any wires or fuel lines between the hitch and the frame rails. This is a critical safety caution during step 4 of the installation.
Periodically check the receiver hitch to ensure that all fasteners are tight and that all structural components are sound. This helps maintain the integrity and safety of the hitch.
The Curt 12076 is designed for use with ballmount D-55001 or 45501.
The manual recommends removing the spare tire to ease installation. While it may be possible to lower it instead, the instructions specifically state 'to ease installation remove spare tire from vehicle.' Removing it is the recommended approach.
The wire fastener removed from the passenger side frame rail in step 3 is reattached to the passenger side mounting plate of the hitch in step 5, at the location shown in the diagram.
Yes. The Curt 12076 is designed specifically for Ford Transit Connect with a 3,500 lbs trailer weight and 350 lbs tongue weight capacity. Use with ballmount D-55001 or 45501.
No drilling required. The hitch uses existing frame weldnuts. You will need to lower the exhaust hanger and spare tire for access.
Socket wrench, torque wrench, 19mm socket, and screwdriver. The hitch includes all necessary fasteners: 4 M12×1.75 hex bolts and 4 conical toothed washers.
Torque all M12 fasteners to 79 lb-ft after the hitch is positioned and the exhaust and spare tire are re-installed.
3,500 lbs trailer weight and 350 lbs tongue weight. Do not exceed your vehicle manufacturer's recommended towing capacity.
Yes. All non-trailer loads must be supported by auxiliary stabilizing straps. Failure to do so voids the warranty.

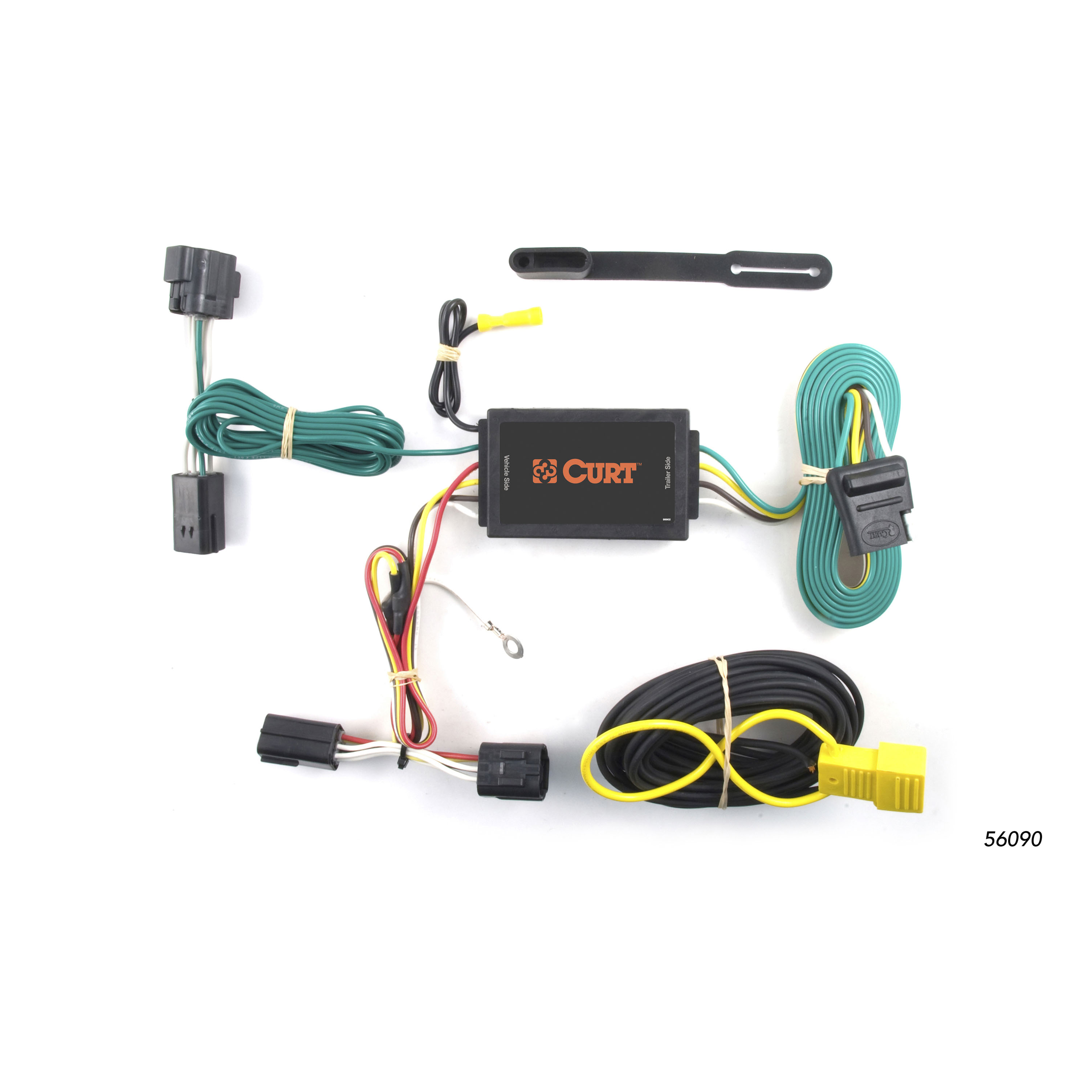

The Curt 56090 is a custom wiring harness that integrates with your vehicle's taillight wiring to provide trailer lighting control. It includes a converter box that processes signals from your vehicle's taillights and outputs a 4-flat connector for trailer use. The harness is designed for SUVs, mini and full-sized vans, specifically tested on the Ford Transit Connect.
Yes, the Curt 56090 is designed for the Ford Transit Connect. The manual lists this vehicle as the representative application for the SUVs, Mini & Full-Sized Vans category. For other vehicle models or years, consult the vehicle manufacturer or Curt Manufacturing to confirm compatibility.
The harness is rated for 3.0 amps per side on signal circuits (brake and turn signals) and 6.0 amps total on tail and running circuits (parking and tail lights). Do not exceed these ratings or your vehicle's tow lamp load rating, whichever is lower, as exceeding the product rating can cause loss of warranty, overheating and potential fire.
You will need: Phillips screwdriver, flat blade screwdriver, panel trim removal tool, wire stripper, wire crimper, and cutting tool. These tools are required to remove taillight assemblies, separate connectors, route wiring, cut the grommet, and prepare ground connections.
The harness includes: the custom wiring harness with yellow and green wire ends, a black converter box, a white ground wire with ring terminal, a provided screw for grounding, double-sided tape for mounting the converter box, a 4-flat dust cover, and cable ties for securing loose wires. The manual also references an included CME-PCL-INS sheet for battery power wire routing details.
The manual does not explicitly state whether the battery must be disconnected before installation. However, the instructions require routing a black power wire from the vehicle battery with a 10-amp fuse protection. Consult your vehicle owner's manual or a qualified technician before working with battery connections.
Open the rear cargo doors. On both sides of the vehicle, locate two plastic wing nuts securing the taillights in place. Remove the taillight assembly to access the vehicle taillight wiring harness connectors. Take care not to damage the locking tabs when separating the connectors from the taillight housing.
Insert the custom wiring harness end with the yellow wire between the separated taillight connectors. Make sure the connectors are fully inserted with locking tabs in place. Repeat this process on the passenger side using the green wire end of the harness after routing it through the grommet.
Drilling may be required for the ground connection. You will need to locate a suitable grounding point near the connector, such as an existing screw with nut in the vehicle frame. If no suitable existing screw is available, you must drill a 3/32" pilot hole for the provided screw. Before drilling, check for miscellaneous items that may be hidden behind or under any surface to avoid damage and/or personal injury.
Drill a 3/32" pilot hole for the provided ground screw. The grounding point should be located near the connector on a suitable flat spot in the vehicle frame, and the area should be free of rust, dirt and paint before securing the white ground wire using the ring terminal.
Yes. Locate the grommet behind the taillight where the vehicle taillight wiring passes through from inside the cabin to the taillight. Remove the grommet and cut a slit large enough to route the custom wiring harness through. After routing the wires, reseat the grommet using the provided sealant to seal the cut in the grommet and around all the wires.
Route the custom wiring harness end with the green wire out through the grommet opening and through the slit in the grommet. Continue to route the green wire out the bottom side of the vehicle along the existing wiring harness to the passenger side, then through the passenger side grommet. The black power wire should be routed from the vehicle battery as shown on the included CME-PCL-INS sheet. When not in use, roll up the 4-flat connector and store it in a convenient, out-of-the-way location inside the trunk.
Locate a flat spot inside the vehicle near the taillight and adhere the black converter box using the provided double-sided tape. The converter box should be positioned so that the wiring can be routed cleanly and the 4-flat connector can be accessed when needed.
Use the provided cable ties to secure any loose wires. This helps prevent wires from becoming tangled, damaged, or interfering with vehicle operation. Route the 4-flat connector to the center of the vehicle and out of the trunk when in use, and roll it up and store it in a convenient, out-of-the-way location inside the trunk when not in use.
The battery connection must be fuse-protected with a 10-amp maximum fuse. Exceeding this rating can cause loss of warranty, overheating and potential fire. Do not exceed the product rating or your tow vehicle lamp load rating, whichever is lower.
The harness has three main wires: yellow wire (used on the driver side taillight connector), green wire (used on the passenger side taillight connector and routed along the vehicle frame), and white ground wire (connected to a grounding point on the vehicle frame using the provided ring terminal and screw). The black power wire is routed from the vehicle battery as detailed on the included CME-PCL-INS sheet.
After installation, test for proper function by using a test light or connecting a properly wired trailer. This confirms that the signal circuits (3.0 amps per side) and tail/running circuits (6.0 amps total) are functioning correctly. All steps must be followed to ensure the wiring harness will function properly.
Reinstall all items removed during installation, including the taillight assemblies and any trim panels. Install the provided 4-flat dust cover to help prevent corrosion. Test for proper function using a test light or a properly wired trailer. Secure any loose wires with the provided cable ties.
Do not exceed the product rating or your tow vehicle lamp load rating, whichever is lower. The product is rated for 3.0 amps per side on signal circuits and 6.0 amps total on tail/running circuits. Exceeding these ratings can cause loss of warranty, overheating and potential fire. Check your vehicle owner's manual or contact the vehicle manufacturer for your specific tow vehicle lamp load rating.
Before drilling, check for miscellaneous items that may be hidden behind or under any surface to avoid damage and/or personal injury. The grounding area should be free of rust, dirt and paint. If using an existing screw with nut in the vehicle frame, no drilling is required; only if no suitable existing screw is available should you drill a 3/32" pilot hole.
The Curt 56090 is designed for the Ford Transit Connect and other SUVs, mini and full-sized vans. Confirm your specific vehicle model with Curt Manufacturing or your vehicle's owner's manual before purchasing.
Drilling may be required for the ground connection if no existing screw with nut is available on the vehicle frame. If drilling is needed, you will drill a 3/32" pilot hole. Cutting the grommet is also required to route the wiring harness.
The battery connection must use a 10-amp maximum fuse. Do not exceed this rating as it can cause loss of warranty, overheating and potential fire.
Signal circuits are rated for 3.0 amps per side; tail/running circuits are rated for 6.0 amps total. Do not exceed these ratings or your vehicle's tow lamp load rating, whichever is lower.
