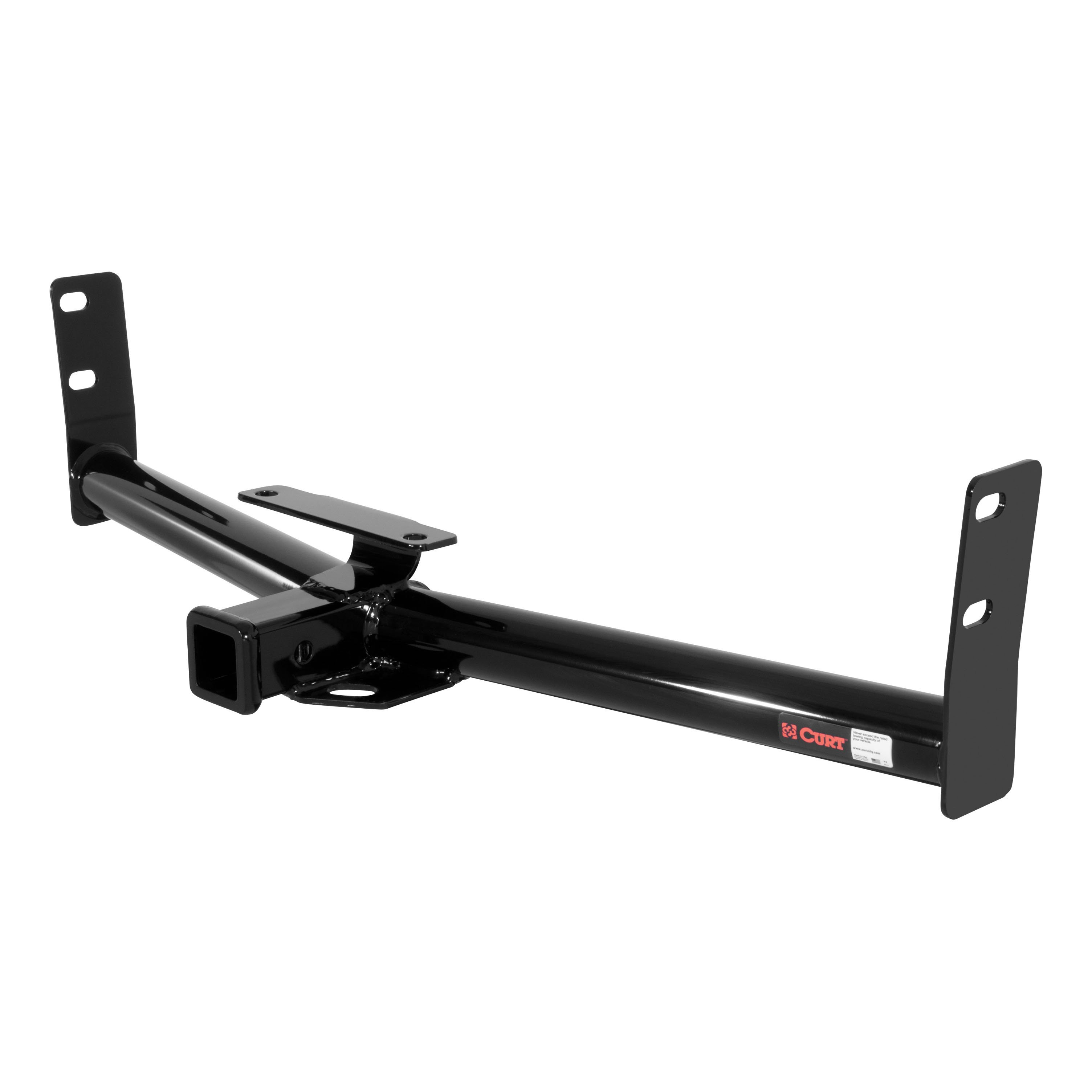

Complete CURT Class 3 2" trailer hitch and 4-flat custom wiring kit engineered for the 2010 - 2017 Chevrolet Equinox. Vehicle-specific fit, plug-and-play installation, all hardware and instructions included.
This custom kit fits the following vehicles:
All Hardware and Installation Instructions Included!
Whatever your task at hand -- whether it's launching that boat before daybreak, setting up your camper before the rush or getting a final load to the dump before close -- CURT class 3 trailer hitches offer the strength needed for serious towing. They make it easy to hitch up and Bring It, offering a vehicle-specific fit and the weight capacity to handle a variety of trailers. Custom class 3 hitches are the most common type of receiver hitch for pickup trucks and SUVs. Because of their weight range, they are also found on full-size cars, crossovers and minivans. Each custom-fit class 3 hitch package is made for vehicle-specific mounting. This particular kit fits certain years of the Chevy Equinox, GMC Terrain, Pontiac Torrent and Saturn Vue (see application info to verify vehicle compatibility). It provides a weight carrying capacity of 3,500 lbs. GTW and 350 lbs. TW. It is also compatible with a weight distribution hitch for level towing and a rating of 4,000 lbs. WD and 400 lbs. WDTW. CURT class 3 trailer hitches are typically used to attach and haul utility trailers, boat trailers, campers, snowmobile or ATV haulers and more (NOTE: Never exceed the lowest-rated towing component). Each class 3 hitch has a 2" receiver tube and is tested in accordance with SAE J684 for safety. To ensure that CURT class 3 receiver hitches have what it takes for serious trailering, they are designed using a hands-on approach and are constructed with rugged, high-strength steel and precise welding. We also protect our class 3 hitches in a co-cured finish of liquid A-coat and black powder coat for superior resistance to rust, chipping and UV damage.
If your vehicle is not equipped with wiring for towing a trailer, CURT custom wiring is the ideal solution. A custom wiring harness -- also called a T-connector -- is a simple, plug-and-play electrical device that plugs into your automotive electric system and provides a standard, universal trailer wiring connection. This is done using two or more vehicle-specific, OEM-compatible connectors to plug into the taillight assembly, eliminating the need for cutting, splicing and soldering during installation. Custom wiring harnesses are made vehicle-specific, and while they are not available for all vehicles, they do offer one of the fastest, easiest and most secure ways to wire a vehicle for towing. This particular plug-in harness provides a 4-way flat connector socket and is designed to be a custom wiring harness to fit certain years of the Chevy Equinox and GMC Terrain (to verify your vehicle compatibility, see application info). It comes with all necessary wiring components to establish a reliable trailer wiring connection, as well as a dust cover to keep the connector clean when not in use. You have a picture in mind of your next destination -- maybe it's the boat landing at your favorite fishing spot, maybe it's a campsite that overlooks one of nature's masterpieces, or maybe it's the next big jobsite. However, turning that picture into a reality takes more than just daydreaming. It takes a solid connection and the right amount of power. CURT custom wiring is made with some of the most sophisticated technology in the industry and is designed to install with ease, giving you a long-lasting electrical connection for your towing hitch setup.
CURT offers a variety of high-quality trailer hitches and accessories for select vehicle models. Find the perfect fit for your towing needs at TowUniverse.
CURT, a Lippert brand, offers a complete line of towing products and is the leading manufacturer of custom-fit trailer hitches. We offer the broadest selection of custom-fit hitches, and each one is designed, welded, and coated in Wisconsin.
CURT is also a leader in flat towing products, as well as 5th wheel, gooseneck, and weight distribution hitches, ball mounts, electrical components, cargo solutions, and other towing accessories.
For everything from passenger cars and vans to full-size pickups and SUVs, CURT is 'The First Name in Towing Products®.'
Experts available to answer your questions
Call 888-634-94941 compatible vehicles
| Year | Make & Model | Notes |
|---|---|---|
| 2010 - 2017 | Chevrolet Equinox | — |
Yes, absolutely! This kit is specifically designed for 2010-2017 Chevrolet Equinox models, so your 2017 is covered. You'll get a custom-fit Class 3 hitch with 3,500 lbs towing capacity and a plug-and-play 4-flat wiring harness that connects directly to your tail light assembly.
Perfect fit! The Curt kit (part #13591-1) is engineered specifically for 2010-2017 Chevrolet Equinox models, including your 2014. The kit includes the vehicle-specific hitch, all mounting hardware, and the custom wiring harness designed for your Equinox's electrical system.
This complete kit is designed specifically for 2010-2017 Chevrolet Equinox models. The hitch itself also fits certain years of GMC Terrain, Pontiac Torrent, and Saturn Vue, but the included wiring harness is specifically made for the 2010-2017 Chevrolet Equinox and certain GMC Terrain models.
The installation is quite straightforward with the included step-by-step instructions for both components. The wiring harness features a simple plug-and-play design that connects directly to your tail light assembly without any cutting or splicing. All necessary mounting hardware and installation instructions are included in the kit.
Yes, Curt part number 13591 is designed for 2005–2017 Chevy Equinox models. However, you will need to remove the center fascia panel to provide space for hitch installation. Return the panel to the vehicle owner after installation.
Yes, Curt part number 13591 fits 2010–2017 GMC Terrain models. Like the Chevy Equinox, you must remove the center fascia panel to provide space for hitch installation, then return the panel to the vehicle owner.
Yes, Curt part number 13591 fits 2002–2007 Saturn Vue (Redline) models. Note that fascia trimming is required on Saturn Vue Redline, and the installation uses fishwire carriage bolts and square hole spacers instead of hex bolts and conical washers. Holes may need to be enlarged to 17/32" for bolt clearance.
Yes, Curt part number 13591 is compatible with 2006–2009 Pontiac Torrent models. Installation uses fishwire carriage bolts and square hole spacers. Holes may need to be enlarged to 17/32" for bolt clearance.
The hitch weight is 60 lbs.
The manual lists gross load capacity as 3,500 lbs. trailer weight and 350 lbs. tongue weight when used as a weight-carrying hitch, and 4,000 lbs. trailer weight and 400 lbs. tongue weight when used as a weight-distribution hitch. However, you must not exceed your vehicle manufacturer's recommended towing capacity.
You will need a 19 mm socket, 8" extension, socket wrench, and torque wrench. No drilling is required.
The kit includes: 6× M12×1.75×40 mm hex head cap screws (grade 10.9), 6× 1/2" conical washers, 2× 1/2"-13 UNC carriage bolts (1-3/4" long, grade 8), 2× 0.250" × 1.50" × 2.00" square hole spacers, 2× 1/2"-13 UNC serrated flange nuts (grade 8), and 1× 1/2" × 30" fishwire.
Yes. On Chevy Equinox and GMC Terrain models, you must remove the center fascia panel to provide space for hitch installation. Return the panel to the vehicle owner after installation is complete.
Remove any existing M12 fasteners from the outside surfaces of the frame rails. If tie-down brackets are present, remove them and return them to the customer.
Raise the hitch into position and fasten it to the bumper beam using M12 bolts and conical washers. Then install M12 bolts and conical washers on the outside surfaces of the frame rails. Finally, torque all M12 hardware to 79 ft-lbs.
The fishwire technique is used on Saturn Vue Redline and some Chevy Equinox/GMC Terrain models. Use the included 1/2" × 30" fishwire to thread carriage bolts and square hole spacers through the end of the bumper beam. You may need to enlarge holes to 17/32" to ensure clearance of the 1/2" bolts. Secure with flange nuts and torque all 1/2" hardware to 110 ft-lbs.
If weldnuts contain debris, follow these steps: 1. Spray with penetrating oil and let soak for 5 minutes. 2. Clean the weldnut with a wire brush and compressed air. 3. If necessary, use an M12-1.75 tap to clean the weldnut.
All M12 hardware must be torqued to 79 ft-lbs.
All 1/2" hardware must be torqued to 110 ft-lbs.
Periodically check the receiver hitch to ensure that all fasteners are tight and that all structural components are sound.
Curt Manufacturing warrants this product to be free of defects in material and/or workmanship at the time of retail purchase by the original purchaser. If the product is found to be defective, Curt may repair or replace it at their option when returned prepaid with proof of purchase. Alteration, misuse, or improper installation voids the warranty. Curt's liability is limited to repair or replacement of defective products and excludes liability for incidental or consequential loss or damage.
2005–2017 Chevy Equinox, 2010–2017 GMC Terrain, 2002–2007 Saturn Vue (Redline), and 2006–2009 Pontiac Torrent.
No drilling is required.
Yes, on Chevy Equinox and GMC Terrain models you must remove the center fascia panel. On Saturn Vue Redline, fascia trimming is required. Return removed panels to the vehicle owner.
Torque all M12 hardware to 79 ft-lbs and all 1/2" hardware to 110 ft-lbs.
As a weight-carrying hitch: 3,500 lbs. trailer weight, 350 lbs. tongue weight. As a weight-distribution hitch: 4,000 lbs. trailer weight, 400 lbs. tongue weight. Do not exceed your vehicle manufacturer's recommended towing capacity.
No. The Curt 56094 is designed for Chevrolet Equinox and GMC Terrain models without a tow package only. If your vehicle has a factory tow package, this harness is not compatible. Check your vehicle documentation or contact the vehicle manufacturer to confirm whether your Equinox or Terrain has a tow package.
Yes. The Curt 56094 is compatible with GMC Terrain models without a tow package. Verify your vehicle does not have a factory tow package before installation.
You will need a panel trim removal tool. The manual also references the need to drill a 3/32" pilot hole if a suitable existing grounding point is not available, so a drill with a 3/32" bit is recommended. A test light or properly wired trailer is needed to test the harness after installation.
Yes. You must disconnect the negative battery terminal before beginning installation. This is the first step in the installation process. Reconnect the battery only after the taillights have been reinstalled and all wiring connections are complete.
After removing the taillights and locating the vehicle taillight wiring harness connectors behind the taillight housing, insert the custom wiring harness end with the yellow wire between the separated connectors. Ensure the connectors are fully inserted with locking tabs in place. Repeat this process on the passenger side using the harness end with the green wire. Take care not to damage the locking tabs when separating the original connectors.
Route the custom wiring harness end with the green wire down through the opening under the driver side taillight, then along the back of the bumper to the passenger side. When in use, route the 4-flat connector to the center of the vehicle. When not in use, roll up and store in a convenient, out-of-the-way location. Secure any loose wires with the provided cable ties.
Not necessarily. First, locate a suitable grounding point near the connector, such as an existing screw with nut in the vehicle frame. If no suitable existing point is available, you may drill a 3/32" pilot hole for the provided screw. Before drilling, check for miscellaneous items that may be hidden behind or under any surface to avoid damage and personal injury. The grounding area should be free of rust, dirt and paint.
Drill a 3/32" pilot hole if a suitable existing grounding point is not available. The area should be free of rust, dirt and paint before securing the white ground wire using the ring terminal and provided screw.
The manual does not specify the product rating. However, you must not exceed the product rating or the tow vehicle lamp load rating, whichever is lower. Exceeding the rating can cause loss of warranty, overheating and potential fire. Check your vehicle owner's manual or contact the vehicle manufacturer for the tow vehicle lamp load rating.
Once installed, test for proper function by using a test light or connecting a properly wired trailer. All steps must be followed to ensure the wiring harness will function properly. The manual emphasizes that testing is required to confirm correct installation.
When not in use, roll up the 4-flat connector and store it in a convenient, out-of-the-way location. This helps protect the connector and keeps it organized when the trailer is not connected.
Yes. A 4-flat dust cover is provided with the harness. Install it after reconnecting the negative battery terminal to help prevent corrosion.
Two fasteners secure each taillight assembly in place. You will need to remove these fasteners to access the taillight wiring connectors during installation.
The Curt 56094 fits Chevrolet Equinox and GMC Terrain models without a factory tow package only.
You need a panel trim removal tool. A drill with a 3/32" bit is recommended for the ground wire installation if an existing grounding point is not available.
Yes. Disconnect the negative battery terminal before starting installation and reconnect it only after the taillights are reinstalled.
Drilling is not always required. A suitable existing grounding point (such as an existing screw with nut in the vehicle frame) may be used. If no existing point is available, drill a 3/32" pilot hole for the provided ground screw.
Do not exceed the product rating or tow vehicle lamp load rating, whichever is lower. Exceeding the rating can cause loss of warranty, overheating and potential fire.
