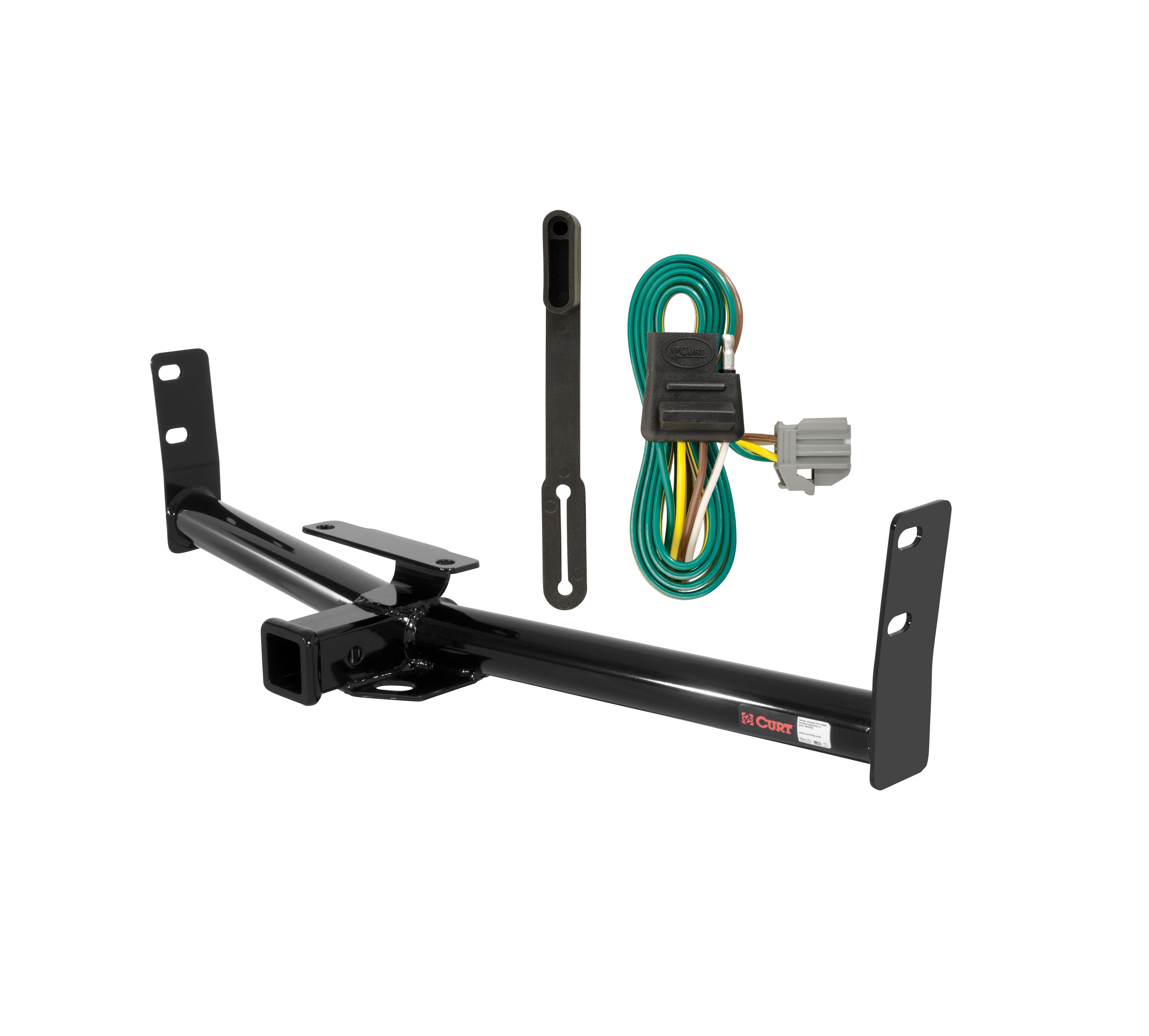

Complete CURT Class 3 2" trailer hitch and 4-flat custom wiring kit engineered for the 2010 - 2017 Chevrolet Equinox. Vehicle-specific fit, plug-and-play installation, all hardware and instructions included.
This custom kit fits the following vehicles:
All Hardware and Installation Instructions Included!

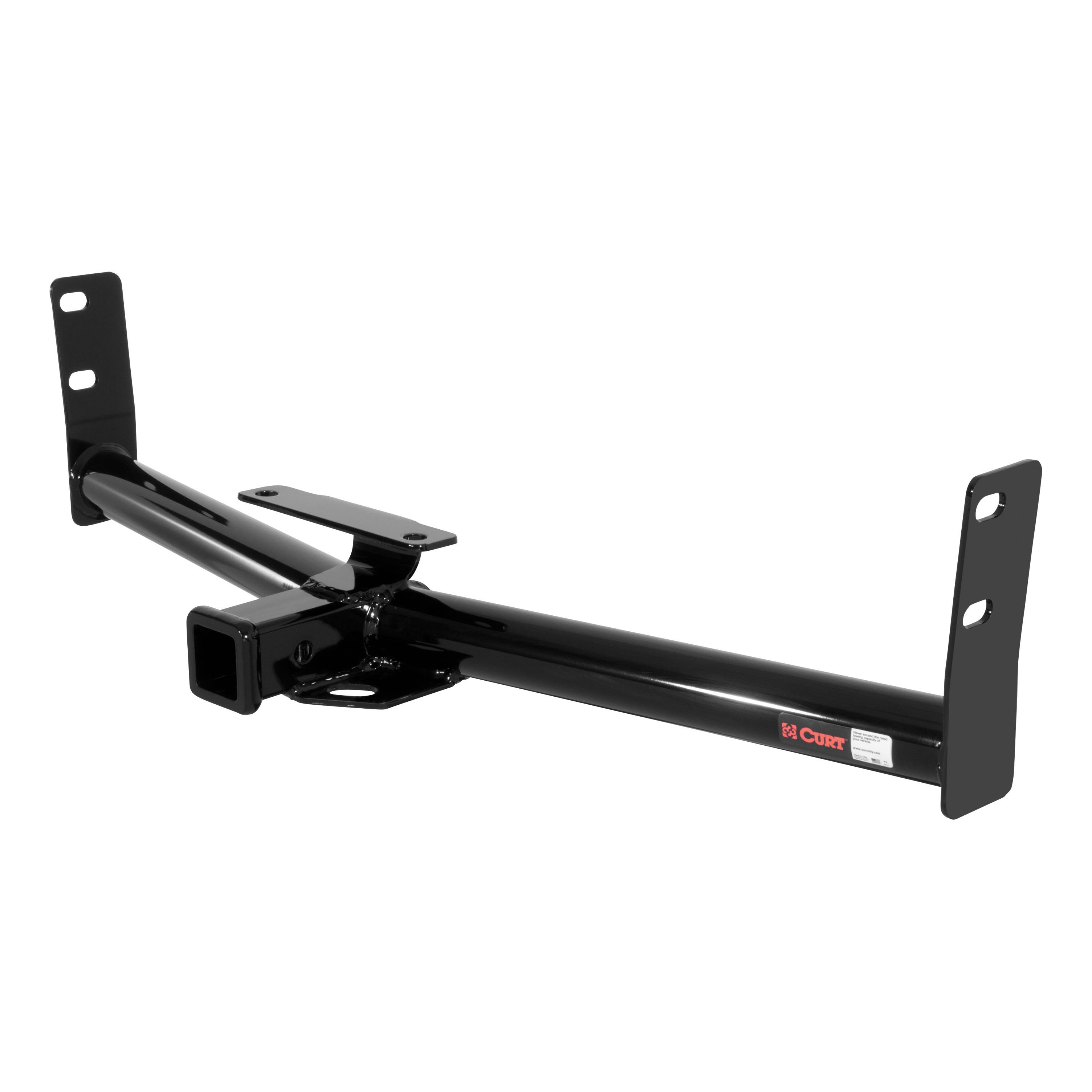

Whatever your task at hand -- whether it's launching that boat before daybreak, setting up your camper before the rush or getting a final load to the dump before close -- CURT class 3 trailer hitches offer the strength needed for serious towing. They make it easy to hitch up and Bring It, offering a vehicle-specific fit and the weight capacity to handle a variety of trailers. Custom class 3 hitches are the most common type of receiver hitch for pickup trucks and SUVs. Because of their weight range, they are also found on full-size cars, crossovers and minivans. Each custom-fit class 3 hitch package is made for vehicle-specific mounting. This particular kit fits certain years of the Chevy Equinox, GMC Terrain, Pontiac Torrent and Saturn Vue (see application info to verify vehicle compatibility). It provides a weight carrying capacity of 3,500 lbs. GTW and 350 lbs. TW. It is also compatible with a weight distribution hitch for level towing and a rating of 4,000 lbs. WD and 400 lbs. WDTW. CURT class 3 trailer hitches are typically used to attach and haul utility trailers, boat trailers, campers, snowmobile or ATV haulers and more (NOTE: Never exceed the lowest-rated towing component). Each class 3 hitch has a 2" receiver tube and is tested in accordance with SAE J684 for safety. To ensure that CURT class 3 receiver hitches have what it takes for serious trailering, they are designed using a hands-on approach and are constructed with rugged, high-strength steel and precise welding. We also protect our class 3 hitches in a co-cured finish of liquid A-coat and black powder coat for superior resistance to rust, chipping and UV damage.
CURT custom wiring connectors are the easiest way to outfit your vehicle with a CURT trailer wiring connection. They are built with some of the most advanced technology in the industry, and each one is custom-fitted to work with a specific make and model. Some automotive manufacturers install a special socket on the vehicle to be used for vehicle-to-trailer wiring. Although this special socket is not equipped on every vehicle, a CURT custom wiring connector -- also called a T-connector -- utilizes the socket for simple, stress-free installation. Rather than requiring you to cut, splice and solder into your vehicle's wiring system, the custom wiring connector uses a single OEM-compatible plug and instantly provides a standard, universal vehicle-to-trailer wiring connection, typically in the form a 4-way flat. All CURT custom wiring connectors are made vehicle-specific for the easiest possible installation and the best fit. This particular plug-in connector provides a 4-way flat socket and is designed to be a custom wiring option for certain years of the Chevy Equinox and GMC Terrain (factory tow package required; to verify your vehicle compatibility, see application info). It comes with all necessary hardware to establish a solid connection. It also comes with a dust cover to keep the connector socket clean when not in use. To ensure long-lasting reliability, all CURT custom wiring connectors are thoroughly tested for optimal functionality. Stress is the last thing you should feel when towing a trailer -- whether you're hauling your RV to that favorite camping destination, your ATVs up to the hunting grounds or your fishing boat to the new hidden hotspot. At CURT, we think your towing equipment should add to the enjoyment of your experience, not detract from it.
CURT offers a variety of high-quality trailer hitches and accessories for select vehicle models. Find the perfect fit for your towing needs at TowUniverse.
CURT, a Lippert brand, offers a complete line of towing products and is the leading manufacturer of custom-fit trailer hitches. We offer the broadest selection of custom-fit hitches, and each one is designed, welded, and coated in Wisconsin.
CURT is also a leader in flat towing products, as well as 5th wheel, gooseneck, and weight distribution hitches, ball mounts, electrical components, cargo solutions, and other towing accessories.
For everything from passenger cars and vans to full-size pickups and SUVs, CURT is 'The First Name in Towing Products®.'
Experts available to answer your questions
Call 888-634-94941 compatible vehicles
| Year | Make & Model | Notes |
|---|---|---|
| 2010 - 2017 | Chevrolet Equinox | — |
The 10 - 17 Chevrolet Equinox Curt 2", Class 3 Trailer Tow Hitch + 4-flat Wiring Kit 13591 (Part #CHW-384) fits the following vehicles: 2010-2017 Chevrolet Equinox. Always verify your specific year, make, and model before ordering.
Yes, the 10 - 17 Chevrolet Equinox Curt 2", Class 3 Trailer Tow Hitch + 4-flat Wiring Kit 13591 (Part #CHW-384) is designed to fit the 2010-2017 Chevrolet Equinox.
The 10 - 17 Chevrolet Equinox Curt 2", Class 3 Trailer Tow Hitch + 4-flat Wiring Kit 13591 (Part #CHW-384) fits 2010-2017 Chevrolet Equinox models. The 2017 model year is the last year covered by this part number. For newer models, check for an updated version.
The 10 - 17 Chevrolet Equinox Curt 2", Class 3 Trailer Tow Hitch + 4-flat Wiring Kit 13591 (Part #CHW-384) Refer to the included instructions for installation details. Basic hand tools are typically all you need.
Yes, Curt part number 13591 is designed for 2005–2017 Chevy Equinox models. However, you will need to remove the center fascia panel to provide space for hitch installation. Return the panel to the vehicle owner after installation.
Yes, Curt part number 13591 fits 2010–2017 GMC Terrain models. Like the Chevy Equinox, you must remove the center fascia panel to provide space for hitch installation, then return the panel to the vehicle owner.
Yes, Curt part number 13591 fits 2002–2007 Saturn Vue (Redline) models. Note that fascia trimming is required on Saturn Vue Redline, and the installation uses fishwire carriage bolts and square hole spacers instead of hex bolts and conical washers. Holes may need to be enlarged to 17/32" for bolt clearance.
Yes, Curt part number 13591 is compatible with 2006–2009 Pontiac Torrent models. Installation uses fishwire carriage bolts and square hole spacers. Holes may need to be enlarged to 17/32" for bolt clearance.
The hitch weight is 60 lbs.
The manual lists gross load capacity as 3,500 lbs. trailer weight and 350 lbs. tongue weight when used as a weight-carrying hitch, and 4,000 lbs. trailer weight and 400 lbs. tongue weight when used as a weight-distribution hitch. However, you must not exceed your vehicle manufacturer's recommended towing capacity.
You will need a 19 mm socket, 8" extension, socket wrench, and torque wrench. No drilling is required.
The kit includes: 6× M12×1.75×40 mm hex head cap screws (grade 10.9), 6× 1/2" conical washers, 2× 1/2"-13 UNC carriage bolts (1-3/4" long, grade 8), 2× 0.250" × 1.50" × 2.00" square hole spacers, 2× 1/2"-13 UNC serrated flange nuts (grade 8), and 1× 1/2" × 30" fishwire.
Yes. On Chevy Equinox and GMC Terrain models, you must remove the center fascia panel to provide space for hitch installation. Return the panel to the vehicle owner after installation is complete.
Remove any existing M12 fasteners from the outside surfaces of the frame rails. If tie-down brackets are present, remove them and return them to the customer.
Raise the hitch into position and fasten it to the bumper beam using M12 bolts and conical washers. Then install M12 bolts and conical washers on the outside surfaces of the frame rails. Finally, torque all M12 hardware to 79 ft-lbs.
The fishwire technique is used on Saturn Vue Redline and some Chevy Equinox/GMC Terrain models. Use the included 1/2" × 30" fishwire to thread carriage bolts and square hole spacers through the end of the bumper beam. You may need to enlarge holes to 17/32" to ensure clearance of the 1/2" bolts. Secure with flange nuts and torque all 1/2" hardware to 110 ft-lbs.
If weldnuts contain debris, follow these steps: 1. Spray with penetrating oil and let soak for 5 minutes. 2. Clean the weldnut with a wire brush and compressed air. 3. If necessary, use an M12-1.75 tap to clean the weldnut.
All M12 hardware must be torqued to 79 ft-lbs.
All 1/2" hardware must be torqued to 110 ft-lbs.
Periodically check the receiver hitch to ensure that all fasteners are tight and that all structural components are sound.
Curt Manufacturing warrants this product to be free of defects in material and/or workmanship at the time of retail purchase by the original purchaser. If the product is found to be defective, Curt may repair or replace it at their option when returned prepaid with proof of purchase. Alteration, misuse, or improper installation voids the warranty. Curt's liability is limited to repair or replacement of defective products and excludes liability for incidental or consequential loss or damage.
2005–2017 Chevy Equinox, 2010–2017 GMC Terrain, 2002–2007 Saturn Vue (Redline), and 2006–2009 Pontiac Torrent.
No drilling is required.
Yes, on Chevy Equinox and GMC Terrain models you must remove the center fascia panel. On Saturn Vue Redline, fascia trimming is required. Return removed panels to the vehicle owner.
Torque all M12 hardware to 79 ft-lbs and all 1/2" hardware to 110 ft-lbs.
As a weight-carrying hitch: 3,500 lbs. trailer weight, 350 lbs. tongue weight. As a weight-distribution hitch: 4,000 lbs. trailer weight, 400 lbs. tongue weight. Do not exceed your vehicle manufacturer's recommended towing capacity.
The Curt 56210 custom wiring connector is designed for Chevrolet Equinox and GMC Terrain models equipped with a tow package. Your vehicle must have the factory tow package installed to have the required 4-pin taillight wiring connectors. Check your vehicle owner's manual or contact the vehicle manufacturer to confirm your Equinox has the tow package.
The Curt 56210 custom wiring connector is designed for GMC Terrain and Chevrolet Equinox models equipped with a tow package. Your vehicle must have the factory tow package installed to have the required 4-pin taillight wiring connectors. Check your vehicle owner's manual or contact the vehicle manufacturer to confirm your Terrain has the tow package.

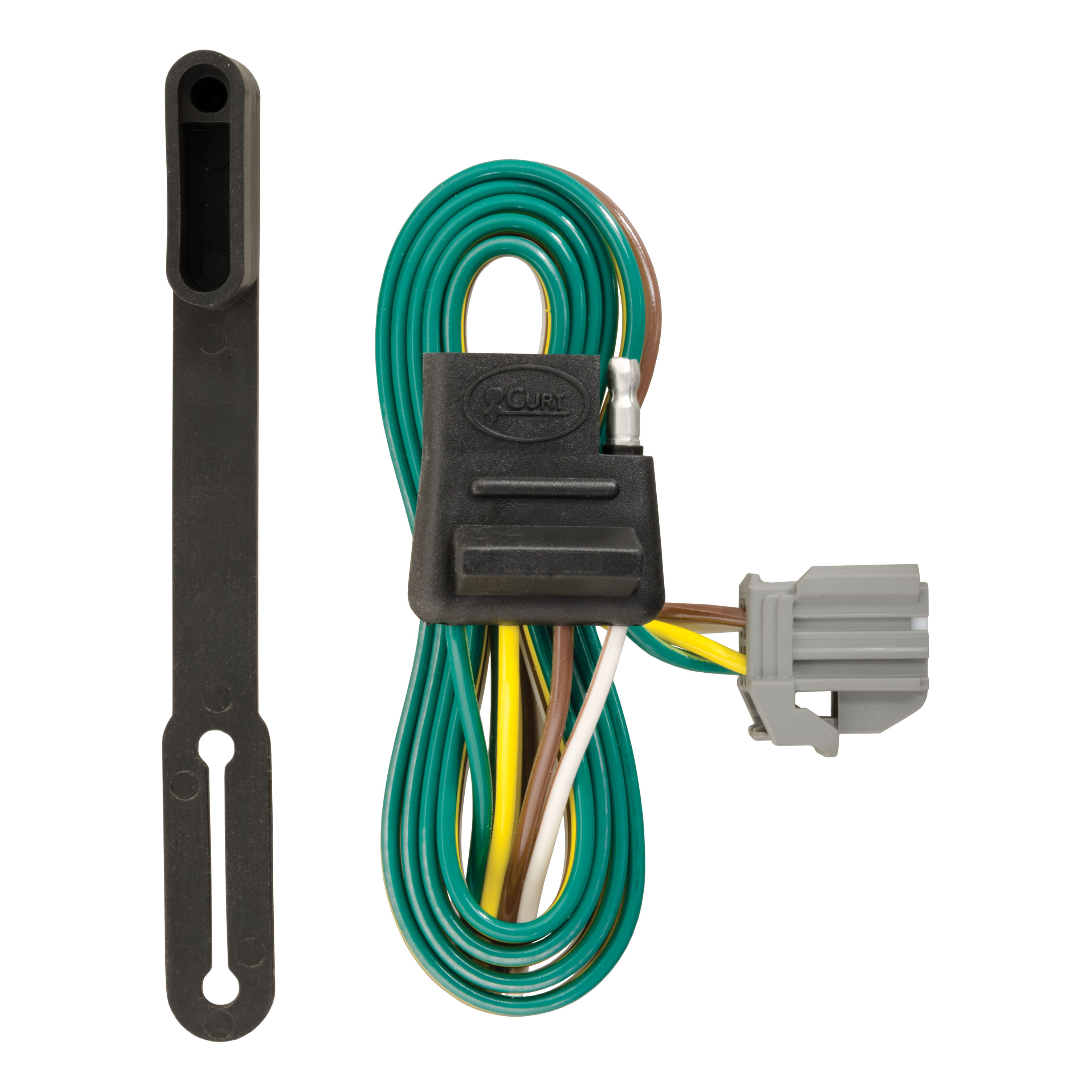

The Curt 56210 is a custom wiring connector that connects to the vehicle's 4-pin taillight wiring connectors. It is routed to the center of the vehicle and out of the trunk to provide a connection point for trailer wiring. When not in use, it can be rolled up and stored inside the trunk.
You need a 3/16" allen wrench. No other specialized tools are required for installation.
The manual does not specify whether the battery must be disconnected. Contact the vehicle manufacturer or Curt Manufacturing for guidance on this safety requirement.
Open the vehicle trunk and remove all trunk floor coverings. Remove the two cargo fasteners on the driver side. Remove the rear scuff panel by pulling out on the bottom and then up, taking care not to damage the alignment tabs on the back. On the driver side only, partially remove the lower trim panel by carefully pulling outwards to locate the vehicle taillight wiring connectors. The 4-pin connectors are mounted on the bottom rear side-panel.
Insert the custom wiring connector end into the 4-pin vehicle connector. Make sure the connectors are fully inserted with locking tabs in place. The connectors will be similar in design to the custom wiring connector.
Route the 4-flat to the center of the vehicle and out of the trunk when in use. When not in use, roll it up and store it in a convenient, out-of-the-way location inside the trunk. Secure any loose wires with the provided cable ties.
Reinstall all items removed during installation. Install the provided 4-flat dust cover to help prevent corrosion. Test for proper function by using a test light or connecting a properly wired trailer.
Do not exceed the product rating or the tow vehicle lamp load rating, whichever is lower. Exceeding the product rating can cause loss of warranty, overheating and potential fire. The specific product rating is not provided in the manual; contact Curt Manufacturing for the exact amperage or wattage specification.
Test for proper function by using a test light or connecting a properly wired trailer. All steps must be followed to ensure the wiring connector will function properly.
The Curt 56210 is designed for Chevrolet Equinox and GMC Terrain models with a tow package. Confirm your vehicle has the factory tow package by checking your owner's manual or contacting the vehicle manufacturer.
Only a 3/16" allen wrench is required.
The manual does not specify whether professional installation is required. The installation involves accessing the trunk, removing trim panels, and connecting a wiring connector. Contact Curt Manufacturing if you are unsure whether you can perform the installation yourself.
Do not exceed the product rating or the tow vehicle lamp load rating, whichever is lower. Exceeding the rating can cause loss of warranty, overheating and potential fire. Contact Curt Manufacturing for the specific product rating.
Test for proper function by using a test light or connecting a properly wired trailer.
