Complete CURT Class 3 2" trailer hitch and 4-flat custom wiring kit engineered for the 2010 - 2017 Chevrolet Equinox. Vehicle-specific fit, plug-and-play installation, all hardware and instructions included.
This custom kit fits the following vehicles:
All Hardware and Installation Instructions Included!

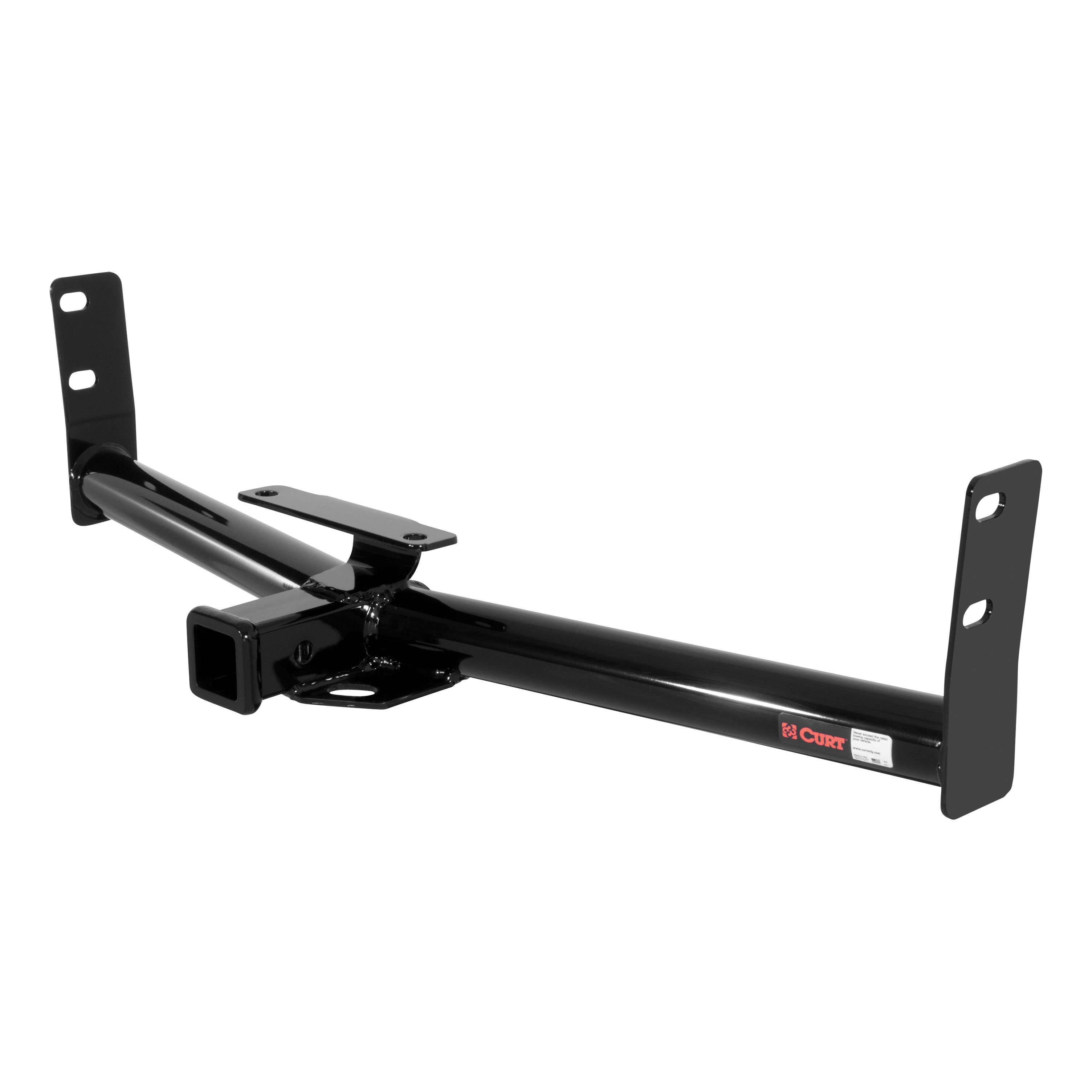

Whatever your task at hand -- whether it's launching that boat before daybreak, setting up your camper before the rush or getting a final load to the dump before close -- CURT class 3 trailer hitches offer the strength needed for serious towing. They make it easy to hitch up and Bring It, offering a vehicle-specific fit and the weight capacity to handle a variety of trailers. Custom class 3 hitches are the most common type of receiver hitch for pickup trucks and SUVs. Because of their weight range, they are also found on full-size cars, crossovers and minivans. Each custom-fit class 3 hitch package is made for vehicle-specific mounting. This particular kit fits certain years of the Chevy Equinox, GMC Terrain, Pontiac Torrent and Saturn Vue (see application info to verify vehicle compatibility). It provides a weight carrying capacity of 3,500 lbs. GTW and 350 lbs. TW. It is also compatible with a weight distribution hitch for level towing and a rating of 4,000 lbs. WD and 400 lbs. WDTW. CURT class 3 trailer hitches are typically used to attach and haul utility trailers, boat trailers, campers, snowmobile or ATV haulers and more (NOTE: Never exceed the lowest-rated towing component). Each class 3 hitch has a 2" receiver tube and is tested in accordance with SAE J684 for safety. To ensure that CURT class 3 receiver hitches have what it takes for serious trailering, they are designed using a hands-on approach and are constructed with rugged, high-strength steel and precise welding. We also protect our class 3 hitches in a co-cured finish of liquid A-coat and black powder coat for superior resistance to rust, chipping and UV damage.

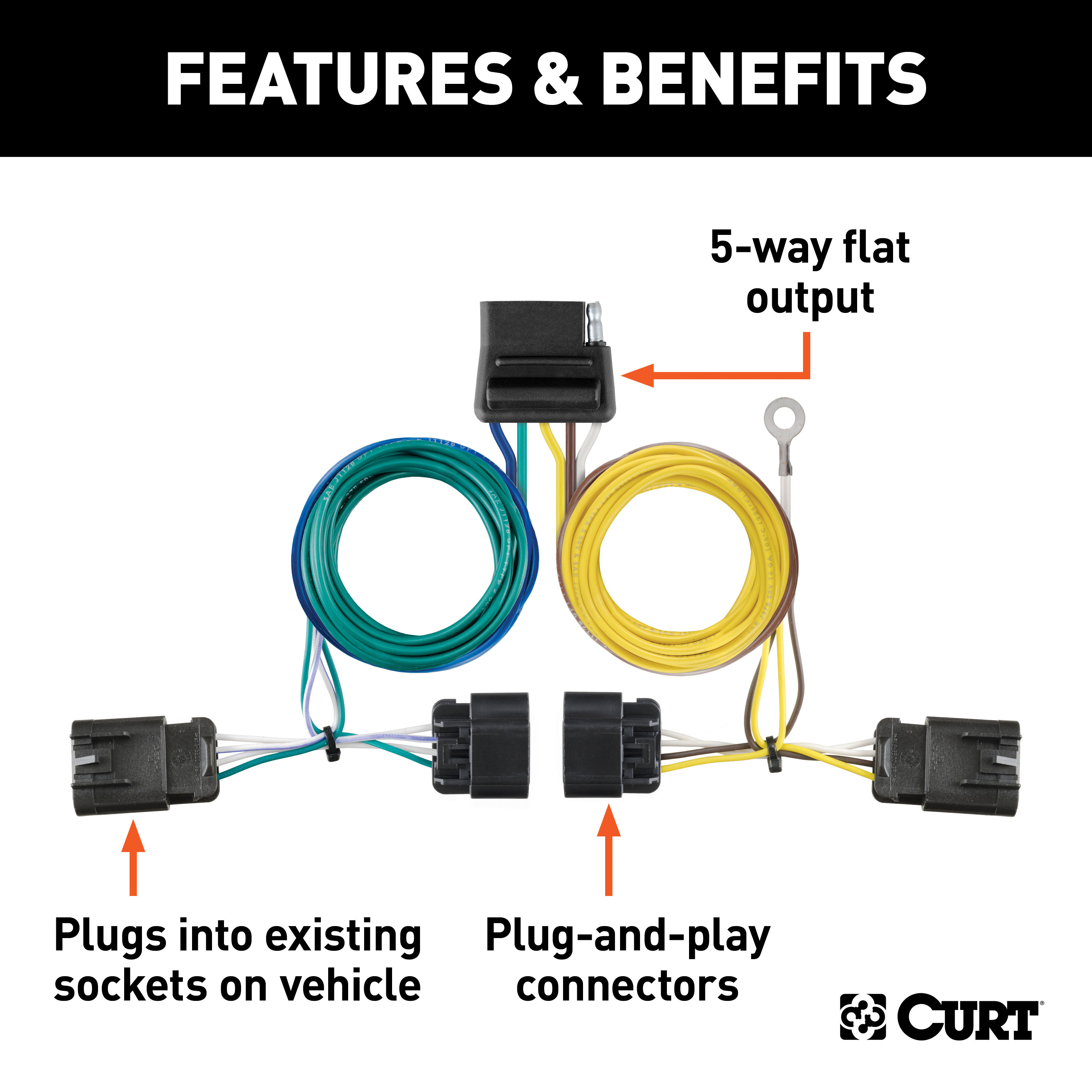

A CURT custom wiring harness (also called a T-connector) is a simple, plug-and-play electrical device that eliminates the need for cutting, splicing and soldering when installing vehicle-to-trailer wiring. Most vehicles do not come ready to tow. Unless your vehicle has a towing package, it is probably not equipped with a trailer wiring connector. This is where CURT's custom wiring harnesses come into play. Custom wiring harnesses plug into your vehicle's electrical system using original equipment (OEM) connectors. Our custom wiring harnesses use two or more OEM connectors to plug in at the taillight assembly and provide a standard trailer socket to allow a trailer to be plugged into your vehicle's power system. This harness provides a 5-way flat connector socket and is designed to be a custom wiring harness for certain years of the GMC Terrain or Chevrolet Equinox (to verify your vehicle compatibility, see the CURT application guide at curtmfg.com). CURT custom wiring harnesses are long-lasting and quick to install. They come with dust covers to keep your connector clean when not in use and feature a one-year limited warranty to give you peace of mind.
CURT offers a variety of high-quality trailer hitches and accessories for select vehicle models. Find the perfect fit for your towing needs at TowUniverse.
CURT, a Lippert brand, offers a complete line of towing products and is the leading manufacturer of custom-fit trailer hitches. We offer the broadest selection of custom-fit hitches, and each one is designed, welded, and coated in Wisconsin.
CURT is also a leader in flat towing products, as well as 5th wheel, gooseneck, and weight distribution hitches, ball mounts, electrical components, cargo solutions, and other towing accessories.
For everything from passenger cars and vans to full-size pickups and SUVs, CURT is 'The First Name in Towing Products®.'
Experts available to answer your questions
Call 888-634-94941 compatible vehicles
| Year | Make & Model | Notes |
|---|---|---|
| 2010 - 2017 | Chevrolet Equinox | — |
The 10 - 17 Chevrolet Equinox Curt 2", Class 3 Trailer Tow Hitch + 5-Flat Wiring Kit 13591 (Part #CHW-382) fits the following vehicles: 2010-2017 Chevrolet Equinox. Always verify your specific year, make, and model before ordering.
Yes, the 10 - 17 Chevrolet Equinox Curt 2", Class 3 Trailer Tow Hitch + 5-Flat Wiring Kit 13591 (Part #CHW-382) is designed to fit the 2010-2017 Chevrolet Equinox.
The 10 - 17 Chevrolet Equinox Curt 2", Class 3 Trailer Tow Hitch + 5-Flat Wiring Kit 13591 (Part #CHW-382) fits 2010-2017 Chevrolet Equinox models. The 2017 model year is the last year covered by this part number. For newer models, check for an updated version.
The 10 - 17 Chevrolet Equinox Curt 2", Class 3 Trailer Tow Hitch + 5-Flat Wiring Kit 13591 (Part #CHW-382) Refer to the included instructions for installation details. Basic hand tools are typically all you need.
Yes, Curt part number 13591 is designed for 2005–2017 Chevy Equinox models. However, you will need to remove the center fascia panel to provide space for hitch installation. Return the panel to the vehicle owner after installation.
Yes, Curt part number 13591 fits 2010–2017 GMC Terrain models. Like the Chevy Equinox, you must remove the center fascia panel to provide space for hitch installation, then return the panel to the vehicle owner.
Yes, Curt part number 13591 fits 2002–2007 Saturn Vue (Redline) models. Note that fascia trimming is required on Saturn Vue Redline, and the installation uses fishwire carriage bolts and square hole spacers instead of hex bolts and conical washers. Holes may need to be enlarged to 17/32" for bolt clearance.
Yes, Curt part number 13591 is compatible with 2006–2009 Pontiac Torrent models. Installation uses fishwire carriage bolts and square hole spacers. Holes may need to be enlarged to 17/32" for bolt clearance.
The hitch weight is 60 lbs.
The manual lists gross load capacity as 3,500 lbs. trailer weight and 350 lbs. tongue weight when used as a weight-carrying hitch, and 4,000 lbs. trailer weight and 400 lbs. tongue weight when used as a weight-distribution hitch. However, you must not exceed your vehicle manufacturer's recommended towing capacity.
You will need a 19 mm socket, 8" extension, socket wrench, and torque wrench. No drilling is required.
The kit includes: 6× M12×1.75×40 mm hex head cap screws (grade 10.9), 6× 1/2" conical washers, 2× 1/2"-13 UNC carriage bolts (1-3/4" long, grade 8), 2× 0.250" × 1.50" × 2.00" square hole spacers, 2× 1/2"-13 UNC serrated flange nuts (grade 8), and 1× 1/2" × 30" fishwire.
Yes. On Chevy Equinox and GMC Terrain models, you must remove the center fascia panel to provide space for hitch installation. Return the panel to the vehicle owner after installation is complete.
Remove any existing M12 fasteners from the outside surfaces of the frame rails. If tie-down brackets are present, remove them and return them to the customer.
Raise the hitch into position and fasten it to the bumper beam using M12 bolts and conical washers. Then install M12 bolts and conical washers on the outside surfaces of the frame rails. Finally, torque all M12 hardware to 79 ft-lbs.
The fishwire technique is used on Saturn Vue Redline and some Chevy Equinox/GMC Terrain models. Use the included 1/2" × 30" fishwire to thread carriage bolts and square hole spacers through the end of the bumper beam. You may need to enlarge holes to 17/32" to ensure clearance of the 1/2" bolts. Secure with flange nuts and torque all 1/2" hardware to 110 ft-lbs.
If weldnuts contain debris, follow these steps: 1. Spray with penetrating oil and let soak for 5 minutes. 2. Clean the weldnut with a wire brush and compressed air. 3. If necessary, use an M12-1.75 tap to clean the weldnut.
All M12 hardware must be torqued to 79 ft-lbs.
All 1/2" hardware must be torqued to 110 ft-lbs.
Periodically check the receiver hitch to ensure that all fasteners are tight and that all structural components are sound.
Curt Manufacturing warrants this product to be free of defects in material and/or workmanship at the time of retail purchase by the original purchaser. If the product is found to be defective, Curt may repair or replace it at their option when returned prepaid with proof of purchase. Alteration, misuse, or improper installation voids the warranty. Curt's liability is limited to repair or replacement of defective products and excludes liability for incidental or consequential loss or damage.
2005–2017 Chevy Equinox, 2010–2017 GMC Terrain, 2002–2007 Saturn Vue (Redline), and 2006–2009 Pontiac Torrent.
No drilling is required.
Yes, on Chevy Equinox and GMC Terrain models you must remove the center fascia panel. On Saturn Vue Redline, fascia trimming is required. Return removed panels to the vehicle owner.
Torque all M12 hardware to 79 ft-lbs and all 1/2" hardware to 110 ft-lbs.
As a weight-carrying hitch: 3,500 lbs. trailer weight, 350 lbs. tongue weight. As a weight-distribution hitch: 4,000 lbs. trailer weight, 400 lbs. tongue weight. Do not exceed your vehicle manufacturer's recommended towing capacity.
Yes, Curt part number 56594 is designed for Chevrolet Equinox and GMC Terrain vehicles. The manual does not specify model years or body styles, so contact Curt or your retailer to confirm your specific vehicle year and configuration are supported.
You will need a drill with a 3/32" bit (if you need to create a grounding point), a screwdriver, and basic hand tools. The manual provides cable ties and an eyelet with screw for grounding. If an existing grounding point with a screw and nut is available on the vehicle's frame, drilling may not be necessary.
Open the rear hatch. On each side of the vehicle, remove the two fasteners (marked A and B in the manual) holding each taillight assembly in place. Keep these fasteners for reinstallation.
The vehicle's taillight wiring harness is located behind the driver side taillight. It will have connectors similar to those on the T-Connector harness.
Locate the vehicle's taillight wiring harness behind the driver side taillight. Carefully separate the connectors without damaging the locking tabs. Insert the T-Connector end with the yellow wire between the separated connectors. Ensure the connectors are fully inserted with locking tabs in place. Repeat this process on the passenger side using the green wire connector.
Route the T-Connector end with the green wire down through the opening under the driver side taillight. Under the vehicle, route it across the backside of the bumper and up through the opening under the passenger side taillight. This routing ensures the 5-flat connector ends up near the center of the vehicle.

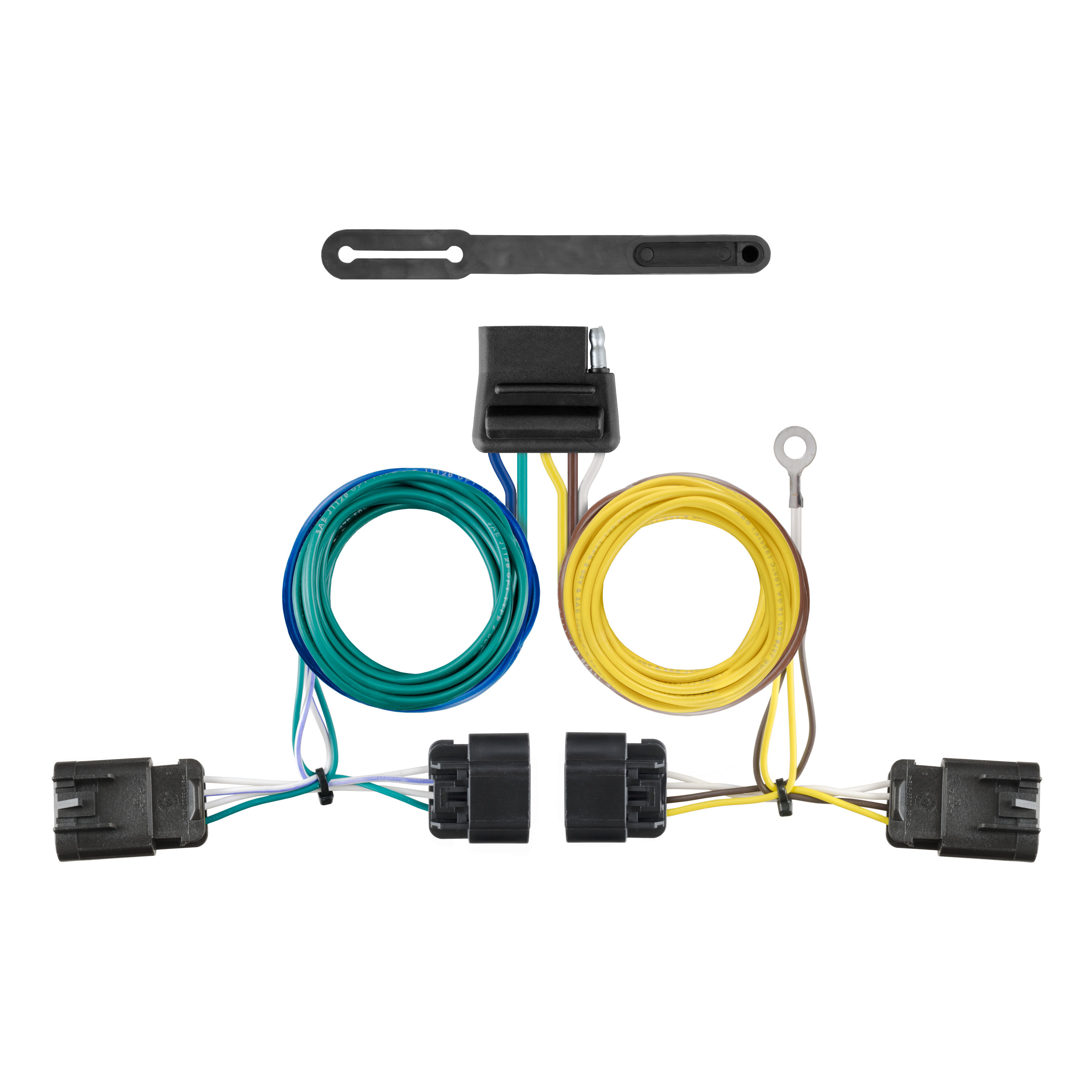

The T-Connector has a yellow wire, a green wire, and a white wire. The yellow and green wires connect to the taillight harness connectors. The white wire is used for grounding.
Locate a suitable grounding point near the connector, such as an existing screw with nut in the vehicle's frame. If no suitable point exists, drill a 3/32" hole and secure the white wire using the eyelet and screw provided with the kit.
Drilling is required only if a suitable existing grounding point (a screw with nut in the vehicle's frame) is not available near the connector. If you must drill, use a 3/32" bit to create a hole for the white wire grounding eyelet.
Drill a 3/32" hole for the grounding eyelet if an existing screw with nut is not available on the vehicle's frame.
Before drilling, verify that miscellaneous items hidden behind or under any surface will not be damaged. This precaution avoids damage to vehicle components and personal injury.
Secure the 4-flat to the center of the vehicle in a convenient out-of-the-way location. Use the cable ties provided to secure any loose wires.
The Curt 56594 T-Connector is designed for Chevrolet Equinox and GMC Terrain vehicles. Confirm your specific model year with the manufacturer or retailer.
You need a drill with a 3/32" bit (if no existing grounding point is available), a screwdriver, and basic hand tools. Cable ties, eyelet, and screw are provided.
Drilling is required only if no existing grounding point (screw with nut) is available on the vehicle frame. If drilling is needed, use a 3/32" bit.
Yellow and green wires connect to the taillight harness connectors on the driver and passenger sides respectively. The white wire grounds the system to the vehicle frame.
Before drilling, verify that no hidden items behind or under any surface will be damaged. This prevents damage to vehicle components and personal injury.
