| Converter Type | Circuit Protected and Powered |
| Electrical System Type | 3W |
| Finish | N/A |
| Material | Blank |
| Mount Type Description | Blank |
| Output Type | 4-Way Flat |
| Side Application Type Description | Blank |
| T-Connector Location | P3,P4 |
| Tail Light Circuits | 7.5 Amps |
| Turn and Brake Circuits | 7.5 Amps |
| Warranty | One-Year Limited Warranty |
CURT offers a variety of high-quality trailer hitches and accessories for select vehicle models. Find the perfect fit for your towing needs at TowUniverse.
CURT, a Lippert brand, offers a complete line of towing products and is the leading manufacturer of custom-fit trailer hitches. We offer the broadest selection of custom-fit hitches, and each one is designed, welded, and coated in Wisconsin.
CURT is also a leader in flat towing products, as well as 5th wheel, gooseneck, and weight distribution hitches, ball mounts, electrical components, cargo solutions, and other towing accessories.
For everything from passenger cars and vans to full-size pickups and SUVs, CURT is 'The First Name in Towing Products®.'
Experts available to answer your questions
Call 888-634-94941 compatible vehicles
| Year | Make & Model | Notes |
|---|---|---|
| 2011 - 2015 | Chevrolet Cruze | Sedan, excluding diesel |
Yes, the 11-15 Chevrolet Cruze Sedan, excluding diesel CURT 4-flat Plug and Play Trailer Wiring (Part #CTW335) is designed to fit the 2011-2015 Chevrolet Cruze.
The 11-15 Chevrolet Cruze Sedan, excluding diesel CURT 4-flat Plug and Play Trailer Wiring (Part #CTW335) fits 2011-2015 Chevrolet Cruze models. The 2015 model year is the last year covered by this part number. For newer models, check for an updated version.
The 11-15 Chevrolet Cruze Sedan, excluding diesel CURT 4-flat Plug and Play Trailer Wiring (Part #CTW335) fits the following vehicles: 2011-2015 Chevrolet Cruze. Always verify your specific year, make, and model before ordering.
The 11-15 Chevrolet Cruze Sedan, excluding diesel CURT 4-flat Plug and Play Trailer Wiring (Part #CTW335) Refer to the included instructions for installation details. Basic hand tools are typically all you need.

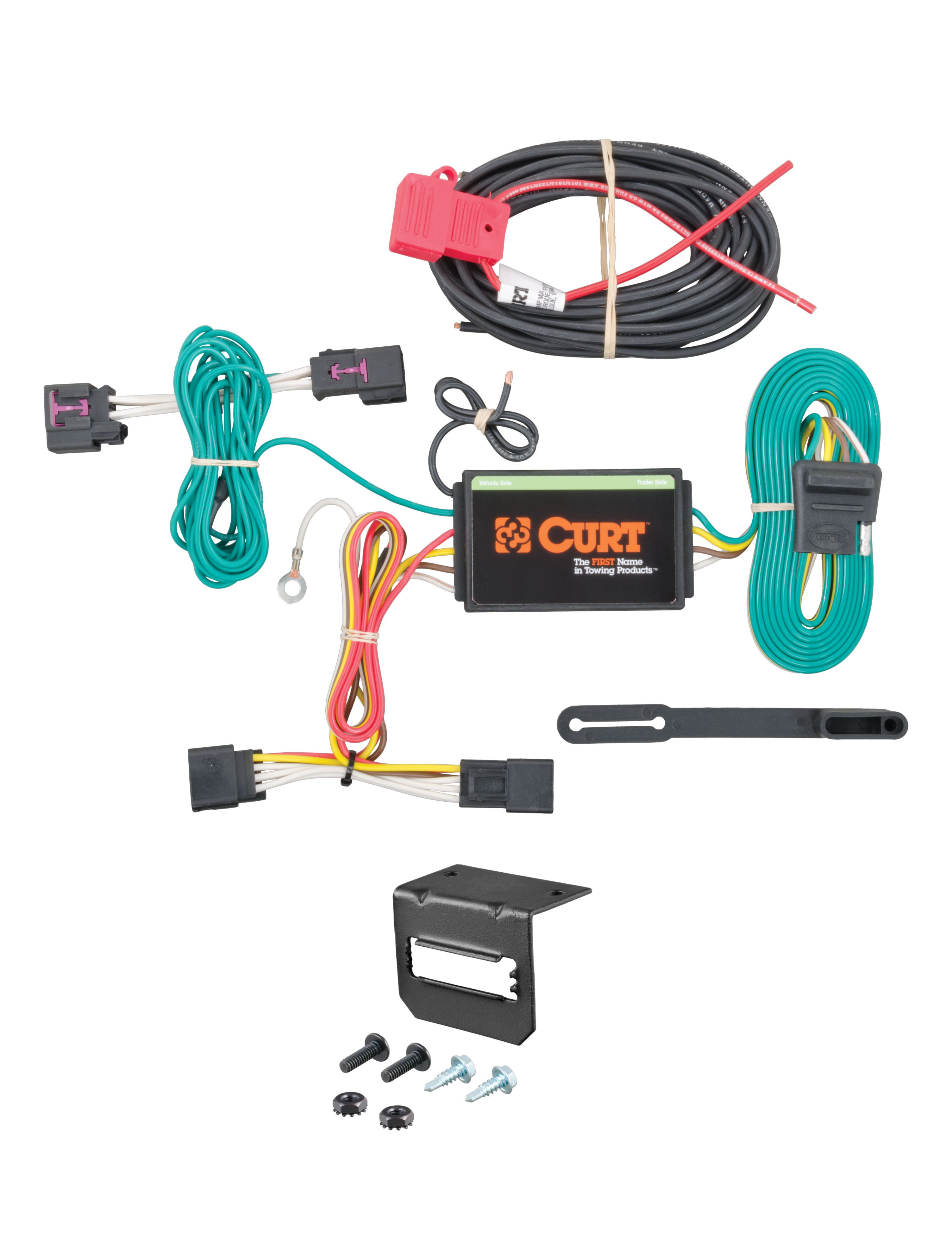

Yes, the T-Connector with Install Kit (part number 56214) is designed for the Chevrolet Cruze.
Yes, you must disconnect the negative battery terminal before beginning installation. This is a required safety step performed early in the installation process.
The vehicle's wiring harness connectors are located in the trunk behind the taillight in positions P3 and P4, as shown in the Wiring Location Guide. On the driver's side, pull back the felt trunk liner to locate the taillight wiring harness connectors.
Remove the spare tire cover, then remove the two plastic push fasteners on the rear scuff panel and pull the scuff panel out at the bottom and then up. Also remove the plastic push fastener holding the felt trunk liner in place and pull back the felt liner to access the taillight wiring harness connectors.
Separate the vehicle's taillight wiring harness connectors from the taillight housing, taking care not to damage the locking tabs. Insert the T-Connector end with the yellow wire between the separated connectors. Make sure the connectors are fully inserted with locking tabs in place.
Yes, you must drill a 3/32" pilot hole for the ground screw, unless a suitable existing screw with nut is available in the vehicle's frame near the connector. Before drilling, verify that miscellaneous items hidden behind or under surfaces will not be damaged.
Drill a 3/32" pilot hole for the provided ground screw. The drilling area should be free of rust, dirt or paint.
Locate a suitable grounding point near the connector, such as an existing screw with nut in the vehicle's frame, or drill a 3/32" pilot hole for the provided screw. The area should be free of rust, dirt or paint. Secure the white ground wire using the ring terminal and screw provided.
Yes, the installation requires T-Connectors on both sides. After installing the yellow-wire T-Connector on the driver's side, route the green-wire T-Connector to the passenger side behind the removed scuff panels and repeat the connection steps on the passenger side.
Inside the vehicle, locate a flat spot and adhere the black converter box using the double-sided tape provided.
The battery connection must be fuse protected with a maximum of 10 amps. Exceeding this rating can cause loss of warranty, overheating and potential fire.
Signal Circuits: 7.5 amps per side. Tail/Running Circuits: 7.5 amps total. Do not exceed the tow vehicle's lamp load rating or the product rating, whichever is lower.
Route the 4-flat wire to the center of the vehicle when in use. When not in use, roll it up and store in a convenient, out-of-the-way location.
Reinstall all items removed during installation, then connect the negative battery terminal.
Before drilling, verify that miscellaneous items hidden behind or under any surface will not be damaged. This is necessary to avoid damage to vehicle components and personal injury.
Exceeding the product rating can cause loss of warranty, overheating and potential fire. Do not exceed the tow vehicle's lamp load rating or the product rating (Signal Circuits 7.5 amps per side, Tail/Running Circuits 7.5 amps total), whichever is lower.
The Curt 56214 T-Connector with Install Kit is designed for the Chevrolet Cruze.
Yes, disconnect the negative battery terminal before starting installation.
Yes, you must drill a 3/32" pilot hole for the ground screw unless an existing screw with nut is available in the vehicle frame.
The battery connection must be fuse protected with a maximum of 10 amps.
Signal Circuits: 7.5 amps per side. Tail/Running Circuits: 7.5 amps total. Do not exceed the tow vehicle's lamp load rating or the product rating, whichever is lower.
