B&W 10K 5" Drop 5.5" Rise ( 1-7/8" , 2-5/16" Balls) Adjustable Ball Mount Hitch For 2" Recievers TS10048BB&W Trailer Hitches$279.00In Stock
View productAsk a Question About This Product
Our in-house experts typically reply within one business day.
Our in-house experts typically reply within one business day.
CURT
Verify Fitment
Select your vehicle to confirm this part fits.
2011 - 2017 Volkswagen Touareg
Confirmed to Fit
Always the correct part
We know our products
Quality Products
Free Shipping!
Always the correct part
We know our products
Quality Products
Free Shipping!
Select your vehicle to find the exact plug-and-play parts that fit — no cutting or splicing.
| Finish | GLOSS BLACK POWDER COAT |
| Main Body Shape | Square |
| Material | Carbon Steel |
| Mount Type Description | Blank |
| Receiver Tube Size | 2 IN |
| Side Application Type Description | Blank |
| Tongue Weight (TW) | 750 LB |
| Warranty | Limited Lifetime Warranty (One-Year Finish, One-Year Parts) |
| Weight Carrying Capacity (WC) | 7,500 LB |
| Weight Distribution (WD) | n/a |
| Weight Distribution Tongue Weight (WDTW) | n/a |
| Side Application Type Description | Blank |
| Tongue Weight (TW) | 350 LB |
| Warranty | Limited Lifetime Warranty (One-Year Finish, One-Year Parts) |
| Drop | 3-1/4 IN |
| Finish | GLOSS BLACK POWDER COAT |
| Gross Trailer Weight (GTW) | 3,500 LB |
| Material | Blank |
| Mount Type Description | Blank |
CURT offers a variety of high-quality trailer hitches and accessories for select vehicle models. Find the perfect fit for your towing needs at TowUniverse.
CURT, a Lippert brand, offers a complete line of towing products and is the leading manufacturer of custom-fit trailer hitches. We offer the broadest selection of custom-fit hitches, and each one is designed, welded, and coated in Wisconsin.
CURT is also a leader in flat towing products, as well as 5th wheel, gooseneck, and weight distribution hitches, ball mounts, electrical components, cargo solutions, and other towing accessories.
For everything from passenger cars and vans to full-size pickups and SUVs, CURT is 'The First Name in Towing Products®.'
Experts available to answer your questions
Call 888-634-94941 compatible vehicles
| Year | Make & Model | Notes |
|---|---|---|
| 2011 - 2017 | Volkswagen Touareg | — |

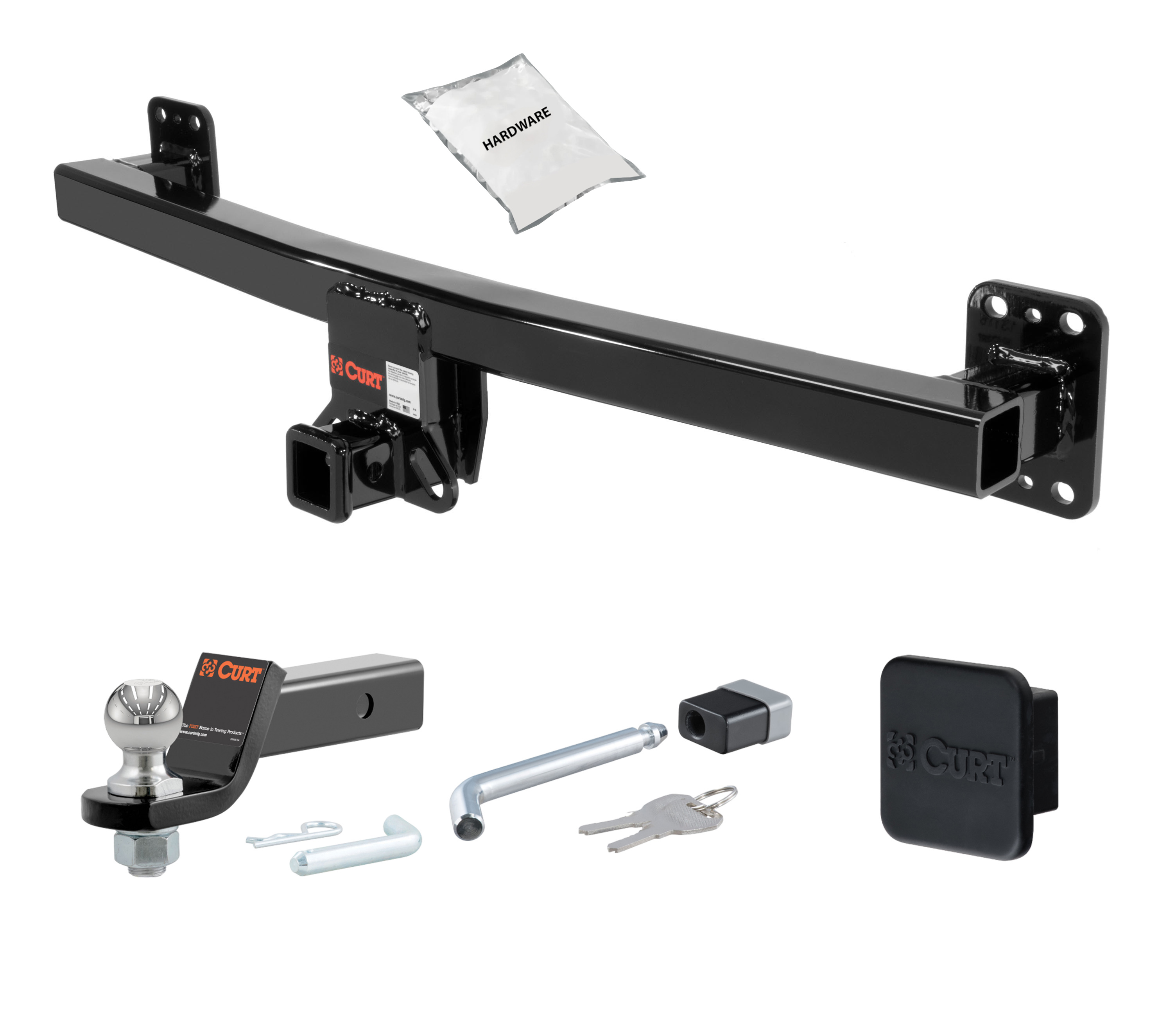

The 11 - 17 Volkswagen Touareg 2in. CURT Trailer Hitch + Ball Mount + Cover + Lock Kit HWA2522 (Part #HWA2522) fits the following vehicles: 2011-2017 Volkswagen Touareg. Always verify your specific year, make, and model before ordering.
Yes, the 11 - 17 Volkswagen Touareg 2in. CURT Trailer Hitch + Ball Mount + Cover + Lock Kit HWA2522 (Part #HWA2522) is designed to fit the 2011-2017 Volkswagen Touareg.
The 11 - 17 Volkswagen Touareg 2in. CURT Trailer Hitch + Ball Mount + Cover + Lock Kit HWA2522 (Part #HWA2522) fits 2011-2017 Volkswagen Touareg models. The 2017 model year is the last year covered by this part number. For newer models, check for an updated version.
The 11 - 17 Volkswagen Touareg 2in. CURT Trailer Hitch + Ball Mount + Cover + Lock Kit HWA2522 (Part #HWA2522) Refer to the included instructions for installation details. Basic hand tools are typically all you need.
Yes. CURT part number 13116 is designed for 2011-present Volkswagen Touareg and Porsche Cayenne SUVs. The hitch replaces the factory bumper beam and requires removal of the bumper cover, mud flaps, wheel well trim, and tail lights.
Yes. CURT part number 13116 fits 2011-present Porsche Cayenne SUVs. The installation procedure for tail light removal differs from the Volkswagen Touareg: on the Cayenne, you remove a panel on the left side of the light, then remove the panel cover to access the nuts inside the tail light.
The CURT 13116 is rated for a maximum trailer weight of 7,500 lbs and a tongue weight of 750 lbs when used as a weight-carrying hitch. However, you must never exceed your vehicle manufacturer's recommended towing capacity, which may be lower than these ratings.
You will need: T-15, T-25, and T-30 Torx bit sockets; 11mm and 18mm sockets; a ratchet; a torque wrench; a small punch; a flat head screwdriver; and safety glasses. The manual notes that using proper tools will greatly improve the quality of the install and reduce the time required.
No. The CURT 13116 requires no drilling. The hitch replaces the factory bumper beam and uses the existing M12 bolt holes from the vehicle frame.
Two people may be required to ease installation. The manual lists this as an installation tip and rates the difficulty level as challenging, so having a second person available is recommended.
Yes. The manual rates the installation difficulty as challenging. It requires removal of the bumper cover, mud flaps, wheel well trim, and tail lights before the factory bumper beam can be removed and replaced with the hitch. The manual recommends reading all instructions thoroughly before beginning and suggests contacting an authorized CURT installer if you are hesitant to undertake the task.
The first step is to remove the four torx head fasteners that attach the bottom rear portion of the bumper cover to the vehicle. Before beginning any work, the manual requires that you read all instructions thoroughly and wear safety glasses at all times.
Remove the mud flap from behind each rear tire by unfastening five torx head screws from each flap. Note that the underside fasteners have a nut attached, so you will need to account for these when removing the flap.
First, remove the fastener that holds the wheel well trim to the fascia. Then carefully pop off the wheel well trim. Note that only the rear half of the trim needs to be removed. After this, remove four torx head fasteners from under the wheel well trim.
On a VW Touareg, remove the vehicle tail lights by loosening the nut from inside the vehicle using an 11mm socket. The driver side nut is accessible through a circular plastic clip and the passenger side through a rectangular clip. Carefully slide the light out and unfasten the electrical clip.
On a Porsche Cayenne, remove the panel on the left side of the light. Then remove the panel cover to reveal the nuts on the inside of the tail light. Remove the nuts and carefully slide out the light and unfasten the electrical clip.
After tail light removal, remove two torx head fasteners and one push fastener from each side. To remove the push fastener, use a small punch or equivalent to push the center of the push fastener down, then pry it up.
Carefully remove the bumper cover by popping the sides off first, then pulling it straight back. This step comes after all the fasteners and trim pieces have been removed.
Remove the foam insert first. Then remove the bumper beam by unfastening eight M12 bolts. These bolts will be reused to install the hitch. The foam insert can be discarded or trimmed and reinstalled if desired.
Install the hitch using the M12 bolts removed in step 8. The foam insert can be discarded or trimmed and reinstalled. If reinstalling the foam, trim it so it loosely fits into position. Do not torque the fasteners at this stage.
Torque all M12 fasteners to 82 ft-lbs. This is the final step after the hitch is installed and all components removed in steps 1-7 have been reinstalled.
The final step is to torque all M12 fasteners to 82 ft-lbs and reinstall all components that were removed in steps 1-7. This includes the bumper cover, mud flaps, wheel well trim, and tail lights.
Safety glasses should be worn at all times while installing this product. Additionally, never exceed your vehicle manufacturer's recommended towing capacity when using the hitch.
All non-trailer loads applied to this hitch must be supported by auxiliary stabilizing straps. Failure to properly support non-trailer loads will void the product warranty.
Periodically check the receiver hitch to ensure that all fasteners are tight and that all structural components are sound. This inspection should be performed regularly throughout the life of the product.
CURT Manufacturing warrants this product to be free of defects in material and/or workmanship at the time of retail purchase by the original purchaser. If the product is found to be defective, CURT may repair or replace the product at their option when returned prepaid with proof of purchase. Alteration to, misuse, or improper installation voids the warranty.
Yes. This product complies with safety specifications and requirements for connecting devices and towing systems of the state of New York, V.E.S.C. Regulation V-5 and SAE J684.
Yes. The CURT 13116 is designed for 2011-present Volkswagen Touareg and Porsche Cayenne SUVs. It replaces the factory bumper beam with no drilling required.
Maximum 7,500 lbs trailer weight and 750 lbs tongue weight. Never exceed your vehicle manufacturer's recommended towing capacity.
T-15, T-25, T-30 Torx sockets; 11mm and 18mm sockets; ratchet; torque wrench; small punch; flat head screwdriver; and safety glasses.
No. The CURT 13116 requires no drilling. It uses existing M12 bolt holes from the factory bumper beam location.
Torque all M12 fasteners to 82 ft-lbs. This is performed as the final installation step after all components are reinstalled.
Wear safety glasses at all times during installation. Never exceed vehicle manufacturer's towing capacity. All non-trailer loads must be supported by auxiliary stabilizing straps.
Periodically check that all fasteners are tight and all structural components are sound. Retorque fasteners as needed.
