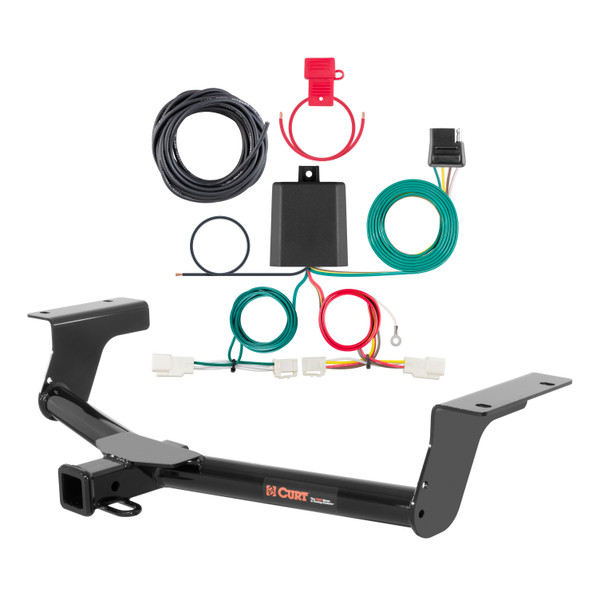

Complete CURT Class 3 2" trailer hitch and 4-flat custom wiring kit engineered for the 2013 - 2018 Toyota RAV4. Vehicle-specific fit, plug-and-play installation, all hardware and instructions included.
This custom kit fits the following vehicles:
All Hardware and Installation Instructions Included!
Whatever your task at hand -- whether it's launching that boat before daybreak, setting up your camper before the rush or getting a final load to the dump before close -- CURT class 3 trailer hitches offer the strength needed for serious towing. They make it easy to hitch up and Bring It, offering a vehicle-specific fit and the weight capacity to handle a variety of trailers. Custom class 3 hitches are the most common type of receiver hitch for pickup trucks and SUVs. Because of their weight range, they are also found on full-size cars, crossovers and minivans. Each custom-fit class 3 hitch package is made for vehicle-specific mounting. This particular kit fits certain years of the Toyota RAV4 (see application info to verify vehicle compatibility). It provides a weight carrying capacity of 3,500 lbs. GTW and 525 lbs. TW. It is also compatible with a weight distribution hitch for level towing and a rating of 4,000 lbs. WD and 525 lbs. WDTW. CURT class 3 trailer hitches are typically used to attach and haul utility trailers, boat trailers, campers, snowmobile or ATV haulers and more (NOTE: Never exceed the lowest-rated towing component). Each class 3 hitch has a 2" receiver tube and is tested in accordance with SAE J684 for safety. To ensure that CURT class 3 receiver hitches have what it takes for serious trailering, they are designed using a hands-on approach and are constructed with rugged, high-strength steel and precise welding. We also protect our class 3 hitches in a co-cured finish of liquid A-coat and black powder coat for superior resistance to rust, chipping and UV damage.
If your vehicle is not equipped with wiring for towing a trailer, CURT custom wiring is the ideal solution. A custom wiring harness -- also called a T-connector -- is a simple, plug-and-play electrical device that plugs into your automotive electric system and provides a standard, universal trailer wiring connection. This is done using two or more vehicle-specific, OEM-compatible connectors to plug into the taillight assembly, eliminating the need for cutting, splicing and soldering during installation. Custom wiring harnesses are made vehicle-specific, and while they are not available for all vehicles, they do offer one of the fastest, easiest and most secure ways to wire a vehicle for towing. This particular plug-in harness provides a 4-way flat connector socket and is designed to be a custom wiring harness to fit certain years of the Toyota Avalon, Toyota RAV4 and Lexus ES300h (to verify your vehicle compatibility, see application info). It comes with all necessary wiring components to establish a reliable trailer wiring connection, as well as a dust cover to keep the connector clean when not in use. You have a picture in mind of your next destination -- maybe it's the boat landing at your favorite fishing spot, maybe it's a campsite that overlooks one of nature's masterpieces, or maybe it's the next big jobsite. However, turning that picture into a reality takes more than just daydreaming. It takes a solid connection and the right amount of power. CURT custom wiring is made with some of the most sophisticated technology in the industry and is designed to install with ease, giving you a long-lasting electrical connection for your towing hitch setup.
CURT offers a variety of high-quality trailer hitches and accessories for select vehicle models. Find the perfect fit for your towing needs at TowUniverse.
CURT, a Lippert brand, offers a complete line of towing products and is the leading manufacturer of custom-fit trailer hitches. We offer the broadest selection of custom-fit hitches, and each one is designed, welded, and coated in Wisconsin.
CURT is also a leader in flat towing products, as well as 5th wheel, gooseneck, and weight distribution hitches, ball mounts, electrical components, cargo solutions, and other towing accessories.
For everything from passenger cars and vans to full-size pickups and SUVs, CURT is 'The First Name in Towing Products®.'
Experts available to answer your questions
Call 888-634-94941 compatible vehicles
| Year | Make & Model | Notes |
|---|---|---|
| 2013 - 2018 | Toyota RAV4 | — |
This complete kit (Part #13149) is specifically designed for 2013-2018 Toyota RAV4 models. It includes the Class 3 hitch with 2" receiver, all mounting hardware, and the 4-flat wiring harness for a custom vehicle-specific fit. The kit comes with detailed installation instructions for both the hitch and wiring components.
Absolutely! Your 2018 RAV4 falls within the 2013-2018 compatibility range for this kit (Part #13149). This Class 3 hitch provides 3,500 lbs gross trailer weight capacity and 525 lbs tongue weight, with the option to use a weight distribution system for up to 4,000 lbs. The included 4-flat wiring harness will plug directly into your vehicle's taillight assembly.
Yes, your 2016 RAV4 is perfectly compatible with this kit (Part #13149). The hitch is engineered with a custom fit for 2013-2018 Toyota RAV4 models and features CURT's durable high-gloss black powder coat finish with limited lifetime warranty. The 2" receiver tube will handle utility trailers, boat trailers, campers, and more within the weight ratings.
This is a vehicle-specific kit designed for straightforward installation with basic hand tools. The wiring harness features a plug-and-play design that connects to your taillight assembly without cutting or splicing wires. Complete installation instructions are included for both the hitch mounting and wiring connection, and all necessary hardware comes in the box.
Yes, part number 13149 fits Toyota RAV4 models from 2006 to current, excluding electric models. The hitch is designed for the compact SUV body style.
No. Curt part number 13149 is specifically designed for Toyota RAV4 models excluding electric versions.
The hitch weight is 30 lbs.
When used as a weight carrying hitch, the gross load capacity is 3,500 lbs trailer weight and 525 lbs tongue weight. However, you must not exceed your vehicle manufacturer's recommended towing capacity.
When used as a weight distribution hitch, the gross load capacity is 4,000 lbs trailer weight and 525 lbs tongue weight. You must not exceed your vehicle manufacturer's recommended towing capacity.
The hitch includes 4 hex cap screws (HHCS, M12x1.25, 35mm, class 10.9, zinc-plated, part number 10-10275) and 4 conical tooth washers (part number 30-00149, 1/2 inch, zinc-plated).
You will need a 17mm socket, 19mm socket, 8-inch extension, socket wrench, ratchet, torque wrench, pipe brush, and safety glasses. A torque wrench is essential for final tightening to the specified 86 lb-ft.
No. The Curt 13149 requires no drilling. It uses existing weldnuts on both the driver and passenger side frame rails.
Two people may be required to ease installation, though the manual does not state that a second person is mandatory. If you are hesitant to undertake the task on your own, contact an authorized Curt installer for assistance.
Professional installation takes approximately 15 minutes. Novice (DIY) installation takes approximately 30 minutes.
Yes. You must remove the tie-down bracket from the driver's side frame rail using a 17mm socket, 8-inch extension, and ratchet. Return the bracket and fasteners to the vehicle owner.
Yes. Lower the rearmost exhaust isolator for ease of installation. After installing the hitch, raise the exhaust back into location and reinstall the rubber isolator.
1. Remove panel trim and tie-down bracket from driver's side frame rail. 2. Lower the rearmost exhaust isolator. 3. Raise hitch into position over existing weldnuts and install the 12mm hex bolts and conical tooth washers. 4. Raise exhaust back into location and reinstall rubber isolator. 5. Torque hardware to 86 lb-ft.
Yes. Clean existing weldnuts using a pipe brush before installation to ensure proper fastener seating.
Torque all hardware to 86 lb-ft. This applies to the four M12x1.25 hex cap screws that secure the hitch to the frame rail weldnuts.
Wear safety glasses at all times while installing this product. Before you begin installation, read all instructions thoroughly. If you are hesitant to undertake this task on your own, contact an authorized Curt installer for additional assistance.
Never exceed your vehicle manufacturer's recommended towing capacity. The Curt 13149 has a gross load capacity of 3,500 lbs trailer weight and 525 lbs tongue weight when used as a weight carrying hitch, or 4,000 lbs trailer weight and 525 lbs tongue weight when used as a weight distribution hitch, but your vehicle's manufacturer limits may be lower.
Periodically check the receiver hitch to ensure that all fasteners are tight and that all structural components are sound. This maintenance is important for safe towing.
The manual states you should periodically check the receiver hitch to ensure all fasteners are tight and all structural components are sound, but does not specify an exact interval. Regular inspection before towing is recommended.
Yes. Curt Manufacturing warrants this product to be free of defects in material and/or workmanship at the time of retail purchase by the original purchaser. If the product is found to be defective, Curt Manufacturing may repair or replace the product at their option when the product is returned, prepaid, with proof of purchase. Alteration to, misuse of, or improper installation of this product voids the warranty.
Yes. The Curt 13149 fits Toyota RAV4 models from 2006 to current, excluding electric versions.
No. The hitch uses existing weldnuts on the frame rails. No drilling is required.
You will need 17mm and 19mm sockets, an 8-inch extension, a ratchet, a torque wrench, a pipe brush, and safety glasses.
Torque all fasteners to 86 lb-ft.
Weight carrying: 3,500 lbs trailer, 525 lbs tongue. Weight distribution: 4,000 lbs trailer, 525 lbs tongue. Never exceed your vehicle manufacturer's recommended towing capacity.
Yes, the Curt 56350 custom wiring harness is designed for Toyota Avalon. The installation accesses the taillight wiring connectors through the trunk by removing the trunk floor covering, rear cargo area cover, and rear scuff panel.
Yes, the Curt 56350 custom wiring harness is designed for Toyota RAV4. The installation accesses the taillight wiring connectors through the rear cargo area by removing the tailgate, trunk floor covering, rear cargo area cover, rear scuff panel, and rear trim panels.
The Curt 56350 is designed for Toyota Avalon and Toyota RAV4 models.
You will need: 10mm socket, ratchet, panel trim removal tool, and Phillips screwdriver. These tools are required to remove trim panels, fasteners, and screws during installation.

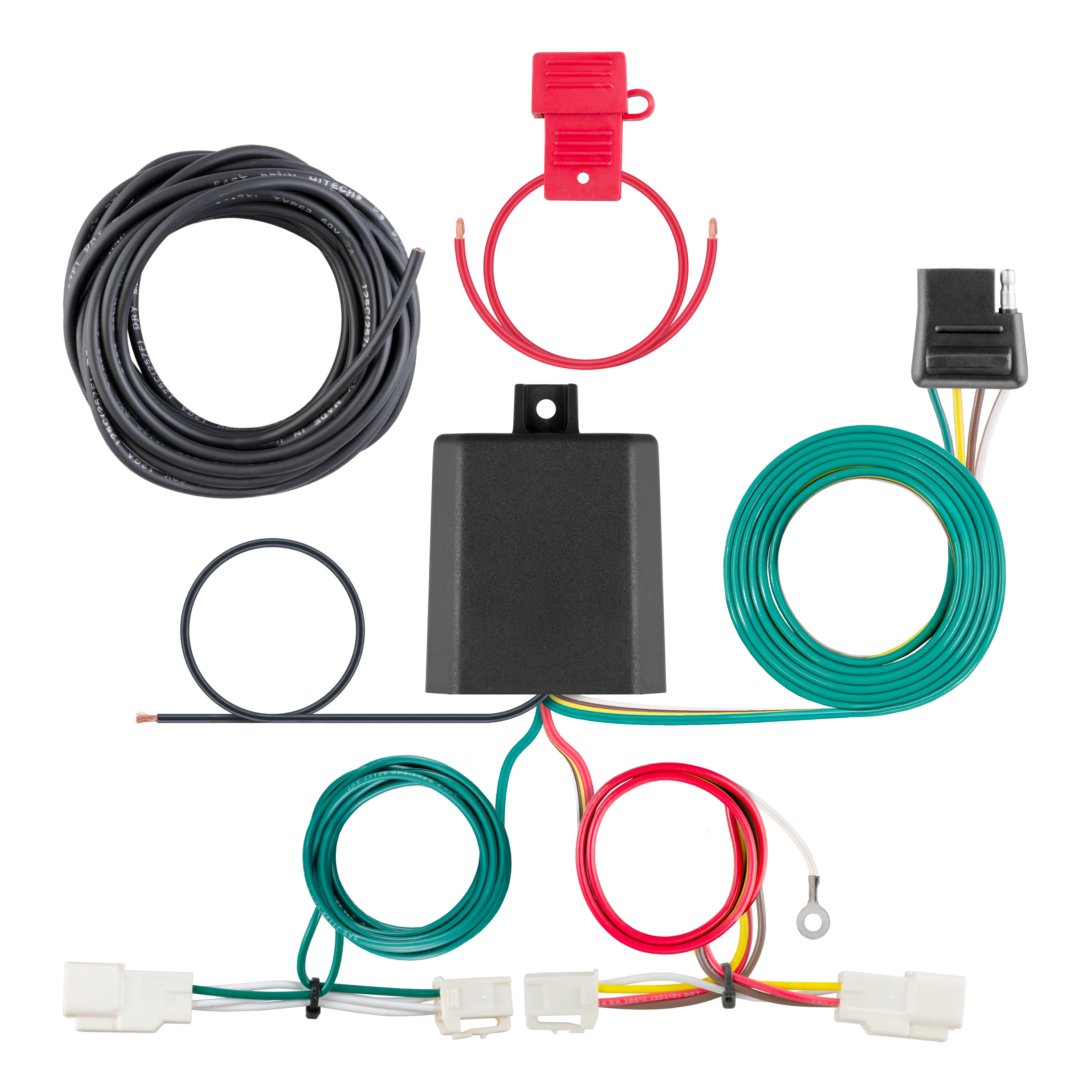

The kit includes a screw and ring terminal for grounding, double-sided tape for mounting the converter box, cable ties for securing wires, and a 4-flat dust cover.
Yes. Step 1 requires you to locate the vehicle battery on the driver side under the hood and disconnect the negative battery terminal before beginning installation.
Yes, you must disconnect the negative battery terminal before starting installation.
Open the tailgate and remove the trunk floor covering and rear cargo area cover. Remove the rear scuff panel by pulling out on the bottom and then up. Remove fasteners from the plastic cargo tray on the driver side. Remove the rear cargo loop, Phillips screws, and 10mm bolt holding the rear trim panel. Pull back on the top and bottom rear trim to locate the taillight wiring harness connectors.
Open the trunk and remove the trunk floor covering and rear cargo area cover. Remove the two fasteners securing the rear scuff panel. Remove the scuff panel by pulling out on the bottom and then up. Pull back the felt liner to locate the taillight wiring harness connectors.
Separate the vehicle taillight wiring harness connectors from the taillight housing, taking care not to damage the locking tabs. Insert the custom wiring harness end with the yellow wire (driver side) or green wire (passenger side) between the separated connectors. Make sure the connectors are fully inserted with locking tabs in place.
Mount the converter box on a flat, clean surface that is out of the path of spray and debris from the rear wheels and road. Use the provided double-sided tape to adhere it. Failure to mount in a protected area can cause loss of warranty, product failure, overheating, and potential fire.
You may need to drill a 3/32" pilot hole if a suitable existing grounding point is not available. Look for an existing screw with nut in the vehicle frame near the connector. If drilling, check for miscellaneous items that may be hidden behind or under any surface to avoid damage and personal injury. The area should be free of rust, dirt, and paint before securing the white ground wire using the ring terminal and provided screw.
Drilling may be required for the ground wire. A 3/32" pilot hole is needed only if an existing screw with nut in the vehicle frame is not available as a grounding point.
The battery connection must be fuse-protected with a maximum of 10 amps. Exceeding this rating can cause loss of warranty, overheating, and potential fire.
Signal circuits are rated at 3.0 amps per side. Tail and running circuits are rated at 6.0 amps total. Do not exceed the product rating or the tow vehicle lamp load rating, whichever is lower.
The yellow wire end connects to the driver side taillight connectors. The green wire end connects to the passenger side taillight connectors. The white wire is the ground wire, which must be secured to a grounding point using the provided ring terminal and screw. The black converter box contains the power conversion circuitry.
When in use, route the 4-flat to the center of the vehicle. When not in use, roll it up and store in a convenient, out-of-the-way location. Secure any loose wires with the provided cable ties.
Do not exceed the product rating or the tow vehicle lamp load rating, whichever is lower. Exceeding the product rating can cause loss of warranty, overheating, and potential fire. Check your vehicle owner's manual or contact the vehicle manufacturer for the specific lamp load rating of your vehicle.
Do not exceed the product rating or tow vehicle lamp load rating, whichever is lower. Check your vehicle owner's manual for your specific lamp load rating.
All installation steps must be followed to ensure the wiring harness functions properly. Once installed, test for proper function by using a test light or by connecting a properly wired trailer.
Test for proper function using a test light or by connecting a properly wired trailer.
Reinstall all items removed during installation and reconnect the negative battery terminal. Install the provided 4-flat dust cover to help prevent corrosion.
The Curt 56350 is a custom wiring harness designed for Toyota Avalon and Toyota RAV4 vehicles. It provides signal circuits (3.0 amps per side) and tail/running circuits (6.0 amps total) for trailer lighting. The harness includes a black converter box, wiring with color-coded ends for driver and passenger sides, a ground wire with ring terminal, mounting tape, cable ties, and a 4-flat dust cover.
