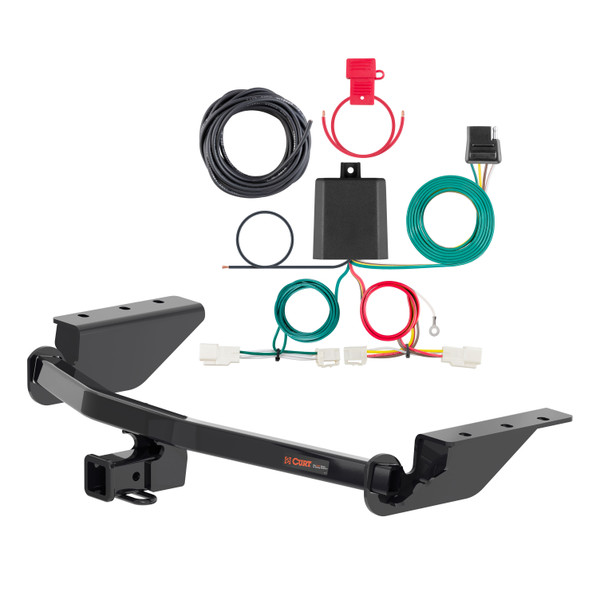

Complete CURT Class 3 2" trailer hitch and 4-flat custom wiring kit engineered for the 2013 - 2018 Toyota RAV4. Vehicle-specific fit, plug-and-play installation, all hardware and instructions included.
This custom kit fits the following vehicles:
All Hardware and Installation Instructions Included!
Whatever your task at hand -- whether it's launching that boat before daybreak, setting up your camper before the rush or getting a final load to the dump before close -- CURT class 3 trailer hitches offer the strength needed for serious towing. They make it easy to hitch up and Bring It, offering a vehicle-specific fit and the weight capacity to handle a variety of trailers. Custom class 3 hitches are the most common type of receiver hitch for pickup trucks and SUVs. Because of their weight range, they are also found on full-size cars, crossovers and minivans. Each custom-fit class 3 hitch package is made for vehicle-specific mounting. This particular kit fits certain years of the Toyota RAV4 (see application info to verify vehicle compatibility). It provides a weight carrying capacity of 3,500 lbs. GTW and 350 lbs. TW. CURT class 3 trailer hitches are typically used to attach and haul utility trailers, boat trailers, campers, snowmobile or ATV haulers and more (NOTE: Never exceed the lowest-rated towing component). Each class 3 hitch has a 2" receiver tube and is tested in accordance with SAE J684 for safety. To ensure that CURT class 3 receiver hitches have what it takes for serious trailering, they are designed using a hands-on approach and are constructed with rugged, high-strength steel and precise welding. We also protect our class 3 hitches in a co-cured finish of liquid A-coat and black powder coat for superior resistance to rust, chipping and UV damage.
If your vehicle is not equipped with wiring for towing a trailer, CURT custom wiring is the ideal solution. A custom wiring harness -- also called a T-connector -- is a simple, plug-and-play electrical device that plugs into your automotive electric system and provides a standard, universal trailer wiring connection. This is done using two or more vehicle-specific, OEM-compatible connectors to plug into the taillight assembly, eliminating the need for cutting, splicing and soldering during installation. Custom wiring harnesses are made vehicle-specific, and while they are not available for all vehicles, they do offer one of the fastest, easiest and most secure ways to wire a vehicle for towing. This particular plug-in harness provides a 4-way flat connector socket and is designed to be a custom wiring harness to fit certain years of the Toyota Avalon, Toyota RAV4 and Lexus ES300h (to verify your vehicle compatibility, see application info). It comes with all necessary wiring components to establish a reliable trailer wiring connection, as well as a dust cover to keep the connector clean when not in use. You have a picture in mind of your next destination -- maybe it's the boat landing at your favorite fishing spot, maybe it's a campsite that overlooks one of nature's masterpieces, or maybe it's the next big jobsite. However, turning that picture into a reality takes more than just daydreaming. It takes a solid connection and the right amount of power. CURT custom wiring is made with some of the most sophisticated technology in the industry and is designed to install with ease, giving you a long-lasting electrical connection for your towing hitch setup.
CURT offers a variety of high-quality trailer hitches and accessories for select vehicle models. Find the perfect fit for your towing needs at TowUniverse.
CURT, a Lippert brand, offers a complete line of towing products and is the leading manufacturer of custom-fit trailer hitches. We offer the broadest selection of custom-fit hitches, and each one is designed, welded, and coated in Wisconsin.
CURT is also a leader in flat towing products, as well as 5th wheel, gooseneck, and weight distribution hitches, ball mounts, electrical components, cargo solutions, and other towing accessories.
For everything from passenger cars and vans to full-size pickups and SUVs, CURT is 'The First Name in Towing Products®.'
Experts available to answer your questions
Call 888-634-94941 compatible vehicles
| Year | Make & Model | Notes |
|---|---|---|
| 2013 - 2018 | Toyota RAV4 | — |
The 13 - 18 Toyota RAV4 Curt 2", Class 3 Trailer Tow Hitch + 4-flat Wiring Kit 13406 (Part #CHW-2921) fits the following vehicles: 2013-2018 Toyota RAV4. Always verify your specific year, make, and model before ordering.
Yes, the 13 - 18 Toyota RAV4 Curt 2", Class 3 Trailer Tow Hitch + 4-flat Wiring Kit 13406 (Part #CHW-2921) is designed to fit the 2013-2018 Toyota RAV4.
The 13 - 18 Toyota RAV4 Curt 2", Class 3 Trailer Tow Hitch + 4-flat Wiring Kit 13406 (Part #CHW-2921) fits 2013-2018 Toyota RAV4 models. The 2018 model year is the last year covered by this part number. For newer models, check for an updated version.
The 13 - 18 Toyota RAV4 Curt 2", Class 3 Trailer Tow Hitch + 4-flat Wiring Kit 13406 (Part #CHW-2921) Refer to the included instructions for installation details. Basic hand tools are typically all you need.
Yes, CURT part number 13406 is designed for 2013–2018 Toyota RAV4 SUVs. However, installation steps differ between 2013–2015 and 2016–2018 models. The 2016–2018 installation requires removal of underbody panels, recovery loop bracket, and lowering of the exhaust, while 2013–2015 models require bending of frame tabs. Confirm your model year before beginning installation.
The CURT 13406 is rated for a maximum trailer weight of 3,500 lbs and a tongue weight of 350 lbs when used as a weight-carrying hitch. You must never exceed your vehicle manufacturer's recommended towing capacity. Always verify that your vehicle and trailer combination does not exceed these limits.
Required tools are: torque wrench, ratchet, 10mm socket, 17mm socket, 19mm socket, 6-inch socket extension, flat screwdriver, utility knife, aviator shears, tape measure, marker, and safety glasses. Proper tools will greatly improve the quality of the installation and reduce installation time.
The kit includes: 5 washers (S-CON, 1/2, YZ, part number 30-00149), 5 hex head cap screws M12×1.25×40 CL10.9 YZ (part number 10-10277), and 2 cable ties 11/64×15" 50# UV black (part number CM-116415-CT). The bolts and washers attach the hitch to the vehicle frame using existing weldnuts. Cable ties are used to secure the kick sensor to the hitch cross tube on 2016–2018 models.
No, drilling is not required. The hitch uses existing weldnuts on the vehicle frame rails for attachment. However, trimming of the lower fascia and underbody panels is required.
Two people may be required to ease installation. If you are hesitant to undertake this task on your own, contact an authorized CURT installer for additional assistance. Technical support is available at 1-877-287-8634.
Yes, trimming of the lower fascia is required on all 2013–2018 RAV4 models. For 2013–2015 models, locate the center of the fascia and mark a 4-inch-wide area centered horizontally and 1 inch up from the lower edge, then trim as needed. For 2016–2018 models, mark a 4-inch-wide area centered horizontally and 1¾ inches up from the lower edge. Before trimming, ensure no wires are in the way. Use a utility knife or aviator shears to trim.
Yes. If present, remove the driver side underbody panel and any panels between the fascia and end panels using a flat screwdriver and 10mm socket. These panels should be returned to the vehicle owner if not being trimmed. After installation, trim and reinstall the underbody panel(s) if reinstalling on the vehicle.
Yes. On 2013–2015 models, bend the frame tab at the end of the frame rearward on both sides to make room for the hitch. This is a permanent modification required for proper fitment.
Yes. On 2016–2018 models, lower the exhaust by lowering the rearmost exhaust isolator while supporting the exhaust. After the hitch is installed and torqued, raise the exhaust back into position and reinstall the exhaust isolator.
1. Remove driver side underbody panel and panels between fascia and end panels (step 6). 2. Remove recovery loop bracket using 17mm socket (step 7). 3. Lower exhaust by lowering rearmost exhaust isolator while supporting it (step 8). 4. Remove kick sensor from lower bumper cover if present (step 9). 5. Trim fascia 4 inches wide centered and 1¾ inches up from lower edge, ensuring no wires are in the way (step 10). 6. Raise hitch into position over exhaust and into bumper cavity; loosely install bolts and washers (step 11). 7. Torque all 12mm bolts to 86 lb-ft (step 12). 8. Reattach kick sensor to hitch cross tube using cable ties (step 13). 9. Raise exhaust and reinstall isolator (step 14). 10. Trim and reinstall underbody panels (step 15).
1. Follow steps 6–9 (which apply to both model years). 2. Trim fascia 4 inches wide centered and 1 inch up from lower edge, ensuring no wires are in the way (step 2). 3. Bend frame tab at the end of the frame rearward on both sides (step 3). 4. Pull fascia tabs away and raise hitch over passenger side exhaust, then slide under fascia into position; gently pull out fascia if needed (step 4). 5. Skip to steps 11–13 and 14–15 as needed.
All 12mm bolts (hex head cap screws M12×1.25×40 CL10.9 YZ) must be torqued to 86 lb-ft. Bolts should be loosely installed first to hold the hitch in place, then torqued to the final specification once the hitch is positioned correctly.
Remove the recovery loop bracket using a 17mm socket and return it to the vehicle owner. This is required to make room for the hitch installation.
If the kick sensor was removed from the lower bumper cover before trimming (to prevent damage), reattach it to the bumper area and secure it to the main cross tube of the hitch using the supplied cable ties (11/64×15" 50# UV black). This applies to 2016–2018 models.
Safety glasses must be worn at all times while installing this product. Before trimming the fascia, ensure no wires are in the way to prevent damage. When lowering the exhaust on 2016–2018 models, support it properly to prevent injury. If you are hesitant to undertake this installation on your own, contact an authorized CURT installer.
Periodically check the receiver hitch to ensure all fasteners are tight and all structural components are sound. This maintenance is important for safe towing operation.
The hands-free, foot-activated power liftgate may only work in limited areas when the hitch is installed. This is a known limitation of the installation and does not indicate a problem with the hitch.
CURT Manufacturing warrants this product to be free of defects in material and/or workmanship at the time of retail purchase by the original purchaser. If the product is found to be defective, CURT may repair or replace it at their option when returned prepaid with proof of purchase. Alteration to, misuse of, or improper installation voids the warranty. CURT's liability is limited to repair or replacement of defective products and excludes liability for incidental or consequential loss or damage.
The CURT 13406 complies with safety specifications and requirements for connecting devices and towing systems of the state of New York, V.E.S.C. Regulation V-5 and SAE J684.
Yes, the CURT 13406 is designed for 2013–2018 Toyota RAV4 SUVs. Installation steps differ between 2013–2015 and 2016–2018 models.
Maximum trailer weight is 3,500 lbs and tongue weight is 350 lbs. Never exceed your vehicle manufacturer's recommended towing capacity.
No drilling is required. The hitch uses existing weldnuts on the vehicle frame rails.
Yes, trimming of the lower fascia is required. For 2013–2015 models, trim 4 inches wide centered and 1 inch up from the lower edge. For 2016–2018 models, trim 4 inches wide centered and 1¾ inches up from the lower edge. Before trimming, ensure no wires are in the way.
All 12mm bolts must be torqued to 86 lb-ft.
Professional installation time is approximately 40 minutes. Novice (DIY) installation time is approximately 20 minutes.
Required tools: torque wrench, ratchet, 10mm/17mm/19mm sockets, 6-inch socket extension, flat screwdriver, utility knife, aviator shears, tape measure, marker, and safety glasses.
Yes, the Curt 56350 custom wiring harness is designed for Toyota Avalon. The installation accesses the taillight wiring connectors through the trunk by removing the trunk floor covering, rear cargo area cover, and rear scuff panel.
Yes, the Curt 56350 custom wiring harness is designed for Toyota RAV4. The installation accesses the taillight wiring connectors through the rear cargo area by removing the tailgate, trunk floor covering, rear cargo area cover, rear scuff panel, and rear trim panels.
The Curt 56350 is designed for Toyota Avalon and Toyota RAV4 models.
You will need: 10mm socket, ratchet, panel trim removal tool, and Phillips screwdriver. These tools are required to remove trim panels, fasteners, and screws during installation.
The kit includes a screw and ring terminal for grounding, double-sided tape for mounting the converter box, cable ties for securing wires, and a 4-flat dust cover.
Yes. Step 1 requires you to locate the vehicle battery on the driver side under the hood and disconnect the negative battery terminal before beginning installation.
Yes, you must disconnect the negative battery terminal before starting installation.
Open the tailgate and remove the trunk floor covering and rear cargo area cover. Remove the rear scuff panel by pulling out on the bottom and then up. Remove fasteners from the plastic cargo tray on the driver side. Remove the rear cargo loop, Phillips screws, and 10mm bolt holding the rear trim panel. Pull back on the top and bottom rear trim to locate the taillight wiring harness connectors.
Open the trunk and remove the trunk floor covering and rear cargo area cover. Remove the two fasteners securing the rear scuff panel. Remove the scuff panel by pulling out on the bottom and then up. Pull back the felt liner to locate the taillight wiring harness connectors.
Separate the vehicle taillight wiring harness connectors from the taillight housing, taking care not to damage the locking tabs. Insert the custom wiring harness end with the yellow wire (driver side) or green wire (passenger side) between the separated connectors. Make sure the connectors are fully inserted with locking tabs in place.
Mount the converter box on a flat, clean surface that is out of the path of spray and debris from the rear wheels and road. Use the provided double-sided tape to adhere it. Failure to mount in a protected area can cause loss of warranty, product failure, overheating, and potential fire.
You may need to drill a 3/32" pilot hole if a suitable existing grounding point is not available. Look for an existing screw with nut in the vehicle frame near the connector. If drilling, check for miscellaneous items that may be hidden behind or under any surface to avoid damage and personal injury. The area should be free of rust, dirt, and paint before securing the white ground wire using the ring terminal and provided screw.
Drilling may be required for the ground wire. A 3/32" pilot hole is needed only if an existing screw with nut in the vehicle frame is not available as a grounding point.
The battery connection must be fuse-protected with a maximum of 10 amps. Exceeding this rating can cause loss of warranty, overheating, and potential fire.
Signal circuits are rated at 3.0 amps per side. Tail and running circuits are rated at 6.0 amps total. Do not exceed the product rating or the tow vehicle lamp load rating, whichever is lower.
The yellow wire end connects to the driver side taillight connectors. The green wire end connects to the passenger side taillight connectors. The white wire is the ground wire, which must be secured to a grounding point using the provided ring terminal and screw. The black converter box contains the power conversion circuitry.
When in use, route the 4-flat to the center of the vehicle. When not in use, roll it up and store in a convenient, out-of-the-way location. Secure any loose wires with the provided cable ties.
Do not exceed the product rating or the tow vehicle lamp load rating, whichever is lower. Exceeding the product rating can cause loss of warranty, overheating, and potential fire. Check your vehicle owner's manual or contact the vehicle manufacturer for the specific lamp load rating of your vehicle.
Do not exceed the product rating or tow vehicle lamp load rating, whichever is lower. Check your vehicle owner's manual for your specific lamp load rating.
All installation steps must be followed to ensure the wiring harness functions properly. Once installed, test for proper function by using a test light or by connecting a properly wired trailer.
Test for proper function using a test light or by connecting a properly wired trailer.
Reinstall all items removed during installation and reconnect the negative battery terminal. Install the provided 4-flat dust cover to help prevent corrosion.

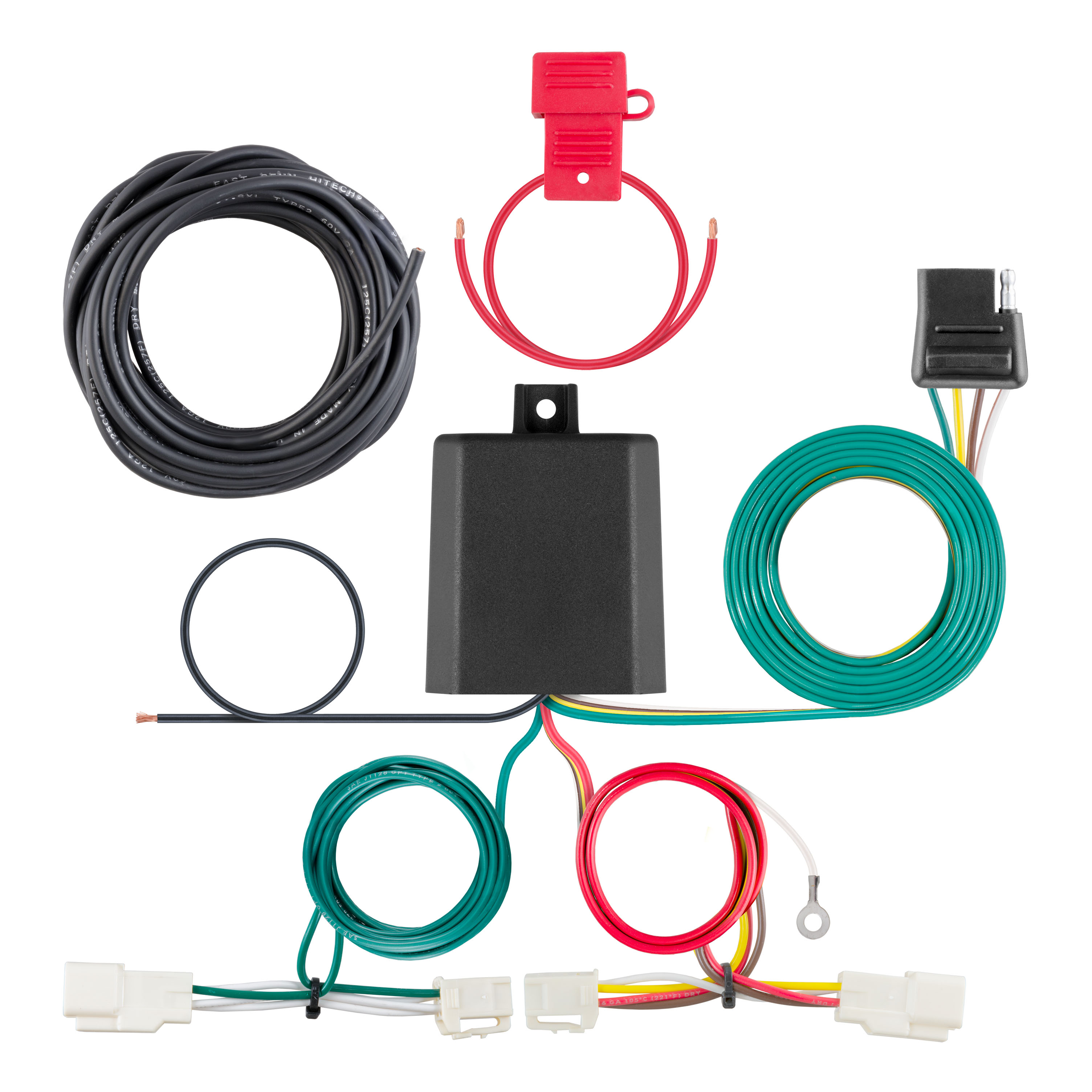

The Curt 56350 is a custom wiring harness designed for Toyota Avalon and Toyota RAV4 vehicles. It provides signal circuits (3.0 amps per side) and tail/running circuits (6.0 amps total) for trailer lighting. The harness includes a black converter box, wiring with color-coded ends for driver and passenger sides, a ground wire with ring terminal, mounting tape, cable ties, and a 4-flat dust cover.
