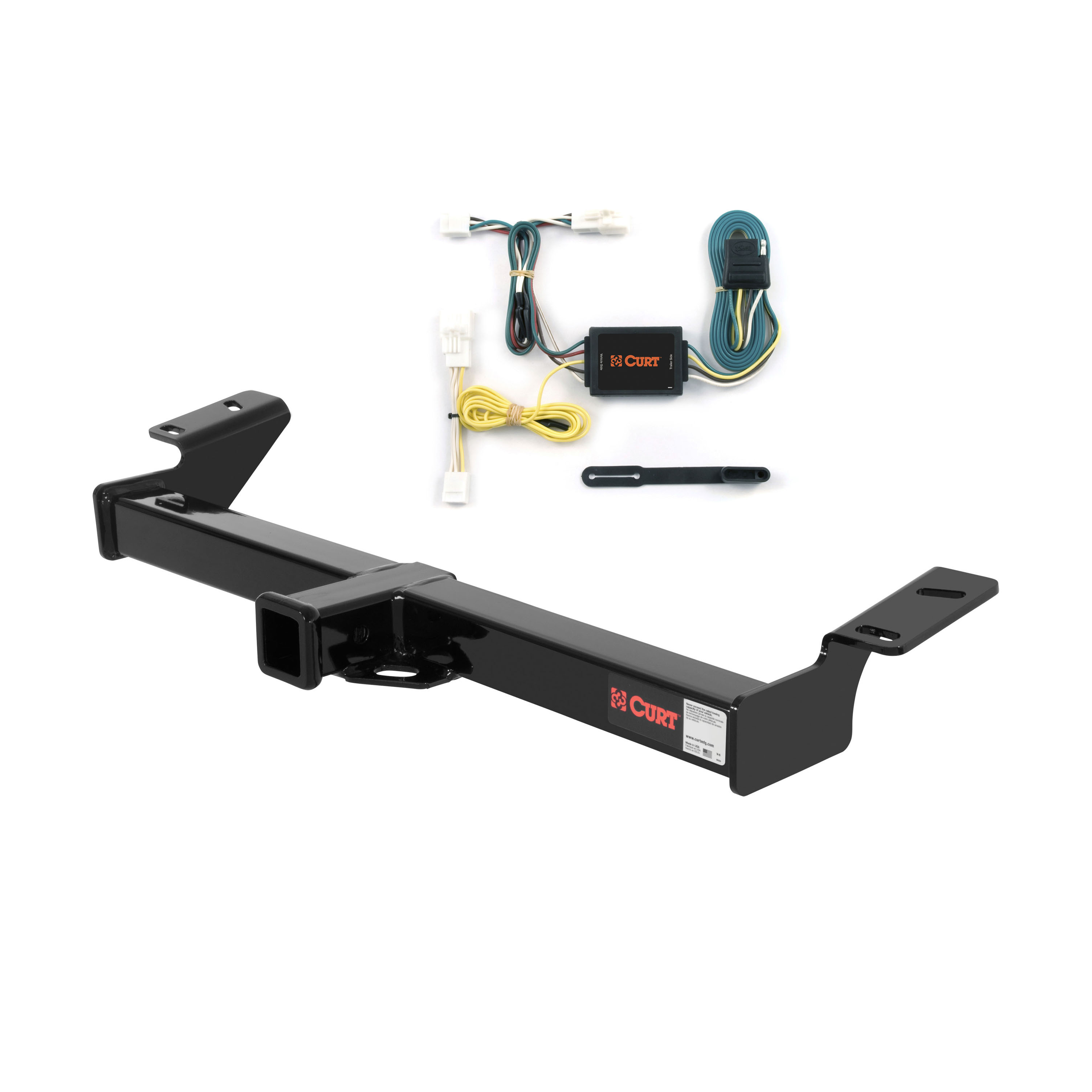

Complete CURT Class 3 2" trailer hitch and 4-flat custom wiring kit engineered for the 1996 - 2000 Toyota RAV4. Vehicle-specific fit, plug-and-play installation, all hardware and instructions included.
This custom kit fits the following vehicles:
All Hardware and Installation Instructions Included!

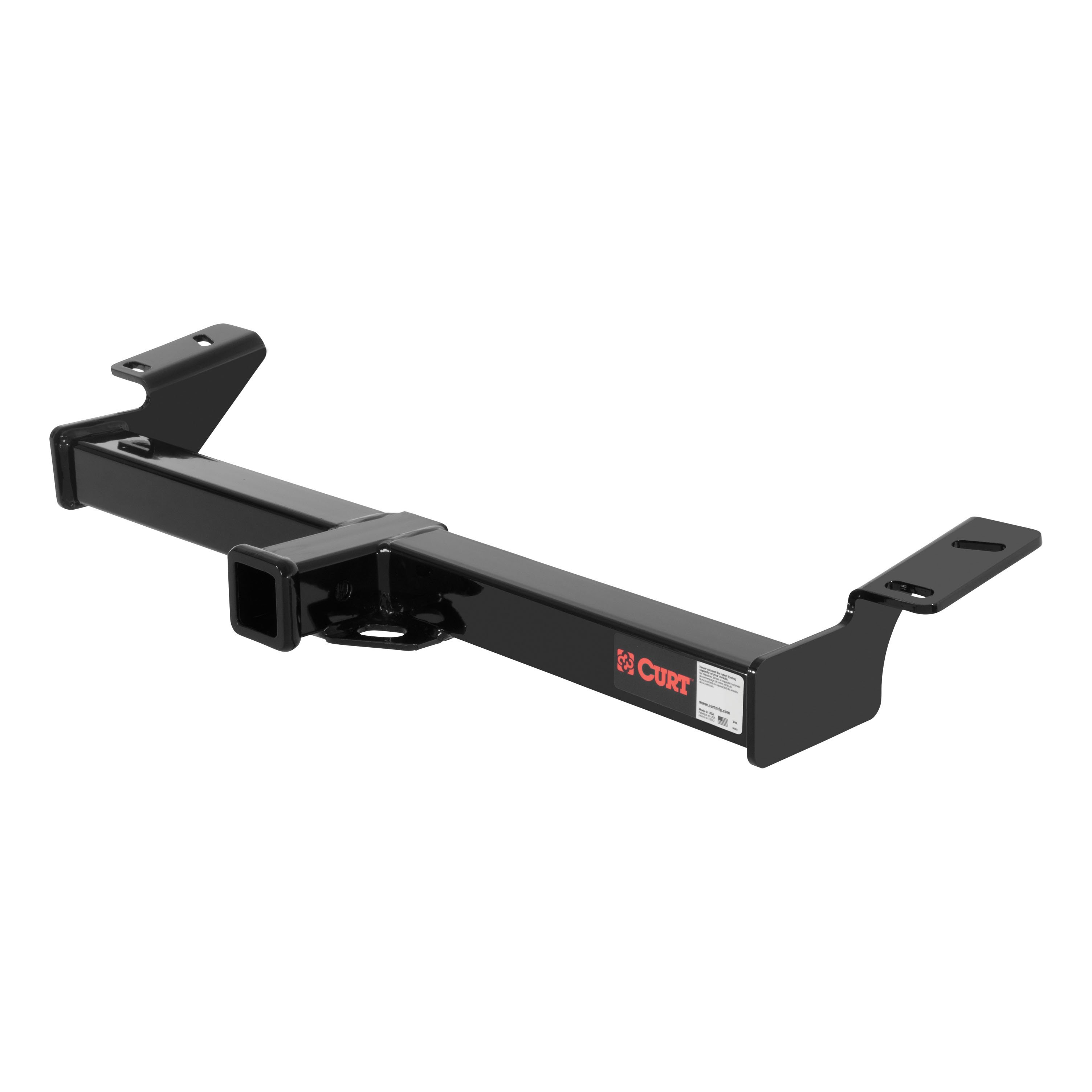

Whatever your task at hand -- whether it's launching that boat before daybreak, setting up your camper before the rush or getting a final load to the dump before close -- CURT class 3 trailer hitches offer the strength needed for serious towing. They make it easy to hitch up and Bring It, offering a vehicle-specific fit and the weight capacity to handle a variety of trailers. Custom class 3 hitches are the most common type of receiver hitch for pickup trucks and SUVs. Because of their weight range, they are also found on full-size cars, crossovers and minivans. Each custom-fit class 3 hitch package is made for vehicle-specific mounting. This particular kit fits certain years of the Toyota RAV4 (see application info to verify vehicle compatibility). It provides a weight carrying capacity of 4,000 lbs. GTW and 400 lbs. TW. CURT class 3 trailer hitches are typically used to attach and haul utility trailers, boat trailers, campers, snowmobile or ATV haulers and more (NOTE: Never exceed the lowest-rated towing component). Each class 3 hitch has a 2" receiver tube and is tested in accordance with SAE J684 for safety. To ensure that CURT class 3 receiver hitches have what it takes for serious trailering, they are designed using a hands-on approach and are constructed with rugged, high-strength steel and precise welding. We also protect our class 3 hitches in a co-cured finish of liquid A-coat and black powder coat for superior resistance to rust, chipping and UV damage.

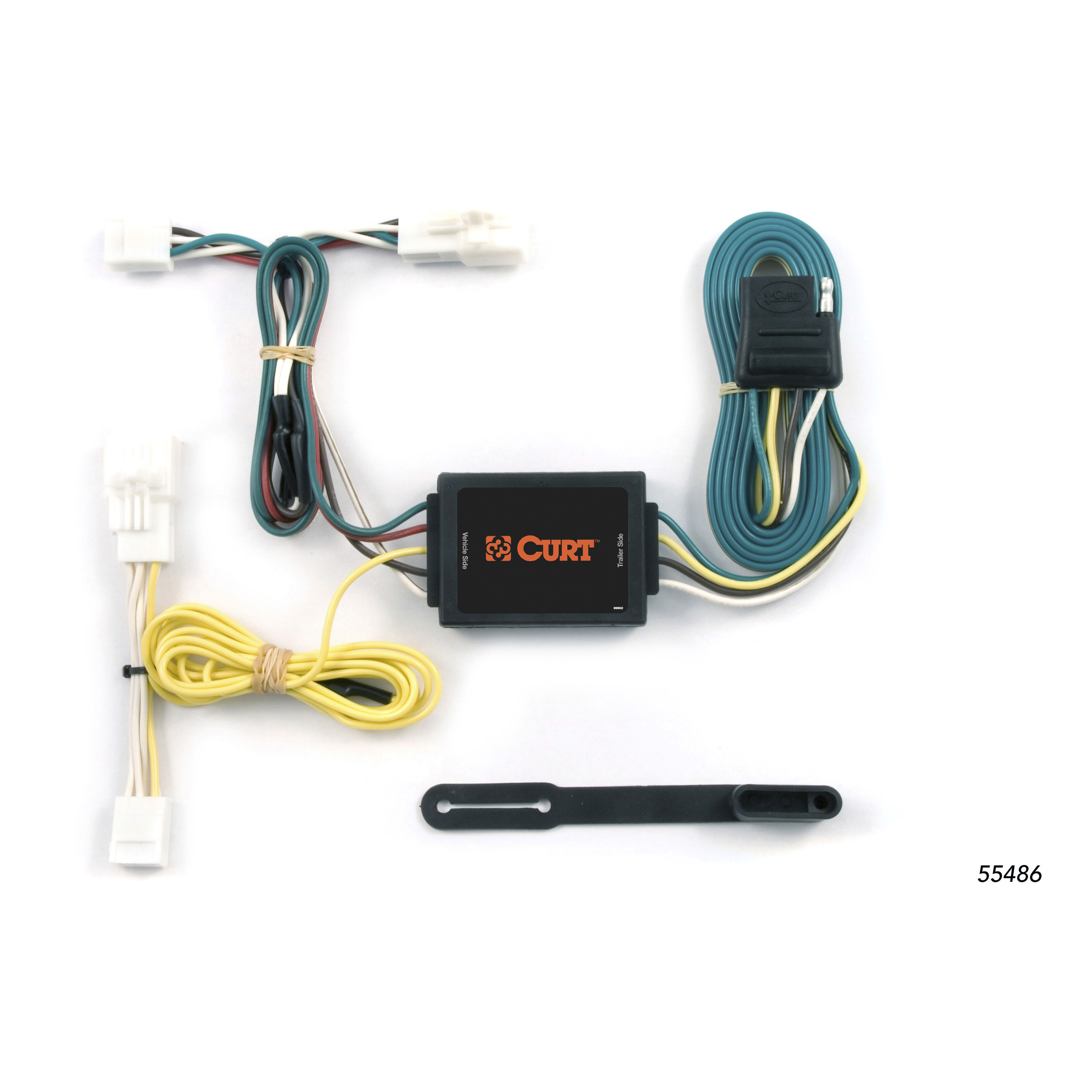

If your vehicle is not equipped with wiring for towing a trailer, CURT custom wiring is the ideal solution. A custom wiring harness -- also called a T-connector -- is a simple, plug-and-play electrical device that plugs into your automotive electric system and provides a standard, universal trailer wiring connection. This is done using two or more vehicle-specific, OEM-compatible connectors to plug into the taillight assembly, eliminating the need for cutting, splicing and soldering during installation. Custom wiring harnesses are made vehicle-specific, and while they are not available for all vehicles, they do offer one of the fastest, easiest and most secure ways to wire a vehicle for towing. This particular plug-in harness provides a 4-way flat connector socket and is designed to be a custom wiring harness to fit certain years of the Toyota RAV4 (to verify your vehicle compatibility, see application info). It comes with all necessary wiring components to establish a reliable trailer wiring connection, as well as a dust cover to keep the connector clean when not in use. You have a picture in mind of your next destination -- maybe it's the boat landing at your favorite fishing spot, maybe it's a campsite that overlooks one of nature's masterpieces, or maybe it's the next big jobsite. However, turning that picture into a reality takes more than just daydreaming. It takes a solid connection and the right amount of power. CURT custom wiring is made with some of the most sophisticated technology in the industry and is designed to install with ease, giving you a long-lasting electrical connection for your towing hitch setup.
CURT offers a variety of high-quality trailer hitches and accessories for select vehicle models. Find the perfect fit for your towing needs at TowUniverse.
CURT, a Lippert brand, offers a complete line of towing products and is the leading manufacturer of custom-fit trailer hitches. We offer the broadest selection of custom-fit hitches, and each one is designed, welded, and coated in Wisconsin.
CURT is also a leader in flat towing products, as well as 5th wheel, gooseneck, and weight distribution hitches, ball mounts, electrical components, cargo solutions, and other towing accessories.
For everything from passenger cars and vans to full-size pickups and SUVs, CURT is 'The First Name in Towing Products®.'
Experts available to answer your questions
Call 888-634-94941 compatible vehicles
| Year | Make & Model | Notes |
|---|---|---|
| 1996 - 2000 | Toyota RAV4 | — |
Yes, the 96 - 00 Toyota RAV4 Curt 2", Class 3 Trailer Tow Hitch + 4-flat Wiring Kit 13524 (Part #CHW-2928) is designed to fit the 1996-2000 Toyota RAV4.
The 96 - 00 Toyota RAV4 Curt 2", Class 3 Trailer Tow Hitch + 4-flat Wiring Kit 13524 (Part #CHW-2928) fits 1996-2000 Toyota RAV4 models. The 2000 model year is the last year covered by this part number. For newer models, check for an updated version.
The 96 - 00 Toyota RAV4 Curt 2", Class 3 Trailer Tow Hitch + 4-flat Wiring Kit 13524 (Part #CHW-2928) fits the following vehicles: 1996-2000 Toyota RAV4. Always verify your specific year, make, and model before ordering.
The 96 - 00 Toyota RAV4 Curt 2", Class 3 Trailer Tow Hitch + 4-flat Wiring Kit 13524 (Part #CHW-2928) Refer to the included instructions for installation details. Basic hand tools are typically all you need.
Yes, Curt part number 13524 is designed for 1996–2005 Toyota RAV4 models. Verify your vehicle year falls within this range before purchasing.
The manual specifies a gross load capacity of 4,000 lbs trailer weight and 400 lbs tongue weight when used as a weight-carrying hitch. However, you must not exceed your vehicle manufacturer's recommended towing capacity, which may be lower. Check your vehicle's owner manual for the final limit.
Yes. Remove tow hooks if present on your vehicle before installation. The hitch uses the two rearmost M12 fasteners on the vehicle frame, which must be removed and then reinstalled during the installation process.
No. The manual explicitly states 'NO DRILLING REQUIRED.' The hitch uses existing frame fastener holes on your Toyota RAV4.
The kit includes four M12 – 1.25 x 50 hex bolts (part number 10-10487) and four S-CON washers, 1/2 inch (part number 30-00149). These fasteners are used to secure the hitch to the vehicle frame.
All fasteners must be tightened to 110 ft-lbs.
1. Remove tow hooks if present. 2. Remove the two rearmost M12 fasteners from the vehicle frame on both sides. 3. Raise the hitch into position and loosely reinstall the two M12 fasteners. 4. Tighten all fasteners to 110 ft-lbs.
Periodically check the receiver hitch to ensure that all fasteners are tight and that all structural components are sound. The manual does not specify an exact interval, so inspect it regularly before towing and after heavy use.
The Curt 13524 is designed for 1996–2005 Toyota RAV4 models only.
No drilling is required. The hitch uses existing frame fastener holes.
Tighten all fasteners to 110 ft-lbs.
The hitch is rated for 4,000 lbs trailer weight and 400 lbs tongue weight, but you must not exceed your vehicle manufacturer's recommended towing capacity.
Four M12 – 1.25 x 50 hex bolts and four 1/2-inch S-CON washers are included.
Yes, remove tow hooks if present. The hitch uses existing frame fastener holes that must be temporarily removed and reinstalled.
Yes, Curt part 55486 is designed for the Toyota RAV-4. The manual does not specify which model years or generations are compatible, so contact Curt Manufacturing or your retailer to confirm your specific RAV-4 model year is supported.
You must remove the rear hatch scuff panel, floor coverings, storage covers, and privacy screen. On both sides of the vehicle, remove all trim fasteners and slightly pull out the rear trim panels to access the taillight wiring harness and create a routing path for the connectors.
Locate the vehicle's taillight wiring harness on the passenger side. The harness will have connectors similar to those on the T-connector. Insert the T-connector end with the green wire between the separated connectors. Ensure the connectors are fully inserted with locking tabs in place. Repeat the same process on the driver's side using the T-connector end with the yellow wire.
Route the T-connector end with the green wire on the passenger side. Route the T-connector end with the yellow wire out from behind the passenger side trim panel, along the removed scuff panel, and behind the passenger's side trim panel. Repeat on the driver's side. Route the 4-flat wire to the center of the vehicle and out the hatch when in use.
When not in use, roll up the 4-flat wire and store it in an out-of-the-way location in the rear cargo area of the RAV-4.
Before drilling or removing any surfaces, verify that miscellaneous items are not hidden behind or under any surface. This prevents damage to hidden components and personal injury.
Curt 55486 is designed for the Toyota RAV-4. Confirm your specific model year with the retailer or manufacturer.
Yes. You must remove the rear scuff panel, floor coverings, storage covers, privacy screen, and rear trim panels on both sides to access the taillight wiring harness and route the connectors.
Insert the T-connector end with the green wire between the separated taillight connectors on the passenger side, ensuring locking tabs are fully seated. Repeat with the yellow wire end on the driver's side.
Roll up and store the 4-flat wire in an out-of-the-way location in the rear cargo area.
Verify that no miscellaneous items are hidden behind or under any surface before removing panels to avoid damage and personal injury.
