Draw-tite
Verify Fitment
Select your vehicle to confirm this part fits.
2014 - 2019 Volkswagen Beetle
Confirmed to Fit
Always the correct part
We know our products
Quality Products
Free Shipping!
Always the correct part
We know our products
Quality Products
Free Shipping!
Select your vehicle to find the exact plug-and-play parts that fit — no cutting or splicing.

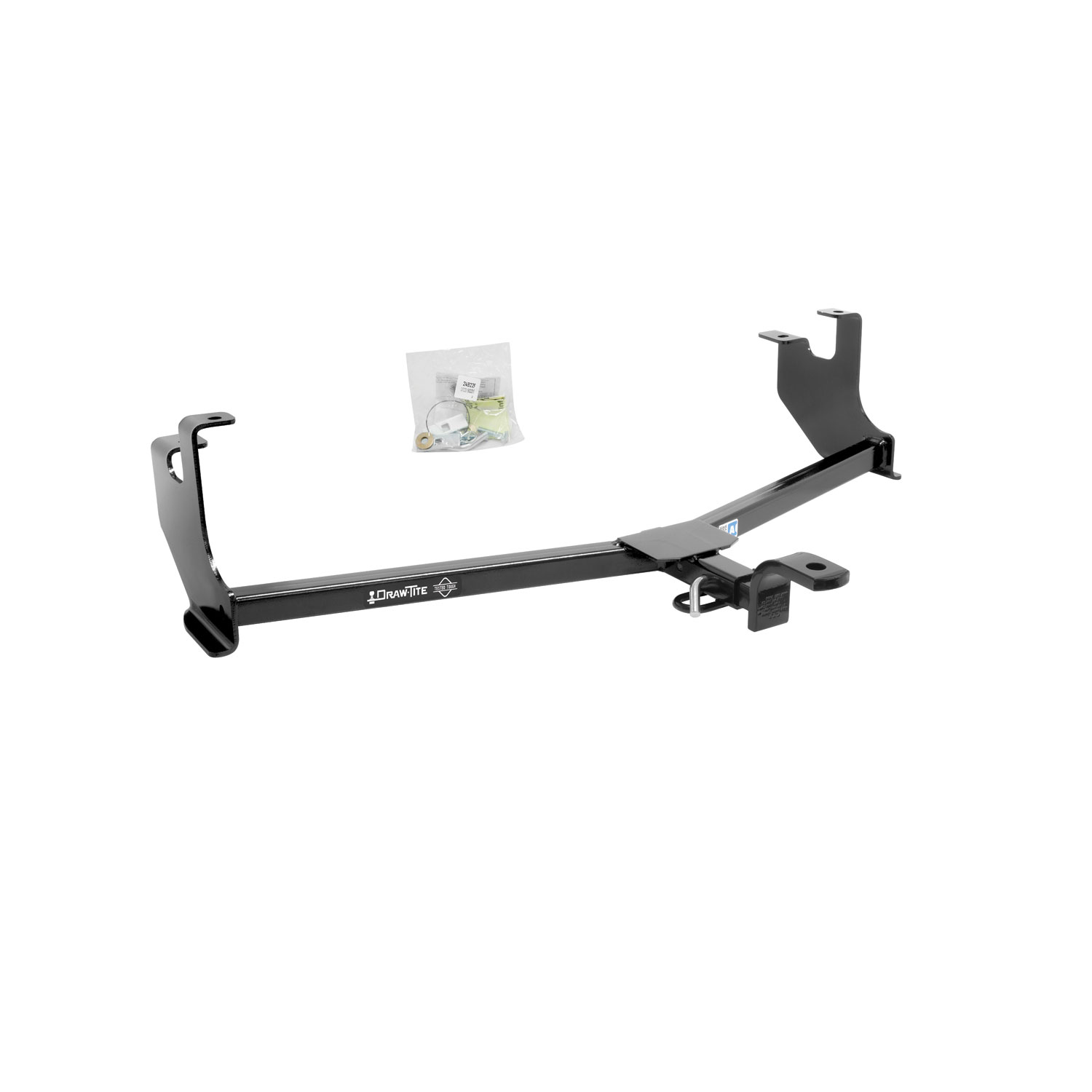

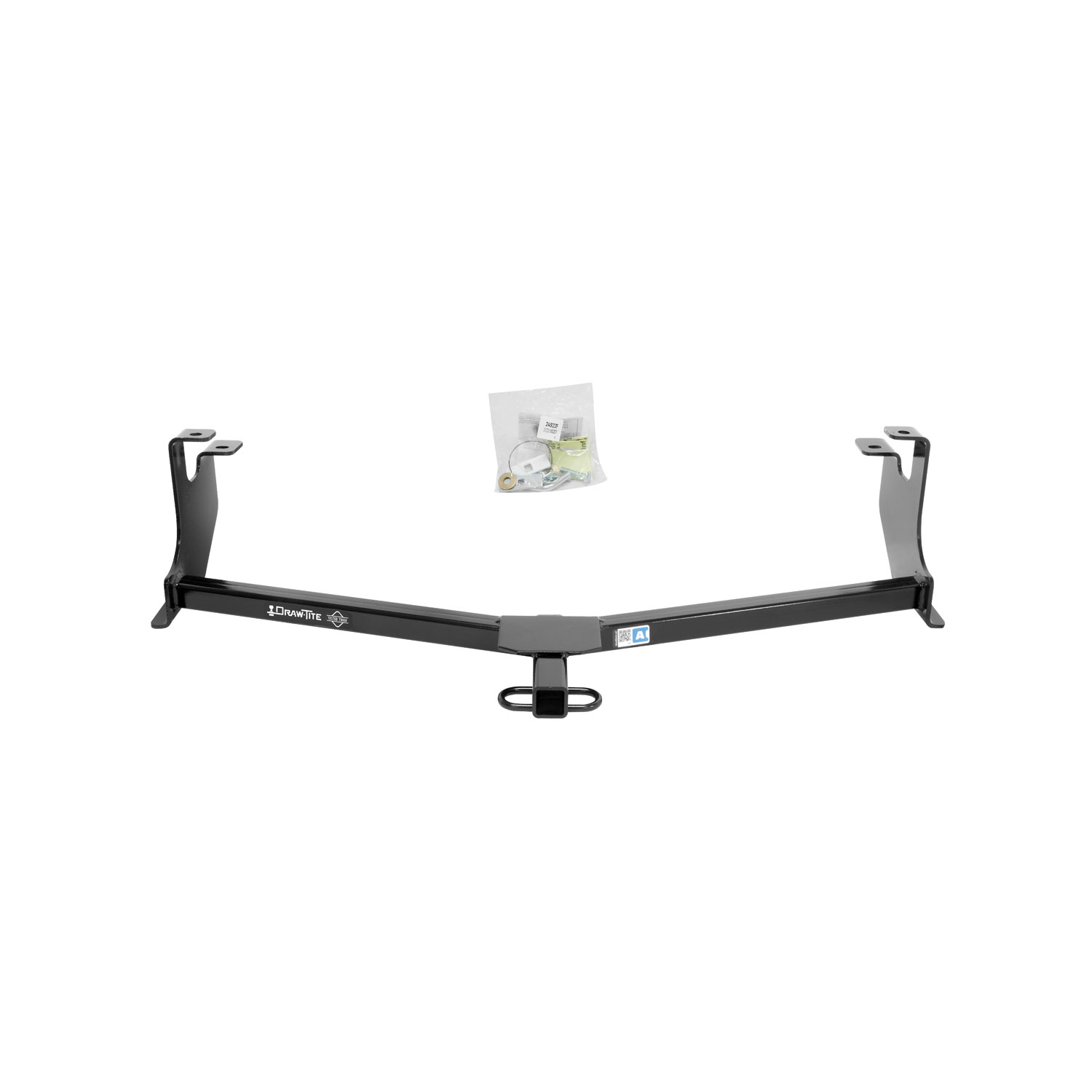

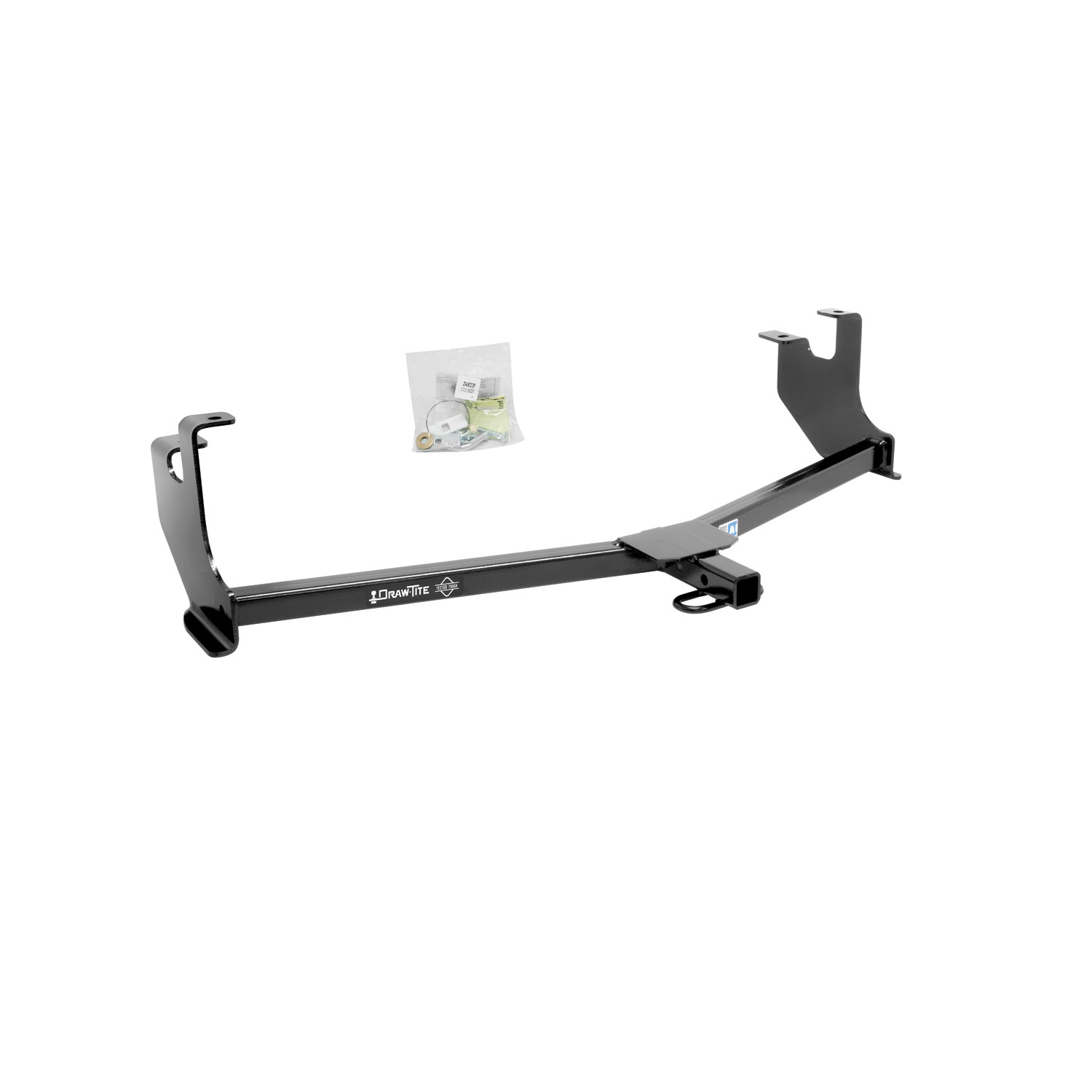

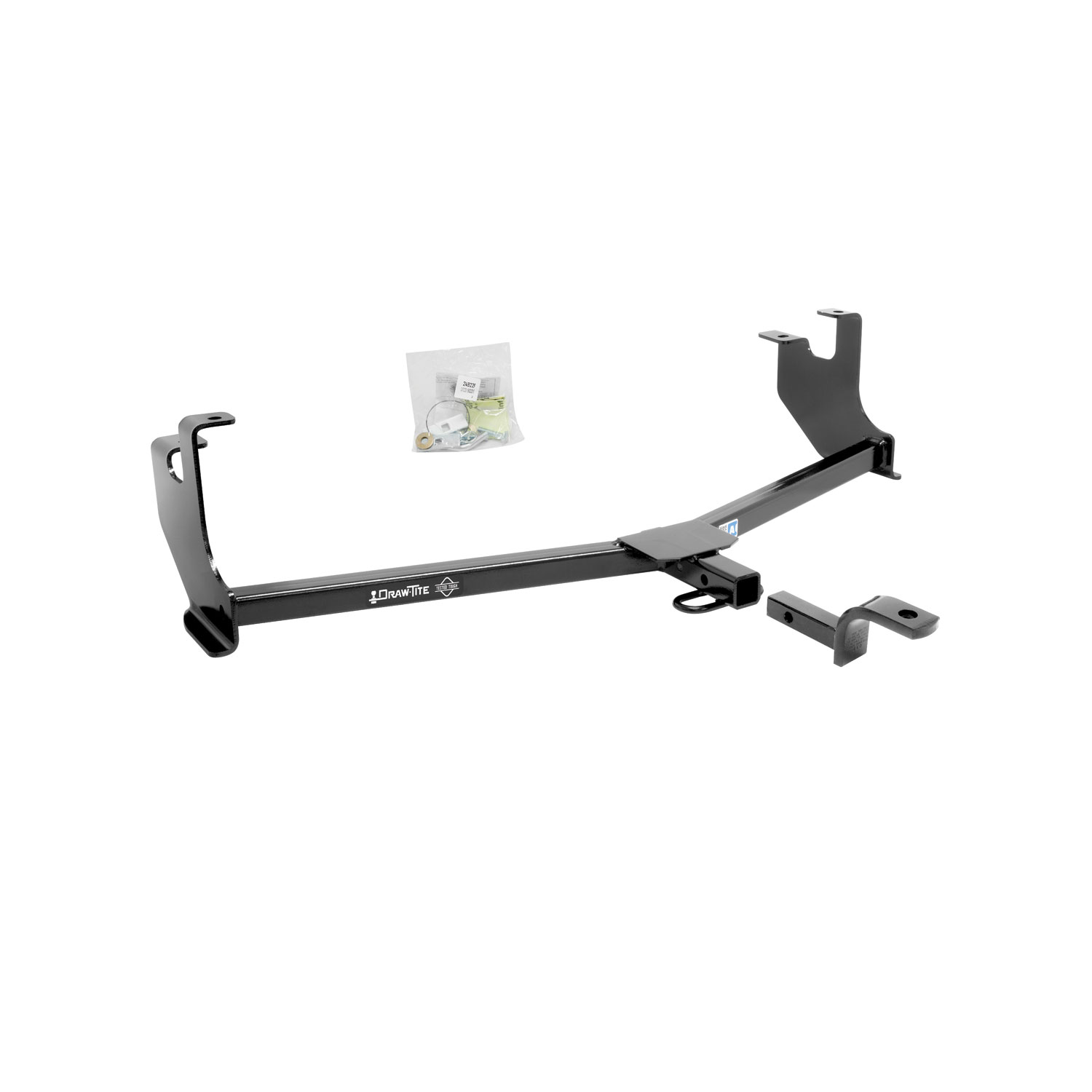

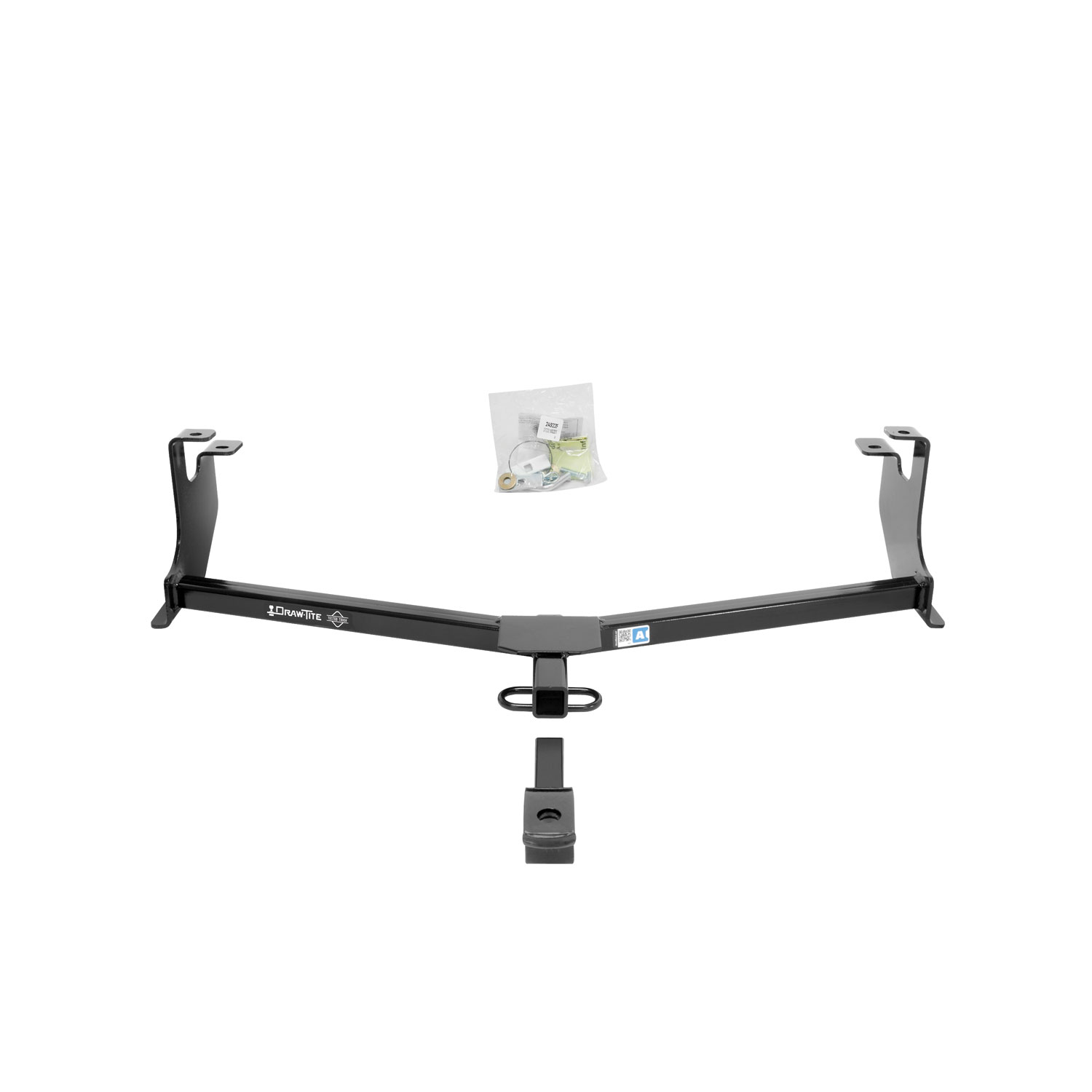

DRAW-TITE Class 1 trailer hitches are the perfect mix of style and stability for those times when youre working on a home project or heading out on an adventure. This DRAW-TITE Class 1 receiver hitch is rated for up to 2,000 lbs. gross trailer weight (GTW) and up to 200 lbs. tongue weight (TW). No weight distribution kits can be used on this specific trailer hitch. DRAW-TITE hitches are designed to provide top towing performance, with solid-all-welded construction and a black powder coat finish to resist rust and corrosion. The Class 1 trailer hitch has a 1-1/4 inch square receiver tube opening so you can easily attach accessories like a bike rack or cargo carrier, or a utility trailer. Includes all the mounting hardware needed for installation and are backed by a nationwide lifetime limited warranty. DRAW-TITE trailer hitches are tested to exceed V-5 and SAE J684 standards. DRAW-TITE: North Americas Favorite Hitch.
| BRAND: | DRAW-TITE |
| PART NUMBER: | 24922 |
| WARRANTY: | LIMITED LIFETIME WARRANTY |
| WEIGHT: | 25.1 LBS |
| GROSS TOWING WEIGHT: | 2,000 LBS. |
| GROSS TONGUE WEIGHT: | 200 LBS. |
| RECEIVER SIZE: | 1.25 IN. |
| HITCH CLASS: | I |
| DRILLING REQUIRED: | NO |
| MOUNTING HARDWARE INCLUDED: | YES |
| ATTACHMENT LOCATION: | REAR |
| HITCH VISIBILITY: | VISIBLE |
| CROSS-TUBE TYPE: | SQUARE TUBE |
| BALL MOUNT INCLUDED: | NO |
| COLOR: | BLACK |
| FINISH: | BLACK POWDER COAT OVER E-COAT |
| MATERIAL: | STEEL |
| MOUNTING LOCATION: | VEHICLE FRAME |
| MOUNTING TYPE: | BOLT-ON |
Draw-Tite has designed custom-fit trailer hitches since 1946 and is one of North America's most widely fitted hitch brands. Receiver hitches use solid all-welded construction and low-profile designs that follow modern vehicle contours, install with minimal bumper cutting or drilling, meet or exceed V5 CSA and SAE J684 standards, and carry a limited lifetime warranty.
Draw-Tite has been leading custom-fit trailer hitch design and engineering since its founding in 1946, and it remains one of the most widely fitted hitch brands in North America. The company's stated approach is straightforward: every hitch is tested rigorously so that it performs well beyond published industry standards, a philosophy it markets as Tested Tough. It sits within the Horizon Global towing group alongside Reese, Fulton, Bulldog, Tekonsha, Bargman and Wesbar.
Custom fit is the defining characteristic. Rather than adapting a universal design, Draw-Tite engineers a trailer hitch for a specific make, model and model year, so it bolts to existing frame locations with minimal bumper cutting or drilling. Low-profile designs follow the rear contours and aerodynamic styling of modern vehicles, which matters more than it once did now that rear fascias are shaped and sensor-equipped. Construction is solid all-welded steel for maximum strength, and every hitch meets or exceeds V5 CSA and SAE J684 standards and is backed by a nationwide limited lifetime warranty.
The range spans receiver sizes and classes to suit different loads, from 1-1/4 inch receivers for bike racks, cargo carriers and light trailers up through 2 inch receivers for heavier towing. Front mount hitches add a receiver at the front of the vehicle for winch mounts, snow plows, spare carriers and precise trailer positioning.
The Hidden Hitch series takes concealment further by mounting behind the vehicle's rear fascia, so the vehicle keeps its factory appearance until a removable receiver is fitted. Each is custom designed per make and model for a no-drill installation that does not compromise ground clearance, rated for up to 3,500 pounds gross trailer weight and 350 pounds tongue weight. Matching plug-and-play wiring completes the towing system.
Experts available to answer your questions
Call 888-634-9494Lifetime
Draw•Tite® and the Checkered Flag Foundation
1 compatible vehicles
| Year | Make & Model | Notes |
|---|---|---|
| 2014 - 2019 | Volkswagen Beetle | Class 1 Trailer Hitch: 2000 lbs 200/2,000 lbs. Weight Carrying (tongue weight/gross trailer weight) Uses all existing holes. No Drilling required Install Time is 20 minutes |
Yes, the Draw-tite Class 1 Trailer Hitch, 1-1/4" Square Receiver, Black for Select Volkswagen Beetle 24922 (Part #DT24922) is designed to fit the 2014-2019 Volkswagen Beetle.
The Draw-tite Class 1 Trailer Hitch, 1-1/4" Square Receiver, Black for Select Volkswagen Beetle 24922 (Part #DT24922) fits the following vehicles: 2014-2019 Volkswagen Beetle. Always verify your specific year, make, and model before ordering.
The Draw-tite Class 1 Trailer Hitch, 1-1/4" Square Receiver, Black for Select Volkswagen Beetle 24922 (Part #DT24922) fits 2014-2019 Volkswagen Beetle models. The 2019 model year is the last year covered by this part number. For newer models, check for an updated version.
The Draw-tite Class 1 Trailer Hitch, 1-1/4" Square Receiver, Black for Select Volkswagen Beetle 24922 (Part #DT24922) Refer to the included instructions for installation details. Basic hand tools are typically all you need.
This hitch (part numbers 24922, 60354, 77309, CQT24922) fits Volkswagen Beetle and Beetle Convertible models. It does not fit R-Line or GSR models.
The maximum gross trailer weight is 2000 lbs (908 kg), and the maximum tongue weight is 200 lbs (90.8 kg). Do not exceed the lower of the towing vehicle manufacturer's rating or these limits.
No. The drawbar kit (part number 3593) is sold separately and must be purchased in addition to the hitch.
You will need an 18mm wrench and an 11/16" wrench. A torque wrench is also required to tighten fasteners to specification.

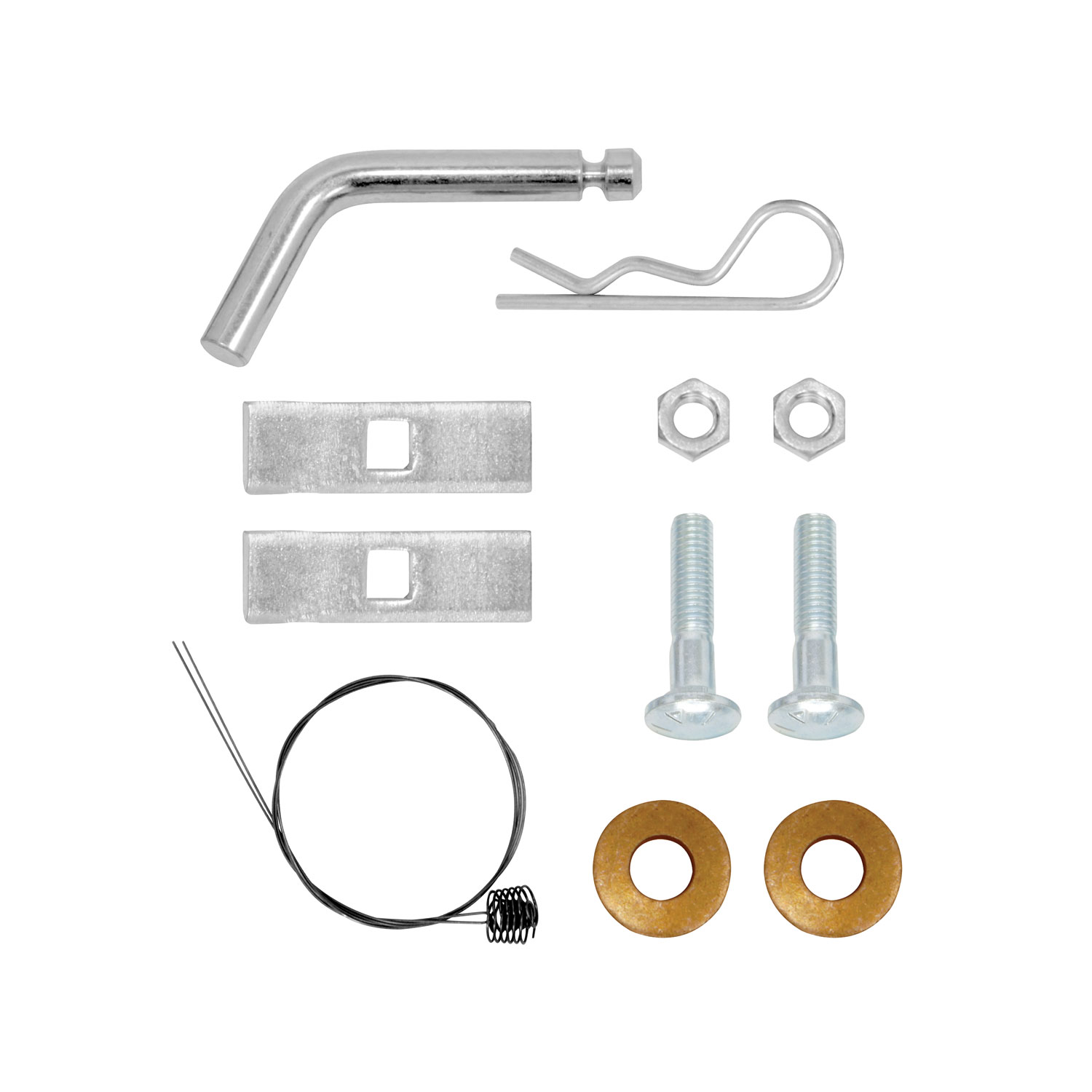

The fastener kit 24922F includes: (2) 7/16-14 x 2.00 carriage bolts GR5, (2) 7/16 pullwires, (2) spacers (.25 x 1.00 x 3.00), (2) 7/16" conical washers, and (2) 7/16-14 hex nuts. The existing M12 bolts from the frame rails are retained and reused.
Yes. Remove the existing M12 bolts from both the driver and passenger side frame rails in step 1. These bolts must be retained because they are reinstalled through the forward holes in the hitch in step 4.
The reverse pullwire method is shown in Figure 2. After installing the 7/16 carriage bolt and spacer, pullwires are attached and left in place. When the hitch is raised into position, the pullwires are fed through the rearward holes in the hitch to guide it into alignment. The pullwires are then removed once the forward bolts are installed and holding the hitch in place.
Tighten all M12 CL10.9 fasteners with a torque wrench to 92 Lb.-Ft. (120 N·M).
Tighten all 7/16 GR5 fasteners with a torque wrench to 50 Lb.-Ft. (68 N·M).
The drawbar must be used in the RISE position only. Do not use it in any other position.
If the hitch is removed, plug all holes in the trunk pan or other body panels to prevent entry of water and exhaust fumes.
A hitch or ball which has been damaged should be removed and replaced. Do not continue to use a damaged hitch or ball.
No. Do not cut access or attachment holes with a torch. Observe safety precautions when working beneath a vehicle and wear eye protection.
Check the hitch frequently, making sure all fasteners and the ball are properly tightened. Regular inspection helps ensure safe operation.
Yes, it fits Volkswagen Beetle and Beetle Convertible models, but not R-Line or GSR models.
Maximum 2000 lbs gross trailer weight and 200 lbs tongue weight. Do not exceed your vehicle manufacturer's rating.
18mm wrench, 11/16" wrench, and a torque wrench for final tightening.
No, drawbar kit 3593 is sold separately.
M12 CL10.9 fasteners: 92 Lb.-Ft. (120 N·M). 7/16 GR5 fasteners: 50 Lb.-Ft. (68 N·M).
The drawbar must be used in the RISE position only.
Check the hitch frequently to ensure all fasteners and the ball are properly tightened. If removed, plug all holes to prevent water and exhaust fume entry.
