Select your vehicle to find the exact plug-and-play parts that fit — no cutting or splicing.

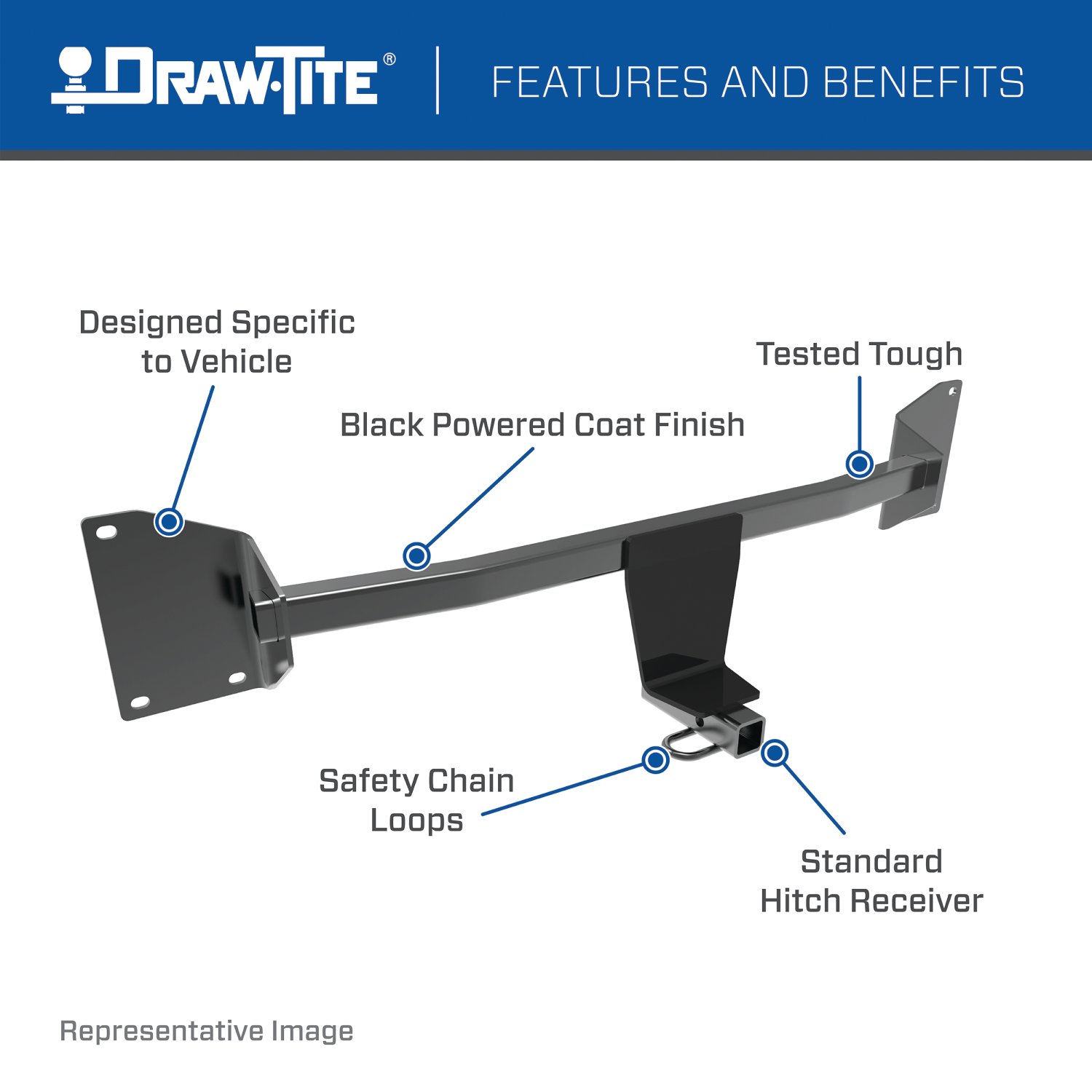

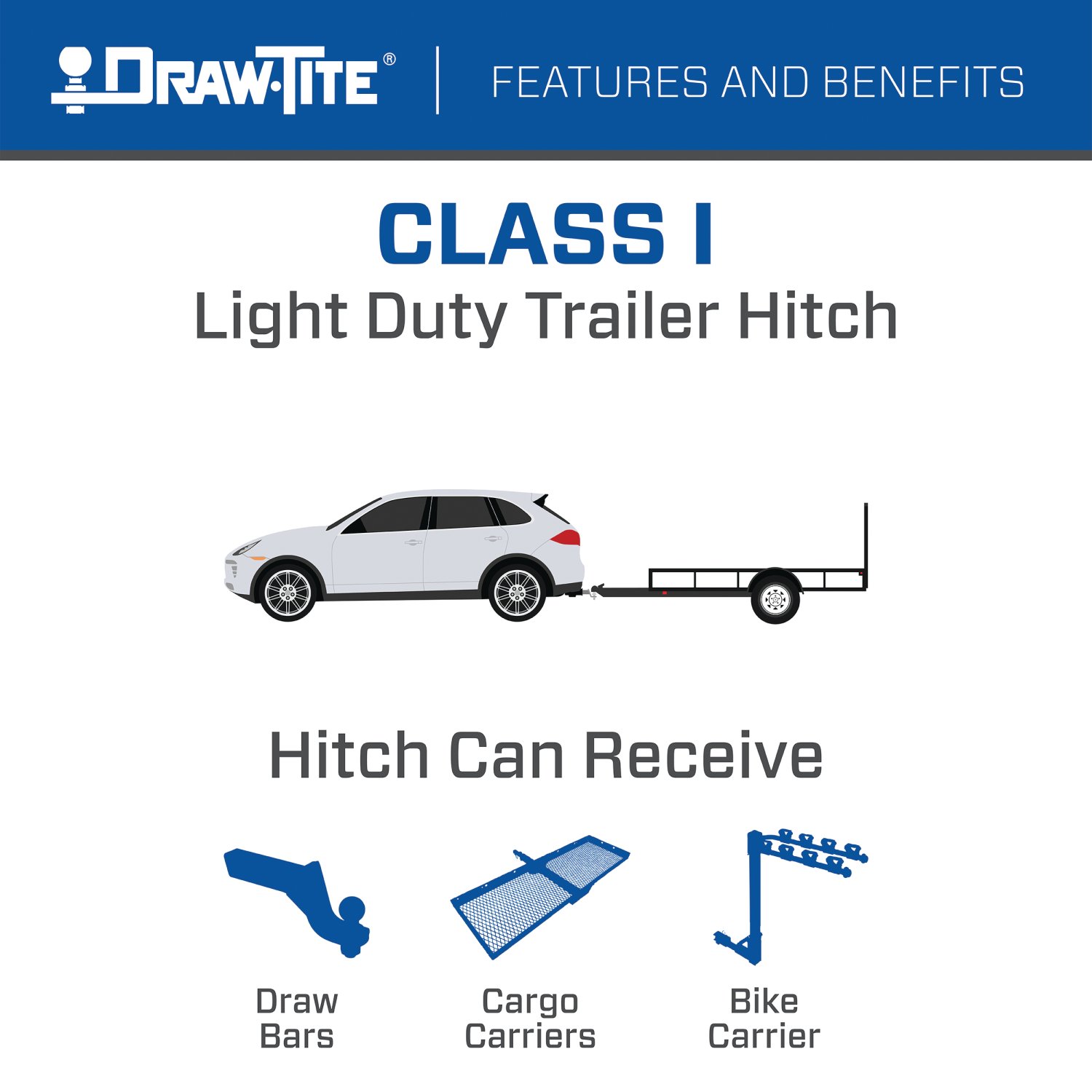

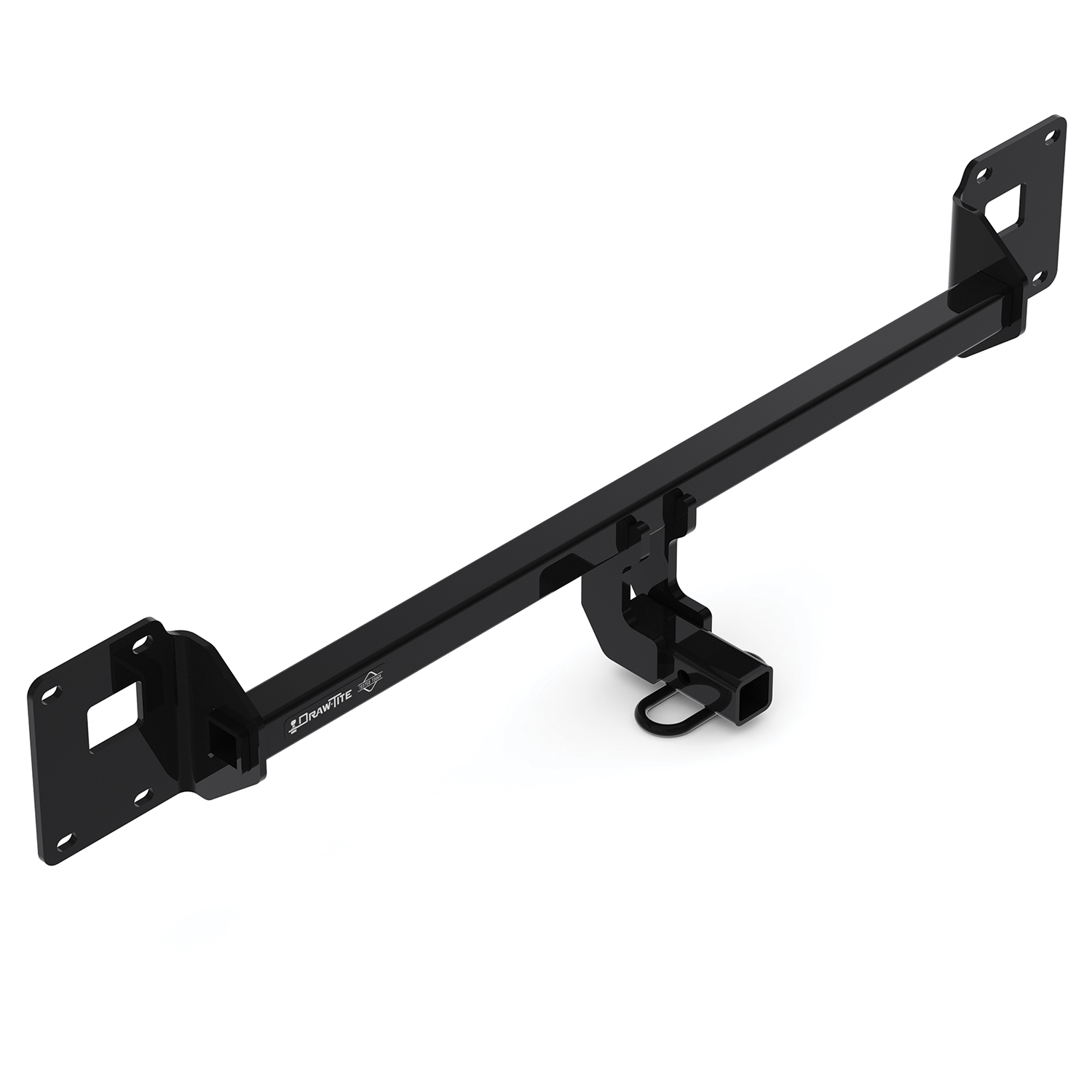

DRAW-TITE Class 1 trailer hitches are the perfect mix of style and stability for those times when youre working on a home project or heading out on an adventure. This DRAW-TITE Class 1 receiver hitch is rated for up to 2,000 lbs. gross trailer weight (GTW) and up to 200 lbs. tongue weight (TW). No weight distribution kits can be used on this specific trailer hitch. DRAW-TITE hitches are designed to provide top towing performance, with solid-all-welded construction and a black powder coat finish to resist rust and corrosion. The Class 1 trailer hitch has a 1-1/4 inch square receiver tube opening so you can easily attach accessories like a bike rack or cargo carrier, or a utility trailer. Includes all the mounting hardware needed for installation and are backed by a nationwide lifetime limited warranty. DRAW-TITE trailer hitches are tested to exceed V-5 and SAE J684 standards. DRAW-TITE: North Americas Favorite Hitch.
| BRAND: | DRAW-TITE |
| PART NUMBER: | 24979 |
| WARRANTY: | LIMITED LIFETIME WARRANTY |
| WEIGHT: | 19.3 LBS |
| GROSS TOWING WEIGHT: | 2,000 LBS. |
| GROSS TONGUE WEIGHT: | 200 LBS. |

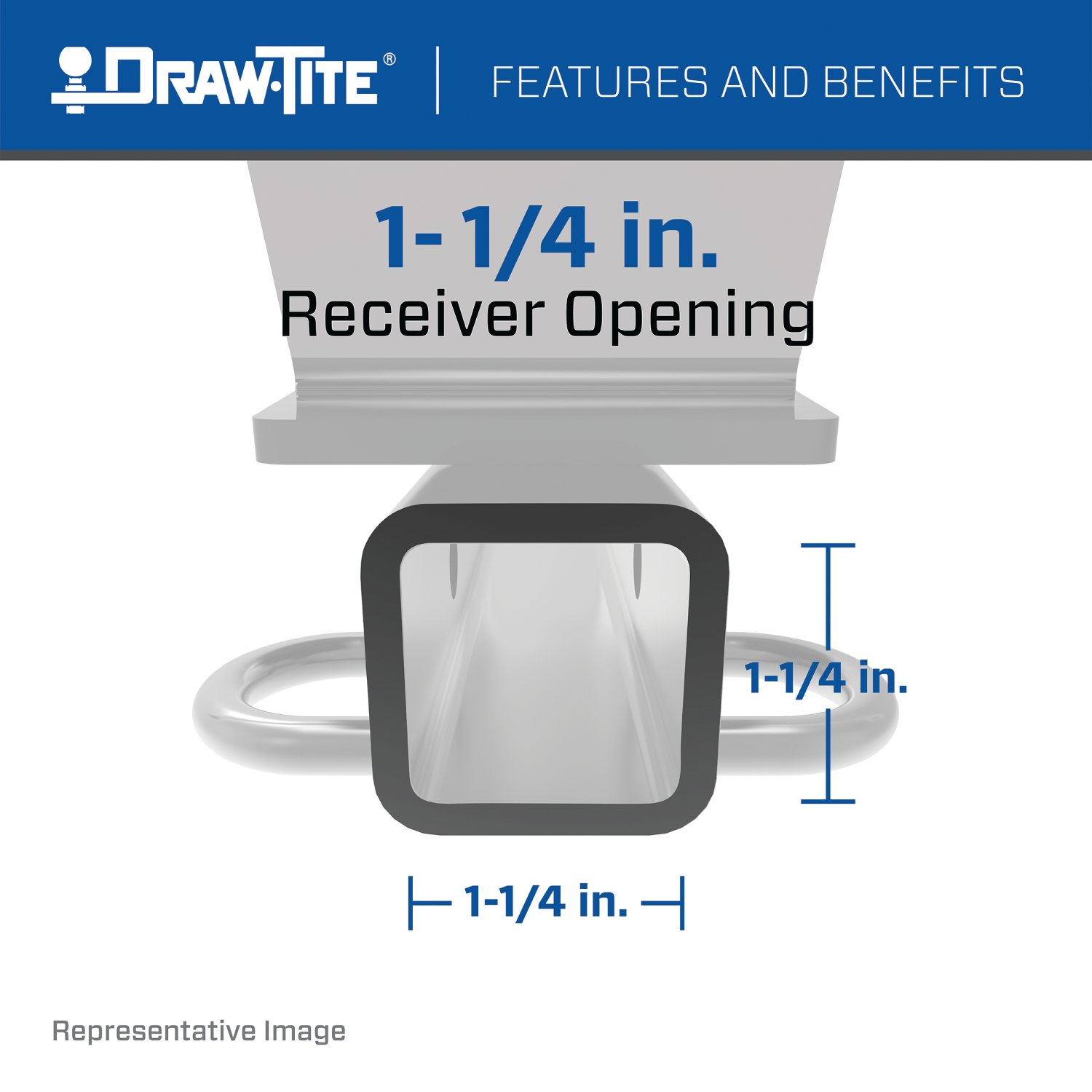

| RECEIVER SIZE: | 1.25 IN. |
| HITCH CLASS: | I |
| DRILLING REQUIRED: | NO |
| MOUNTING HARDWARE INCLUDED: | YES |
| ATTACHMENT LOCATION: | REAR |
| HITCH VISIBILITY: | CONCEALED |
| CROSS-TUBE TYPE: | SQUARE TUBE |
| BALL MOUNT INCLUDED: | NO |
| COLOR: | BLACK |
| FINISH: | BLACK POWDER COAT OVER E-COAT |
| MATERIAL: | STEEL |
| MOUNTING LOCATION: | VEHICLE FRAME |
| MOUNTING TYPE: | BOLT-ON |
Draw-Tite has designed custom-fit trailer hitches since 1946 and is one of North America's most widely fitted hitch brands. Receiver hitches use solid all-welded construction and low-profile designs that follow modern vehicle contours, install with minimal bumper cutting or drilling, meet or exceed V5 CSA and SAE J684 standards, and carry a limited lifetime warranty.
Draw-Tite has been leading custom-fit trailer hitch design and engineering since its founding in 1946, and it remains one of the most widely fitted hitch brands in North America. The company's stated approach is straightforward: every hitch is tested rigorously so that it performs well beyond published industry standards, a philosophy it markets as Tested Tough. It sits within the Horizon Global towing group alongside Reese, Fulton, Bulldog, Tekonsha, Bargman and Wesbar.
Custom fit is the defining characteristic. Rather than adapting a universal design, Draw-Tite engineers a trailer hitch for a specific make, model and model year, so it bolts to existing frame locations with minimal bumper cutting or drilling. Low-profile designs follow the rear contours and aerodynamic styling of modern vehicles, which matters more than it once did now that rear fascias are shaped and sensor-equipped. Construction is solid all-welded steel for maximum strength, and every hitch meets or exceeds V5 CSA and SAE J684 standards and is backed by a nationwide limited lifetime warranty.
The range spans receiver sizes and classes to suit different loads, from 1-1/4 inch receivers for bike racks, cargo carriers and light trailers up through 2 inch receivers for heavier towing. Front mount hitches add a receiver at the front of the vehicle for winch mounts, snow plows, spare carriers and precise trailer positioning.
The Hidden Hitch series takes concealment further by mounting behind the vehicle's rear fascia, so the vehicle keeps its factory appearance until a removable receiver is fitted. Each is custom designed per make and model for a no-drill installation that does not compromise ground clearance, rated for up to 3,500 pounds gross trailer weight and 350 pounds tongue weight. Matching plug-and-play wiring completes the towing system.
Experts available to answer your questions
Call 888-634-9494Lifetime
Draw-Tite® Trailer Hitches | Receiver Hitches
1 compatible vehicles
| Year | Make & Model | Notes |
|---|---|---|
| 2018 - 2025 | Volkswagen GTI | Class 1 Trailer Hitch: 2000 lbs 200/2,000 lbs. Weight Carrying (tongue weight/gross trailer weight) Uses all existing holes. No Drilling required Install Time is 80 minutes |
The Draw-tite Class 1 Trailer Hitch, 1-1/4" Square Receiver, Black for Select Volkswagen GTI 24979 (Part #DT24979) fits 2018-2025 Volkswagen GTI models. The 2025 model year is the last year covered by this part number. For newer models, check for an updated version.
The Draw-tite Class 1 Trailer Hitch, 1-1/4" Square Receiver, Black for Select Volkswagen GTI 24979 (Part #DT24979) fits the following vehicles: 2018-2025 Volkswagen GTI. Always verify your specific year, make, and model before ordering.
Yes, the Draw-tite Class 1 Trailer Hitch, 1-1/4" Square Receiver, Black for Select Volkswagen GTI 24979 (Part #DT24979) is designed to fit the 2018-2025 Volkswagen GTI.
The Draw-tite Class 1 Trailer Hitch, 1-1/4" Square Receiver, Black for Select Volkswagen GTI 24979 (Part #DT24979) Refer to the included instructions for installation details. Basic hand tools are typically all you need.
Yes, the 24979 hitch is designed for 2018-Current Volkswagen Golf GTI models. However, the manual recommends visiting the Horizon Global website for the most up-to-date information regarding specific application years and trim levels, as fitment may vary.
The 24979 is a weight-carrying hitch with a maximum gross trailer weight of 2000 lb. (908 kg) and a maximum tongue weight of 200 lb. (90.8 kg). You must not exceed the lower of your vehicle manufacturer's towing rating or these limits.
You will need: ratchet, torque wrench, safety glasses, 13 mm sockets, 6" socket extension, panel removal tool, plastic trim tools, flat head screwdriver, T15 and T25 Torx bit sockets, utility knife, marker, and tape measure.
The fastener kit 24979F is included and contains 7 bolts: M8 x 1.25 x 35, Class 9.8. These bolts attach the hitch to the bumper beam and end panel.
Yes. Installation requires removal of the taillights, bumper fascia, and bumper beam. The bumper beam is removed using a 13 mm socket with 6" extension to remove 7 factory M8 bolts. These bolts should be returned to the vehicle owner.
All 7 M8 bolts must be tightened to 25 Lb.-Ft. (34 N·M) using a torque wrench.
Yes. After the hitch is installed and bolts are tightened, you must locate the opening on the bottom fascia and trim the area as shown in Figure 2 of the manual. The trim dimensions are 3.0" on the outer edges and 2.0" on the inner edges.
The 7 M8 bolts should be installed loosely first (Step 4), then all bolts are tightened together to 25 Lb.-Ft. (34 N·M) using a torque wrench (Step 5). This ensures proper alignment before final tightening.
If excess sway occurs, take your foot off the gas pedal and hold the steering wheel as steady as possible. DO NOT apply your brakes and DO NOT speed up. Reduce speed and maintain steady steering until the sway subsides.
Load the trailer heavier in front. This helps maintain stability and control while towing.
You should check the hitch frequently to ensure all fasteners and the ball are properly tightened. The manual does not specify an exact interval, but periodic inspection is required to maintain safe operation.
If the hitch is removed, plug all holes in the trunk pan or other body panels to prevent entry of water and exhaust fumes. A damaged hitch or ball must be removed and replaced.
No. The authorized drawbar kit 3593 is sold separately. When using a drawbar, it must be used in the RISE position only.
The average installation time for professional installers is 80 minutes. If you do not feel comfortable performing the installation yourself or need assistance, contact a professional installer.
Always wear safety glasses when installing the hitch. Observe safety precautions when working beneath a vehicle and wear eye protection. Do not cut access or attachment holes with a torch. The manual emphasizes that proper torque is needed to keep the hitch secure to the vehicle when towing.
Open the tailgate. Find the opening behind the taillights and unscrew the wing-shaped handle using a flat screwdriver. Unclip the wiring harness. Remove the taillights by gently pulling rearward.
Using a T15 Torx bit socket, remove 4 plastic screws and tabs from the bottom fascia. Using a T25 Torx bit socket, remove 1 vertical screw from the bottom of the wheel well liner, 3 horizontal screws from the side wheel well liner, and 1 vertical screw in the upper edge behind the wheel well liner on both sides. Using plastic trim tools, remove the fascia starting at the outer edges near wheel wells while gently pulling. Disconnect the wiring harness from the fascia if present.
Yes, the 24979 is designed for 2018-Current Volkswagen Golf GTI. Check the Horizon Global website for the most current fitment information regarding specific trim levels.
Maximum 2000 lb. gross trailer weight and 200 lb. tongue weight. Do not exceed the lower of your vehicle manufacturer's rating or these limits.
Ratchet, torque wrench, safety glasses, 13 mm sockets, 6" socket extension, panel removal tool, plastic trim tools, flat head screwdriver, T15 and T25 Torx bit sockets, utility knife, marker, and tape measure.
Yes. You must remove the taillights, bumper fascia, and bumper beam (7 factory M8 bolts) before installing the hitch.
Yes. You must trim the bottom fascia opening as shown in Figure 2 (3.0" outer edges, 2.0" inner edges) after tightening the hitch bolts.
Take your foot off the gas pedal and hold the steering wheel steady. DO NOT apply brakes or speed up. Reduce speed and maintain steady steering.
Check the hitch frequently to ensure all fasteners and the ball are properly tightened. The manual does not specify an exact interval.
