Select your vehicle to find the exact plug-and-play parts that fit — no cutting or splicing.

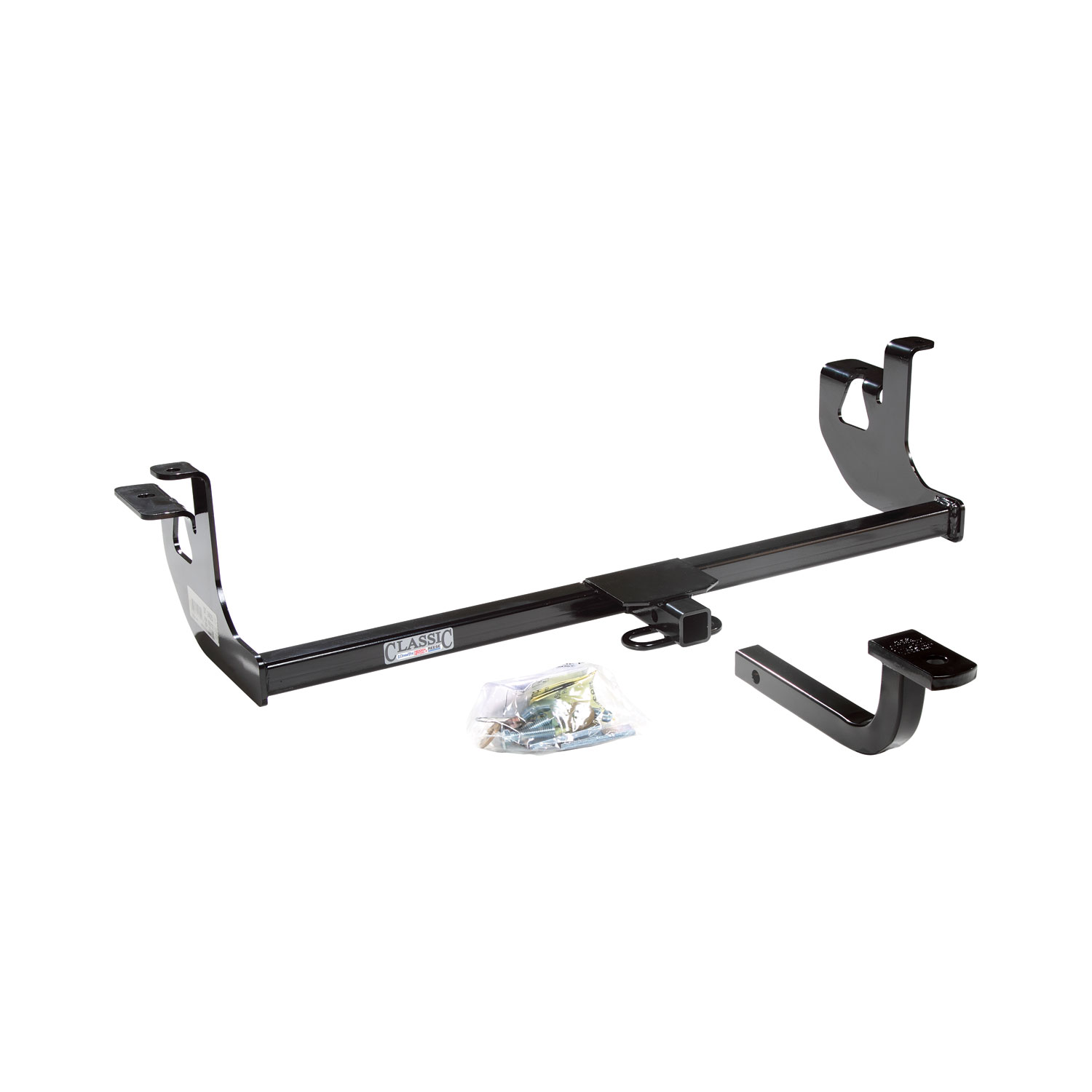

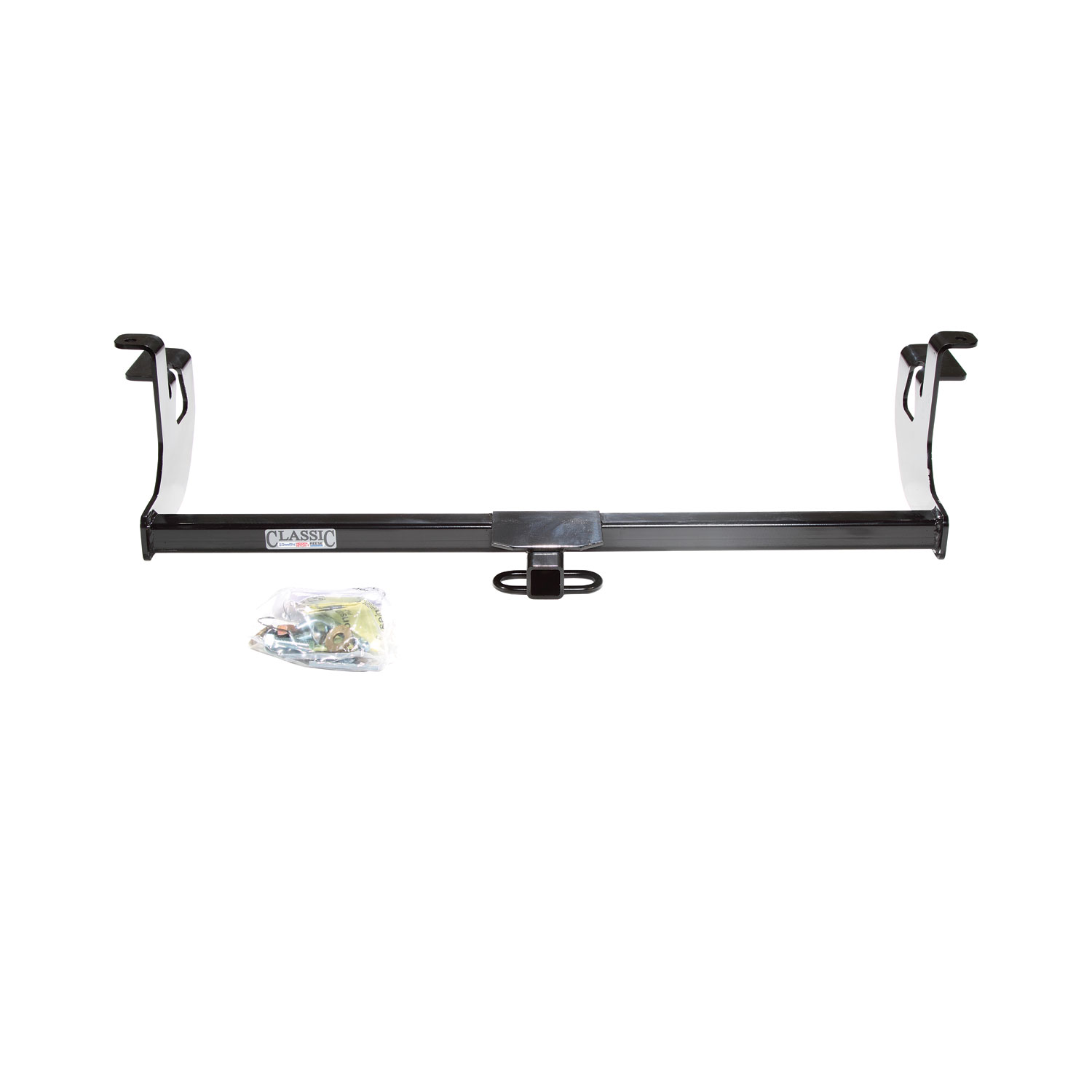

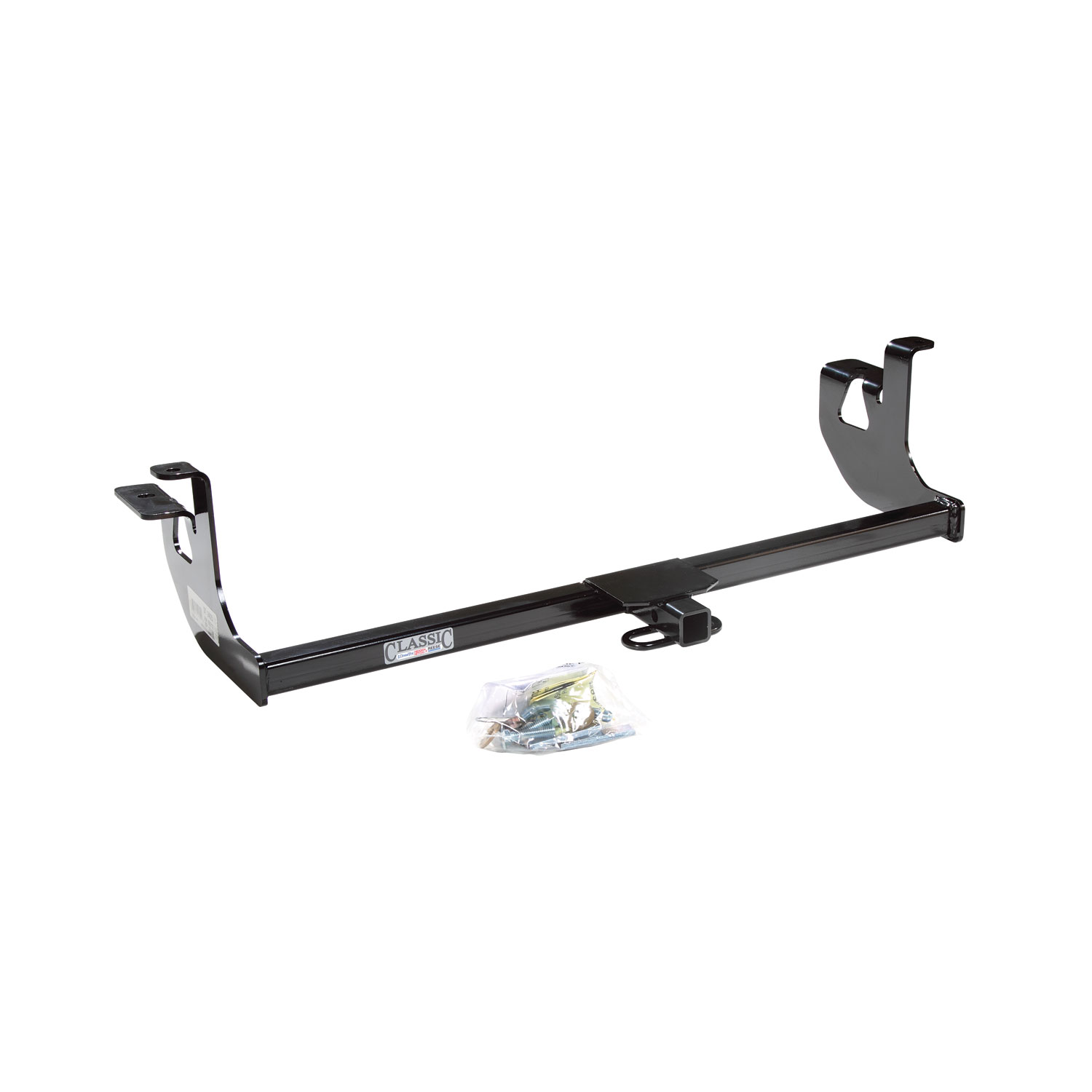

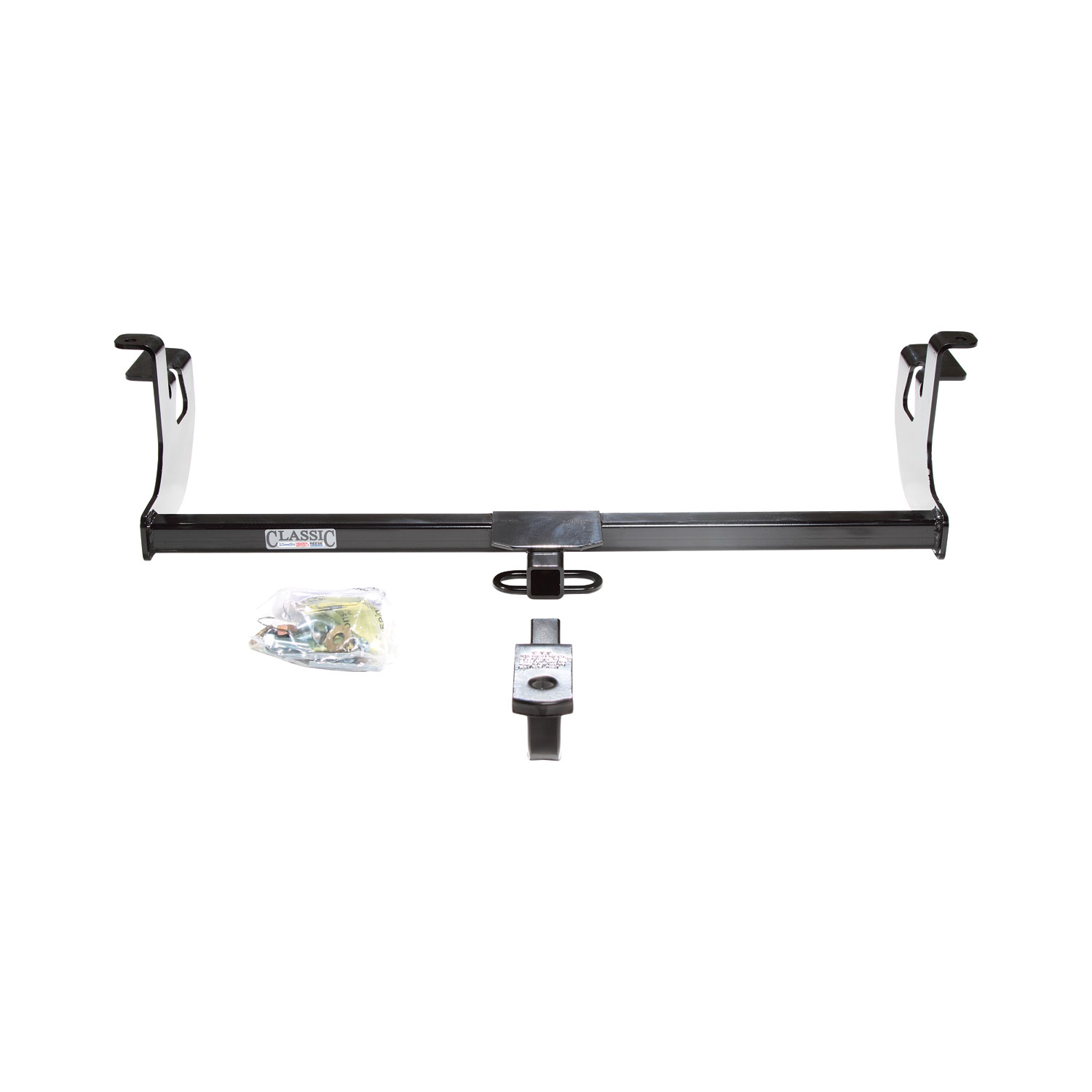

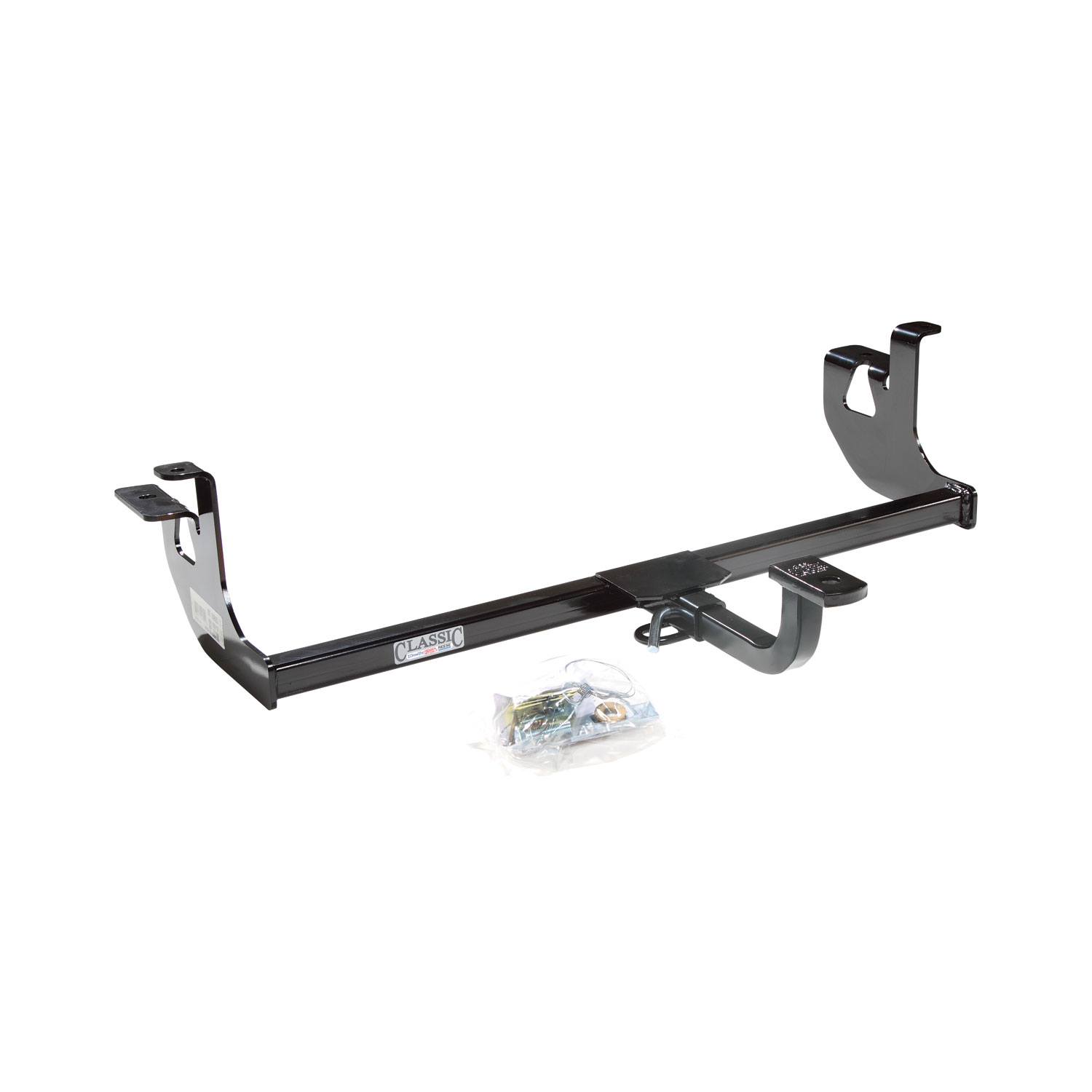

DRAW-TITE Class 1 trailer hitches are the perfect mix of style and stability for those times when youre working on a home project or heading out on an adventure. This DRAW-TITE Class 1 receiver hitch is rated for up to 2,000 lbs. gross trailer weight (GTW) and up to 200 lbs. tongue weight (TW). No weight distribution kits can be used on this specific trailer hitch. DRAW-TITE hitches are designed to provide top towing performance, with solid-all-welded construction and a black powder coat finish to resist rust and corrosion. The Class 1 trailer hitch has a 1-1/4 inch square receiver tube opening so you can easily attach accessories like a bike rack or cargo carrier, or a utility trailer. Includes all the mounting hardware needed for installation and are backed by a nationwide lifetime limited warranty. DRAW-TITE trailer hitches are tested to exceed V-5 and SAE J684 standards. DRAW-TITE: North Americas Favorite Hitch.
| BRAND: | DRAW-TITE |
| PART NUMBER: | 24825 |
| WARRANTY: | LIMITED LIFETIME WARRANTY |
| WEIGHT: | 23.1 LBS |
| GROSS TOWING WEIGHT: | 2,000 LBS. |
| GROSS TONGUE WEIGHT: | 200 LBS. |
| RECEIVER SIZE: | 1.25 IN. |
| HITCH CLASS: | I |
| DRILLING REQUIRED: | NO |
| MOUNTING HARDWARE INCLUDED: | YES |
| ATTACHMENT LOCATION: | REAR |
| HITCH VISIBILITY: | VISIBLE |
| CROSS-TUBE TYPE: | SQUARE TUBE |
| BALL MOUNT INCLUDED: | NO |
| COLOR: | BLACK |
| FINISH: | BLACK POWDER COAT OVER E-COAT |
| MATERIAL: | STEEL |
| MOUNTING LOCATION: | VEHICLE FRAME |
| MOUNTING TYPE: | BOLT-ON |
Draw-Tite has designed custom-fit trailer hitches since 1946 and is one of North America's most widely fitted hitch brands. Receiver hitches use solid all-welded construction and low-profile designs that follow modern vehicle contours, install with minimal bumper cutting or drilling, meet or exceed V5 CSA and SAE J684 standards, and carry a limited lifetime warranty.
Draw-Tite has been leading custom-fit trailer hitch design and engineering since its founding in 1946, and it remains one of the most widely fitted hitch brands in North America. The company's stated approach is straightforward: every hitch is tested rigorously so that it performs well beyond published industry standards, a philosophy it markets as Tested Tough. It sits within the Horizon Global towing group alongside Reese, Fulton, Bulldog, Tekonsha, Bargman and Wesbar.
Custom fit is the defining characteristic. Rather than adapting a universal design, Draw-Tite engineers a trailer hitch for a specific make, model and model year, so it bolts to existing frame locations with minimal bumper cutting or drilling. Low-profile designs follow the rear contours and aerodynamic styling of modern vehicles, which matters more than it once did now that rear fascias are shaped and sensor-equipped. Construction is solid all-welded steel for maximum strength, and every hitch meets or exceeds V5 CSA and SAE J684 standards and is backed by a nationwide limited lifetime warranty.
The range spans receiver sizes and classes to suit different loads, from 1-1/4 inch receivers for bike racks, cargo carriers and light trailers up through 2 inch receivers for heavier towing. Front mount hitches add a receiver at the front of the vehicle for winch mounts, snow plows, spare carriers and precise trailer positioning.
The Hidden Hitch series takes concealment further by mounting behind the vehicle's rear fascia, so the vehicle keeps its factory appearance until a removable receiver is fitted. Each is custom designed per make and model for a no-drill installation that does not compromise ground clearance, rated for up to 3,500 pounds gross trailer weight and 350 pounds tongue weight. Matching plug-and-play wiring completes the towing system.
Experts available to answer your questions
Call 888-634-9494Lifetime
Draw•Tite® and the Checkered Flag Foundation
3 compatible vehicles
| Year | Make & Model | Style | Notes |
|---|---|---|---|
| 2010 - 2014 | Volkswagen Golf | — | Class 1 Trailer Hitch: 2000 lbs 200/2,000 lbs. Weight Carrying (tongue weight/gross trailer weight) Uses all existing holes. No Drilling required Install Time is 15 minutes |
| 2006 - 2009 | Volkswagen GTI | Hatchback · 2-Door | Class 1 Trailer Hitch: 2000 lbs 200/2,000 lbs. Weight Carrying (tongue weight/gross trailer weight) Uses all existing holes. No Drilling required Install Time is 15 minutes |
| 2006 - 2009 | Volkswagen Rabbit | — | Class 1 Trailer Hitch: 2000 lbs 200/2,000 lbs. Weight Carrying (tongue weight/gross trailer weight) Uses all existing holes. No Drilling required Install Time is 15 minutes |
The Draw-tite Class 1 Trailer Hitch, 1-1/4" Square Receiver, Black for Select Volkswagen GTI, Volkswagen Golf, Volkswagen Rabbit 24825 (Part #DT24825) fits 2010-2014 Volkswagen Golf models. The 2014 model year is the last year covered by this part number. For newer models, check for an updated version.
The Draw-tite Class 1 Trailer Hitch, 1-1/4" Square Receiver, Black for Select Volkswagen GTI, Volkswagen Golf, Volkswagen Rabbit 24825 (Part #DT24825) fits the following vehicles: 2010-2014 Volkswagen Golf; 2006-2009 Volkswagen GTI; 2006-2009 Volkswagen Rabbit. Always verify your specific year, make, and model before ordering.
Yes, the Draw-tite Class 1 Trailer Hitch, 1-1/4" Square Receiver, Black for Select Volkswagen GTI, Volkswagen Golf, Volkswagen Rabbit 24825 (Part #DT24825) is designed to fit the 2010-2014 Volkswagen Golf.
The Draw-tite Class 1 Trailer Hitch, 1-1/4" Square Receiver, Black for Select Volkswagen GTI, Volkswagen Golf, Volkswagen Rabbit 24825 (Part #DT24825) Refer to the included instructions for installation details. Basic hand tools are typically all you need.
Part 24825 fits Volkswagen Golf including TDI models. However, it does not fit Golf GTI, Golf Wagon, or Golf R variants. Confirm your exact model before purchasing.
Yes, part 24825 is compatible with Volkswagen Rabbit models.
No. Part 24825 is not compatible with Golf R models. The manual explicitly excludes Golf R from the compatible applications.
No. Part 24825 is not compatible with Golf Wagon models. The manual explicitly excludes Golf Wagon from the compatible applications.
The maximum gross trailer weight is 2000 LB (908 kg) and the maximum tongue weight is 200 LB (90.8 kg). Do not exceed the lower of this rating or your vehicle manufacturer's towing rating.
You will need wrenches in the following sizes: 3/4", 13mm, and 19mm. Pull wires are provided with the hitch. No drill bits are required as no drilling is necessary for this installation.
Yes, pull wires are provided with the hitch assembly and are used during installation to feed the carriage bolt and spacer through the frame rail slots.
No. The manual specifies "Drill Bits: None". No drilling is required for this installation.
1. Feed the carriage bolt and large spacer through slots on the bottom of frame rails using pull wires. 2. Remove existing M12 bolts (do not clean threads). 3. Raise hitch into position, feeding pull wires through rearward holes on bracket. Install driver's side bracket first near the forward exhaust hanger. If needed, loosen the passenger-side exhaust hanger to allow movement. 4. Reinstall M12 bolts and washers. 5. Remove pull wires and install conical washer and hex nut on 1/2" fasteners. 6. Tighten all fasteners to specification. 7. Re-tighten the exhaust hanger if loosened.
The carriage bolt may need to be inserted at an angle to fit through the slots on the bottom of the frame rails. The manual notes this as a possibility in Step 1.
No. The manual explicitly states "Do Not clean the threads" when removing the existing M12 bolts in Step 2. If necessary to start the bolts in Step 4, clean only the first few threads.
If necessary to get the passenger-side bracket into position, loosen the exhaust hanger on the passenger's side. This will allow the exhaust bracket to move side to side, creating clearance. After installation is complete, re-tighten the exhaust hanger.
The pull wires are used to feed the carriage bolt and large spacer through the slots on the bottom of the frame rails. They should be left in position to assist in locating the bolt when the hitch is placed in position, and later fed through the rearward holes on the bracket. They are removed after the hitch is secured with the M12 bolts.
All M12X1.50 CL 10.9 fasteners must be tightened with a torque wrench to 92 Lb.-Ft. (125 N*M).
All 1/2-13 GR 5 fasteners must be tightened with a torque wrench to 75 Lb.-Ft. (102 N*M).

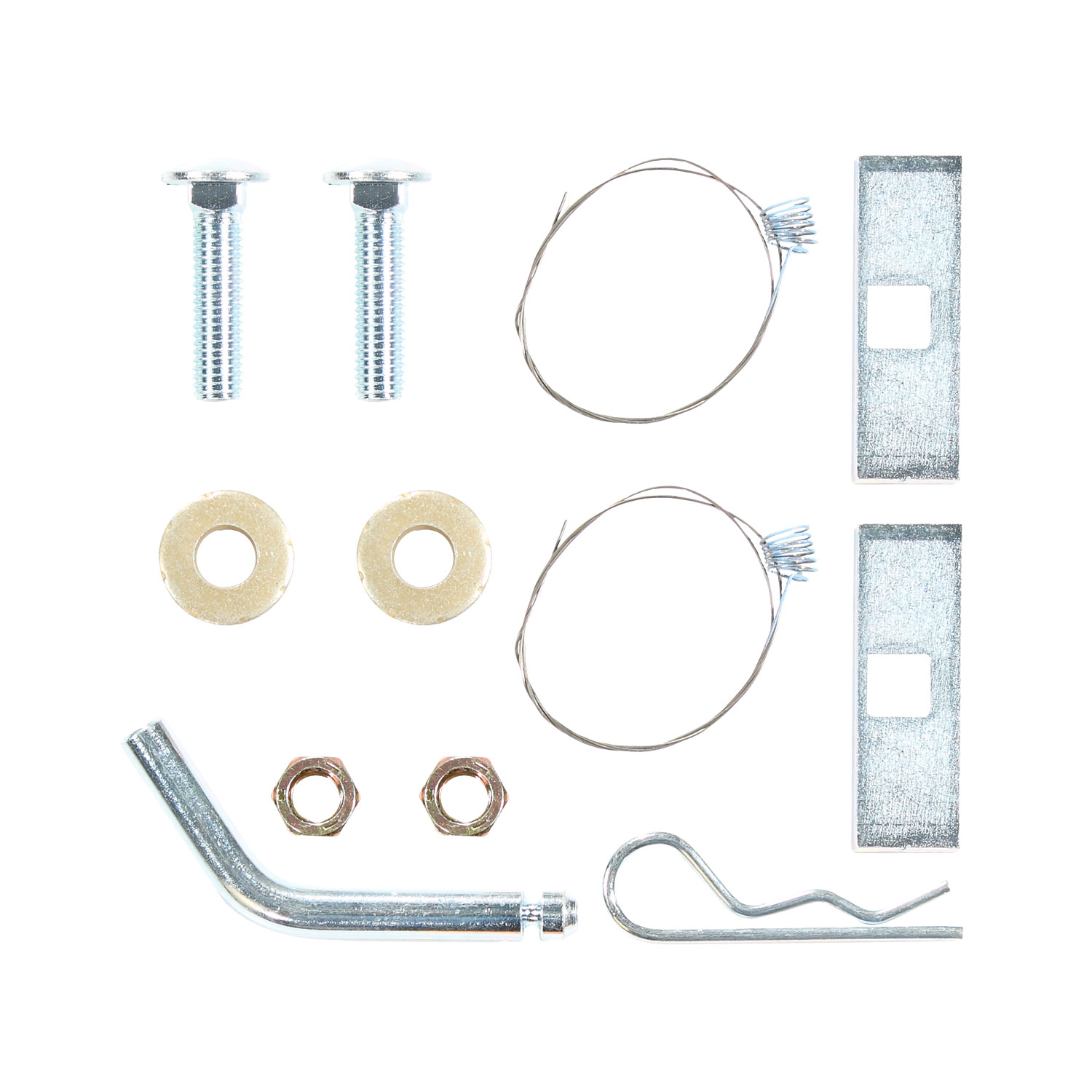

The hitch includes: (2) Carriage Bolts 1/2-13 X 2.00, (2) Spacers, (2) Conical Washers 1/2", and (2) Hex Nuts 1/2-13. The existing M12 bolts and washers from the vehicle are reused. Additional fasteners are available in Fastener Kit 24825F.
Reuse the existing M12 bolts and washers that you remove in Step 2. Reinstall them in Step 4. Be careful not to cross-thread the bolt and existing weldnut.
The conical washer is installed on the 1/2" carriage bolts along with the hex nut after the pull wires are removed in Step 5. It helps distribute load and secure the fastener.
Remove the pull wires in Step 5, after the hitch has been raised into position and the M12 bolts have been reinstalled. After removing the pull wires, install the conical washer and hex nut on the 1/2" fasteners.
Observe safety precautions when working beneath a vehicle and wear eye protection. Do not cut access or attachment holes with a torch. Be careful not to cross-thread bolts and existing weldnuts, and do not push the carriage bolt back into the frame when installing the conical washer and hex nut.
The drawbar must be used in the rise position only. Do not use it in any other position.
Check the hitch frequently to ensure all fasteners and the ball are properly tightened. Verify that all fasteners are torqued to specification and that the ball is secure before towing.
If the hitch is removed, plug all holes in the trunk pan or other body panels to prevent entry of water and exhaust fumes.
A hitch or ball which has been damaged should be removed and replaced. Do not continue to use a damaged hitch.
No. The drawbar is sold separately as Drawbar Kit 3594. You must purchase it separately if you need it.
The wiring access location is PC3 and PC4.
Yes, it fits Volkswagen Golf including TDI, but not Golf GTI, Golf Wagon, or Golf R models.
You need wrenches in 3/4", 13mm, and 19mm sizes. Pull wires are provided. No drilling is required.
M12X1.50 CL 10.9 fasteners: 92 Lb.-Ft. (125 N*M). 1/2-13 GR 5 fasteners: 75 Lb.-Ft. (102 N*M). Use a torque wrench for all fasteners.
Maximum gross trailer weight is 2000 LB (908 kg) and maximum tongue weight is 200 LB (90.8 kg). Do not exceed the lower of this rating or your vehicle manufacturer's rating.
Check that all fasteners and the ball are properly tightened. Verify torque specifications are met before towing.
