Select your vehicle to find the exact plug-and-play parts that fit — no cutting or splicing.

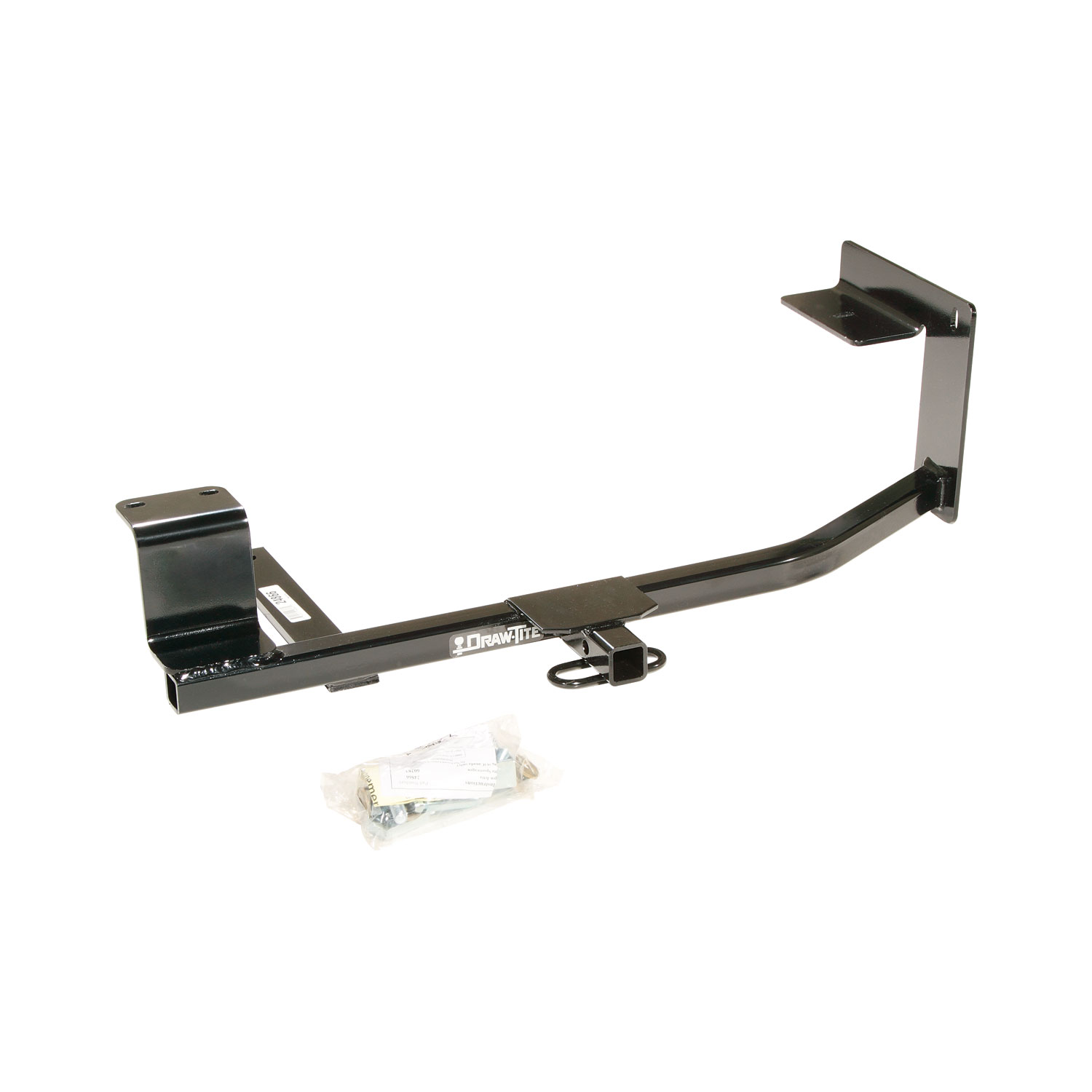

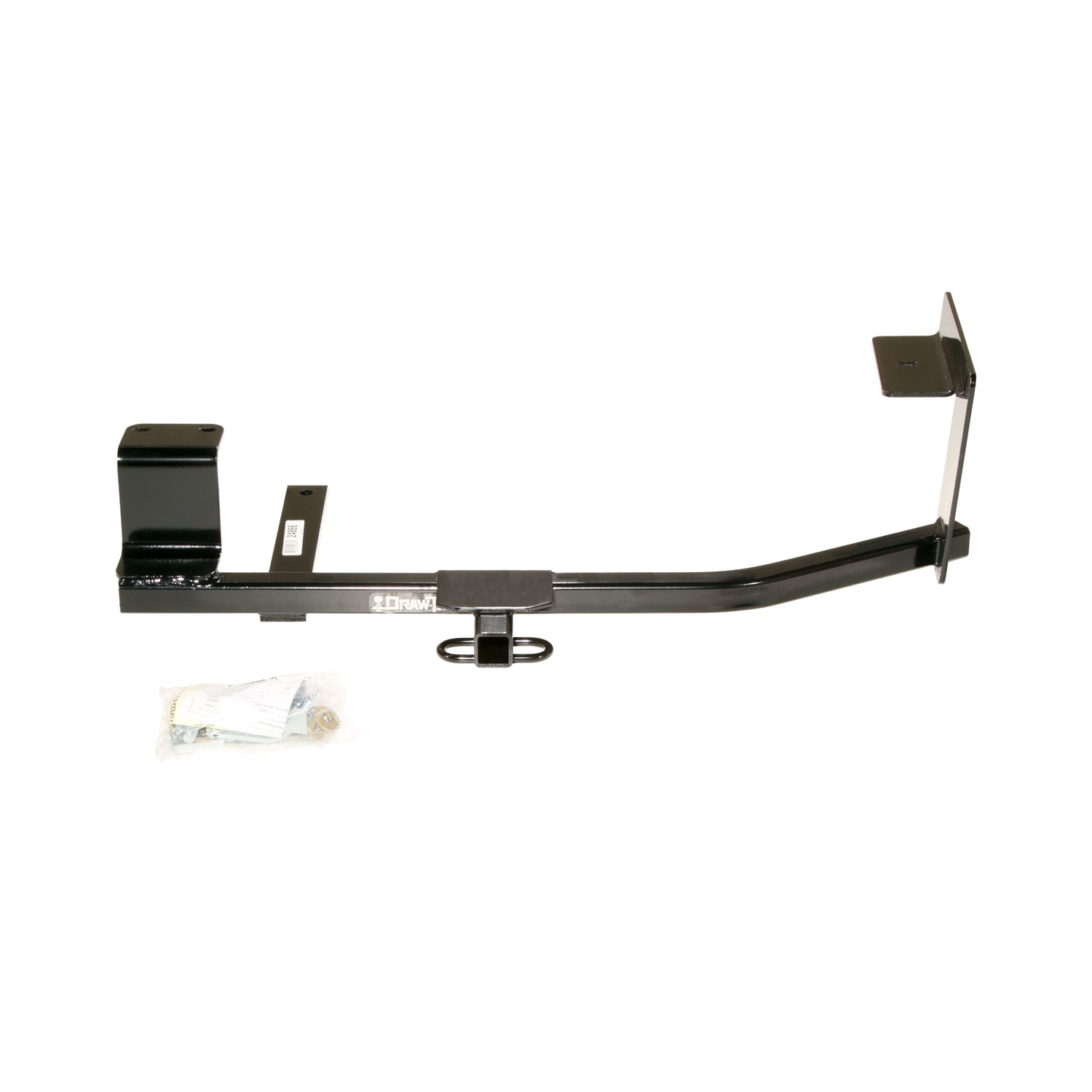

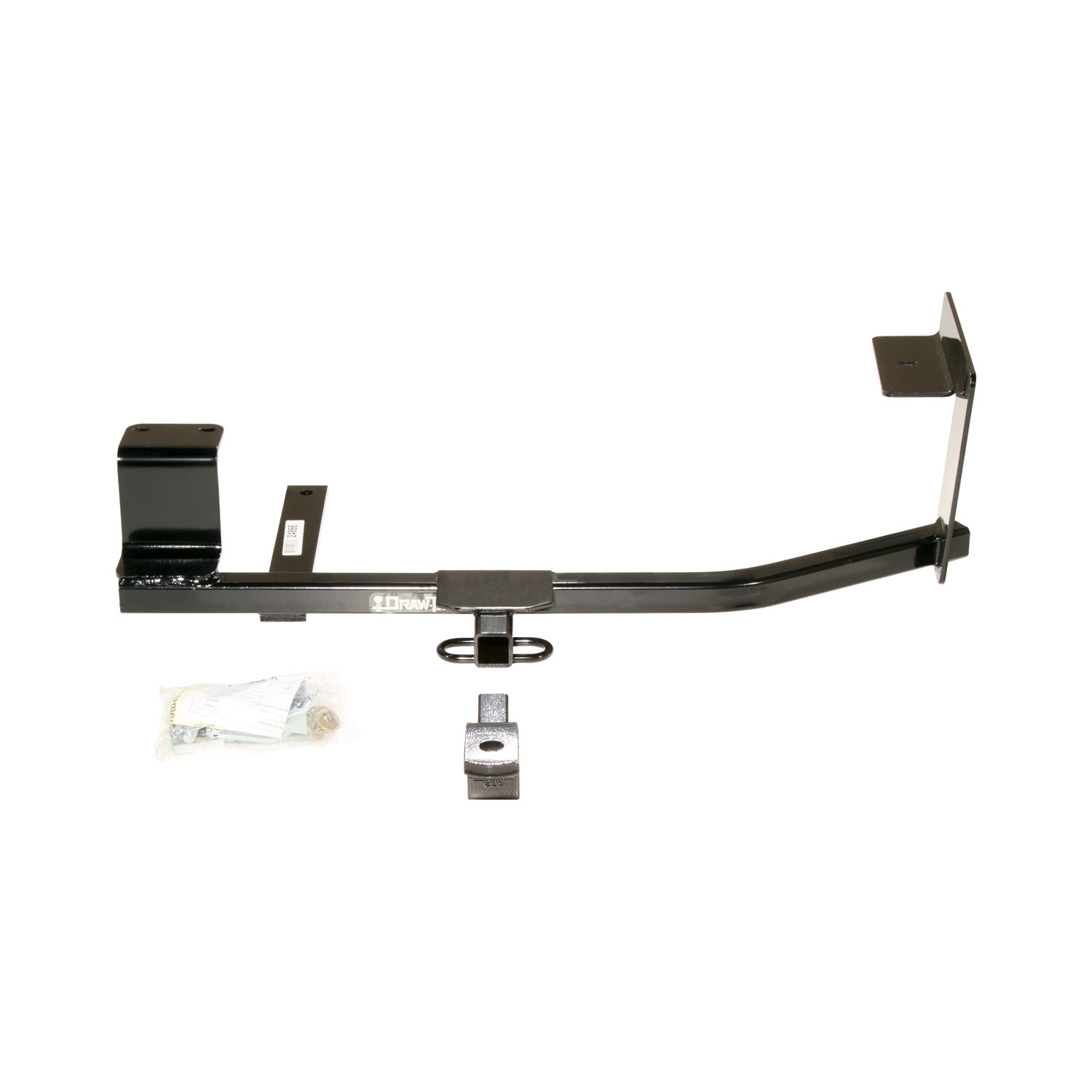

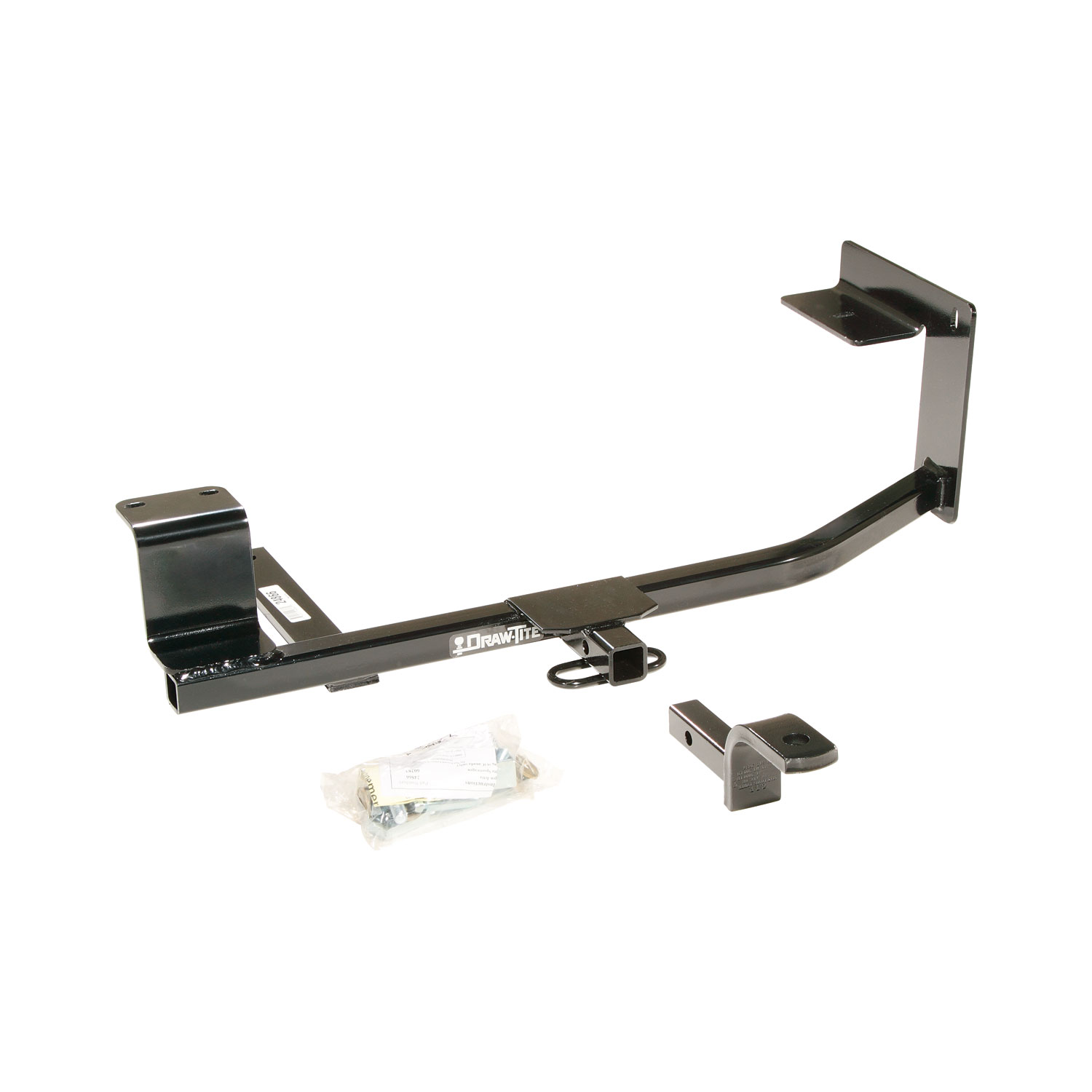

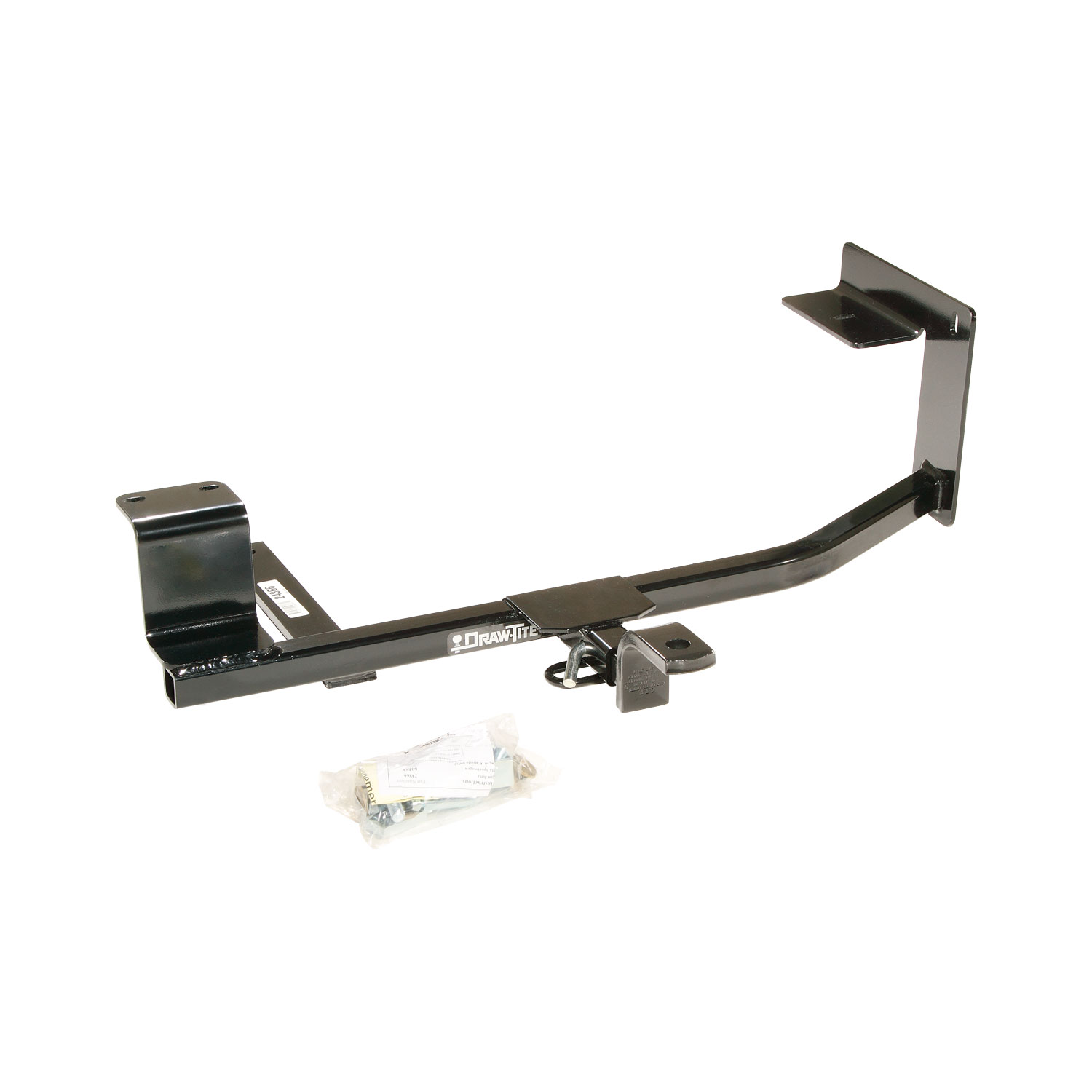

DRAW-TITE Class 1 trailer hitches are the perfect mix of style and stability for those times when youre working on a home project or heading out on an adventure. This DRAW-TITE Class 1 receiver hitch is rated for up to 2,000 lbs. gross trailer weight (GTW) and up to 200 lbs. tongue weight (TW). No weight distribution kits can be used on this specific trailer hitch. DRAW-TITE hitches are designed to provide top towing performance, with solid-all-welded construction and a black powder coat finish to resist rust and corrosion. The Class 1 trailer hitch has a 1-1/4 inch square receiver tube opening so you can easily attach accessories like a bike rack or cargo carrier, or a utility trailer. Includes all the mounting hardware needed for installation and are backed by a nationwide lifetime limited warranty. DRAW-TITE trailer hitches are tested to exceed V-5 and SAE J684 standards. DRAW-TITE: North Americas Favorite Hitch.
| BRAND: | DRAW-TITE |
| PART NUMBER: | 24866 |
| WARRANTY: | LIMITED LIFETIME WARRANTY |
| WEIGHT: | 24.6 LBS |
| GROSS TOWING WEIGHT: | 2,000 LBS. |
| GROSS TONGUE WEIGHT: | 200 LBS. |
| RECEIVER SIZE: | 1.25 IN. |
| HITCH CLASS: | I |
| DRILLING REQUIRED: | NO |
| MOUNTING HARDWARE INCLUDED: | YES |
| ATTACHMENT LOCATION: | REAR |
| HITCH VISIBILITY: | VISIBLE |
| CROSS-TUBE TYPE: | SQUARE TUBE |
| BALL MOUNT INCLUDED: | NO |
| COLOR: | BLACK |
| FINISH: | BLACK POWDER COAT OVER E-COAT |
| MATERIAL: | STEEL |
| MOUNTING LOCATION: | VEHICLE FRAME |
| MOUNTING TYPE: | BOLT-ON |
Draw-Tite has designed custom-fit trailer hitches since 1946 and is one of North America's most widely fitted hitch brands. Receiver hitches use solid all-welded construction and low-profile designs that follow modern vehicle contours, install with minimal bumper cutting or drilling, meet or exceed V5 CSA and SAE J684 standards, and carry a limited lifetime warranty.
Draw-Tite has been leading custom-fit trailer hitch design and engineering since its founding in 1946, and it remains one of the most widely fitted hitch brands in North America. The company's stated approach is straightforward: every hitch is tested rigorously so that it performs well beyond published industry standards, a philosophy it markets as Tested Tough. It sits within the Horizon Global towing group alongside Reese, Fulton, Bulldog, Tekonsha, Bargman and Wesbar.
Custom fit is the defining characteristic. Rather than adapting a universal design, Draw-Tite engineers a trailer hitch for a specific make, model and model year, so it bolts to existing frame locations with minimal bumper cutting or drilling. Low-profile designs follow the rear contours and aerodynamic styling of modern vehicles, which matters more than it once did now that rear fascias are shaped and sensor-equipped. Construction is solid all-welded steel for maximum strength, and every hitch meets or exceeds V5 CSA and SAE J684 standards and is backed by a nationwide limited lifetime warranty.
The range spans receiver sizes and classes to suit different loads, from 1-1/4 inch receivers for bike racks, cargo carriers and light trailers up through 2 inch receivers for heavier towing. Front mount hitches add a receiver at the front of the vehicle for winch mounts, snow plows, spare carriers and precise trailer positioning.
The Hidden Hitch series takes concealment further by mounting behind the vehicle's rear fascia, so the vehicle keeps its factory appearance until a removable receiver is fitted. Each is custom designed per make and model for a no-drill installation that does not compromise ground clearance, rated for up to 3,500 pounds gross trailer weight and 350 pounds tongue weight. Matching plug-and-play wiring completes the towing system.
Experts available to answer your questions
Call 888-634-9494Lifetime
Draw•Tite® and the Checkered Flag Foundation
4 compatible vehicles
| Year | Make & Model | Style | Notes |
|---|---|---|---|
| 2010 - 2014 | Volkswagen Golf | Wagon | Class 1 Trailer Hitch: 2000 lbs 200/2,000 lbs. Weight Carrying (tongue weight/gross trailer weight) Uses all existing holes. No Drilling required Install Time is 40 minutes |
| 2011 - 2014 | Volkswagen Jetta | — | Class 1 Trailer Hitch: 2000 lbs 200/2,000 lbs. Weight Carrying (tongue weight/gross trailer weight) Uses all existing holes. No Drilling required Install Time is 40 minutes |
| 2011 - 2014 | Volkswagen Jetta | 4-Door | Class 1 Trailer Hitch: 2000 lbs 200/2,000 lbs. Weight Carrying (tongue weight/gross trailer weight) Uses all existing holes. No Drilling required Install Time is 40 minutes |
| 2005 - 2010 | Volkswagen Jetta | Sedan · 4-Door | Class 1 Trailer Hitch: 2000 lbs 200/2,000 lbs. Weight Carrying (tongue weight/gross trailer weight) Uses all existing holes. No Drilling required Install Time is 40 minutes |
The Draw-tite Class 1 Trailer Hitch, 1-1/4" Square Receiver, Black for Select Volkswagen Golf, Volkswagen Jetta 24866 (Part #DT24866) fits the following vehicles: 2010-2014 Volkswagen Golf; 2005-2014 Volkswagen Jetta. Always verify your specific year, make, and model before ordering.
Yes, the Draw-tite Class 1 Trailer Hitch, 1-1/4" Square Receiver, Black for Select Volkswagen Golf, Volkswagen Jetta 24866 (Part #DT24866) is designed to fit the 2010-2014 Volkswagen Golf.
The Draw-tite Class 1 Trailer Hitch, 1-1/4" Square Receiver, Black for Select Volkswagen Golf, Volkswagen Jetta 24866 (Part #DT24866) fits 2010-2014 Volkswagen Golf models. The 2014 model year is the last year covered by this part number. For newer models, check for an updated version.
The Draw-tite Class 1 Trailer Hitch, 1-1/4" Square Receiver, Black for Select Volkswagen Golf, Volkswagen Jetta 24866 (Part #DT24866) Refer to the included instructions for installation details. Basic hand tools are typically all you need.
Yes, part number 24866 fits Volkswagen Jetta, Volkswagen Jetta Sportwagen, and Volkswagen Golf Wagon (Canada only). The hitch is also available under part numbers 60283 and 77249. Confirm your vehicle model and year match these applications before purchasing.
The maximum gross trailer weight is 2000 lb (908 kg) and the maximum tongue weight is 200 lb (91 kg). Do not exceed the lower of your towing vehicle manufacturer's rating or these limits.
You will need Torx 25, 10mm, 13mm, 11/16", and 3/4" wrenches. A torque wrench is required to tighten fasteners to specification. No drill bits are needed. The 7/16" pull wire is provided with the hitch. You will also need tape and sealant (not provided).
Yes. Step 8 requires you to remove the spare tire and the driver's side forward rubber plug from the spare tire well. The spare tire is reinstalled in step 9 after the hitch attachment is complete.
Yes. Step 3 requires lowering the exhaust by removing the rubber exhaust isolator ahead of the axle and the two bolts from the exhaust hanger bracket. The exhaust must be supported as required. Step 4 requires bending the two small tabs of the exhaust bracket up. The exhaust is rotated back into place in step 7.
Yes. Step 1 requires removing the plastic fascia from underneath the passenger side of the vehicle by removing 2–3 Torx 25 screws and 2 plastic hex nuts. The plastic fascia cover is returned to the owner. Step 2 requires removing 2 additional Torx 25 screws from the passenger side fascia (note: these are not present on 2011 sedans).
The fuel vapor canister is present on some models. Step 4 states to lower the fuel vapor canister on the passenger side "if present." If your vehicle has one, it must be lowered during installation and reinstalled in step 9.
No. The manual lists "Drill Bits: NONE" under Equipment Required. No drilling is necessary for this installation.
The 7/16" pull wire (provided) is used to feed the 7/16" carriage bolt and spacer through the access slot in the passenger side frame (step 5). The pull wire is threaded through the spacer and side bracket as you lift the hitch into place (step 6). After the M12 bolt is installed and the exhaust bracket is rotated back, the pull wire is removed and replaced with the 7/16" nut and washer (step 7).
In step 5, bend the handle nut (Item 3) and insert it into the passenger side frame over the center hole. The handle nut is not part of the fastener kit and is strapped to the hitch; remove it before beginning installation (as noted at the top of the instructions).
In step 5, tape spacer Item 9 to the inside of the side bracket. This spacer is 0.25 x 1.50 x 3.00 inches.
Step 8 requires applying sealant (not provided) to the 1/2" bolt and spacer (Items 5 and 6) installed in the spare tire well. The sealant prevents exhaust and water from entering. You must purchase sealant separately.
Tighten all 7/16" fasteners with a torque wrench to 50 Lb.-Ft. (68 N·m).
Tighten all 1/2" fasteners with a torque wrench to 75 Lb.-Ft. (102 N·m).
Tighten all M8 fasteners with a torque wrench to 20 Lb.-Ft. (27 N·m).
Tighten all M12 fasteners with a torque wrench to 68 Lb.-Ft. (92 N·m).
Wiring access location is at PC 3&4 for sedans and SUV 3&4 for wagons.
Observe safety precautions when working beneath a vehicle and wear eye protection. Do not cut access or attachment holes with a torch. Support the exhaust as required when lowering it. If the hitch is removed, plug all holes in the trunk pan or other body panels to prevent entry of water and exhaust fumes.
The drawbar must be used in the rise position only. Do not use it in any other position.
Check the hitch frequently, making sure all fasteners and the ball are properly tightened. If the hitch is removed, plug all holes in the trunk pan or other body panels to prevent entry of water and exhaust fumes. A hitch or ball which has been damaged should be removed and replaced.
Check the hitch frequently to ensure all fasteners and the ball are properly tightened. The manual does not specify an exact interval, but regular inspection is recommended.

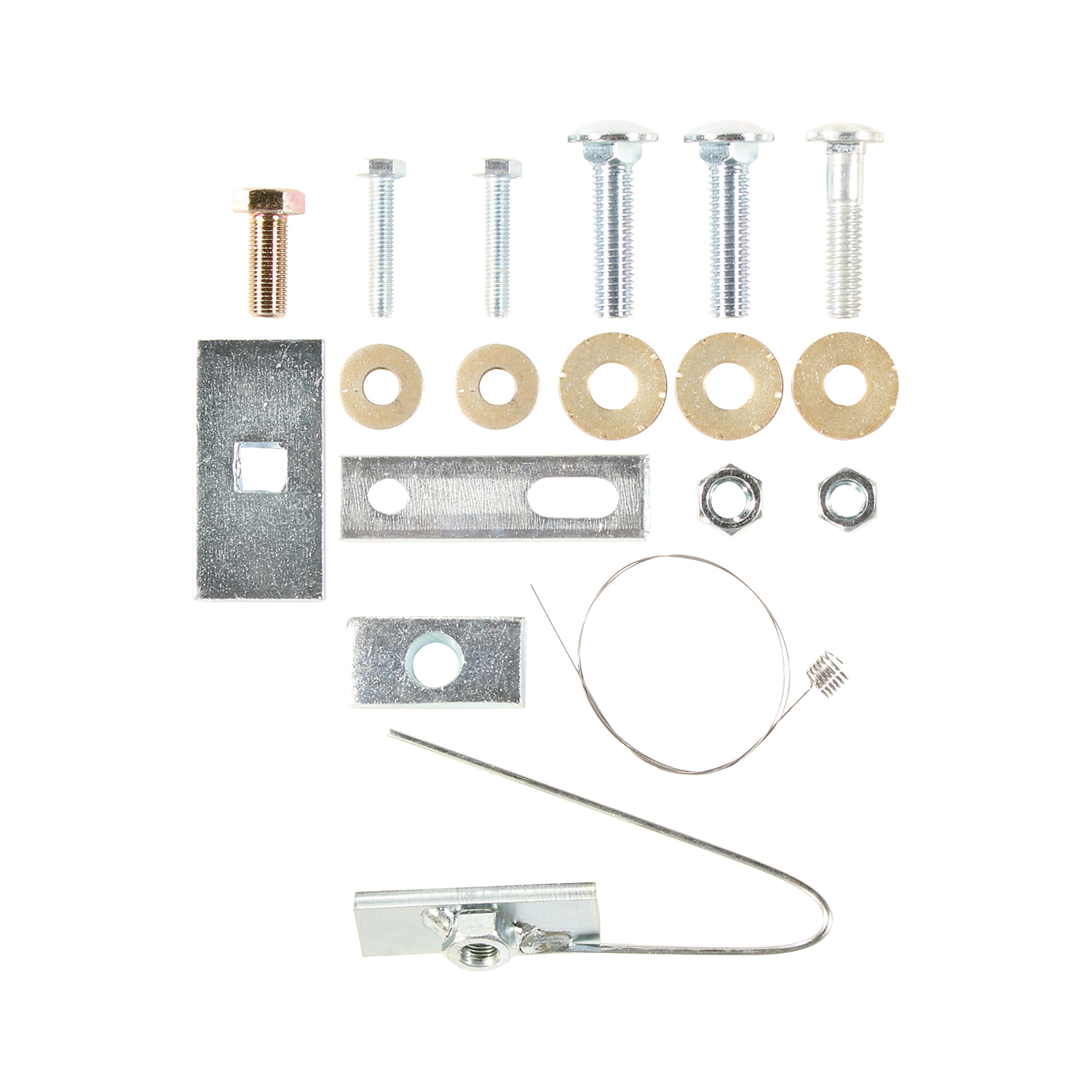

The fastener kit (part number 24866F) includes: 1 hex bolt M12 x 1.25 x 30mm CL 8.8, 1 conical washer 7/16", 2 conical washers 1/2", 1 spacer 0.438 x 1.00 x 2.00, 1 carriage bolt 7/16-14 x 2.00, 1 hex nut 1/2", 1 spacer 0.188 x 1.00 x 3.50, 1 carriage bolt 1/2-13 x 2.00 GR 5, 2 hex bolts M8 x 1.25 x 40mm CL 8.8, 1 spacer 0.25 x 1.50 x 3.00, 2 conical washers 3/8", and 1 hex nut 7/16-14. The handle nut M12 is not included in the fastener kit; it is strapped to the hitch.
Yes. The drawbar kit (part number 3593) is sold separately and is required to complete the towing system. The hitch itself is the receiver; the drawbar must be purchased separately.
No. The plastic fascia cover is sold separately. After removing it in step 1, it is returned to the vehicle owner.
Yes, it fits Volkswagen Jetta, Jetta Sportwagen, and Golf Wagon (Canada only).
Torx 25, 10mm, 13mm, 11/16", and 3/4" wrenches; a torque wrench; tape; and sealant (not provided). No drilling is required.
Yes. Both the spare tire and exhaust must be removed/lowered. The plastic fascia must also be removed from the passenger side.
7/16" fasteners: 50 Lb.-Ft. (68 N·m); 1/2" fasteners: 75 Lb.-Ft. (102 N·m); M8 fasteners: 20 Lb.-Ft. (27 N·m); M12 fasteners: 68 Lb.-Ft. (92 N·m).
Maximum gross trailer weight is 2000 lb (908 kg); maximum tongue weight is 200 lb (91 kg). Do not exceed your vehicle manufacturer's rating.
Wear eye protection when working beneath the vehicle. Do not cut holes with a torch. The drawbar must be used in rise position only. Check fasteners and ball frequently. If removed, plug all holes to prevent water and exhaust fume entry.
