Select your vehicle to find the exact plug-and-play parts that fit — no cutting or splicing.
DRAW-TITE Class 1 trailer hitches are the perfect mix of style and stability for those times when youre working on a home project or heading out on an adventure. This DRAW-TITE Class 1 receiver hitch is rated for up to 2,000 lbs. gross trailer weight (GTW) and up to 200 lbs. tongue weight (TW). No weight distribution kits can be used on this specific trailer hitch. DRAW-TITE hitches are designed to provide top towing performance, with solid-all-welded construction and a black powder coat finish to resist rust and corrosion. The Class 1 trailer hitch has a 1-1/4 inch square receiver tube opening so you can easily attach accessories like a bike rack or cargo carrier, or a utility trailer. Includes all the mounting hardware needed for installation and are backed by a nationwide lifetime limited warranty. DRAW-TITE trailer hitches are tested to exceed V-5 and SAE J684 standards. DRAW-TITE: North Americas Favorite Hitch.
| BRAND: | DRAW-TITE |
| PART NUMBER: | 24748 |
| WARRANTY: | LIMITED LIFETIME WARRANTY |
| WEIGHT: | 23.1 LBS |
| GROSS TOWING WEIGHT: | 2,000 LBS. |
| GROSS TONGUE WEIGHT: | 200 LBS. |
| RECEIVER SIZE: | 1.25 IN. |
| HITCH CLASS: | I |
| DRILLING REQUIRED: | YES |
| MOUNTING HARDWARE INCLUDED: | YES |
| ATTACHMENT LOCATION: | REAR |
| HITCH VISIBILITY: | VISIBLE |
| CROSS-TUBE TYPE: | SQUARE TUBE |
| BALL MOUNT INCLUDED: | NO |
| COLOR: | BLACK |
| FINISH: | BLACK POWDER COAT OVER E-COAT |
| MATERIAL: | STEEL |
| MOUNTING LOCATION: | VEHICLE FRAME |
| MOUNTING TYPE: | BOLT-ON |
Draw-Tite has designed custom-fit trailer hitches since 1946 and is one of North America's most widely fitted hitch brands. Receiver hitches use solid all-welded construction and low-profile designs that follow modern vehicle contours, install with minimal bumper cutting or drilling, meet or exceed V5 CSA and SAE J684 standards, and carry a limited lifetime warranty.
Draw-Tite has been leading custom-fit trailer hitch design and engineering since its founding in 1946, and it remains one of the most widely fitted hitch brands in North America. The company's stated approach is straightforward: every hitch is tested rigorously so that it performs well beyond published industry standards, a philosophy it markets as Tested Tough. It sits within the Horizon Global towing group alongside Reese, Fulton, Bulldog, Tekonsha, Bargman and Wesbar.
Custom fit is the defining characteristic. Rather than adapting a universal design, Draw-Tite engineers a trailer hitch for a specific make, model and model year, so it bolts to existing frame locations with minimal bumper cutting or drilling. Low-profile designs follow the rear contours and aerodynamic styling of modern vehicles, which matters more than it once did now that rear fascias are shaped and sensor-equipped. Construction is solid all-welded steel for maximum strength, and every hitch meets or exceeds V5 CSA and SAE J684 standards and is backed by a nationwide limited lifetime warranty.
The range spans receiver sizes and classes to suit different loads, from 1-1/4 inch receivers for bike racks, cargo carriers and light trailers up through 2 inch receivers for heavier towing. Front mount hitches add a receiver at the front of the vehicle for winch mounts, snow plows, spare carriers and precise trailer positioning.
The Hidden Hitch series takes concealment further by mounting behind the vehicle's rear fascia, so the vehicle keeps its factory appearance until a removable receiver is fitted. Each is custom designed per make and model for a no-drill installation that does not compromise ground clearance, rated for up to 3,500 pounds gross trailer weight and 350 pounds tongue weight. Matching plug-and-play wiring completes the towing system.
Experts available to answer your questions
Call 888-634-9494Lifetime
Draw•Tite® Receiver Hitches Commercial
3 compatible vehicles
| Year | Make & Model | Style | Notes |
|---|---|---|---|
| 1999 - 2005 | Volkswagen Jetta | — | Class 1 Trailer Hitch: 2000 lbs 200/2,000 lbs. Weight Carrying (tongue weight/gross trailer weight) Drilling Required Install Time is 30 minutes |
| 1999 - 2005 | Volkswagen Jetta | Sedan | Class 1 Trailer Hitch: 2000 lbs 200/2,000 lbs. Weight Carrying (tongue weight/gross trailer weight) Drilling Required Install Time is 30 minutes |
| 2007 - 2009 | Volkswagen Jetta City | Sedan | Class 1 Trailer Hitch: 2000 lbs 200/2,000 lbs. Weight Carrying (tongue weight/gross trailer weight) Drilling Required Install Time is 30 minutes |
The Draw-tite Class 1 Trailer Hitch, 1-1/4" Square Receiver, Black for Select Volkswagen Jetta, Volkswagen Jetta City 24748 (Part #DT24748) fits the following vehicles: 1999-2005 Volkswagen Jetta; 2007-2009 Volkswagen Jetta City. Always verify your specific year, make, and model before ordering.
The Draw-tite Class 1 Trailer Hitch, 1-1/4" Square Receiver, Black for Select Volkswagen Jetta, Volkswagen Jetta City 24748 (Part #DT24748) fits 1999-2005 Volkswagen Jetta models. The 2009 model year is the last year covered by this part number. For newer models, check for an updated version.
Yes, the Draw-tite Class 1 Trailer Hitch, 1-1/4" Square Receiver, Black for Select Volkswagen Jetta, Volkswagen Jetta City 24748 (Part #DT24748) is designed to fit the 1999-2005 Volkswagen Jetta.
The Draw-tite Class 1 Trailer Hitch, 1-1/4" Square Receiver, Black for Select Volkswagen Jetta, Volkswagen Jetta City 24748 (Part #DT24748) Drilling is required for installation. Basic hand tools are typically all you need.
This hitch (part numbers 77106, 24748, 24783) fits VW Jetta Sedan and VW City Jetta (Canada only) models, except Turbo models and all Wagon variants. It is compatible with 2005, 2006, 2008, and 2015 model years. If your vehicle is a Turbo model or Wagon, this hitch is not compatible.
No. This hitch is not compatible with any VW Jetta Wagon models. It is designed for VW Jetta Sedan and VW City Jetta (Canada only) only.
No. This hitch is not compatible with Turbo VW Jetta models. The manual explicitly excludes all Turbo variants.
The maximum gross trailer weight is 2000 LB (908 kg) and the maximum tongue weight is 200 LB (90.8 kg). Do not exceed the lower of the towing vehicle manufacturer's rating or these limits.
You will need wrenches in 3/4" and 7/8" sizes, and a 1/2" drill bit. A torque wrench is also required to tighten all fasteners to 75 Lb.-Ft. (102 N*M).

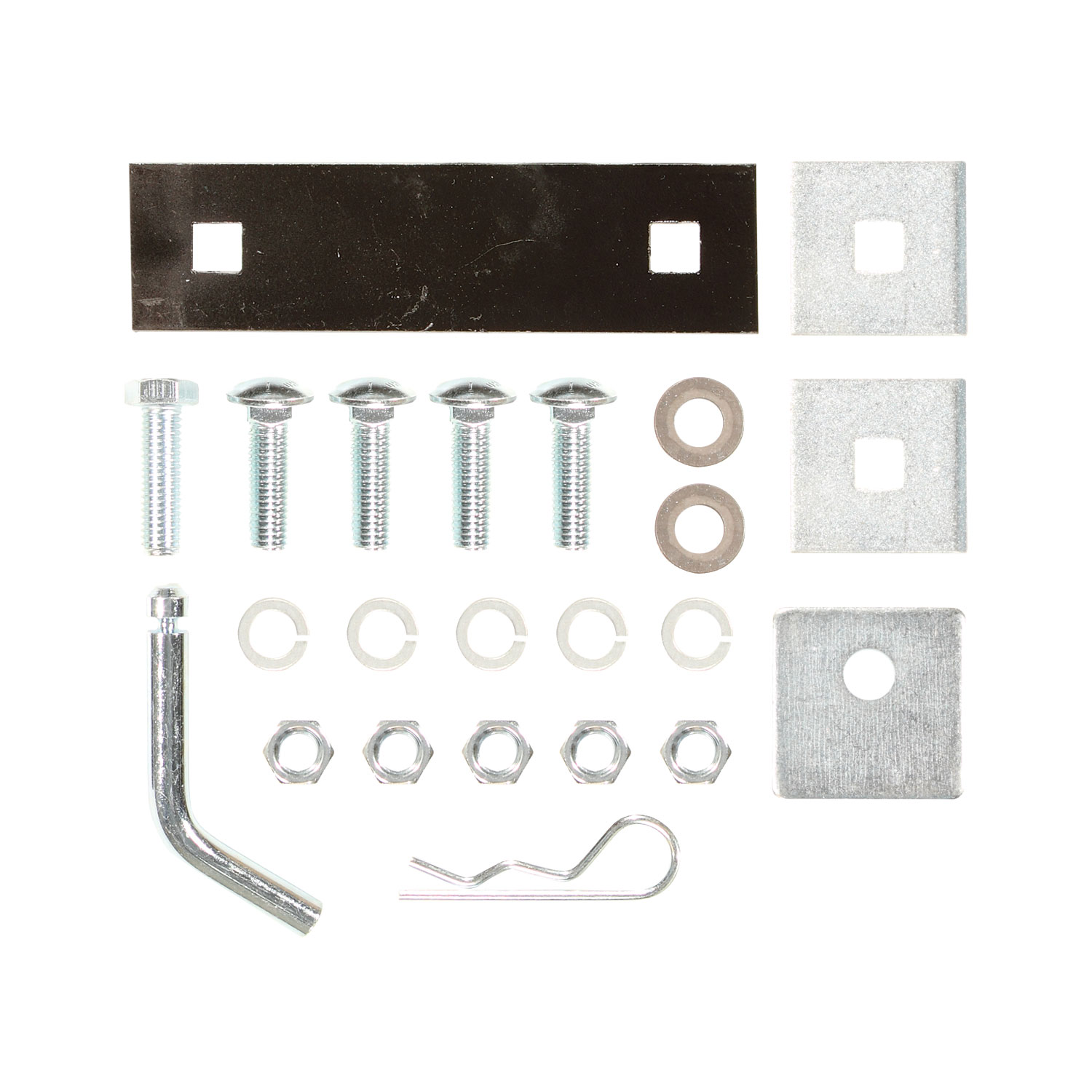

The hitch includes: 1 bolt 1/2-13 X 1.75, 5 nuts 1/2-13, 2 flat washers, 4 carriage bolts 1/2-13 X 1.75, 5 lock washers, 1 spacer, 2 spacers with square holes, and 1 long block bar. A separate fastener kit (24748F) is available if needed.
Yes. You must remove the spare tire from the trunk before drilling any holes. Reinstall the spare tire after all installation steps are complete.
You will drill four 1/2" holes in the trunk pan. Three holes are drilled using the hitch as a template for attachment, and one additional hole is drilled using the long spacer (with 2 square holes) as a template.
You need a 1/2" drill bit to drill all attachment holes in the trunk pan.
No. Do not cut access or attachment holes with a torch. Use a drill with a 1/2" bit only.
1. Remove the spare tire. 2. Raise the hitch into position and install the 1/2-13 hex bolt at the tow hook location. 3. Using the hitch as a template, drill three 1/2" holes and install three 1/2-13 carriage bolts. 4. Place the long spacer (with 2 square holes) in the approximate position shown inside the trunk pan and use it as a template to drill the remaining 1/2" hole. Install remaining fasteners. 5. Tighten all fasteners to 75 Lb.-Ft. (102 N*M). 6. Seal all drilled holes in the trunk pan. 7. Reinstall the spare tire.
All 1/2" GR5 fasteners must be tightened to 75 Lb.-Ft. (102 N*M) using a torque wrench.
Yes. Raise the hitch into position and use it as a template to drill the three 1/2" holes for hitch attachment. After drilling those holes and installing carriage bolts, use the long spacer (with 2 square holes) as a template to drill the remaining 1/2" hole.
Observe safety precautions when working beneath the vehicle and wear eye protection. Do not cut holes with a torch. After installation, check the hitch frequently to ensure all fasteners and the ball are properly tightened. If the hitch is removed, plug all holes in the trunk pan or other body panels to prevent water and exhaust fume entry. If the hitch or ball is damaged, remove and replace it immediately.
You must seal all holes drilled in the trunk pan to prevent intrusion of exhaust fumes and water. This is a required step after installation.
Check the hitch frequently to ensure all fasteners and the ball are properly tightened. The manual does not specify an exact interval, but regular inspection is required for safe operation.
The drawbar must be used in the RISE position only. Do not use it in any other position.
A hitch or ball which has been damaged should be removed and replaced immediately. Do not continue to use a damaged hitch.
The drawbar kit is part number 3593 and is sold separately.
The fastener kit is part number 24748F and is sold separately.
Yes, if your vehicle is a VW Jetta Sedan or VW City Jetta (Canada only) that is not a Turbo model and not a Wagon. Compatible model years are 2005, 2006, 2008, and 2015.
You need 3/4" and 7/8" wrenches, a 1/2" drill bit, and a torque wrench. All fasteners must be tightened to 75 Lb.-Ft. (102 N*M).
Yes. You must drill four 1/2" holes in the trunk pan. The spare tire must be removed before drilling, and all drilled holes must be sealed after installation to prevent water and exhaust fume intrusion.
Maximum gross trailer weight is 2000 LB (908 kg) and maximum tongue weight is 200 LB (90.8 kg). Do not exceed the lower of these limits or your vehicle manufacturer's rating.
All 1/2" GR5 fasteners must be tightened to 75 Lb.-Ft. (102 N*M) using a torque wrench.
Wear eye protection when working beneath the vehicle. Do not cut holes with a torch. Check the hitch frequently to ensure all fasteners and ball are tight. If removed, plug all holes to prevent water and exhaust fume entry. The drawbar must be used in RISE position only.
Seal all drilled holes in the trunk pan to prevent intrusion of exhaust fumes and water. This is a required step before the installation is complete.
