Select your vehicle to find the exact plug-and-play parts that fit — no cutting or splicing.

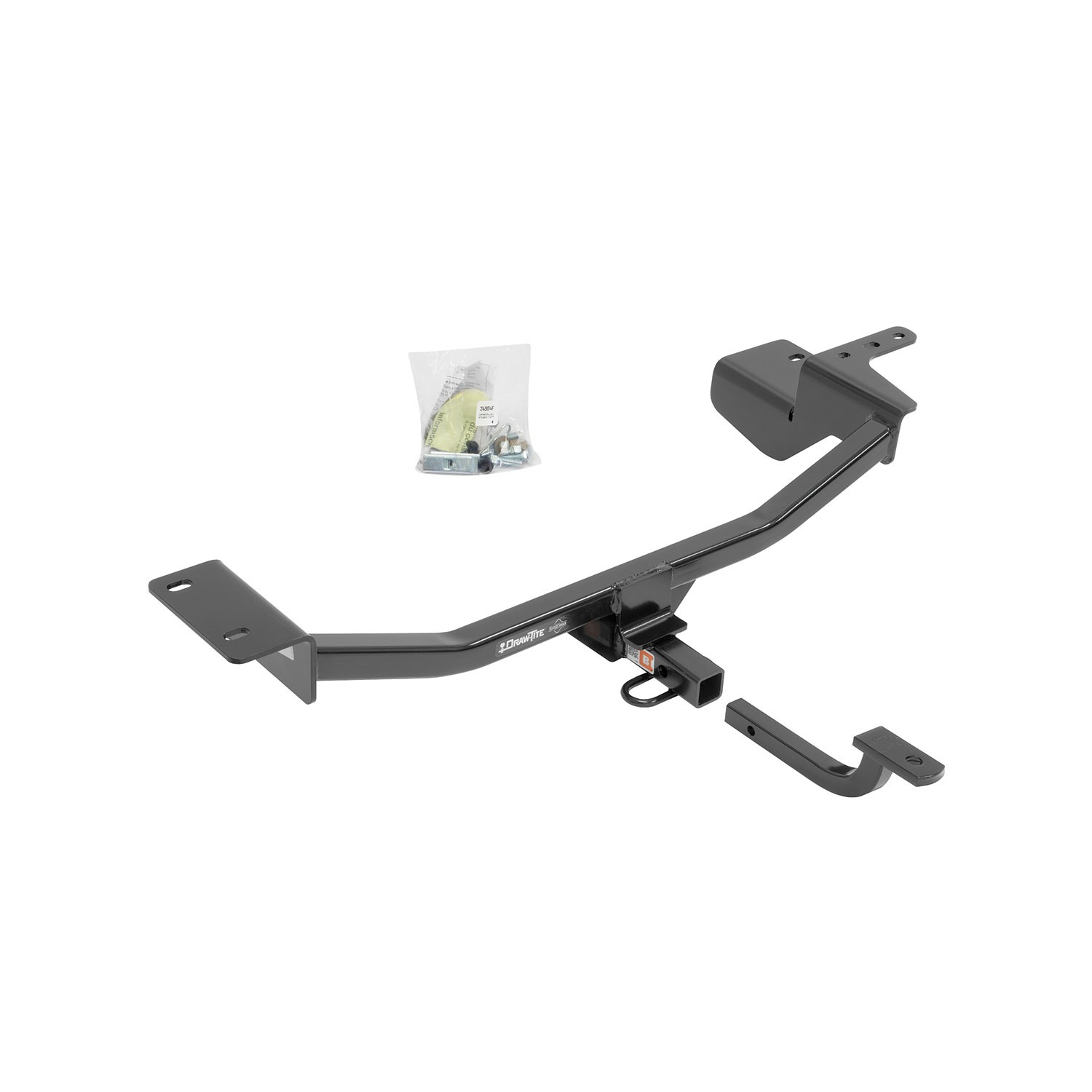

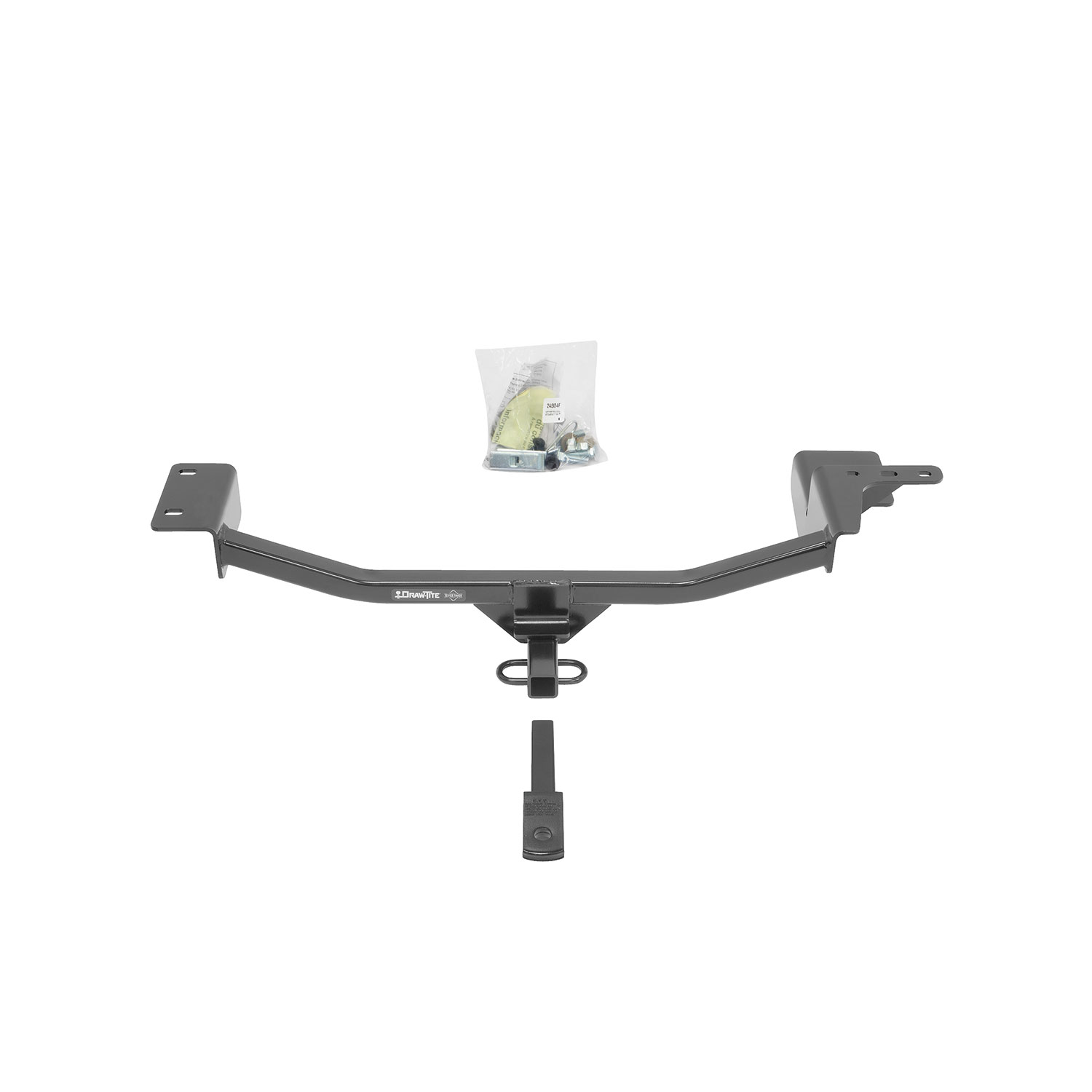

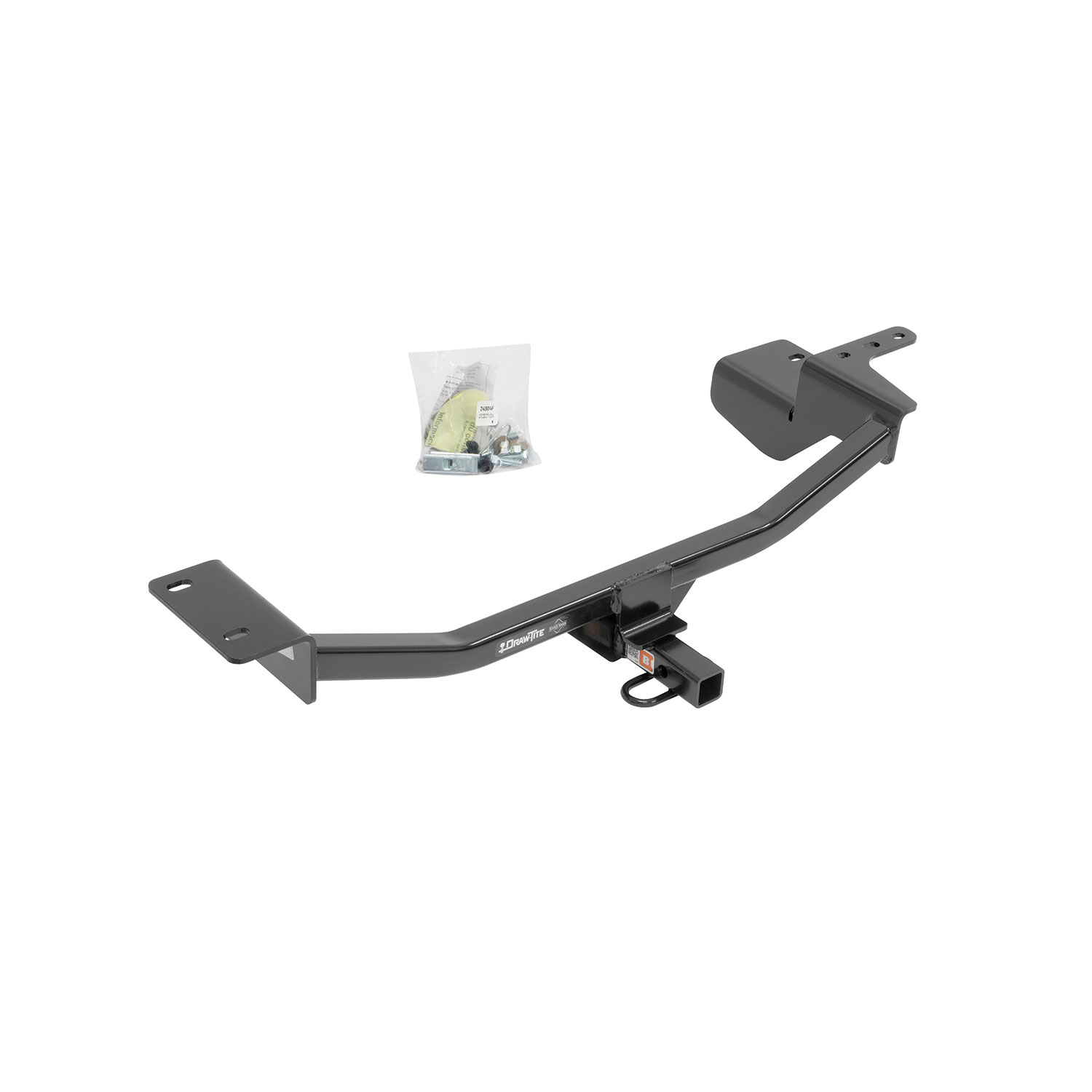

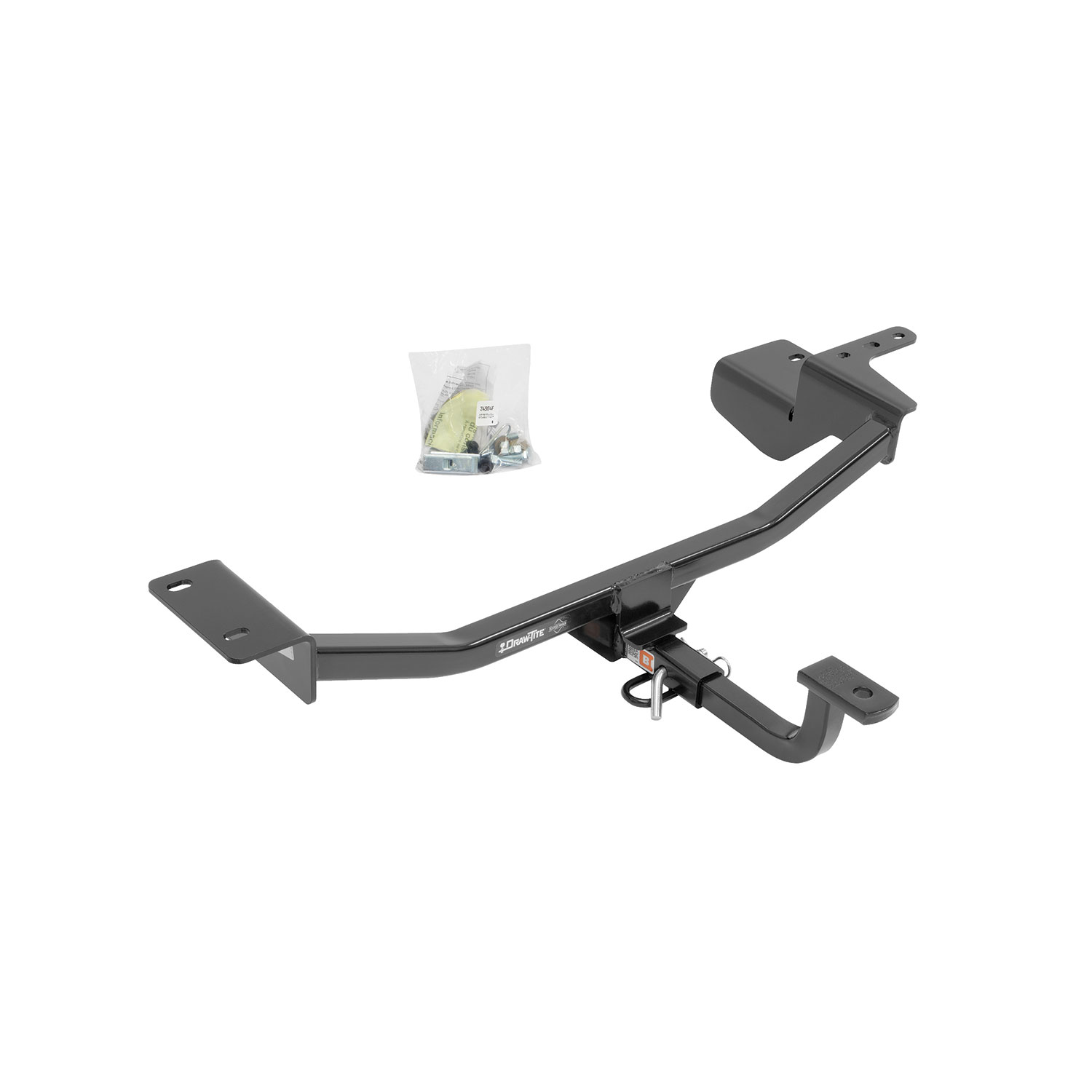

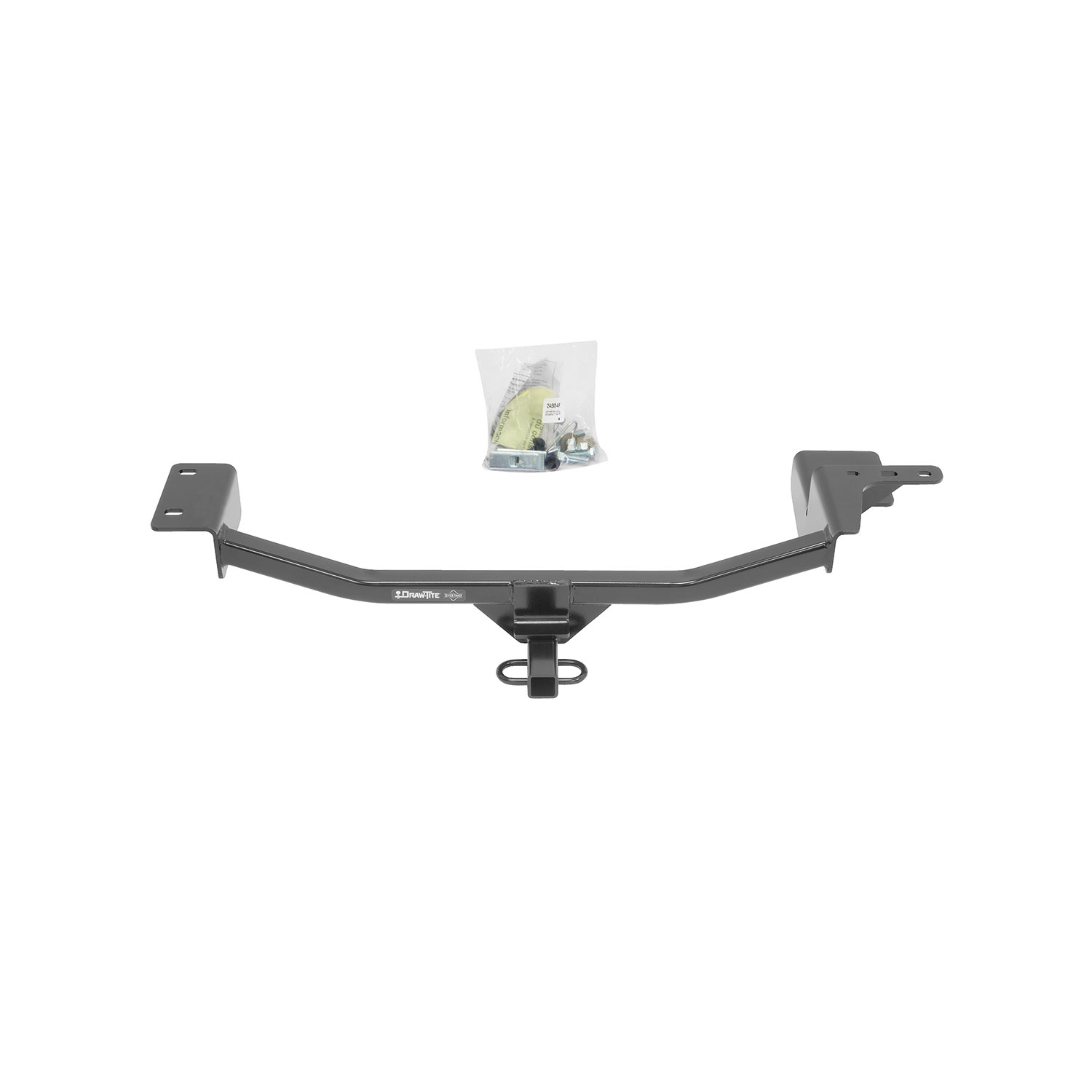

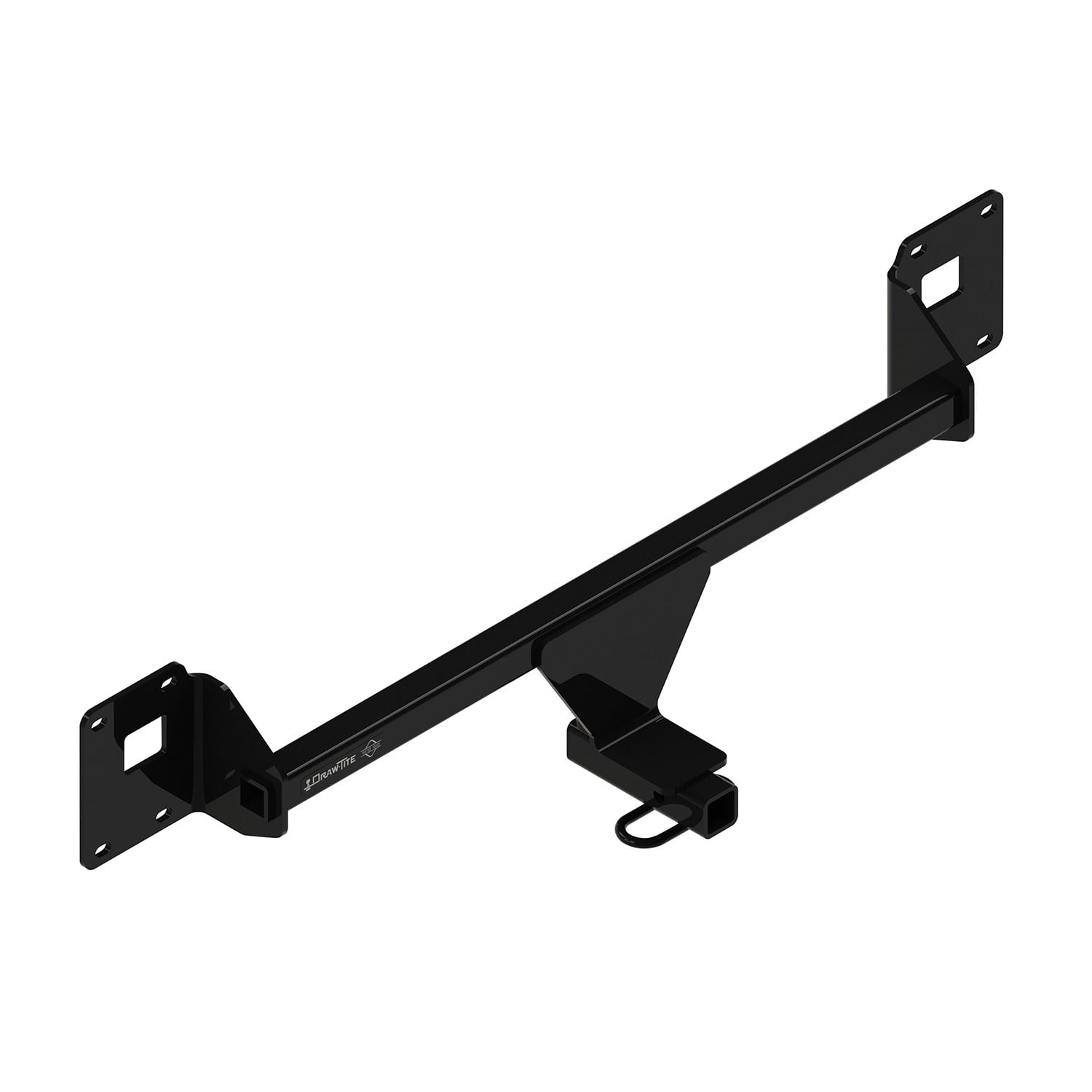

DRAW-TITE Class 1 trailer hitches are the perfect mix of style and stability for those times when youre working on a home project or heading out on an adventure. This DRAW-TITE Class 1 receiver hitch is rated for up to 2,000 lbs. gross trailer weight (GTW) and up to 200 lbs. tongue weight (TW). No weight distribution kits can be used on this specific trailer hitch. DRAW-TITE hitches are designed to provide top towing performance, with solid-all-welded construction and a black powder coat finish to resist rust and corrosion. The Class 1 trailer hitch has a 1-1/4 inch square receiver tube opening so you can easily attach accessories like a bike rack or cargo carrier, or a utility trailer. Includes all the mounting hardware needed for installation and are backed by a nationwide lifetime limited warranty. DRAW-TITE trailer hitches are tested to exceed V-5 and SAE J684 standards. DRAW-TITE: North Americas Favorite Hitch.
| BRAND: | DRAW-TITE |
| PART NUMBER: | 24904 |
| WARRANTY: | LIMITED LIFETIME WARRANTY |
| WEIGHT: | 14.21 LBS |
| GROSS TOWING WEIGHT: | 2,000 LBS. |
| GROSS TONGUE WEIGHT: | 200 LBS. |
| RECEIVER SIZE: | 1.25 IN. |
| HITCH CLASS: | I |
| DRILLING REQUIRED: | NO |
| MOUNTING HARDWARE INCLUDED: | YES |
| ATTACHMENT LOCATION: | REAR |
| HITCH VISIBILITY: | CONCEALED |
| CROSS-TUBE TYPE: | SQUARE TUBE |
| BALL MOUNT INCLUDED: | NO |
| COLOR: | BLACK |
| FINISH: | BLACK POWDER COAT OVER E-COAT |
| MATERIAL: | STEEL |
| MOUNTING LOCATION: | VEHICLE FRAME |
| MOUNTING TYPE: | BOLT-ON |
Draw-Tite has designed custom-fit trailer hitches since 1946 and is one of North America's most widely fitted hitch brands. Receiver hitches use solid all-welded construction and low-profile designs that follow modern vehicle contours, install with minimal bumper cutting or drilling, meet or exceed V5 CSA and SAE J684 standards, and carry a limited lifetime warranty.
Draw-Tite has been leading custom-fit trailer hitch design and engineering since its founding in 1946, and it remains one of the most widely fitted hitch brands in North America. The company's stated approach is straightforward: every hitch is tested rigorously so that it performs well beyond published industry standards, a philosophy it markets as Tested Tough. It sits within the Horizon Global towing group alongside Reese, Fulton, Bulldog, Tekonsha, Bargman and Wesbar.
Custom fit is the defining characteristic. Rather than adapting a universal design, Draw-Tite engineers a trailer hitch for a specific make, model and model year, so it bolts to existing frame locations with minimal bumper cutting or drilling. Low-profile designs follow the rear contours and aerodynamic styling of modern vehicles, which matters more than it once did now that rear fascias are shaped and sensor-equipped. Construction is solid all-welded steel for maximum strength, and every hitch meets or exceeds V5 CSA and SAE J684 standards and is backed by a nationwide limited lifetime warranty.
The range spans receiver sizes and classes to suit different loads, from 1-1/4 inch receivers for bike racks, cargo carriers and light trailers up through 2 inch receivers for heavier towing. Front mount hitches add a receiver at the front of the vehicle for winch mounts, snow plows, spare carriers and precise trailer positioning.
The Hidden Hitch series takes concealment further by mounting behind the vehicle's rear fascia, so the vehicle keeps its factory appearance until a removable receiver is fitted. Each is custom designed per make and model for a no-drill installation that does not compromise ground clearance, rated for up to 3,500 pounds gross trailer weight and 350 pounds tongue weight. Matching plug-and-play wiring completes the towing system.
Experts available to answer your questions
Call 888-634-9494Lifetime
Draw•Tite® and the Checkered Flag Foundation
1 compatible vehicles
| Year | Make & Model | Style | Notes |
|---|---|---|---|
| 2010 - 2014 | Volkswagen GTI | Hatchback | Class 1 Trailer Hitch: 2000 lbs 200/2,000 lbs. Weight Carrying (tongue weight/gross trailer weight) Uses all existing holes. No Drilling required Install Time is 40 minutes |
The Draw-tite Class 1 Trailer Hitch, 1-1/4" Square Receiver, Black for Select Volkswagen GTI 24904 (Part #DT24904) fits 2010-2014 Volkswagen GTI models. The 2014 model year is the last year covered by this part number. For newer models, check for an updated version.
Yes, the Draw-tite Class 1 Trailer Hitch, 1-1/4" Square Receiver, Black for Select Volkswagen GTI 24904 (Part #DT24904) is designed to fit the 2010-2014 Volkswagen GTI.
The Draw-tite Class 1 Trailer Hitch, 1-1/4" Square Receiver, Black for Select Volkswagen GTI 24904 (Part #DT24904) fits the following vehicles: 2010-2014 Volkswagen GTI. Always verify your specific year, make, and model before ordering.
The Draw-tite Class 1 Trailer Hitch, 1-1/4" Square Receiver, Black for Select Volkswagen GTI 24904 (Part #DT24904) Refer to the included instructions for installation details. Basic hand tools are typically all you need.
Yes, part number 24904 is designed for Volkswagen GTI and Volkswagen Golf GTI (Canada Only). Confirm your vehicle matches these applications before purchasing.
No. According to the manual, this hitch is designed for Volkswagen Golf GTI (Canada Only). The standard GTI application is listed separately. Verify your specific model and region before purchasing.
The hitch has a maximum gross trailer weight of 2000 LB (908 Kg) and maximum tongue weight of 200 LB (90.8 Kg). However, you must not exceed the lower of these limits or your vehicle manufacturer's towing rating.
You will need wrenches in three sizes: 13mm, 18mm, and ¾". A torque wrench is also required to tighten fasteners to specification.
No. The manual lists 'Drill Bits: None', confirming that no drilling is required for this installation.
The Fastener Kit 24904F includes: (3) Carriage Bolts ½-13 x 1.75 GR5, (3) Hex Nuts ½-13, (3) Spacer Blocks ¼ x 1 x 3, (2) Hex Bolt Assemblies M8 x 1.25 x 35mm CL9.8, and (3) Conical Toothed Washers ½". You will also reuse one existing M12 x 1.50 bolt from the vehicle.
You must lower the exhaust, not fully remove it. On the driver's side, disconnect the rubber exhaust hanger forward of the muffler (lubricating spray is recommended). On the passenger's side, remove the exhaust hanger bracket by removing (2) M8 fasteners and discard them. The exhaust is then lowered to provide access for hitch installation.
Yes. On the driver's side, you must bend or cut the heat shield to expose the hole in the frame rail. This is a permanent modification required for installation.
No. The manual explicitly states: 'Do not cut access or attachment holes with a torch.' Use alternative cutting or bending methods such as a hacksaw, angle grinder, or manual bending tools.
Fishwire is used to guide carriage bolts and spacer blocks through the frame rails. You insert the bolt and block into the frame at the access hole, align the spacer block on the access hole, then pull the bolt through the block. Figure 2 shows the reverse fishwiring procedure: the block and bolt are pulled up through the large slot in the frame and back down through the same slot. Figure 3 shows kinking the pull wire to keep the spacer independent of the bolt.
No. The manual explicitly states: 'Do not clean threads' on the existing M12 bolt at the forward-most attachment point. Retain this bolt for hitch installation as-is.
No. When raising the hitch into position, loosely attach it with conical toothed washers and nuts. Align the hitch holes with vehicle holes, install remaining fasteners, and then tighten all fasteners to specification using a torque wrench.
Tighten all ½-13 GR5 fasteners (carriage bolts) with a torque wrench to 75 Lb.-Ft. (102 N·M).
Tighten all M8 x 1.25 CL9.8 fasteners (hex bolt assemblies) with a torque wrench to 20 Lb.-Ft. (27 N·M).
Tighten the M12 x 1.50 CL10.9 fastener (the existing vehicle bolt reused for hitch installation) with a torque wrench to 92 Lb.-Ft. (125 N·M).
The drawbar kit is part number 3594 and is sold separately. The manual notes that the drawbar must be used in the Rise position only.
The drawbar must be used in the Rise position only. Do not use it in any other position.
Check the hitch frequently to ensure all fasteners and the ball are properly tightened. The manual recommends regular inspection throughout the life of the hitch.
If the hitch is removed, plug all holes in the trunk pan or other body panels to prevent entry of water and exhaust fumes.
A hitch or ball which has been damaged should be removed and replaced. Do not attempt to repair or continue using damaged components.
Observe safety precautions when working beneath a vehicle and wear eye protection. Do not cut access or attachment holes with a torch.
Hitch 24904 is designed for Volkswagen GTI and Volkswagen Golf GTI (Canada Only). Confirm your vehicle model and region match before purchasing.
You need wrenches in 13mm, 18mm, and ¾" sizes, plus a torque wrench. No drill bits are required. Lubricating spray is recommended for the exhaust hanger.
No drilling is required. However, you must bend or cut the heat shield on the driver's side to expose the frame hole. Do not use a torch for cutting.
Tighten ½-13 GR5 carriage bolts to 75 Lb.-Ft. (102 N·M), M8 x 1.25 CL9.8 hex bolts to 20 Lb.-Ft. (27 N·M), and the M12 x 1.50 CL10.9 existing bolt to 92 Lb.-Ft. (125 N·M).
Check the hitch frequently to ensure all fasteners and the ball are properly tightened. If removed, plug all holes to prevent water and exhaust fume entry. Replace any damaged hitch or ball immediately.
