B&W 10K 5" Drop 5.5" Rise ( 1-7/8" , 2-5/16" Balls) Adjustable Ball Mount Hitch For 2" Recievers TS10048BB&W Trailer Hitches$279.00In Stock
View productAsk a Question About This Product
Our in-house experts typically reply within one business day.
Our in-house experts typically reply within one business day.
CURT
Verify Fitment
Select your vehicle to confirm this part fits.
2015 - 2024 Ford Edge
Confirmed to Fit
Always the correct part
We know our products
Quality Products
Free Shipping!
Always the correct part
We know our products
Quality Products
Free Shipping!
Select your vehicle to find the exact plug-and-play parts that fit — no cutting or splicing.
| Finish | GLOSS BLACK POWDER COAT |
| Main Body Shape | Round |
| Material | Carbon Steel |
| Mount Type Description | Blank |
| Receiver Tube Size | 2 IN |
| Side Application Type Description | Blank |
| Tongue Weight (TW) | 600 LB |
| Warranty | Limited Lifetime Warranty (One-Year Finish, One-Year Parts) |
| Weight Carrying Capacity (WC) | 4,000 LB |
| Weight Distribution (WD) | n/a |
| Weight Distribution Tongue Weight (WDTW) | n/a |
| Side Application Type Description | Blank |
| Tongue Weight (TW) | 350 LB |
| Warranty | Limited Lifetime Warranty (One-Year Finish, One-Year Parts) |
| Drop | 3-1/4 IN |
| Finish | GLOSS BLACK POWDER COAT |
| Gross Trailer Weight (GTW) | 3,500 LB |
| Material | Blank |
| Mount Type Description | Blank |
CURT offers a variety of high-quality trailer hitches and accessories for select vehicle models. Find the perfect fit for your towing needs at TowUniverse.
CURT, a Lippert brand, offers a complete line of towing products and is the leading manufacturer of custom-fit trailer hitches. We offer the broadest selection of custom-fit hitches, and each one is designed, welded, and coated in Wisconsin.
CURT is also a leader in flat towing products, as well as 5th wheel, gooseneck, and weight distribution hitches, ball mounts, electrical components, cargo solutions, and other towing accessories.
For everything from passenger cars and vans to full-size pickups and SUVs, CURT is 'The First Name in Towing Products®.'
Experts available to answer your questions
Call 888-634-94941 compatible vehicles
| Year | Make & Model | Notes |
|---|---|---|
| 2015 - 2024 | Ford Edge | — |

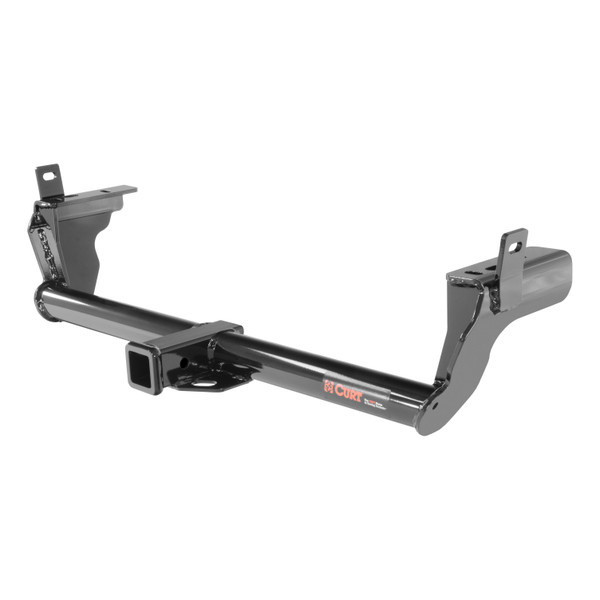

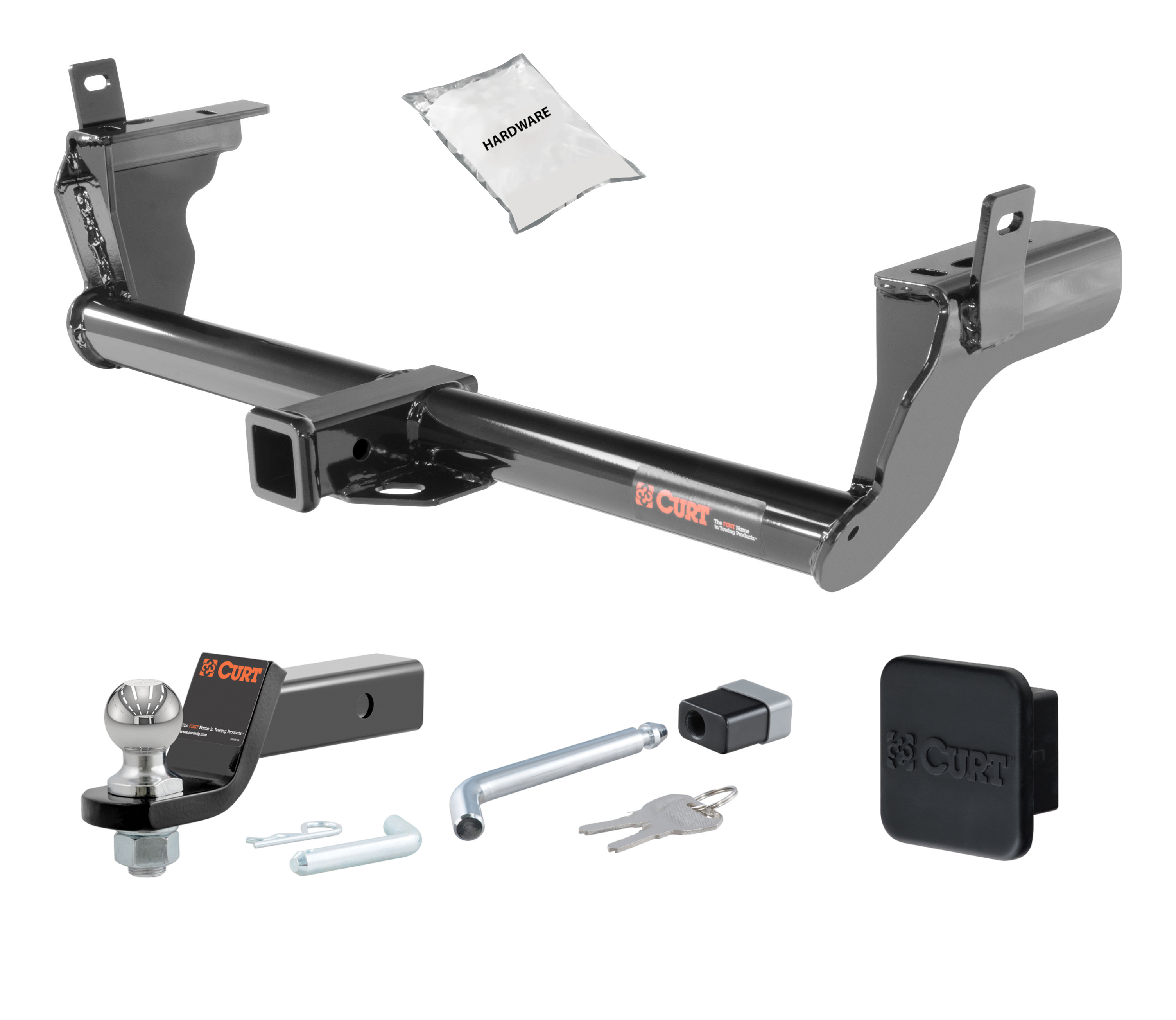

The 15 - 24 Ford Edge 2in. CURT Trailer Hitch + Ball Mount + Cover + Lock Kit HWA809 (Part #HWA809) fits the following vehicles: 2015-2024 Ford Edge. Always verify your specific year, make, and model before ordering.
Yes, the 15 - 24 Ford Edge 2in. CURT Trailer Hitch + Ball Mount + Cover + Lock Kit HWA809 (Part #HWA809) is designed to fit the 2015-2024 Ford Edge.
The 15 - 24 Ford Edge 2in. CURT Trailer Hitch + Ball Mount + Cover + Lock Kit HWA809 (Part #HWA809) fits 2015-2024 Ford Edge models. The 2024 model year is the last year covered by this part number. For newer models, check for an updated version.
The 15 - 24 Ford Edge 2in. CURT Trailer Hitch + Ball Mount + Cover + Lock Kit HWA809 (Part #HWA809) Refer to the included instructions for installation details. Basic hand tools are typically all you need.
The manual does not provide the hitch weight or specific towing capacity values in the document reviewed. Contact CURT Manufacturing technical support at 1-877-287-8634 or visit www.curtmfg.com for these specifications.
CURT part 13234 is designed for the Ford Edge. However, the manual does not specify which model years or generations it fits. Contact CURT Manufacturing at 1-877-287-8634 or check www.curtmfg.com to confirm fitment for your specific vehicle year and trim level.
Yes. If your vehicle is equipped with a hands-free lift gate, perform the kick motion on the left or right side of the receiver tube to operate it. The hitch installation does not interfere with this feature.
You will need: 7/32" socket, 3/4" socket, 10mm socket, ratchet, torque wrench, aviation shears, and safety glasses. If your Ford Edge is a Sport model, you will also need a 5.5mm socket and T20 Torx bit to remove exhaust bezels.
The kit includes: 6× 1/2-13 UNC grade 8 carriage bolts (1-1/2" long), 6× 0.250 x 1.50 x 3.00" square hole spacers (CM-SP4), 6× 1/2-13 UNC grade 8 serrated flange nuts, and 4× 1/2" fishwire.
Yes. If you plan to carry non-trailer loads on this hitch, you must use CURT stabilizing straps part 18050. These are not included and are required to support any non-trailer load. Failure to use them will void the product warranty.
No. The manual states 'NO DRILLING REQUIRED'. The hitch uses existing frame mounting holes accessed through the underbody.
Yes. You must lower the exhaust by removing 2 rubber isolators mounted to the muffler. If your Ford Edge is a Sport model, you must also remove the exhaust bezels using a 5.5mm socket and T20 Torx bit. The exhaust is raised back into position after the hitch is installed.
Yes. You must remove the panels from behind the rear wheels by removing 2 hex nuts using a 10mm socket and 2 screws with a 7/32" socket. These panels are trimmed and reinstalled after the hitch is mounted.
You must trim the center underbody panel outer tabs to allow easier mounting of the hitch. You must also trim the removed underbody side panels as shown in the installation diagram to allow for reinstallation. The diagram shows trim dimensions of 1.88" and 0.75" on the center panel, and 7.25" and 3.5" on the side panels. These modifications are permanent.
Possibly. The manual notes that the washer/nut may require trimming of the washer for reinstallation of the underbody panels. Check fit during reassembly and trim if necessary.
Fishwiring is a technique to guide fasteners through difficult-to-access mounting holes. For this hitch: (1) Thread the 1/2" fishwire through 3 CM-SP4 spacers and 3 carriage bolts into the mounting holes on both frame rails. (2) Raise the hitch over the exhaust and thread the fishwires into the mounting holes. (3) Raise the hitch into position, remove the fishwires, and install the 6 supplied 1/2" hex flange nuts. This allows you to position the hitch without having to manually hold fasteners in place.
The hitch side plates will be located between the center underbody panel tabs and the frame rails.
All 1/2" fasteners must be torqued to 110 lb-ft. This includes the 6 carriage bolts and 6 hex flange nuts that secure the hitch to the frame.
CURT Manufacturing warrants this product to be free of defects in material and workmanship at the time of retail purchase by the original purchaser. If defective, CURT will repair or replace it at their option when returned prepaid with proof of purchase. The warranty is voided by alteration, misuse, or improper installation. CURT's liability is limited to repair or replacement and excludes incidental or consequential loss or damage.
Non-trailer loads can be carried only if they are supported by CURT stabilizing straps part 18050. All non-trailer loads must be supported by these straps. Failure to properly support non-trailer loads will void the product warranty.
Do not exceed your vehicle manufacturer's recommended towing capacity. The hitch is designed to support the Ford Edge's factory towing limits. Consult your vehicle owner's manual for the specific capacity.
After installation, verify that all fasteners are tight and all structural components are sound. Periodically check the receiver hitch to ensure that all fasteners remain tight and that all structural components are sound. This is especially important before towing.
Periodically check this receiver hitch to ensure that all fasteners are tight and that all structural components are sound. The manual does not specify an exact interval, but regular inspection before towing is recommended.
CURT 13234 is designed for the Ford Edge. Confirm your specific model year with CURT at 1-877-287-8634 or www.curtmfg.com.
You need: 7/32", 3/4", and 10mm sockets, ratchet, torque wrench, aviation shears, and safety glasses. Sport models also need a 5.5mm socket and T20 Torx bit.
No drilling is required. The hitch uses existing frame mounting holes. However, you must lower the exhaust and trim underbody panels.
All 1/2" fasteners must be torqued to 110 lb-ft.
Yes. CURT stabilizing straps part 18050 are required for any non-trailer load. Failure to use them voids the warranty.
Verify all fasteners are tight and all structural components are sound. Periodically recheck before towing.
