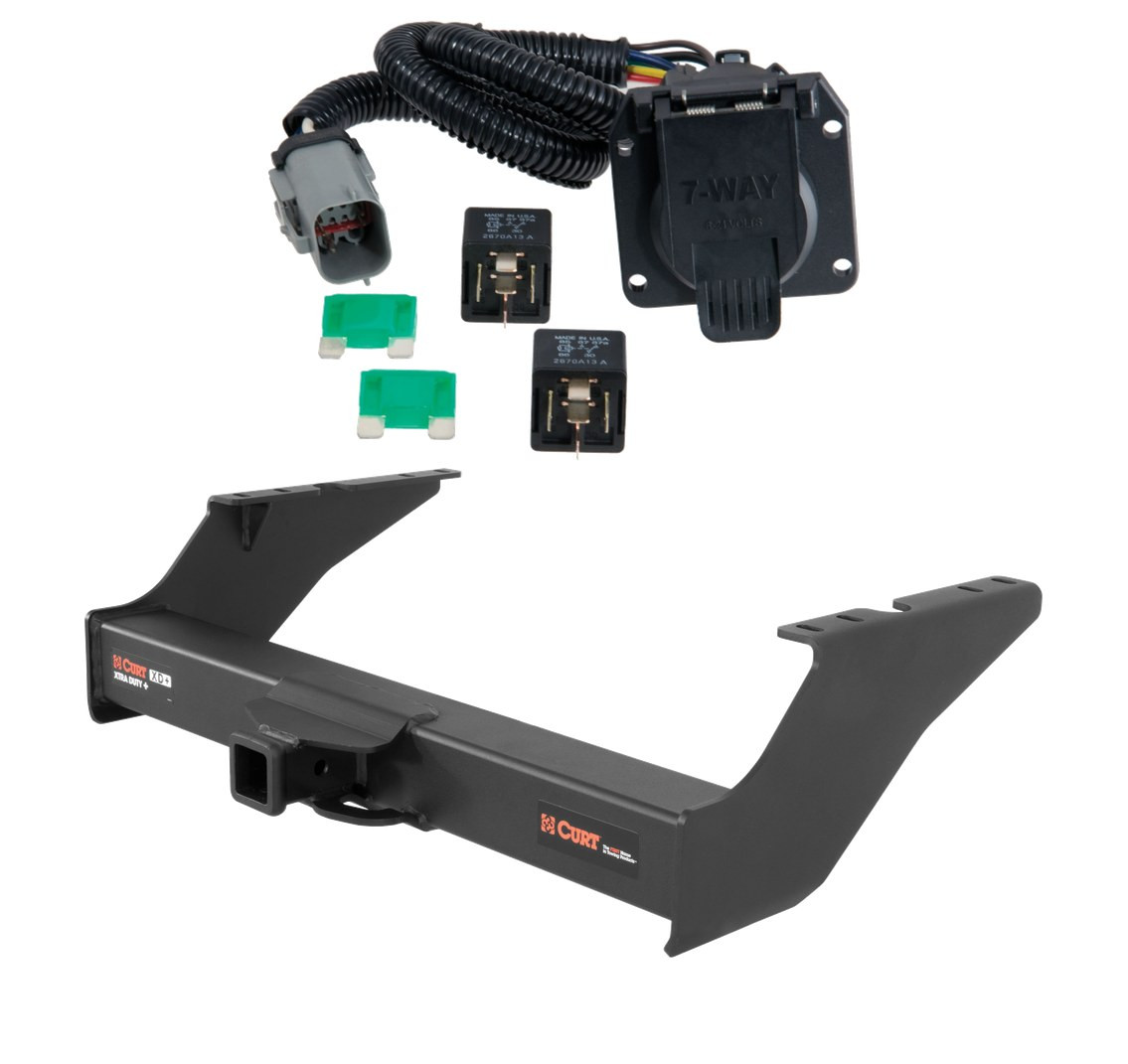

Complete CURT Class 3 2" trailer hitch and 7-way custom wiring kit engineered for the 1999 - 2001 F-250 Super Duty Excluding 20" spare tire. Vehicle-specific fit, plug-and-play installation, supports trailers with electric brakes, auxiliary 12V power and reverse lights.
This custom kit fits the following vehicles:
All Hardware and Installation Instructions Included!
Whatever your task at hand -- whether it's launching that boat before daybreak, setting up your camper before the rush or getting a final load to the dump before close -- CURT class 3 trailer hitches offer the strength needed for serious towing. They make it easy to hitch up and Bring It, offering a vehicle-specific fit and the weight capacity to handle a variety of trailers. Custom class 3 hitches are the most common type of receiver hitch for pickup trucks and SUVs. Because of their weight range, they are also found on full-size cars, crossovers and minivans. Each custom-fit class 3 hitch package is made for vehicle-specific mounting. This particular kit fits certain years of the Ford F150, F150 Heritage, F250, F250 Super Duty, F350 Super Duty and F450 Super Duty (see application info to verify vehicle compatibility). It provides a weight carrying capacity of 6,000 lbs. GTW and 600 lbs. TW. It is also compatible with a weight distribution hitch for level towing and a rating of 10,000 lbs. WD and 1,000 lbs. WDTW. CURT class 3 trailer hitches are typically used to attach and haul utility trailers, boat trailers, campers, snowmobile or ATV haulers and more (NOTE: Never exceed the lowest-rated towing component). Each class 3 hitch has a 2" receiver tube and is tested in accordance with SAE J684 for safety. To ensure that CURT class 3 receiver hitches have what it takes for serious trailering, they are designed using a hands-on approach and are constructed with rugged, high-strength steel and precise welding. We also protect our class 3 hitches in a co-cured finish of liquid A-coat and black powder coat for superior resistance to rust, chipping and UV damage.
CURT custom wiring connectors and harnesses are the easiest way to outfit your vehicle with a trailer wiring connection for towing. Each one is custom-fitted to work with a specific make and model. This particular 7-way RV blade socket is designed to be a custom wiring option for certain years of the Ford F250 Super Duty, F350 Super Duty, F450 Super Duty and F550 Super Duty (see application info to verify fitment). It provides a universal trailer connection for the tail lights, brake lights, reverse lights, turn signals, electronic trailer brakes and auxiliary power. 7prong taillight wiring can be used as a replacement or new wiring and is typically used for towing fifth wheel and gooseneck trailers. This 7 way female outlet comes with all necessary hardware to establish a solid connection, as well as a dust cover to keep the connector socket clean when not in use. All CURT custom wiring connectors are made vehicle-specific for the easiest possible installation and the best fit. Some automotive manufacturers install a special socket on the vehicle to be used for vehicle-to-trailer wiring. Although this factory tow package socket is not equipped on every vehicle, a CURT custom wiring connector (also called a T-connector) utilizes the socket for simple, stress-free installation. Instead of cutting, splicing and soldering into your vehicle's wiring system, the custom wiring connector uses a single OEM compatible plug and instantly provides a standard vehicle-to-trailer hitch wiring connection. To ensure long-lasting reliability, all CURT custom tconnector wiring is thoroughly tested for optimal functionality.
Experts available to answer your questions
Call 888-634-9494Yes, Curt 13355 fits 1997–2003 Ford F-150 and F-250LD with the new body style. It is designed for 20" spare tires. Confirm your truck has the new body style and a 20" spare before purchasing.
Yes, Curt 13355 fits 1999–current Ford F-250 and F-350 Super Duty trucks with 20" spare tires.
Yes, Curt 13355 fits 2008–current Ford F-450 Super Duty trucks with 20" spare tires.
Curt 13355 is designed for 20" spare tires. The hitch will fit trucks equipped with this size spare.
The kit includes 6 carriage bolts (1/2-13 UNC, 1-3/4", Grade 8), 6 hex nuts (1/2-13 UNC, Grade 8), 6 flat washers (1/2"), 6 lock washers (1/2"), and 6 square hole spacers (0.250 × 1.50 × 2.00").
No. Curt 13355 requires no drilling. It uses existing holes in the truck frame.
Yes. Lower the spare tire before installation for ease of access. Raise it back into storage after the hitch is installed. The spare may need to be pushed toward the front of the truck to provide clearance between the tire and hitch.
1. Lower the spare tire. 2. Install 1/2" carriage bolts and spacers through existing holes in the frame. 3. Raise the hitch into position over the carriage bolts and secure with flat washers, lock washers, and hex nuts. 4. Torque all 1/2" fasteners to 110 lb.-ft. 5. Raise the spare tire back into storage, pushing it toward the front if needed for clearance.
No. During installation, ensure the wire harness near the end of the truck frame is not pinched between the hitch and frame. Check this when raising the hitch into position.
Torque all 1/2" carriage bolts to 110 lb.-ft.
Use the hole marked for light duty trucks. Only one of the two holes toward the front of the truck will be used in the side plates. Refer to the diagram in the manual for the correct hole location.
Use the hole marked for Super Duty trucks. Only one of the two holes toward the front of the truck will be used in the side plates. Refer to the diagram in the manual for the correct hole location.
Periodically check the receiver hitch to ensure that all fasteners are tight and that all structural components are sound. No specific interval is provided in the manual.
Alteration to, misuse of, or improper installation of this product voids the warranty. Curt Manufacturing's liability is limited to repair or replacement of defective products and excludes liability for incidental or consequential loss or damage.
1997–2003 Ford F-150/250LD (new body style), 1999–current F-250/350 Super Duty, and 2008–current F-450 Super Duty. All require 20" spare tires.
No drilling required. The hitch uses existing frame holes.
Six 1/2-13 UNC carriage bolts (1-3/4", Grade 8), six hex nuts, six flat washers, six lock washers, and six square hole spacers.
Torque all 1/2" fasteners to 110 lb.-ft.
Yes, lower the spare tire before installation. Raise it back after installation, pushing it toward the front if needed for clearance.
Periodically check that all fasteners are tight and all structural components are sound. Do not exceed your vehicle manufacturer's recommended towing capacity.
Yes, Curt part number 55243 is designed for Ford F-250 & F-350 Super Duty vehicles. It is also compatible with Ford F-450 & F-550 Heritage models.
Yes, Curt part number 55243 is compatible with Ford F-450 & F-550 Heritage vehicles.

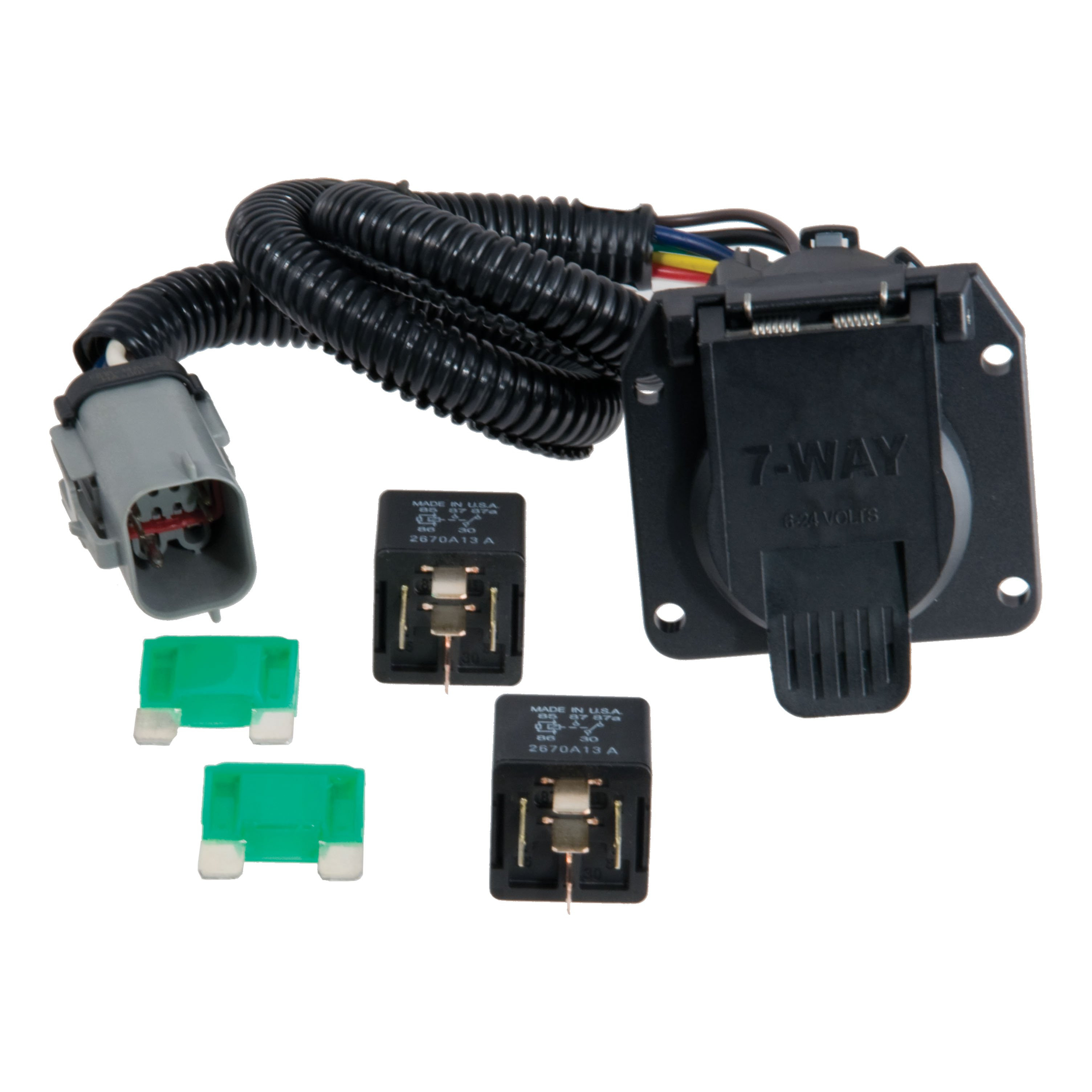

The 55243 includes a trailer tow harness with a 7-way socket, two 30 amp maxi-fuses for the TRAILER TOW ELECTRIC BRAKE and TRAILER TOW BATTERY CHARGE circuits, and two relays for the TRAILER TOW BACKUP LAMP RELAY and TRAILER TOW BATTERY CHARGE RELAY locations. A bracket or electrical box to mount the 7-way socket is not included.
Yes. The 7-way socket must be mounted in an accessible location using a bracket or electrical box, which is not included with the 55243. You will need to source this separately.
Yes. You must disconnect the vehicle's negative battery cable before accessing the power distribution box and installing the fuses and relays. Reconnect the battery cable after all electrical connections are complete.
The vehicle's wiring harness plugs are located in the rear, underneath the vehicle, inside the driver's side frame rail.
Remove the protective cap and install the trailer tow harness into the mating plug. The plug should match the trailer wiring harness end.
Mount the 7-way socket in an accessible location using a bracket or electrical box (not included). Secure any loose wires after installation.
Consult your vehicle's owner's manual to locate the specific fuse and relay positions. The manual will show you where to insert the TRAILER TOW ELECTRIC BRAKE fuse, TRAILER TOW BATTERY CHARGE fuse, TRAILER TOW BACKUP LAMP RELAY, and TRAILER TOW BATTERY CHARGE RELAY in the power distribution box.
The 55243 includes two 30 amp maxi-fuses. These are inserted into the TRAILER TOW ELECTRIC BRAKE and TRAILER TOW BATTERY CHARGE fuse locations in the power distribution box.
The power distribution box is located on the driver's side in the engine compartment, and the trailer tow relay block is attached to it.
Before drilling, verify that miscellaneous items that may be hidden behind or under any surface are not present. This will avoid damage to hidden components and prevent personal injury.
Test the installation with a test light or trailer. This verifies that the electrical connections are functioning correctly.
Yes, the 55243 is designed for Ford F-250 & F-350 Super Duty and Ford F-450 & F-550 Heritage models.
A bracket or electrical box to mount the 7-way socket is not included and must be purchased separately.
Yes, disconnect the vehicle's negative battery cable before accessing the power distribution box. Reconnect it after installing the fuses and relays.
The 55243 includes two 30 amp maxi-fuses for the TRAILER TOW ELECTRIC BRAKE and TRAILER TOW BATTERY CHARGE circuits.
Verify that miscellaneous items hidden behind or under any surface are not present before drilling to avoid damage and personal injury.
