Complete CURT Class 4 2" trailer hitch and 7-way custom wiring kit engineered for the 1999 - 2001 F-250 Super Duty Excluding 20" spare tire. Vehicle-specific fit, plug-and-play installation, supports trailers with electric brakes, auxiliary 12V power and reverse lights.
This custom kit fits the following vehicles:
All Hardware and Installation Instructions Included!

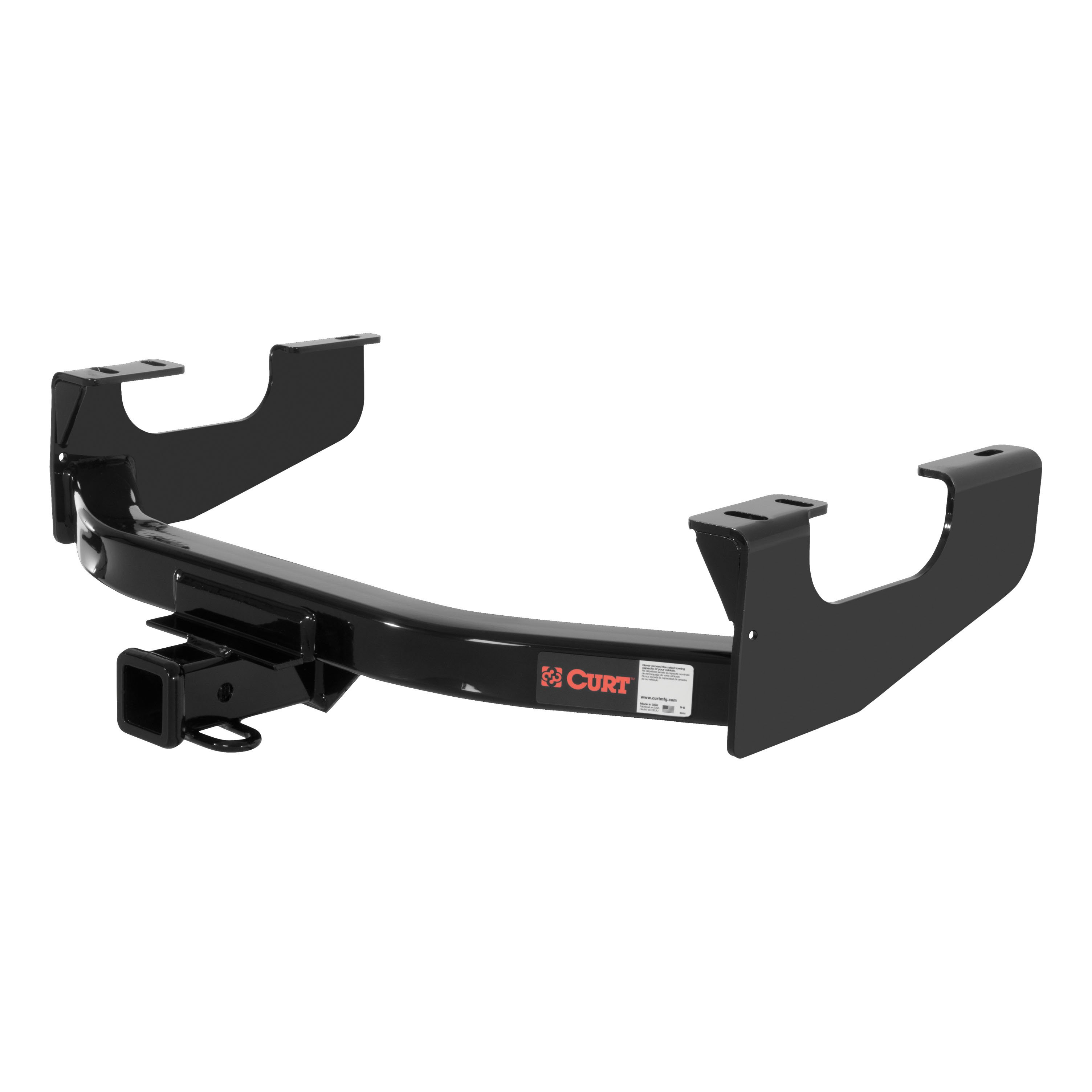

Whatever the next item is on your to-do list -- whether it's arriving at the jobsite before dawn or getting your travel trailer set up in time to see the sunset -- CURT class 4 trailer hitches offer greater towing power to let you Bring It. These custom receiver hitches are built to tackle bigger jobs and bolder adventures, all while giving you a custom fit for your vehicle. Class 4 hitches are available for a variety of makes and models, from pickup trucks and SUVs to full-size and commercial vans. This particular class 4 hitch fits certain years of the Ford F150, F150 Heritage, F250, F250 Super Duty, F350 Super Duty and F450 Super Duty (to verify vehicle compatibility, see application info). It provides a weight carrying capacity of 10,000 lbs. GTW and 1,000 lbs. TW. It can also accept a weight distributing hitch, offering a maximum WD capacity of 12,000 lbs. and a WDTW of 1,200 lbs. CURT class 4 tow hitches are as much suited for work as they are for play. With their high load capacities, they are typically used for towing larger trailers, including everything from a double-axle utility trailer or livestock trailer to a full-length camper or large boat trailer (NOTE: Never exceed the lowest weight capacity of any towing component). All CURT class 4 receiver hitches come with a 2" receiver tube opening and all the necessary hardware for a complete installation. From light-duty to heavy-duty, every CURT custom hitch is engineered to be vehicle-specific, using actual vehicles to create the optimal design. We then combine high-strength steel, precise welding and a co-cured finish of liquid A-coat and durable black powder coat to provide you with a hitch you can depend on. To prove it, we test all our hitches in accordance with SAE J684 for safety.
CURT custom wiring connectors and harnesses are the easiest way to outfit your vehicle with a trailer wiring connection for towing. Each one is custom-fitted to work with a specific make and model. This particular 7-way RV blade socket is designed to be a custom wiring option for certain years of the Ford F250 Super Duty, F350 Super Duty, F450 Super Duty and F550 Super Duty (see application info to verify fitment). It provides a universal trailer connection for the tail lights, brake lights, reverse lights, turn signals, electronic trailer brakes and auxiliary power. 7prong taillight wiring can be used as a replacement or new wiring and is typically used for towing fifth wheel and gooseneck trailers. This 7 way female outlet comes with all necessary hardware to establish a solid connection, as well as a dust cover to keep the connector socket clean when not in use. All CURT custom wiring connectors are made vehicle-specific for the easiest possible installation and the best fit. Some automotive manufacturers install a special socket on the vehicle to be used for vehicle-to-trailer wiring. Although this factory tow package socket is not equipped on every vehicle, a CURT custom wiring connector (also called a T-connector) utilizes the socket for simple, stress-free installation. Instead of cutting, splicing and soldering into your vehicle's wiring system, the custom wiring connector uses a single OEM compatible plug and instantly provides a standard vehicle-to-trailer hitch wiring connection. To ensure long-lasting reliability, all CURT custom tconnector wiring is thoroughly tested for optimal functionality.
Experts available to answer your questions
Call 888-634-9494Yes, Curt 14355 fits 1997–2003 Ford F-150/250LD with the new body style. It also fits 1999-current Ford F-250/350 Super Duty and 2008-current Ford F-450 Super Duty. The hitch is designed for vehicles with a 20" spare tire.
The hitch fits vehicles with a 20" spare tire. During installation, the spare tire may need to be pushed toward the front of the truck to provide clearance between the tire and hitch. After installation, raise the spare tire back into its storage location under the truck.
No. The Curt 14355 requires no drilling. It uses existing holes in the truck frame for installation.
The hitch includes: 6 carriage bolts (1/2"-13 UNC, 1-3/4" long, Grade 8), 6 hex nuts (1/2"-13 UNC, Grade 8), 6 flat washers (1/2"), 6 lock washers (1/2"), and 6 square hole spacers (0.250" × 1.50" × 2.00").
1. Lower the spare tire for ease of installation. 2. Install 1/2" carriage bolts and spacers through existing holes in the frame. 3. Raise the hitch into position over the carriage bolts and secure with flat washers, lock washers, and hex nuts. Ensure the wire harness near the end of the truck frame is not pinched between the hitch and frame. 4. Torque all 1/2" fasteners to 110 lb.-ft. 5. Raise the spare tire back into its storage location. The spare may need to be pushed toward the front of the truck to provide clearance.
Yes. The hitch has two holes toward the front of the truck in the side plates. Only one hole is used during installation: use the hole marked for light duty trucks on F-150/250LD models, or the hole marked for Super Duty trucks on F-250/350 and F-450 Super Duty models.
Torque all 1/2" fasteners to 110 lb.-ft.
The manual does not provide specific capacity values. However, the hitch must not be used to exceed your vehicle manufacturer's recommended towing capacity. Consult your vehicle's owner manual or contact Curt Manufacturing for the specific gross load capacity for your model.
Ensure the wire harness near the end of the truck frame is not pinched between the hitch and frame during installation. After installation, verify that the spare tire has adequate clearance from the hitch. Do not exceed your vehicle manufacturer's recommended towing capacity.
Periodically check the receiver hitch to ensure that all fasteners are tight and that all structural components are sound. The manual does not specify a retorque interval; consult Curt Manufacturing or your vehicle's owner manual for recommended maintenance intervals.
The Curt 14355 fits 1997–2003 Ford F-150/250LD (new body style), 1999-current Ford F-250/350 Super Duty, and 2008-current Ford F-450 Super Duty with a 20" spare tire.
No drilling is required. The hitch uses existing frame holes.
Six 1/2"-13 UNC carriage bolts (1-3/4" long, Grade 8), six hex nuts, six flat washers, six lock washers, and six square hole spacers.
Torque all 1/2" fasteners to 110 lb.-ft.
The hitch fits 20" spare tires. The spare may need to be pushed toward the front of the truck during installation to provide clearance.
Periodically check that all fasteners are tight and all structural components are sound. The manual does not specify a retorque interval.
Yes, Curt part number 55243 is designed for Ford F-250 & F-350 Super Duty vehicles. It is also compatible with Ford F-450 & F-550 Heritage models.
Yes, Curt part number 55243 is compatible with Ford F-450 & F-550 Heritage vehicles.

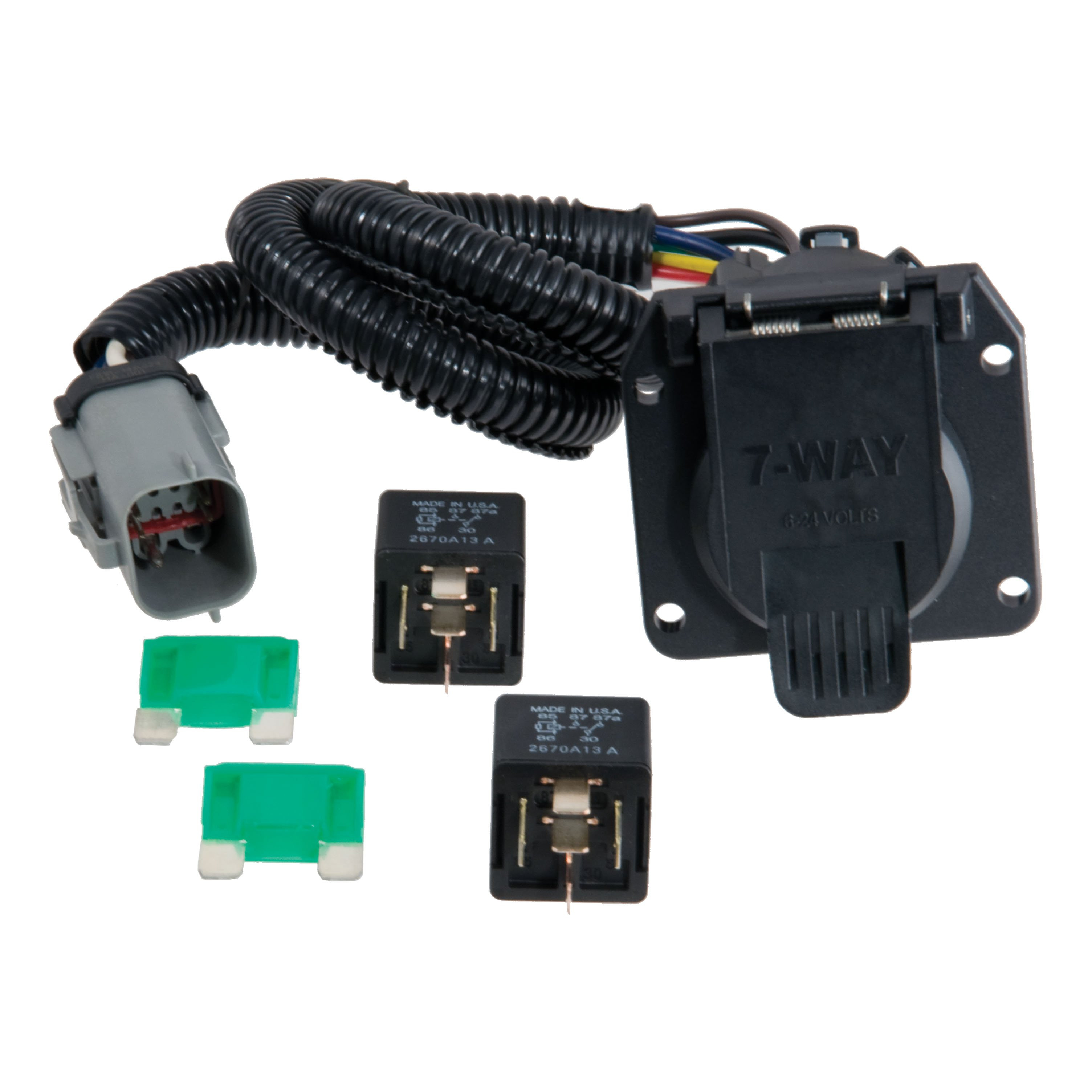

The 55243 includes a trailer tow harness with a 7-way socket, two 30 amp maxi-fuses for the TRAILER TOW ELECTRIC BRAKE and TRAILER TOW BATTERY CHARGE circuits, and two relays for the TRAILER TOW BACKUP LAMP RELAY and TRAILER TOW BATTERY CHARGE RELAY locations. A bracket or electrical box to mount the 7-way socket is not included.
Yes. The 7-way socket must be mounted in an accessible location using a bracket or electrical box, which is not included with the 55243. You will need to source this separately.
Yes. You must disconnect the vehicle's negative battery cable before accessing the power distribution box and installing the fuses and relays. Reconnect the battery cable after all electrical connections are complete.
The vehicle's wiring harness plugs are located in the rear, underneath the vehicle, inside the driver's side frame rail.
Remove the protective cap and install the trailer tow harness into the mating plug. The plug should match the trailer wiring harness end.
Mount the 7-way socket in an accessible location using a bracket or electrical box (not included). Secure any loose wires after installation.
Consult your vehicle's owner's manual to locate the specific fuse and relay positions. The manual will show you where to insert the TRAILER TOW ELECTRIC BRAKE fuse, TRAILER TOW BATTERY CHARGE fuse, TRAILER TOW BACKUP LAMP RELAY, and TRAILER TOW BATTERY CHARGE RELAY in the power distribution box.
The 55243 includes two 30 amp maxi-fuses. These are inserted into the TRAILER TOW ELECTRIC BRAKE and TRAILER TOW BATTERY CHARGE fuse locations in the power distribution box.
The power distribution box is located on the driver's side in the engine compartment, and the trailer tow relay block is attached to it.
Before drilling, verify that miscellaneous items that may be hidden behind or under any surface are not present. This will avoid damage to hidden components and prevent personal injury.
Test the installation with a test light or trailer. This verifies that the electrical connections are functioning correctly.
Yes, the 55243 is designed for Ford F-250 & F-350 Super Duty and Ford F-450 & F-550 Heritage models.
A bracket or electrical box to mount the 7-way socket is not included and must be purchased separately.
Yes, disconnect the vehicle's negative battery cable before accessing the power distribution box. Reconnect it after installing the fuses and relays.
The 55243 includes two 30 amp maxi-fuses for the TRAILER TOW ELECTRIC BRAKE and TRAILER TOW BATTERY CHARGE circuits.
Verify that miscellaneous items hidden behind or under any surface are not present before drilling to avoid damage and personal injury.
