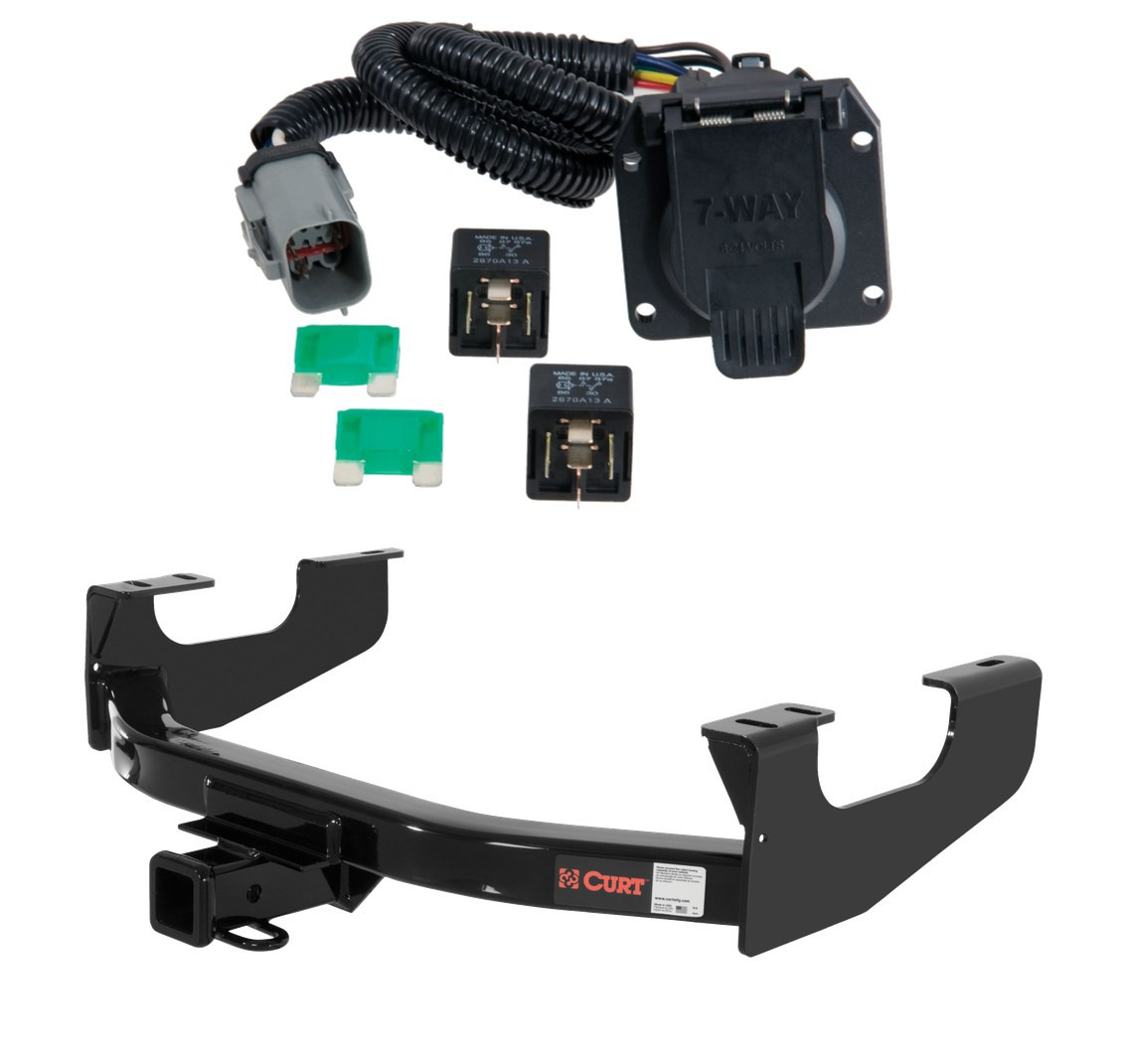

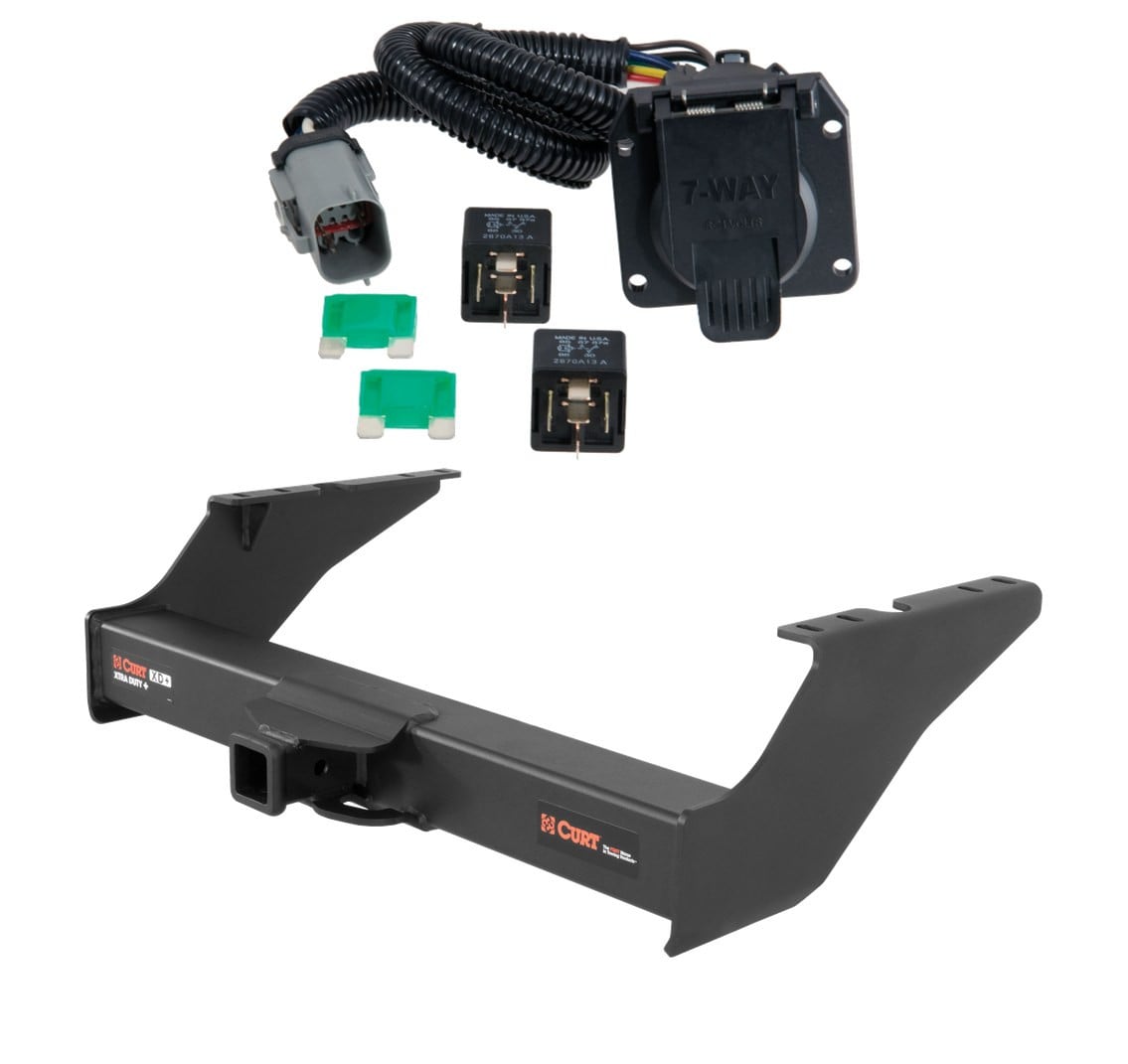

Complete CURT Class 5 2" trailer hitch and 7-way custom wiring kit engineered for the 1999 - 2001 F-250 Super Duty Excluding 20" spare tire. Vehicle-specific fit, plug-and-play installation, supports trailers with electric brakes, auxiliary 12V power and reverse lights.
This custom kit fits the following vehicles:
All Hardware and Installation Instructions Included!

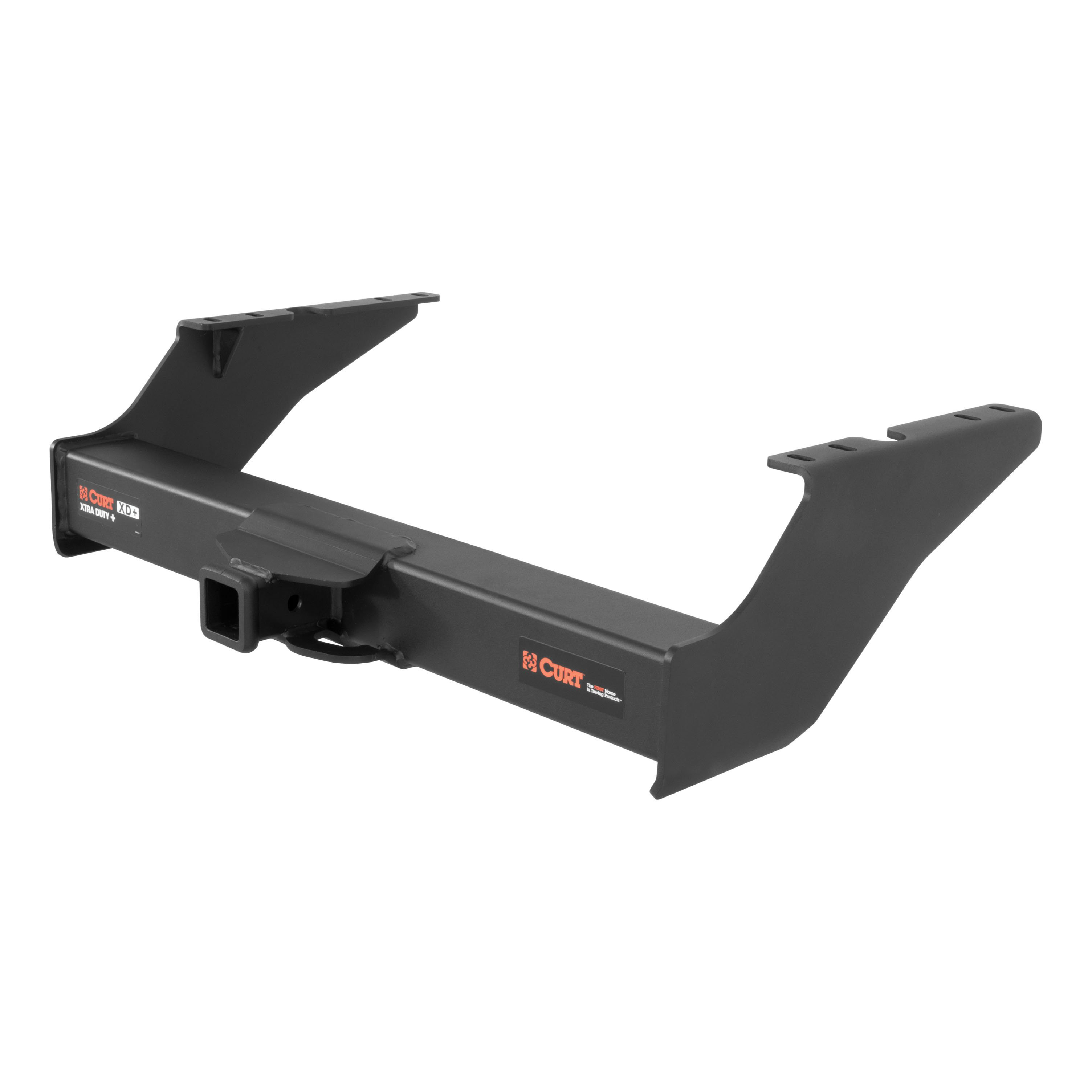

When we came to the limits of towing capacity, we wanted to know what else was out there. What could we discover off the beaten path? So, we kept going. CURT class 5 Xtra Duty hitches begin a class of their own, beyond class 4 and beyond anything the standards dictate. They are designed for the hard road where only full-size pickup trucks, vans and SUVs dare to tread. They are capable of pulling almost any heavy-duty trailer, including toy haulers, dump trailers, logging trailers, small yacht trailers and more (NOTE: Never exceed the lowest weight capacity of any towing component). This particular Xtra Duty class 5 trailer hitch offers a gross trailer weight capacity of 17,000 lbs. and an extra-high tongue weight capacity of 2,550 lbs. It features a 2" x 2" receiver tube opening to accept a ball mount or hitch-mounted accessory, such as a cargo carrier or winch mount. It is designed to be a custom-fit trailer hitch for certain years of the Ford F250 Super Duty, F350 Super Duty and F450 Super Duty (to verify compatibility with your vehicle, see application info). For a little extra towing power and stability, this class 5 hitch can also be used in combination with a weight distributing hitch. It is rated for 17,000 lbs. WD and 2,550 lbs. WDTW. In our drive to create a more powerful hitch, CURT has not neglected the finer details. Our class 5 trailer hitches are welded with precision and go through multiple stages of cleaning to create a smooth surface that is ready to accept our co-cured finish. To protect them from corrosion, chipping and UV damage, these hitches are immersed in a liquid A-coat and then finished in a high-quality black carbide powder coat. They come with grade-8 mounting hardware for solid installation.
CURT custom wiring connectors and harnesses are the easiest way to outfit your vehicle with a trailer wiring connection for towing. Each one is custom-fitted to work with a specific make and model. This particular 7-way RV blade socket is designed to be a custom wiring option for certain years of the Ford F250 Super Duty, F350 Super Duty, F450 Super Duty and F550 Super Duty (see application info to verify fitment). It provides a universal trailer connection for the tail lights, brake lights, reverse lights, turn signals, electronic trailer brakes and auxiliary power. 7prong taillight wiring can be used as a replacement or new wiring and is typically used for towing fifth wheel and gooseneck trailers. This 7 way female outlet comes with all necessary hardware to establish a solid connection, as well as a dust cover to keep the connector socket clean when not in use. All CURT custom wiring connectors are made vehicle-specific for the easiest possible installation and the best fit. Some automotive manufacturers install a special socket on the vehicle to be used for vehicle-to-trailer wiring. Although this factory tow package socket is not equipped on every vehicle, a CURT custom wiring connector (also called a T-connector) utilizes the socket for simple, stress-free installation. Instead of cutting, splicing and soldering into your vehicle's wiring system, the custom wiring connector uses a single OEM compatible plug and instantly provides a standard vehicle-to-trailer hitch wiring connection. To ensure long-lasting reliability, all CURT custom tconnector wiring is thoroughly tested for optimal functionality.
Experts available to answer your questions
Call 888-634-9494The hitch weight is 60 lbs.
Yes, the Curt 15410 is designed for Ford F-250 / F-350 Super Duty trucks.
The kit includes 8 carriage bolts (9/16-12 UNC, 1-3/4", Grade 8, part 10-10328), 8 spacers (0.313 x 1.50 x 2.00" with 9/16" square hole, part CM-SP71), and 8 serrated flange nuts (9/16-12 UNC, Grade 8, part 20-00104).
You will need a 13/16" wrench, 7/8" socket, 12" extension, socket wrench, and torque wrench.
No, drilling is not required. The hitch uses existing frame holes.
Removal of the spare tire is recommended to ease installation, but not strictly required.
1. Position the hitch against the frame, aligning the holes in the hitch with the holes in the frame, and note the fastener locations. 2. Lower the hitch. 3. Place a carriage bolt and spacer into each bolt location from inside the frame rail. 4. Raise the hitch into position. 5. Secure it to the frame rails using hex flange nuts. 6. Torque all hardware to 150 lb-ft.
All hardware must be torqued to 150 lb-ft.
The carriage bolts and spacers are placed into each bolt location from inside the frame rail. The bolts pass through the spacers and into the hitch mounting holes, then are secured with hex flange nuts from the outside.
Do not exceed your vehicle manufacturer's recommended towing capacity. The manual states this as a critical safety requirement but does not specify the capacity values in this document.
Periodically check the receiver hitch to ensure that all fasteners are tight and that all structural components are sound.
Alteration to, misuse of, or improper installation of this product voids the warranty.
Yes, the Curt 15410 is designed for Ford F-250 / F-350 Super Duty trucks.
No drilling is required. The hitch uses existing frame holes.
You will need a 13/16" wrench, 7/8" socket, 12" extension, socket wrench, and torque wrench.
All hardware must be torqued to 150 lb-ft.
Periodically check that all fasteners are tight and all structural components are sound.
Yes, Curt part number 55243 is designed for Ford F-250 & F-350 Super Duty vehicles. It is also compatible with Ford F-450 & F-550 Heritage models.
Yes, Curt part number 55243 is compatible with Ford F-450 & F-550 Heritage vehicles.

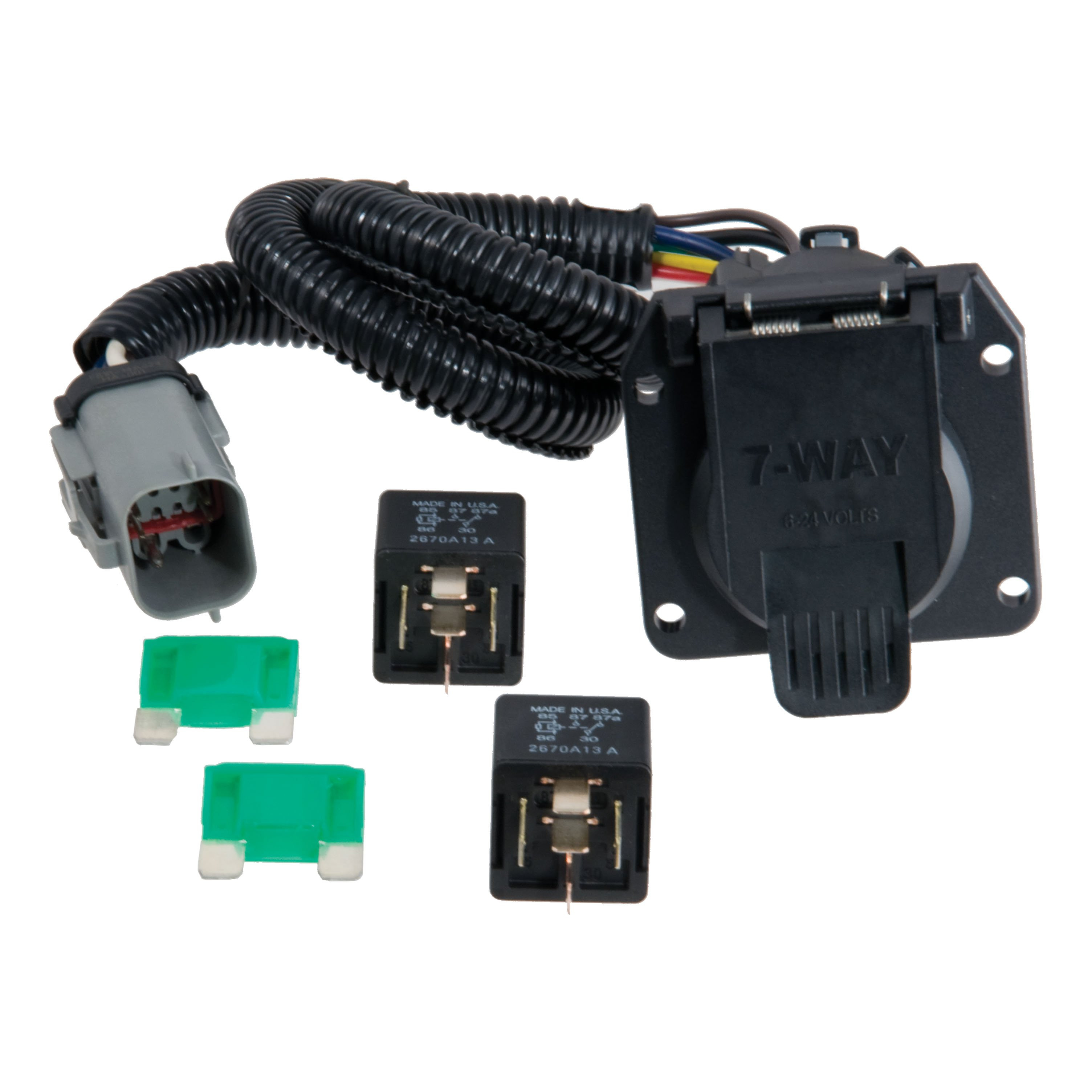

The 55243 includes a trailer tow harness with a 7-way socket, two 30 amp maxi-fuses for the TRAILER TOW ELECTRIC BRAKE and TRAILER TOW BATTERY CHARGE circuits, and two relays for the TRAILER TOW BACKUP LAMP RELAY and TRAILER TOW BATTERY CHARGE RELAY locations. A bracket or electrical box to mount the 7-way socket is not included.
Yes. The 7-way socket must be mounted in an accessible location using a bracket or electrical box, which is not included with the 55243. You will need to source this separately.
Yes. You must disconnect the vehicle's negative battery cable before accessing the power distribution box and installing the fuses and relays. Reconnect the battery cable after all electrical connections are complete.
The vehicle's wiring harness plugs are located in the rear, underneath the vehicle, inside the driver's side frame rail.
Remove the protective cap and install the trailer tow harness into the mating plug. The plug should match the trailer wiring harness end.
Mount the 7-way socket in an accessible location using a bracket or electrical box (not included). Secure any loose wires after installation.
Consult your vehicle's owner's manual to locate the specific fuse and relay positions. The manual will show you where to insert the TRAILER TOW ELECTRIC BRAKE fuse, TRAILER TOW BATTERY CHARGE fuse, TRAILER TOW BACKUP LAMP RELAY, and TRAILER TOW BATTERY CHARGE RELAY in the power distribution box.
The 55243 includes two 30 amp maxi-fuses. These are inserted into the TRAILER TOW ELECTRIC BRAKE and TRAILER TOW BATTERY CHARGE fuse locations in the power distribution box.
The power distribution box is located on the driver's side in the engine compartment, and the trailer tow relay block is attached to it.
Before drilling, verify that miscellaneous items that may be hidden behind or under any surface are not present. This will avoid damage to hidden components and prevent personal injury.
Test the installation with a test light or trailer. This verifies that the electrical connections are functioning correctly.
Yes, the 55243 is designed for Ford F-250 & F-350 Super Duty and Ford F-450 & F-550 Heritage models.
A bracket or electrical box to mount the 7-way socket is not included and must be purchased separately.
Yes, disconnect the vehicle's negative battery cable before accessing the power distribution box. Reconnect it after installing the fuses and relays.
The 55243 includes two 30 amp maxi-fuses for the TRAILER TOW ELECTRIC BRAKE and TRAILER TOW BATTERY CHARGE circuits.
Verify that miscellaneous items hidden behind or under any surface are not present before drilling to avoid damage and personal injury.
