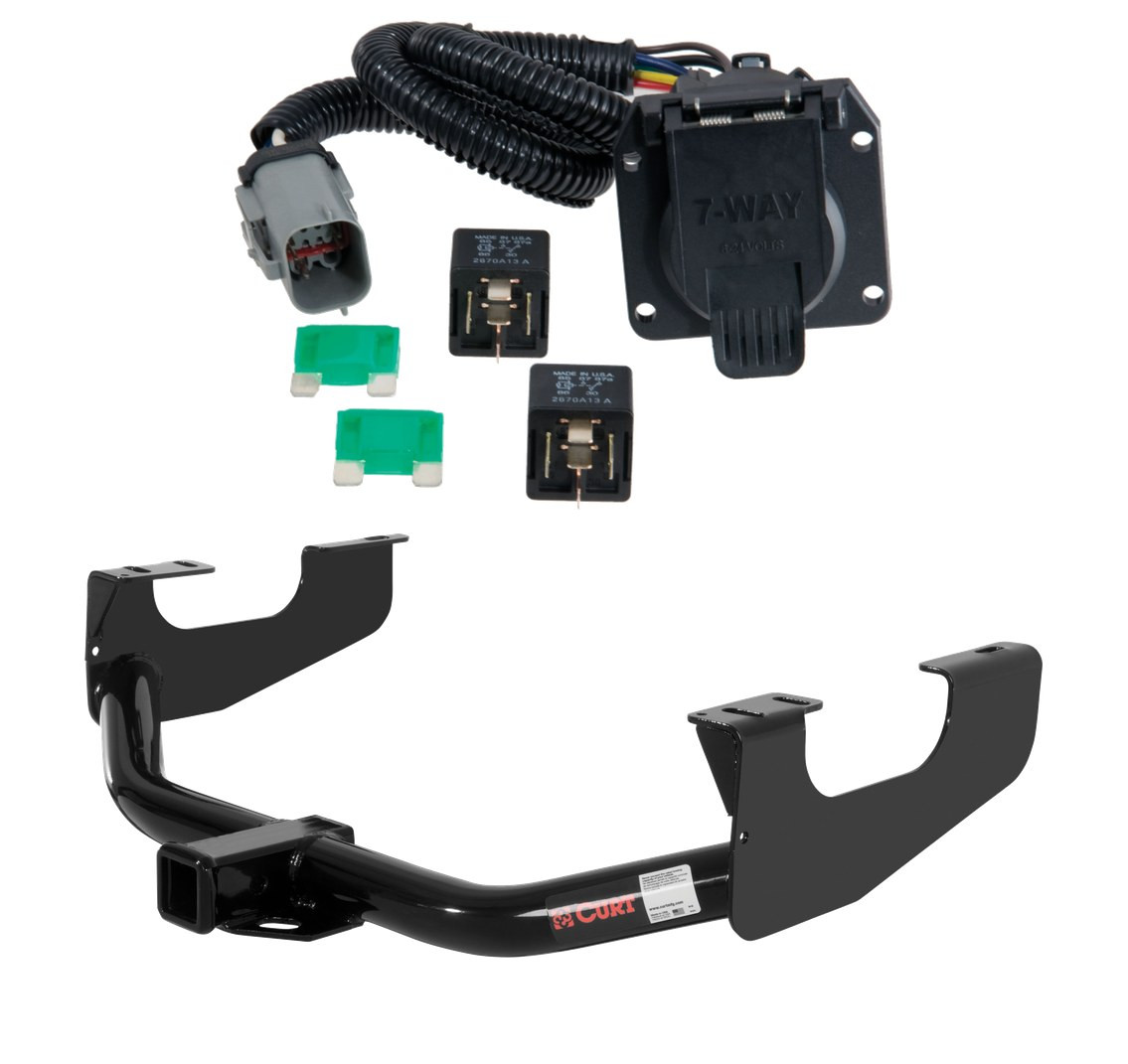

Complete CURT Class 3 2" trailer hitch and 7-way custom wiring kit engineered for the 1999 - 2001 F-250 Super Duty Excluding 20" spare tire. Vehicle-specific fit, plug-and-play installation, supports trailers with electric brakes, auxiliary 12V power and reverse lights.
This custom kit fits the following vehicles:
All Hardware and Installation Instructions Included!

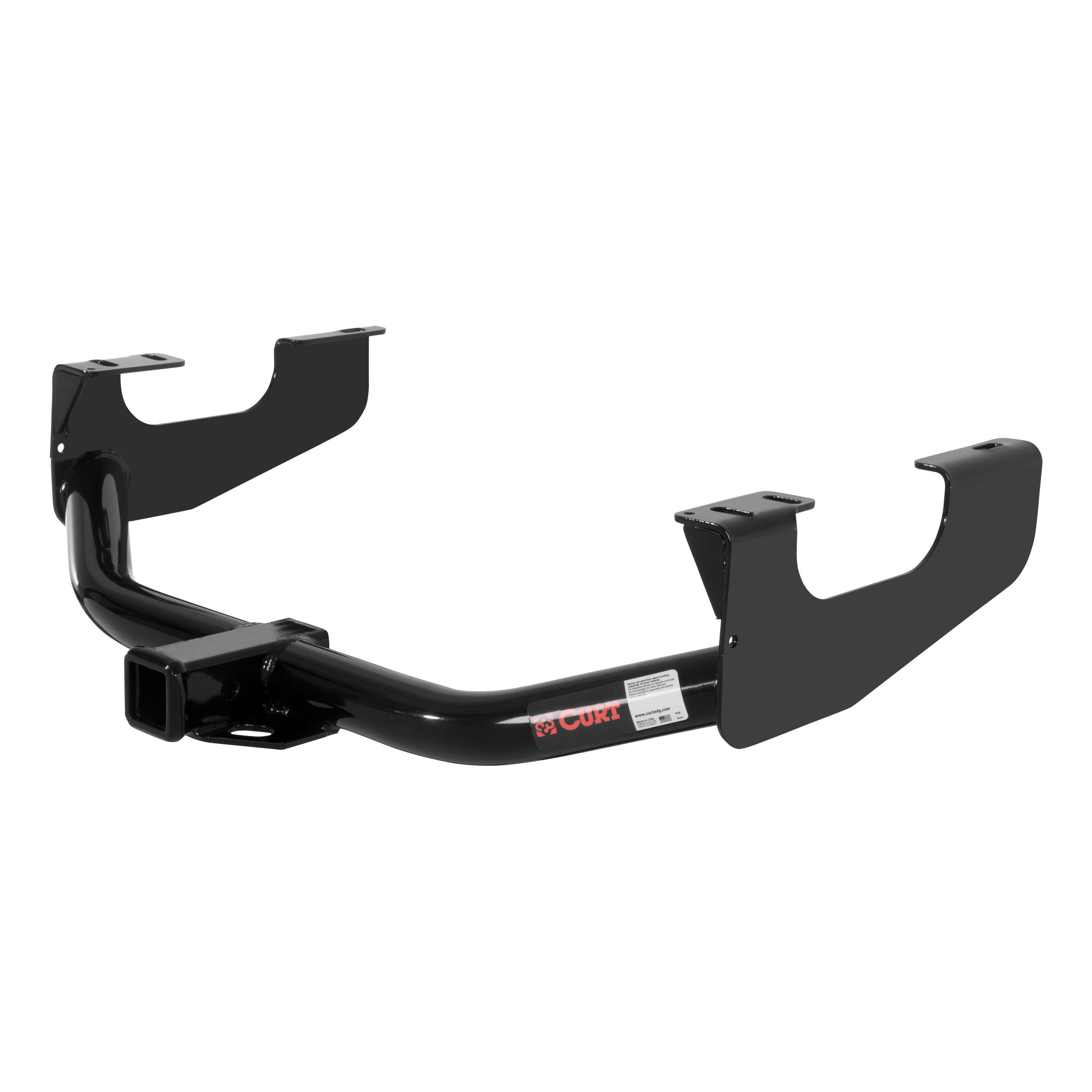

Whatever your task at hand -- whether it's launching that boat before daybreak, setting up your camper before the rush or getting a final load to the dump before close -- CURT class 3 trailer hitches offer the strength needed for serious towing. They make it easy to hitch up and Bring It, offering a vehicle-specific fit and the weight capacity to handle a variety of trailers. Custom class 3 hitches are the most common type of receiver hitch for pickup trucks and SUVs. Because of their weight range, they are also found on full-size cars, crossovers and minivans. Each custom-fit class 3 hitch package is made for vehicle-specific mounting. This particular kit fits certain years of the Ford F150, F150 Heritage, F250, F250 Super Duty and F350 Super Duty (see application info to verify vehicle compatibility). It provides a weight carrying capacity of 6,000 lbs. GTW and 600 lbs. TW. It is also compatible with a weight distribution hitch for level towing and a rating of 10,000 lbs. WD and 1,000 lbs. WDTW. CURT class 3 trailer hitches are typically used to attach and haul utility trailers, boat trailers, campers, snowmobile or ATV haulers and more (NOTE: Never exceed the lowest-rated towing component). Each class 3 hitch has a 2" receiver tube and is tested in accordance with SAE J684 for safety. To ensure that CURT class 3 receiver hitches have what it takes for serious trailering, they are designed using a hands-on approach and are constructed with rugged, high-strength steel and precise welding. We also protect our class 3 hitches in a co-cured finish of liquid A-coat and black powder coat for superior resistance to rust, chipping and UV damage.

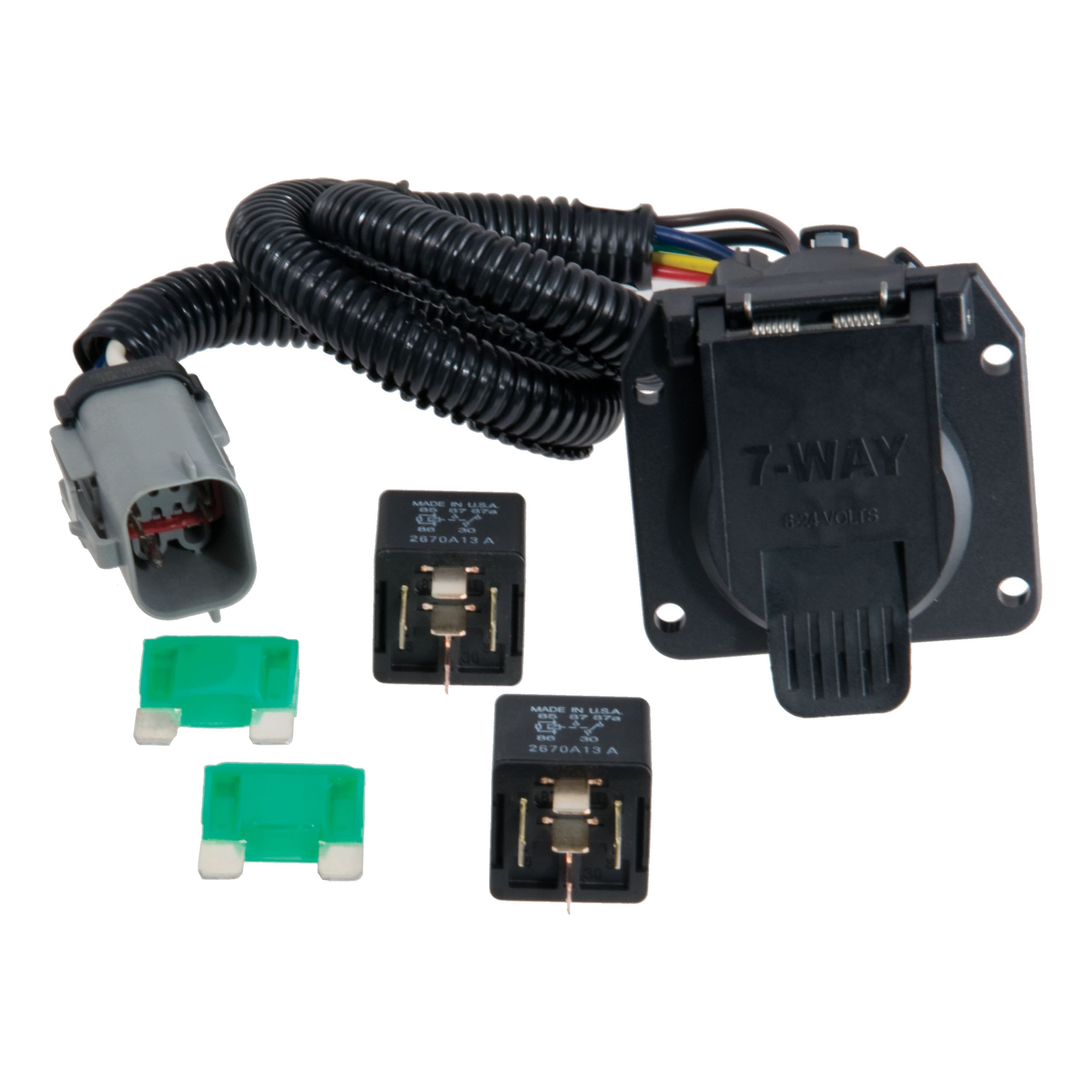

CURT custom wiring connectors and harnesses are the easiest way to outfit your vehicle with a trailer wiring connection for towing. Each one is custom-fitted to work with a specific make and model. This particular 7-way RV blade socket is designed to be a custom wiring option for certain years of the Ford F250 Super Duty, F350 Super Duty, F450 Super Duty and F550 Super Duty (see application info to verify fitment). It provides a universal trailer connection for the tail lights, brake lights, reverse lights, turn signals, electronic trailer brakes and auxiliary power. 7prong taillight wiring can be used as a replacement or new wiring and is typically used for towing fifth wheel and gooseneck trailers. This 7 way female outlet comes with all necessary hardware to establish a solid connection, as well as a dust cover to keep the connector socket clean when not in use. All CURT custom wiring connectors are made vehicle-specific for the easiest possible installation and the best fit. Some automotive manufacturers install a special socket on the vehicle to be used for vehicle-to-trailer wiring. Although this factory tow package socket is not equipped on every vehicle, a CURT custom wiring connector (also called a T-connector) utilizes the socket for simple, stress-free installation. Instead of cutting, splicing and soldering into your vehicle's wiring system, the custom wiring connector uses a single OEM compatible plug and instantly provides a standard vehicle-to-trailer hitch wiring connection. To ensure long-lasting reliability, all CURT custom tconnector wiring is thoroughly tested for optimal functionality.
Experts available to answer your questions
Call 888-634-9494Yes, Curt 13359 fits 1997–2003 Ford F-150 and F-250 Light Duty models with the new body style. It is designed for vehicles with a 20" spare tire. Confirm your model year and body style before purchase.
Yes, Curt 13359 is compatible with 1999–current Ford F-250 and F-350 Super Duty models, and 2008–current Ford F-450 Super Duty models. It fits vehicles with a 20" spare tire.
No. Curt 13359 is designed for 1997–2003 Ford F-250 Light Duty models with the new body style. The 2004 model year is outside the supported range. Check with Curt Manufacturing for compatibility with 2004 and later Light Duty models.
No. Curt 13359 is designed specifically for vehicles with a 20" spare tire. If your vehicle has a different spare tire size, this hitch may not fit properly.
The kit includes 6 carriage bolts (1/2"-13 UNC, 1-3/4" long, Grade 8, part 10-10272), 6 square hole spacers (0.250" × 1.50" × 2.00", part CM-SP1), and 6 serrated flange nuts (1/2"-13 UNC, Grade 8, part 20-00062). All fasteners are Grade 8 and zinc-plated.
No. The manual states "NO DRILLING REQUIRED." The hitch uses existing holes in the truck frame.
Yes. Step 1 of the installation instructions states: "Lower the spare tire for ease of installation. (Spare tire will be replaced after the hitch is installed.)" The spare tire is raised back into position after the hitch is secured.
1. Lower the spare tire. 2. Install 1/2" carriage bolts and spacers through existing holes in the frame. 3. Raise the hitch into position over the carriage bolts and secure with flange nuts, ensuring the wiring harness near the truck frame end is not pinched. 4. Torque all 1/2" fasteners to 110 lb.-ft. 5. Raise the spare tire back into storage, pushing it toward the front if needed for clearance.
For Light Duty trucks (97–03 F-150 & F-250), use the hole marked "USE THIS HOLE FOR LIGHT DUTY TRUCKS" in the side plates. The manual notes that only one of the two holes toward the front of the truck will be used.
For Super Duty trucks (99–current F-250 & F-350, 2008–current F-450), use the hole marked "USE THIS HOLE FOR SUPER DUTY TRUCKS" in the side plates. The manual notes that only one of the two holes toward the front of the truck will be used.
Torque all 1/2" fasteners (carriage bolts and flange nuts) to 110 lb.-ft.
Periodically check that all fasteners are tight and that all structural components are sound. This is especially important before towing.
No. Step 3 of the installation instructions explicitly states: "Be sure the wiring harness near the end of the truck frame is not pinched between the hitch and frame." Check this carefully during installation to avoid electrical damage.
The manual states: "PERIODICALLY CHECK THIS RECEIVER HITCH TO ENSURE THAT ALL FASTENERS ARE TIGHT AND THAT ALL STRUCTURAL COMPONENTS ARE SOUND." Perform this check regularly, especially before towing, to maintain safety and prevent loosening due to vibration.
Curt 13359 fits 1997–2003 Ford F-150 & F-250 Light Duty, 1999–current F-250 & F-350 Super Duty, and 2008–current F-450 Super Duty with a 20" spare tire.
No drilling required. The hitch uses existing frame holes.
Six 1/2"-13 UNC carriage bolts (1-3/4" long), six square hole spacers, and six 1/2"-13 UNC flange nuts, all Grade 8 zinc-plated.
Torque all 1/2" fasteners to 110 lb.-ft.
Yes, lower the spare tire before installation for ease of access. Raise it back after the hitch is secured, pushing it toward the front if needed for clearance.
Periodically check that all fasteners are tight and structural components are sound. Ensure the wiring harness is not pinched during installation.
Yes, Curt part number 55243 is designed for Ford F-250 & F-350 Super Duty vehicles. It is also compatible with Ford F-450 & F-550 Heritage models.
Yes, Curt part number 55243 is compatible with Ford F-450 & F-550 Heritage vehicles.
The 55243 includes a trailer tow harness with a 7-way socket, two 30 amp maxi-fuses for the TRAILER TOW ELECTRIC BRAKE and TRAILER TOW BATTERY CHARGE circuits, and two relays for the TRAILER TOW BACKUP LAMP RELAY and TRAILER TOW BATTERY CHARGE RELAY locations. A bracket or electrical box to mount the 7-way socket is not included.
Yes. The 7-way socket must be mounted in an accessible location using a bracket or electrical box, which is not included with the 55243. You will need to source this separately.
Yes. You must disconnect the vehicle's negative battery cable before accessing the power distribution box and installing the fuses and relays. Reconnect the battery cable after all electrical connections are complete.
The vehicle's wiring harness plugs are located in the rear, underneath the vehicle, inside the driver's side frame rail.
Remove the protective cap and install the trailer tow harness into the mating plug. The plug should match the trailer wiring harness end.
Mount the 7-way socket in an accessible location using a bracket or electrical box (not included). Secure any loose wires after installation.
Consult your vehicle's owner's manual to locate the specific fuse and relay positions. The manual will show you where to insert the TRAILER TOW ELECTRIC BRAKE fuse, TRAILER TOW BATTERY CHARGE fuse, TRAILER TOW BACKUP LAMP RELAY, and TRAILER TOW BATTERY CHARGE RELAY in the power distribution box.
The 55243 includes two 30 amp maxi-fuses. These are inserted into the TRAILER TOW ELECTRIC BRAKE and TRAILER TOW BATTERY CHARGE fuse locations in the power distribution box.
The power distribution box is located on the driver's side in the engine compartment, and the trailer tow relay block is attached to it.
Before drilling, verify that miscellaneous items that may be hidden behind or under any surface are not present. This will avoid damage to hidden components and prevent personal injury.
Test the installation with a test light or trailer. This verifies that the electrical connections are functioning correctly.
Yes, the 55243 is designed for Ford F-250 & F-350 Super Duty and Ford F-450 & F-550 Heritage models.
A bracket or electrical box to mount the 7-way socket is not included and must be purchased separately.
Yes, disconnect the vehicle's negative battery cable before accessing the power distribution box. Reconnect it after installing the fuses and relays.
The 55243 includes two 30 amp maxi-fuses for the TRAILER TOW ELECTRIC BRAKE and TRAILER TOW BATTERY CHARGE circuits.
Verify that miscellaneous items hidden behind or under any surface are not present before drilling to avoid damage and personal injury.
