Draw-tite
Verify Fitment
Select your vehicle to confirm this part fits.
2001 - 2003 Toyota Highlander
Confirmed to Fit
Always the correct part
We know our products
Quality Products
Free Shipping!
Always the correct part
We know our products
Quality Products
Free Shipping!
Free Shipping
Ships free on all orders
Authorized Dealer
FREE ShippingFREE SHIPPING
Estimated delivery Sun, Sep 6 - Wed, Sep 9
Order before 2 PM EST Monday–Friday for same-day processing
Guaranteed safe & secure checkout

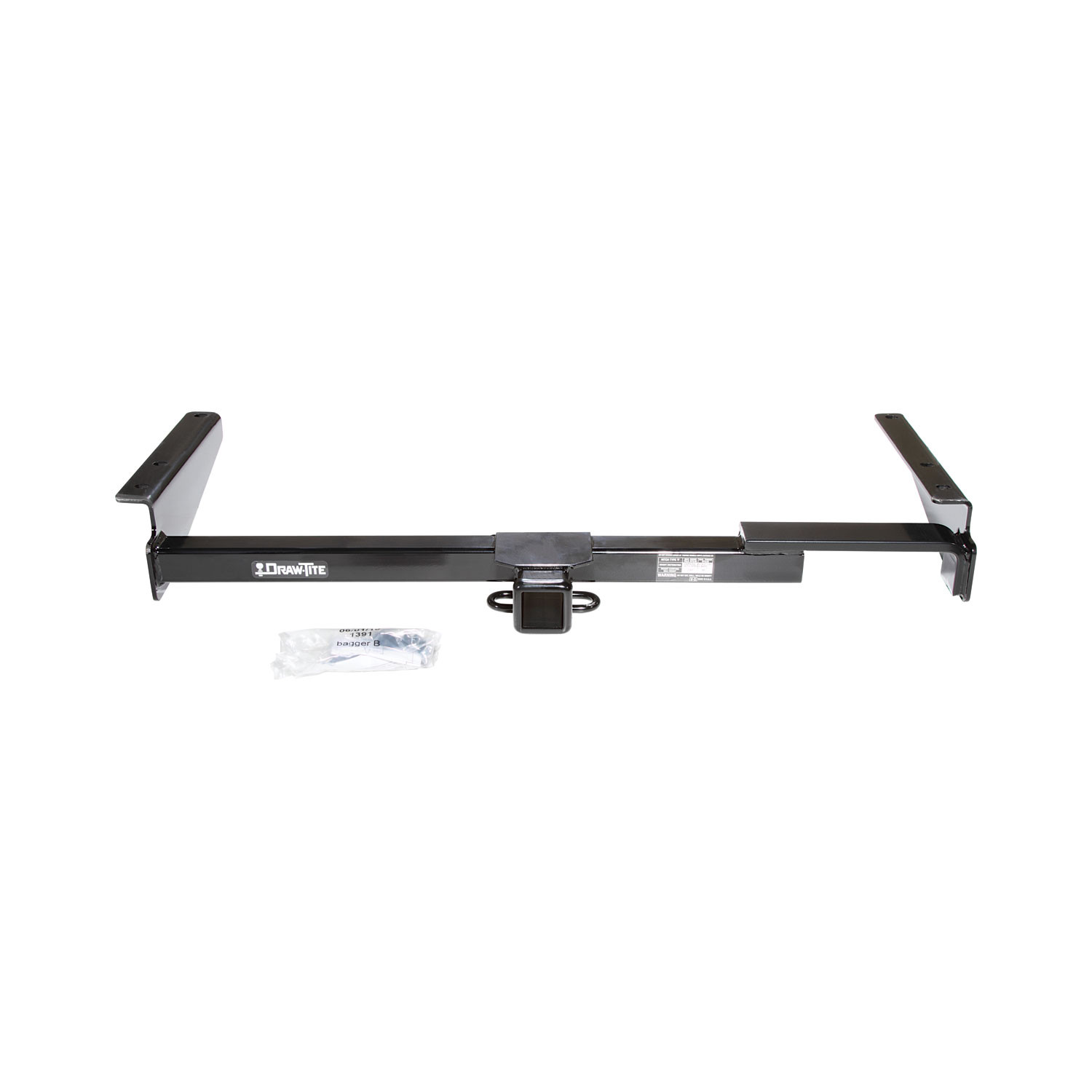

These durable custom hitches are manufactured for 1999-2003 Lexus RX300, 2001-2003 Toyota Highlander and attach to your vehicle?s frame or bumper for a sleek, clean appearance. Each hitch also has a 2 inch square receiver tube opening ? the most common and versatile on the market - allowing you to attach accessories like a bike rack or cargo carrier, or hook up your pop-up, boat trailer, or utility trailer. The options are endless! DRAW-TITE Class 3 Custom Trailer Hitches come complete with all the mounting hardware needed for installation and are backed by a nationwide lifetime limited warranty. So, whether you are headed out to the campground, the lake, or the bike trails, or you are tackling a project at home and need to haul the materials home, choose DRAW-TITE and travel with confidence knowing your setup is connected with the security only DRAW-TITE can provide. DRAW-TITE: North America?s Favorite Hitch
Draw-Tite has designed custom-fit trailer hitches since 1946 and is one of North America's most widely fitted hitch brands. Receiver hitches use solid all-welded construction and low-profile designs that follow modern vehicle contours, install with minimal bumper cutting or drilling, meet or exceed V5 CSA and SAE J684 standards, and carry a limited lifetime warranty.
Draw-Tite has been leading custom-fit trailer hitch design and engineering since its founding in 1946, and it remains one of the most widely fitted hitch brands in North America. The company's stated approach is straightforward: every hitch is tested rigorously so that it performs well beyond published industry standards, a philosophy it markets as Tested Tough. It sits within the Horizon Global towing group alongside Reese, Fulton, Bulldog, Tekonsha, Bargman and Wesbar.
Custom fit is the defining characteristic. Rather than adapting a universal design, Draw-Tite engineers a trailer hitch for a specific make, model and model year, so it bolts to existing frame locations with minimal bumper cutting or drilling. Low-profile designs follow the rear contours and aerodynamic styling of modern vehicles, which matters more than it once did now that rear fascias are shaped and sensor-equipped. Construction is solid all-welded steel for maximum strength, and every hitch meets or exceeds V5 CSA and SAE J684 standards and is backed by a nationwide limited lifetime warranty.
The range spans receiver sizes and classes to suit different loads, from 1-1/4 inch receivers for bike racks, cargo carriers and light trailers up through 2 inch receivers for heavier towing. Front mount hitches add a receiver at the front of the vehicle for winch mounts, snow plows, spare carriers and precise trailer positioning.
The Hidden Hitch series takes concealment further by mounting behind the vehicle's rear fascia, so the vehicle keeps its factory appearance until a removable receiver is fitted. Each is custom designed per make and model for a no-drill installation that does not compromise ground clearance, rated for up to 3,500 pounds gross trailer weight and 350 pounds tongue weight. Matching plug-and-play wiring completes the towing system.
Experts available to answer your questions
Call 888-634-94941 compatible vehicles
| Year | Make & Model | Notes |
|---|---|---|
| 2001 - 2003 | Toyota Highlander | — |

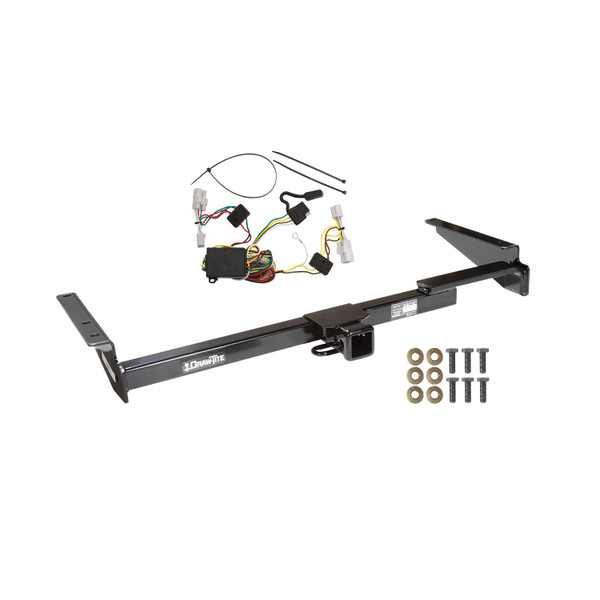

The 2001-2003 Toyota Highlander Draw-tite Class 3 Trailer Hitch, 2 Inch Square Receiver Bundle w/ Plug-n-Play T-One Wiring Harness (Part #DTB41541-118413) fits the following vehicles: 2001-2003 Toyota Highlander. Always verify your specific year, make, and model before ordering.
The 2001-2003 Toyota Highlander Draw-tite Class 3 Trailer Hitch, 2 Inch Square Receiver Bundle w/ Plug-n-Play T-One Wiring Harness (Part #DTB41541-118413) fits 2001-2003 Toyota Highlander models. The 2003 model year is the last year covered by this part number. For newer models, check for an updated version.
Yes, the 2001-2003 Toyota Highlander Draw-tite Class 3 Trailer Hitch, 2 Inch Square Receiver Bundle w/ Plug-n-Play T-One Wiring Harness (Part #DTB41541-118413) is designed to fit the 2001-2003 Toyota Highlander.
The 2001-2003 Toyota Highlander Draw-tite Class 3 Trailer Hitch, 2 Inch Square Receiver Bundle w/ Plug-n-Play T-One Wiring Harness (Part #DTB41541-118413) Refer to the included instructions for installation details. Basic hand tools are typically all you need.
Yes, part number 41541 is designed for Lexus RX300 model years 2000, 2001, 2009, and 2011. Confirm your vehicle year matches one of these before purchasing.
Yes, part number 41541 is designed for Toyota Highlander model years 2000, 2001, 2009, and 2011. Confirm your vehicle year matches one of these before purchasing.
The maximum gross trailer weight is 3500 lb (1589 kg) and the maximum tongue weight is 350 lb (159 kg). However, you must not exceed the lower of this hitch rating or your vehicle manufacturer's towing rating—whichever is lower.
No. This hitch is a weight-carrying ball mount and must not be used with spring bars.
You will need wrenches in 14mm and 17mm sizes. No drill bits are required—no drilling is needed for this installation.

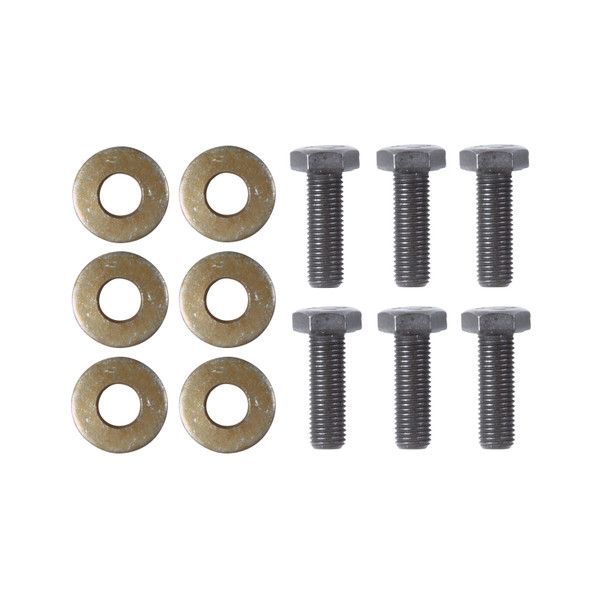

Fastener Kit K41541 includes 6 hex bolts (M10 x 1.25 x 30mm CL10.9) and 6 conical toothed washers (3/8"). These fasteners attach the hitch to the existing frame rail weldnuts on both sides of the vehicle.
Remove the tow hooks from the frame rails and return them to the vehicle owner. Then remove the plastic caps in the forward attaching holes before raising the hitch into position.
Raise the hitch into position and install the 6 hex bolts (M10 x 1.25 x 30mm CL10.9) with conical toothed washers (3/8") through the hitch into the existing frame rail weldnuts on both sides of the vehicle, as shown in the installation diagram.
Tighten all M10 x 1.25 CL10.9 fasteners to 42 lb-ft (57 N·m) using a torque wrench.
Observe safety precautions when working beneath the vehicle and wear eye protection. Do not cut access or attachment holes with a torch. If the hitch is removed, plug all holes in the trunk pan or other body panels to prevent entry of water and exhaust fumes.
Check the hitch frequently to ensure all fasteners and the ball are properly tightened. A damaged hitch or ball must be removed and replaced immediately.
Check the hitch frequently, making sure all fasteners and the ball are properly tightened. The manual does not specify an exact interval, but regular inspection is essential for safe towing.
Wiring access locations are at SUV1 and SUV2 on your vehicle. The manual does not provide detailed wiring instructions; consult the manufacturer or a qualified installer for wiring harness routing and connection.
Yes, for model years 2000, 2001, 2009, and 2011 only. Confirm your vehicle year before purchasing.
Maximum 3500 lb gross trailer weight and 350 lb tongue weight, but do not exceed your vehicle manufacturer's lower rating.
14mm and 17mm wrenches, torque wrench, and Fastener Kit K41541 (6 M10 x 1.25 x 30mm bolts, 6 washers). No drilling required.
Tighten all M10 x 1.25 CL10.9 fasteners to 42 lb-ft (57 N·m) with a torque wrench.
No. This weight-carrying hitch must not be used with spring bars.
No. The hitch attaches to existing frame rail weldnuts. No drilling is required.

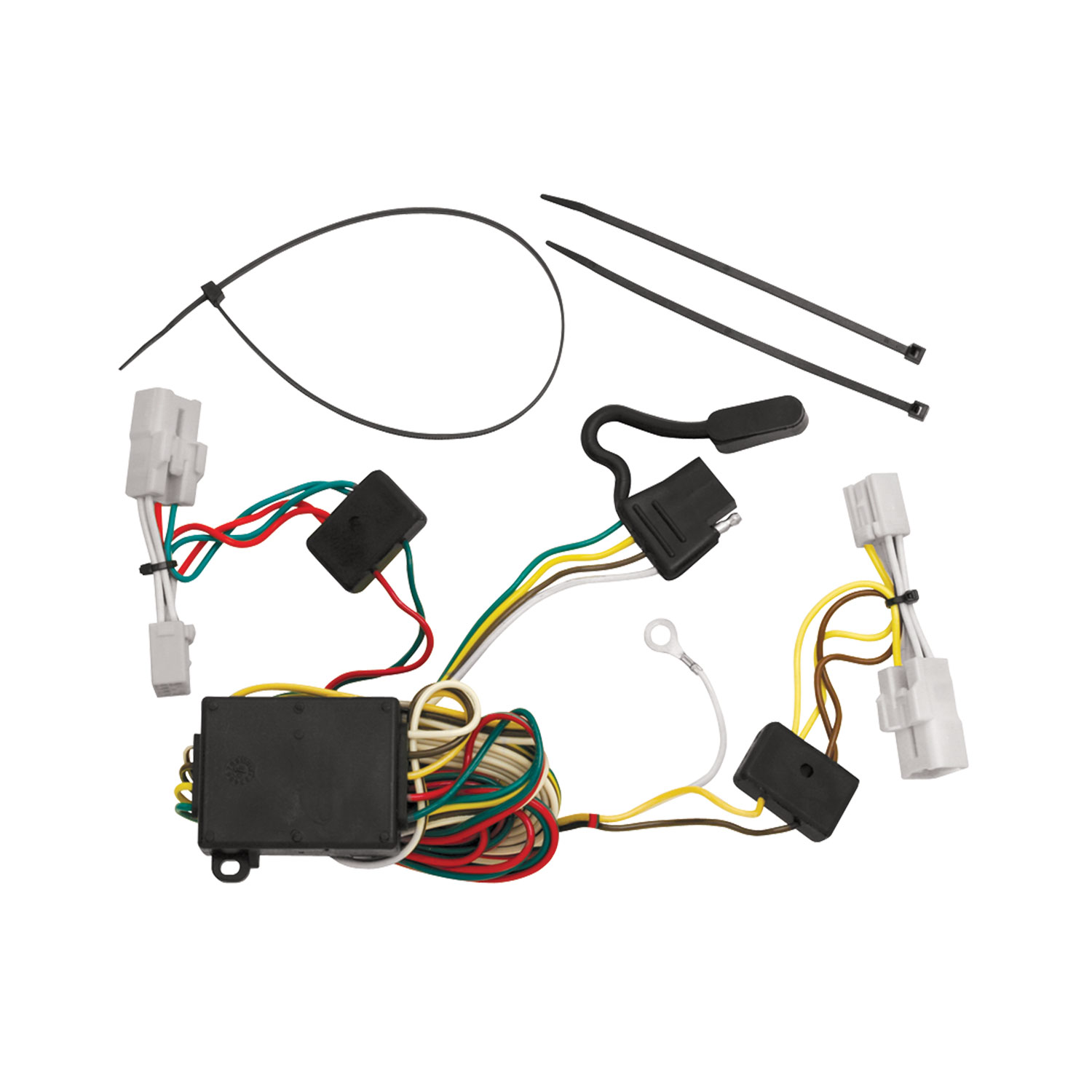

The T-Connector is an electrical adapter that allows you to connect a trailer to your vehicle's existing taillight wiring. It intercepts the vehicle's taillight signals and routes them to a 4-flat connector for trailer use. The product includes a black box module, wiring harness with colour-coded ends (yellow for driver's side, green for passenger's side), double-sided tape, and cable ties.
The T-Connector (part number 118413-037) is designed for the Toyota Highlander and Hyundai Azera. Installation procedures differ slightly between these models: Highlander requires removal of the rear tailgate access panel, threshold, trunk floor panels and trays; Azera requires opening the trunk, removing the threshold panel, and partially removing the felt trunk liner on the driver's side.
You will need: 8mm, 10mm, and 13mm sockets with ratchet, or 8mm, 10mm, and 13mm wrenches; a test probe; and a trim panel remover. The T-Connector package includes double-sided tape and cable ties for mounting and securing the harness.
The manual does not specify whether battery disconnection is required. Consult your vehicle's owner's manual and the T-Connector instruction sheet for additional information on electrical safety precautions before beginning installation.
1. Locate the vehicle's taillight wiring harness on both driver and passenger sides. 2. Separate the existing taillight connectors carefully without breaking the locking tabs; ensure connector surfaces are clean and free of dirt. 3. On the driver's side, insert the T-Connector end with the yellow wire between the vehicle wiring connectors and lock into place, ensuring connectors are fully inserted with locking tabs engaged. 4. Route the T-Connector end with the green wire to the passenger's side and repeat step 3 with the green-wire end.
The T-Connector has two colour-coded ends: the yellow wire end connects to the driver's side taillight wiring, and the green wire end connects to the passenger's side taillight wiring. Each end must be inserted into the corresponding vehicle taillight connector on its respective side.
Locate the existing ground stud on the vehicle. Loosen the bolt on the stud, place the screw eyelet from the T-Connector harness onto the stud, and re-tighten the bolt. This completes the ground connection for the T-Connector.
Mount the T-Connector black box using the double-sided tape provided. Secure the remainder of the T-Connector harness with the cable ties provided. Be careful to avoid any areas that would cut or pinch the wire to prevent damage or rattling.
After completing all T-Connector connections and mounting, reposition the access panels, trays, and trunk floor panels, and reattach the threshold. Ensure all removed items are properly reinstalled.
All connections must be complete for the T-Connector to function properly. Test and verify the installation with a test light or by connecting an actual trailer once installed. This confirms that all wiring is correctly connected and the system is functioning.
Do not exceed the lower of your towing manufacturer's rating or these limits: maximum stop/turn light is 1 per side (2.1 amps); maximum tail lights is 4.2 amps. Overloading the circuit can cause fires. Consult your vehicle's owner's manual and instruction sheet for additional information.
Store the 4-flat connector in the trunk or rear cargo area when not in use.
Set aside all items removed during installation, being careful not to damage the parts. You will need to reattach these items (access panels, threshold, trunk floor panels, and trays) after the T-Connector installation is complete.
All connector surfaces must be clean and free of dirt to ensure proper electrical contact and function. Dirty connectors can prevent the T-Connector from working correctly and may cause intermittent electrical problems.
When inserting the T-Connector ends into the vehicle's taillight connectors, you must ensure the connectors are fully inserted and the locking tabs are engaged. This secures the connection and prevents the connectors from accidentally separating.
The T-Connector (118413-037) is designed for Toyota Highlander and Hyundai Azera models. Installation procedures vary by model. Consult the manual for your specific vehicle.
Do not exceed 1 stop/turn light per side (2.1 amps) or 4.2 amps for tail lights. Overloading can cause fires. Respect the lower of your towing manufacturer's rating or these limits.
Yellow wire connects to the driver's side; green wire connects to the passenger's side. Each end must be fully inserted into the corresponding taillight connector with locking tabs engaged.
