Draw-tite
Verify Fitment
Select your vehicle to confirm this part fits.
2004 - 2007 Toyota Highlander
Confirmed to Fit
Always the correct part
We know our products
Quality Products
Free Shipping!
Always the correct part
We know our products
Quality Products
Free Shipping!

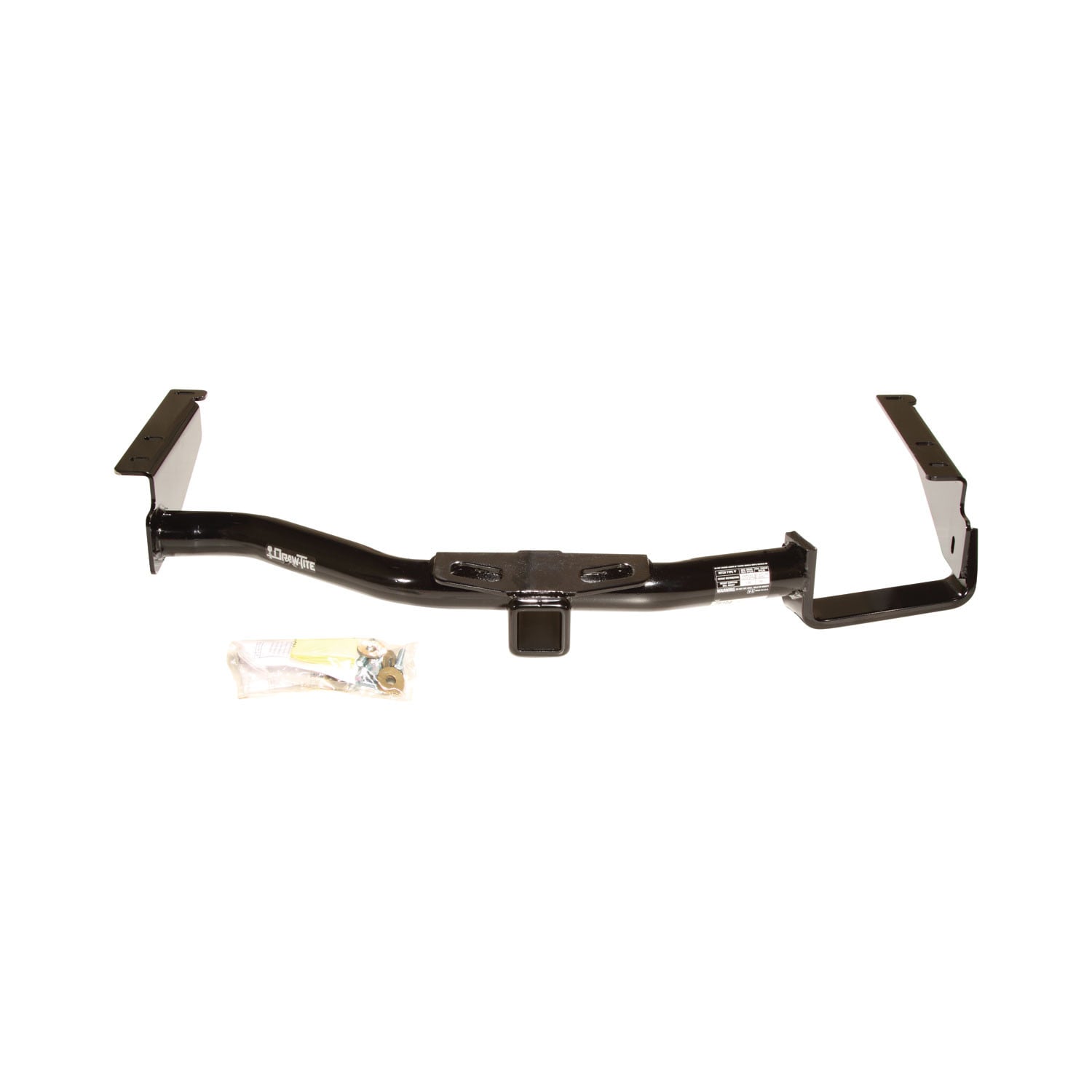

These durable custom hitches are manufactured for 2004-2006 Lexus RX330, 2007-2009 Lexus RX350, 2006-2008 Lexus RX400h, 2004-2007 Toyota Highlander and attach to your vehicle?s frame or bumper for a sleek, clean appearance. Each hitch also has a 2 inch square receiver tube opening ? the most common and versatile on the market - allowing you to attach accessories like a bike rack or cargo carrier, or hook up your pop-up, boat trailer, or utility trailer. The options are endless! DRAW-TITE Class 3 Custom Trailer Hitches come complete with all the mounting hardware needed for installation and are backed by a nationwide lifetime limited warranty. So, whether you are headed out to the campground, the lake, or the bike trails, or you are tackling a project at home and need to haul the materials home, choose DRAW-TITE and travel with confidence knowing your setup is connected with the security only DRAW-TITE can provide. DRAW-TITE: North America?s Favorite Hitch
Draw-Tite has designed custom-fit trailer hitches since 1946 and is one of North America's most widely fitted hitch brands. Receiver hitches use solid all-welded construction and low-profile designs that follow modern vehicle contours, install with minimal bumper cutting or drilling, meet or exceed V5 CSA and SAE J684 standards, and carry a limited lifetime warranty.
Draw-Tite has been leading custom-fit trailer hitch design and engineering since its founding in 1946, and it remains one of the most widely fitted hitch brands in North America. The company's stated approach is straightforward: every hitch is tested rigorously so that it performs well beyond published industry standards, a philosophy it markets as Tested Tough. It sits within the Horizon Global towing group alongside Reese, Fulton, Bulldog, Tekonsha, Bargman and Wesbar.
Custom fit is the defining characteristic. Rather than adapting a universal design, Draw-Tite engineers a trailer hitch for a specific make, model and model year, so it bolts to existing frame locations with minimal bumper cutting or drilling. Low-profile designs follow the rear contours and aerodynamic styling of modern vehicles, which matters more than it once did now that rear fascias are shaped and sensor-equipped. Construction is solid all-welded steel for maximum strength, and every hitch meets or exceeds V5 CSA and SAE J684 standards and is backed by a nationwide limited lifetime warranty.
The range spans receiver sizes and classes to suit different loads, from 1-1/4 inch receivers for bike racks, cargo carriers and light trailers up through 2 inch receivers for heavier towing. Front mount hitches add a receiver at the front of the vehicle for winch mounts, snow plows, spare carriers and precise trailer positioning.
The Hidden Hitch series takes concealment further by mounting behind the vehicle's rear fascia, so the vehicle keeps its factory appearance until a removable receiver is fitted. Each is custom designed per make and model for a no-drill installation that does not compromise ground clearance, rated for up to 3,500 pounds gross trailer weight and 350 pounds tongue weight. Matching plug-and-play wiring completes the towing system.
Experts available to answer your questions
Call 888-634-94941 compatible vehicles
| Year | Make & Model | Notes |
|---|---|---|
| 2004 - 2007 | Toyota Highlander | — |

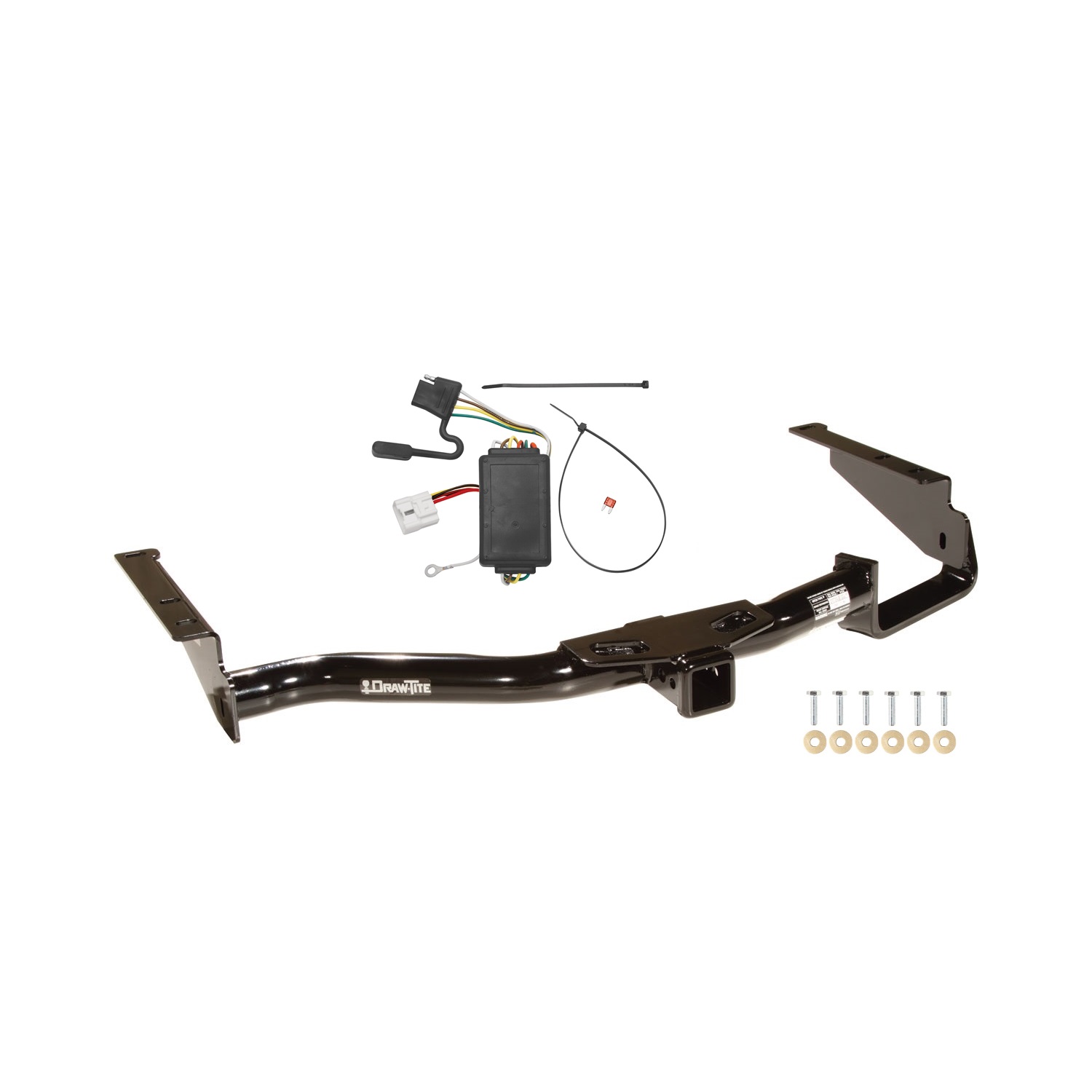

The 2004-2007 Toyota Highlander Draw-tite Class 3 Trailer Hitch, 2 Inch Square Receiver Bundle w/ Plug-n-Play T-One Wiring Harness (Part #DTB75153-118248) fits 2004-2007 Toyota Highlander models. The 2007 model year is the last year covered by this part number. For newer models, check for an updated version.
The 2004-2007 Toyota Highlander Draw-tite Class 3 Trailer Hitch, 2 Inch Square Receiver Bundle w/ Plug-n-Play T-One Wiring Harness (Part #DTB75153-118248) fits the following vehicles: 2004-2007 Toyota Highlander. Always verify your specific year, make, and model before ordering.
Yes, the 2004-2007 Toyota Highlander Draw-tite Class 3 Trailer Hitch, 2 Inch Square Receiver Bundle w/ Plug-n-Play T-One Wiring Harness (Part #DTB75153-118248) is designed to fit the 2004-2007 Toyota Highlander.
The 2004-2007 Toyota Highlander Draw-tite Class 3 Trailer Hitch, 2 Inch Square Receiver Bundle w/ Plug-n-Play T-One Wiring Harness (Part #DTB75153-118248) Refer to the included instructions for installation details. Basic hand tools are typically all you need.
The Tow-Plug Adapter is an electrical connector that integrates with your vehicle's factory tow harness to enable trailer lighting control. It allows you to connect a trailer's electrical system to your vehicle's towing circuit. The adapter must be fully connected and all wiring complete for proper function.
The Tow-Plug Adapter is designed for vehicles with a factory tow harness connector on the driver's side. The manual does not specify which vehicle makes, models, or years are compatible. Before purchasing, verify that your vehicle has a factory tow harness connector and consult the manufacturer or your vehicle's owner's manual to confirm compatibility.
The Tow-Plug Adapter connector must match your vehicle's factory tow harness connector surfaces. Before installation, check that the mating surfaces of your vehicle harness connectors match the Tow-Plug Adapter ends. All connector surfaces must be clean and free of dirt for proper fit and function.
You will need a 13mm socket and ratchet (or 13mm wrench) and a test-probe. These tools are required to loosen and re-tighten the ground stud bolt and to test the installation after completion.

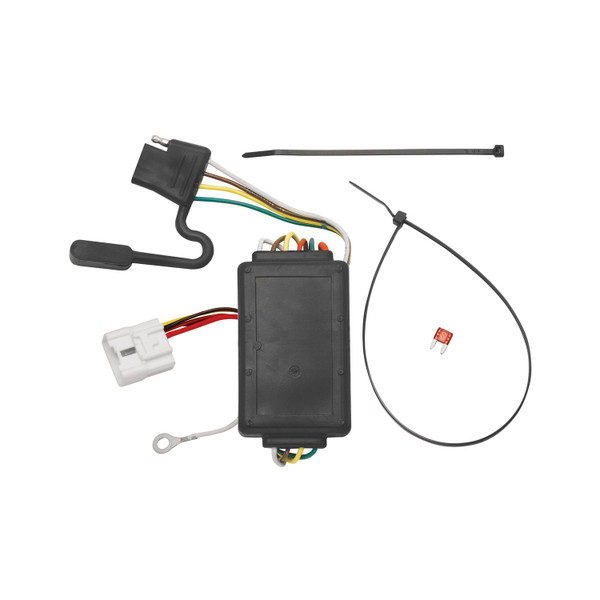

The Tow-Plug Adapter kit includes the adapter connector, a 10A fuse, double-sided tape for mounting the black box, and cable ties for securing the harness. The 4-flat connector should be stored in the trunk or rear cargo area when not in use.
The factory tow harness connector is located on the driver's side of the vehicle, accessible after opening the rear tailgate and removing access panels, threshold, and trunk floor panels and trays.
On the driver's side, you must remove the access panels, threshold, trunk floor panels, and trays. Set aside all removed items carefully to avoid damaging parts. These items will be repositioned after installation is complete.
Locate the vehicle's factory tow harness connector on the driver's side. Separate the connectors carefully without breaking the locking tabs. Verify that the mating surfaces are clean and match the Tow-Plug Adapter ends. Insert the Tow-Plug Adapter and lock it into place, ensuring connectors are fully inserted with locking tabs engaged. Be careful not to damage the locking tabs.
Locate the existing ground stud on the driver's side. Loosen the bolt on the stud, place the screw eyelet (provided with the adapter) onto the stud, and re-tighten the bolt. This completes the ground connection for the adapter.
Consult your vehicle's owner's manual to locate the towing fuse location. Insert the provided 10A fuse into that location. This fuse protects the towing circuit from overcurrent.
On the driver's side, mount the black box using the double-sided tape provided in the kit. Secure the remainder of the harness with the cable ties provided. Avoid areas that could cut or pinch the wire to prevent damage or rattling.
Secure the harness with the cable ties provided. Be careful to avoid any areas that would cut or pinch the wire, as this can cause damage or rattling. Plan the routing to keep wires away from sharp edges, moving parts, and heat sources.
No drilling is required. The Tow-Plug Adapter uses the existing factory tow harness connector and ground stud. The black box is mounted using double-sided tape, and the harness is secured with cable ties.
The maximum rating for stop/turn lights is 1 per side at 2.1 amps. Do not exceed this rating or the lower of your towing manufacturer's specification, as overloading the circuit can cause fires.
The maximum rating for tail lights is 5 amps. Do not exceed this rating or the lower of your towing manufacturer's specification, as overloading the circuit can cause fires.
A 10A fuse is provided with the kit. This fuse must be installed in the towing fuse location specified in your vehicle's owner's manual to protect the towing circuit.
Before using the adapter, test and verify the installation with a test light or by connecting an actual trailer. All connections must be complete for the Tow-Plug Adapter to function properly. Use a test-probe to verify that all electrical connections are working correctly.
Overloading the circuit can cause fires. Do not exceed the lower of your towing manufacturer's rating or the maximum amperage limits: 1 stop/turn light per side (2.1 amps) and tail lights (5 amps). Always consult your vehicle's owner's manual and instruction sheet for additional information about safe towing capacity.
Store the 4-flat connector in the trunk or rear cargo area when not in use. This protects the connector from damage and keeps it accessible for future use.
Test and verify the installation using a test light or by connecting an actual trailer. Use the test-probe (included in required tools) to check that all electrical connections are functioning correctly. All connections must be complete for the adapter to function properly.
After installation, verify that all connectors are fully inserted with locking tabs in place, the ground connection is secure, the 10A fuse is installed, the black box is mounted securely, and all harness wires are properly routed and secured with cable ties. Test the installation with a test light or trailer to confirm all lights function correctly.
The adapter requires a factory tow harness connector on the driver's side. Verify your vehicle has this connector and that its mating surfaces match the adapter ends before purchasing. The manual does not list specific vehicle makes or models.
You need a 13mm socket/ratchet (or wrench), test-probe, and the included 10A fuse, double-sided tape, and cable ties. No drilling or welding is required.
No. The adapter uses your existing factory tow harness connector and ground stud. The black box mounts with double-sided tape; no drilling, cutting, or welding is required.
Maximum 1 stop/turn light per side (2.1 amps) and tail lights (5 amps). Do not exceed these or your towing manufacturer's lower rating, as overloading can cause fires.
Use the included test-probe or connect a trailer to verify all lights function. All connections must be complete for proper operation.
A 10A fuse is provided and must be installed in the towing fuse location specified in your vehicle's owner's manual.
