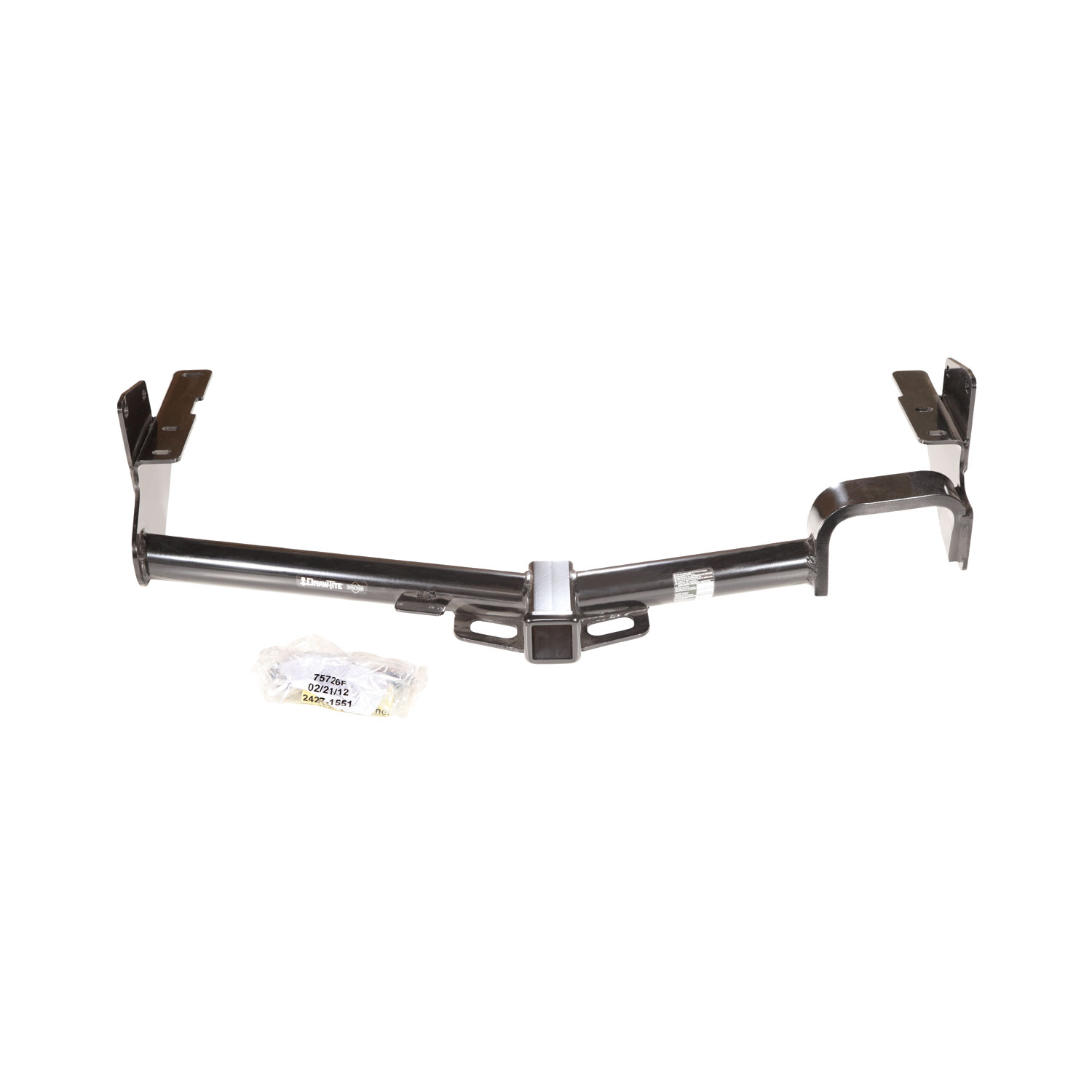

These durable custom hitches are manufactured for 2008-2013 Toyota Highlander and attach to your vehicle?s frame or bumper for a sleek, clean appearance. Each hitch also has a 2 inch square receiver tube opening ? the most common and versatile on the market - allowing you to attach accessories like a bike rack or cargo carrier, or hook up your pop-up, boat trailer, or utility trailer. The options are endless! DRAW-TITE Class 3 Custom Trailer Hitches come complete with all the mounting hardware needed for installation and are backed by a nationwide lifetime limited warranty. So, whether you are headed out to the campground, the lake, or the bike trails, or you are tackling a project at home and need to haul the materials home, choose DRAW-TITE and travel with confidence knowing your setup is connected with the security only DRAW-TITE can provide. DRAW-TITE: North America?s Favorite Hitch
Draw-Tite has designed custom-fit trailer hitches since 1946 and is one of North America's most widely fitted hitch brands. Receiver hitches use solid all-welded construction and low-profile designs that follow modern vehicle contours, install with minimal bumper cutting or drilling, meet or exceed V5 CSA and SAE J684 standards, and carry a limited lifetime warranty.
Draw-Tite has been leading custom-fit trailer hitch design and engineering since its founding in 1946, and it remains one of the most widely fitted hitch brands in North America. The company's stated approach is straightforward: every hitch is tested rigorously so that it performs well beyond published industry standards, a philosophy it markets as Tested Tough. It sits within the Horizon Global towing group alongside Reese, Fulton, Bulldog, Tekonsha, Bargman and Wesbar.
Custom fit is the defining characteristic. Rather than adapting a universal design, Draw-Tite engineers a trailer hitch for a specific make, model and model year, so it bolts to existing frame locations with minimal bumper cutting or drilling. Low-profile designs follow the rear contours and aerodynamic styling of modern vehicles, which matters more than it once did now that rear fascias are shaped and sensor-equipped. Construction is solid all-welded steel for maximum strength, and every hitch meets or exceeds V5 CSA and SAE J684 standards and is backed by a nationwide limited lifetime warranty.
The range spans receiver sizes and classes to suit different loads, from 1-1/4 inch receivers for bike racks, cargo carriers and light trailers up through 2 inch receivers for heavier towing. Front mount hitches add a receiver at the front of the vehicle for winch mounts, snow plows, spare carriers and precise trailer positioning.
The Hidden Hitch series takes concealment further by mounting behind the vehicle's rear fascia, so the vehicle keeps its factory appearance until a removable receiver is fitted. Each is custom designed per make and model for a no-drill installation that does not compromise ground clearance, rated for up to 3,500 pounds gross trailer weight and 350 pounds tongue weight. Matching plug-and-play wiring completes the towing system.
Experts available to answer your questions
Call 888-634-94941 compatible vehicles
| Year | Make & Model | Notes |
|---|---|---|
| 2008 - 2013 | Toyota Highlander | — |

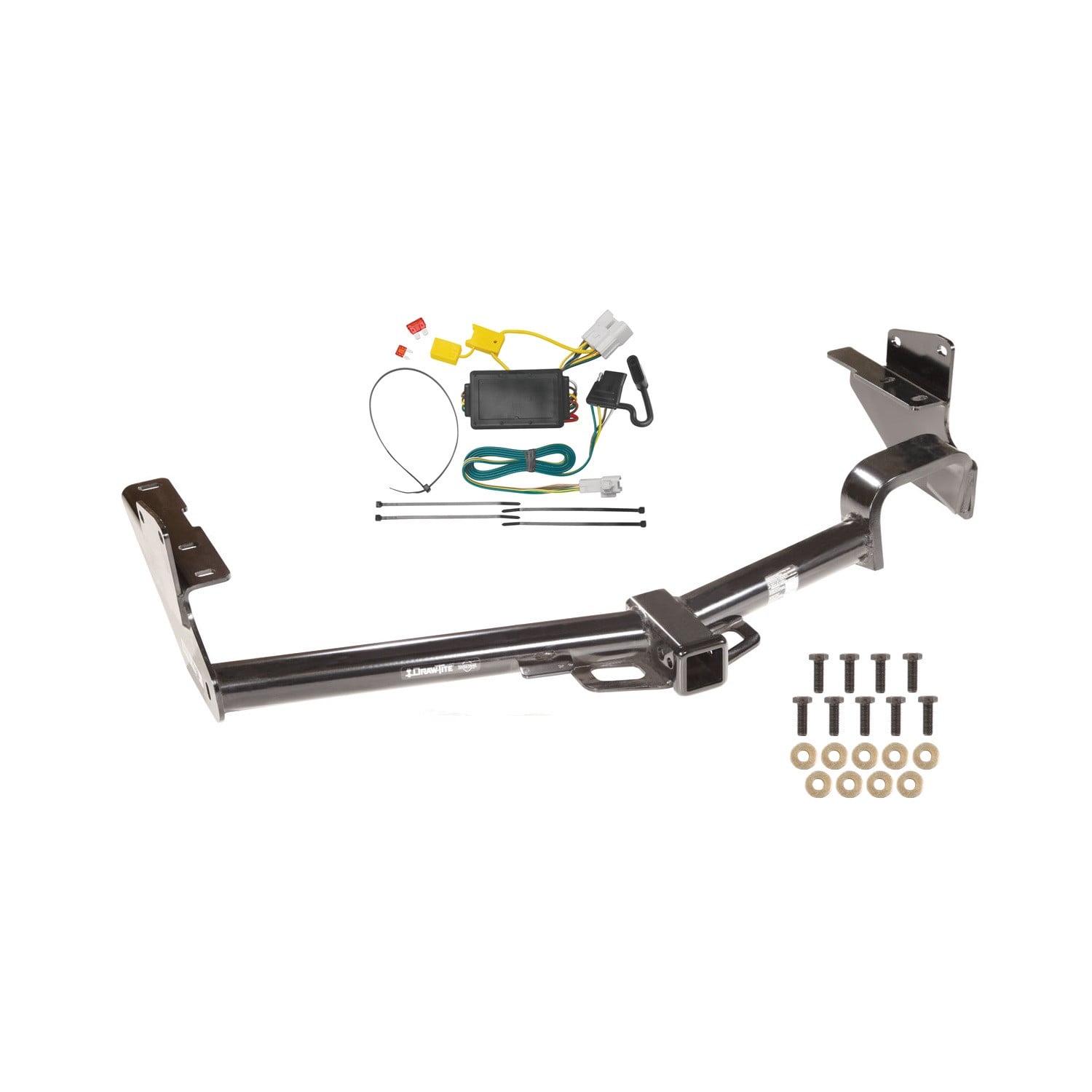

The 2008-2013 Toyota Highlander Draw-tite Class 3 Trailer Hitch, 2 Inch Square Receiver Bundle w/ Plug-n-Play T-One Wiring Harness (Part #DTB75726-118449) fits the following vehicles: 2008-2013 Toyota Highlander. Always verify your specific year, make, and model before ordering.
Yes, the 2008-2013 Toyota Highlander Draw-tite Class 3 Trailer Hitch, 2 Inch Square Receiver Bundle w/ Plug-n-Play T-One Wiring Harness (Part #DTB75726-118449) is designed to fit the 2008-2013 Toyota Highlander.
The 2008-2013 Toyota Highlander Draw-tite Class 3 Trailer Hitch, 2 Inch Square Receiver Bundle w/ Plug-n-Play T-One Wiring Harness (Part #DTB75726-118449) fits 2008-2013 Toyota Highlander models. The 2013 model year is the last year covered by this part number. For newer models, check for an updated version.
The 2008-2013 Toyota Highlander Draw-tite Class 3 Trailer Hitch, 2 Inch Square Receiver Bundle w/ Plug-n-Play T-One Wiring Harness (Part #DTB75726-118449) Refer to the included instructions for installation details. Basic hand tools are typically all you need.
Yes, part number 75726 is designed for the Toyota Highlander. The manual specifies wiring access locations SUV3 and SUV4 for this vehicle. However, the manual does not specify which model years or generations of Highlander are compatible. Contact the manufacturer or your installer to confirm your specific Highlander model year is supported.
The maximum gross trailer weight is 5000 lb (2270 kg) and the maximum tongue weight is 750 lb (341 kg). However, you must not exceed the lower of the hitch rating or your vehicle manufacturer's towing rating. Check your Toyota Highlander owner's manual for the vehicle's maximum towing capacity and use whichever is lower.
You will need wrenches in 10mm, 12mm, 14mm, and 17mm sizes, a small screwdriver, a Phillips head screwdriver, and a 6" socket extension. The fastener kit 75726F is included with the hitch.
Yes. You must remove the plastic appearance panels that cover the driver's and passenger's side frame rails. Remove the plastic rivets fastening the fascia tabs to the appearance panel by removing the center of the rivet with a small screwdriver. The passenger's side panel can be reinstalled after installation. Return the driver's side panel and fasteners to the vehicle owner.
Yes. Remove the tow hooks from each frame rail and return the hooks and fasteners to the vehicle owner.
Remove the plastic and rubber plugs from the bottom of the frame rail and from the outside frame rails. Return these plugs to the vehicle owner.
Raise the hitch over the exhaust tip carefully. Be careful not to pinch the heating and cooling hoses on the outside of the passenger side frame rail or scratch the fascia. If additional clearance is needed, lower the exhaust. Remove excess caulking from the rails if needed. Note that the hitch will contact a fascia tab on the passenger side at the exhaust bridge—this is normal.
The hitch uses existing weldnuts in the vehicle frame. Install fasteners to the bottom of the frame rails and to the outside of the frame rails. Do not tighten fasteners until all are installed. Be careful not to pinch hoses when installing fasteners on the outside of the frame rail.
All M10 x 1.25 CL10.9 fasteners must be tightened to 42 lb-ft (57 N·m) using a torque wrench.

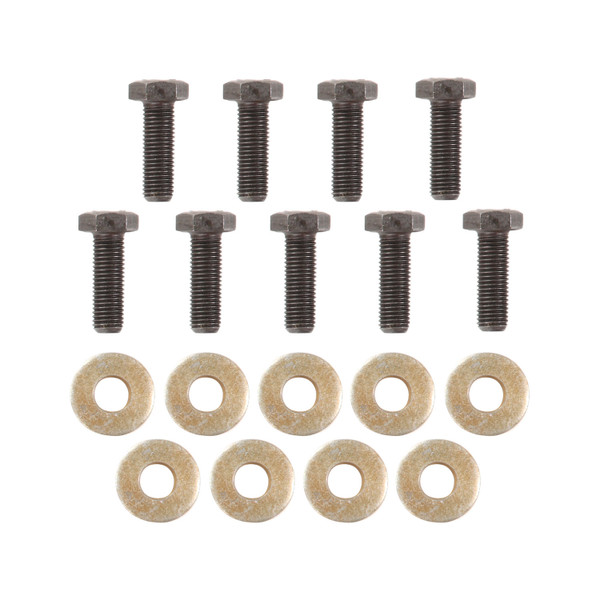

The fastener kit 75726F includes 9 hex bolts (M10 x 1.25 x 30mm CL10.9) and 9 conical toothed washers (3/8").
Yes. After all fasteners are torqued to specification, reinstall the vehicle exhaust if it was removed or lowered for clearance during installation.
Yes. The passenger side appearance panel can be reinstalled after the hitch installation is complete. The driver's side panel should be returned to the vehicle owner.
When stowing a spare tire or flat tire, it is necessary to lift the rear edge of the tire to clear the hitch.
If the hitch is removed, plug all holes in the trunk pan or other body panels to prevent entry of water and exhaust fumes.
Check the hitch frequently, making sure all fasteners and the ball are properly tightened.
A hitch or ball which has been damaged should be removed and replaced. Do not continue to use a damaged hitch.
Observe safety precautions when working beneath a vehicle and wear eye protection. Do not cut access or attachment holes with a torch. Be careful not to pinch heating and cooling hoses on the passenger side frame rail.
Yes, the 75726 is designed for the Toyota Highlander. Confirm your specific model year with the manufacturer or installer, as the manual does not specify which generations are supported.
Maximum 5000 lb (2270 kg) gross trailer weight and 750 lb (341 kg) tongue weight, but do not exceed your vehicle manufacturer's rating—use whichever is lower.
Wrenches (10mm, 12mm, 14mm, 17mm), small screwdriver, Phillips head screwdriver, 6" socket extension, and torque wrench. Fastener kit 75726F is included.
Yes. Remove plastic appearance panels covering the frame rails, plastic rivets, factory tow hooks, and plastic/rubber plugs from the frame rails.
All M10 x 1.25 CL10.9 fasteners must be torqued to 42 lb-ft (57 N·m).
Not necessarily. Raise the hitch over the exhaust tip carefully. Lower the exhaust only if additional clearance is needed. Reinstall the exhaust after fasteners are torqued.
Lift the rear edge of the spare or flat tire to clear the hitch when stowing it.
Check the hitch frequently to ensure all fasteners and the ball are properly tightened.
Yes, the T-Connector is designed for Toyota Highlander 2008-2013 and 2014-Current models. Installation procedures differ between these model years: 2008-2013 models require accessing the 10-pin tow plug under the dash on the driver's side, while 2014-Current models have the 10-pin and 4-pin connectors located behind the rear interior trim panel. Consult your vehicle's owner's manual to confirm your model year and factory tow connector configuration.

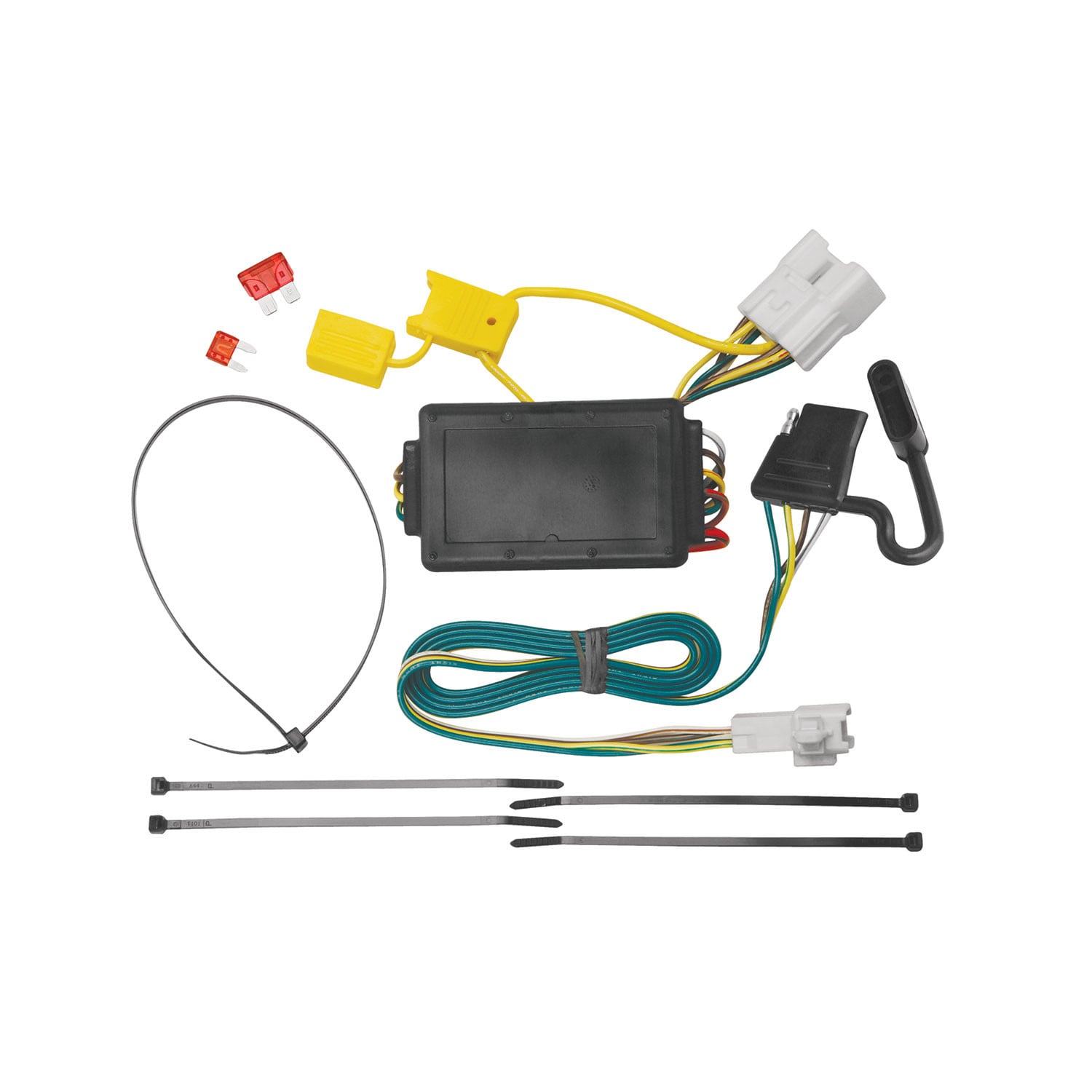

The kit includes the T-Connector black converter box, 10-pin and 4-pin tow-plug adapters, a 10A fuse, double-sided tape for mounting the converter box, and cable ties for securing the wire harness. An additional 10 amp fuse is located on the wiring harness underneath the dash between the 10-pin tow plug and the black box. The 4-flat connector should be stored in the trunk or rear cargo area when not in use.
You will need a test-probe and a trim panel remover. The test-probe is used to verify electrical connections, and the trim panel remover is needed to safely remove interior trim panels without damage during installation.
The manual does not specify that the battery must be disconnected before installation. However, the manual does state that for the initial test after installation, you should reset the vehicle electrical system by temporarily removing the key from the ignition.
On 2008-2013 models, route the converter over to the driver's side kick panel area and mount the black box in the opening between the vehicle body and the emergency brake pedal bracket using the double-sided tape provided. Be careful to avoid areas that would cut or pinch the wire.
On 2014-Current models, locate a flat surface in an out-of-the-way place on the driver's side and mount the T-Connector's black converter box with the double-sided tape provided.
Locate the vehicle's 10-pin tow plug underneath the dash on the driver's side between the emergency brake pedal and the brake pedal. Check that the mating surfaces match, then insert the 10-pin tow plug adapter and lock it into place. Be careful not to damage the locking tabs and ensure that connectors are fully inserted with locking tabs in place.
Open the vehicle's rear tailgate and remove access panels, threshold, trunk floor panels and trays on the driver's side. Locate the vehicle's factory 4-pin tow harness connector. Check that the mating surfaces are clean and free of dirt, then insert the 4-pin tow-plug adapter and lock it into place. Be careful not to damage the locking tabs and ensure connectors are fully inserted with locking tabs in place.
Open the rear tailgate and remove access panels, threshold, trunk floor panels and trays on the driver's side. Locate the 10-pin connector behind the rear interior trim panel and insert the 10-pin tow-plug adapter, locking it into place. Then locate the 4-pin connector behind the rear interior trim panel and insert the 4-pin tow-plug adapter, locking it into place. Ensure all locking tabs are engaged.
After mounting the black box, use the cable ties provided to secure the remainder of the wire harness and prevent wires from being exposed underneath the dash area. Be careful to avoid any areas that would cut or pinch the wire.
After repositioning the trays, trunk floor panels and access panels and reattaching the threshold, proceed to Step 8: open the hood and locate the vehicle fuse panel on the driver's side. Consulting your owner's manual, locate the Towing Fuse location and insert the 10A fuse provided.
Use a 10A fuse only. Do not replace with any fuse that exceeds 10 amps. An additional 10 amp fuse is located on the wiring harness underneath the dash between the 10-pin tow plug and the black box.
Do not exceed the lower of your towing manufacturer's rating or the following limits: maximum stop/turn light is 1 per side (2.1 amps), and maximum tail lights are 5.6 amps. Overloading the circuit can cause fires. Consult your vehicle's owner's manual and instruction sheet for additional information.
All connections must be complete for the T-Connector to function properly. Test and verify installation with a test light or trailer once installed. For the initial test, reset the vehicle electrical system by temporarily removing the key from the ignition.
Store the 4-flat connector in the trunk or rear cargo area when not in use.
Wear safety glasses and use all safety precautions during installation. Be careful not to damage the locking tabs on connectors. Avoid areas that would cut or pinch the wire harness. When removing interior panels, set aside all items carefully to avoid damaging parts. Ensure all connector surfaces are clean and free of dirt before inserting adapters.
Yes, it fits Toyota Highlander 2008-2013 and 2014-Current models. Installation steps differ by model year.
You need a test-probe and a trim panel remover.
No, the manual does not mention drilling. The black box is mounted using double-sided tape provided, and connectors are inserted into existing factory tow plugs.
Use a 10A fuse only. Do not exceed 10 amps.
Maximum stop/turn light is 1 per side (2.1 amps) and maximum tail lights are 5.6 amps. Do not exceed the lower of your towing manufacturer's rating or these limits.
Test with a test light or trailer once all connections are complete. Reset the vehicle electrical system by temporarily removing the ignition key for the initial test.
