These durable custom hitches are manufactured for 2018-2021 Lexus RX350L, 2014-2023 Toyota Highlander and attach to your vehicle?s frame or bumper for a sleek, clean appearance. Each hitch also has a 2 inch square receiver tube opening ? the most common and versatile on the market - allowing you to attach accessories like a bike rack or cargo carrier, or hook up your pop-up, boat trailer, or utility trailer. The options are endless! DRAW-TITE Class 4 Custom Trailer Hitches come complete with all the mounting hardware needed for installation and are backed by a nationwide lifetime limited warranty. So, whether you are headed out to the campground, the lake, or the bike trails, or you are tackling a project at home and need to haul the materials home, choose DRAW-TITE and travel with confidence knowing your setup is connected with the security only DRAW-TITE can provide. DRAW-TITE: North America?s Favorite Hitch
Draw-Tite has designed custom-fit trailer hitches since 1946 and is one of North America's most widely fitted hitch brands. Receiver hitches use solid all-welded construction and low-profile designs that follow modern vehicle contours, install with minimal bumper cutting or drilling, meet or exceed V5 CSA and SAE J684 standards, and carry a limited lifetime warranty.
Draw-Tite has been leading custom-fit trailer hitch design and engineering since its founding in 1946, and it remains one of the most widely fitted hitch brands in North America. The company's stated approach is straightforward: every hitch is tested rigorously so that it performs well beyond published industry standards, a philosophy it markets as Tested Tough. It sits within the Horizon Global towing group alongside Reese, Fulton, Bulldog, Tekonsha, Bargman and Wesbar.
Custom fit is the defining characteristic. Rather than adapting a universal design, Draw-Tite engineers a trailer hitch for a specific make, model and model year, so it bolts to existing frame locations with minimal bumper cutting or drilling. Low-profile designs follow the rear contours and aerodynamic styling of modern vehicles, which matters more than it once did now that rear fascias are shaped and sensor-equipped. Construction is solid all-welded steel for maximum strength, and every hitch meets or exceeds V5 CSA and SAE J684 standards and is backed by a nationwide limited lifetime warranty.
The range spans receiver sizes and classes to suit different loads, from 1-1/4 inch receivers for bike racks, cargo carriers and light trailers up through 2 inch receivers for heavier towing. Front mount hitches add a receiver at the front of the vehicle for winch mounts, snow plows, spare carriers and precise trailer positioning.
The Hidden Hitch series takes concealment further by mounting behind the vehicle's rear fascia, so the vehicle keeps its factory appearance until a removable receiver is fitted. Each is custom designed per make and model for a no-drill installation that does not compromise ground clearance, rated for up to 3,500 pounds gross trailer weight and 350 pounds tongue weight. Matching plug-and-play wiring completes the towing system.
Experts available to answer your questions
Call 888-634-94941 compatible vehicles
| Year | Make & Model | Notes |
|---|---|---|
| 2014 - 2019 | Toyota Highlander | — |

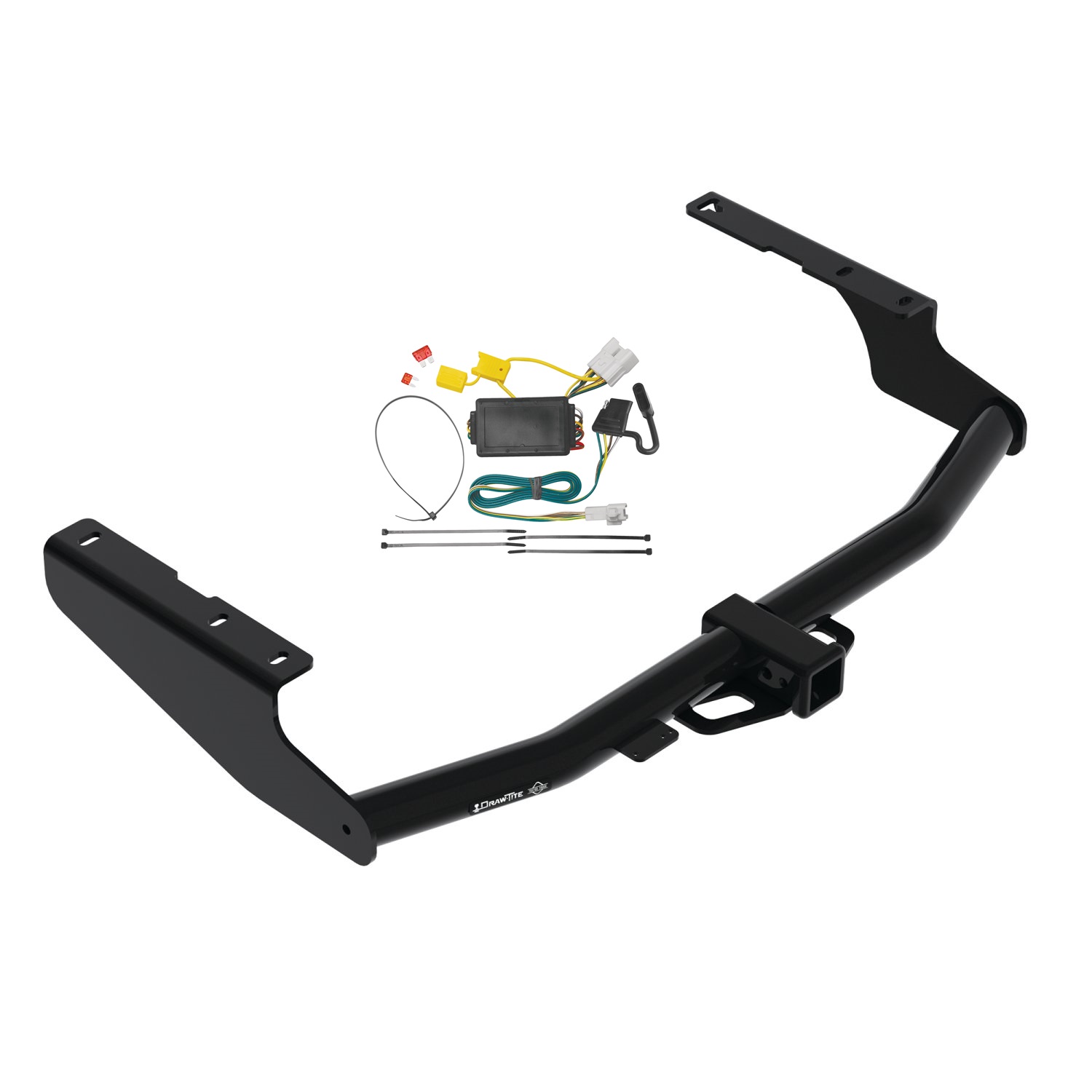

The 2014-2019 Toyota Highlander Draw-tite Class 4 Trailer Hitch, 2 Inch Square Receiver Bundle w/ Plug-n-Play T-One Wiring Harness (Part #DTB76439-118449) fits the following vehicles: 2014-2019 Toyota Highlander. Always verify your specific year, make, and model before ordering.
Yes, the 2014-2019 Toyota Highlander Draw-tite Class 4 Trailer Hitch, 2 Inch Square Receiver Bundle w/ Plug-n-Play T-One Wiring Harness (Part #DTB76439-118449) is designed to fit the 2014-2019 Toyota Highlander.
The 2014-2019 Toyota Highlander Draw-tite Class 4 Trailer Hitch, 2 Inch Square Receiver Bundle w/ Plug-n-Play T-One Wiring Harness (Part #DTB76439-118449) fits 2014-2019 Toyota Highlander models. The 2019 model year is the last year covered by this part number. For newer models, check for an updated version.
The 2014-2019 Toyota Highlander Draw-tite Class 4 Trailer Hitch, 2 Inch Square Receiver Bundle w/ Plug-n-Play T-One Wiring Harness (Part #DTB76439-118449) Refer to the included instructions for installation details. Basic hand tools are typically all you need.
Yes, part number 76439 fits 2014-Current Toyota Highlander models. For the most up-to-date information regarding specific trim levels and application years, visit www.horizonglobal.com.
Yes, part number 76439 fits 2014-Current Lexus RX350L models. For the most up-to-date information regarding specific trim levels and application years, visit www.horizonglobal.com.
The 76439 is available in two configurations: Weight Carrying (6000 lbs gross trailer weight, 900 lbs tongue weight) and Weight Distributing (8000 lbs gross trailer weight, 900 lbs tongue weight). Do not exceed the lower of your towing vehicle manufacturer's rating or these limits.
Required tools: ratchet, torque wrench, safety glasses, 10mm/17mm/19mm sockets, 6-inch socket extension, flat-head screwdriver, Phillips screwdriver, and exhaust removal pliers.
All M12 x 1.25 CL8.8 fasteners must be tightened to 76 Lb.-Ft. (103 N·M) using a torque wrench.
All M8 x 1.25 CL8.8 fasteners must be tightened to 20 Lb.-Ft. (27 N·M) using a torque wrench.
Professional installation is recommended if you do not feel comfortable performing the installation yourself or are in need of assistance. The average installation time for professional installers is 40 minutes.
No. Do not cut, weld, or modify the receiver. Doing so will compromise the hitch and create a serious safety hazard.
Fastener Kit 76439F includes: 6× M12 x 1.25 x 30mm hex bolts, 6× 1/2-inch conical washers (Part No. 01292008), 2× 3/8-inch conical washers (Part No. 01292006), 2× M8 x 1.25 nuts, 2× M8 x 1.25 x 30mm flange bolts, and 1× bracket (Part No. 124773).
When stowing the spare or flat tire, it may be necessary to lift up on the rear edge of the tire to clear the hitch. Plan for this clearance when storing your spare.
Yes. If present, you must remove the plastic appearance panels that cover the driver's and/or passenger's side frame rails. Remove the plastic rivets that fasten the fascia tabs to the appearance panel by removing the center of the rivet with a small screwdriver. The passenger's side panel can be reinstalled after installation. Return the driver's side panel and fasteners to the vehicle owner.
Yes. Remove the tow hooks from each frame rail and return the hooks and fasteners to the vehicle owner.
Remove the plastic and rubber plugs from the bottom of the frame rail and return them to the vehicle owner.
Remove the existing M8 bolts from the exhaust hanger bracket. Install the exhaust bracket (item 6) on the frame rail using the existing M8 bolts. Use M8-1.25 bolts to install the exhaust hanger bracket to the exhaust bracket. Reuse the existing fasteners where specified.
Be careful not to pinch hoses on the outside of the passenger side frame rail or scratch the fascia. Remove excess caulking from the rails if needed. Vehicles have heating/cooling hoses located in this area, so use caution not to pinch them.
Align the hitch into position over the existing weldnuts as shown in the installation diagram and install fasteners to the bottom of the frame rails. The existing fascia tab should be reinstalled between the frame rail and bracket.
Yes. After all fasteners are tightened to specification, reinstall the passenger side appearance panel.
The conical washer teeth side must be positioned against the hitch.
Check the hitch frequently, making sure all fasteners and the ball are properly tightened. Proper torque is needed to keep the hitch secure to the vehicle when towing.
Check the hitch frequently to ensure all fasteners and the ball are properly tightened. The manual does not specify an exact interval, but periodic inspection is required to maintain secure mounting during towing.
If the hitch is removed, plug all holes in the trunk pan or other body panels to prevent entry of water and exhaust fumes.
A hitch or ball which has been damaged should be removed and replaced. Do not continue to use a damaged hitch.
Always wear safety glasses when installing the hitch. Observe safety precautions when working beneath a vehicle and wear eye protection.
No. Do not cut access or attachment holes with a torch. This could damage the hitch and create a safety hazard.
The maximum tongue weight is 900 lbs (409 kg) for both Weight Carrying and Weight Distributing configurations. Do not exceed this limit.
Load the trailer heavier in front. This helps maintain proper weight distribution and improves towing stability.
If excess sway occurs, take your foot off the gas pedal and hold the steering wheel as steady as possible. Do not apply your brakes and do not speed up.
Slow down when towing and never exceed any posted speed limit. Always wear your seatbelt while towing.
Check all fasteners periodically to ensure they remain tight. If fasteners are found to be loose, retighten them to the proper torque specification: M12 x 1.25 CL8.8 fasteners to 76 Lb.-Ft. (103 N·M) and M8 x 1.25 CL8.8 fasteners to 20 Lb.-Ft. (27 N·M). Proper torque is needed to keep the hitch secure to the vehicle when towing.
Check the hitch ball frequently to ensure it is properly tightened. If the ball is loose, tighten it securely. A loose ball creates a serious safety hazard and must be corrected before towing.
Yes, the T-Connector is designed for Toyota Highlander 2008-2013 and 2014-Current models. Installation procedures differ between these model years: 2008-2013 models require accessing the 10-pin tow plug under the dash on the driver's side, while 2014-Current models have the 10-pin and 4-pin connectors located behind the rear interior trim panel. Consult your vehicle's owner's manual to confirm your model year and factory tow connector configuration.

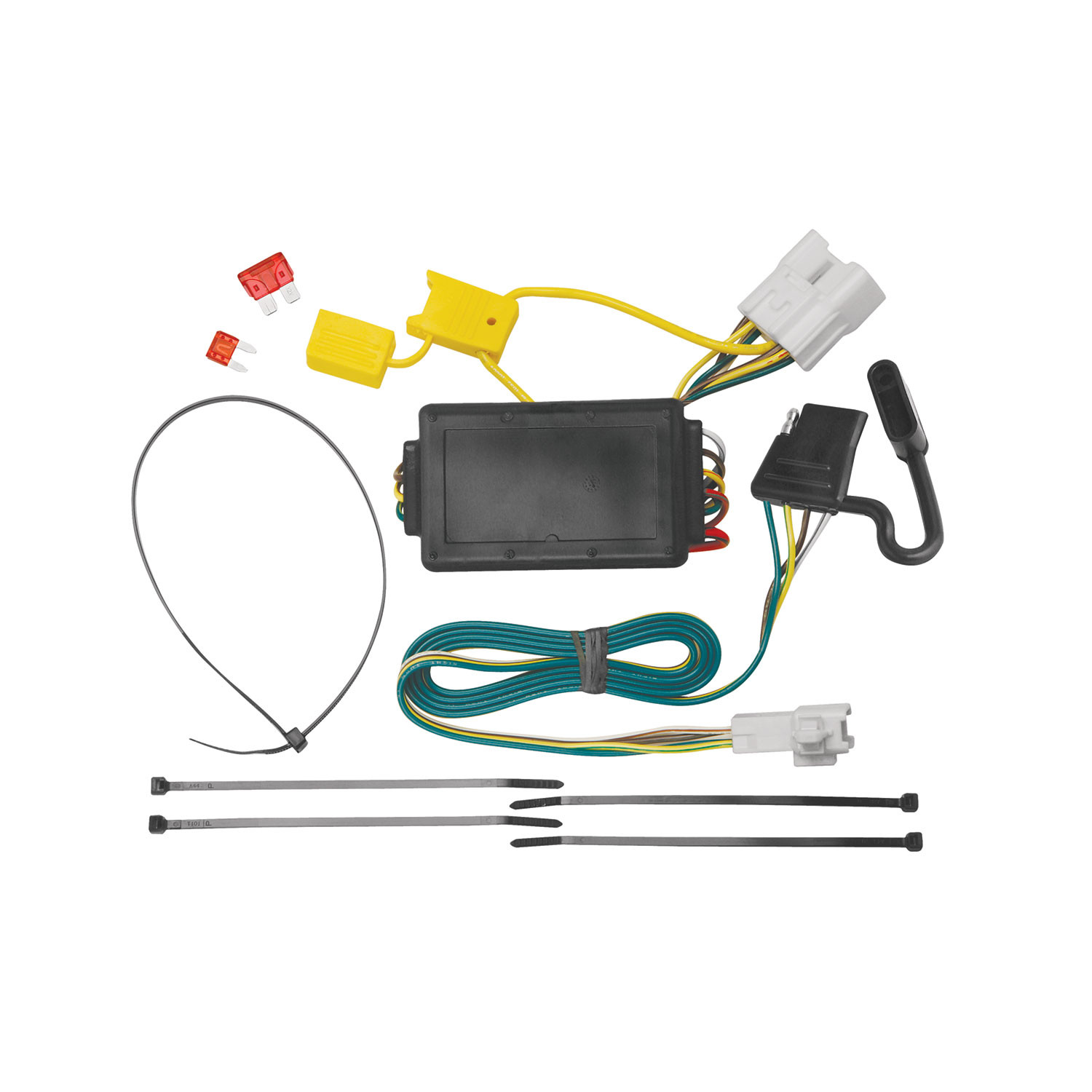

The kit includes the T-Connector black converter box, 10-pin and 4-pin tow-plug adapters, a 10A fuse, double-sided tape for mounting the converter box, and cable ties for securing the wire harness. An additional 10 amp fuse is located on the wiring harness underneath the dash between the 10-pin tow plug and the black box. The 4-flat connector should be stored in the trunk or rear cargo area when not in use.
You will need a test-probe and a trim panel remover. The test-probe is used to verify electrical connections, and the trim panel remover is needed to safely remove interior trim panels without damage during installation.
The manual does not specify that the battery must be disconnected before installation. However, the manual does state that for the initial test after installation, you should reset the vehicle electrical system by temporarily removing the key from the ignition.
On 2008-2013 models, route the converter over to the driver's side kick panel area and mount the black box in the opening between the vehicle body and the emergency brake pedal bracket using the double-sided tape provided. Be careful to avoid areas that would cut or pinch the wire.
On 2014-Current models, locate a flat surface in an out-of-the-way place on the driver's side and mount the T-Connector's black converter box with the double-sided tape provided.
Locate the vehicle's 10-pin tow plug underneath the dash on the driver's side between the emergency brake pedal and the brake pedal. Check that the mating surfaces match, then insert the 10-pin tow plug adapter and lock it into place. Be careful not to damage the locking tabs and ensure that connectors are fully inserted with locking tabs in place.
Open the vehicle's rear tailgate and remove access panels, threshold, trunk floor panels and trays on the driver's side. Locate the vehicle's factory 4-pin tow harness connector. Check that the mating surfaces are clean and free of dirt, then insert the 4-pin tow-plug adapter and lock it into place. Be careful not to damage the locking tabs and ensure connectors are fully inserted with locking tabs in place.
Open the rear tailgate and remove access panels, threshold, trunk floor panels and trays on the driver's side. Locate the 10-pin connector behind the rear interior trim panel and insert the 10-pin tow-plug adapter, locking it into place. Then locate the 4-pin connector behind the rear interior trim panel and insert the 4-pin tow-plug adapter, locking it into place. Ensure all locking tabs are engaged.
After mounting the black box, use the cable ties provided to secure the remainder of the wire harness and prevent wires from being exposed underneath the dash area. Be careful to avoid any areas that would cut or pinch the wire.
After repositioning the trays, trunk floor panels and access panels and reattaching the threshold, proceed to Step 8: open the hood and locate the vehicle fuse panel on the driver's side. Consulting your owner's manual, locate the Towing Fuse location and insert the 10A fuse provided.
Use a 10A fuse only. Do not replace with any fuse that exceeds 10 amps. An additional 10 amp fuse is located on the wiring harness underneath the dash between the 10-pin tow plug and the black box.
Do not exceed the lower of your towing manufacturer's rating or the following limits: maximum stop/turn light is 1 per side (2.1 amps), and maximum tail lights are 5.6 amps. Overloading the circuit can cause fires. Consult your vehicle's owner's manual and instruction sheet for additional information.
All connections must be complete for the T-Connector to function properly. Test and verify installation with a test light or trailer once installed. For the initial test, reset the vehicle electrical system by temporarily removing the key from the ignition.
Store the 4-flat connector in the trunk or rear cargo area when not in use.
Wear safety glasses and use all safety precautions during installation. Be careful not to damage the locking tabs on connectors. Avoid areas that would cut or pinch the wire harness. When removing interior panels, set aside all items carefully to avoid damaging parts. Ensure all connector surfaces are clean and free of dirt before inserting adapters.
Yes, it fits Toyota Highlander 2008-2013 and 2014-Current models. Installation steps differ by model year.
You need a test-probe and a trim panel remover.
No, the manual does not mention drilling. The black box is mounted using double-sided tape provided, and connectors are inserted into existing factory tow plugs.
Use a 10A fuse only. Do not exceed 10 amps.
Maximum stop/turn light is 1 per side (2.1 amps) and maximum tail lights are 5.6 amps. Do not exceed the lower of your towing manufacturer's rating or these limits.
Test with a test light or trailer once all connections are complete. Reset the vehicle electrical system by temporarily removing the ignition key for the initial test.
