These durable custom hitches are manufactured for 2001-2006 Hyundai Santa Fe and attach to your vehicle?s frame or bumper for a sleek, clean appearance. Each hitch also has a 2 inch square receiver tube opening ? the most common and versatile on the market - allowing you to attach accessories like a bike rack or cargo carrier, or hook up your pop-up, boat trailer, or utility trailer. The options are endless! DRAW-TITE Class 3 Custom Trailer Hitches come complete with all the mounting hardware needed for installation and are backed by a nationwide lifetime limited warranty. So, whether you are headed out to the campground, the lake, or the bike trails, or you are tackling a project at home and need to haul the materials home, choose DRAW-TITE and travel with confidence knowing your setup is connected with the security only DRAW-TITE can provide. DRAW-TITE: North America?s Favorite Hitch
Draw-Tite has designed custom-fit trailer hitches since 1946 and is one of North America's most widely fitted hitch brands. Receiver hitches use solid all-welded construction and low-profile designs that follow modern vehicle contours, install with minimal bumper cutting or drilling, meet or exceed V5 CSA and SAE J684 standards, and carry a limited lifetime warranty.
Draw-Tite has been leading custom-fit trailer hitch design and engineering since its founding in 1946, and it remains one of the most widely fitted hitch brands in North America. The company's stated approach is straightforward: every hitch is tested rigorously so that it performs well beyond published industry standards, a philosophy it markets as Tested Tough. It sits within the Horizon Global towing group alongside Reese, Fulton, Bulldog, Tekonsha, Bargman and Wesbar.
Custom fit is the defining characteristic. Rather than adapting a universal design, Draw-Tite engineers a trailer hitch for a specific make, model and model year, so it bolts to existing frame locations with minimal bumper cutting or drilling. Low-profile designs follow the rear contours and aerodynamic styling of modern vehicles, which matters more than it once did now that rear fascias are shaped and sensor-equipped. Construction is solid all-welded steel for maximum strength, and every hitch meets or exceeds V5 CSA and SAE J684 standards and is backed by a nationwide limited lifetime warranty.
The range spans receiver sizes and classes to suit different loads, from 1-1/4 inch receivers for bike racks, cargo carriers and light trailers up through 2 inch receivers for heavier towing. Front mount hitches add a receiver at the front of the vehicle for winch mounts, snow plows, spare carriers and precise trailer positioning.
The Hidden Hitch series takes concealment further by mounting behind the vehicle's rear fascia, so the vehicle keeps its factory appearance until a removable receiver is fitted. Each is custom designed per make and model for a no-drill installation that does not compromise ground clearance, rated for up to 3,500 pounds gross trailer weight and 350 pounds tongue weight. Matching plug-and-play wiring completes the towing system.
Experts available to answer your questions
Call 888-634-94941 compatible vehicles
| Year | Make & Model | Notes |
|---|---|---|
| 2001 - 2006 | Hyundai Santa Fe | — |

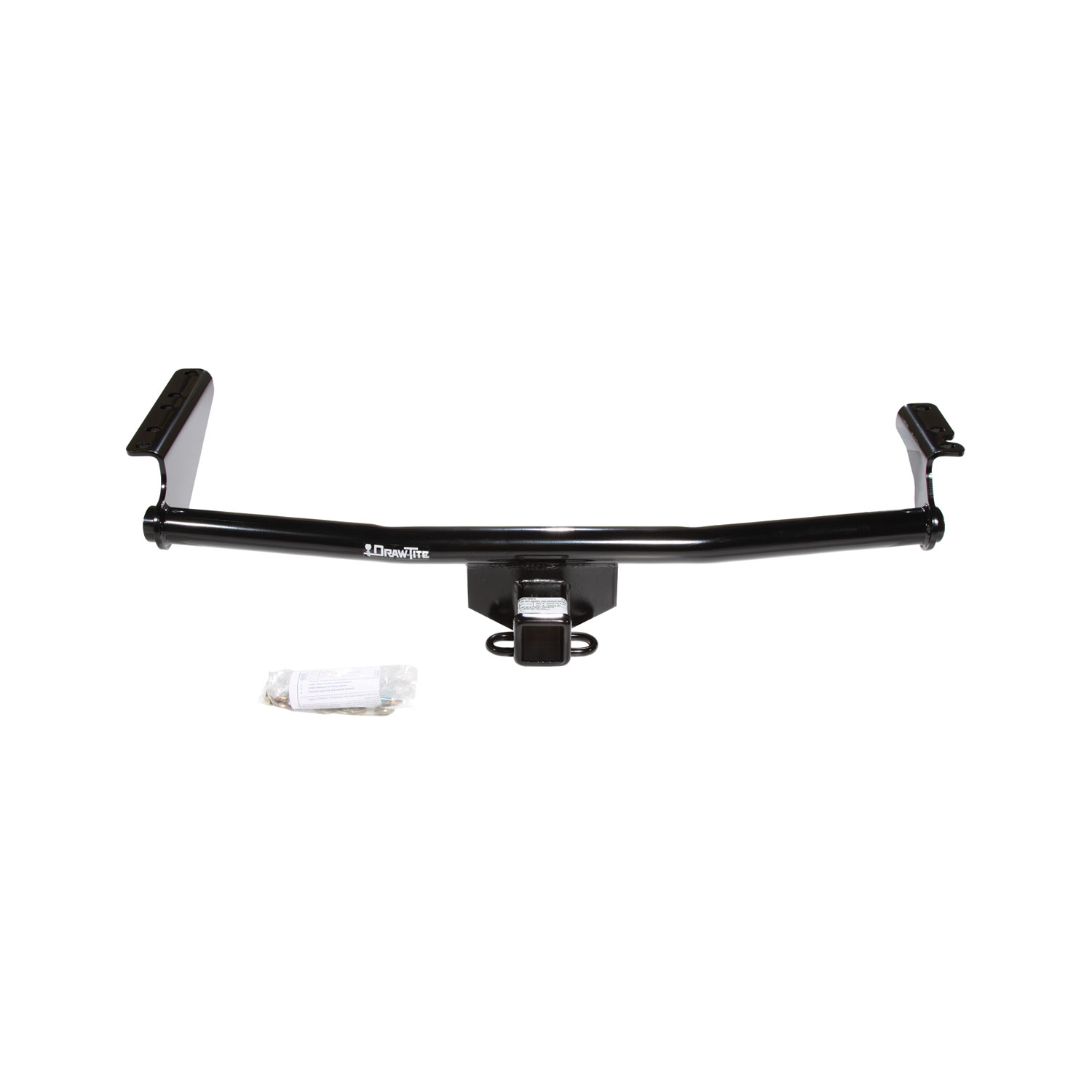

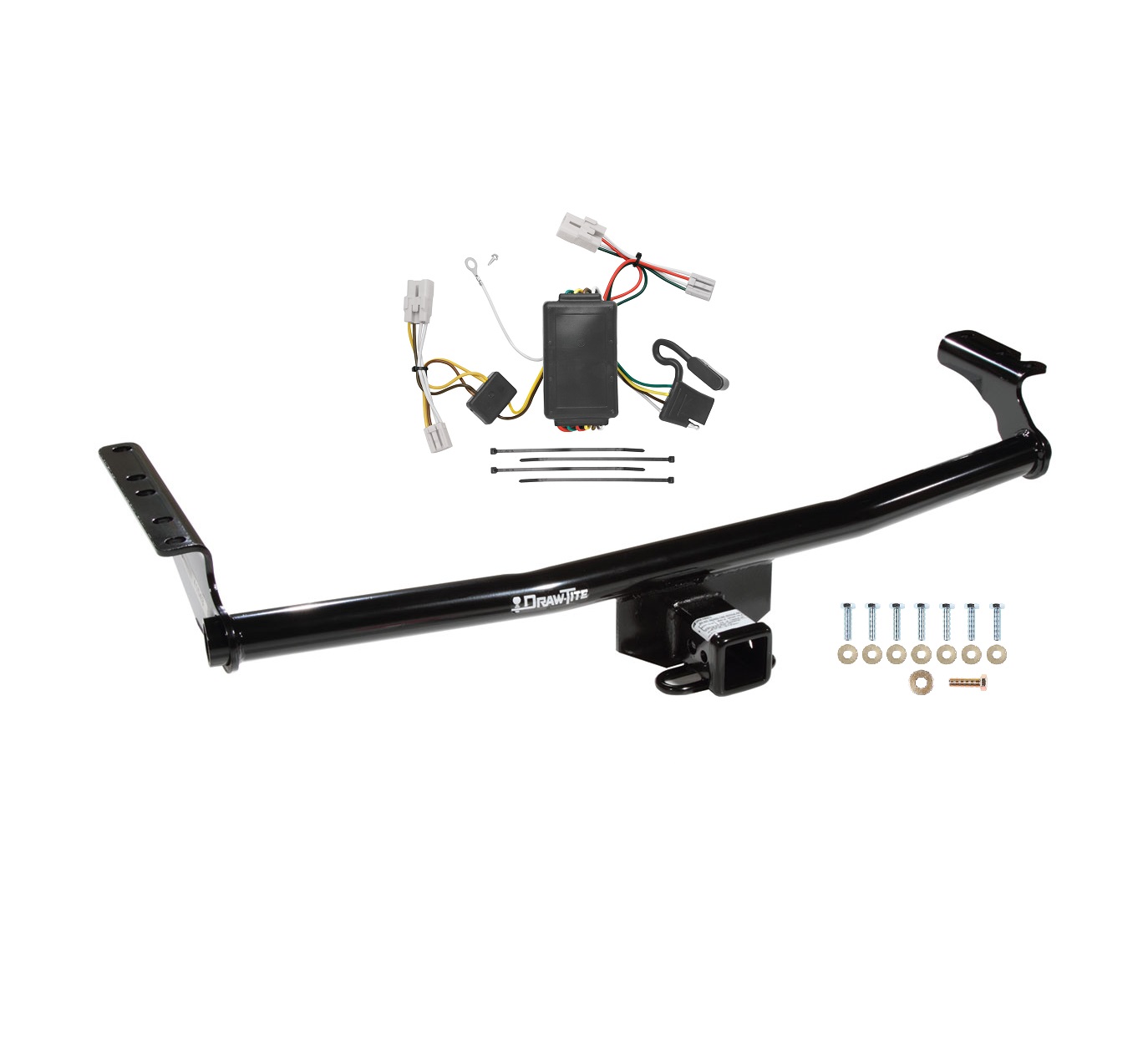

The 2001-2006 Hyundai Santa Fe Draw-tite Class 3 Trailer Hitch, 2 Inch Square Receiver Bundle w/ Plug-n-Play T-One Wiring Harness (Part #DTB41543-118473) fits the following vehicles: 2001-2006 Hyundai Santa Fe. Always verify your specific year, make, and model before ordering.
The 2001-2006 Hyundai Santa Fe Draw-tite Class 3 Trailer Hitch, 2 Inch Square Receiver Bundle w/ Plug-n-Play T-One Wiring Harness (Part #DTB41543-118473) fits 2001-2006 Hyundai Santa Fe models. The 2006 model year is the last year covered by this part number. For newer models, check for an updated version.
Yes, the 2001-2006 Hyundai Santa Fe Draw-tite Class 3 Trailer Hitch, 2 Inch Square Receiver Bundle w/ Plug-n-Play T-One Wiring Harness (Part #DTB41543-118473) is designed to fit the 2001-2006 Hyundai Santa Fe.
The 2001-2006 Hyundai Santa Fe Draw-tite Class 3 Trailer Hitch, 2 Inch Square Receiver Bundle w/ Plug-n-Play T-One Wiring Harness (Part #DTB41543-118473) Refer to the included instructions for installation details. Basic hand tools are typically all you need.
Yes, part number 41543 is designed for the Hyundai Santa Fe. The hitch assembly includes part numbers 33037, 41543, and 87419. Confirm your vehicle model is a Hyundai Santa Fe before ordering.
The hitch has a maximum tongue weight of 315 lb (143 kg) and a maximum gross trailer weight of 3500 lb (1589 kg). However, do not exceed the lower of this hitch's rating or your vehicle manufacturer's towing rating. Check your vehicle's owner manual for its specific towing capacity.
You will need wrenches in 14mm, 17mm, and 19mm sizes, and a torque wrench. No drill bits are required as no drilling is needed for this installation.

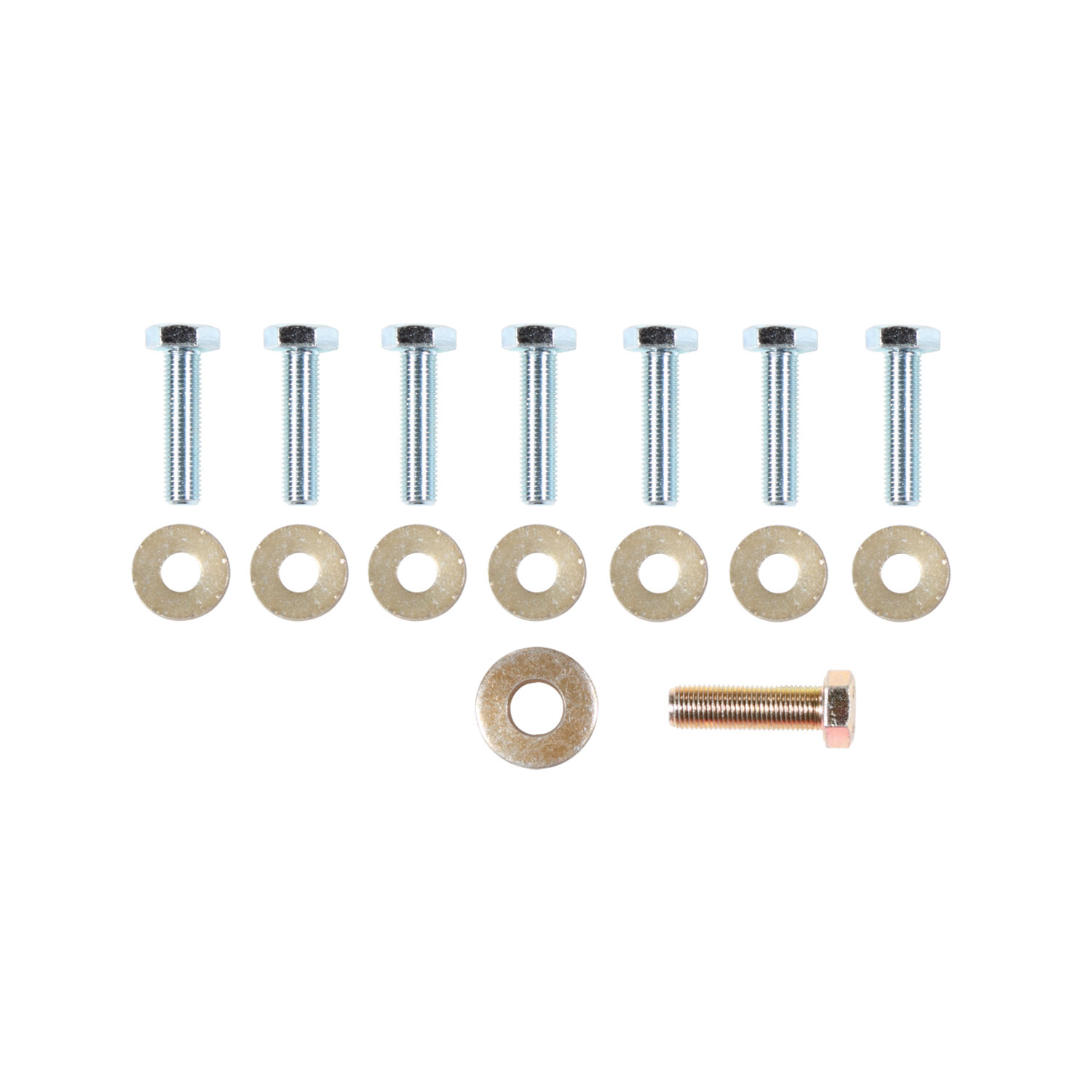

The fastener kit F41543 includes: one M12 × 1.25 × 40mm CL 10.9 hex bolt with one 1/2" conical washer; seven M10 × 1.25 × 40mm CL 8.8 hex bolts with seven 3/8" conical washers. These fasteners attach to existing weldnuts on the vehicle frame.
Yes. You must lower the spare tire and vehicle exhaust before installing the fasteners, then reinstall both after installation is complete. This is a temporary removal to access the attachment points.
No. The equipment required section explicitly states "Drill Bits: None". The hitch fastens to existing weldnuts on the vehicle frame, so no drilling is necessary.
All M12 CL 10.9 fasteners must be tightened to 68 Lb.-Ft. (92 N·M) using a torque wrench.
All M10 CL 8.8 fasteners must be tightened to 38 Lb.-Ft. (52 N·M) using a torque wrench.
The wiring access location is listed as SUV3 or SUV4. However, the manual does not provide detailed wiring installation instructions. Consult the manufacturer or a professional installer for wiring guidance.
Observe safety precautions when working beneath a vehicle and wear eye protection. Do not cut access or attachment holes with a torch. If the hitch is removed, plug all holes in the trunk pan or other body panels to prevent entry of water and exhaust fumes.
Check that all fasteners and the ball are properly tightened. The manual recommends checking the hitch frequently to ensure all fasteners and the ball remain properly tightened.
The manual states to check the hitch frequently, making sure all fasteners and the ball are properly tightened. It does not specify an exact interval. Establish a regular maintenance schedule, such as before each towing trip or monthly if the hitch is in regular use.
A hitch or ball which has been damaged should be removed and replaced. Do not continue to use a damaged hitch or ball.
This product complies with safety specifications and requirements for connecting devices and towing systems of the state of New York, V.E.S.C. Regulation V-5 and SAE J684.
Yes, part number 41543 is designed for the Hyundai Santa Fe.
You need wrenches in 14mm, 17mm, and 19mm sizes, plus a torque wrench. No drilling is required.
M12 CL 10.9 bolts: 68 Lb.-Ft. (92 N·M). M10 CL 8.8 bolts: 38 Lb.-Ft. (52 N·M). Use a torque wrench for all fasteners.
Maximum tongue weight 315 lb (143 kg); maximum gross trailer weight 3500 lb (1589 kg). Do not exceed your vehicle manufacturer's towing rating.
Wear eye protection when working beneath the vehicle. Do not cut holes with a torch. If removed, plug all holes to prevent water and exhaust fume entry. Check fasteners and ball frequently for tightness.

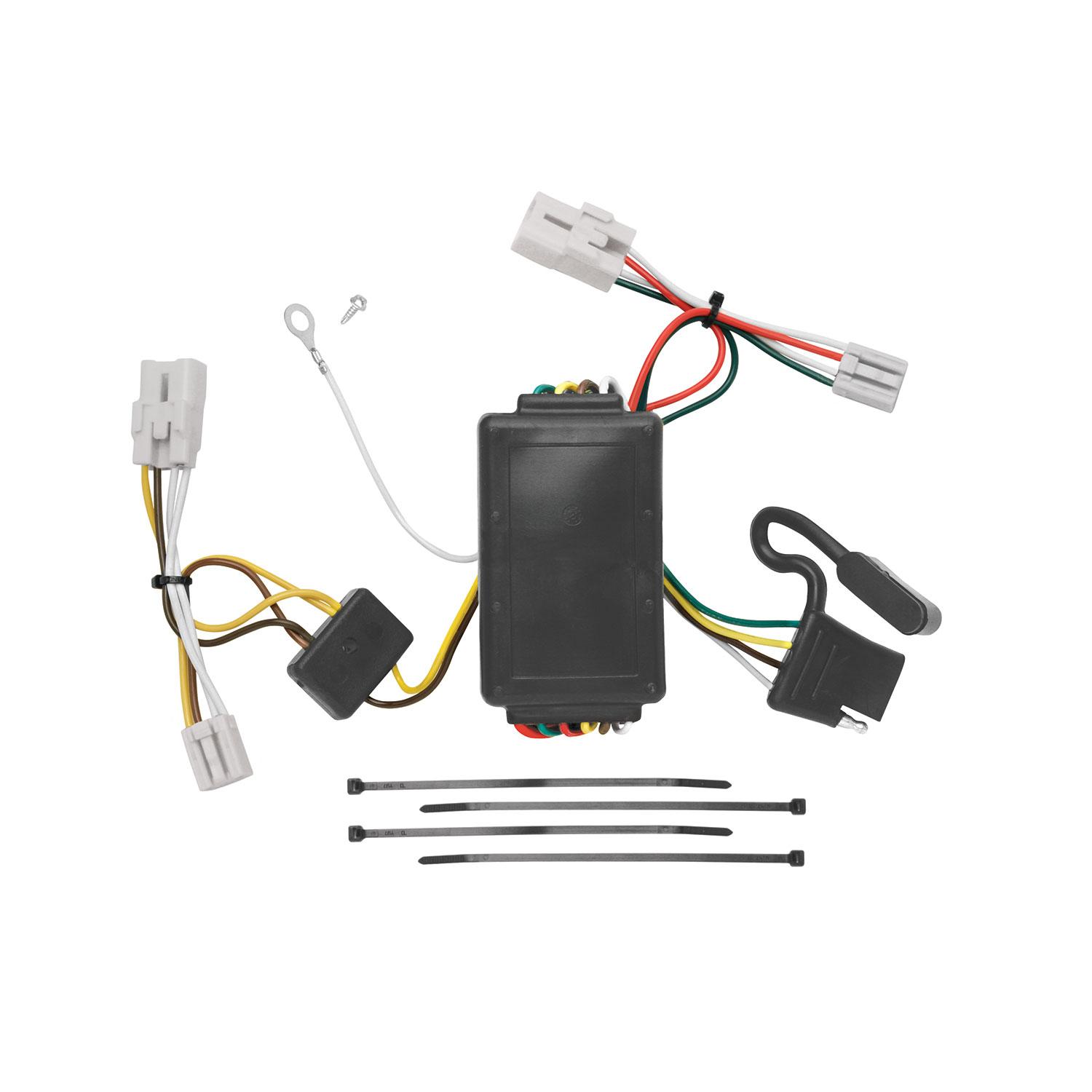

Yes, the T-Connector is designed for the Hyundai Elantra Touring. The installation instructions are specific to this model and the Hyundai Santa Fe.
Yes, the T-Connector is designed for the Hyundai Santa Fe. However, Santa Fe installation has additional steps: you must remove the tie-down loop and several trim panel fasteners to access the panels, and you may need to cut a slit or notch in the storage tray to allow the 4-Flat connector into the compartment.
You will need: trim panel remover, 1/4" socket and ratchet or 1/4" wrench, drill with 3/32" drill bit, Phillips head screwdriver, and test-probe.
The manual does not specify whether the battery must be disconnected. Contact the manufacturer or consult your vehicle's owner's manual for guidance on electrical work safety.
Open the rear hatch and push the rear seat forward. Inside the vehicle's rear cargo area, temporarily remove all floor coverings, cargo trays, and the plastic threshold cover. Partially remove the rear interior trim panels on both the driver and passenger sides. For Santa Fe models, you will also need to remove the tie-down loop and several trim panel fasteners.
Locate the vehicle's taillight wiring harness on both the driver and passenger sides. On the driver's side, insert the T-Connector end with the yellow wire between the vehicle wiring connectors and lock into place. Be careful not to damage the locking tabs and ensure connectors are fully inserted with locking tabs in place. Route the T-Connector end with the green wire to the passenger's side behind the panels and along the threshold, then repeat the connection process for the green wire end.
Yes. You must drill a 3/32" hole to secure the white ground wire using the eyelet and screw provided. Locate a suitable grounding point near the connector, such as the vehicle's frame or cross-member. Do not drill into the vehicle floor, bed, or any exposed surfaces. Before drilling, verify what is behind the surface to avoid damage to the vehicle and personal injury. Clean dirt and rustproofing from the area before drilling.
It may be necessary to cut a slit or notch in the storage tray to allow the 4-Flat connector into the compartment. This is specific to Santa Fe models.
Store the 4-Flat in the truck or rear cargo area when not in use.
Do not exceed the lower of your towing manufacturer's rating or: maximum stop/turn light of 1 per side (2.1 amps) and maximum tail lights of 7.5 amps. Overloading the circuit can cause fires. Read your vehicle's owner's manual and instruction sheet for additional information.
All connections must be complete for the T-Connector to function properly. Test and verify the installation with a test light or trailer once installed.
Reinstall the plastic trim panels, threshold, storage covers, floor covering, and other items removed during installation. Be careful not to pinch or cut the wires when reinstalling components.
Locate a suitable mounting location inside the rear quarter panel on the driver's side. Clean the area with a 50/50 water/alcohol solution where the converter will be mounted.
Route the 4-Flat from below the driver's side trim panel into the rear storage compartment. Store it in the truck or rear cargo area when not in use. On Santa Fe models, you may need to cut a slit or notch in the storage tray to allow the 4-Flat into the compartment.
The T-Connector fits Hyundai Elantra Touring and Hyundai Santa Fe models. Santa Fe installation requires additional steps including tie-down loop removal and possible storage tray modification.
Trim panel remover, 1/4" socket and ratchet or wrench, drill with 3/32" bit, Phillips screwdriver, and test-probe.
Do not exceed the lower of your towing manufacturer's rating or: 2.1 amps per side for stop/turn lights and 7.5 amps for tail lights. Overloading can cause fires.
Test and verify the installation with a test light or trailer once installed. All connections must be complete for proper function.
