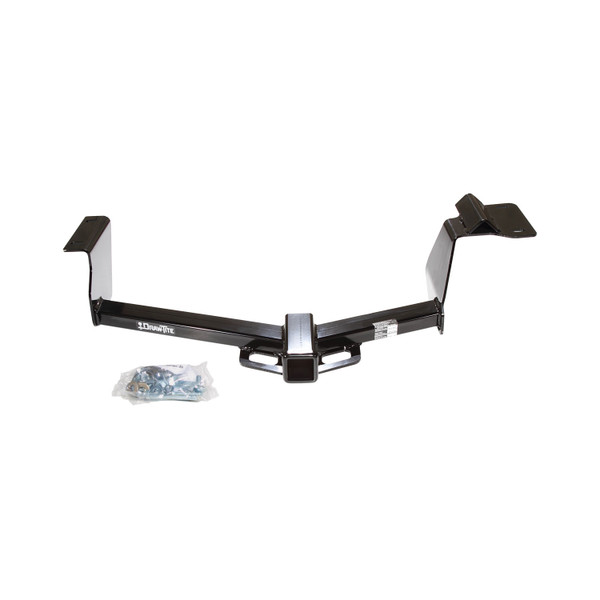

These durable custom hitches are manufactured for 2002-2006 Honda CR-V and attach to your vehicle?s frame or bumper for a sleek, clean appearance. Each hitch also has a 2 inch square receiver tube opening ? the most common and versatile on the market - allowing you to attach accessories like a bike rack or cargo carrier, or hook up your pop-up, boat trailer, or utility trailer. The options are endless! DRAW-TITE Class 3 Custom Trailer Hitches come complete with all the mounting hardware needed for installation and are backed by a nationwide lifetime limited warranty. So, whether you are headed out to the campground, the lake, or the bike trails, or you are tackling a project at home and need to haul the materials home, choose DRAW-TITE and travel with confidence knowing your setup is connected with the security only DRAW-TITE can provide. DRAW-TITE: North America?s Favorite Hitch
Draw-Tite has designed custom-fit trailer hitches since 1946 and is one of North America's most widely fitted hitch brands. Receiver hitches use solid all-welded construction and low-profile designs that follow modern vehicle contours, install with minimal bumper cutting or drilling, meet or exceed V5 CSA and SAE J684 standards, and carry a limited lifetime warranty.
Draw-Tite has been leading custom-fit trailer hitch design and engineering since its founding in 1946, and it remains one of the most widely fitted hitch brands in North America. The company's stated approach is straightforward: every hitch is tested rigorously so that it performs well beyond published industry standards, a philosophy it markets as Tested Tough. It sits within the Horizon Global towing group alongside Reese, Fulton, Bulldog, Tekonsha, Bargman and Wesbar.
Custom fit is the defining characteristic. Rather than adapting a universal design, Draw-Tite engineers a trailer hitch for a specific make, model and model year, so it bolts to existing frame locations with minimal bumper cutting or drilling. Low-profile designs follow the rear contours and aerodynamic styling of modern vehicles, which matters more than it once did now that rear fascias are shaped and sensor-equipped. Construction is solid all-welded steel for maximum strength, and every hitch meets or exceeds V5 CSA and SAE J684 standards and is backed by a nationwide limited lifetime warranty.
The range spans receiver sizes and classes to suit different loads, from 1-1/4 inch receivers for bike racks, cargo carriers and light trailers up through 2 inch receivers for heavier towing. Front mount hitches add a receiver at the front of the vehicle for winch mounts, snow plows, spare carriers and precise trailer positioning.
The Hidden Hitch series takes concealment further by mounting behind the vehicle's rear fascia, so the vehicle keeps its factory appearance until a removable receiver is fitted. Each is custom designed per make and model for a no-drill installation that does not compromise ground clearance, rated for up to 3,500 pounds gross trailer weight and 350 pounds tongue weight. Matching plug-and-play wiring completes the towing system.
Experts available to answer your questions
Call 888-634-94941 compatible vehicles
| Year | Make & Model | Notes |
|---|---|---|
| 2002 - 2006 | Honda CR-V | — |

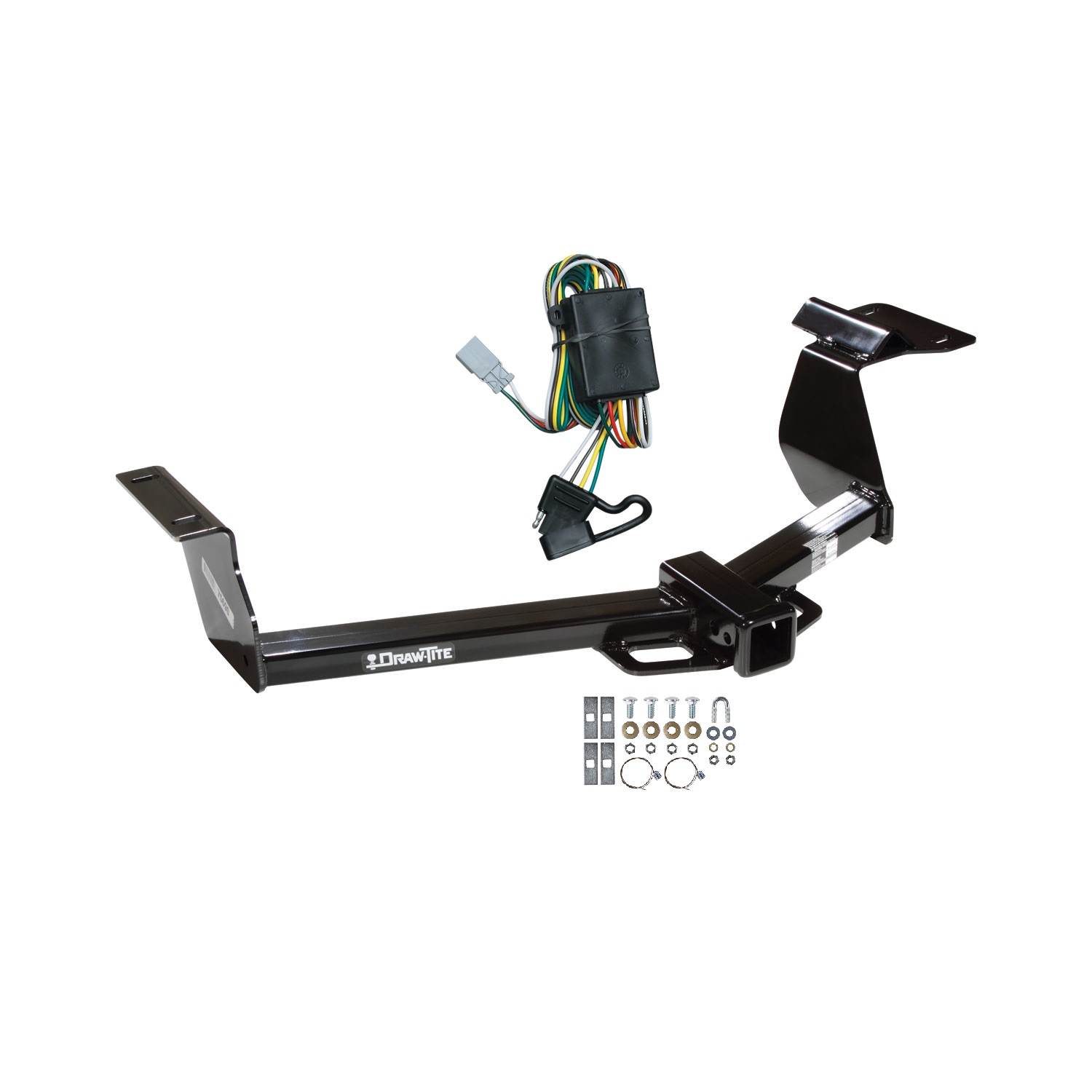

The 2002-2006 Honda CR-V Draw-tite Class 3 Trailer Hitch, 2 Inch Square Receiver Bundle w/ Plug-n-Play T-One Wiring Harness (Part #DTB75690-118336) fits 2002-2006 Honda CR-V models. The 2006 model year is the last year covered by this part number. For newer models, check for an updated version.
The 2002-2006 Honda CR-V Draw-tite Class 3 Trailer Hitch, 2 Inch Square Receiver Bundle w/ Plug-n-Play T-One Wiring Harness (Part #DTB75690-118336) fits the following vehicles: 2002-2006 Honda CR-V. Always verify your specific year, make, and model before ordering.
Yes, the 2002-2006 Honda CR-V Draw-tite Class 3 Trailer Hitch, 2 Inch Square Receiver Bundle w/ Plug-n-Play T-One Wiring Harness (Part #DTB75690-118336) is designed to fit the 2002-2006 Honda CR-V.
The 2002-2006 Honda CR-V Draw-tite Class 3 Trailer Hitch, 2 Inch Square Receiver Bundle w/ Plug-n-Play T-One Wiring Harness (Part #DTB75690-118336) Refer to the included instructions for installation details. Basic hand tools are typically all you need.
Yes, part number 75690 is designed for Honda CR-V. The hitch is a weight-carrying ball mount type with a maximum gross trailer weight rating of 3,500 lb (1,589 kg) and maximum tongue weight of 350 lb (159 kg). Do not exceed the lower of your vehicle manufacturer's towing rating or these hitch specifications.
No. The manual explicitly states 'Do Not Use With Spring Bars'. This hitch is a weight-carrying ball mount and is not compatible with weight-distributing spring bar systems.
The maximum gross trailer weight is 3,500 lb (1,589 kg) and the maximum tongue weight is 350 lb (159 kg). However, you must not exceed the lower of your vehicle manufacturer's towing rating or these hitch specifications.

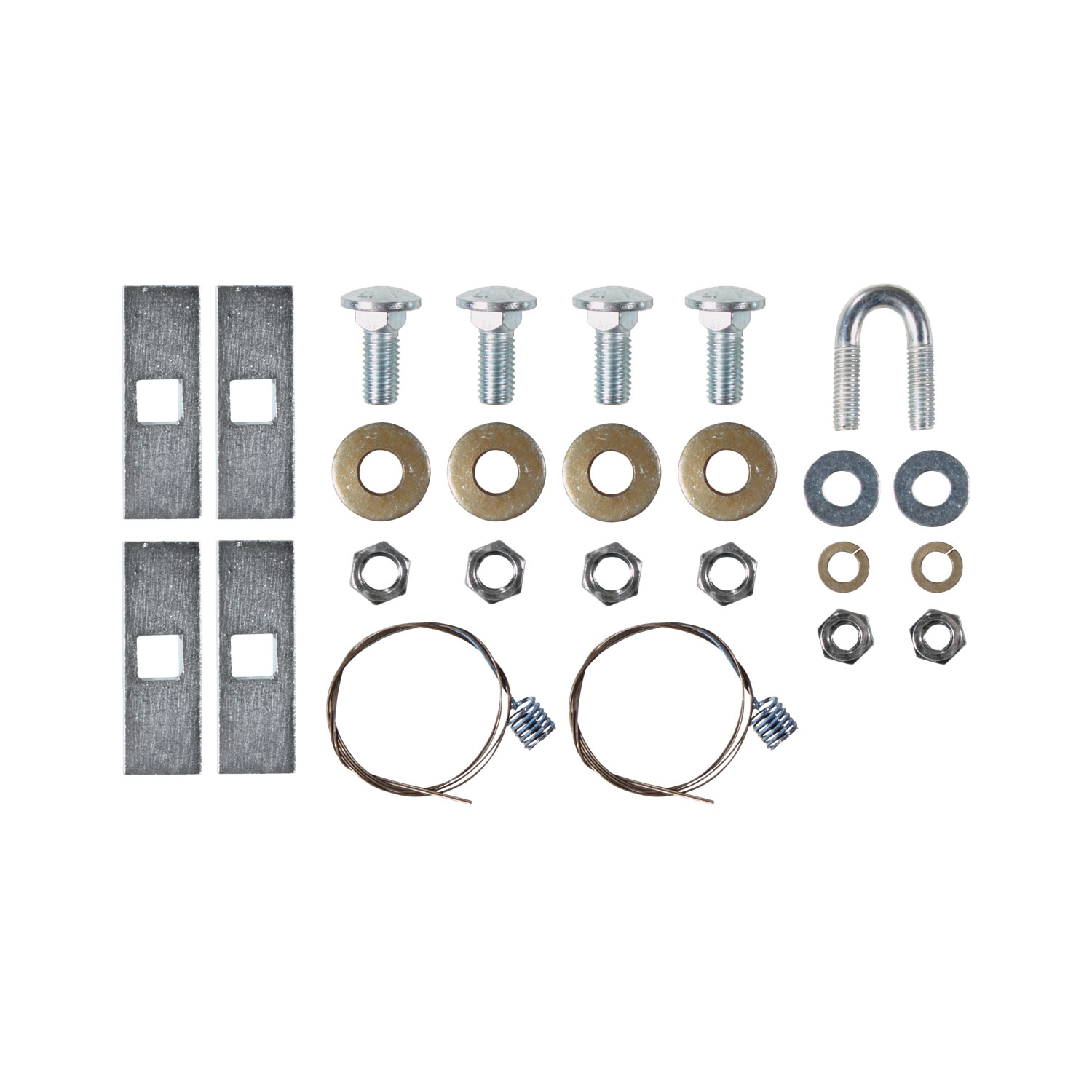

Fastener kit 75690F includes: 1 U-bolt 3/8-16, 2 flat washers 3/8", 2 lock washers 3/8", 2 hex nuts 3/8-16, 4 carriage bolts ½-13 x 1.25 GR5, 4 spacer blocks ¼ x 1 x 3, 4 conical toothed washers ½", and 4 hex nuts ½-13. A pull wire is also provided for the fishwiring procedure.
You will need a torque wrench, 11/16" wrench, and 7/8" wrench. No drill bits are required. The manual provides a pull wire for the fishwiring procedure.
No drilling is required. However, you may need to enlarge existing forward access holes on each side of the vehicle to allow fishwiring of the carriage bolt and spacer block, as described in step 2 of the installation instructions.
Yes. Step 1 requires lowering the exhaust by disconnecting three rubber exhaust hangers: two at the rear of the muffler and one forward of the muffler near the rear axle. Bend the exhaust hanger pins to lower the exhaust ½". The manual recommends removing the rubber exhaust hanger from the muffler end rather than from the hanger rod, because the hitch side bracket will block access to the hanger rod after installation. The exhaust must be raised back and the hangers reattached after the hitch is installed.
Fishwiring is the process of routing the carriage bolts and spacer blocks through the vehicle frame access holes using the provided pull wire. Step 3 requires fishwiring the ½-13 carriage bolt and spacer block through the access holes and down through the rearward hole on both sides. Step 4 requires fishwiring the ½-13 carriage bolt and spacer block through the access hole and back down through the same hole. Figure 2 shows kinking the pull wire to keep the block independent of the bolt. Figure 3 illustrates the three-step process: insert bolt and block into frame, align block on access hole, and pull bolt through block.
1. Lower the exhaust by disconnecting three rubber hangers and bending the hanger pins to lower exhaust ½". 2. Enlarge forward access holes if necessary. 3. Fishwire ½-13 carriage bolt and spacer block through access holes and down through rearward hole, both sides. 4. Fishwire ½-13 carriage bolt and spacer block through access hole and back down through same hole. 5. Raise hitch into position carefully without pushing fasteners back into frame; loosely install conical toothed washers and nuts. 6. Center hitch on vehicle and install U-bolt with flat washers, lock washers and nuts. 7. Tighten all fasteners to torque specifications. 8. Raise exhaust back into position and reattach rubber exhaust hangers at three places.
Tighten all 3/8-16 GR5 fasteners with a torque wrench to 30 lb.-ft. (41 N·m).
Tighten all ½-13 GR5 fasteners with a torque wrench to 75 lb.-ft. (102 N·m).
Observe safety precautions when working beneath the vehicle and wear eye protection. Do not cut access or attachment holes with a torch. If the hitch is removed, plug all holes in the trunk pan or other body panels to prevent entry of water and exhaust fumes. A hitch or ball that has been damaged should be removed and replaced.
Check the hitch frequently, making sure all fasteners and the ball are properly tightened. The manual emphasizes this is an ongoing maintenance requirement, not just a one-time check after installation.
Check the hitch frequently to ensure all fasteners and the ball are properly tightened. The manual does not specify an exact interval, but emphasizes regular inspection as part of ongoing maintenance.
In step 5, after raising the hitch into position, loosely install the conical toothed washers and nuts. All fasteners are then tightened to their final torque specifications in step 7, after the hitch is centered on the vehicle and the U-bolt is installed.
After raising the hitch into position and loosely installing the conical toothed washers and nuts, center the hitch on the vehicle before installing the U-bolt. The manual does not provide specific measurement guidance for centering, but indicates this is done visually before the U-bolt is installed in step 6.
Yes. Maximum towing capacity is 3,500 lb gross trailer weight and 350 lb tongue weight. Do not exceed your vehicle manufacturer's towing rating.
Torque wrench, 11/16" wrench, and 7/8" wrench. No drilling required. Pull wire is provided.
Yes. Lower the exhaust ½" by disconnecting three rubber hangers and bending the hanger pins. Reattach after installation.
3/8-16 GR5 fasteners: 30 lb.-ft. (41 N·m). ½-13 GR5 fasteners: 75 lb.-ft. (102 N·m). Use a torque wrench.
No. This is a weight-carrying ball mount only. Do not use with spring bars.
Check the hitch frequently to ensure all fasteners and the ball are properly tightened. If removed, plug all holes to prevent water and exhaust fume entry.
Yes, part number 18336-037 is compatible with 1999-Current Honda Odyssey models. Installation requires a Trim Panel Tool and Phillips Screwdriver. You will need to open the rear tailgate, remove the driver's side cargo bracket screw, and carefully pull back the trim panel to access the vehicle's wiring harness and connector.
Yes, part number 18336-037 is compatible with 2002-Current Honda CR-V models. Installation requires a Wrench, Trim Panel Tool, and Phillips Screwdriver. The installation process involves removing the cargo door, storage container, rear threshold, and cargo bracket before accessing the wiring harness.
Yes, part number 18336-037 is compatible with 1997-2001 Honda CR-V models. Installation requires a Trim Panel Tool and Phillips Screwdriver. You will need to remove the rear driver's side speaker and cover, which are held in place with three screws. The vehicle connector will be secured to the speaker wires.
Yes, part number 18336-037 is compatible with 2003-Current Honda Element models. Installation requires a Trim Panel Tool and Phillips Screwdriver. You will need to open the rear tailgate, remove the cargo door, hinge cover, three plastic clips, five screws, and the cargo net bracket before pulling back the passenger side trim panel.
Yes, part number 18336-037 is compatible with 2001-Current Acura MDX models. Installation requires only a Trim Panel Tool. You will need to open the rear tailgate, remove the cargo door, locate and remove two clips inside the storage area on the threshold, and carefully pry the threshold to remove it. The connector is located inside the cargo area on the driver's side, attached to the threshold plate.
Yes, part number 18336-037 is compatible with 1994-2002 Honda Accord models. Installation requires a Trim Panel Tool. You will need to unscrew the knob securing the access panel on the driver's side of the vehicle's trunk and remove the access panel to expose the vehicle's wiring harness and connector.
Yes, part number 18336-037 is compatible with 1996-2001 Acura RL models. Installation requires a Trim Panel Tool. You will need to unscrew the knob securing the access panel on the driver's side of the vehicle's trunk and remove the access panel to expose the vehicle's wiring harness and connector.
Yes, part number 18336-037 is compatible with 2003-Current Honda Pilot models. Installation requires only a Trim Panel Tool. You will need to open the rear tailgate and carefully pry the threshold to remove it. The connector will be located on the driver's side under the threshold plate.
Yes, part number 18336-037 is compatible with 1995-98 Honda Odyssey models. Installation requires a Trim Panel Tool. You will need to remove the rear access panel located inside the van directly behind the driver's side taillight to expose the vehicle's wiring harness and connector.
For a 1997-2001 Honda CR-V, you will need a Trim Panel Tool and a Phillips Screwdriver. These tools are required to remove the rear driver's side speaker and cover, which are held in place with three screws.
For a 2002-Current Honda CR-V, you will need a Wrench, Trim Panel Tool, and Phillips Screwdriver. The wrench is needed to unscrew the bolt on the vehicle floor that secures the cargo bracket.

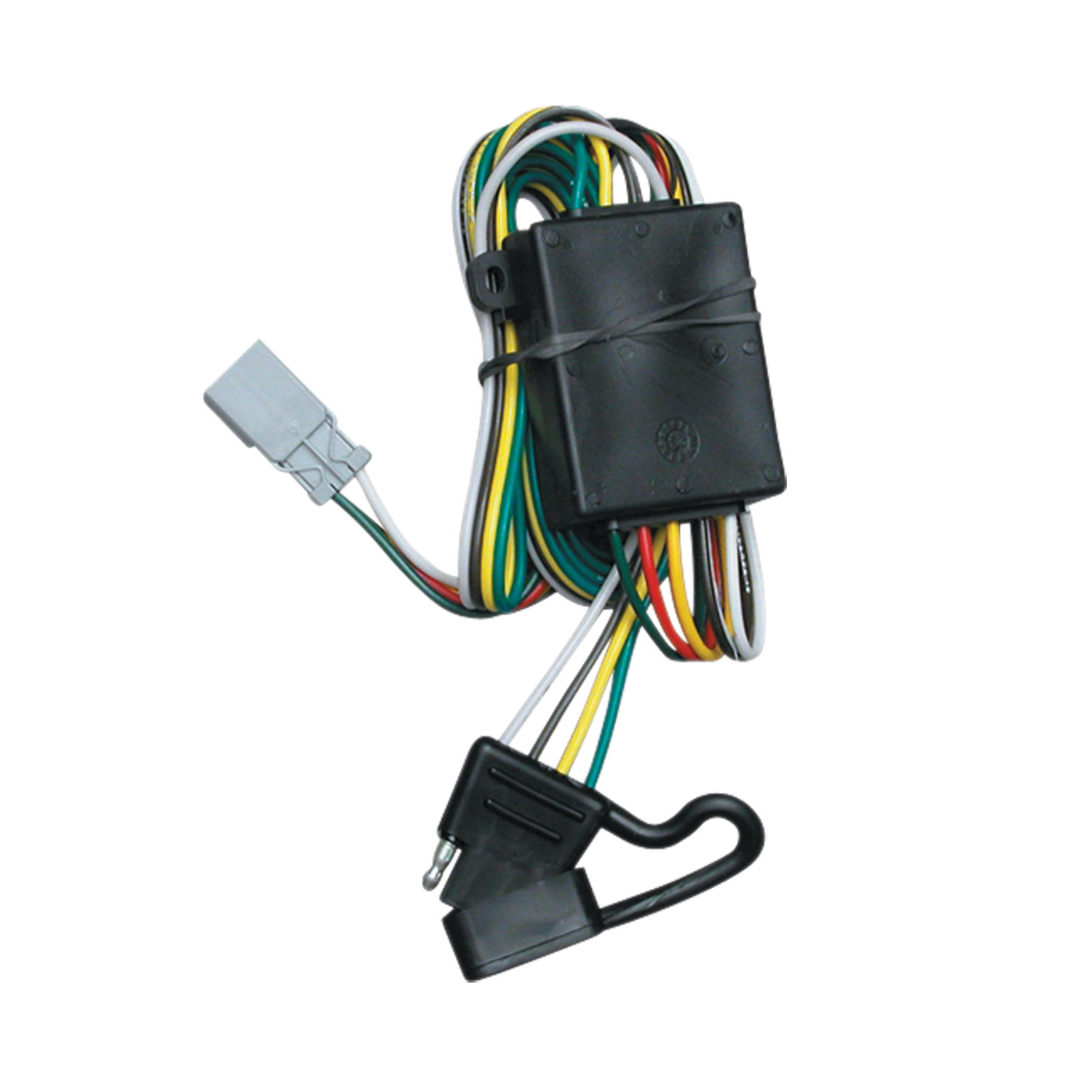

Part number 18336-037 includes a T-Connector adapter, a black box, a screw or cable tie for securing the black box, and a 4-Flat connector for routing (used on Honda CR-V models). The manual does not specify additional hardware or components included in the package.
The manual does not specify whether the battery must be disconnected before installation. Contact the manufacturer or a qualified installer for guidance on this safety requirement.
Remove the tape securing the wiring harness connector from the wiring loom. Attach the T-Connector adapter to the vehicle's wiring connector. Be sure that the T-Connector adapter is fully inserted with locking tabs in place. This step applies to all vehicles.
Secure the black box with either a screw or cable tie, both of which are provided with the product. Tuck any excess wiring behind the access panel before securing the black box into place.
On Honda CR-V models only, route the adapter's 4-Flat connector under the trim panel along the carpeting. This routing prevents the connector from being pinched or damaged when the trim panel is reinstalled.
After securing the black box and routing the wiring, reinstall any plastic trim panels, screws, or brackets that were removed for installation. Then test the installation with a test light or trailer to verify proper operation.
Part number 18336-037 is rated for 4 amps per circuit. Do not exceed this rating when connecting electrical loads.
Test the installation with a test light or trailer. This verifies that the T-Connector adapter is properly connected and that the electrical circuit is functioning correctly.
When removing trim panels, be careful not to break any tabs or clips. This is especially important for the 2003-Current Honda Element, where you must carefully remove three plastic clips and five screws holding the passenger side trim panel, and for the 2002-Current Honda CR-V, where you must carefully pry the trim panel away from the vehicle body.
Part number 18336-037 fits 1997-Current Acura CL, 1996-2001 Acura RL, 1996-Current Acura TL, 1994-2001 Acura Integra, 1994-2002 Honda Accord, 2001-2002 Honda Prelude, 1996-99 Isuzu Oasis, 1995-98 Honda Odyssey, 1999-Current Honda Odyssey, 1997-2001 Honda CR-V, 2002-Current Honda CR-V, 2001-Current Acura MDX, 2003-Current Honda Pilot, and 2003-Current Honda Element.
All vehicles require a Trim Panel Tool. Some vehicles also require a Phillips Screwdriver (Odyssey 1999+, CR-V 1997-2001, CR-V 2002+, Element 2003+) and a Wrench (CR-V 2002+ only).
Remove the tape from the wiring harness connector, then attach the T-Connector adapter to the vehicle's wiring connector, ensuring it is fully inserted with locking tabs in place. Secure the black box with the provided screw or cable tie, tuck excess wiring behind the access panel, and test with a test light or trailer.
Part number 18336-037 is rated for 4 amps per circuit.
Yes, on Honda CR-V models only, route the adapter's 4-Flat connector under the trim panel along the carpeting.
