These durable custom hitches are manufactured for 2007-2011 Dodge Nitro and attach to your vehicle?s frame or bumper for a sleek, clean appearance. Each hitch also has a 2 inch square receiver tube opening ? the most common and versatile on the market - allowing you to attach accessories like a bike rack or cargo carrier, or hook up your pop-up, boat trailer, or utility trailer. The options are endless! DRAW-TITE Class 3 Custom Trailer Hitches come complete with all the mounting hardware needed for installation and are backed by a nationwide lifetime limited warranty. So, whether you are headed out to the campground, the lake, or the bike trails, or you are tackling a project at home and need to haul the materials home, choose DRAW-TITE and travel with confidence knowing your setup is connected with the security only DRAW-TITE can provide. DRAW-TITE: North America?s Favorite Hitch
Draw-Tite has designed custom-fit trailer hitches since 1946 and is one of North America's most widely fitted hitch brands. Receiver hitches use solid all-welded construction and low-profile designs that follow modern vehicle contours, install with minimal bumper cutting or drilling, meet or exceed V5 CSA and SAE J684 standards, and carry a limited lifetime warranty.
Draw-Tite has been leading custom-fit trailer hitch design and engineering since its founding in 1946, and it remains one of the most widely fitted hitch brands in North America. The company's stated approach is straightforward: every hitch is tested rigorously so that it performs well beyond published industry standards, a philosophy it markets as Tested Tough. It sits within the Horizon Global towing group alongside Reese, Fulton, Bulldog, Tekonsha, Bargman and Wesbar.
Custom fit is the defining characteristic. Rather than adapting a universal design, Draw-Tite engineers a trailer hitch for a specific make, model and model year, so it bolts to existing frame locations with minimal bumper cutting or drilling. Low-profile designs follow the rear contours and aerodynamic styling of modern vehicles, which matters more than it once did now that rear fascias are shaped and sensor-equipped. Construction is solid all-welded steel for maximum strength, and every hitch meets or exceeds V5 CSA and SAE J684 standards and is backed by a nationwide limited lifetime warranty.
The range spans receiver sizes and classes to suit different loads, from 1-1/4 inch receivers for bike racks, cargo carriers and light trailers up through 2 inch receivers for heavier towing. Front mount hitches add a receiver at the front of the vehicle for winch mounts, snow plows, spare carriers and precise trailer positioning.
The Hidden Hitch series takes concealment further by mounting behind the vehicle's rear fascia, so the vehicle keeps its factory appearance until a removable receiver is fitted. Each is custom designed per make and model for a no-drill installation that does not compromise ground clearance, rated for up to 3,500 pounds gross trailer weight and 350 pounds tongue weight. Matching plug-and-play wiring completes the towing system.
Experts available to answer your questions
Call 888-634-94941 compatible vehicles
| Year | Make & Model | Notes |
|---|---|---|
| 2007 | Dodge Nitro | — |

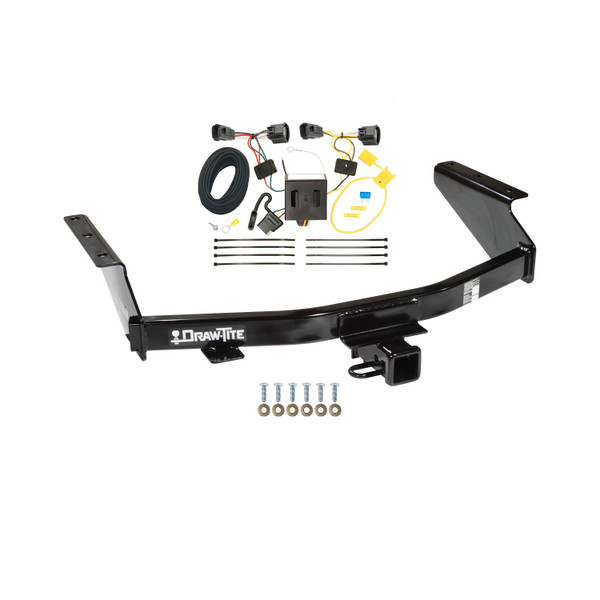

The 2007-2007 Dodge Nitro Draw-tite Class 3 Trailer Hitch, 2 Inch Square Receiver Bundle w/ Plug-n-Play T-One Wiring Harness (Part #DTB75517-118554) fits 2007 Dodge Nitro models. The 2007 model year is the last year covered by this part number. For newer models, check for an updated version.
The 2007-2007 Dodge Nitro Draw-tite Class 3 Trailer Hitch, 2 Inch Square Receiver Bundle w/ Plug-n-Play T-One Wiring Harness (Part #DTB75517-118554) fits the following vehicles: 2007 Dodge Nitro. Always verify your specific year, make, and model before ordering.
Yes, the 2007-2007 Dodge Nitro Draw-tite Class 3 Trailer Hitch, 2 Inch Square Receiver Bundle w/ Plug-n-Play T-One Wiring Harness (Part #DTB75517-118554) is designed to fit the 2007 Dodge Nitro.
The 2007-2007 Dodge Nitro Draw-tite Class 3 Trailer Hitch, 2 Inch Square Receiver Bundle w/ Plug-n-Play T-One Wiring Harness (Part #DTB75517-118554) Refer to the included instructions for installation details. Basic hand tools are typically all you need.
Part number 75517 is a hitch assembly for the Dodge Nitro. The hitch comes with six M12 X 1.75 X 40mm Class 8.8 hex bolts and six conical toothed washers. The fastener kit is part number 75517F. The hitch requires a 5/8" pin and clip (sold separately). The hitch is designed for weight carrying or weight distributing applications depending on the ball mount used.
Yes, part number 75517 is designed specifically for the Dodge Nitro. The hitch mounts between the frame and the driver's side vehicle support bracket.
For vehicles equipped with a full-size spare tire, it may be necessary to temporarily lower the spare tire during installation. After the hitch is installed and positioned, the spare tire can be raised back to its normal position.
You will need wrenches in 18mm and 19mm sizes and a torque wrench. No drill bits are required—no drilling is necessary for this installation.

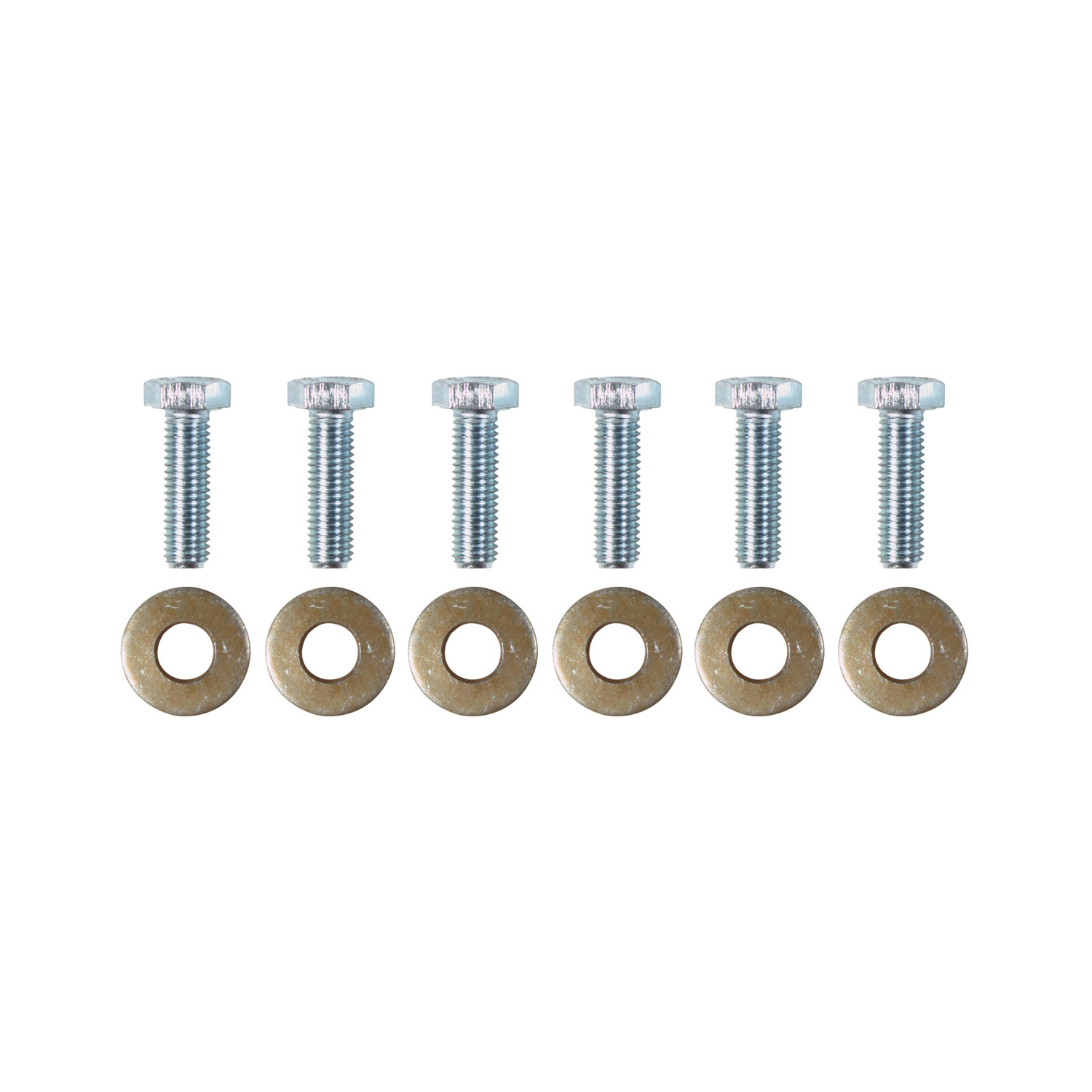

The hitch includes six M12 X 1.75 X 40mm Class 8.8 hex bolts and six conical toothed washers (1/2" size). These fasteners are part of fastener kit 75517F. The hitch also requires a 5/8" pin and clip, which must be purchased separately.
Yes. You must remove the bolt from the driver's side vehicle support bracket and return it to the vehicle owner. For vehicles with a full-size spare tire, you may need to temporarily lower the spare tire to allow the hitch to be positioned properly.
1. Remove the bolt from the driver's side vehicle support bracket and return it to the vehicle owner. 2. Raise the hitch into position. 3. Position the hitch between the frame and support bracket (driver's side) and loosely install the six M12 bolts with conical toothed washers. 4. Tighten all fasteners to 75 Lb-Ft (102 N·M) using a torque wrench. 5. Raise the spare tire if it was lowered in step 2.
All M12 Class 8.8 fasteners must be tightened to 75 Lb-Ft (102 N·M) using a torque wrench.
The maximum towing capacity depends on the ball mount type and your vehicle's manufacturer rating. For weight carrying ball mounts: maximum tongue weight is 500 lbs (227 kg) and maximum gross trailer weight is 5,000 lbs (2,268 kg). For weight distributing ball mounts: maximum tongue weight is 600 lbs (272 kg) and maximum gross trailer weight is 6,000 lbs (2,721 kg). Do not exceed the lower of your Dodge Nitro's manufacturer rating or these limits.
Observe safety precautions when working beneath a vehicle and wear eye protection. Do not cut access or attachment holes with a torch. If the hitch is removed, plug all holes in the trunk pan or other body panels to prevent entry of water and exhaust fumes. A hitch or ball that has been damaged should be removed and replaced immediately.
Check the hitch frequently to ensure all fasteners and the ball are properly tightened. Verify that all six M12 bolts are secure and that the ball mount is tight before towing.
Check the hitch frequently, making sure all fasteners and the ball are properly tightened. The manual does not specify an exact interval, but regular inspection before towing is recommended.
Yes, part number 75517 is designed for the Dodge Nitro. For full-size spare tire equipped vehicles, you may need to temporarily lower the spare during installation.
You need 18mm and 19mm wrenches and a torque wrench. No drilling is required.
Tighten all M12 Class 8.8 bolts to 75 Lb-Ft (102 N·M) using a torque wrench.
Weight carrying: 500 lbs tongue weight, 5,000 lbs gross trailer weight. Weight distributing: 600 lbs tongue weight, 6,000 lbs gross trailer weight. Do not exceed your vehicle manufacturer's rating.
Yes, remove the bolt from the driver's side vehicle support bracket and return it to the vehicle owner. Temporarily lower the spare tire if your Nitro has a full-size spare.
Yes, this T-Connector is designed for Dodge Nitro and Jeep Liberty vehicles. The manual does not specify model years, trim levels, or other variations that may affect fitment, so verify your specific vehicle configuration before purchasing.

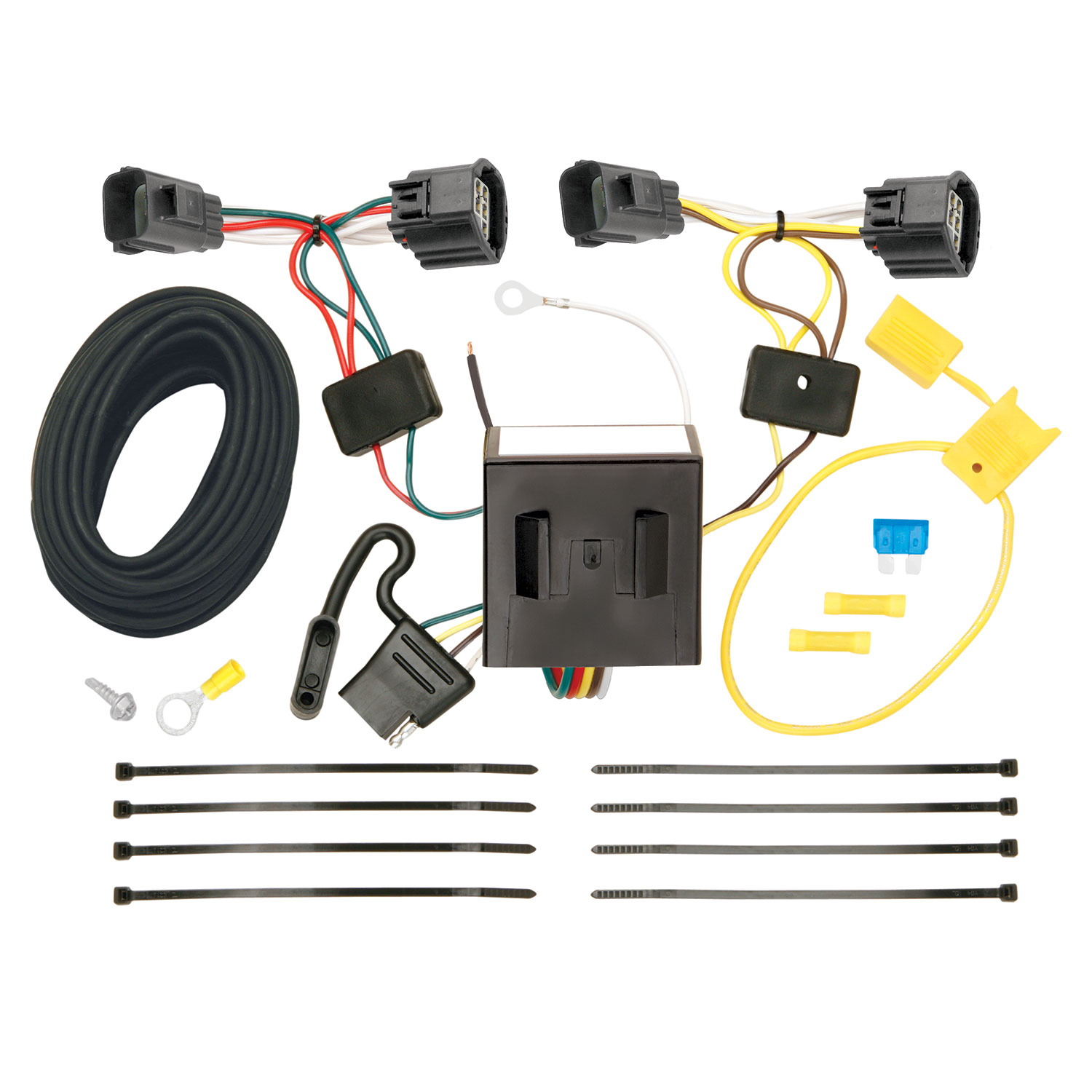

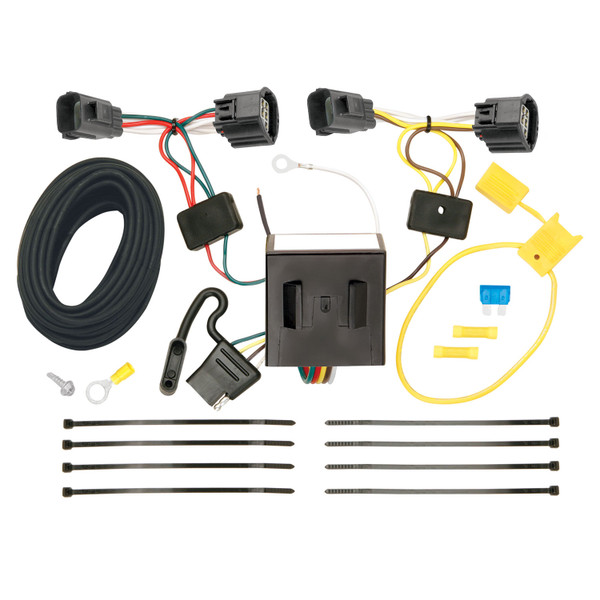

The T-Connector is a trailer wiring converter that allows you to connect a trailer to your Dodge Nitro or Jeep Liberty. It converts the vehicle's taillight signals to a 4-flat trailer connector. The system includes a converter box, wiring harness with color-coded ends, fuse holder, and connectors.
You will need: a drill with 3/32" drill bit, Phillips head screwdriver, trim panel remover, wire crimpers, wire cutters, and a test probe. These tools are required to remove taillight assemblies, drill the ground wire hole, and make electrical connections.
The kit includes: a yellow fuse holder with 10 amp fuse, yellow butt connectors, a ring terminal, a white eyelet and screw for grounding, double-sided tape for the converter box, cable ties for securing the harness, and a T-Connector harness with color-coded ends (yellow, green, and black wires) plus a 4-flat connector. A bracket for the 4-flat connector is not included.
Yes. You must disconnect the vehicle's negative (-) battery cable before beginning installation. After completing the wiring connections, you will reconnect the negative battery cable and install the 10 amp fuse into the fuse holder.
Open the tailgate and locate the two clips holding each taillight assembly in place. Remove both clips, then carefully pry the housing away from the vehicle body, taking care not to break the alignment tabs. Repeat this process for both the right and left side taillight assemblies.
The T-Connector end with the yellow wire plugs in between the mating plugs on the driver's side taillight socket and the vehicle wiring harness. This connection is made after disconnecting the vehicle wiring harness from the taillight socket.
From the driver's side, route the T-Connector end with the green wire and the 4-flat connector down through the opening between the vehicle bumper and body. Route the green wire end to the passenger's side and route the 4-flat underneath the bumper. Then route the green wire end up through the opening on the passenger side. Repeat the connection process on the passenger side taillight.
Yes. You must drill a 3/32" hole to secure the white ground wire. Locate a suitable grounding point near the connector (do not drill into the vehicle floor or bed), clean dirt and rustproofing from the area, drill the hole, and secure the white wire using the eyelet and screw provided.
Before drilling, verify what is behind the surface to avoid damage to the vehicle and personal injury. Do not drill into any exposed surfaces or into the vehicle floor or bed. Clean dirt and rustproofing from the area before drilling the 3/32" hole for the ground wire.
Disconnect the vehicle's negative battery cable first. Remove the fuse from the yellow fuse holder (if not already removed). Cut the fuse holder wire, attach the ring terminal to the vehicle's positive (+) battery cable, and connect the other end of the fuse holder to the black 12 gauge wire using the yellow butt connector provided. After all wiring is complete, reconnect the negative battery cable and install the 10 amp fuse into the fuse holder.
The black power wire is 12 gauge (12 ga.). A 10 amp fuse is installed in the yellow fuse holder provided with the kit.
Beginning from the front of the vehicle, route the black 12 gauge wire rearward along the frame rail. Route the wire carefully to avoid any hot pipes, heat shields, the fuel tank, or any other points that may pinch or break the wire. Continue routing to the rear driver's side and up through the opening between the vehicle rear bumper and body to access the rear driver's side taillight area.
Route the black 12 gauge wire up through the opening between the vehicle rear bumper and body on the driver's side to access the rear driver's side taillight area. Attach the black 12 gauge wire to the black wire from the T-Connector black box using the supplied yellow butt connector.
On the driver's side, locate a flat surface in an out-of-the-way place and mount the T-Connector's black converter box using the double-sided tape provided. The epoxy side of the module must point toward the ground to prevent water buildup.
Reinstall the taillight housing assemblies, positioning the vehicle wiring harness between the housing and the vehicle body. Secure the remainder of the T-Connector harness under the bumper with the cable ties provided, being careful to avoid any areas that would cut or pinch the wire.
Mount the 4-flat connector in a suitable location under the vehicle. A bracket is not included with the kit, so you will need to source and install an appropriate bracket separately.
Always wear safety glasses during installation. Read and follow all warnings and cautions printed on the tow vehicle's battery. Do not exceed the lower of the towing manufacturer rating (including in your vehicle owner's manual) or the specific amperage ratings stated on the product. Overloading circuits can cause fires. Route wires carefully to avoid hot pipes, heat shields, the fuel tank, and pinch points.
All connections must be complete for the T-Connector to function properly. Test and verify the installation with a test light or trailer once installed. Ensure the 10 amp fuse is installed in the fuse holder and all wire connections are secure before testing.
Do not exceed the lower of the towing manufacturer rating (including in your vehicle owner's manual) or the specific amperage ratings stated on the product. The kit includes a 10 amp fuse, which provides circuit protection. Consult your vehicle owner's manual and the product documentation for the specific amperage rating applicable to your vehicle.
Yes, the T-Connector part 118554-037 is designed for Dodge Nitro and Jeep Liberty vehicles. Verify your specific vehicle configuration before purchasing.
You need a drill with 3/32" bit, Phillips screwdriver, trim panel remover, wire crimpers, wire cutters, and a test probe.
Yes, disconnect the negative battery cable before starting installation. Reconnect it after all wiring is complete and the 10 amp fuse is installed.
A 10 amp fuse is installed in the yellow fuse holder provided with the kit.
Do not exceed the lower of the towing manufacturer rating (in your vehicle owner's manual) or the specific amperage ratings stated on the product. The kit includes a 10 amp fuse for circuit protection.
No, a bracket is not included. You must source and install an appropriate bracket separately to mount the 4-flat connector under the vehicle.
Verify that all connections are complete and secure. Check that the 10 amp fuse is installed in the fuse holder. Ensure the yellow wire is properly connected between the driver's side taillight socket and vehicle wiring harness, and the green wire is properly connected on the passenger's side. Test with a test light or trailer to verify proper function.
The converter box is mounted incorrectly. The epoxy side of the module must point toward the ground to prevent water buildup. Remount the converter box so that the epoxy side faces downward.
Reroute the wiring to avoid hot pipes, heat shields, the fuel tank, and any other pinch points. Secure the harness under the bumper with the cable ties provided, being careful to avoid areas that would cut or pinch the wire. Ensure the black 12 gauge wire is routed along the frame rail from the front of the vehicle to the rear.
